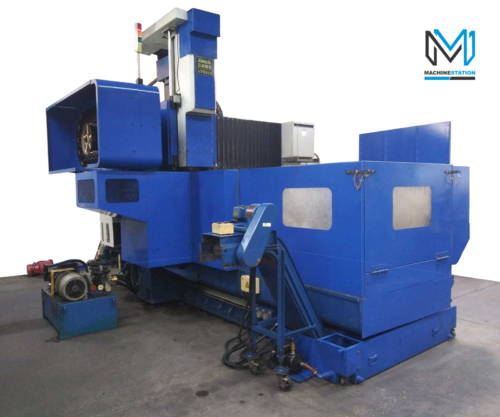

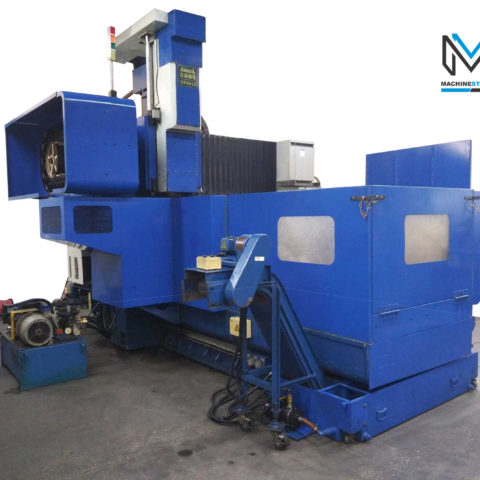

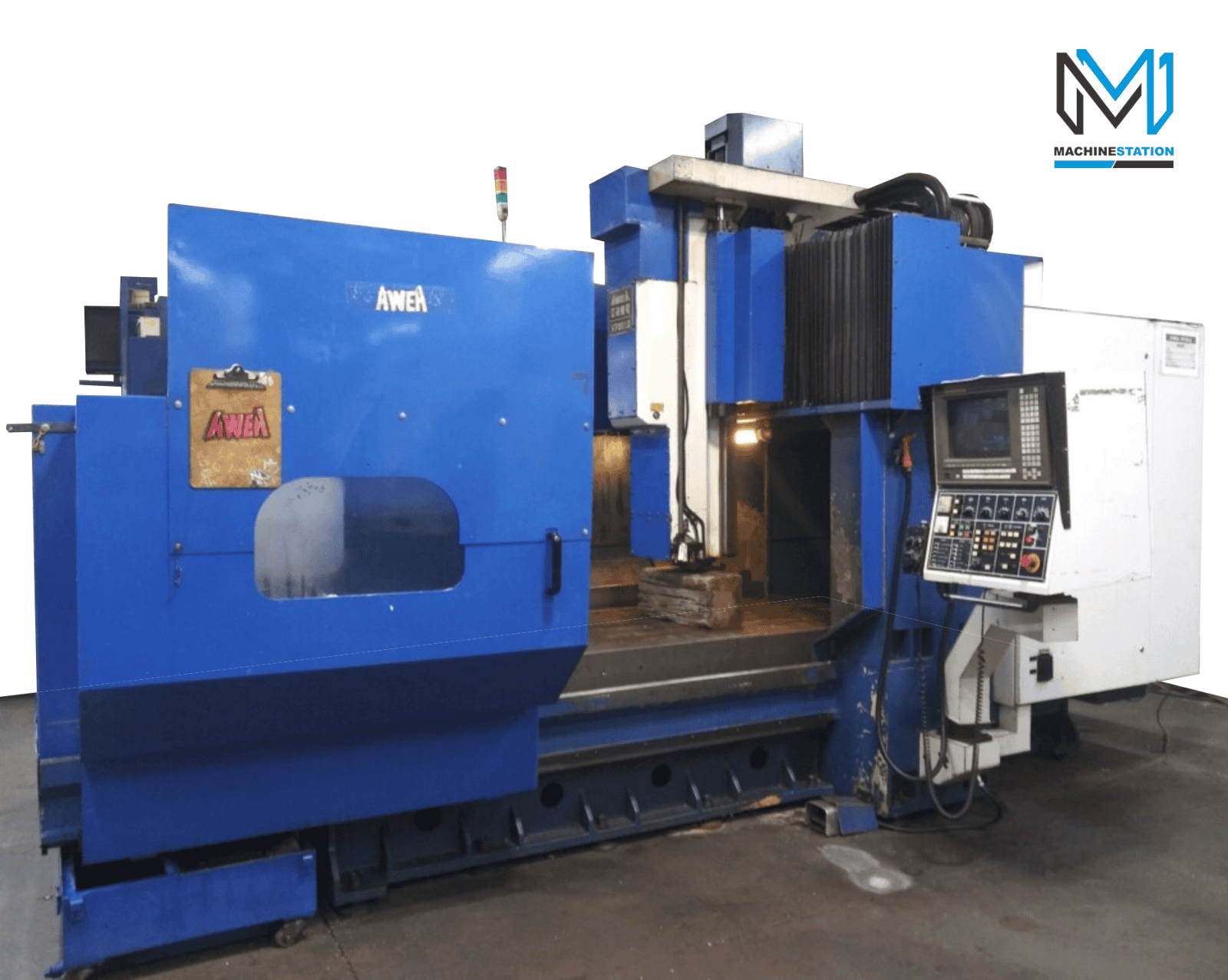

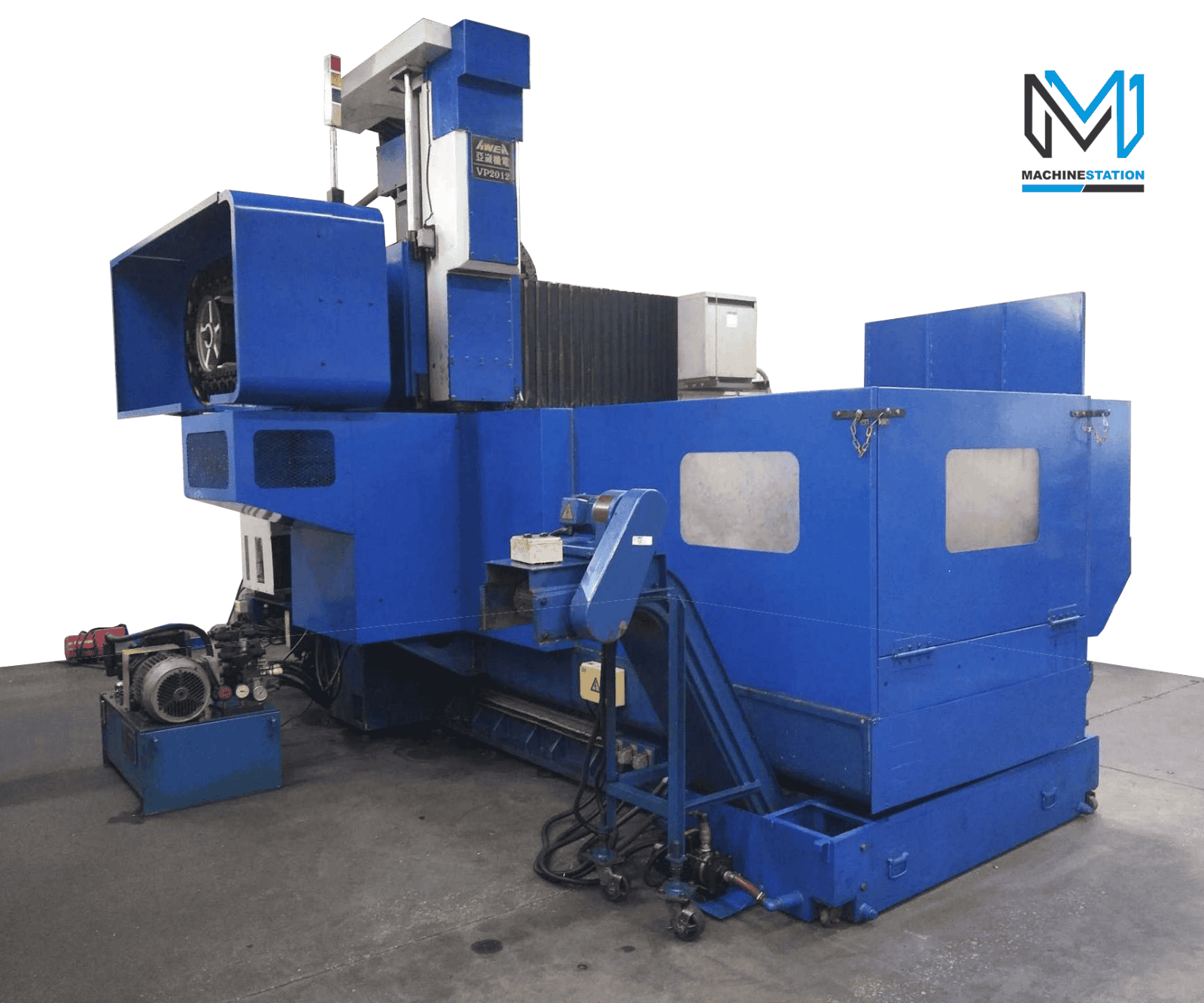

Used Awea VP-2012 CNC Vertical Gantry Bridge Mill

Awea VP-2012 CNC Vertical Gantry Bridge Mill

SKU 2145

Make AWEA

Model No. VP 2012

Year 2000

Serial # 132

Condition Very Good

Out of stock

SKU	2145
Make	AWEA
Model No.	VP 2012
Year	2000
Serial #	132
Condition	Very Good

SKU: 2145

All specifications are approximations and are subject to verification.

Equipped With:

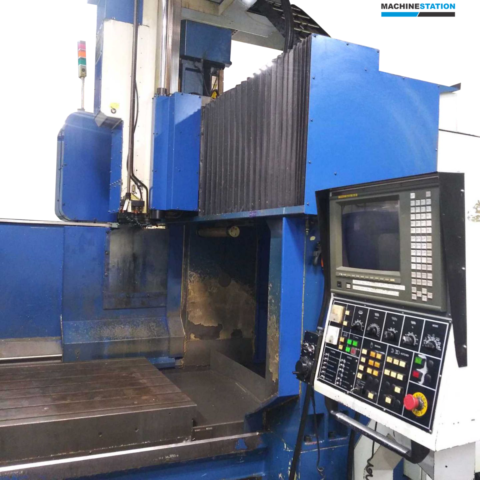

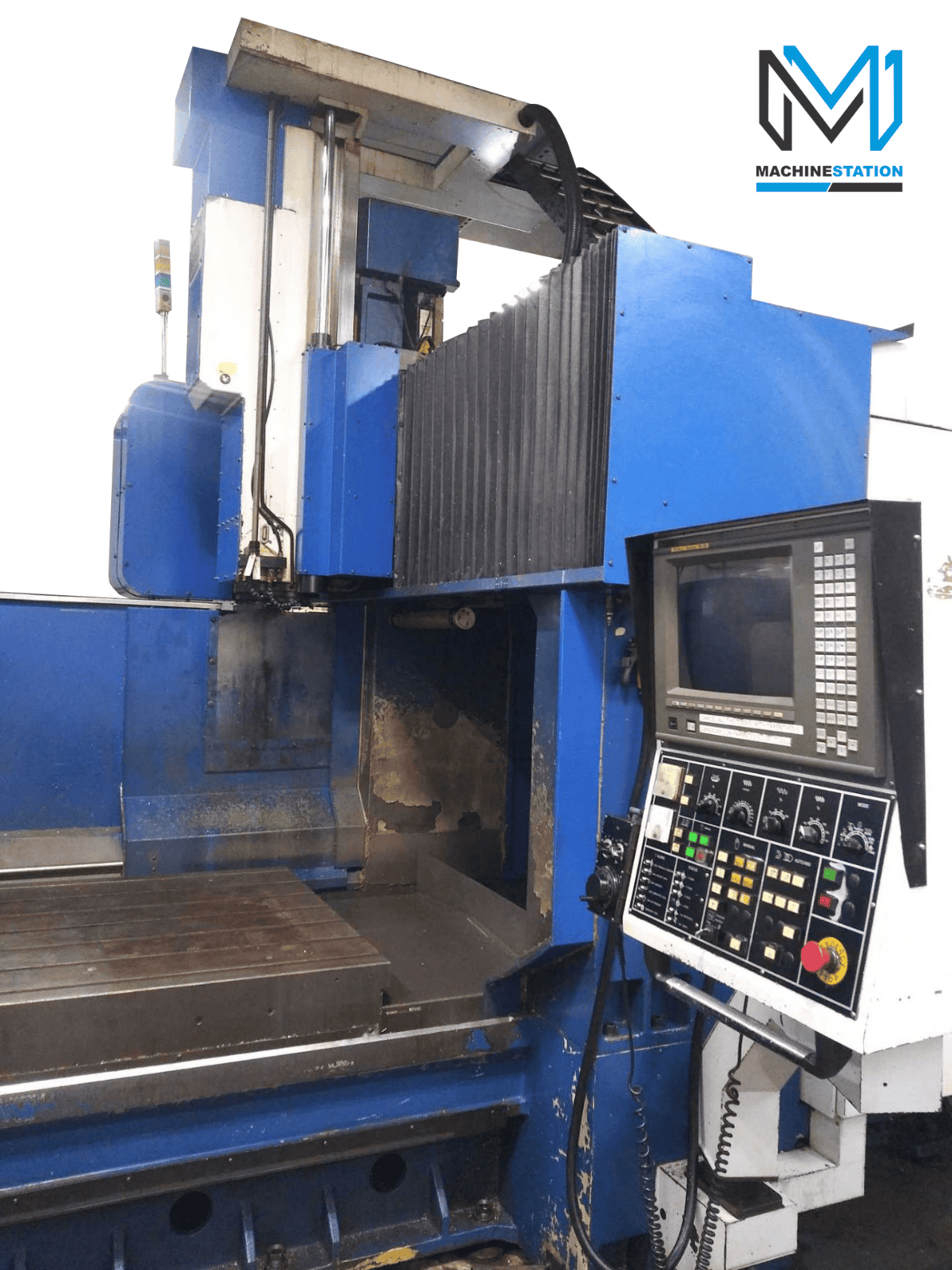

Fanuc Series 18M CNC control
30 Station Tool Changer
50 Taper Geared Head
5000 RPM Spindle
Powerful 35 HP high torque spindle motor
RS-232 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Flood coolant with large separate coolant tank Base
Flush Chip Disposal with Dual Auger
Chip Conveyor

Specifications:
Travels:
X-Axis: 78.75″
Y-Axis: 47.75″
Z-Axis: 30.0″
Distance Between Columns: 51.5″
Spindle Nose to Table (Min.- Max.):

Table:
Length: 96″
Width: 60″
T-Slot: 0.87″ Wide X 20 X 7.87″
Max Weight on Table: 33,000 lbs

Spindle:
Taper Size: 50
Speed Range: 5000 RPM
Spindle Power: 35 HP
Feed rates: Rapid X,Y & Z: 590 inch per minute
Cutting Feedrate: .04″ – 376″ inch per minute

Automatic Arm Type Tool Changer:
50 Taper
Capacity: 30
Max Tool Weight: 43 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5.2 – 7.7″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase, 65 Kva
Floor Dimensions: 18.6″ X 10″ x 10.9″ High
with Hydraulic Unit, Chip Conveyor, Chiller unit
Weight: 40,600 lbs.
