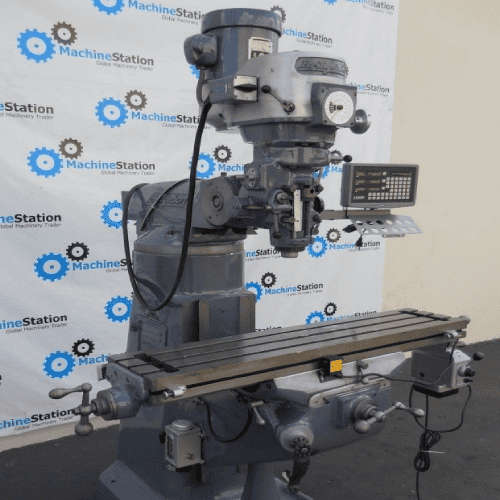

BRIDGEPORT VERTICAL MILLING
Model #: Series I
Serial #: 12/BR 99985
Country of Origin: USA
“This machine has been fully powered / tested & is in Great working condition.Installed Brand New DRO, Powerfeed and Lubrication Pump.”
BRIDGEPORT VERTICAL MILLING Features:
- Chrome Ways.
- Infinitely Variable Spindle Speeds.
- New Sharp 3 Axis DRO Unit, X & Y installed.
- New Power feed on X axis
- New Lubrication Pump
BRIDGEPORT VERTICAL MILLING Specifications:
Surface Area: 42″ x 9″
T-Slot Center Distance: 3 @ 2.5″ centers
T-Slot Sizes: 0.625″
Maximum Weight of Workpiece: 750 lbs.
X-Axis Table Travel: 30″ (26″ with power feed)
Y-Axis Table Travel: 12″
Z-Axis Table Travel (knee): 16″
Quill Travel: 5″
Ram Travel: 12″
Spindle Taper: R8
Spindle Diameter: 1.875″
Quill Diameter: 3.375″
Distance Spindle to Table (minimum / maximum): 2-1/2″ to 18-1/4″
Distance Spindle to Column (minimum / maximum): 6-3/4″ to 18-3/4″
Speeds: 60 to 4,200 RPM
Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev
Motor: 1.5 Horsepower, 230 / 460 Volt, 1,730 RPM, 4.4 / 2.2 Amps, 60 Hz
Head Swivel: 360 degrees
Head Cant: 45 degrees
Head Tilt: 90 degrees
Electrical: 230 / 460 Volt, Three Phase
Overall Dimensions: 58″ x 64″ x 84″ tall
BRIDGEPORT VERTICAL MILLING SERIES I and Comes as shown in pictures.
