All specifications are approximations and are subject to verification.

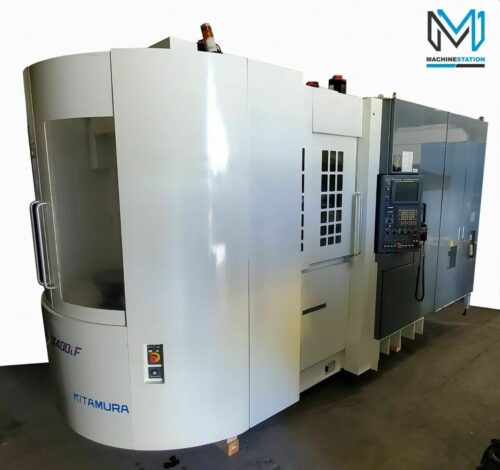

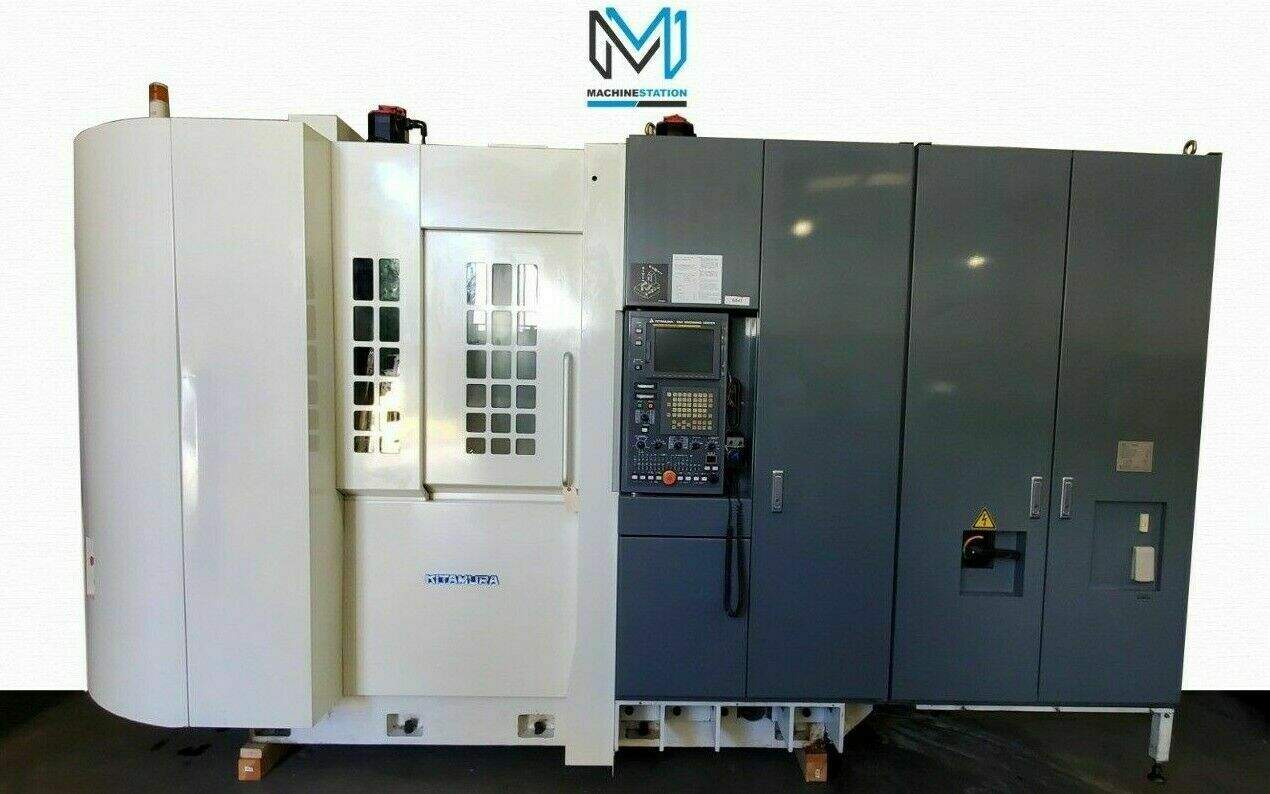

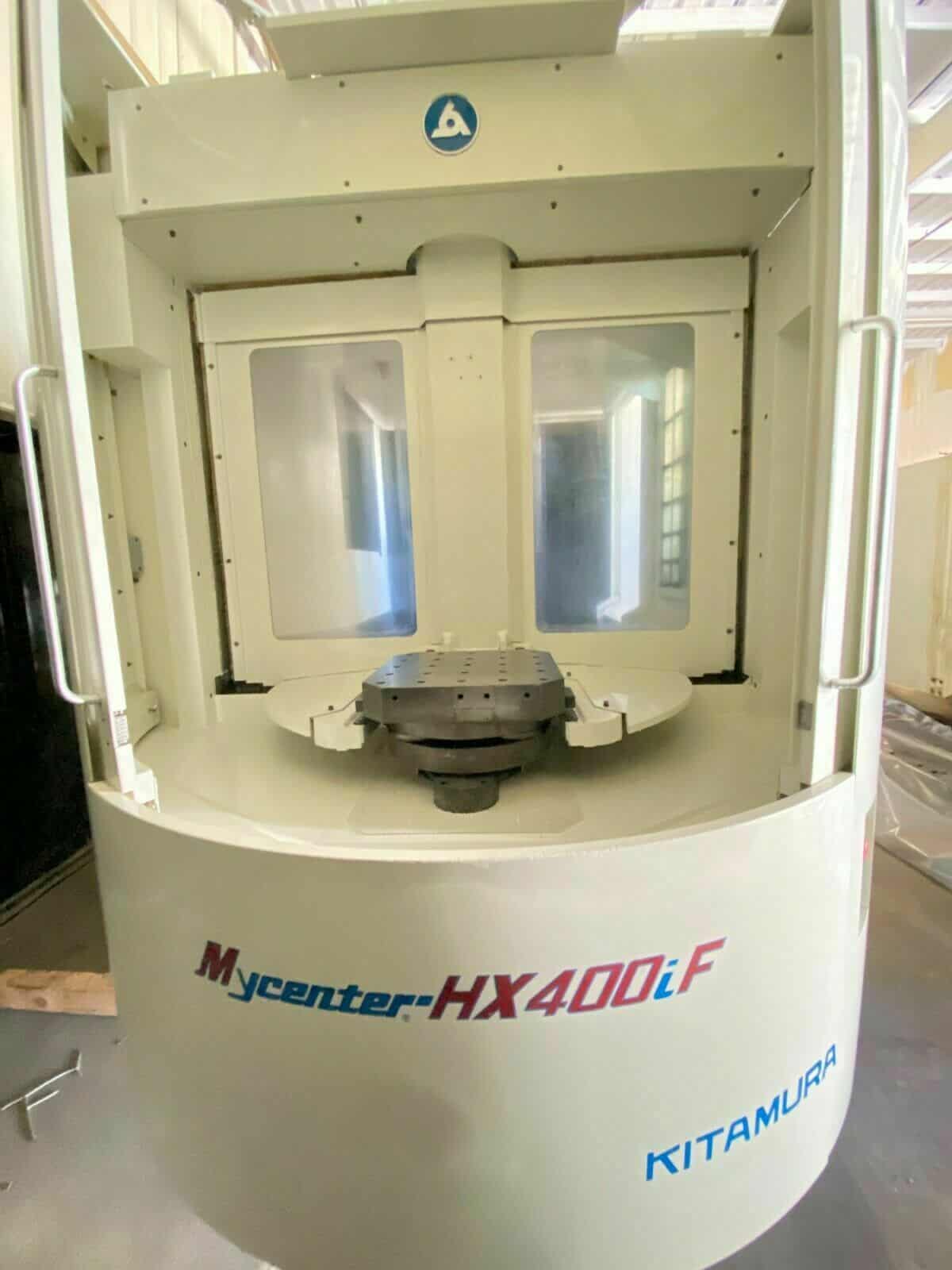

| Kitamura HX 400IF Horizontal Machining Center Features: |
|---|

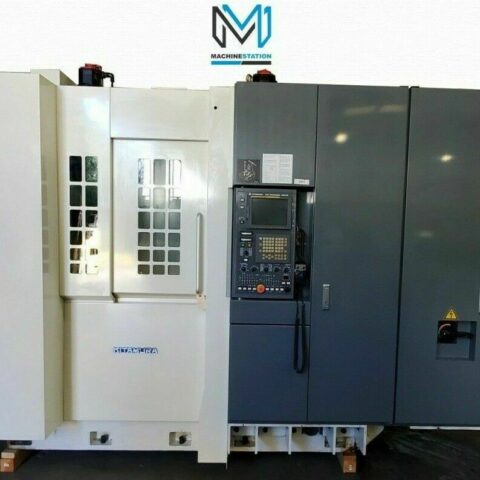

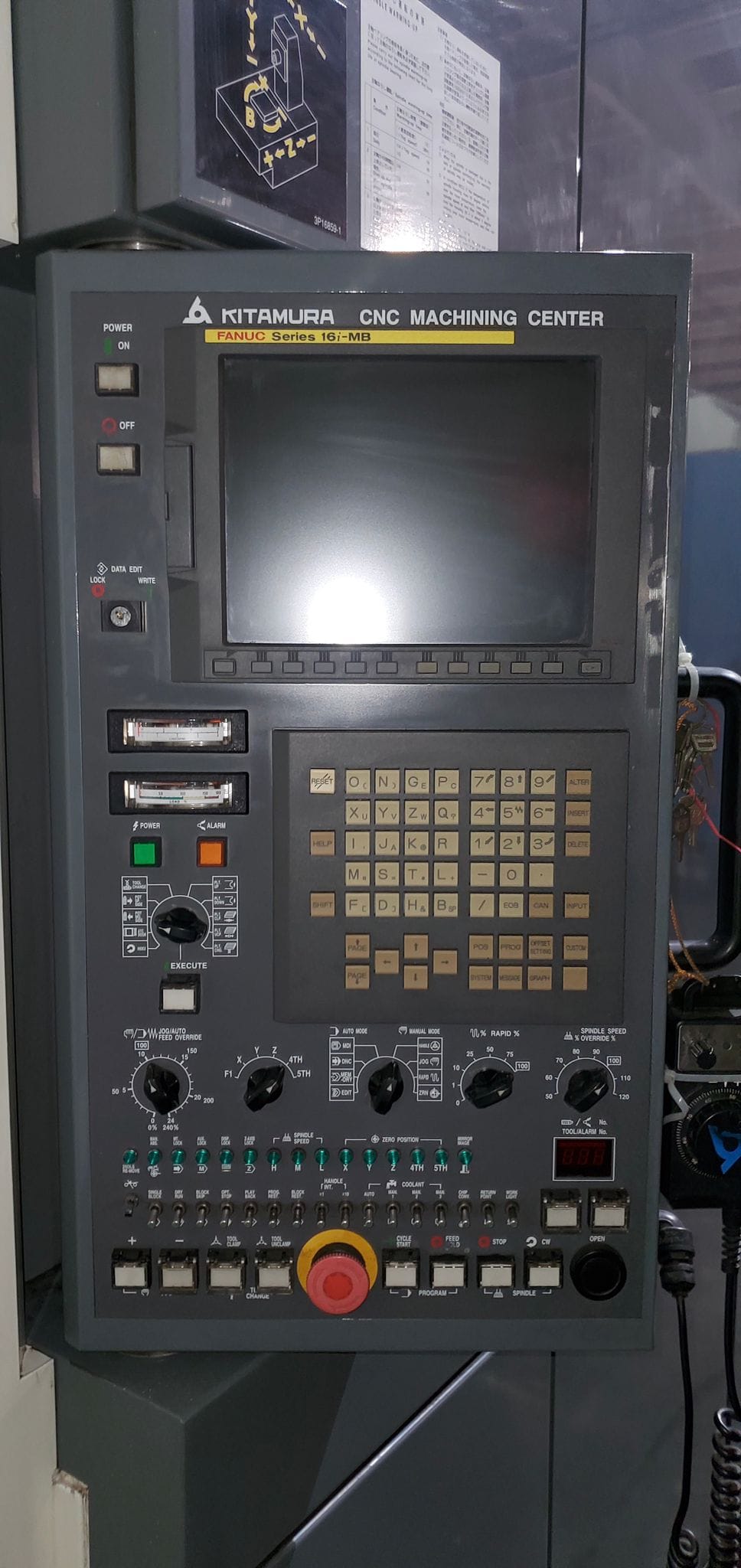

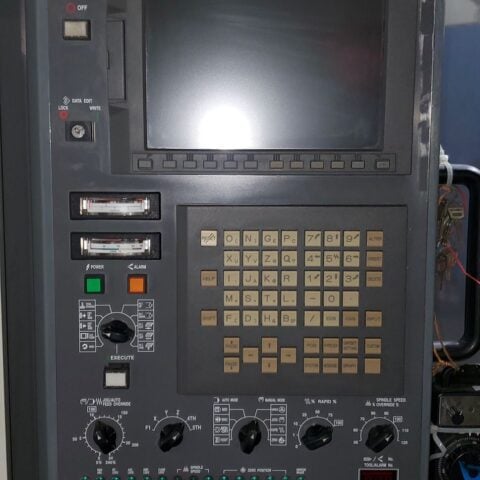

| Fanuc 16iMB CNC Control w/10.4 Color LCD |
| Full 4th Axis |
| 13,000 RPM Geared Head Spindle |
| Through Spindle Coolant |

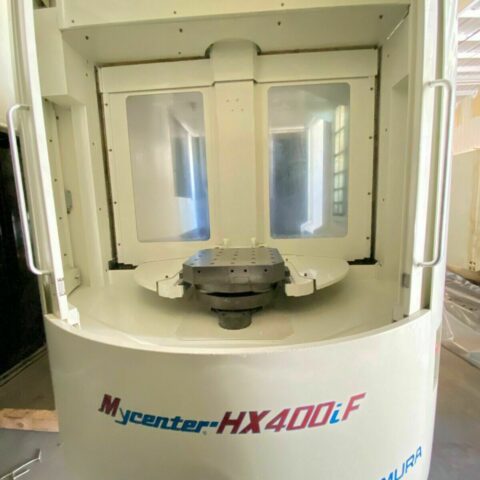

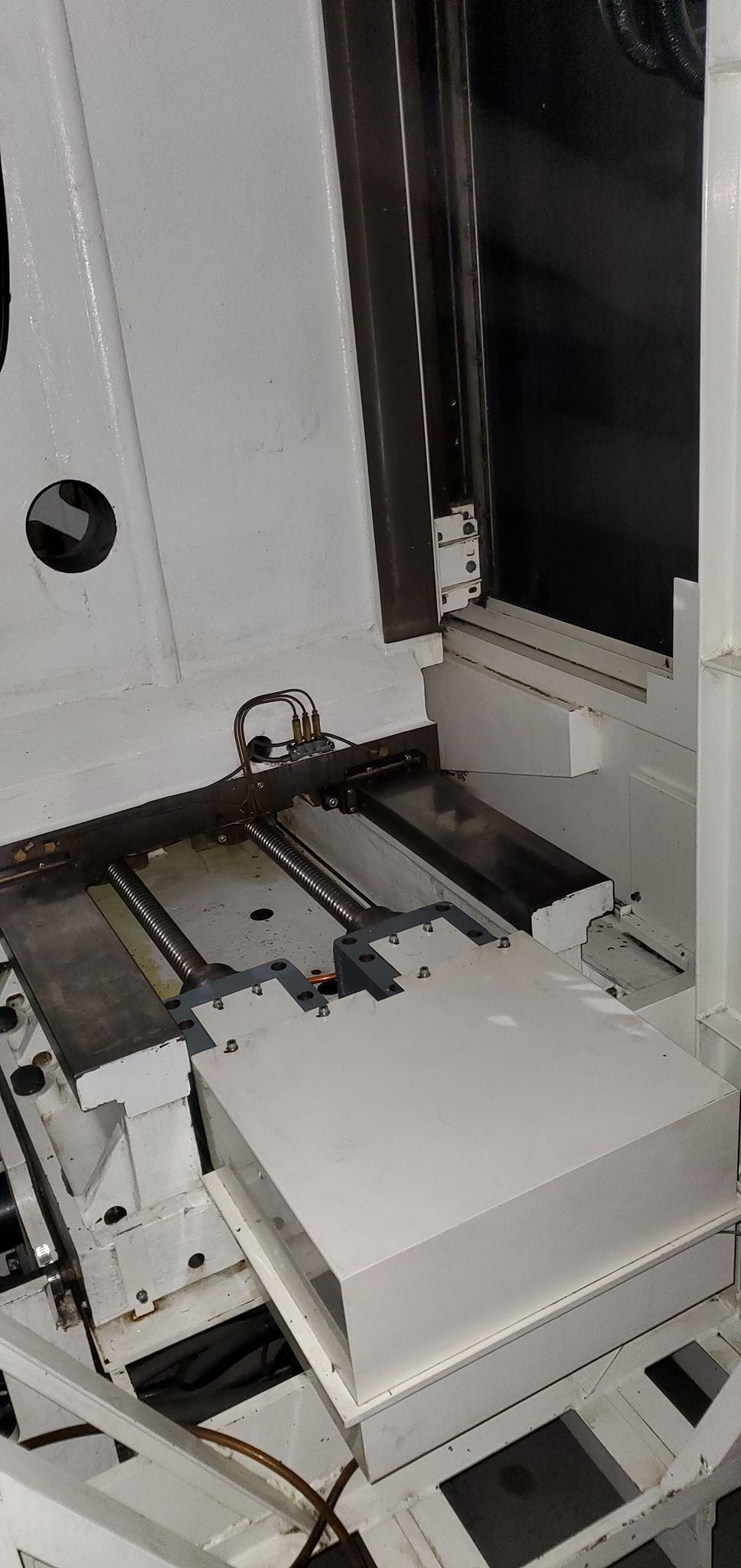

| Twin Pallet Changer |
| 90 High Speed Tool Changer (Option ) |
| Scales on the Axis |
| PCMCIA Card Slot |
| MPG Control |
| 50 MB Memory |
| Overhead Shower Coolant |
| Spindle Orientation |
| Rigid Tapping |
| Custom Macros |
| Fast Rapid Traverse Rate |

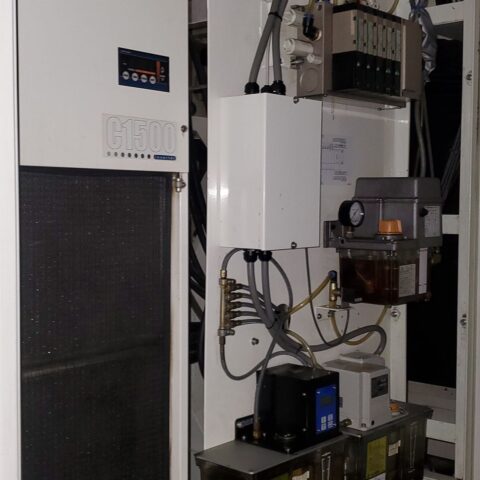

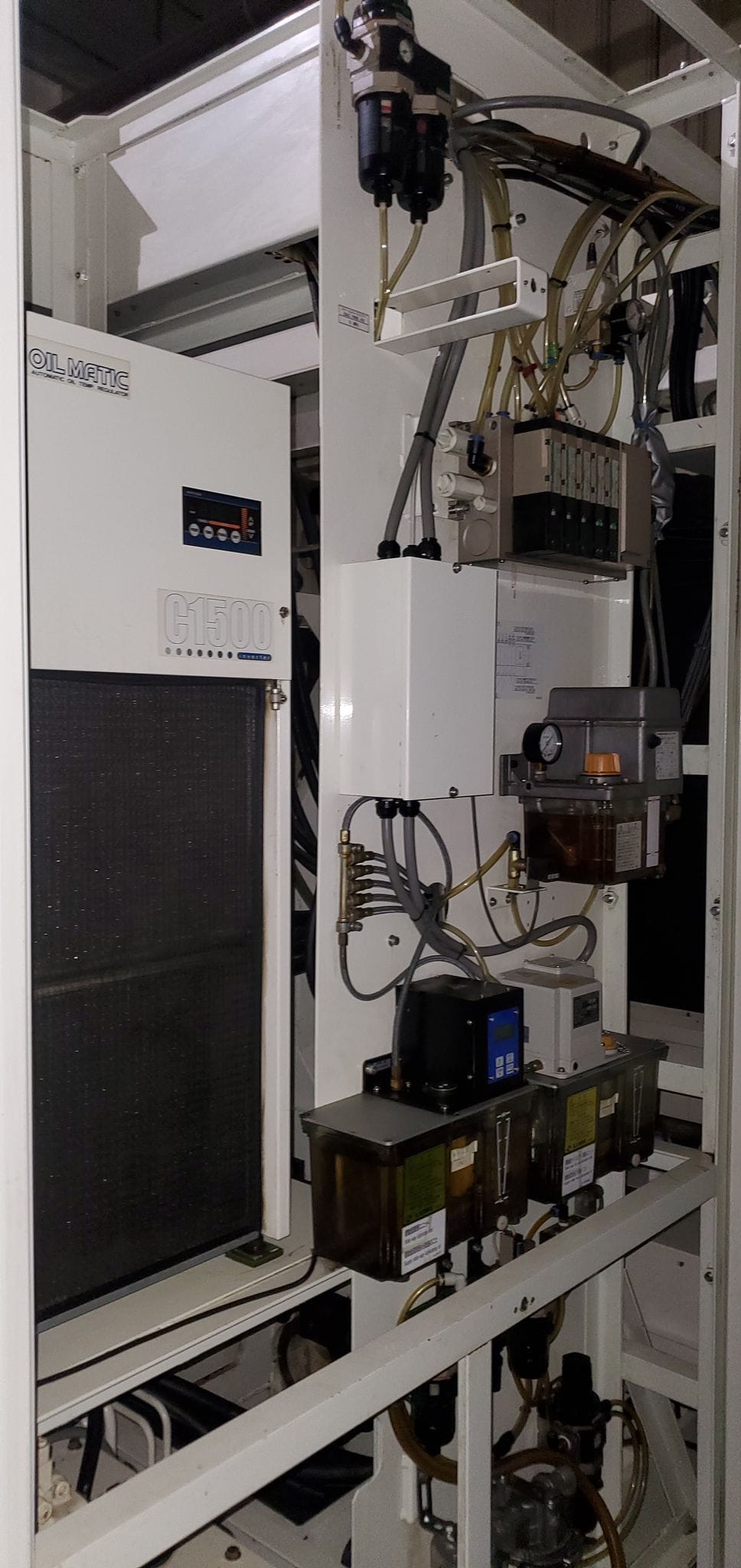

| Spindle Chiller |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Kitamura HX 400IF Horizontal Machining Center Specifications: |
|---|
| Travels: |
| X Axis: 28.93″ |
| Y Axis: 24.01″ |
| Z Axis: 24.01″ |
| B Axis: 0.001° ( Full 4th ) |
| Table: |
|---|
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 882 lbs |
| Max Workpiece Dia: 27.5″ |
| Max Workpiece Height: 37.8″ |
| Index Time: 6 seconds |
| Spindle: |
|---|
| Taper Size: CAT 40 Big Plus |
| Max. Speed: 13,000 RPM |
| Power: 30 HP |
| Torque: 76.7 ft/lbs |
| Feed rates: |
|---|
| Rapid X & Y : 1968 Inch Per Minute |
| Rapid Z : 1968 Inch Per Minute |
| Cutting Feedrate: 984 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 90 Tools |
| Taper: 40 |
| Max Tool Size: 5.9″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: 0.9 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Overall Dimensions: 165″ X 105″ x 120″ High ? |
| Weight: 28,700 lbs |
