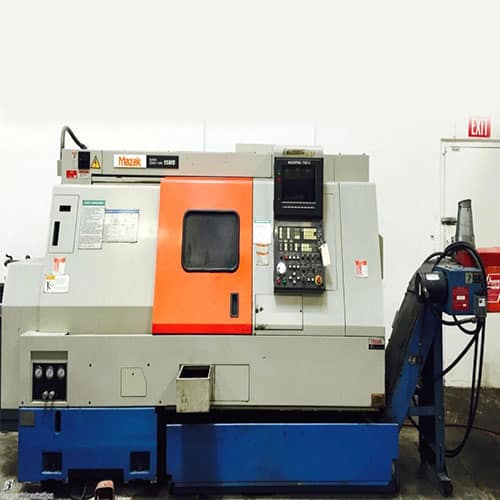

MAZAK SQT 15MS CNC TURNING CENTER

PRICE REDUCED TO MOVE!!

Out of stock

Product Description


MAZAK SQT 15MS CNC TURNING CENTER

Make: Mazak
Model #: SQT-15MS
Serial #: 111873
Date of Manufacture: 10/1994
County of Origin: USA
Condition: Great

PRICE REDUCED TO MOVE!!


MAZAK SQT 15MS Features:

  • Mazatrol T32-3 Control.
  • Bijur Lubrication System.
  • Chip Conveyor.
  • Coolant System.
  • 12-Station Turret.
  • Sub-Spindle.
  • Kitagawa B-208 Power Chuck on Main Spindle.
  • Kitagawa B-206 Power Chuck on Sub Spindle.
  • Tool Presetter.
  • Includes all holders shown in photos, including 3 live tools.

MAZAK SQT 15MS Specifications:

Capacities:
Maximum Swing: 20.91″
Maximum Machining Diameter: 11.81″
Maximum Machining Length: 20.90″
Maximum Bar Work Diameter: 2″

Travels:
X-Axis: 7.125″
Z-Axis: 22.75″

Main Spindle:
Spindle Bore Diameter: 2.4″
Spindle Speeds Range: 35 to 5,000 RPM
Spindle Motor: 20 Horsepower (subject to verification)

Sub Spindle:
Sub Spindle Speeds Range 180 to 6,000 RPM
Sub Spindle Rapid Traverse Rate: 708 IPM
Sub Spindle Motor: 10 Horsepower (subject to verification)

Turret:
Turret Type: Dodecagonal Drum
Turret Tool Capacity: 12
Turret Index Time (1 Step / Full Step): 0.5 seconds / 1.4 seconds
Rotary Tools Speed Range (Live Tools): 120 to 3,000 RPM
Rotary Tool Motor: 4.1 Horsepower (subject to verification)

Movement Rates:
Rapid Traverse Rate (X & Z Axes): 1,180 IPM
Rapid Traverse Rate (C-Axis): 100 RPM

General:
Machine Weight: 10,500 lbs. approx.
Electrial: 230 / 460 Volt, Three Phase, 50 / 60 Hz
Overall Dimensions: 160″ x 66″ x 75″ tall

MAZAK SQT 15MS and Comes as shown in pictures.
