| BULLARD SPIRAL DRIVE 42 VERTICAL TURRET LATHE |
|---|
| 42″ BULLARD |
| No. SPIRAL DRIVE |
| 3 JAW, SIDE HEAD |
| ANILAM DRO |
BULLARD SPIRAL DRIVE 42 SPECIFICATIONS:
- Table Diameter: 42″
- Swing: 44″
- Work Ht-U/R: 104″
- RPM: 150
- Power: 30 HP
- Dimensions: 86″ x 117″ x 104″ H
- Weight: 19,500 lbs.
- Chuck: 3 Jaw Scroll w/ T-Slots
- Swing Side Head Above Table: 45″
- Swing Side Head Below Table: 46″
- Height Under Rail: 33″
- Cross Rail Travel: 25″
- Table Speed: 8.9 to 150 Rpm
- Feeds: .005 – .500
- Main Motor: 30 HP
- Turret Head Travel Left to Right: 30 3/8″
- Turret Head Swivel: 30 Degrees
- Turret Ram Head Travel Up & Down: 27″
- Turret Head Position: 5
- Side Head Travel In & Out: 21″
- Side Head Travel Up & Down: 25

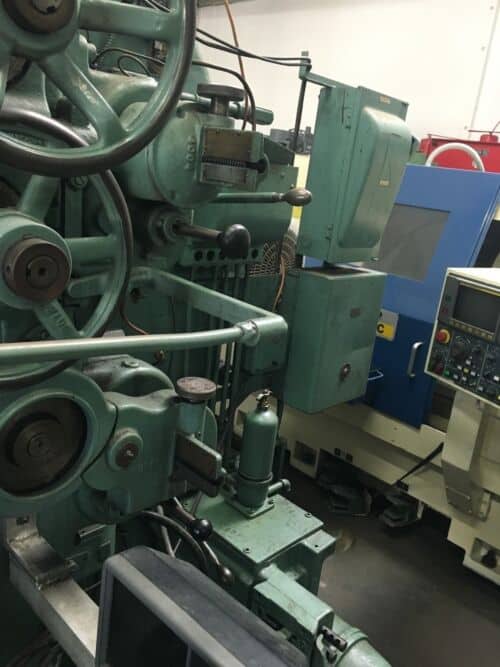

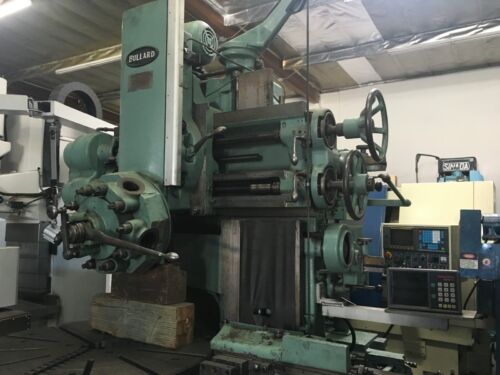

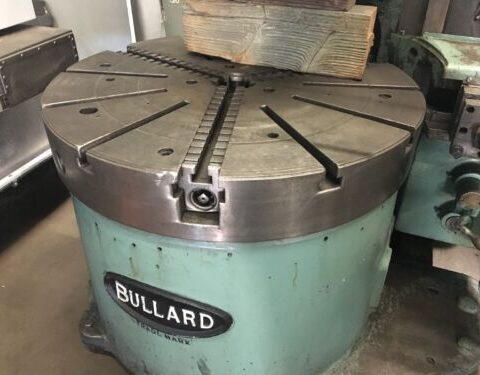

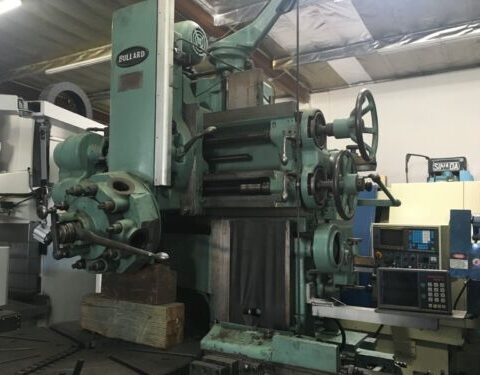

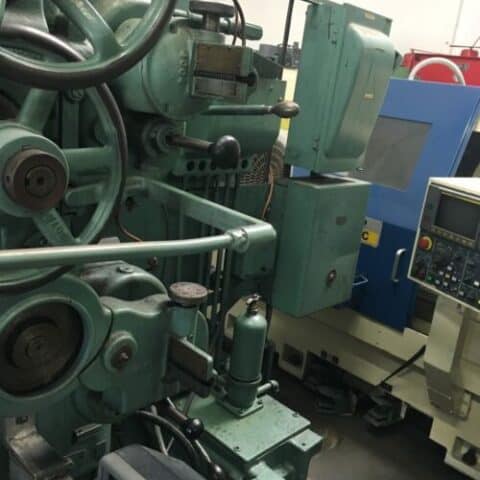

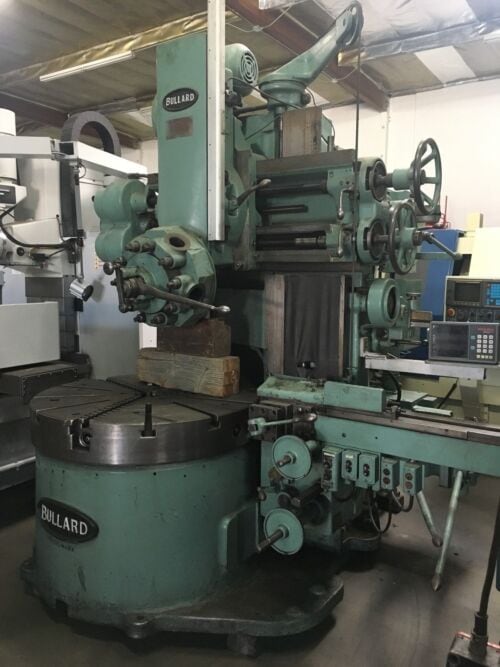

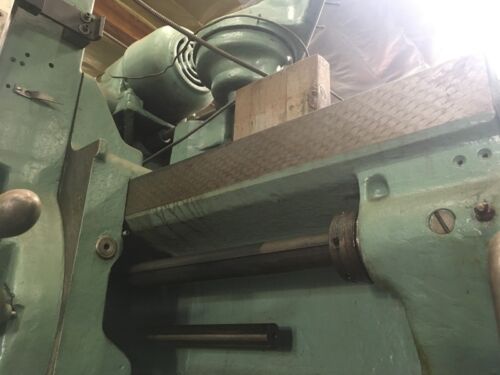

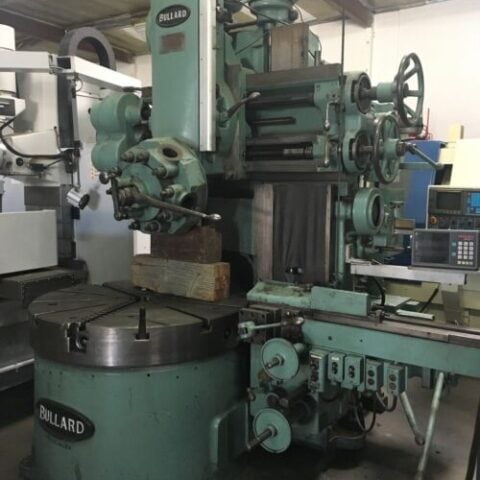

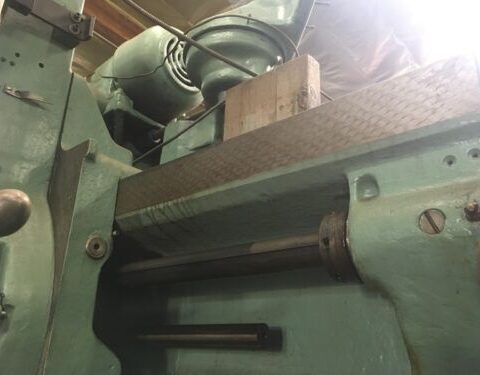

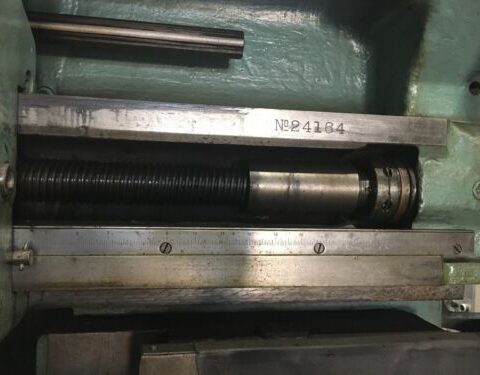

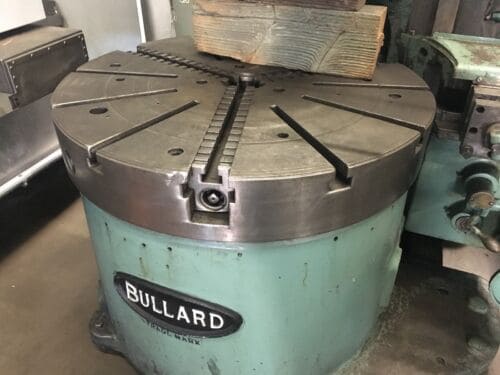

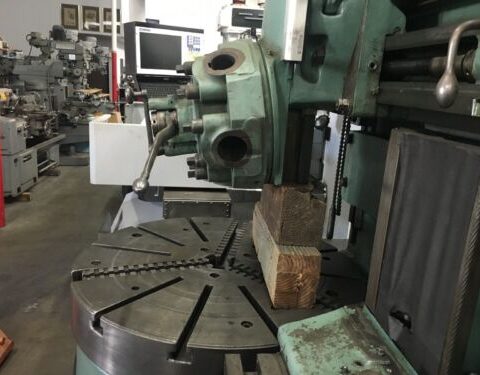

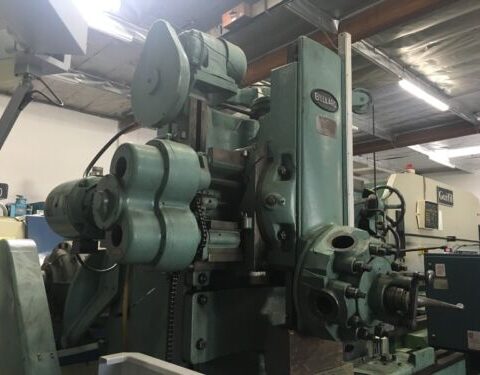

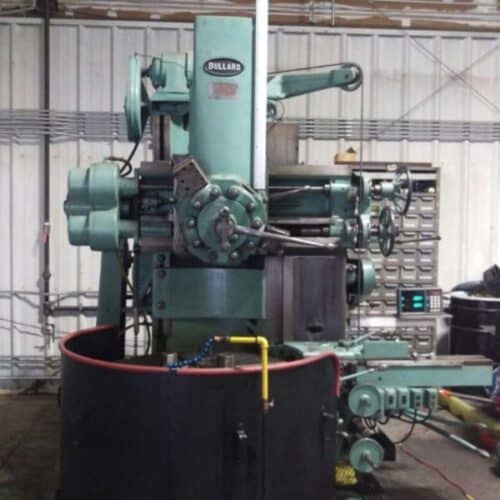

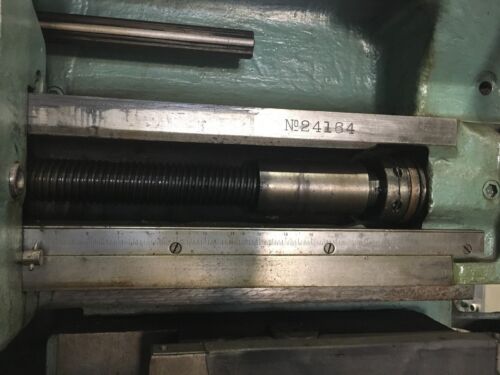

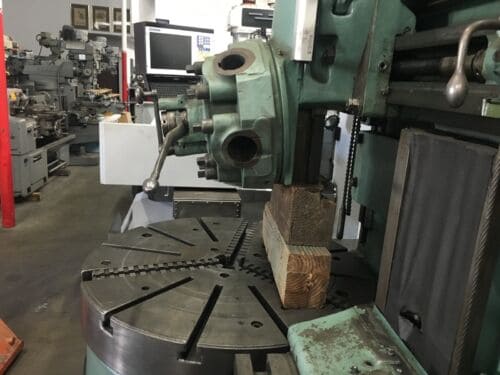

BULLARD SPIRAL DRIVE 42 as shown in Pictures
