Sold
Bulova BL2100 (2)
Bulova BL2100 (3)
Bulova BL2100 (4)

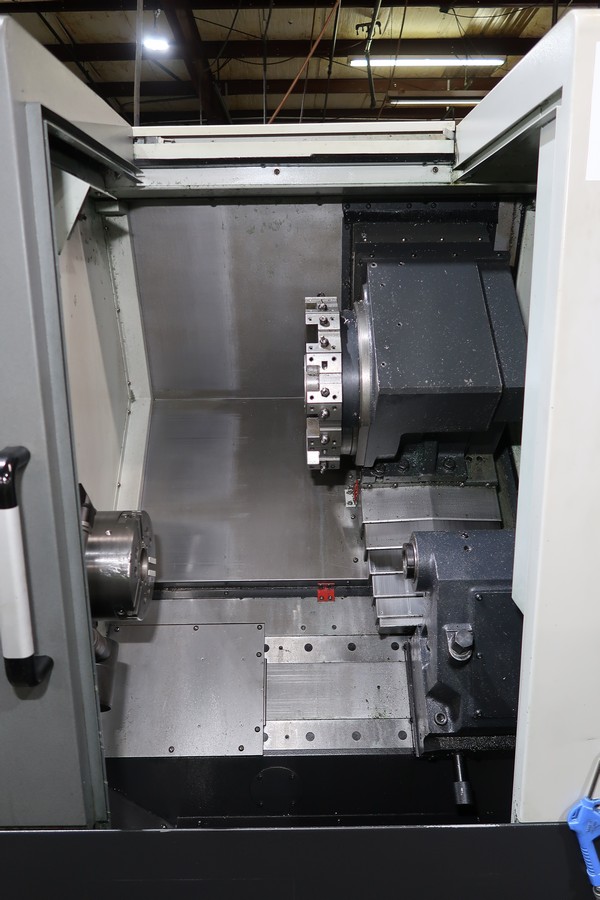

Bulova BL2100 CNC Turning Center

SKU 11739
Make/Model Bulova BL2100
Year 2015
Video On Request
Out of stock
SKU: 11739
Make/Model: Bulova BL2100
Year: 2015
Video: On Request
SKU: 11739

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Bulova
Model: BL2100
Year: 2015
Equipped With:
Mitsubishi M70 CNC Control
Samchully 8″ Hydraulic 3-Jaw Chuck
12-Station Turret
Programmable Tailstock
Automatic Tool Setter
Chip Conveyor
Hydraulic System
Automatic Lubrication System
Coolant System
Fully Enclosed Splash Guard
Foot Pedals
Work Light
Capacity:
Maximum Swing: 21″
Maximum Turning Diameter: 15″
Maximum Turning Length: 13.8″
Bar Capacity: 2.6″
Chuck Size: 8″
Travels:
X-Axis Travel: Approx. 8.3″
Z-Axis Travel: Approx. 15.7″
Rapid Traverse (X-Axis): 945 IPM
Rapid Traverse (Z-Axis): 1,181 IPM
Spindle:
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Spindle Bore: Approx. 3.0″
Spindle Nose: A2-6
Turret:
Turret Capacity: 12 Stations
Turret Type: Servo Indexing
Tool Shank Size: 1.0″
Boring Bar Capacity: 1.57″
Tailstock:
Tailstock: Programmable
Quill Diameter: 2.8″
Quill Travel: 3.9″
Tailstock Taper: MT-4
General:

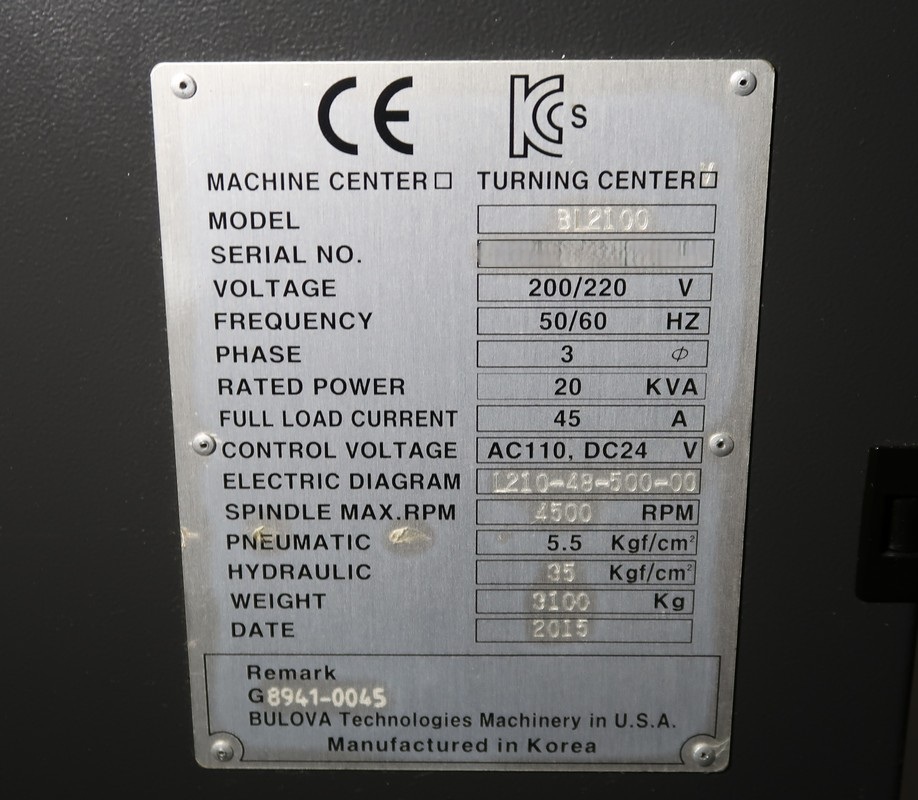

Electrical: 200/220 Volt / 3 Phase / 50/60 Hz
Rated Power: 20 kVA
Cutting Time: 6,754 Hours
Machine Dimensions (Approx.): 103″ × 67″ × 72″
Machine Weight (Approx.): 6,835 lbs
Equipped With:
Mitsubishi M70 CNC Control
Samchully 203 mm Hydraulic 3-Jaw Chuck
12-Station Turret
Programmable Tailstock
Automatic Tool Setter
Chip Conveyor
Hydraulic System
Automatic Lubrication System
Coolant System
Fully Enclosed Splash Guard
Foot Pedals
Work Light
Capacity:
Maximum Swing: 533 mm
Maximum Turning Diameter: 381 mm
Maximum Turning Length: 351 mm
Bar Capacity: 66 mm
Chuck Size: 203 mm
Travels:
X-Axis Travel: Approx. 211 mm
Z-Axis Travel: Approx. 399 mm
Rapid Traverse (X-Axis): 945 IPM
Rapid Traverse (Z-Axis): 1,181 IPM
Spindle:
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Spindle Bore: Approx. 76 mm
Spindle Nose: A2-6
Turret:
Turret Capacity: 12 Stations
Turret Type: Servo Indexing
Tool Shank Size: 25 mm
Boring Bar Capacity: 40 mm
Tailstock:
Tailstock: Programmable
Quill Diameter: 71 mm
Quill Travel: 99 mm
Tailstock Taper: MT-4
General:
Electrical: 200/220 Volt / 3 Phase / 50/60 Hz
Rated Power: 20 kVA
Cutting Time: 6,754 Hours
Machine Dimensions (Approx.): 2,616 mm × 1,702 mm × 1,829 mm
Machine Weight (Approx.): 6,835 lbs
CategoriesCNC Lathes & Turning Centers
MakeBulova
ModelBL2100
Bulova BL2100 (2)Bulova BL2100 (3)Bulova BL2100 (4)

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
