Bulova VMC-3016L CNC Vertical Machining Center

SKU 11737
Make/Model Bulova VMC-3016L
Year 2015
Video On Request
Out of stock
SKU: 11737
Make/Model: Bulova VMC-3016L
Year: 2015
Video: On Request
SKU: 11737

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Bulova
Model: VMC-3016L
Year: 2015
Features:
Fanuc Series Oi-MD CNC Control

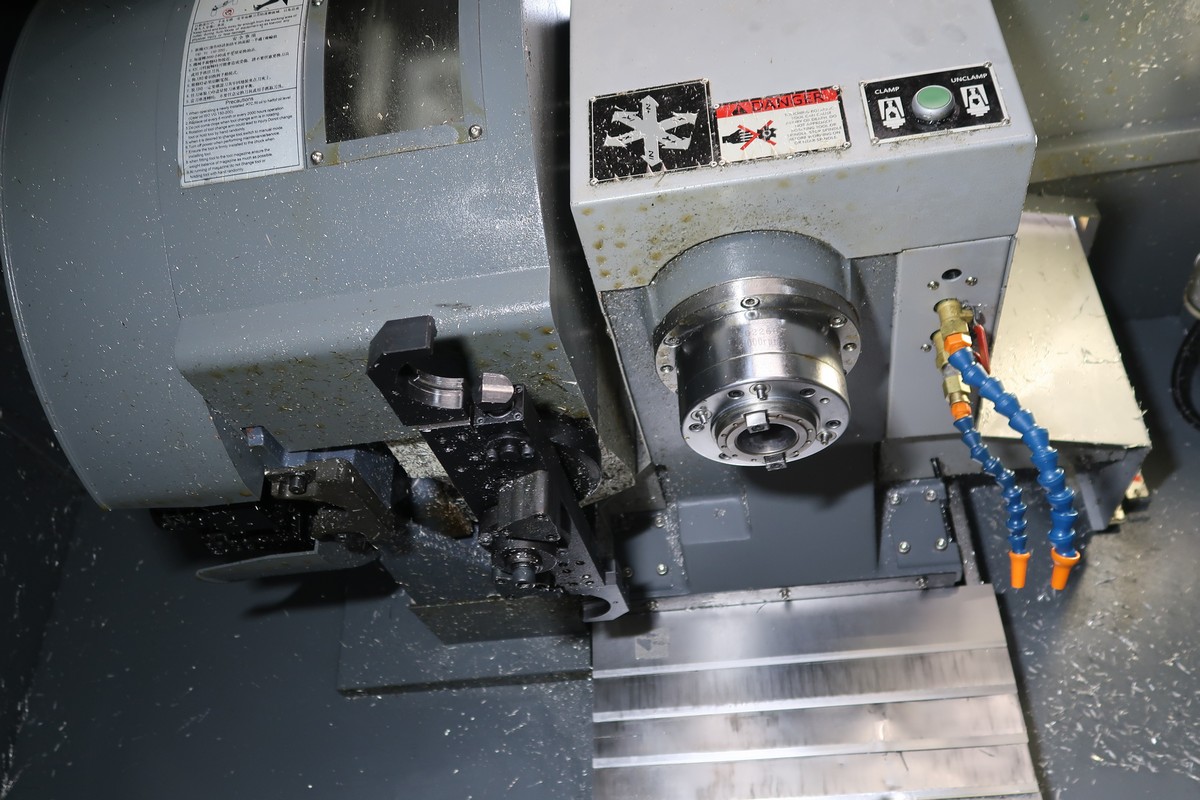

CT40 Spindle
12,000 RPM Spindle
15 HP Spindle Motor

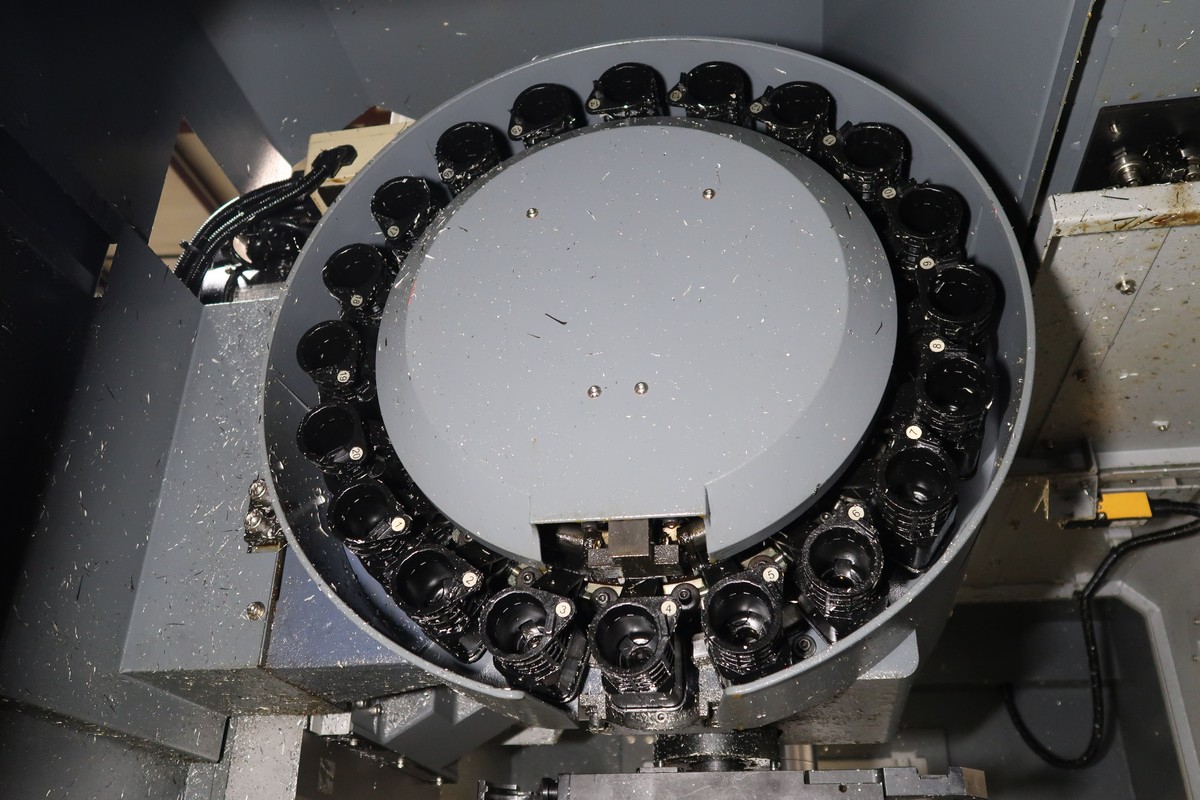

20-Position Side-Mounted Automatic Tool Changer
Automatic Lubrication System
Flood Coolant System
Coolant Pump
Chip Pan
Rigid Tapping
MPG Handwheel
Work Light
Fully Enclosed Splash Guard
Travels:
X-Axis Travel: 30″
Y-Axis Travel: 17″
Z-Axis Travel: 19″
Table:
Table Size: 33″ × 17″
Maximum Table Load: 770 lbs
T-Slots: 3
T-Slot Size: 0.63″
T-Slot Centers: 4.92″
Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: CT40
Spindle Motor: 15 HP
Automatic Tool Changer:
Tool Capacity: 20 Tools
ATC Type: Side-Mounted
Tool Shank: CT40
Maximum Tool Diameter: 3.15″
Maximum Tool Length: 9.8″
Maximum Tool Weight: 15.4 lbs
Feed Rates:
Rapid Traverse (X/Y): 1,417 IPM
Rapid Traverse (Z): 1,181 IPM
Cutting Feed Rate: 394 IPM
General:

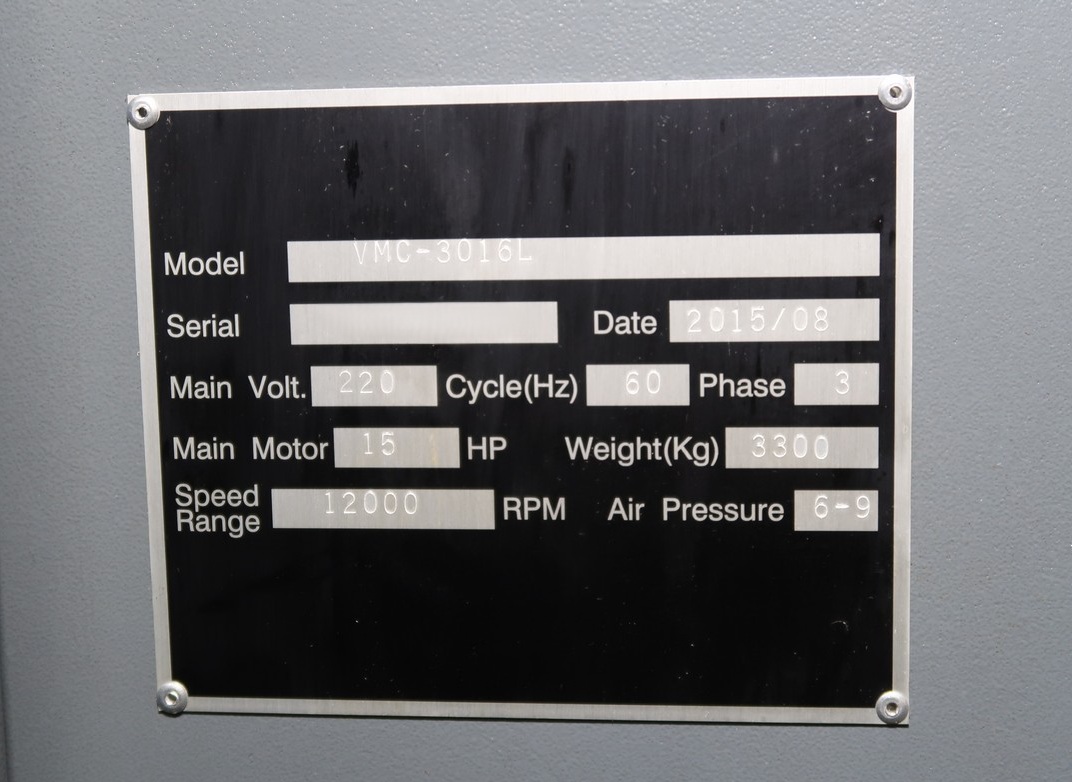

Power Source: 220 Volt / 3 Phase / 60 Hz
Cutting Time: 1,906 Hours
Machine Dimensions (Approx.): 90″ × 95″ × 105″
Machine Weight (Approx.): 7,275 lbs
Travels:
X-Axis Travel: 762 mm
Y-Axis Travel: 432 mm
Z-Axis Travel: 483 mm
Table:
Table Size: 838 mm × 432 mm
Maximum Table Load: 770 lbs
T-Slots: 3
T-Slot Size: 16 mm
T-Slot Centers: 125 mm
Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: CT40
Spindle Motor: 15 HP
Automatic Tool Changer:
Tool Capacity: 20 Tools
ATC Type: Side-Mounted
Tool Shank: CT40
Maximum Tool Diameter: 80 mm
Maximum Tool Length: 249 mm
Maximum Tool Weight: 15.4 lbs
Feed Rates:
Rapid Traverse (X/Y): 1,417 IPM
Rapid Traverse (Z): 1,181 IPM
Cutting Feed Rate: 394 IPM
General:
Power Source: 220 Volt / 3 Phase / 60 Hz
Cutting Time: 1,906 Hours
Machine Dimensions (Approx.): 2,286 mm × 2,413 mm × 2,667 mm
Machine Weight (Approx.): 7,275 lbs
CategoriesCNC Vertical Machining Centers
MakeBulova
ModelVMC-3016L
  • Fanuc Series Oi-MD CNC Control
  • CT40 Spindle
  • 12,000 RPM Spindle
  • 15 HP Spindle Motor
  • 20-Position Side-Mounted Automatic Tool Changer
  • Automatic Lubrication System
  • Flood Coolant System
  • Coolant Pump
  • Chip Pan
  • Rigid Tapping
  • MPG Handwheel
  • Work Light
  • Fully Enclosed Splash Guard
