*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112673 |
| Make: | Bystronic |

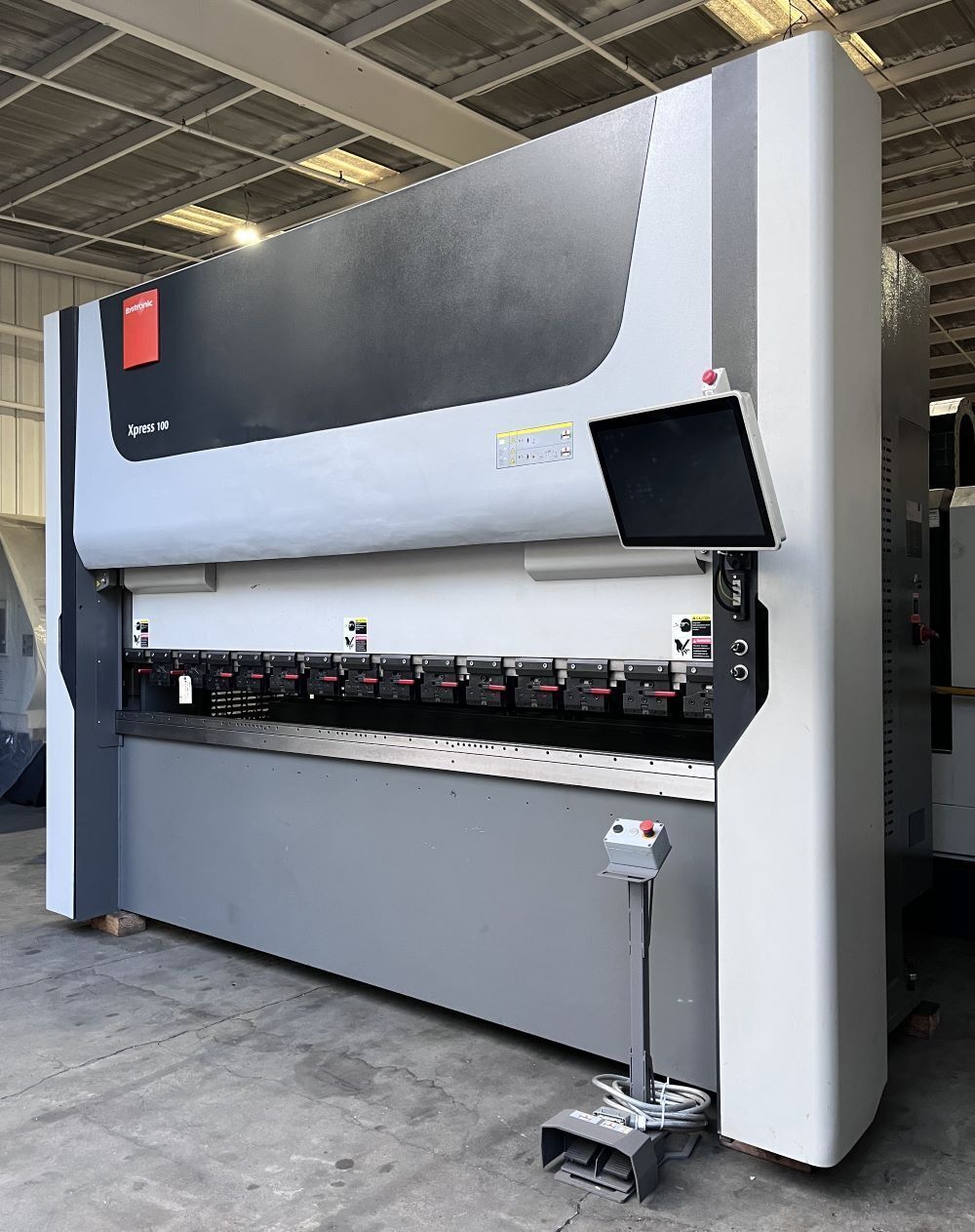

| Model: | Xpress 100/3100 |
| Condition: | Used – Excellent |
| Features: |
|---|

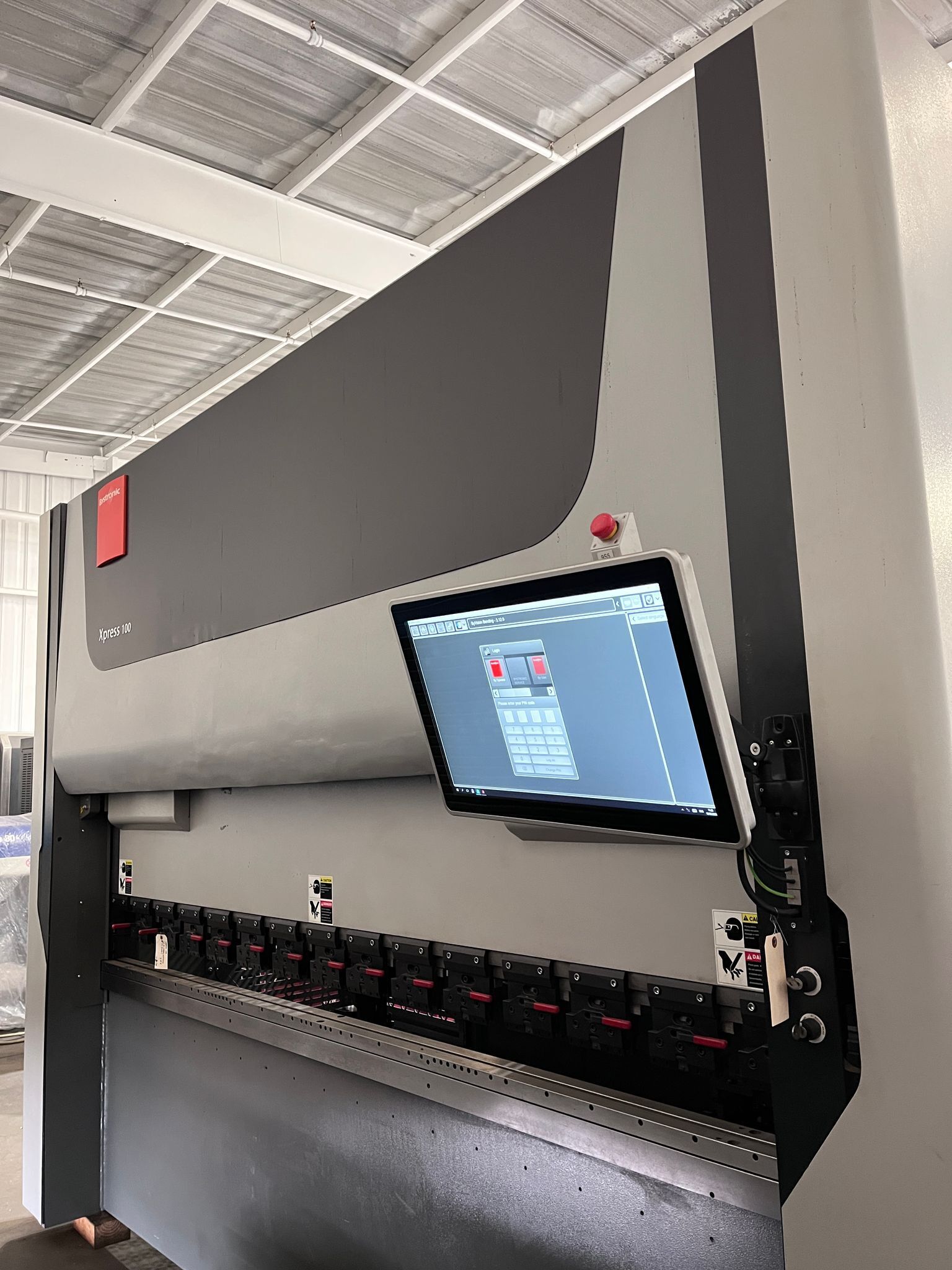

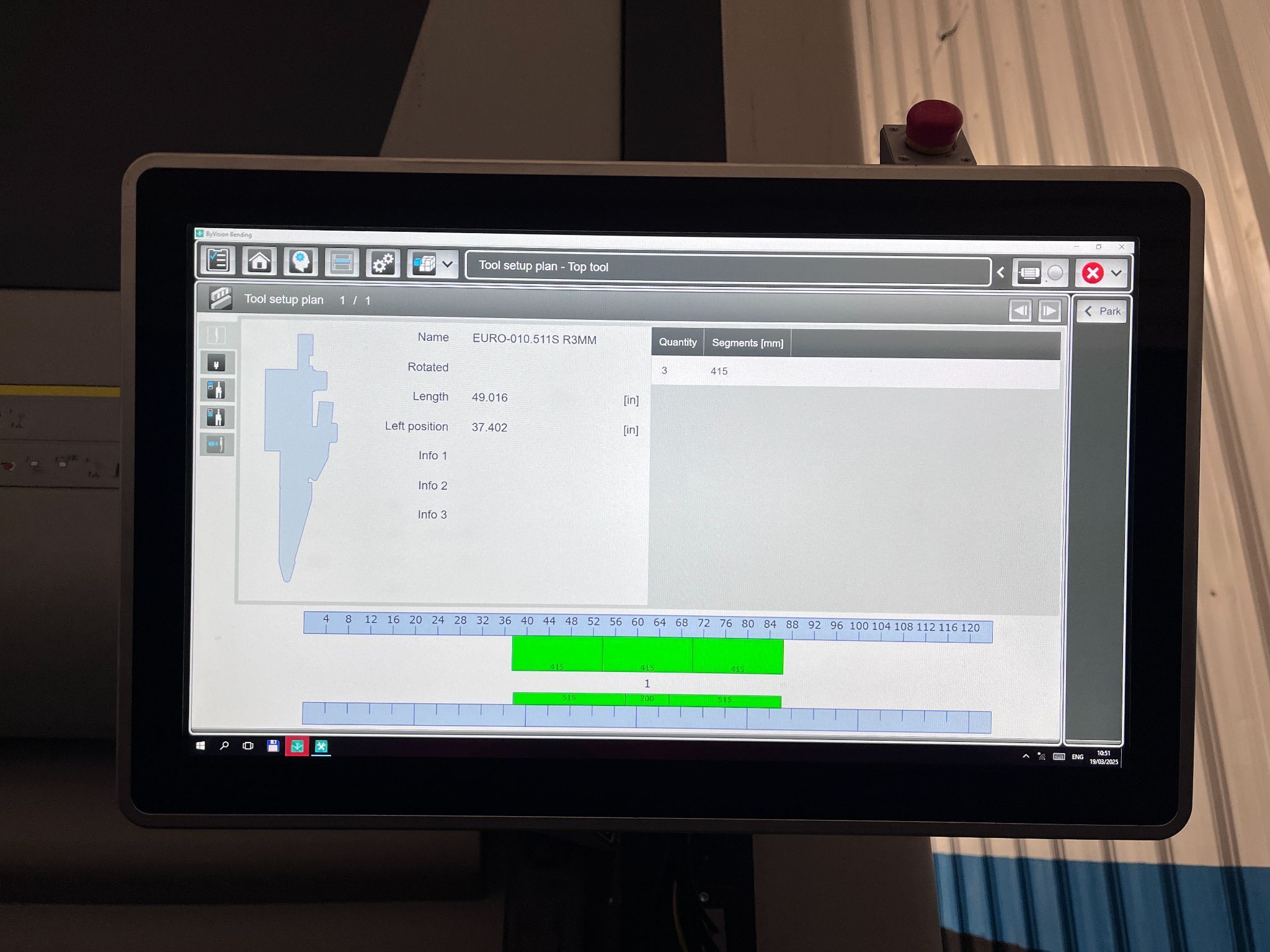

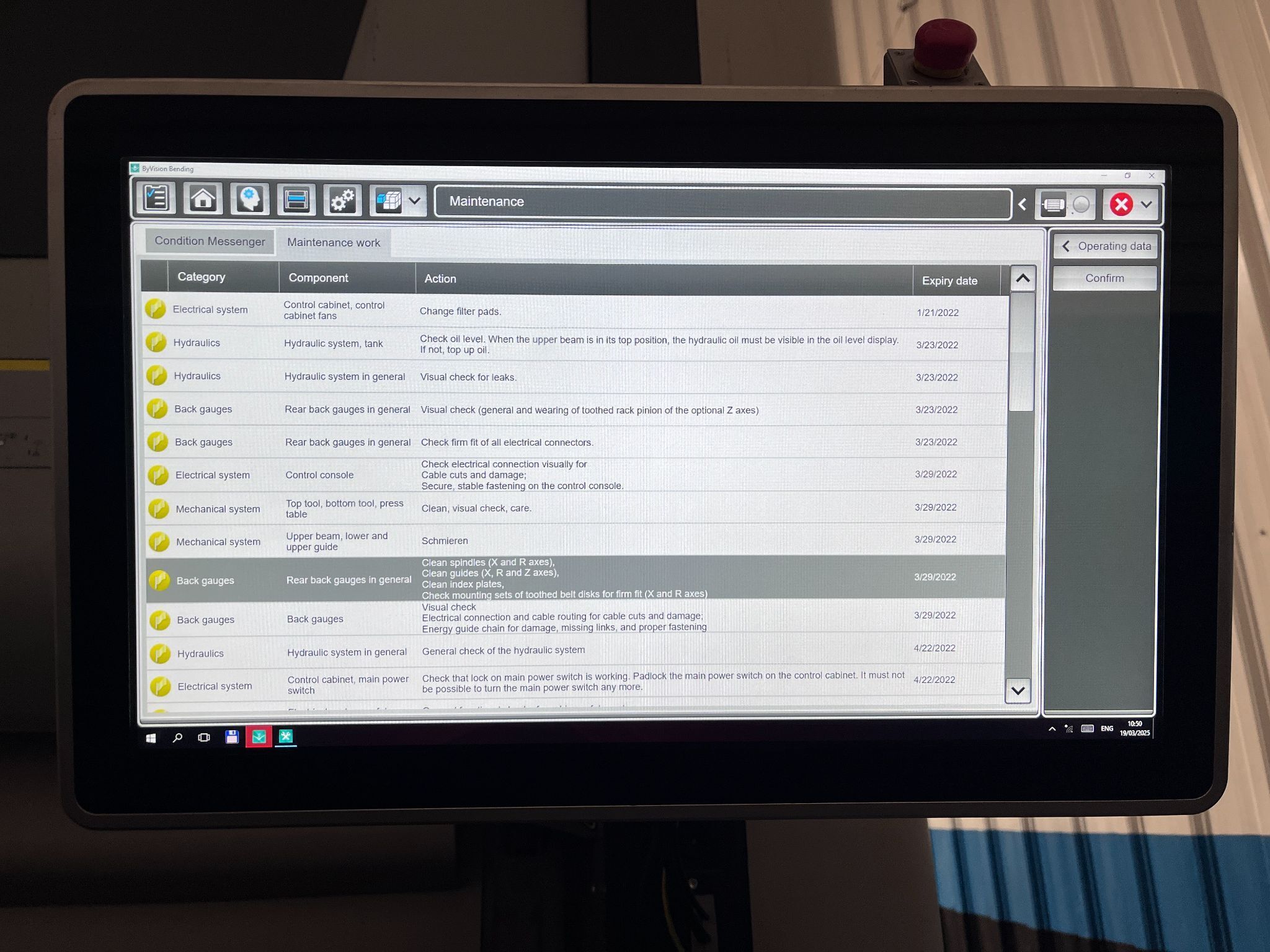

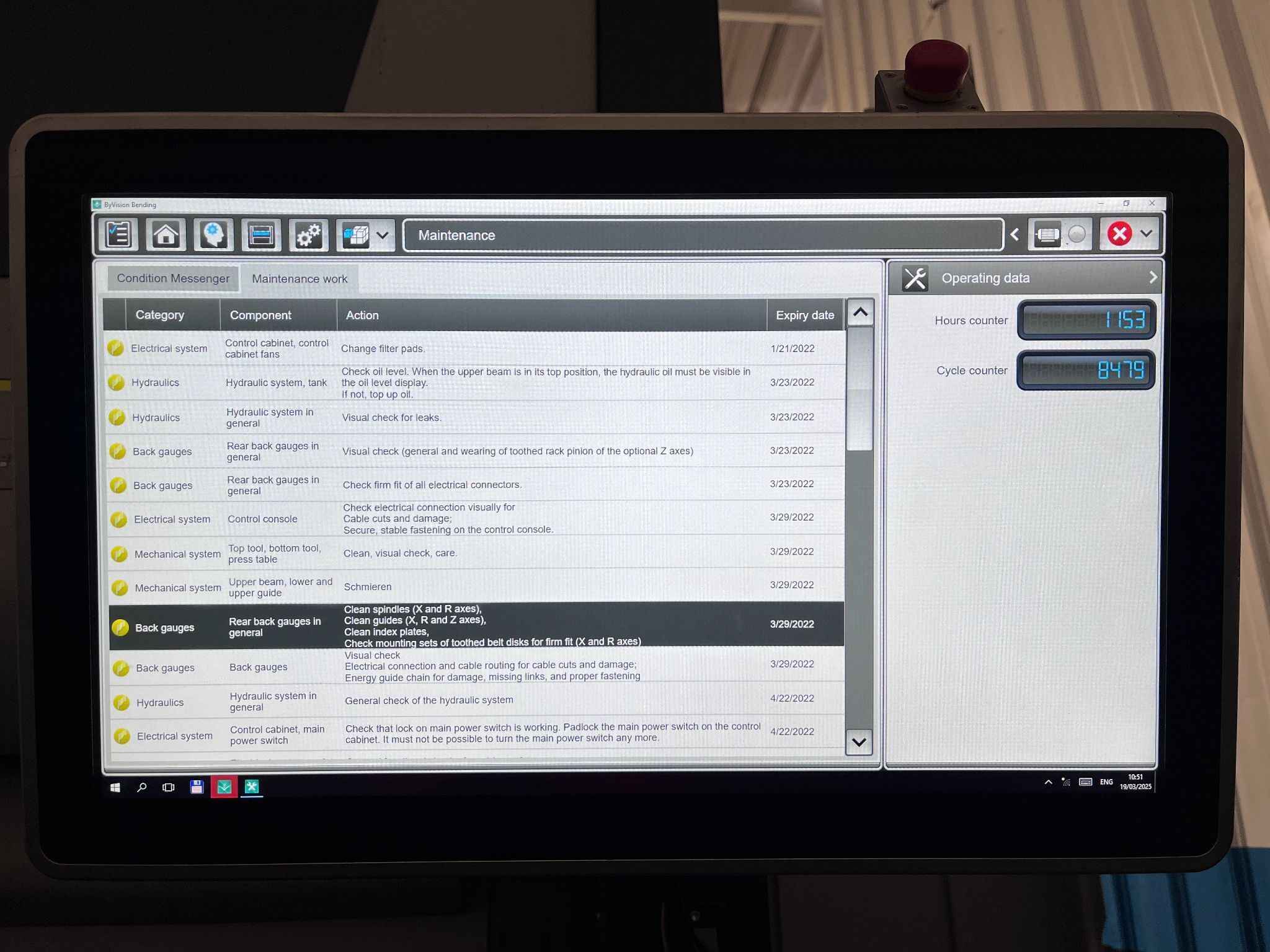

| Bystronic CNC Control |

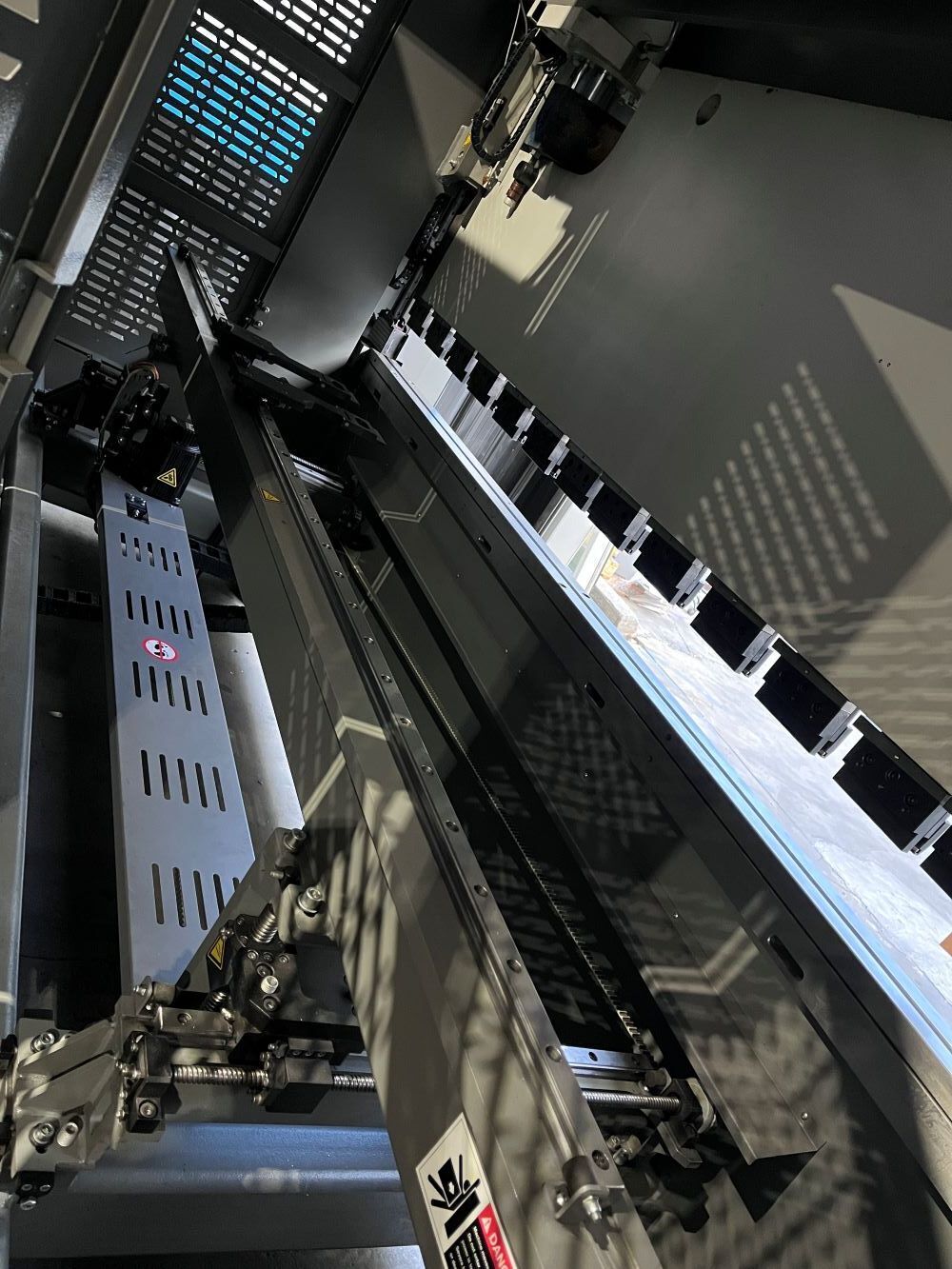

| Back Gauge |
| X, Y, Z, R Axis |
| Laser Safety System |

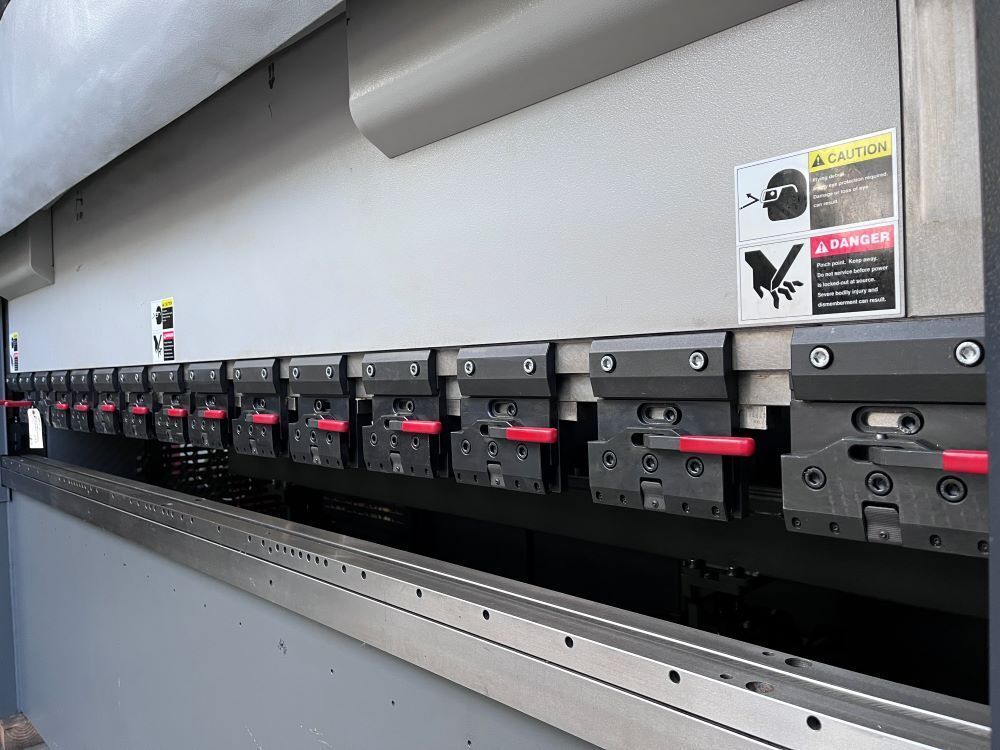

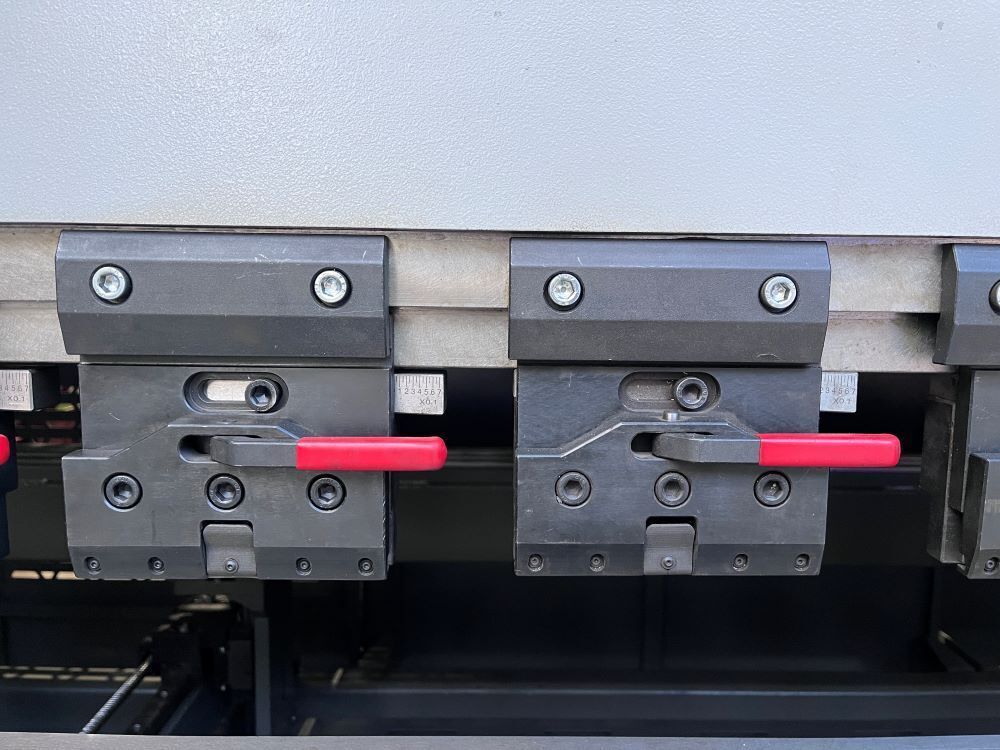

| Fast Clamping System |

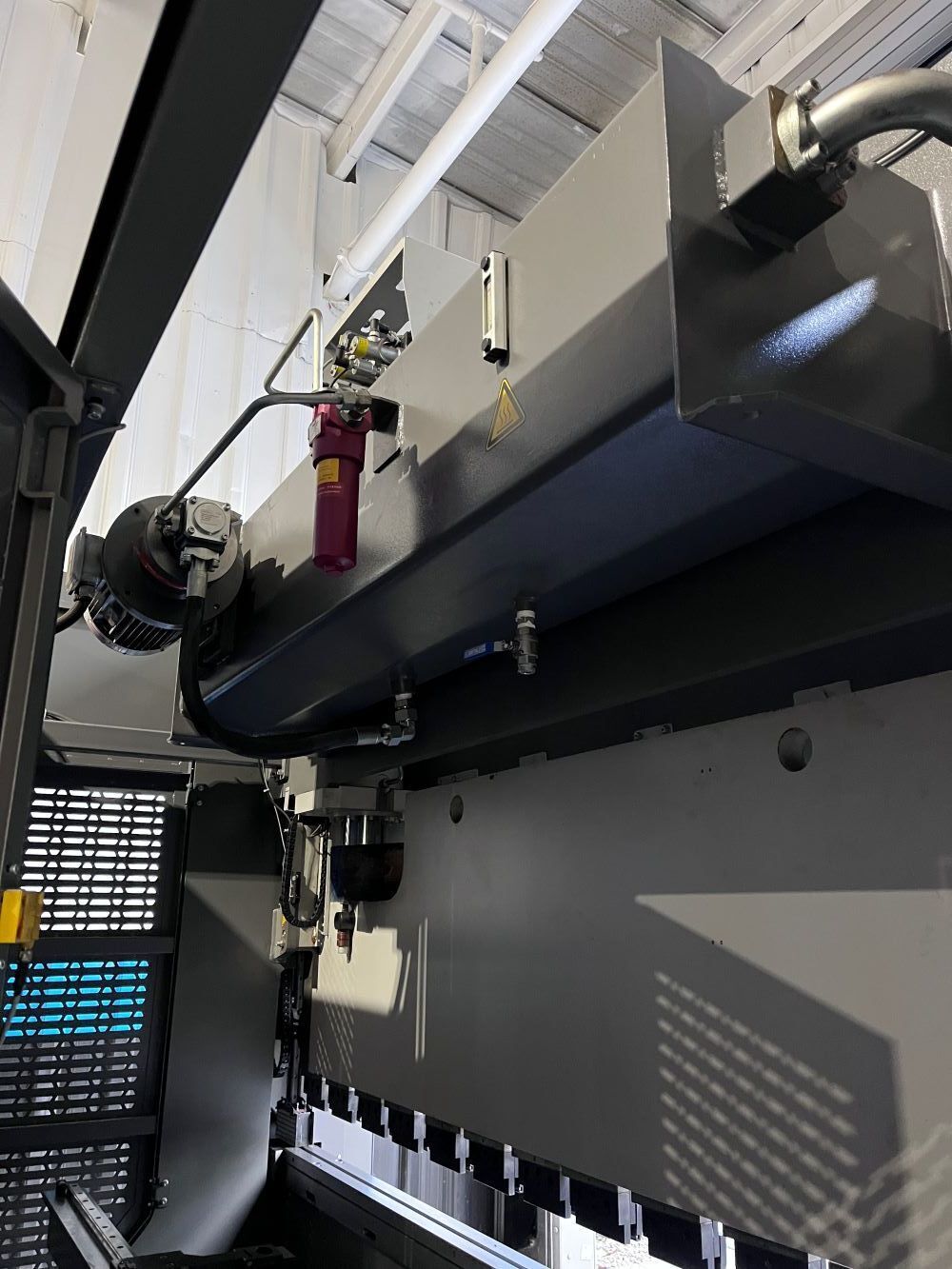

| Hydraulic Clamping System |

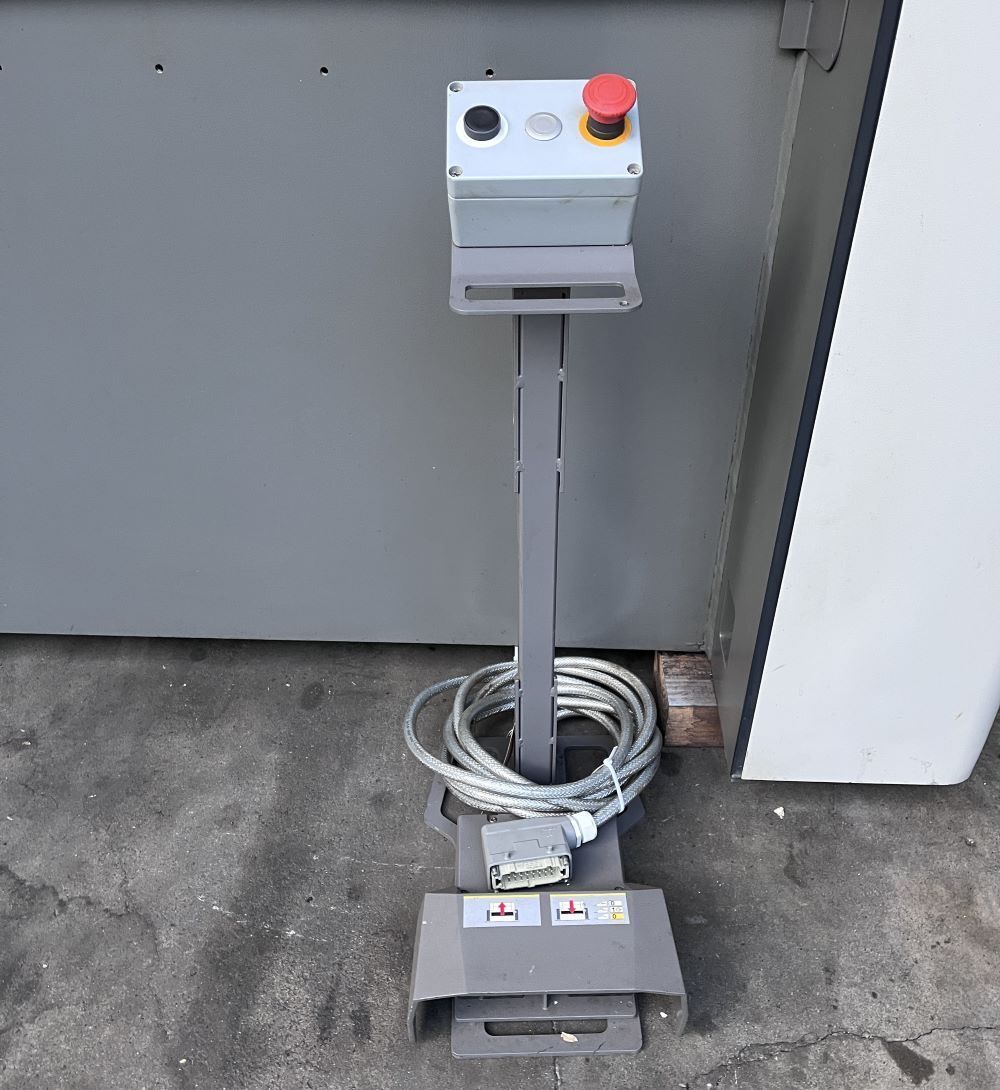

| Foot Treadle |
| Pressure Gauge |
| Specifications: |
|---|
| Capacity: 100 Ton |
| Maximum Bending Length: 122.04″ |
| Distance Between Side Frames: 124.01″ |
| Length of Stroke: 9.84″ |
| Open Height: 21.65″ |
| Max Back Gauge Range X-Axis: 31.49″ |
| X-Axis Travel: 19.68″ |
| X-Axis Speed: 15.74” Per Second |
| R-Axis Travel: 3.93” |
| R-Axis Speed: 3.93” Per Second |
| Z-Axis Travel: 90.55” |
| Z-Axis Speed: 23.62” Per Second |
| Y-Approach Speed (up to): 5.90” Per Second |
| Y-Working Speed (up to): 0.39” Per Second |

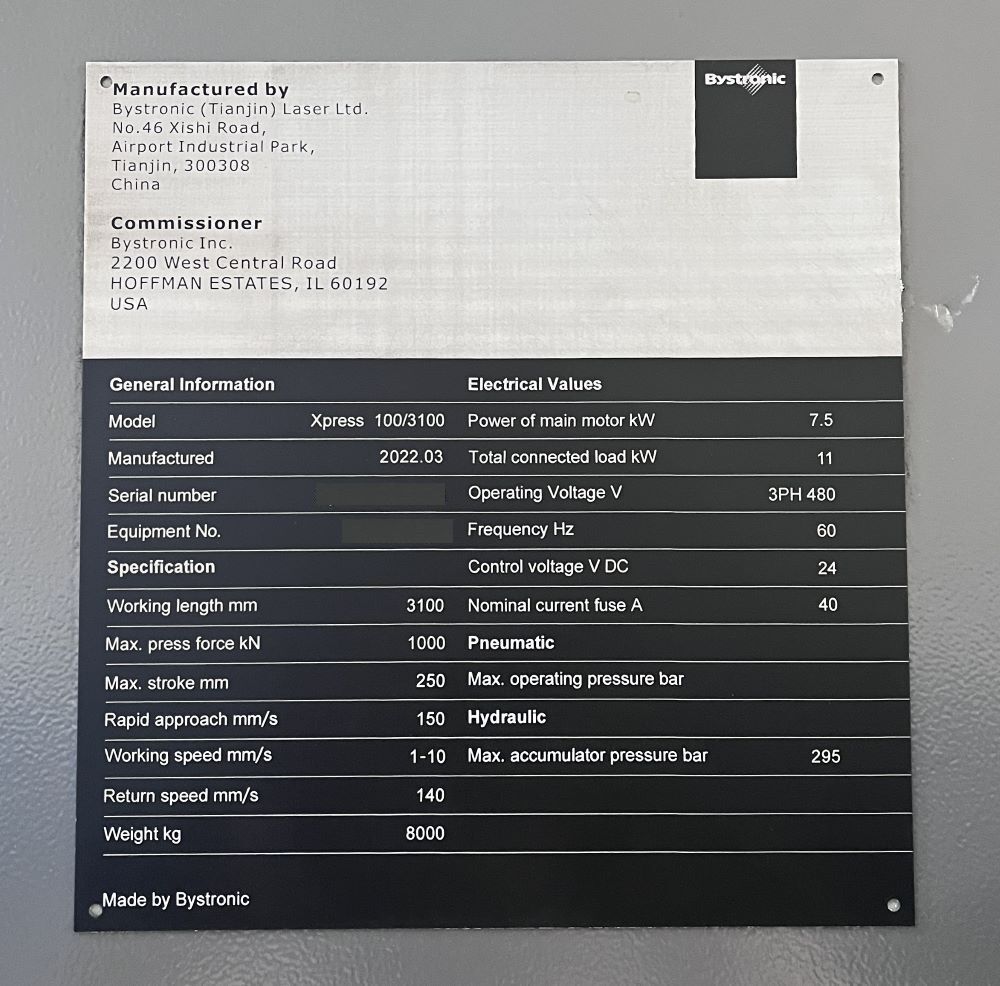

| General: |
|---|
| Power Source: AC 480 V, Three Phase, 60 Hz |
| Power Requirement: 11 KW |
| Overall Dimensions: 147.2″ X 72.83″ x 110.23″ High |
| Weight : 17,637 lbs. Approx. |
