*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | C.R. Onsrud |
| Model: | F122-E24 |
| Year: | 2017 |
| Machine Type: | 5-Axis CNC Router |
| Condition: | Used – Good |
| Machine Overview: |
|---|

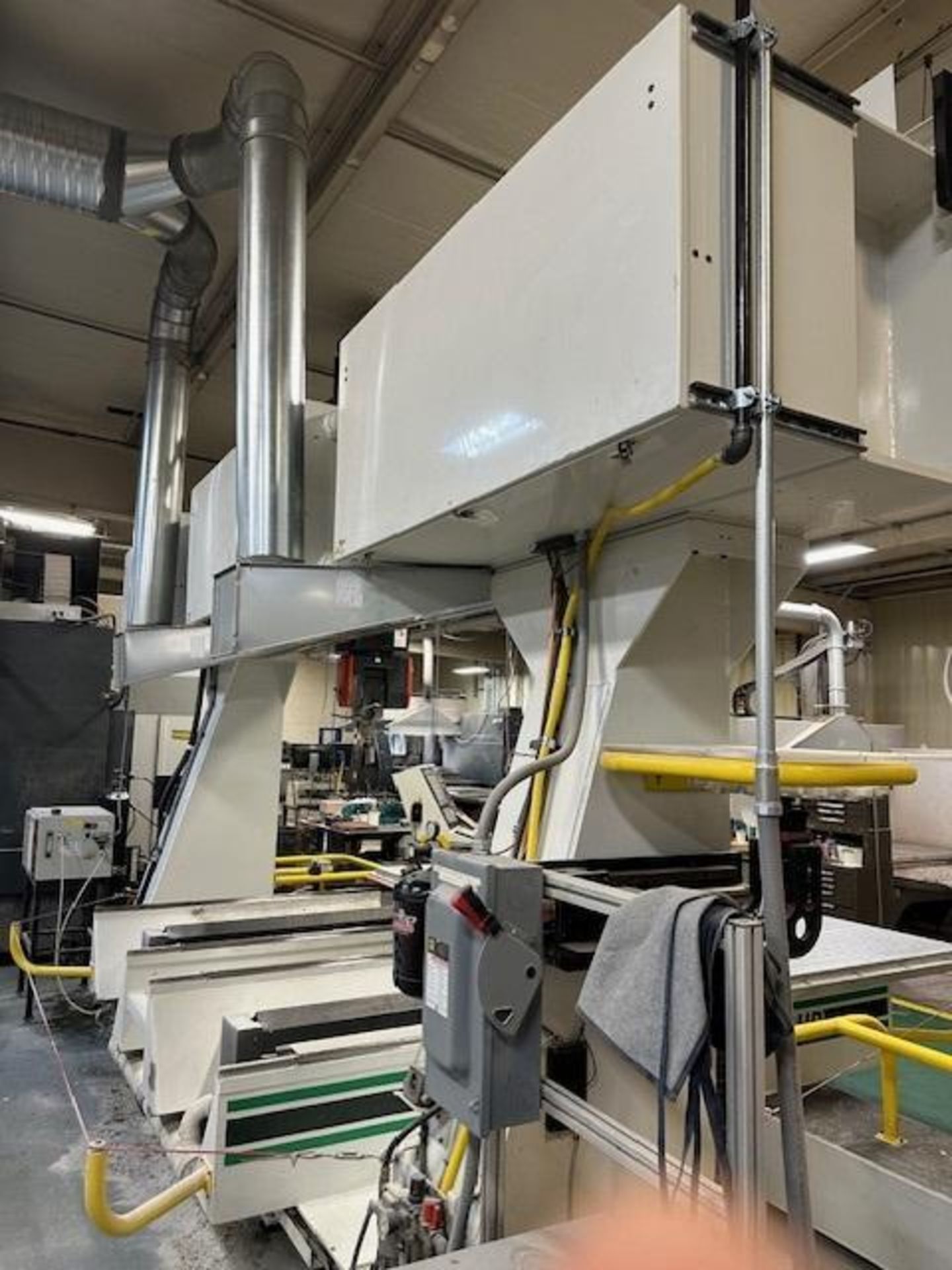

- E-Series Fixed Bridge 5-Axis CNC Router
- Rigid Welded Steel Frame Construction
- Designed for Complex 3D Machining & Multi-Side Processing
- Suitable for Wood, Plastics, Composites, Fiberglass & Non-Ferrous Metals
|
| Travels / Work Envelope: |
|---|
- X-Axis Travel: 82.0″
- Y-Axis Travel: 162.0″
- Z-Axis Travel: 41.0″
- A-Axis Rotation: ±120°
|

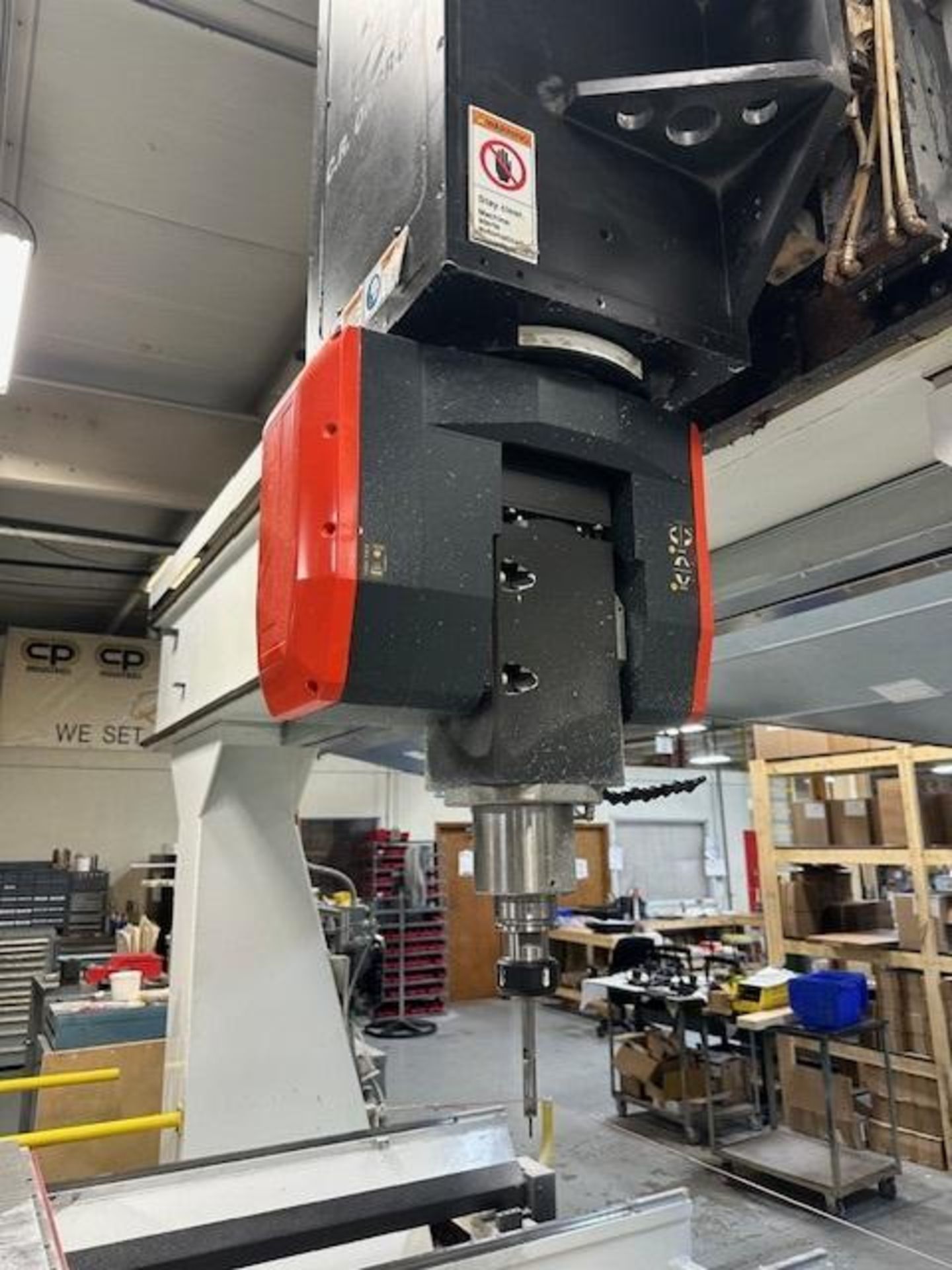

| Spindle: |
|---|
- Spindle Power: Approx. 24 HP
- Spindle Speed: 24,000 RPM
- Spindle Taper: HSK-63F
- High-Speed 5-Axis Machining Capability
|

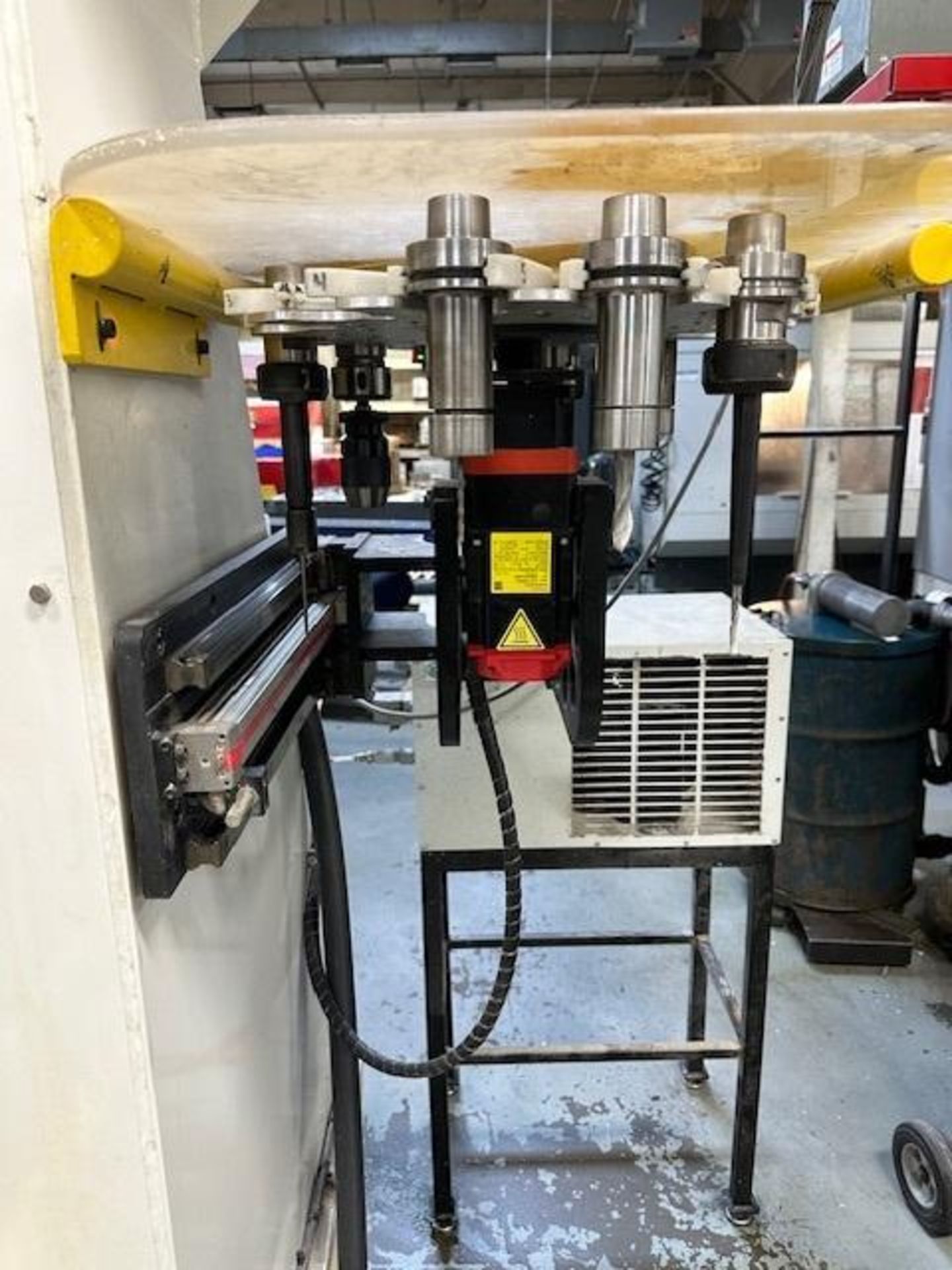

| Automatic Tool Changer: |
|---|
- 24-Position Automatic Tool Changer (ATC)
- Supports Complex Multi-Tool 5-Axis Operations
|
| CNC Control: |
|---|
- FANUC CNC Control (Typically 31i-B5 Series)
- Operator Control Pendant with Touchscreen & Keyboard
- Industrial Emergency Stop & Rotary Switches
|
| Table & Workholding: |
|---|
- Twin Moving Tables (Pendulum Processing Capable)
- Large Work Surface for Oversized Parts
- Allows Parallel Setup & Machining Operations
|
| Standard Features: |
|---|
- Full 5-Axis Simultaneous Machining
- Fixed Bridge Gantry Design for High Rigidity
- Single Setup Multi-Side Machining Capability
- Heavy-Duty Industrial CNC Construction
|
| Optional / Upgrade Features: |
|---|
- Second Spindle Configuration
- Expanded Tool Changer Capacity
- Automatic Tool Measurement Systems
- Volumetric Laser Compensation
- Dust & Chip Collection Systems
|
| Typical Applications: |
|---|
- Aerospace & Composite Components
- Boat & Marine Parts
- Architectural Panels
- Automotive & Industrial Prototypes
- Large 3D Machined Wood & Plastic Components
|
