All specifications are approximations and are subject to verification.

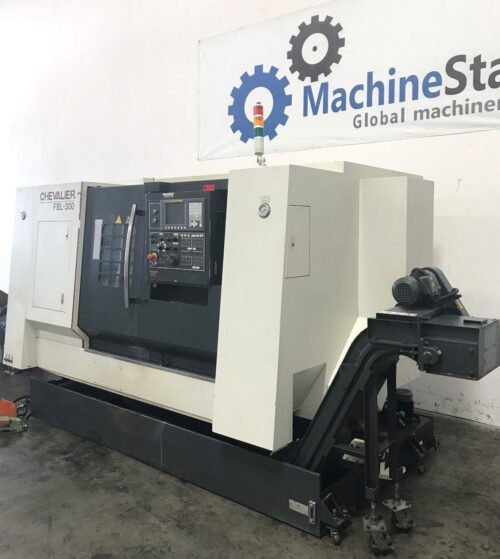

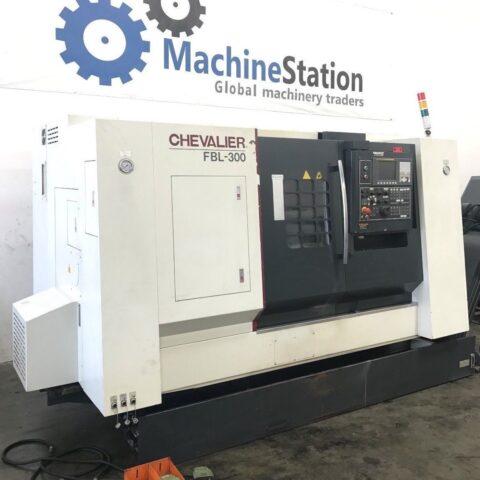

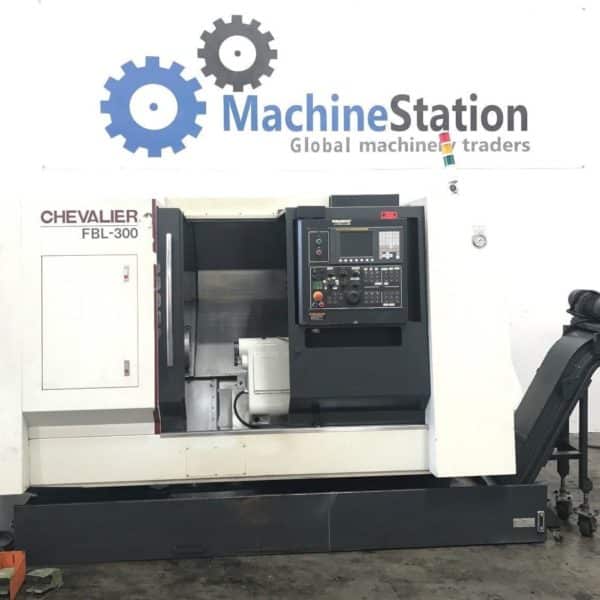

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Only 980 Hours. Equipped with 12″ Hydraulic Chuck, Tool Presetter, Programmable Tailstock. Comes with chip conveyor, Tool holders.”
-

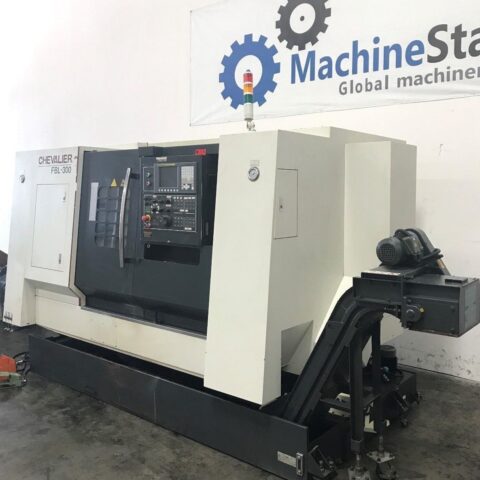

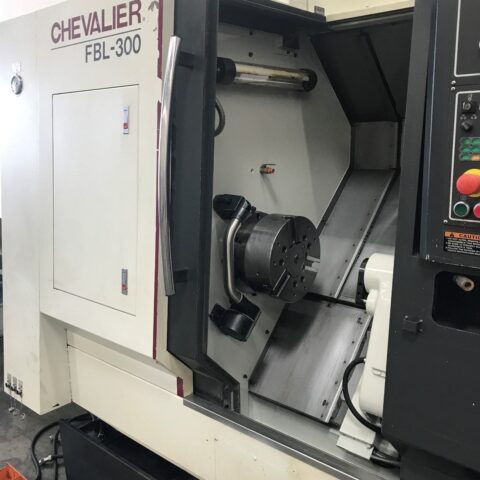

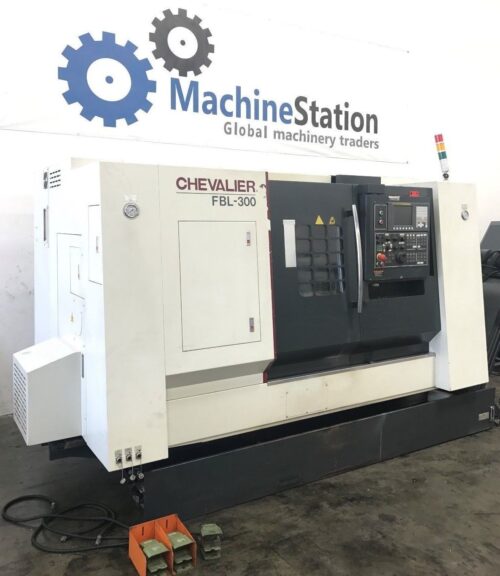

CHEVALIER FBL-300 Equipped With:

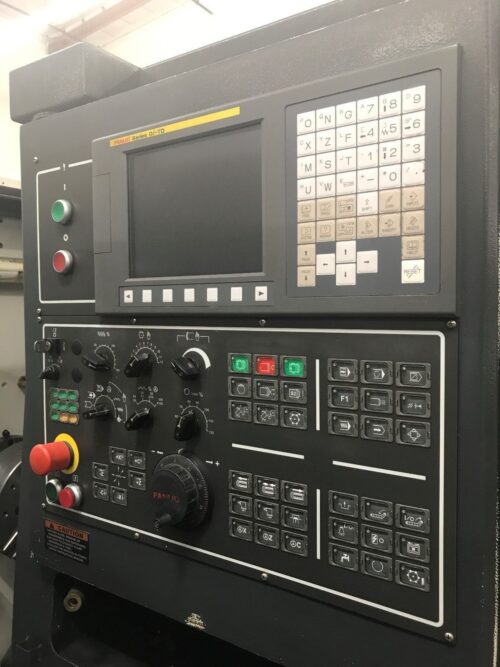

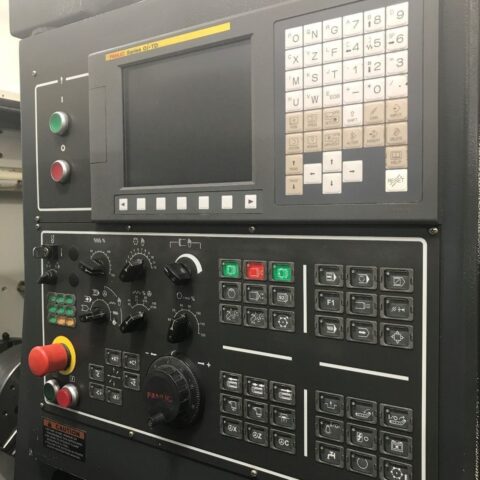

- Fanuc Oi-TC CNC Control

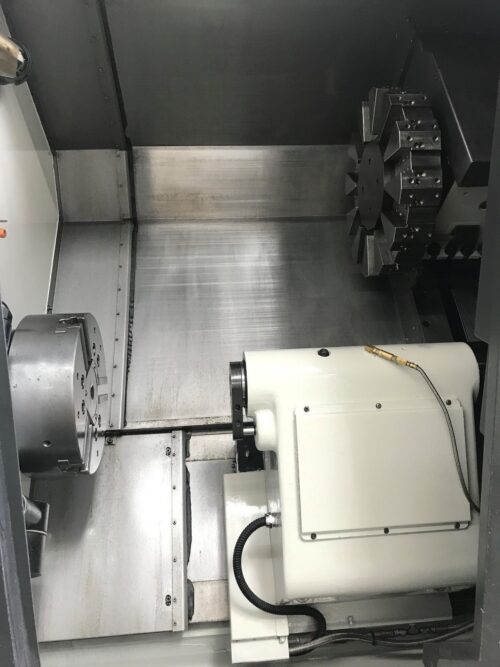

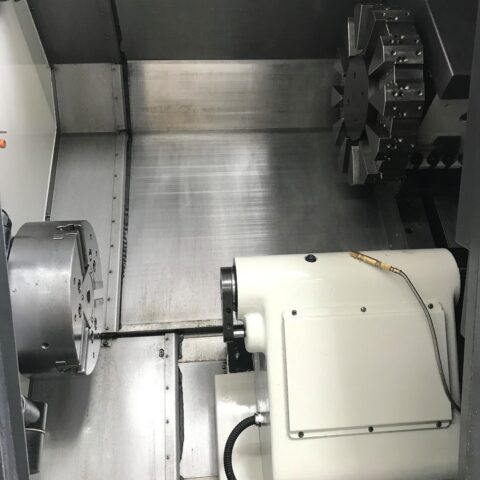

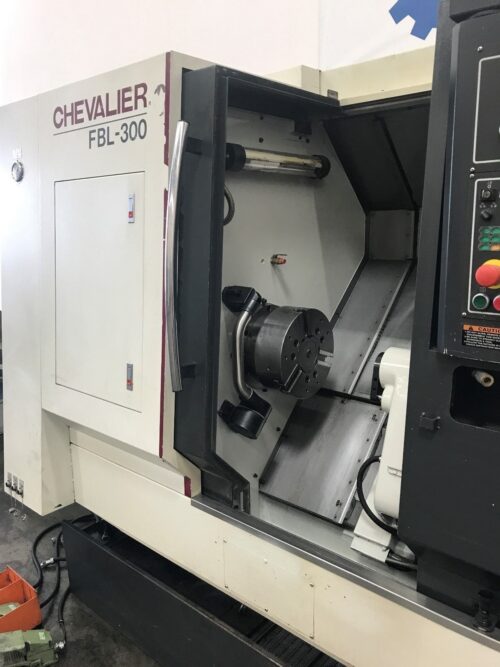

- 12″ 3-Jaw Hydraulic Chuck
- 12-Station Turret with Tooling
- Tool Presetter

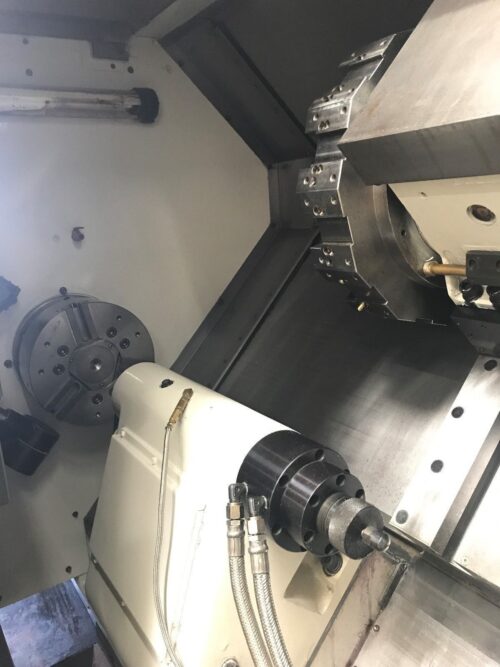

- Programmable Hydraulic Tailstock
- Slant Bed Rigid Box Way Long Bed Machine
- Electrical Panel AC
- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank
- Comes with Chip Conveyor, Levelling Pads, Manuals.
-
CHEVALIER FBL-300 Specifications:
- Max Turning Diameter: 20″
- Max Turning Length: 23.4″
- Max Bar Capacity: 3.03″
- Swing Over Bed: 25.7″
- Distance Between Centers: 29.4″
- X Axis Travel: 11.4″
- Z Axis Travel: 25.2″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.5″
- Spindle Speed: 2500 RPM
- Spindle Motor: 15/18.5 kw
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Travel: 21.7″
- Tailstock Quill Dia.: 3.5″
- Tailstock Quill Stroke: 5.1″
- Tailstock Taper: MT-5
-
General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 135″ x 76″ x 80″ High
- Weight : 13,000 lbs Approx.
