*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

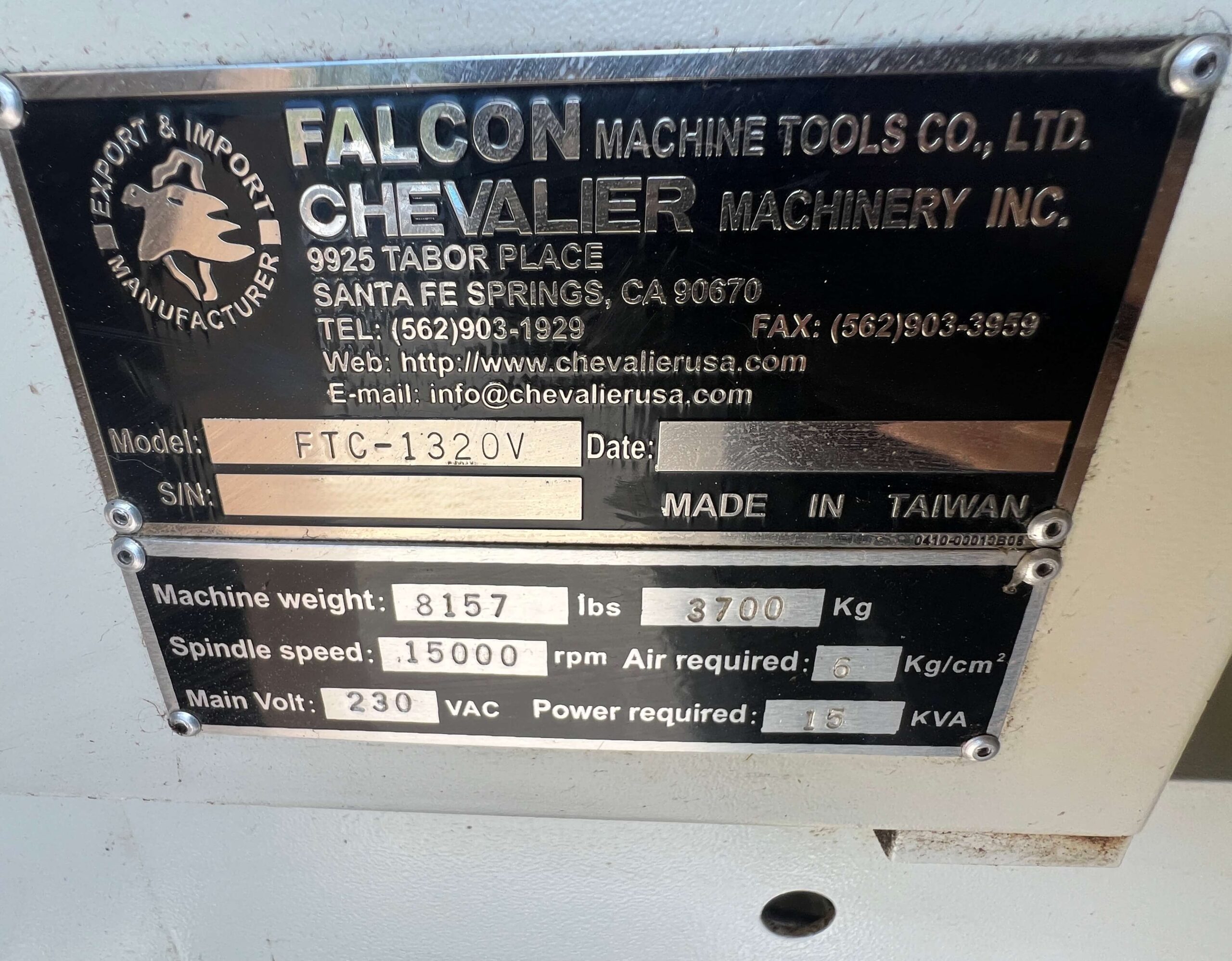

| Make: | Chevalier |
| Model: | FTC-1320V |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc Oi-MC |
| Features: |
|---|
| Fanuc Oi-MC CNC Control |
| 16-Position Automatic Tool Changer (ATC) |
| BT30 Spindle Taper |
| Rotary Pallet System |
| Chip Conveyor |
| Coolant Pump and Tank |
| Fully Enclosed Machining Area |
| Stack Signal Light |
| Table: |
|---|
| Number of Tables: 2 |
| Table Size: 25.6″ × 14.4″ |
| Maximum Table Load: 264 lbs |
| Travels: |
|---|
| X-Axis Travel: 19.7″ |
| Y-Axis Travel: 12.6″ |
| Z-Axis Travel: 9.8″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 15,000 RPM |
| Spindle Taper: BT30 |
| Spindle Motor Power: 3 HP / 5 HP |
| Maximum Tapping Speed: 6,000 RPM |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 16 Positions |
| Tool Change Mechanism: Double-Arm Swing Type |
| Tool Shank: BT30 |
| Maximum Tool Length: 7.87″ |
| Maximum Tool Diameter: 2.36″ |
| Maximum Tool Weight: 4.4 lbs |
| Feedrates: |
|---|
| X-Axis Rapid Traverse: 1,417 IPM |
| Y-Axis Rapid Traverse: 1,417 IPM |
| Z-Axis Rapid Traverse: 1,181 IPM |
| Cutting Feedrate: 39.4–393.7 IPM |
| Electrical: |
|---|
| Main Voltage: 230v |
| Power Requirement: 15 kVA |
| Air Pressure Requirement: 59–73.5 PSI |
| General: |
|---|
| Overall Dimensions (Approx.): 131.7″ × 61″ × 94.9″ |
| Machine Weight (Approx.): 8,157 lbs |
