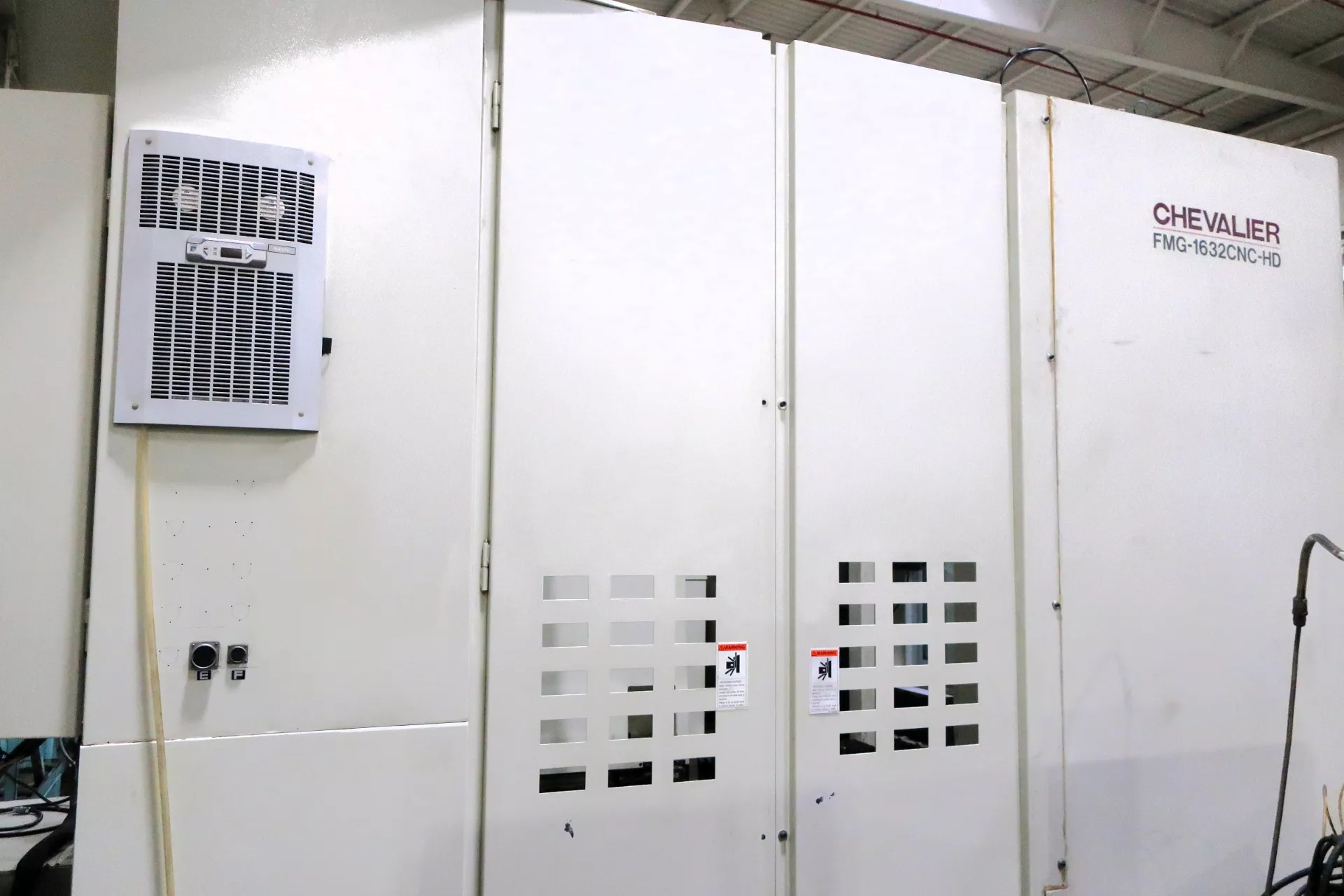

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Chevalier |
| Model No.: |
FMG-1632CNC-HD |
| Year of Manufacture: |
2010 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Creep Feed / Profile Grinder |
| CNC Control: |
Fanuc 18i-MB CNC Control |
| Equipped With: |
| Fanuc 18i-MB CNC Control (10.4” Color LCD) |
| Creep Feed Grinding Capability |
| Moving Column Design |
| Fully Enclosed Splash Guard |
| High-Pressure Coolant System |
| Automatic Dynamic Wheel Balancing System |
| Dual Face Rotary Diamond Dresser |
| Automatic Wheel Dressing with Compensation |
| Paper Band Coolant Filtration System |
| Oil Temperature Cooling Unit |
| Handwheel (Manual Pulse Generator) |
| Precision Magnetic Chuck / Workholding Options |
| Capacity: |
| Table Size: 16″ × 32″ (400 × 810 mm) |
| Maximum Table Load: 3,306 lbs (1,500 kg) |
| Grinding Width: 16″ (410 mm) |
| Repeatability: Up to 0.0001″ (0.001 mm) |
| Travels: |
| X-Axis Travel (Longitudinal): 32″ (810 mm) |
| Y-Axis Travel (Cross): 16″ (400 mm) |
| Z-Axis Travel (Vertical): ~16″ (400 mm approx.) |
| Spindle: |
| Spindle Speed: 1,800 RPM (Optional 6,000 RPM) |
| Spindle Motor: Up to 50 – 75 HP |
| Spindle Type: Heavy-Duty Precision Grinding Spindle |
| Spindle Bearings: ABEC-7 (P4) Precision + Needle Roller Support |
| Tooling / Grinding System: |
| Creep Feed & Profile Grinding Capability |
| 4 Automatic Grinding Cycles: Rapid Approach / Rough Grinding / Fine Grinding / Automatic Dressing Compensation |
| Dual & Single Roller Dressing Options |
| Wheel Balancing Platform |
| Programmable Profile Grinding |
| Feed Rates: |
| X-Axis: 10 – 2,500 mm/min |
| Y-Axis: 0 – 3,800 mm/min |
| Z-Axis: 0 – 4,000 mm/min |
| Creep Feed Capability: Yes (Heavy Cutting) |
| Drive System: |
| Precision Ball Screws: X-Axis: 63 mm (Tsubaki C2 Grade), Y/Z Axes: 50 mm (Tsubaki C2 Grade) |
| Servo Motors (Fanuc): X-Axis: 7.3 kW, Y & Z Axes: 2.1 kW |
| Electrical: |
| Voltage: 220 / 380 / 440V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
| Machine Weight: ≈12,000 – 16,000 lbs |
| Floor Space: Approx. 120″ × 95″ |
| Machine Height: ≈85″ |
| Features: |
| Heavy-duty creep feed grinder designed for deep cuts and high material removal |
| Moving column design ensures consistent accuracy regardless of workpiece weight |
| Extremely high repeatability (up to 0.0001″) for precision applications |
| Ideal for aerospace components such as turbine blades and complex profiles |
| High-power spindle (up to 75 HP) for aggressive grinding applications |
| Automatic grinding cycles increase productivity and consistency |
| The advanced dressing system ensures precision profile accuracy |
| Rigid construction for vibration-free and stable machining |
