| Make: | TARUS |
| Model: | TPT SCHSM2475 |
| Year: | 2016 |
| Features: |
|---|
| TPSCHSM 5-Axis CNC Control |
| Continuous 5-Axis Machining Capability |
| HSK-63 Spindle Taper |
| 15,000 RPM High-Speed Spindle |

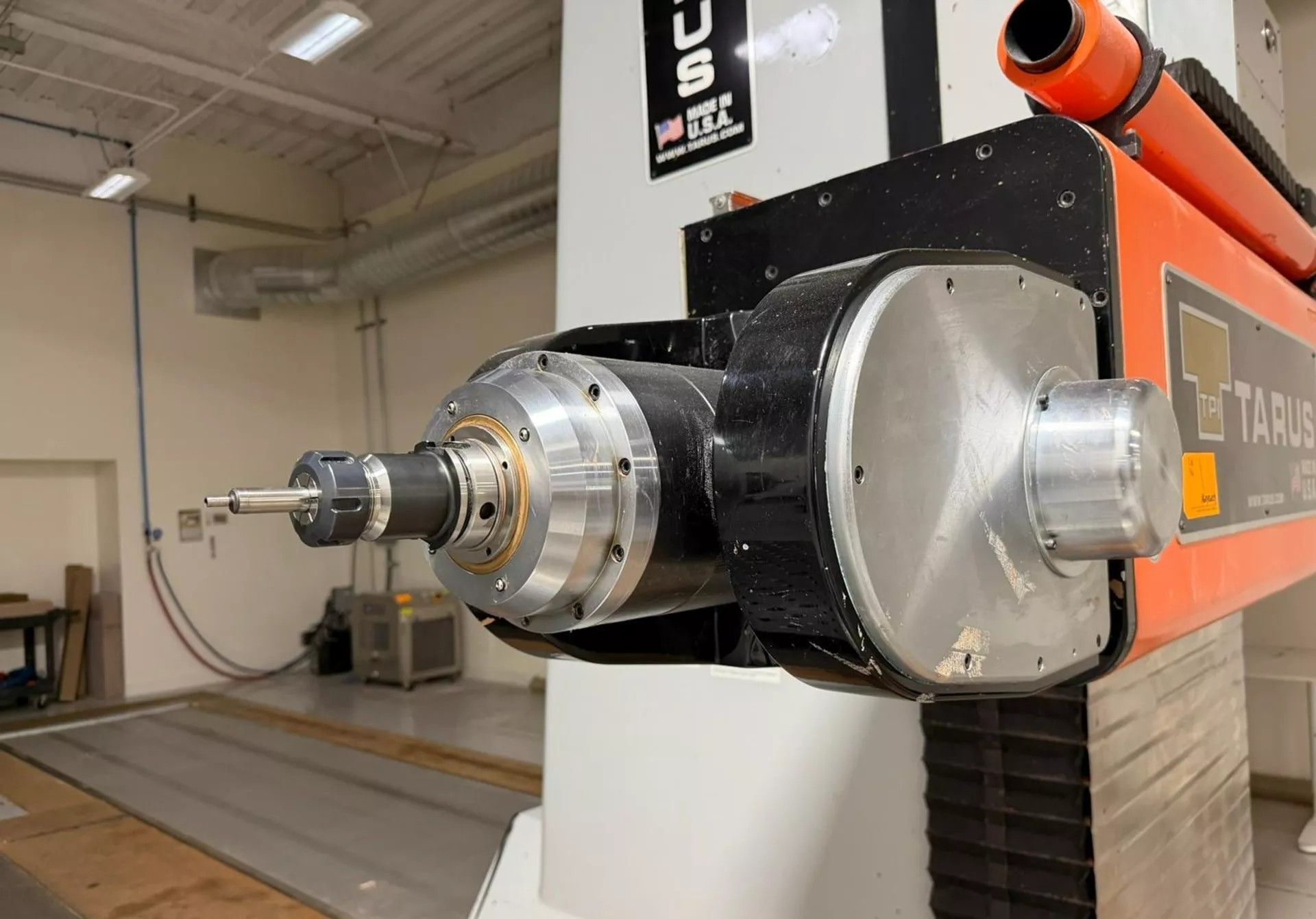

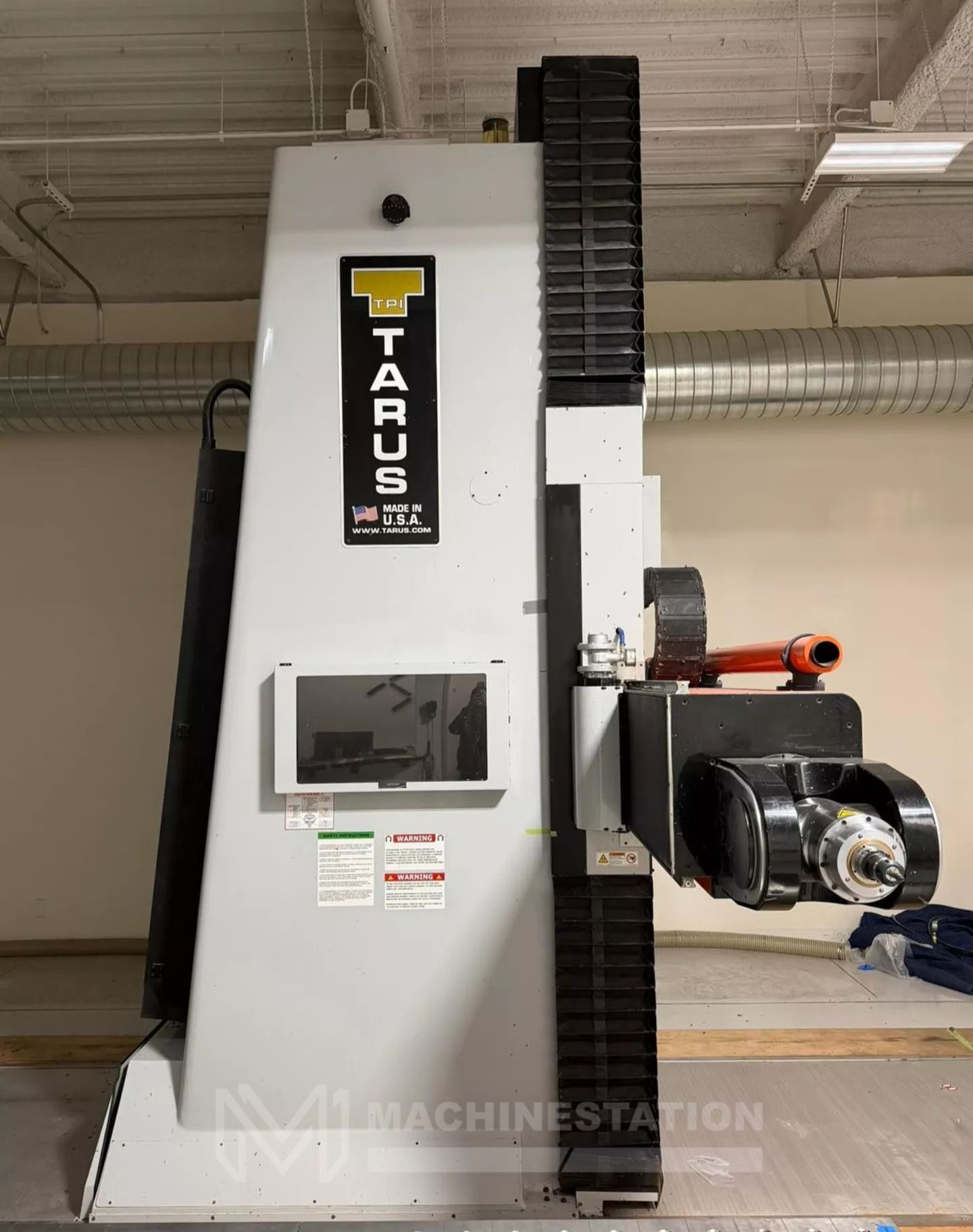

| Tilting Milling Head |

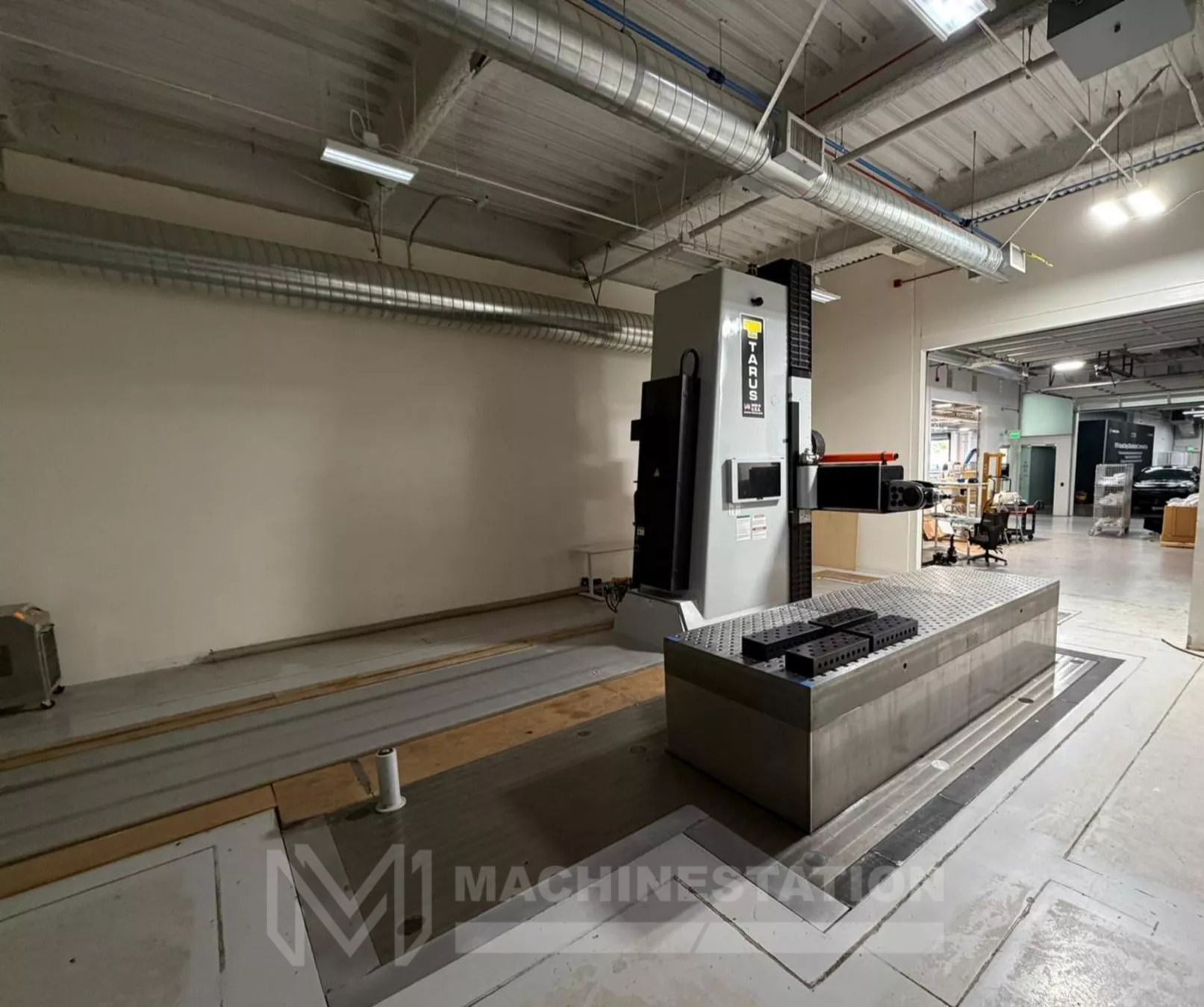

| Large In-Ground Work Table |

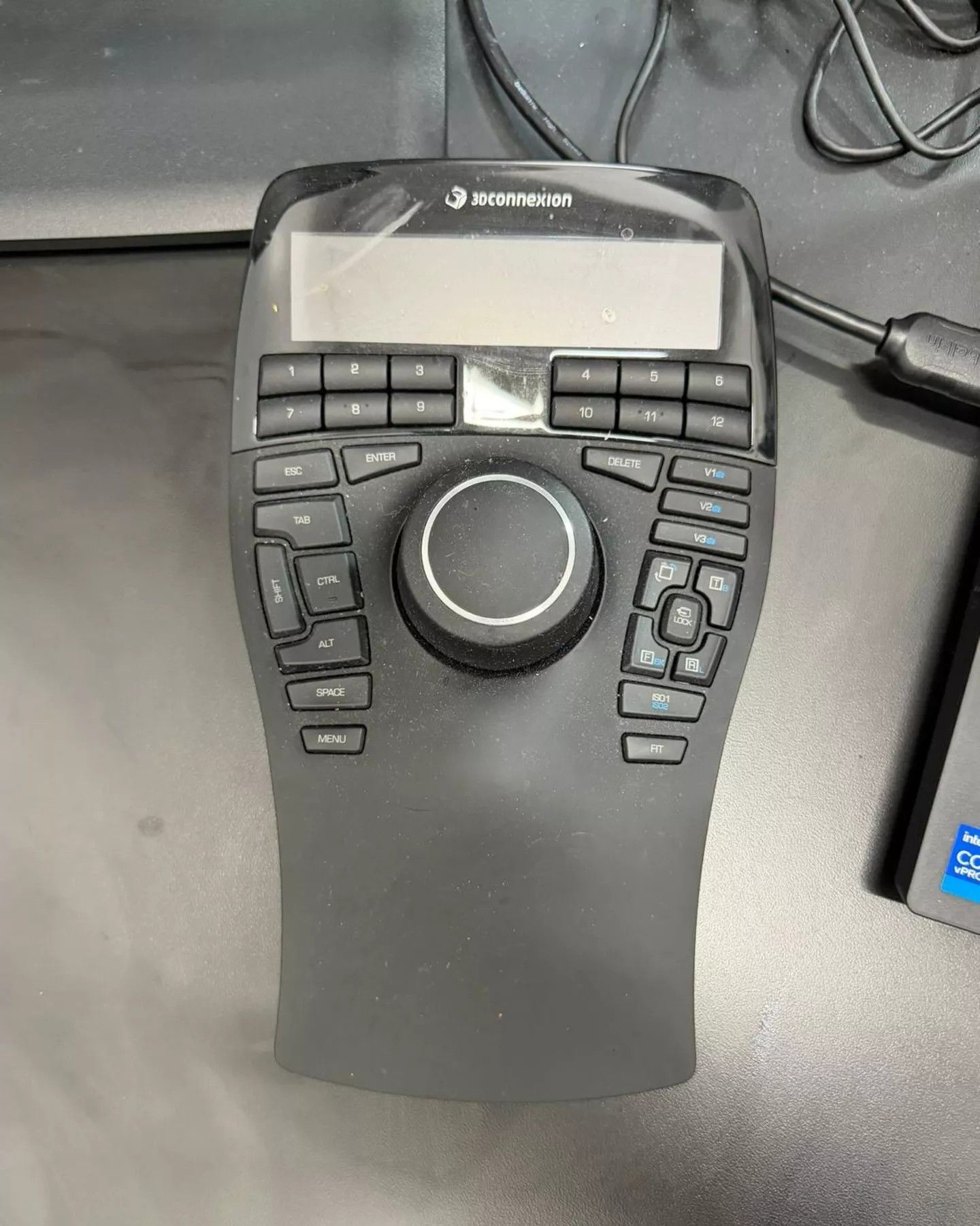

| 3Dconnexion SpaceMouse 3D Navigation Controller |

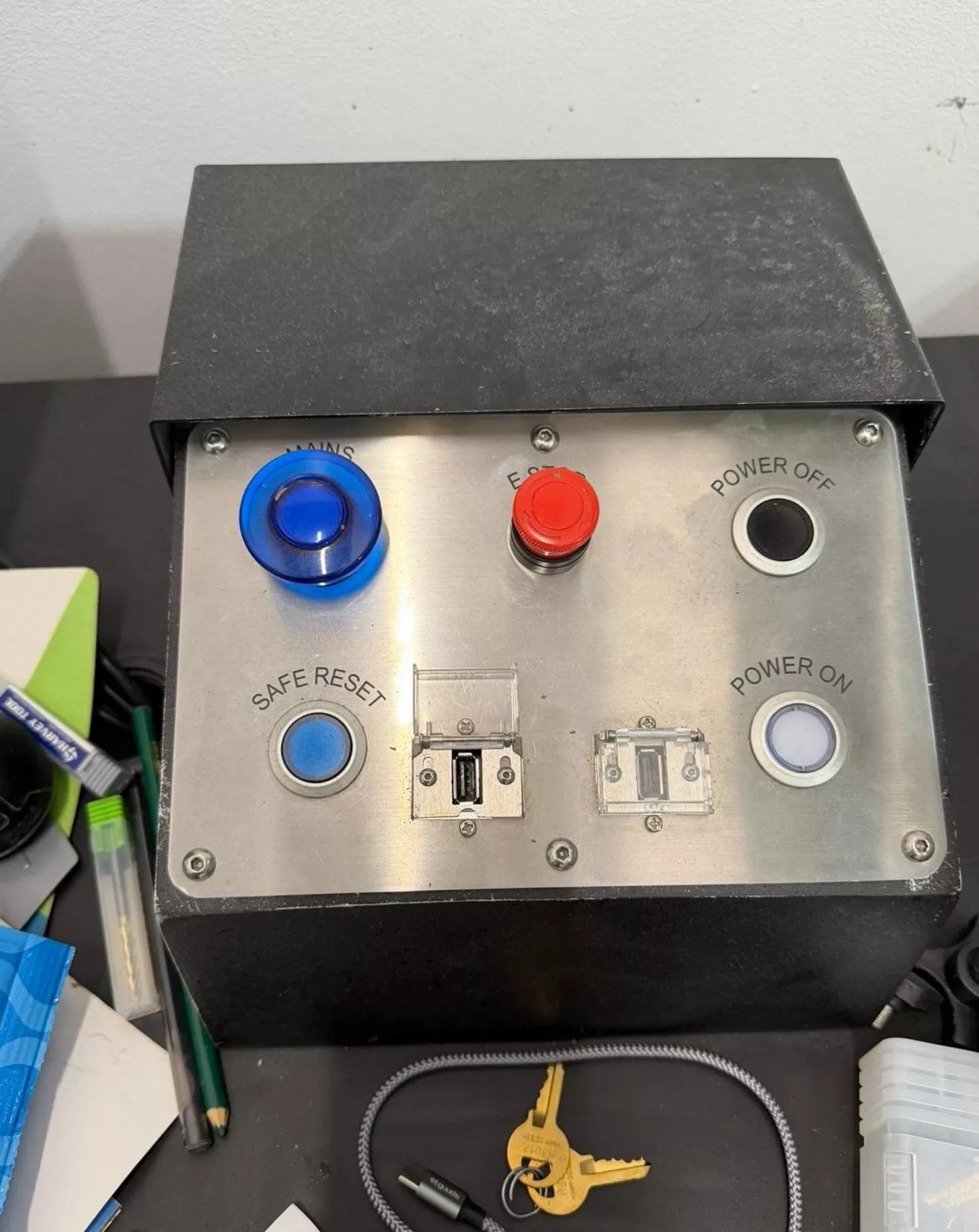

| Remote Machine Power & Safety Control Station |
| USB Ports |
| Travels: |
|---|
| X-Axis Travel: 298.5″ |
| Y-Axis Travel: 79.0″ |
| Z-Axis Travel: 64.2″ |
| A-Axis Rotation: ±109° |
| B-Axis Rotation: ±180° |
| Table: |
|---|

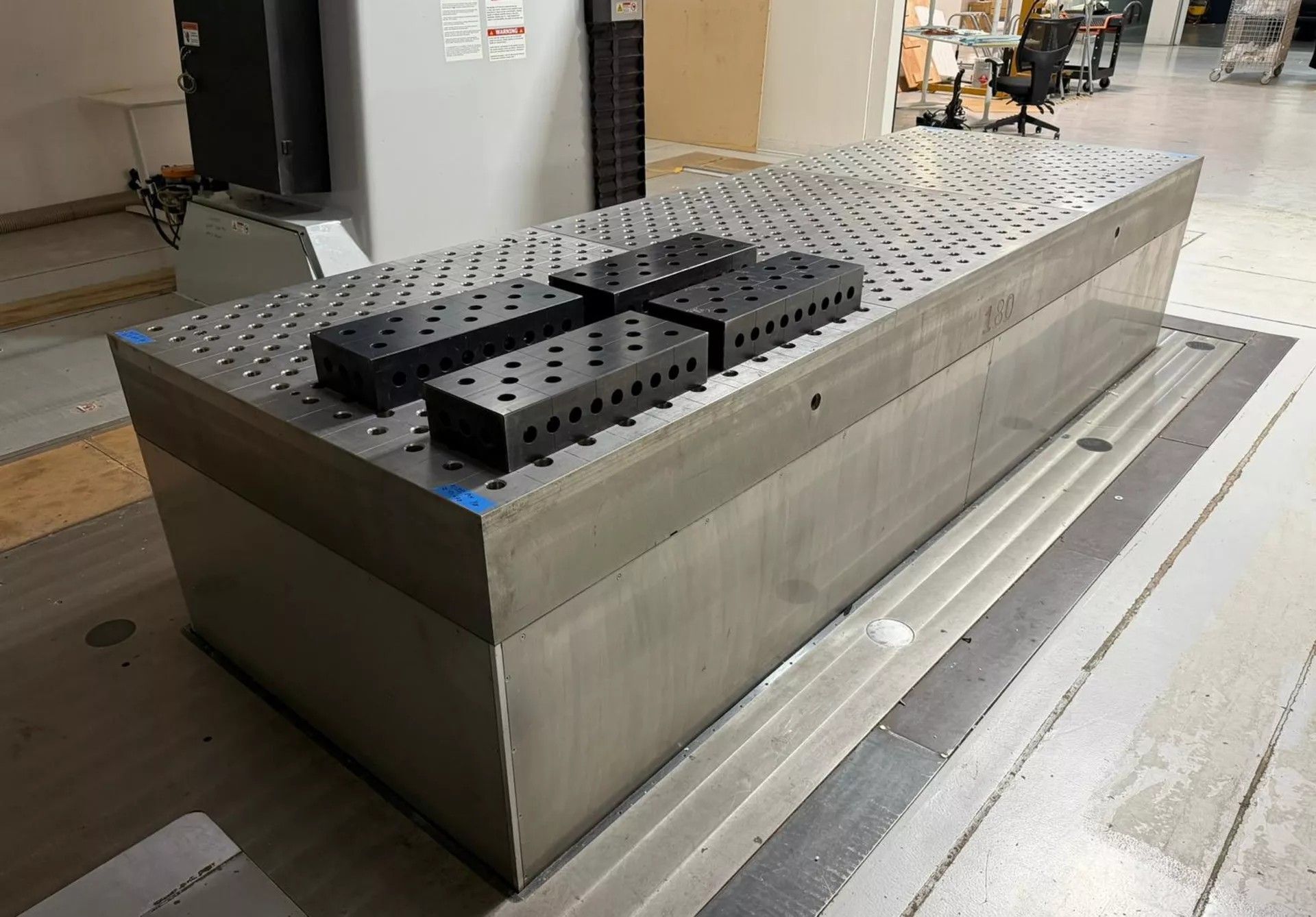

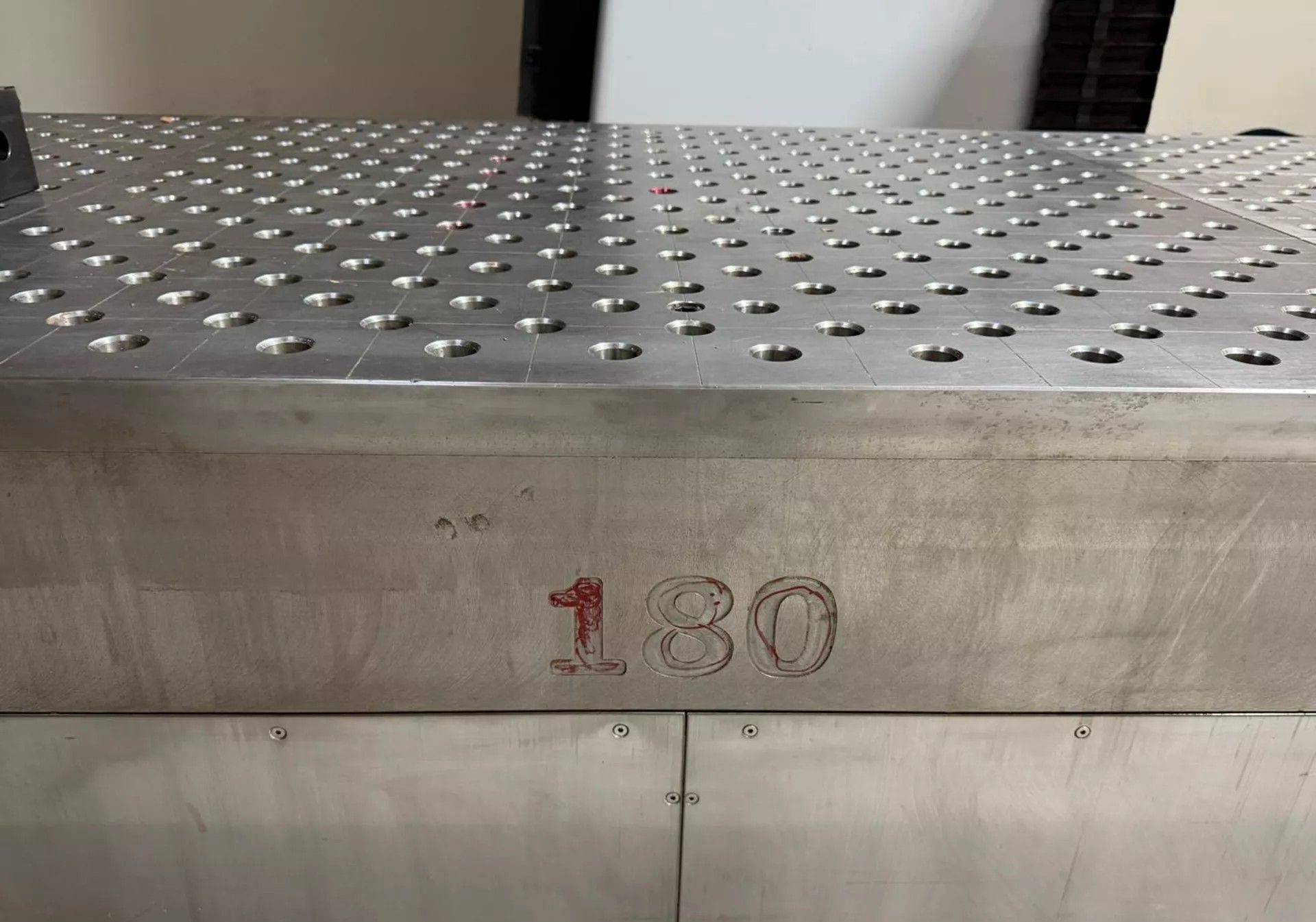

| Table Size: 48″ × 144″ |
| Table Type: In-Ground Machine Table |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Taper: HSK-63 |
| General: |
|---|

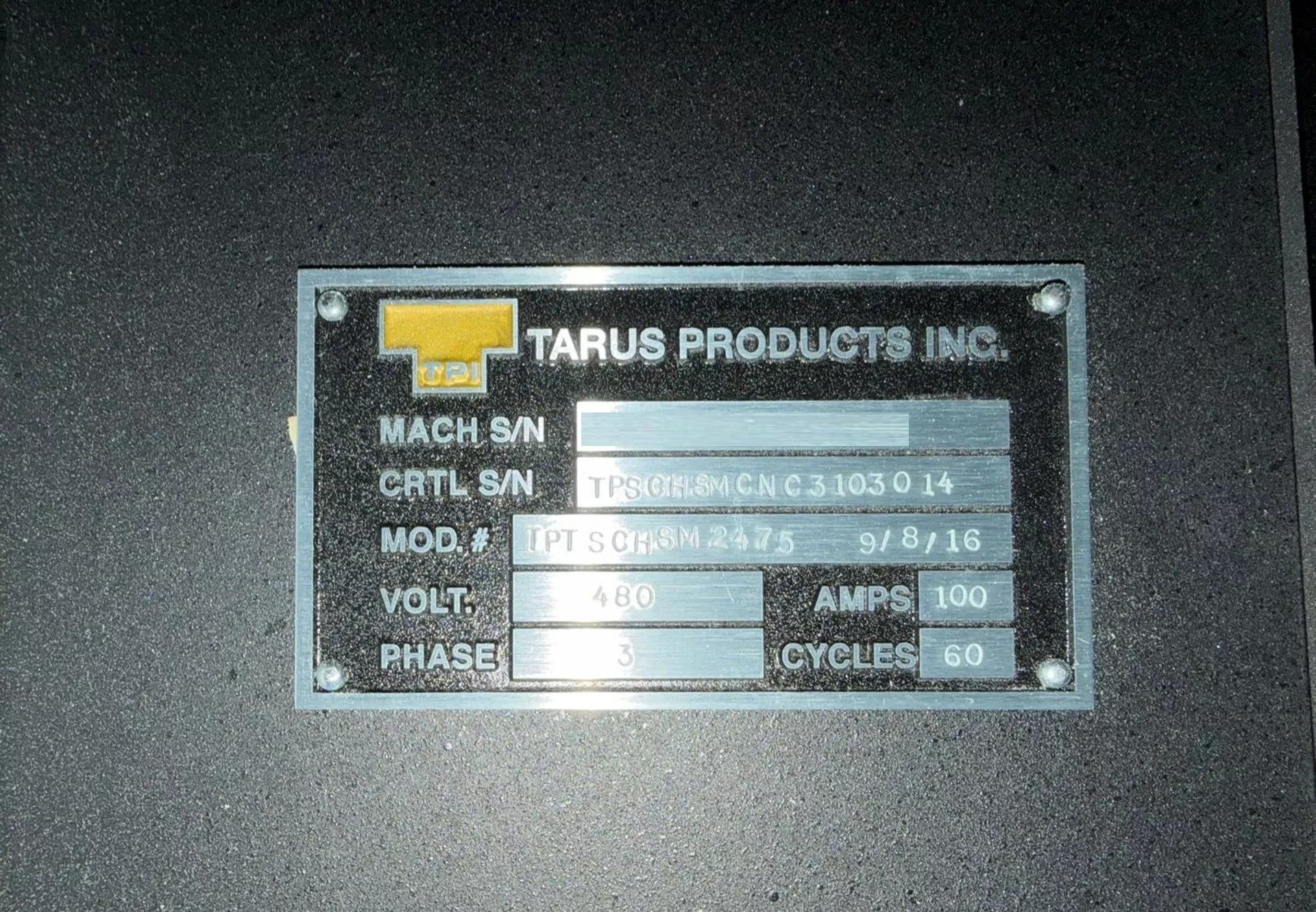

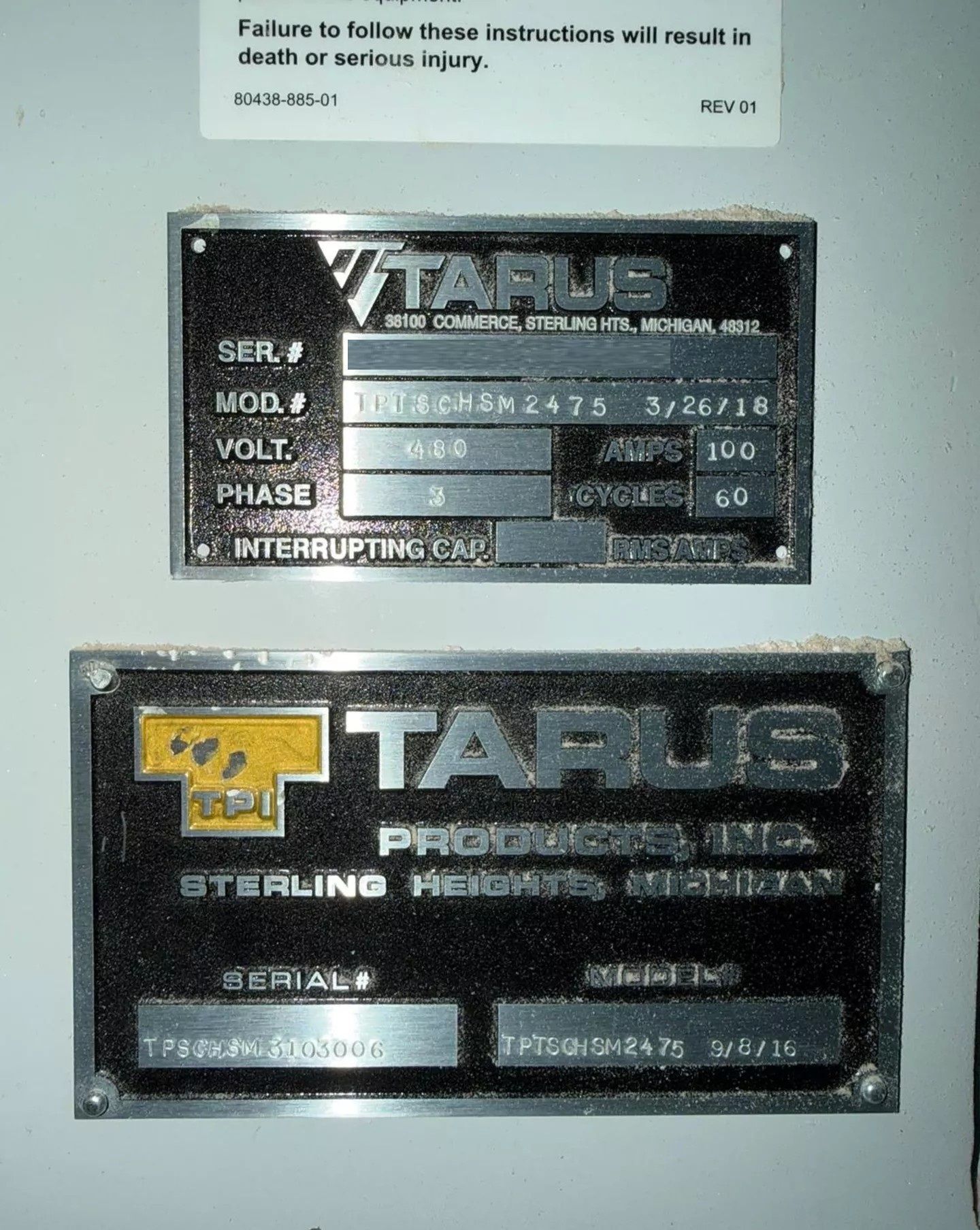

| Power Requirement: 480 Volt / 3-Phase / 60 Hz / 100 Amps |
| Overall Floor Space Required: 190″ W × 437.25″ L Approx. |
| Column Height: 166.5″ Approx. |
| Designed to Provide 5-Axis Milling Capability for Modeling and Prototyping Clay and Low Density Foam Components in Product Development in Automotive, Aircraft, and Defense Related Industries. |
