*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| Make/Model: |

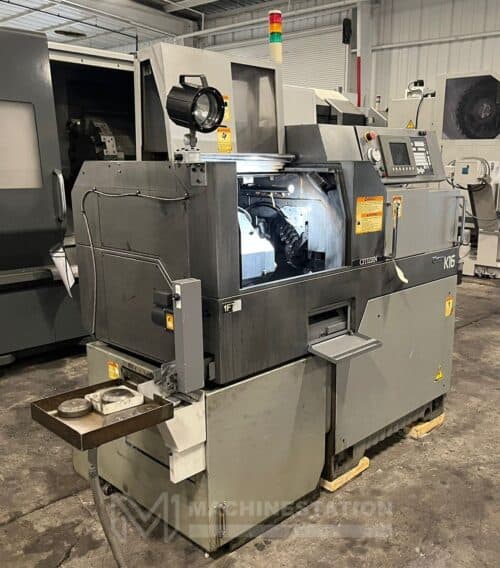

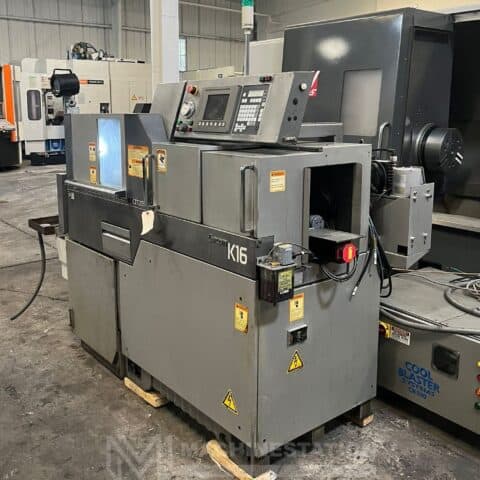

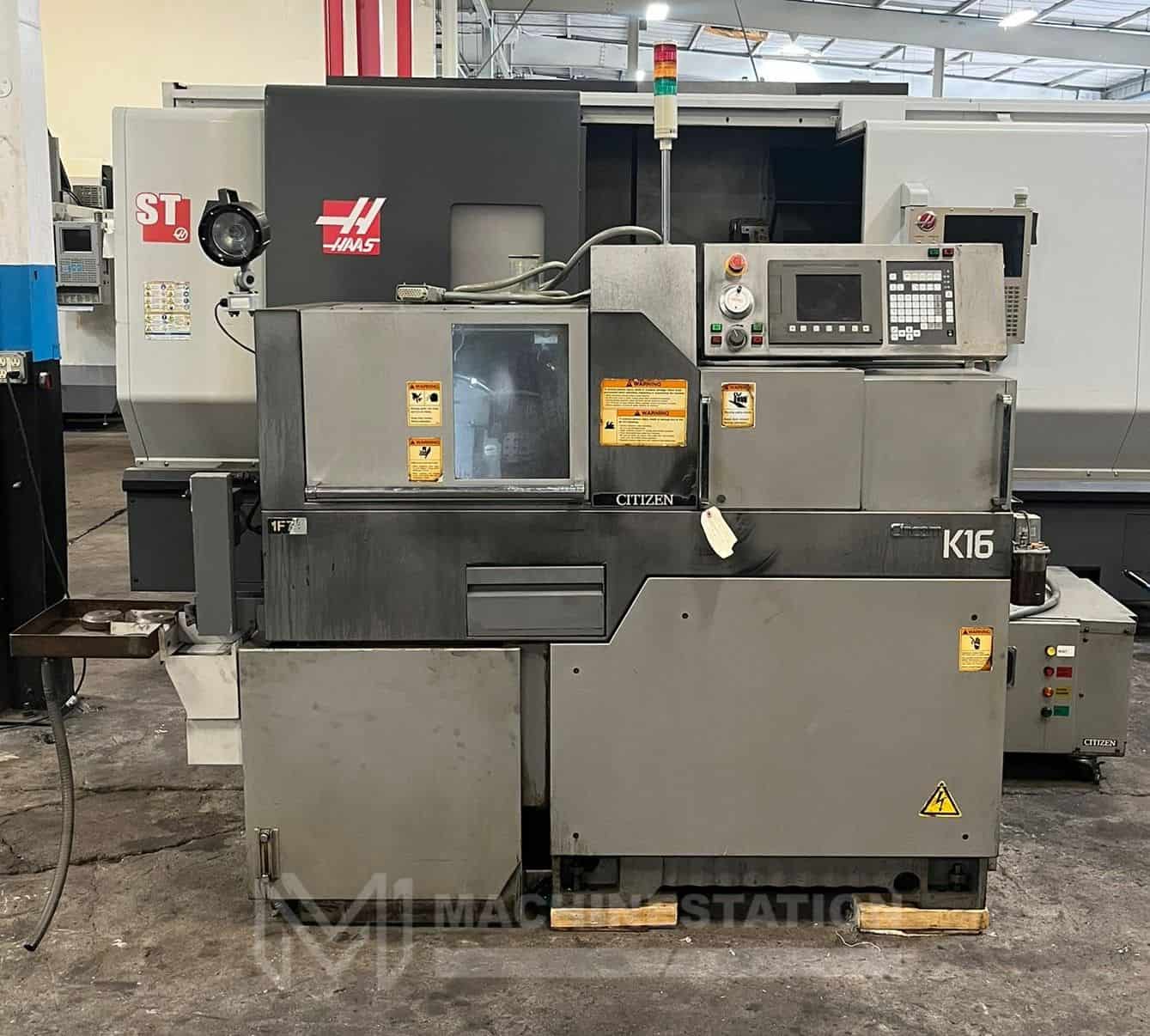

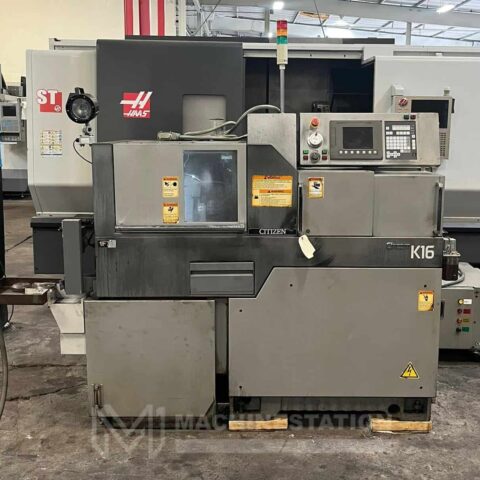

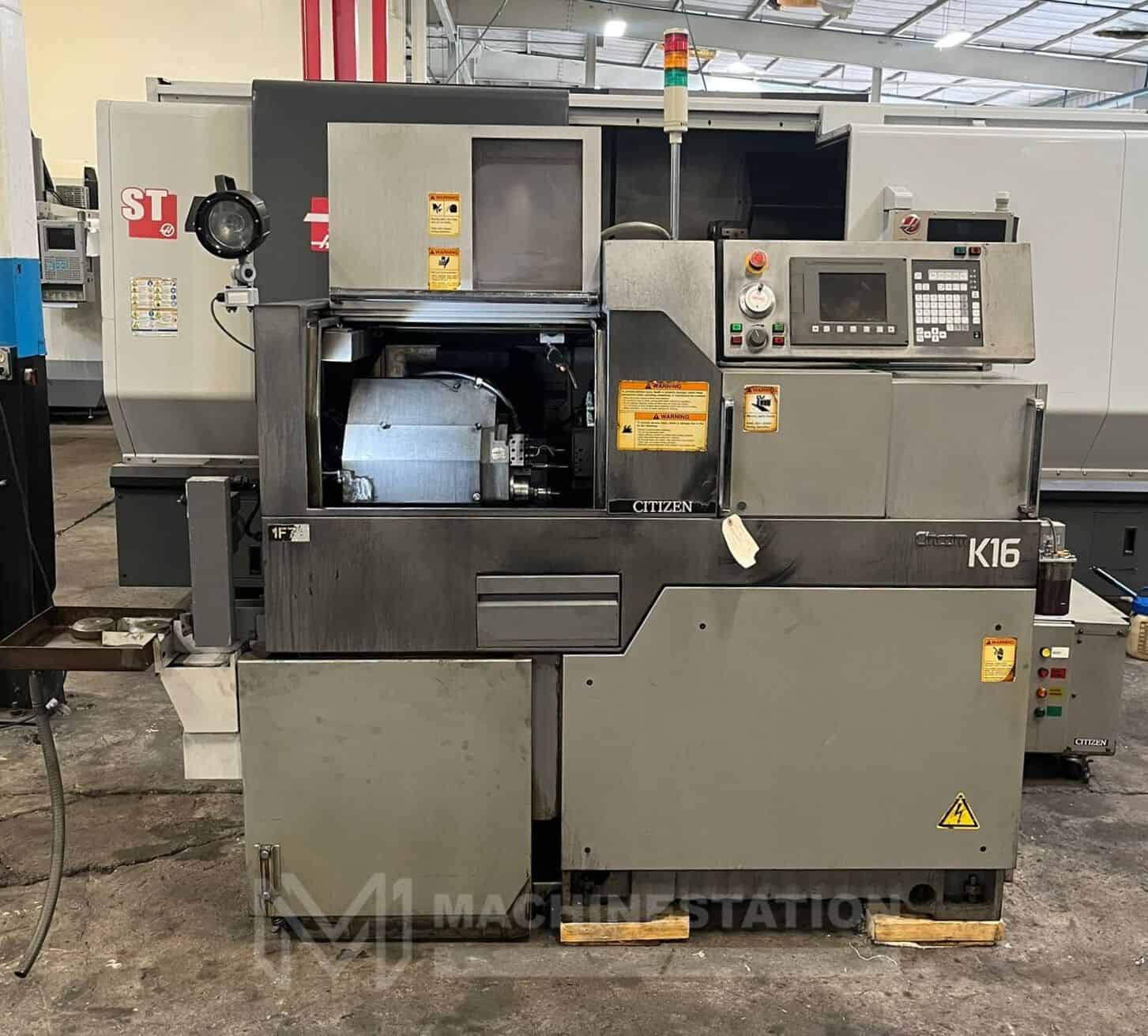

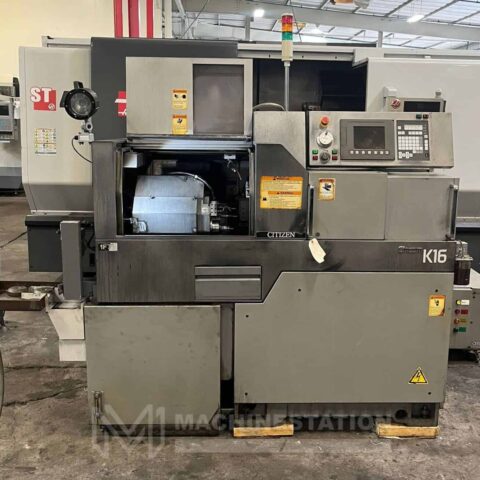

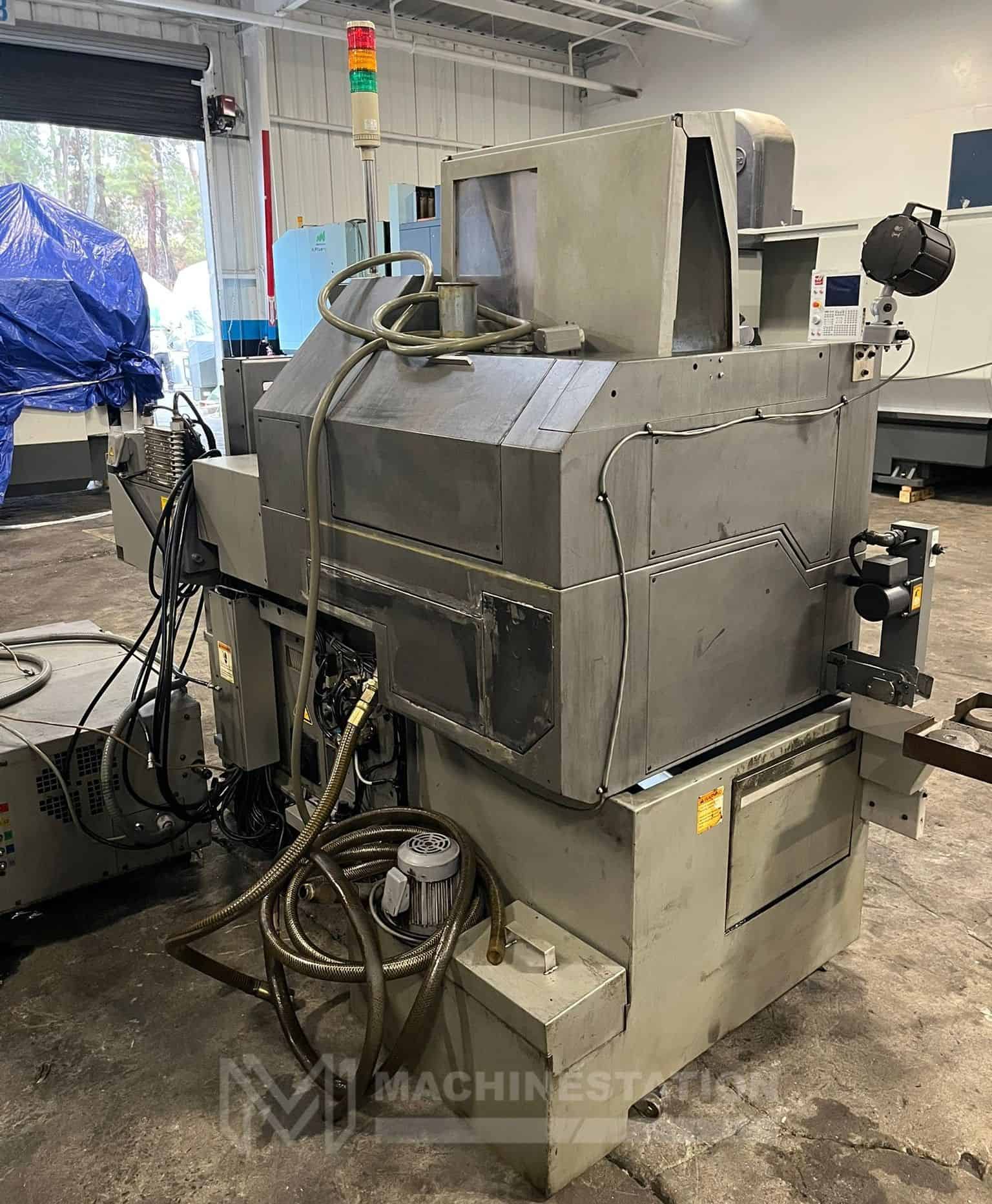

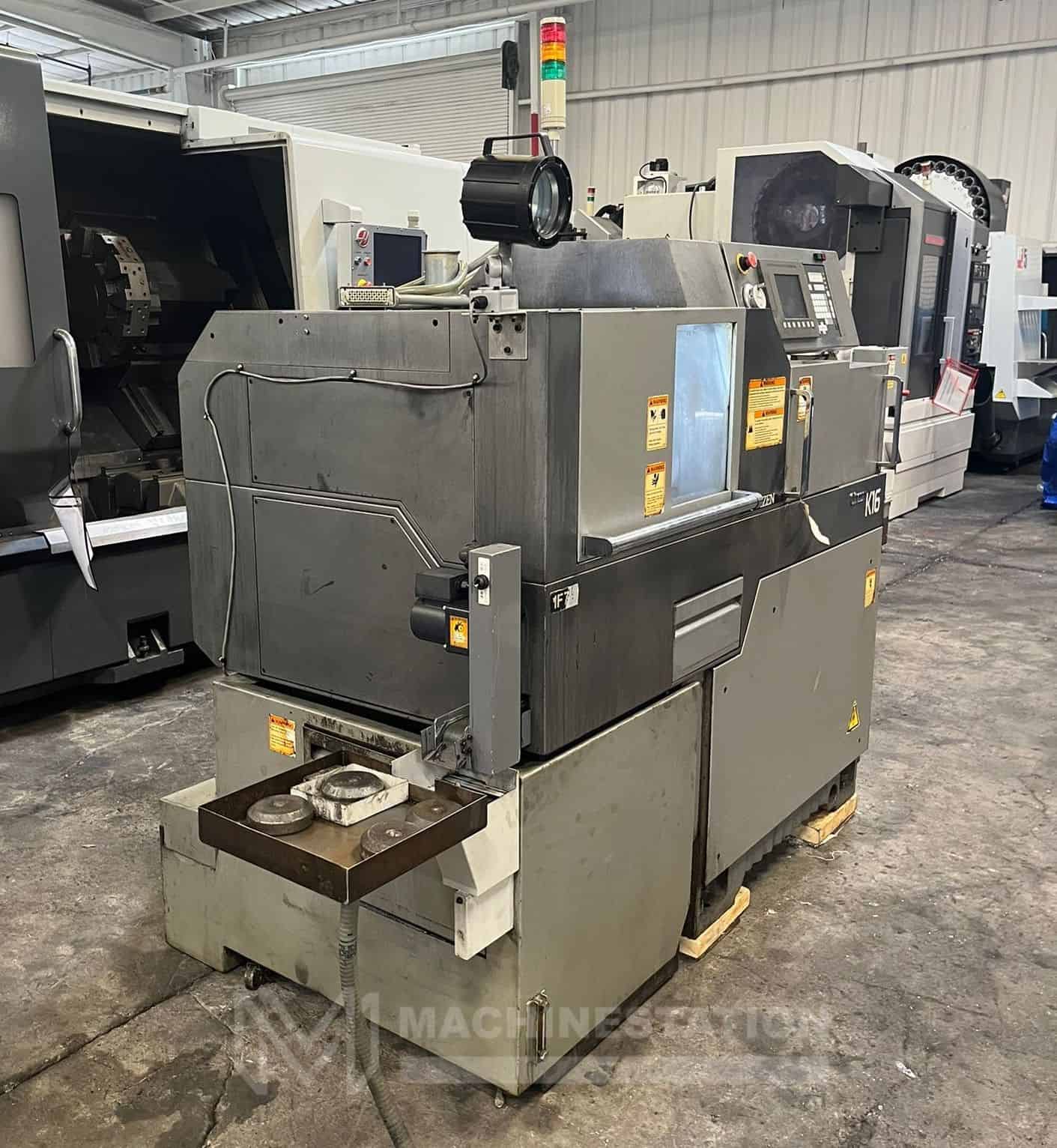

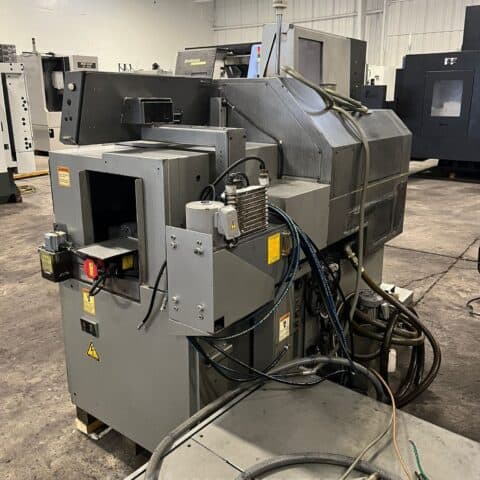

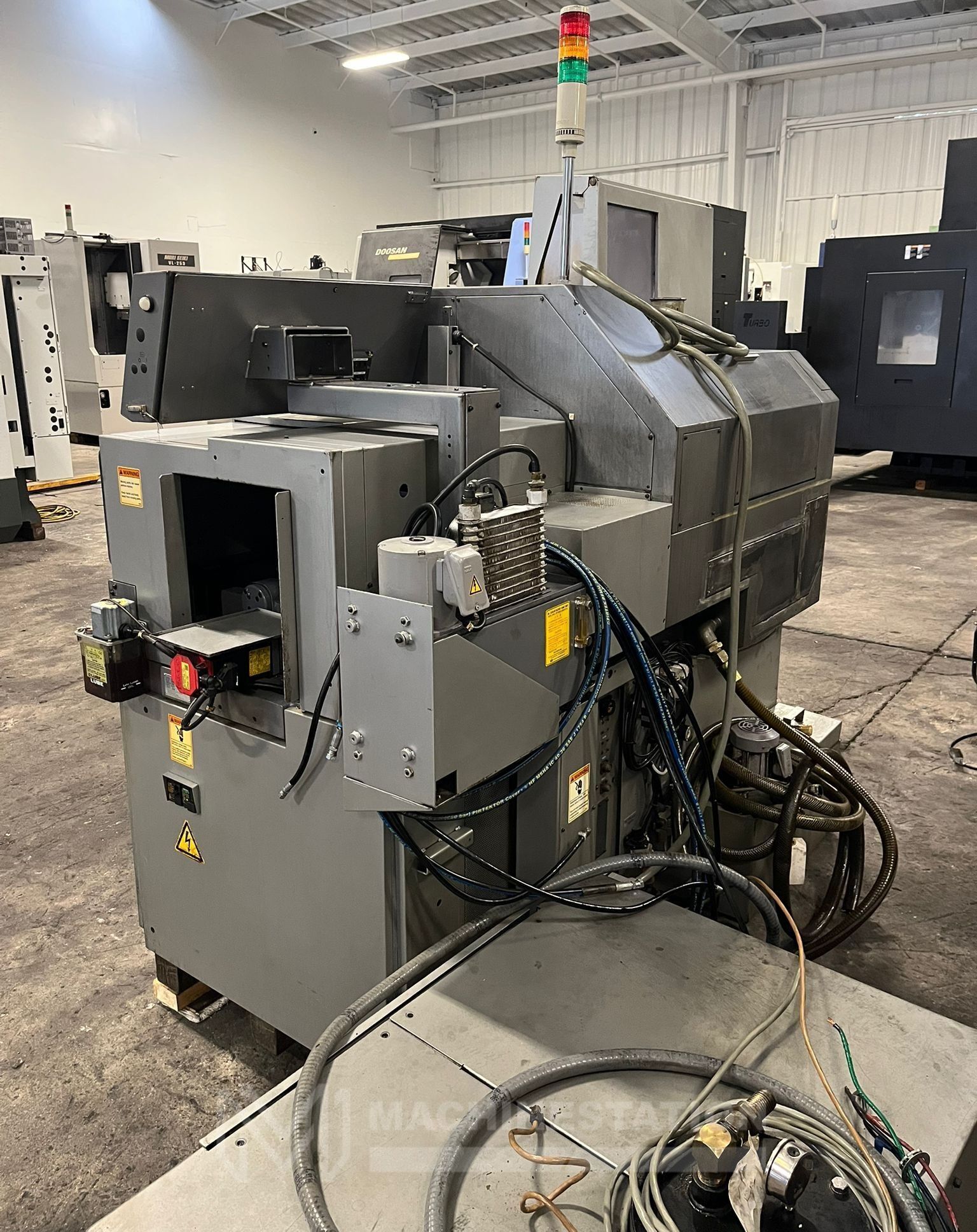

Citizen Cincom K16 VIIP |
| Year: |

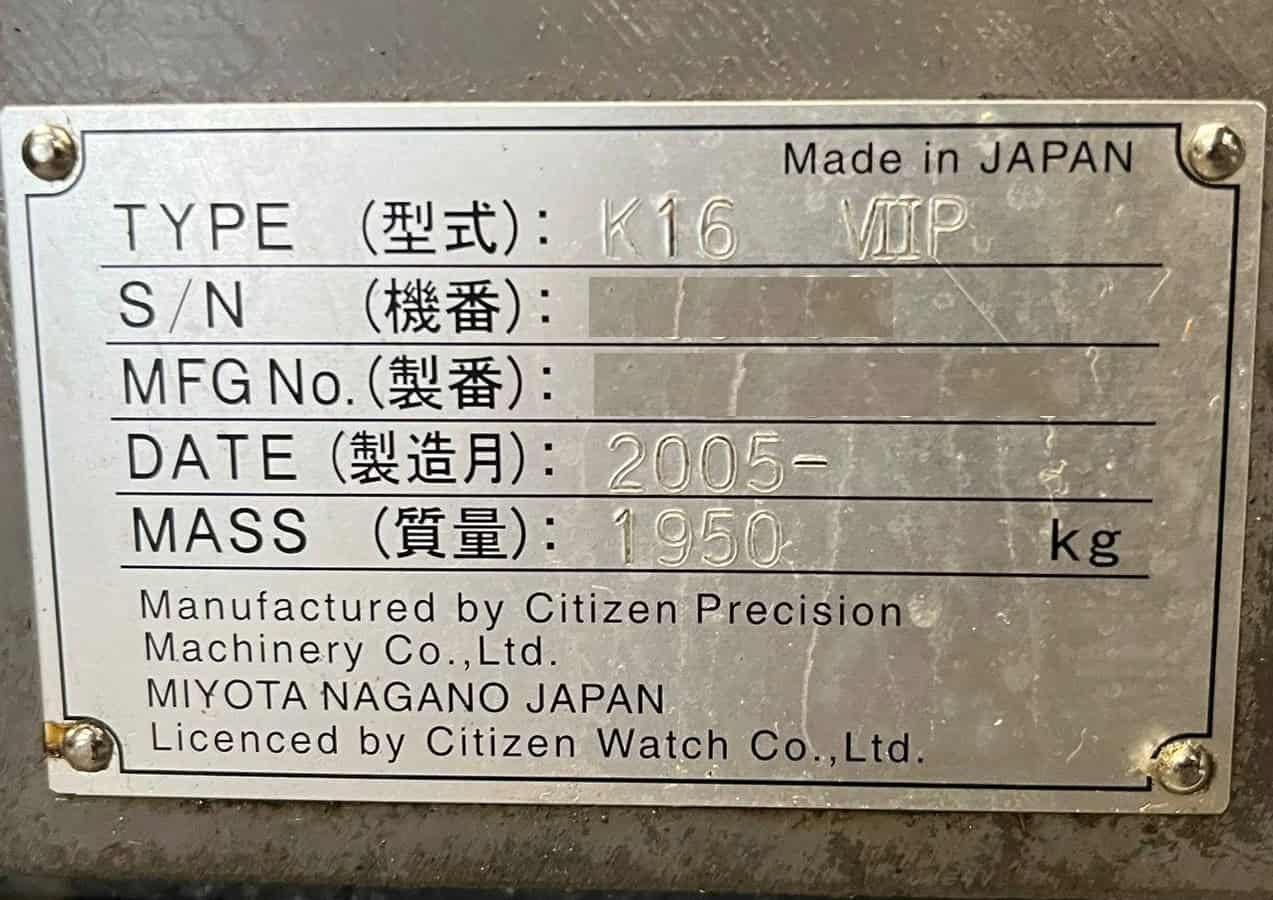

2005 |
| Condition: |
Used – Good |
| Equipped With: |

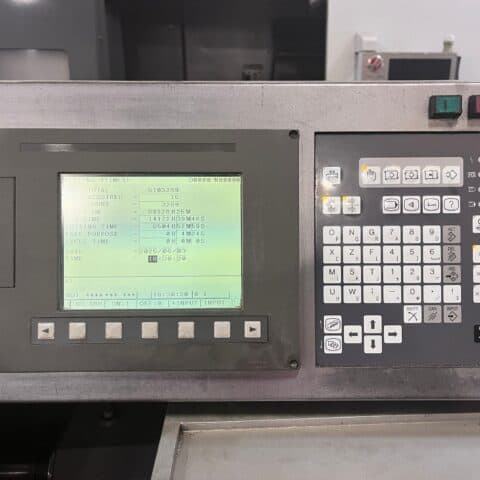

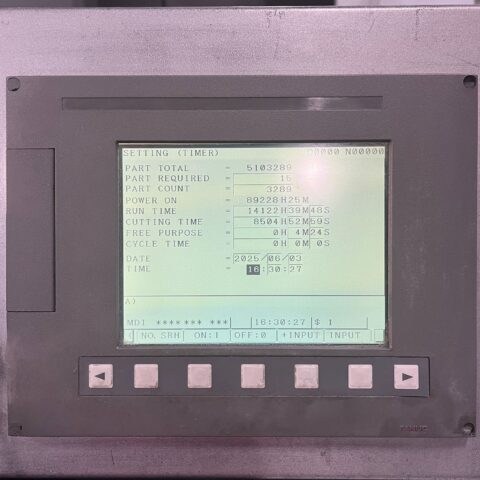

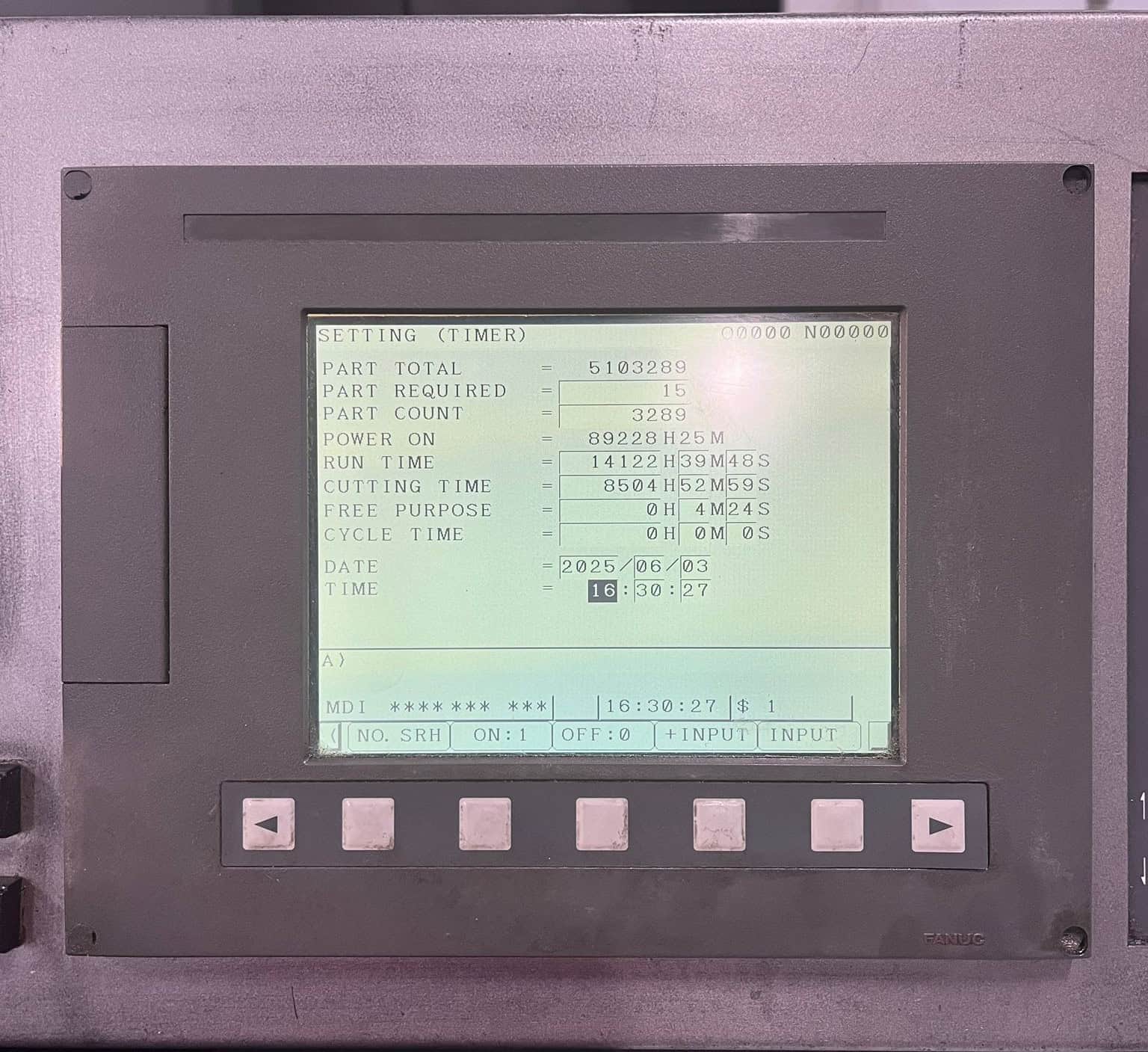

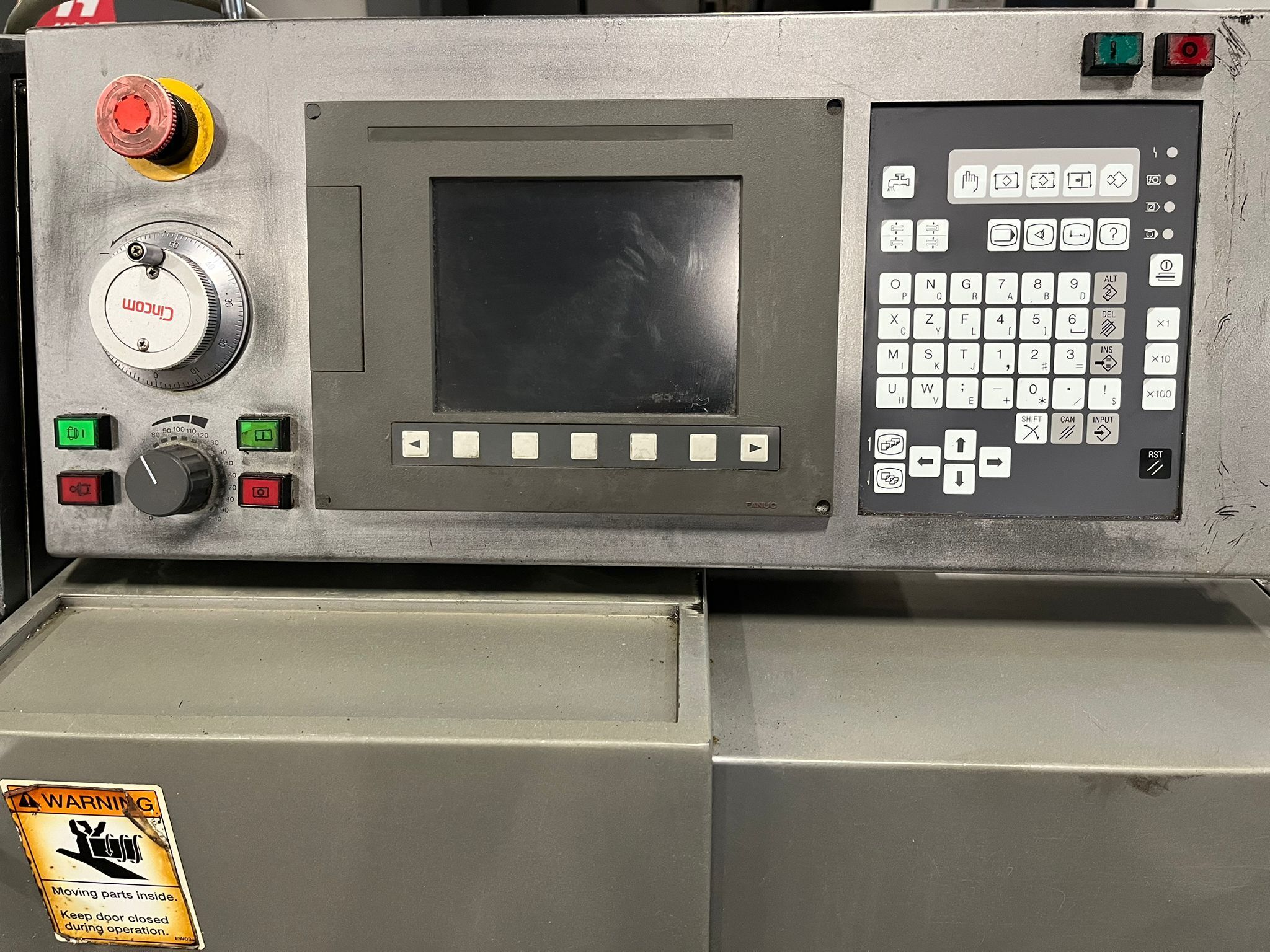

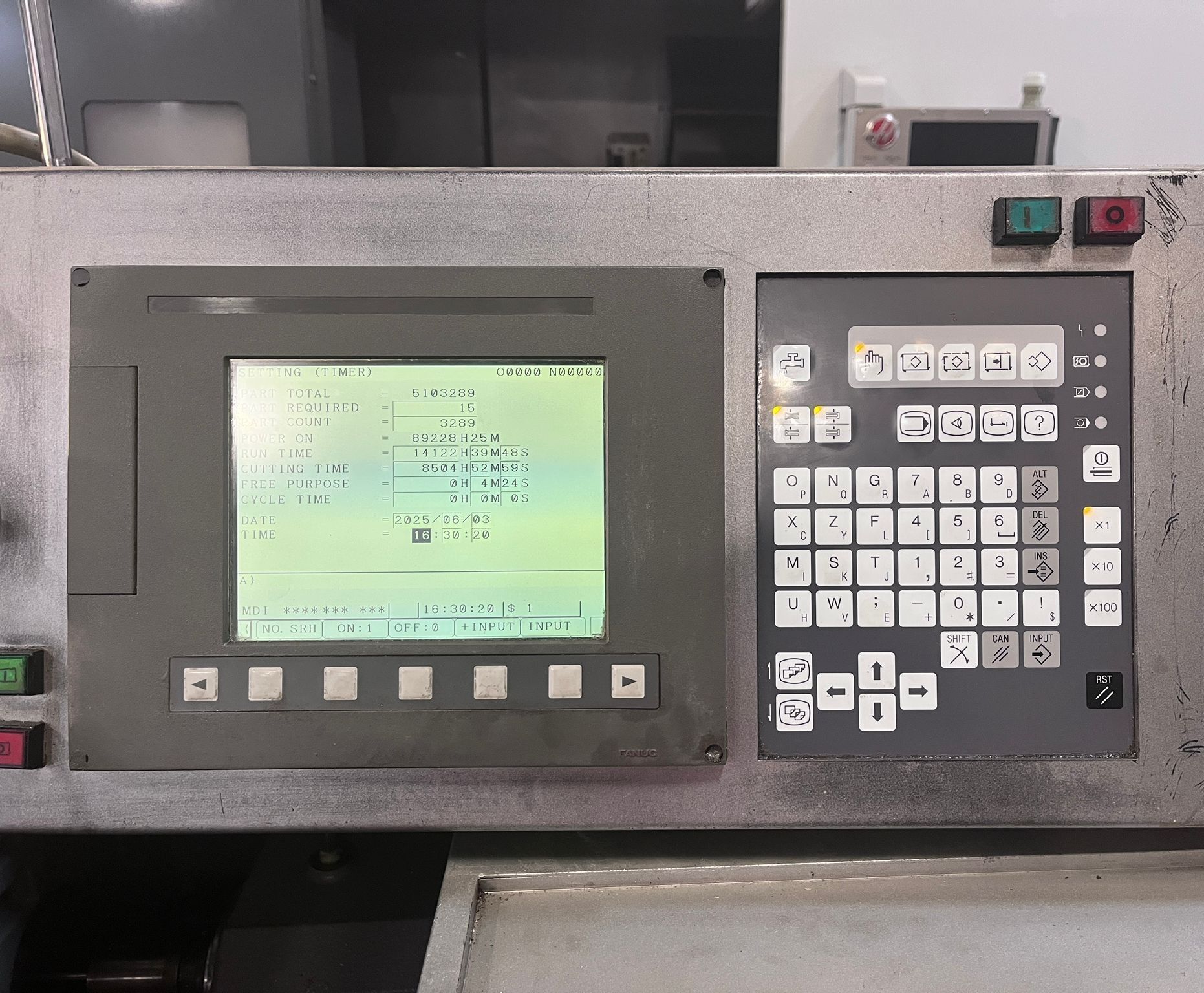

- Citizen Cincom (Fanuc) CNC Control
- 7 Axis X1, X2, Y1, Z1, Z2, C1, C2

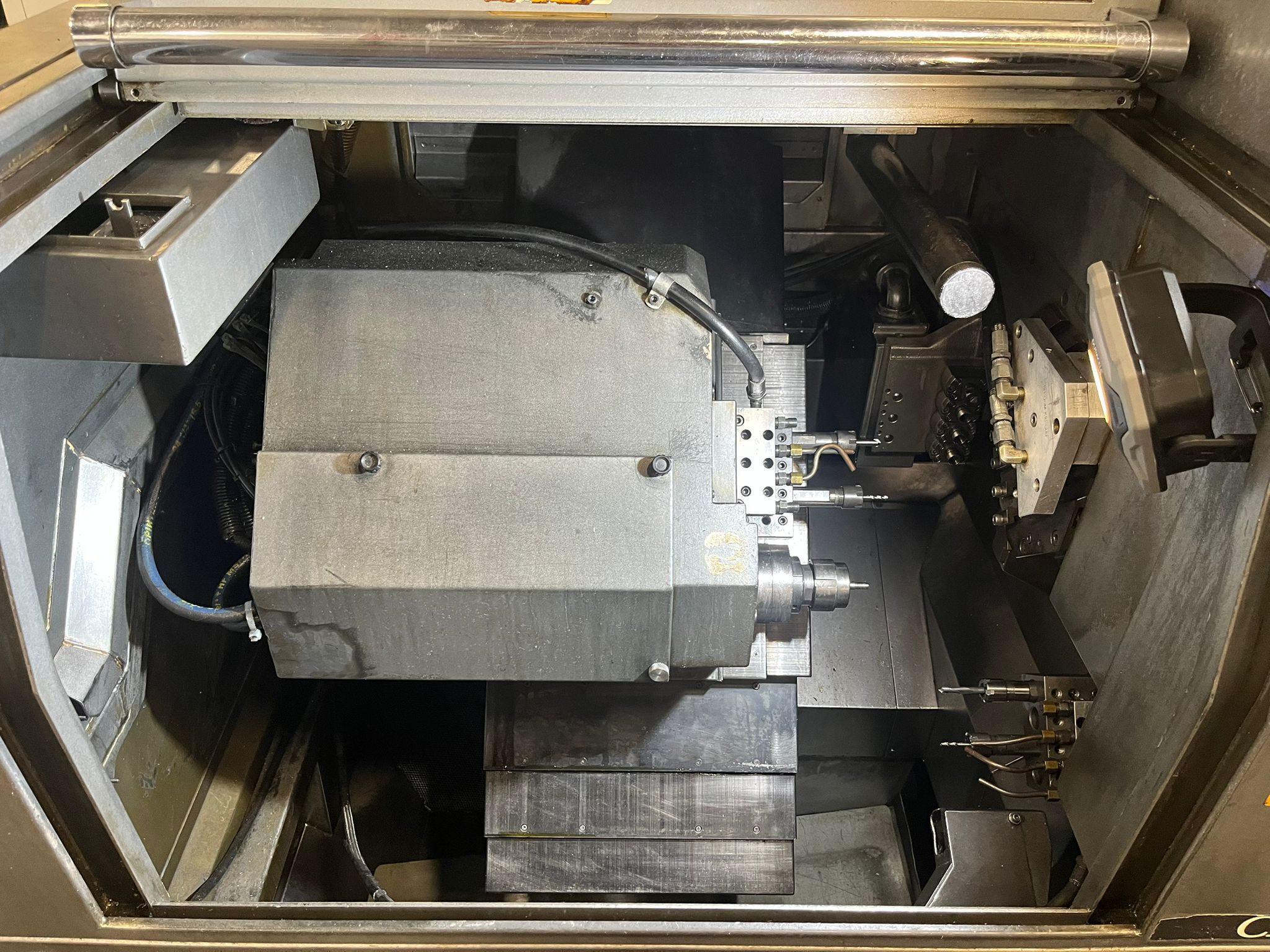

- Back Spindle
- C & Y Axis Capable

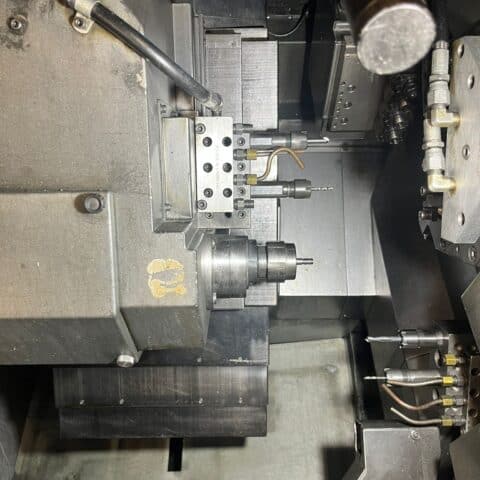

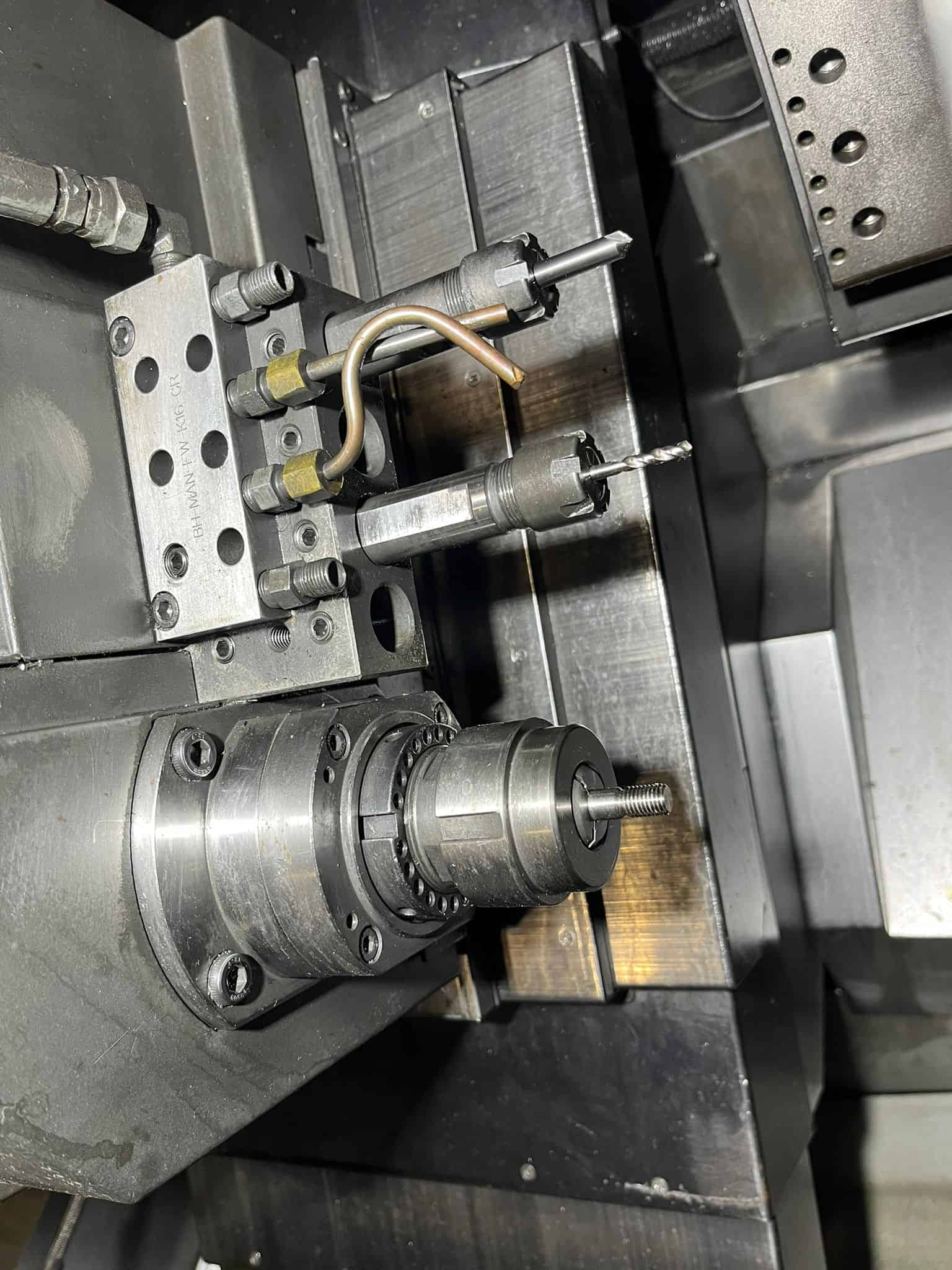

- Live Tools Capable
- Long Parts Capable
- MPG Control
- Part Catcher
- Part Conveyor
- Bar Feeder Interface – Enabled
- Main & Back Spindle Synchronization
- High Speed Rapid Traverse
- High Speed Program Processing
- Absolute Position Detection
- Automatic Lubrication System
- Coolant System
- Cool Blaster System CB510
- Leveling Pads
|
| Capacity: |
- Max Machining Diameter: 0.63″ (16 mm)
- Max Machining Length: 7.87″ (200 mm)
- Max Bar Capacity: 0.63″ (16 mm)
- Max Tool Positions: 18
- Spindle Through-hole Diameter: 0.79″ (20 mm)
- Max. Workpiece Length For Front Ejection: 1.57″ (40 mm)
- Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
- Max. Main Spindle Tapping Diameter: M8
- Max. Back Spindle Chucking Diameter: 0.79″ (16 mm)
- Max. Back Spindle Drilling Diameter: 0.24″ (6 mm)
- Max. Back Spindle Tapping Diameter: M5
- Max. Cross Drilling Diameter: 0.2″ ( 5 mm)
- Max. Cross Tapping Diameter: M4
|
| Spindle: |
- Main Spindle Indexing: 360° (Full C-Axis)
- Main Spindle Speed: 15000 RPM ?
- Back Spindle Motor: 3.7 kw
- Back Spindle Indexing: 360°
- Back Spindle Speed: 10000 RPM ?
- Back Spindle Motor: 1.1 kw
|
| Standard Tools: |
- Turning Tools: 6
- Stationary Tools For Front Spindle: 4
- Stationary Tools For Back Spindle: 4
|

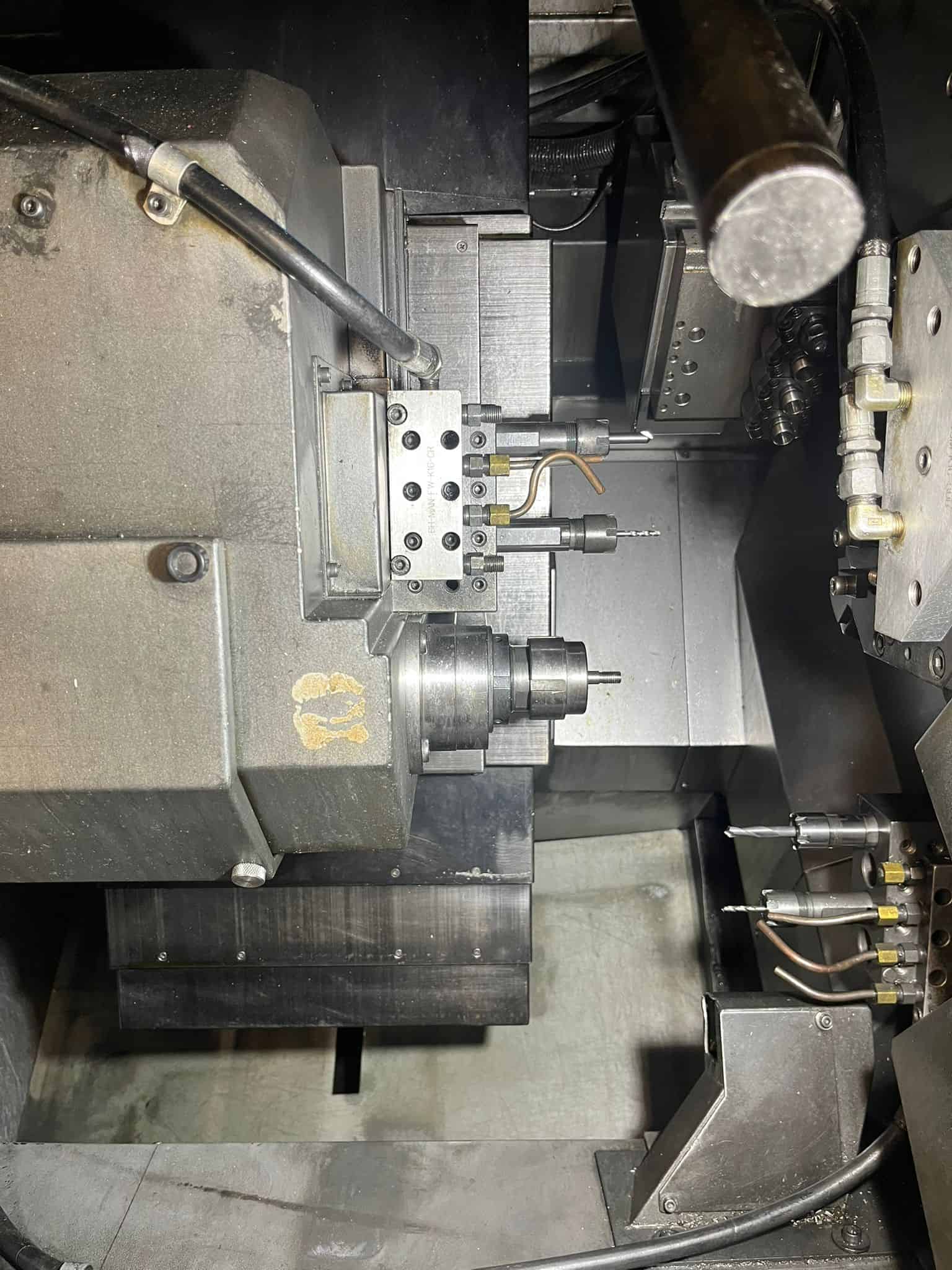

| Power Driven Tools Attachment: |
- Power Driven Tools: 4
- Driven Tool Speed: 6000 RPM
- Driven Tool Motor: 0.4 kw
|
| General: |
- Power Source: AC 220v / 3-Phase /60 Hz
- Power Requirement: 8 kva
- Overall Dimensions: 84″ x 54″ x 68″ High
- Weight: 4300 lbs. Approx.
|
