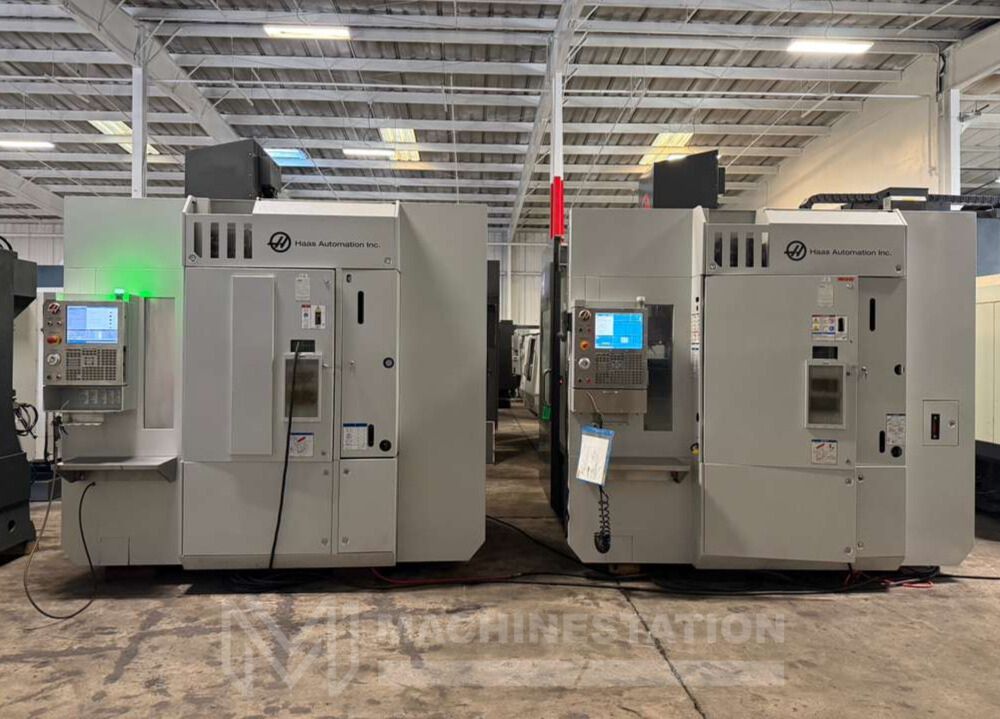

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2014 Haas UMC-750 is fully equipped with 12,000 RPM Spindle, 40 Station Automatic Tool Changer, TSC, High Speed Machining, Programmable Coolant Nozzle and Belt-Type Chip Conveyor.
“Replacement Cost Over $225,000 with Similar Options”
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model: |
UMC-750 |
| Year: |
2014 |
| Features: |

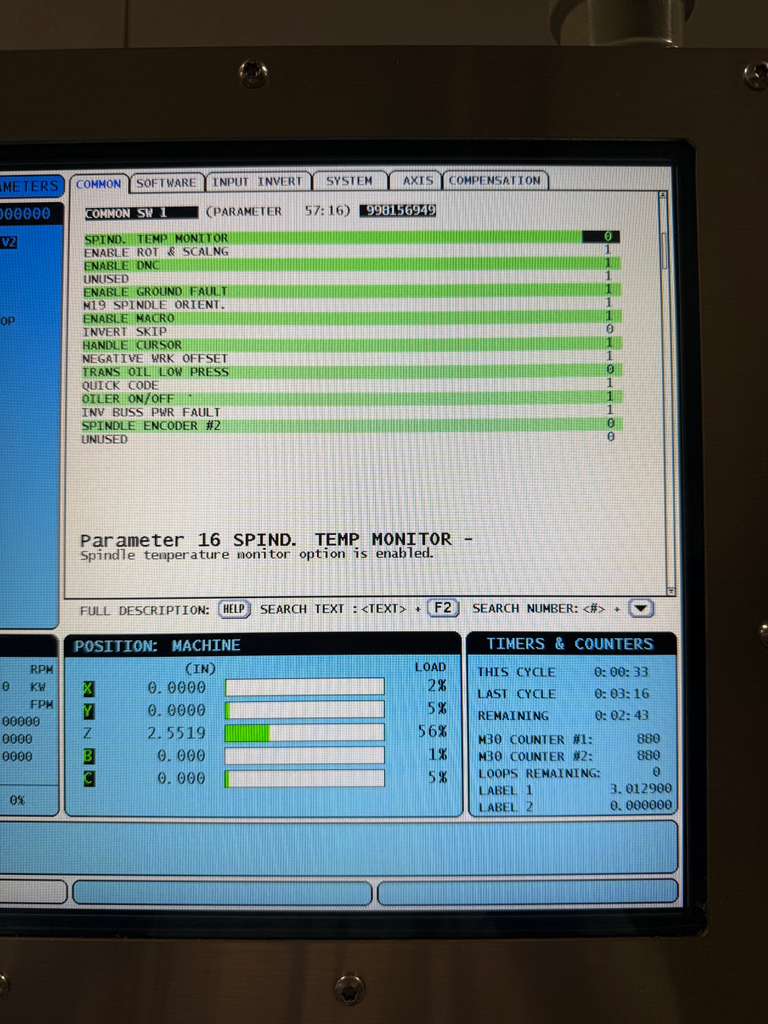

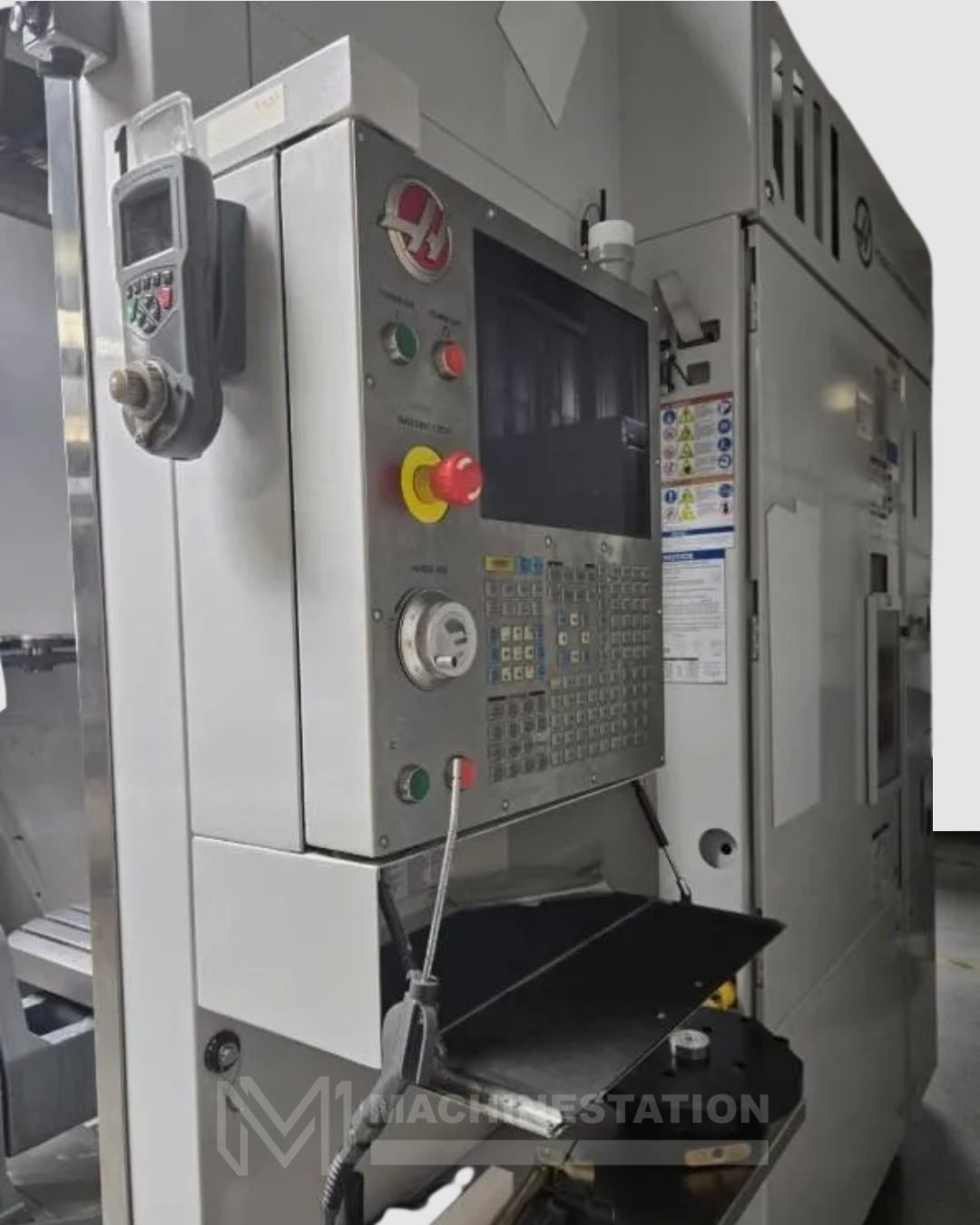

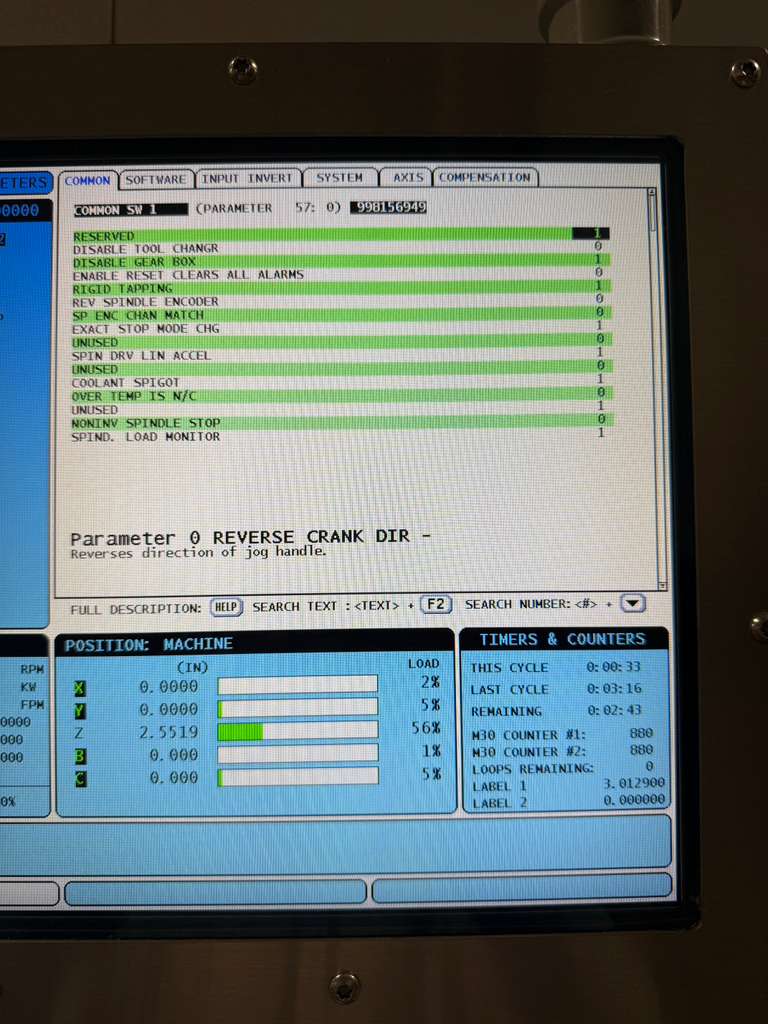

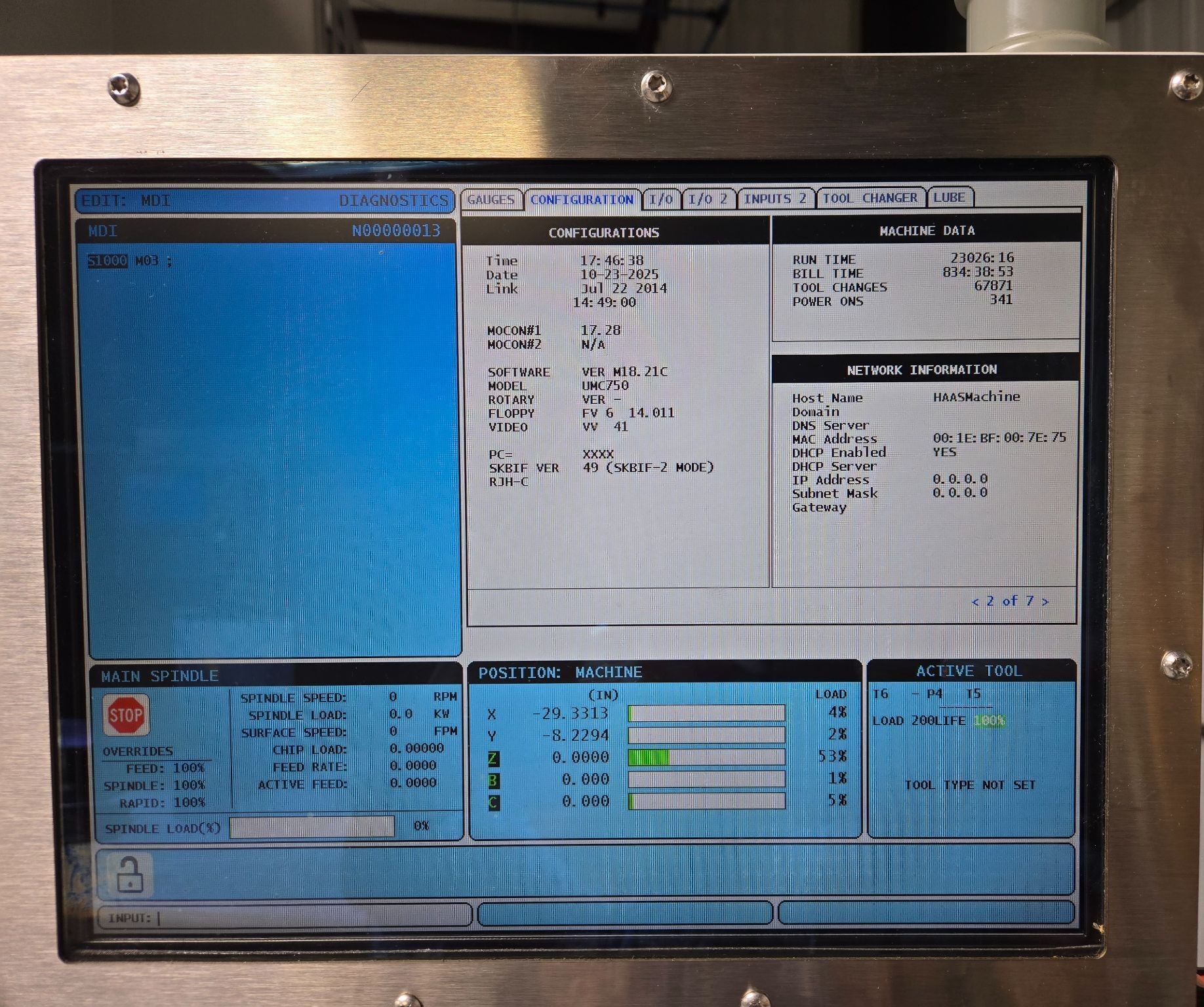

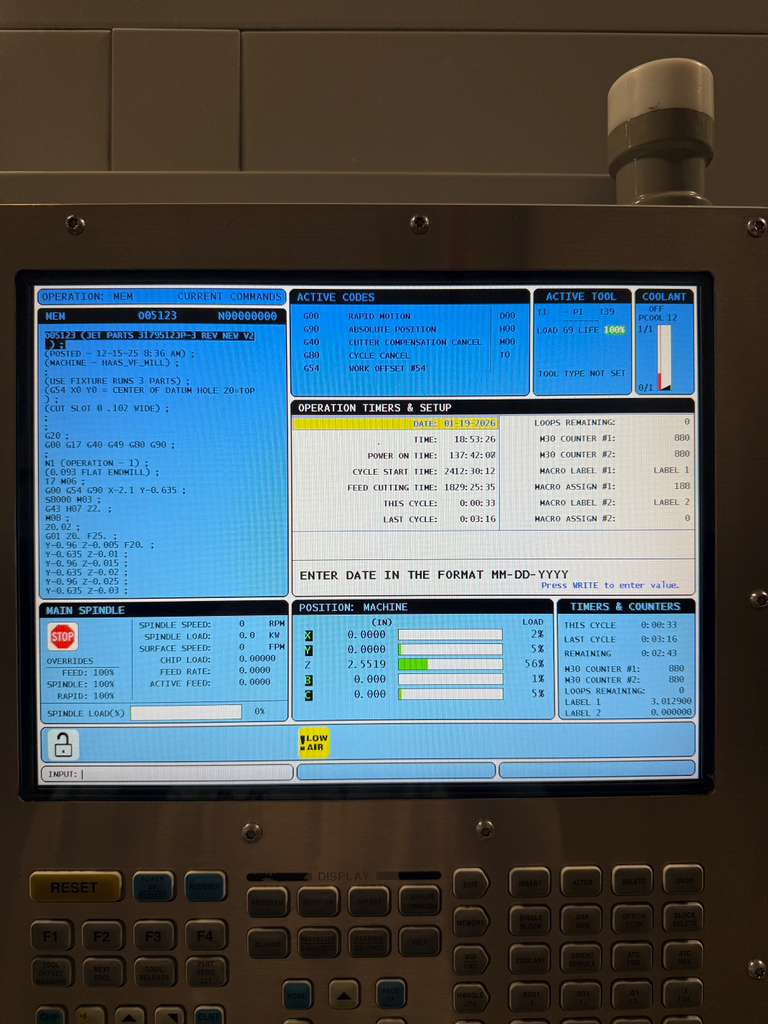

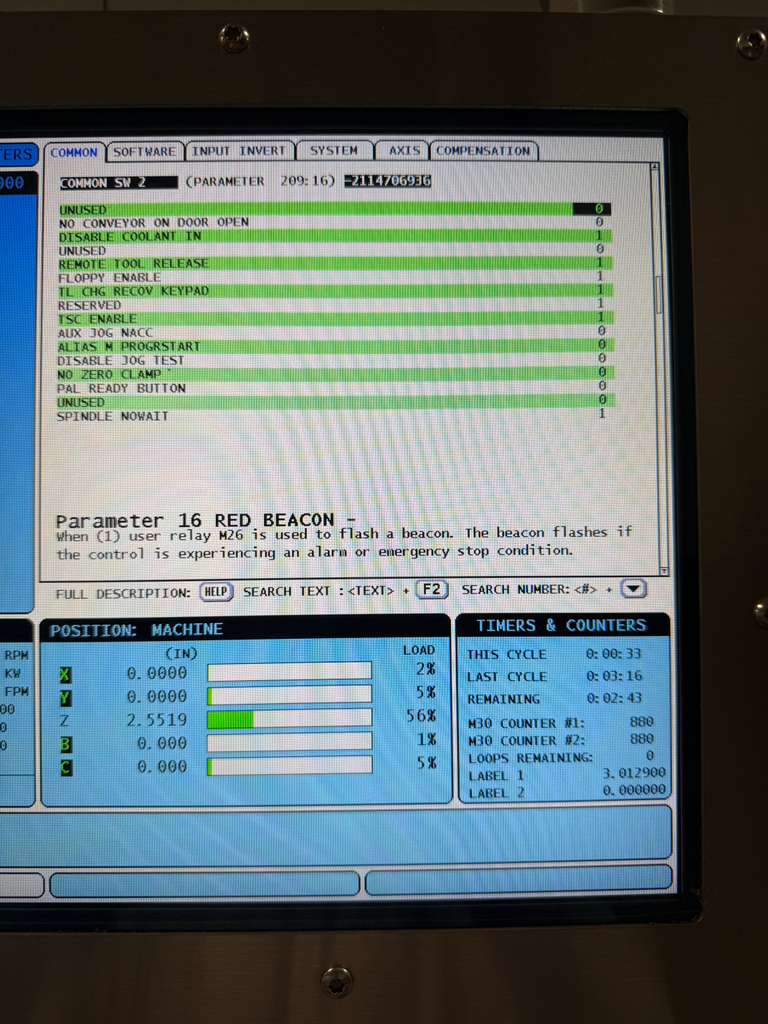

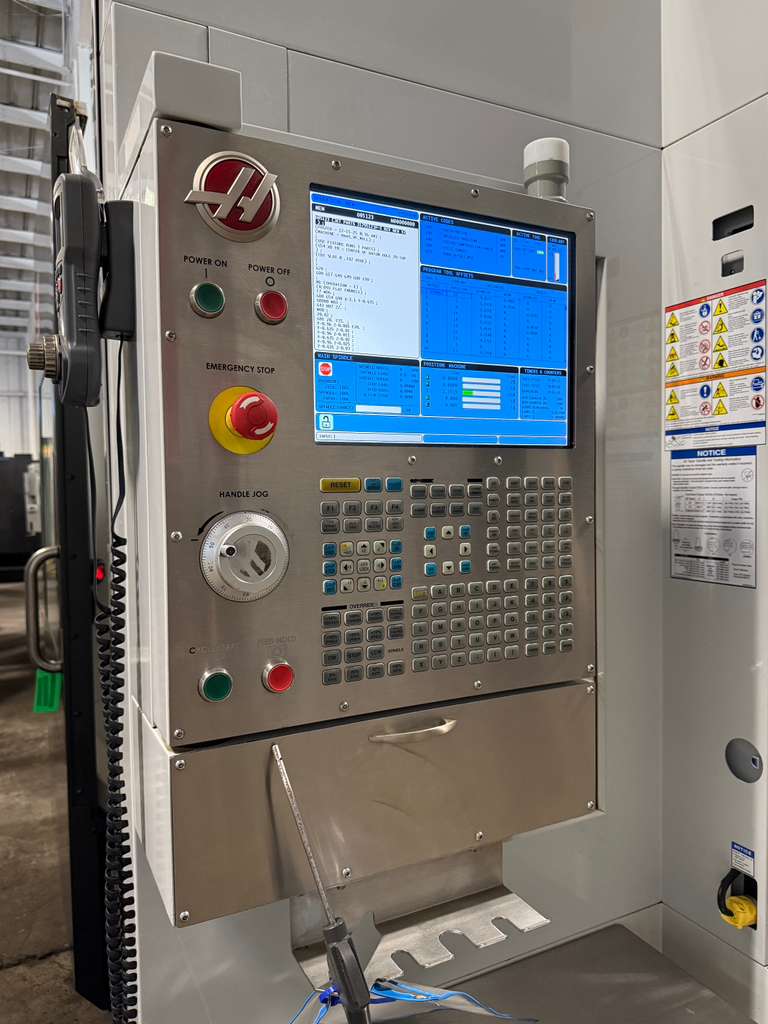

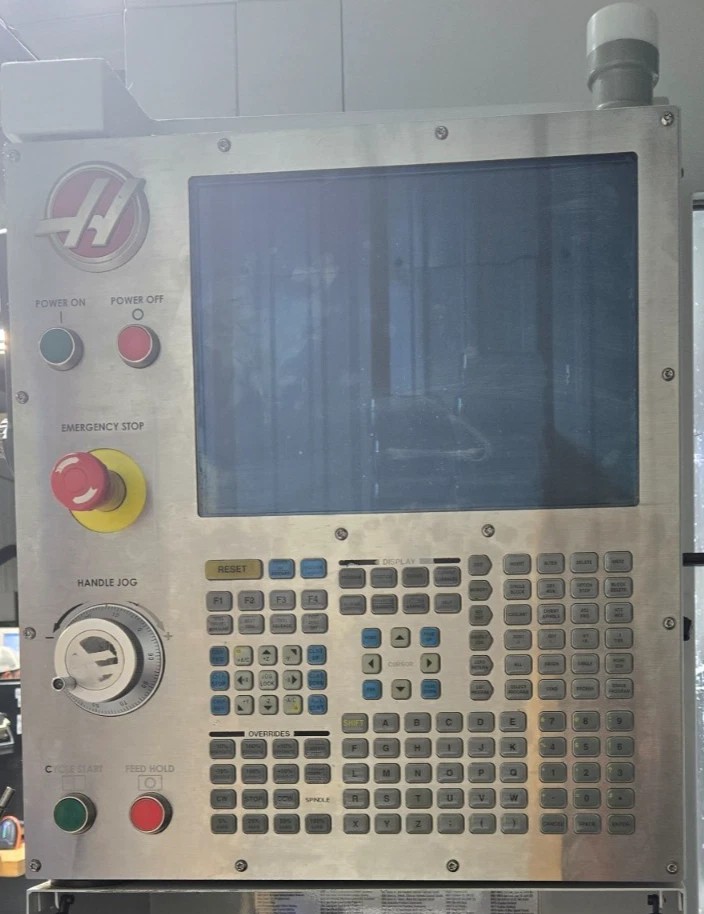

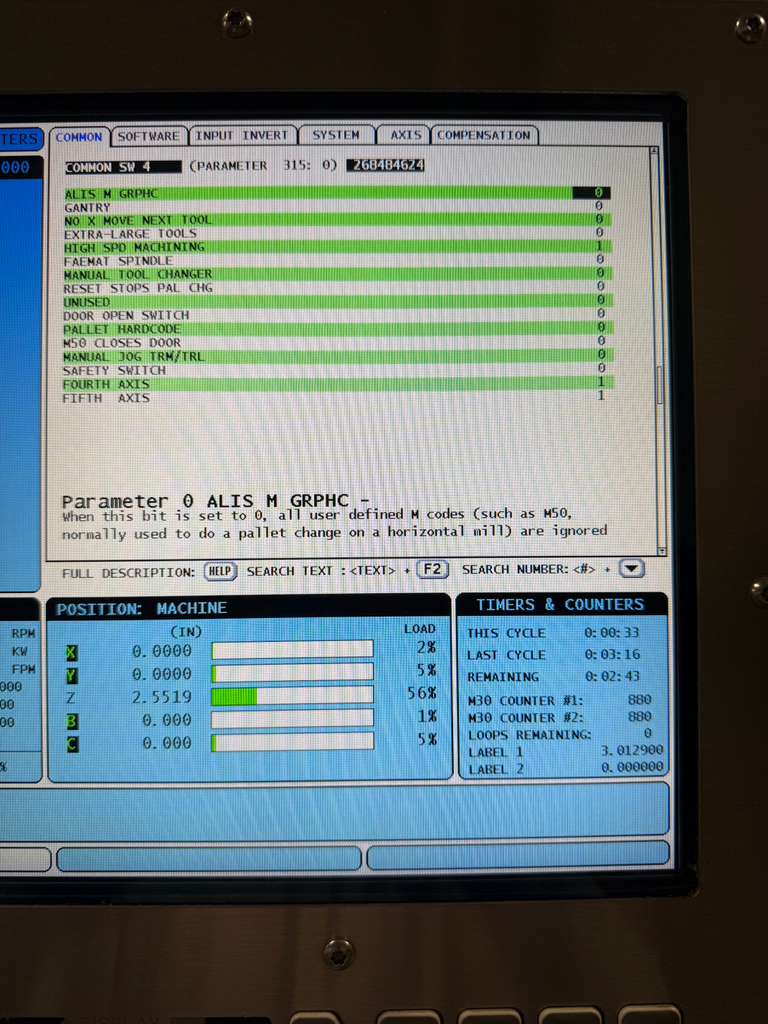

| Haas CNC Control |

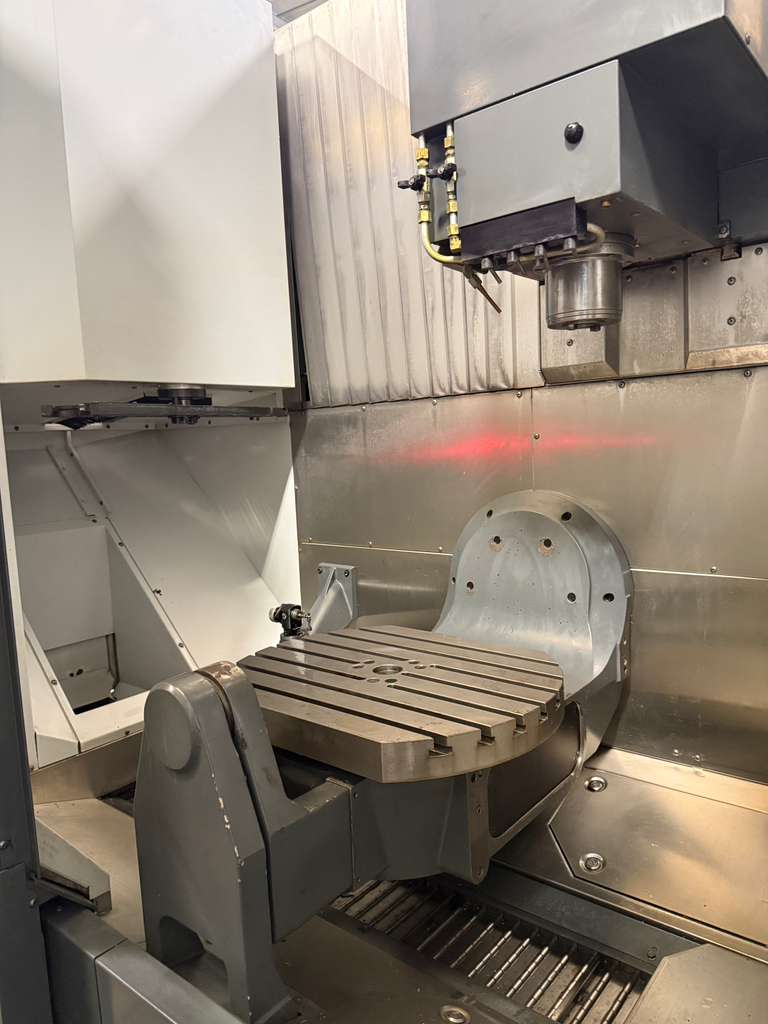

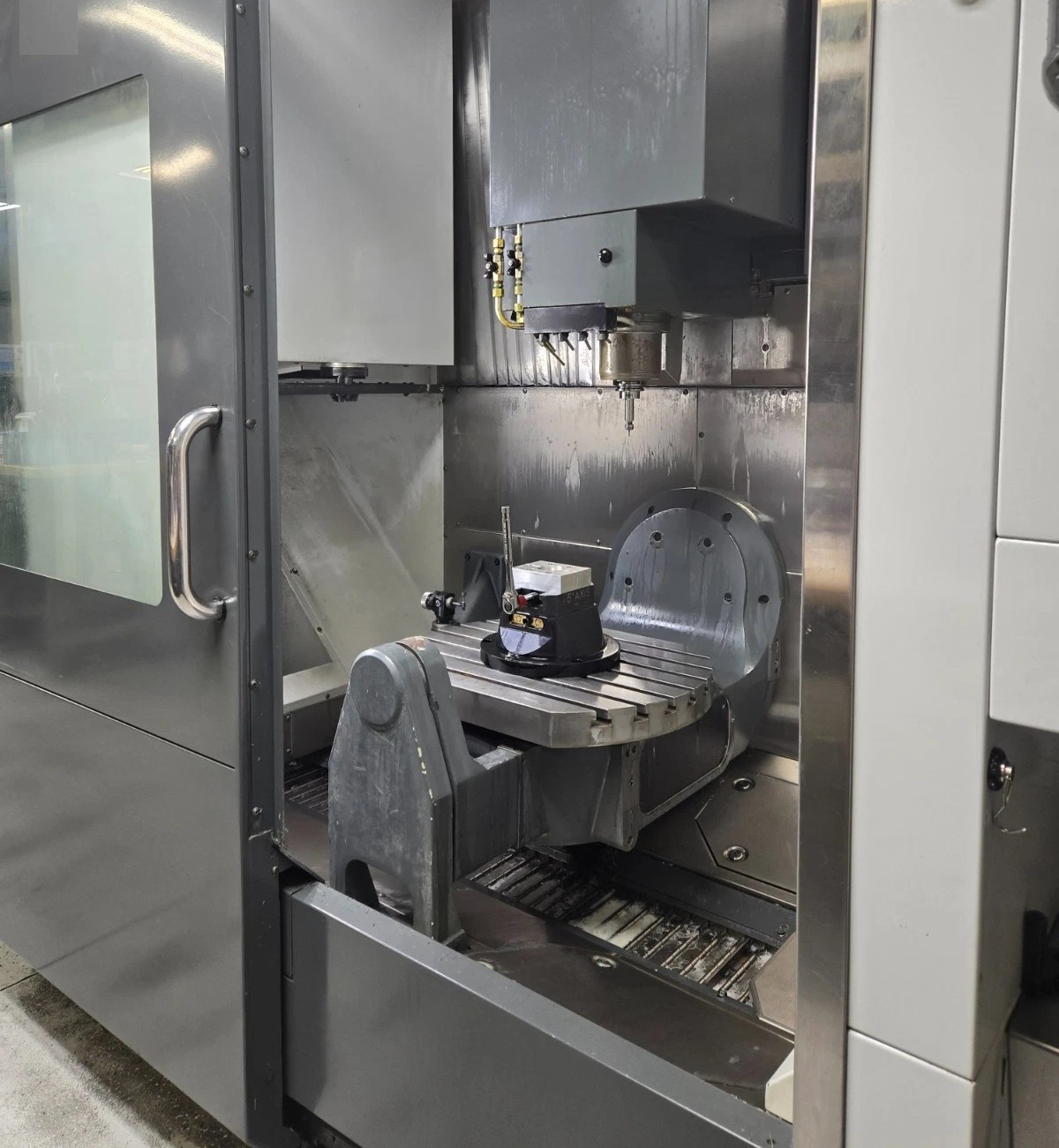

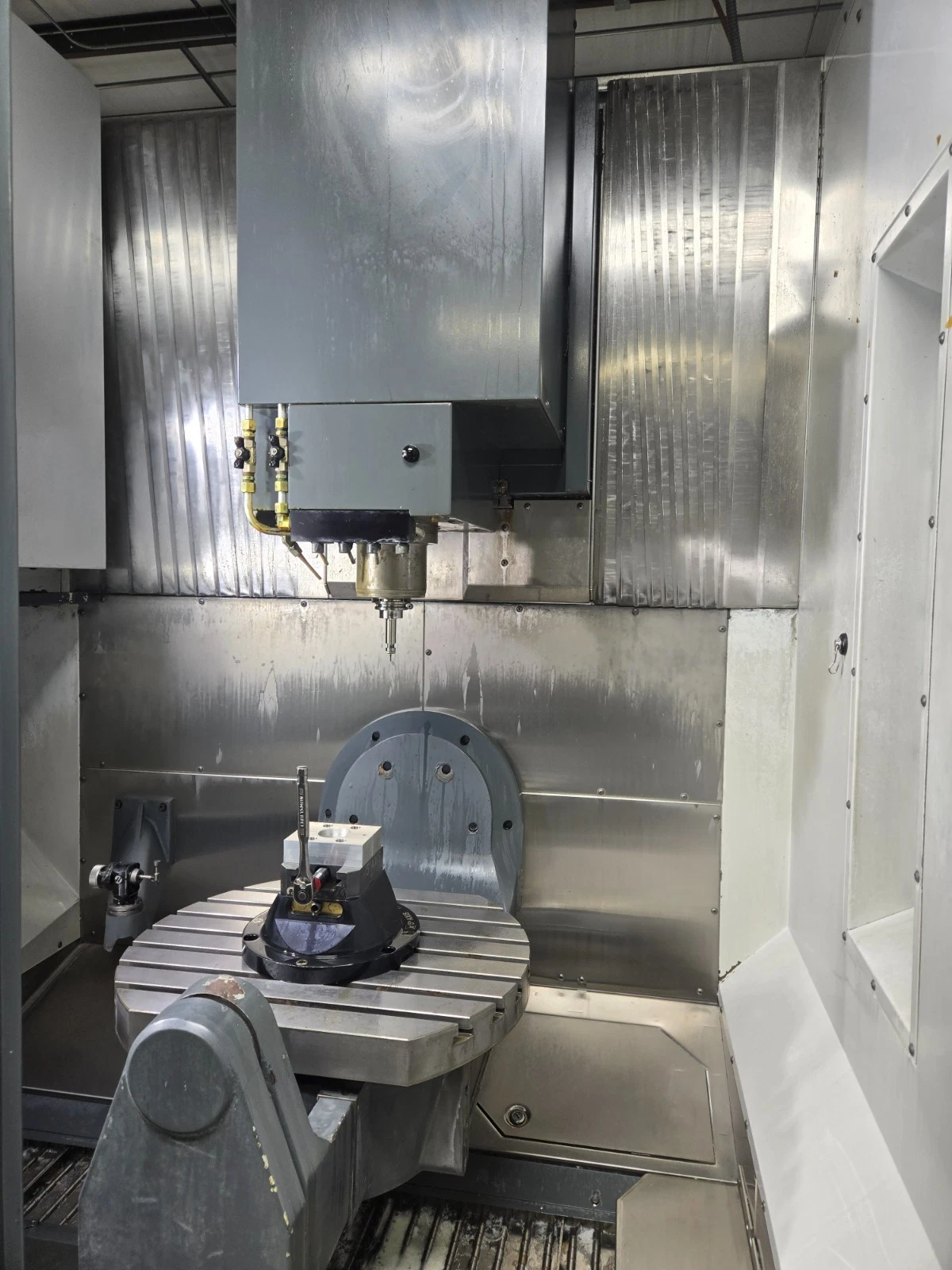

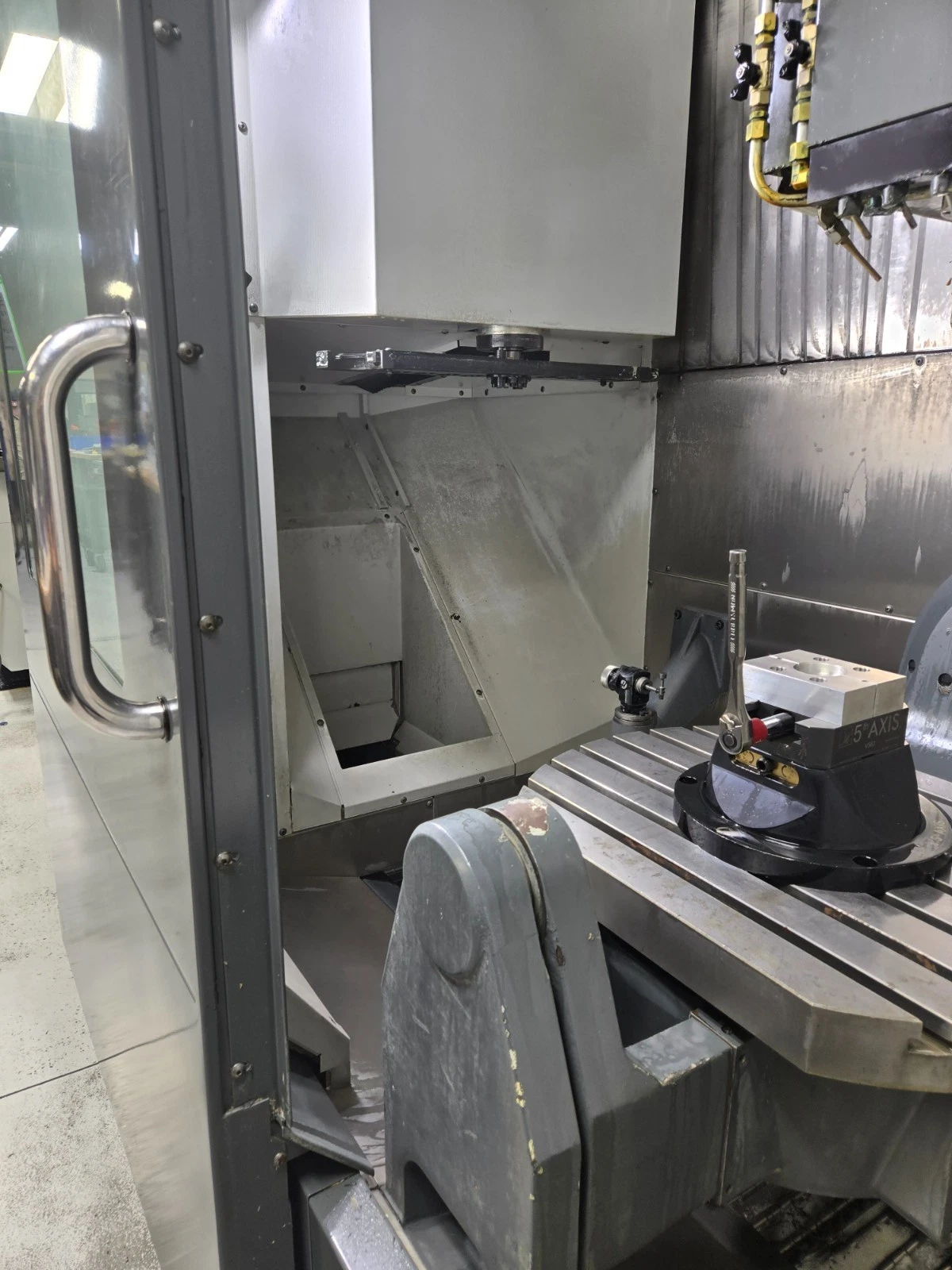

| Haas Trunnion Table |
| 12,000 RPM High Speed Spindle (Upgraded $11,595 Approx. value Included) |

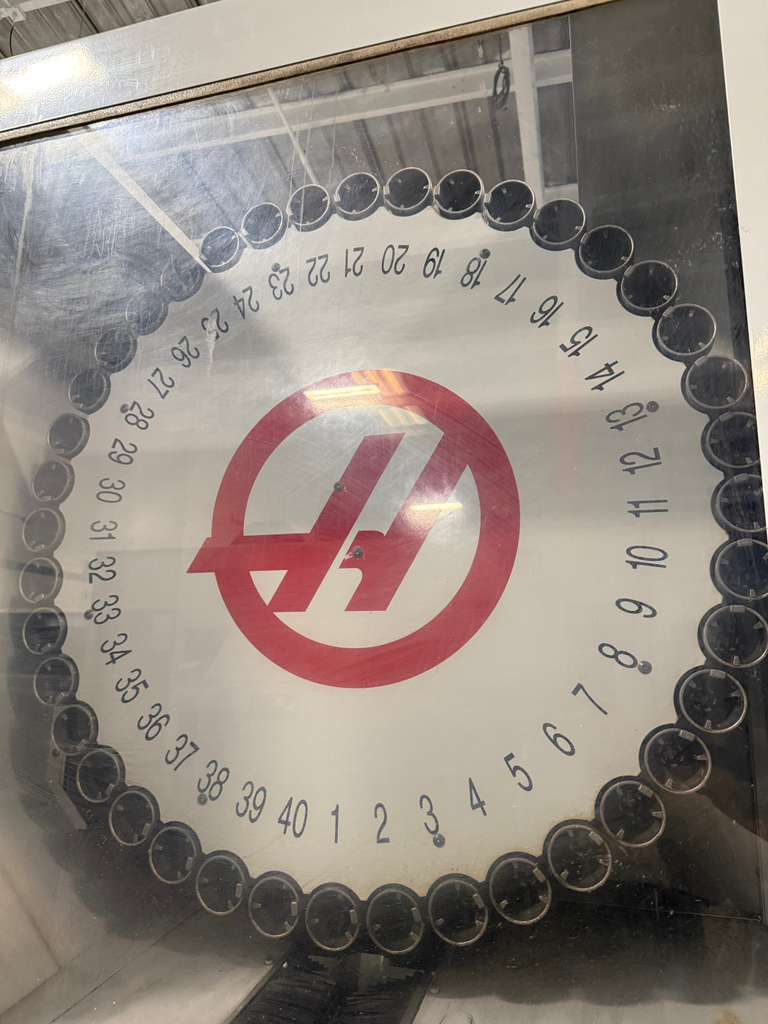

| 40 Station Automatic Tool Changer (Upgraded $11,995 Approx. value Included) |

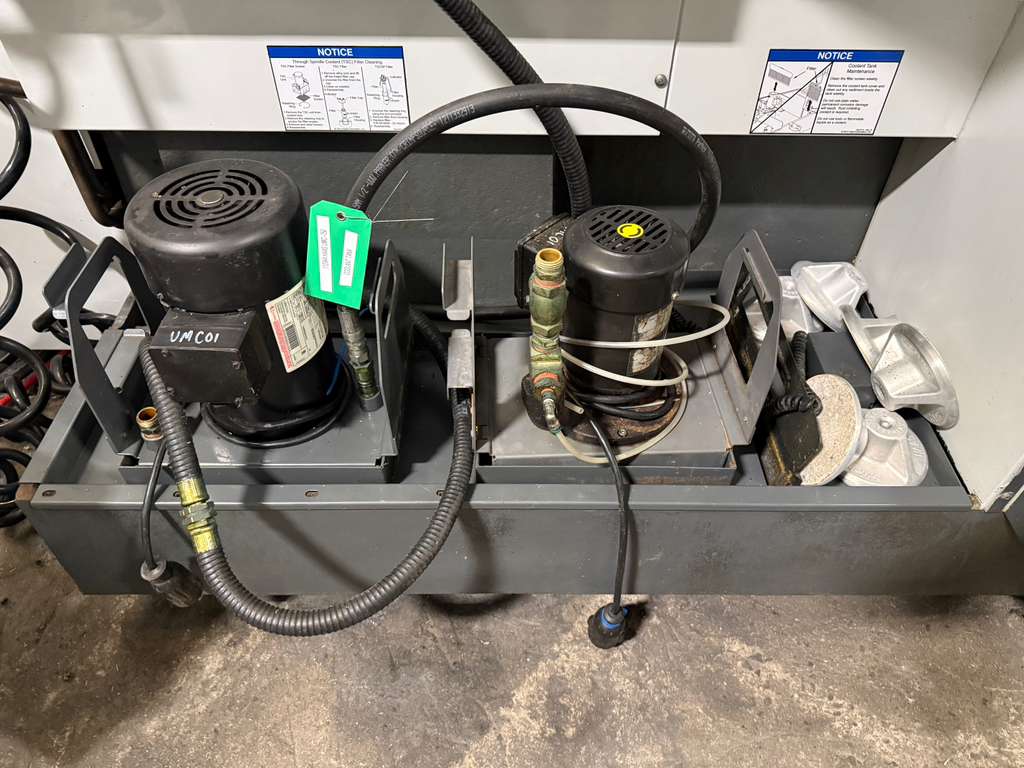

| Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included) |
| High Speed Machining (Upgraded $3,895 value Included) |

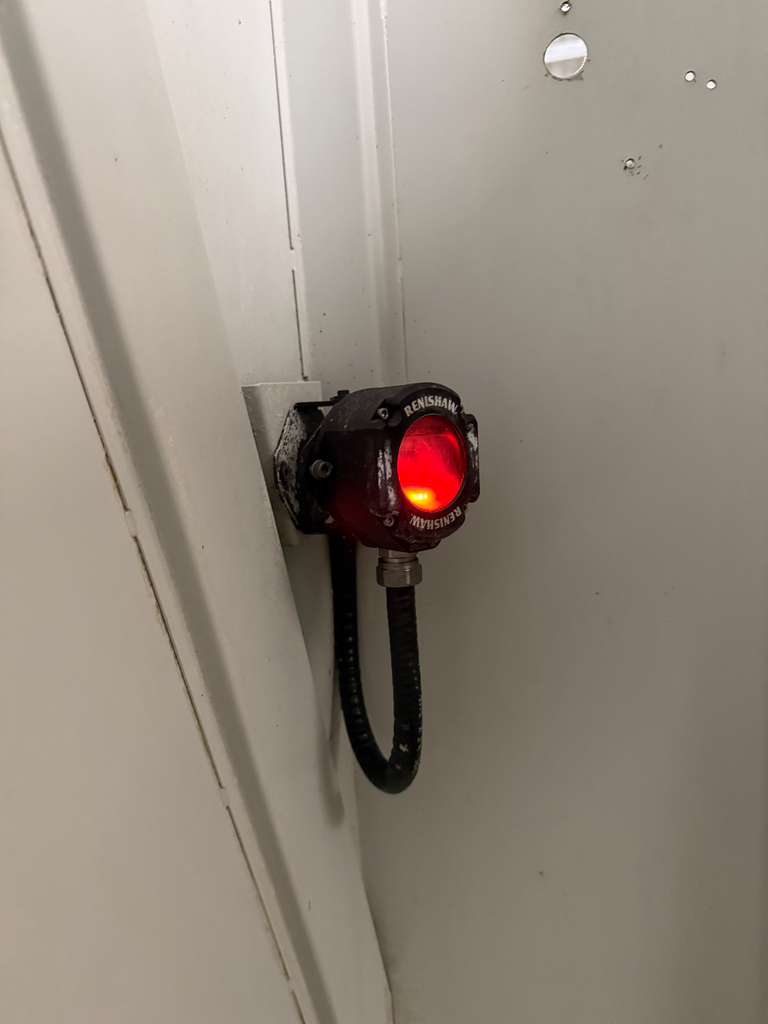

| Renishaw Probing System (Probe Needed) |

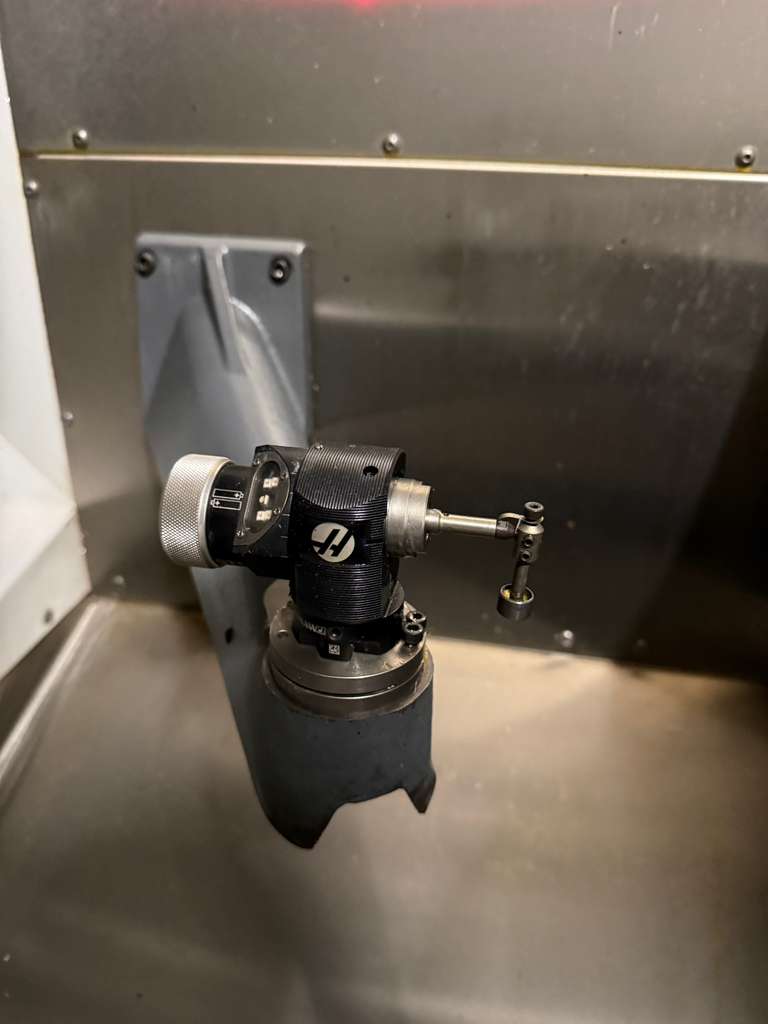

| Tool Presetter |
| 30 HP High Torque Spindle |
| Remote Jog Handle |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant Nozzle (Upgraded $2,395 value Included) |
| 750 MB Expanded Memory |
| Advance Tool Management |
| Rotation and Scaling |
| Macros |
| Media Display M-Code |
| Floopy Enabled |
| DNC Enabled |
| Coolant Tank |

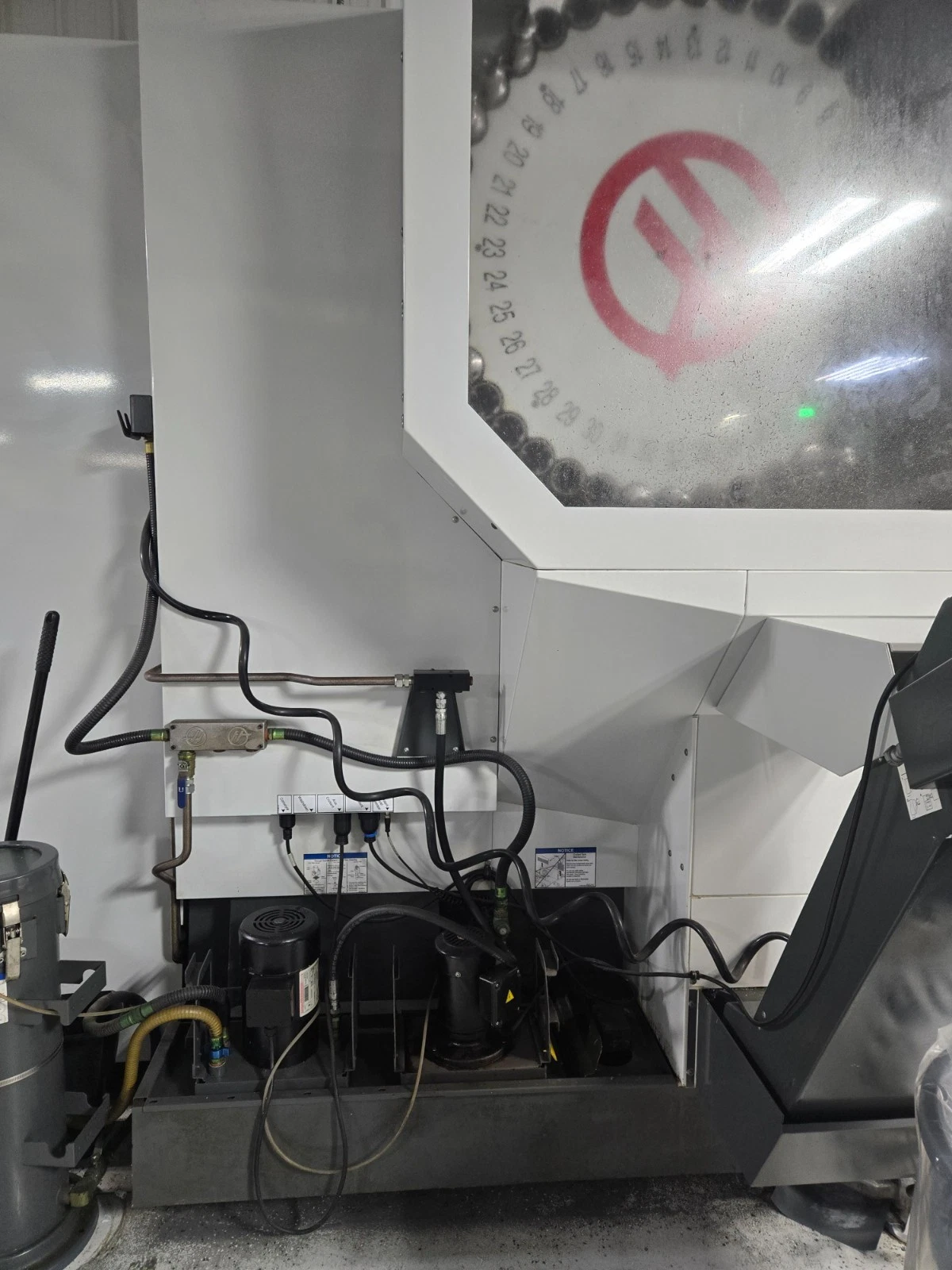

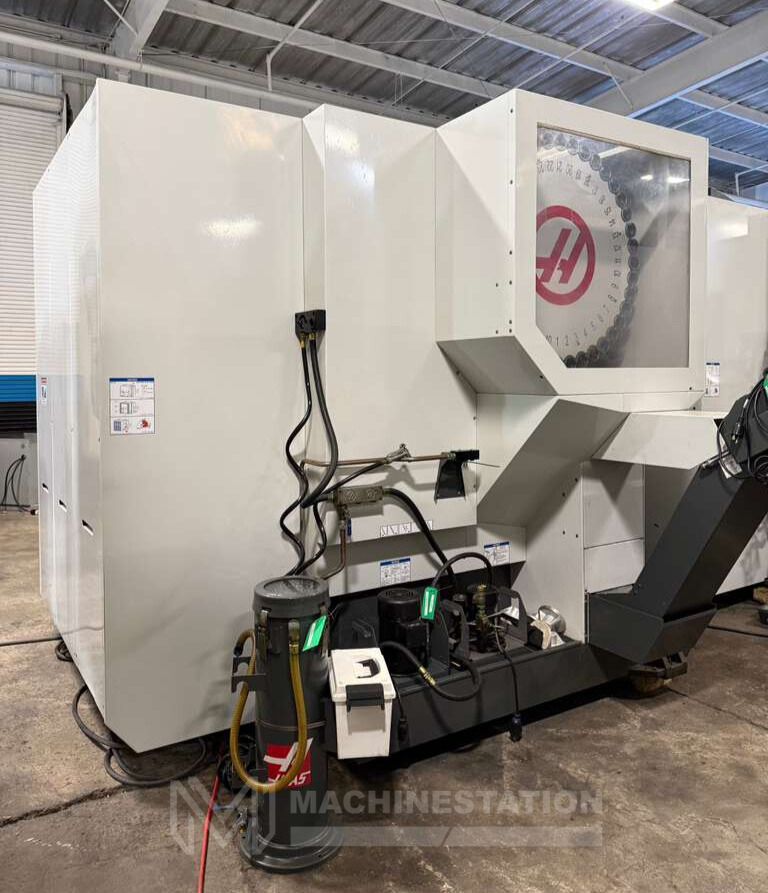

| Belt-Type Chip Conveyor (Upgraded $7,995 value Included) |
| Levelling Pads |
| Travels: |
| X-Axis: 30″ |
| Y Axis: 20″ |
| Z Axis: 20″ |
| B-Axis (Table Tilt): + 120° – 35° |
| C Axis: 360° ( Table Rotate ) |
| Rapid Traverse Rates: 900 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

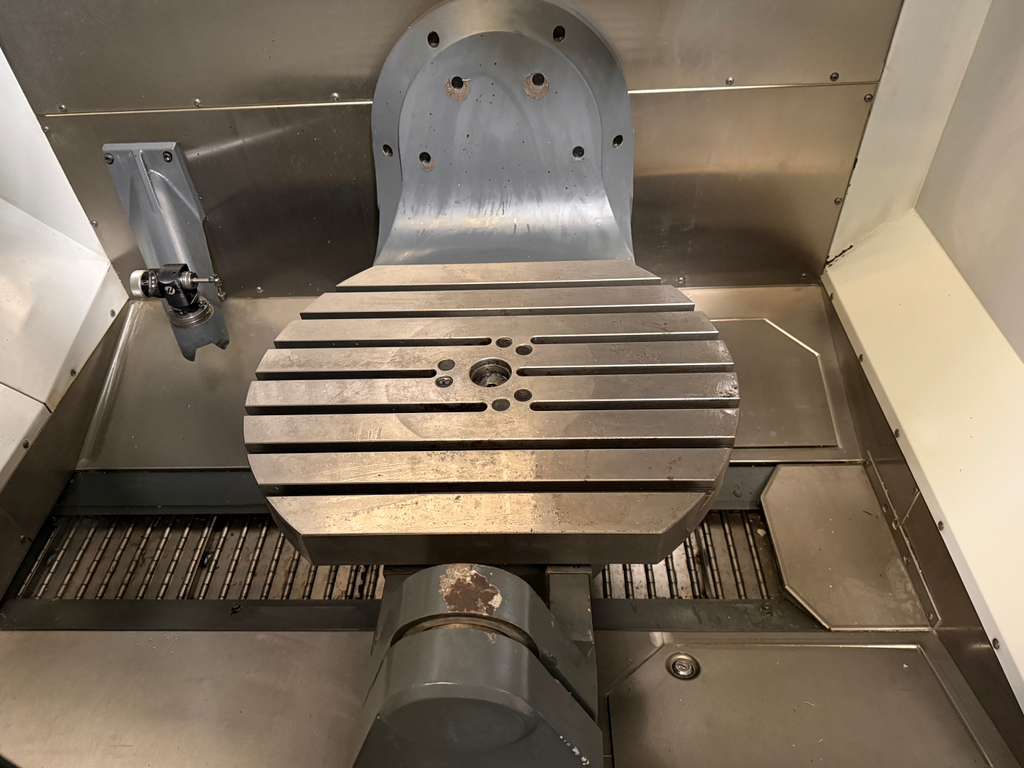

| Trunnion Table: |
| Platter Diameter: 19.70″ |
| Max Weight on Platter: 660 lbs |
| T-Slot Width: 0.626″ to 0.630″ |
| Number of Std T-Slots: 7 |

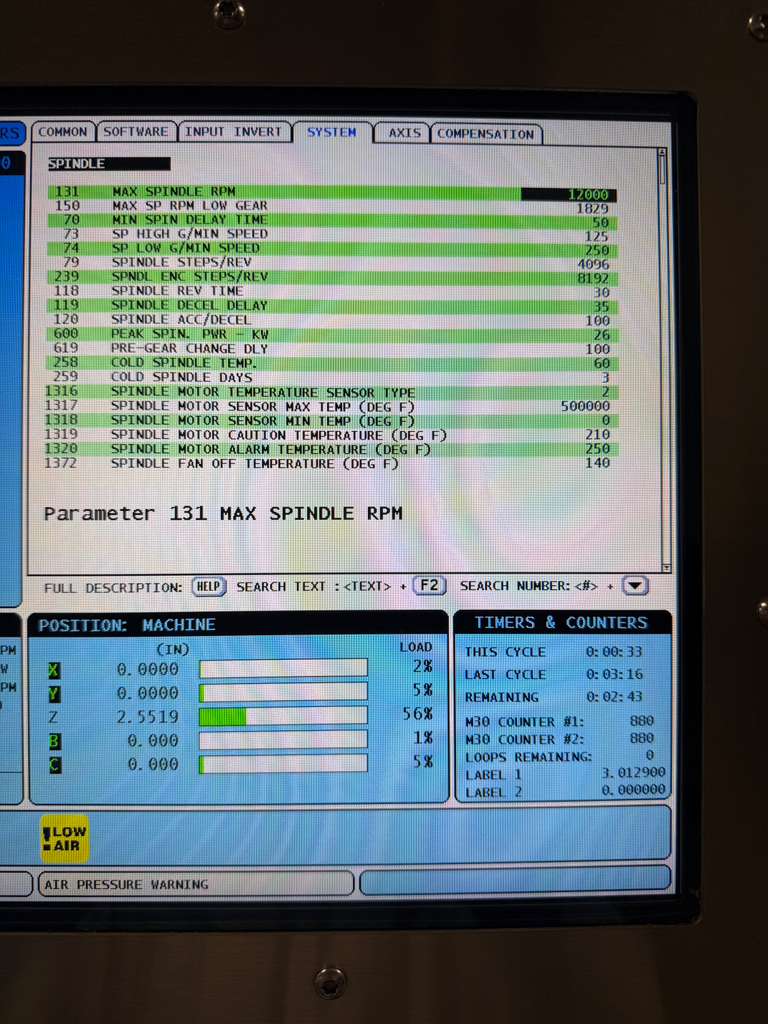

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
| Capacity: 40 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 12″ |
| Tool-to-Tool Changing Time: 2.8 Seconds |
| General: |
| Air Required: 100 psi 4 scfm |

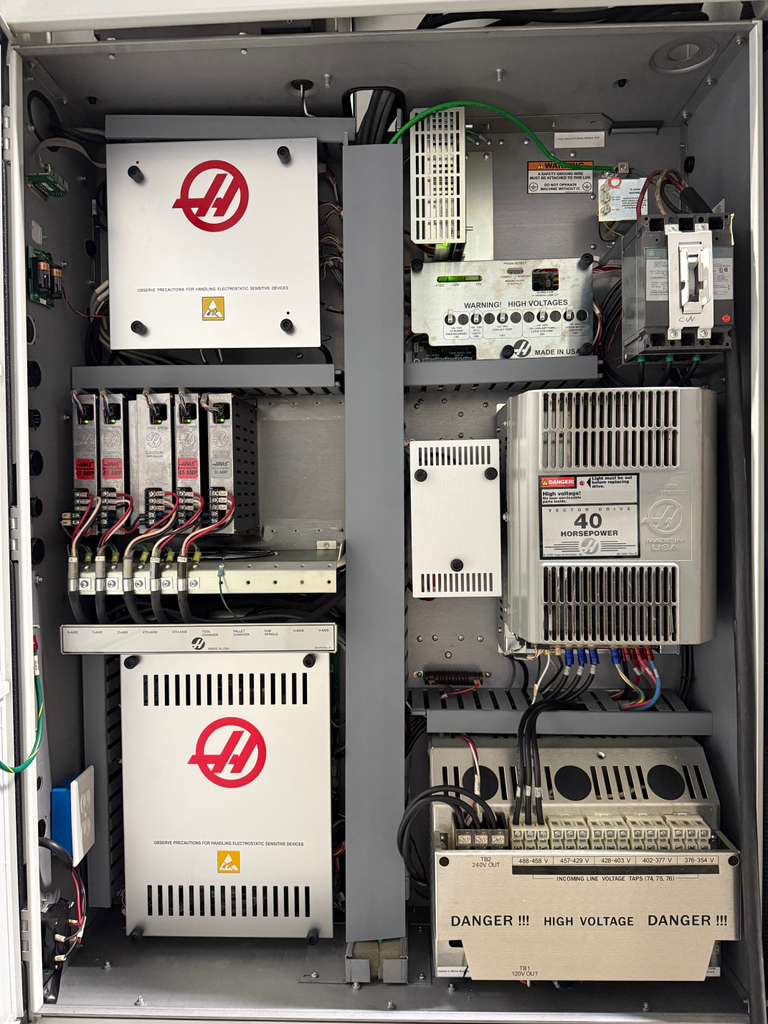

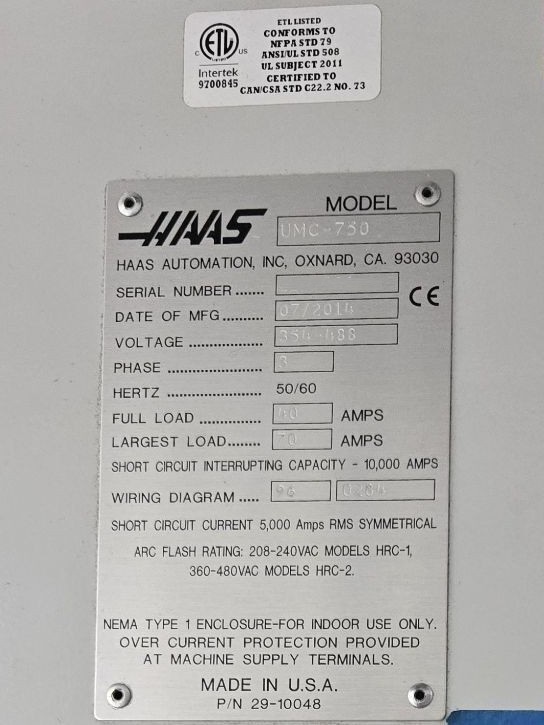

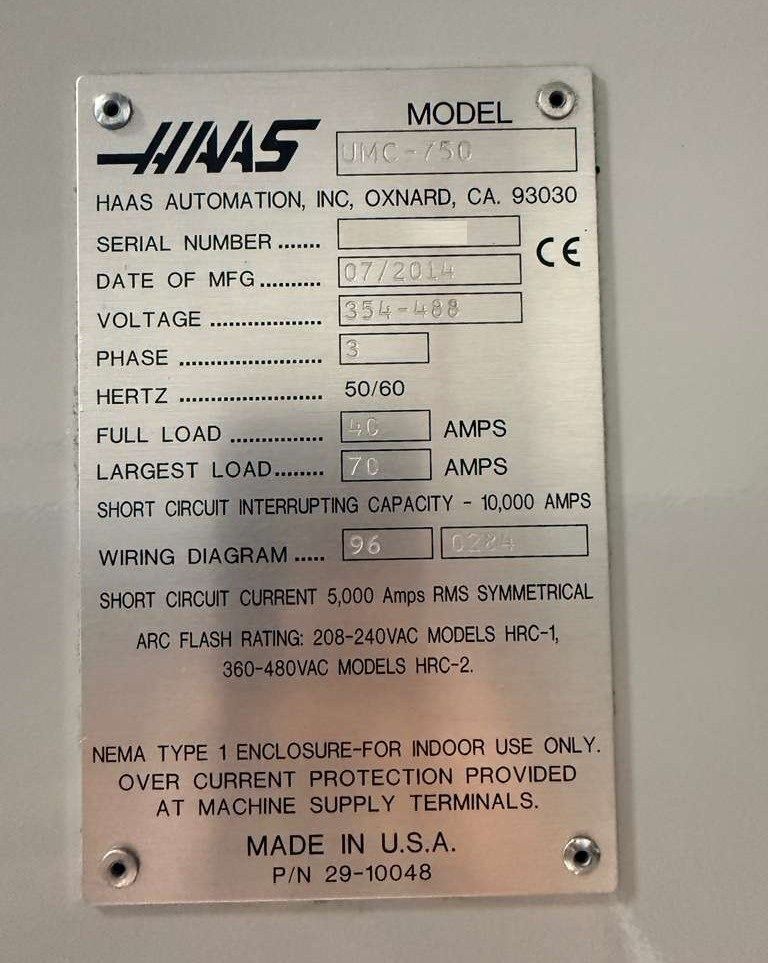

| Power: 480v / 66FLA / 3-Phase |
| Overall Dimensions: 168″ x 92.5″ x 110″ High |
| Weight: 14,250 lbs. |
