*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | HAAS |
| Model: | VF-1 |
| Year: | 2016 |
| Features: |
|---|

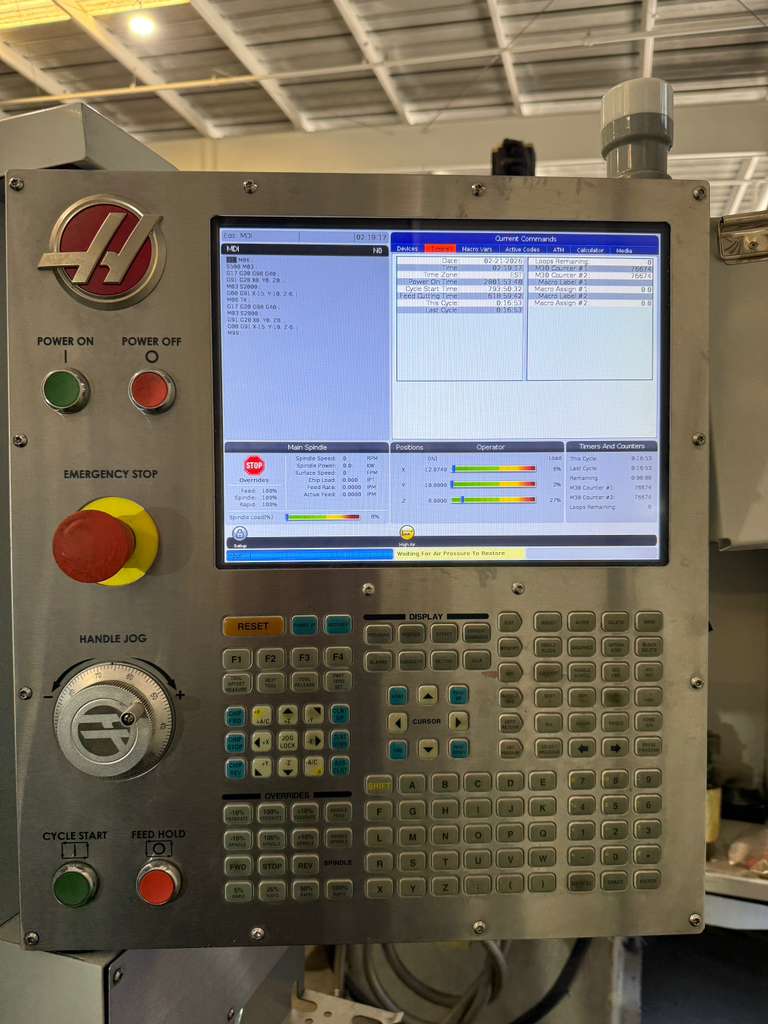

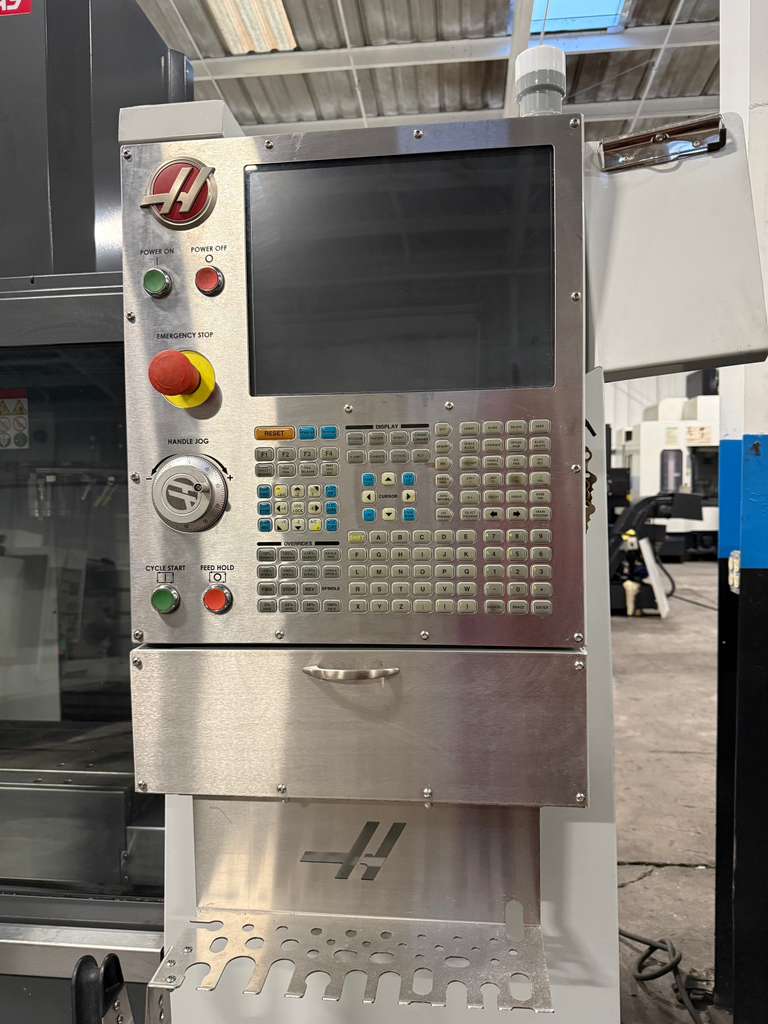

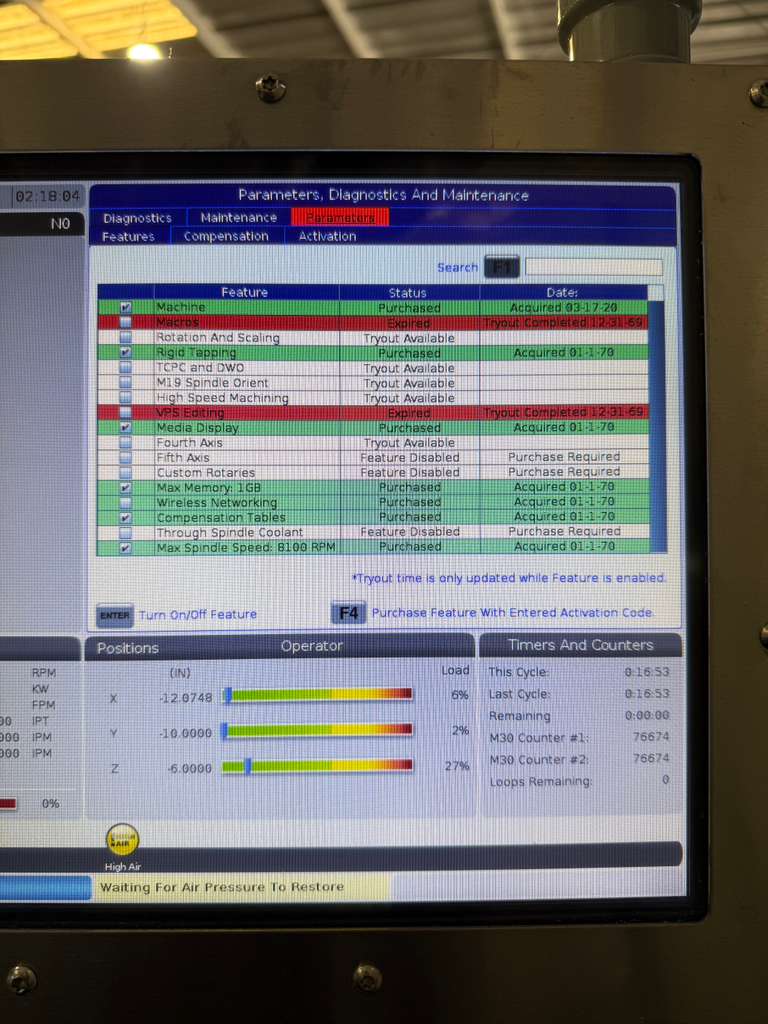

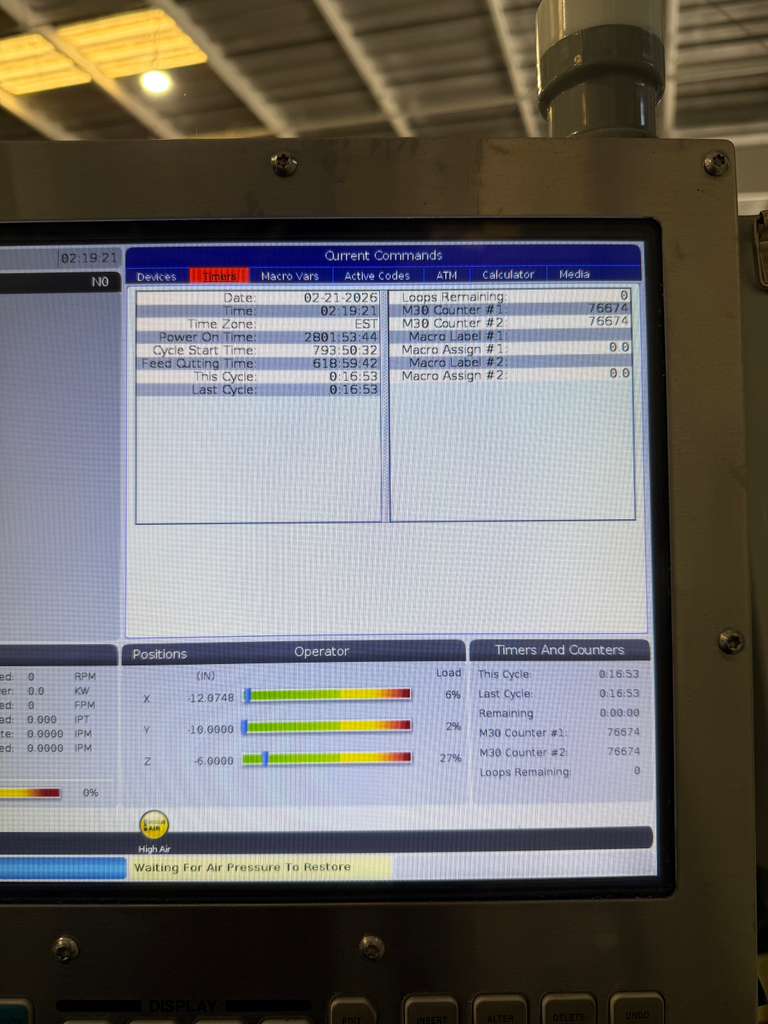

| Haas CNC Control |
| Linear Ways Construction |
| 8,100 RPM Spindle |
| CAT-40 Spindle Taper |
| 20 Station Automatic Tool Changer |
| Media Display |
| Compensation Tables |
| 1GB Memory |
| Rigid Tapping |

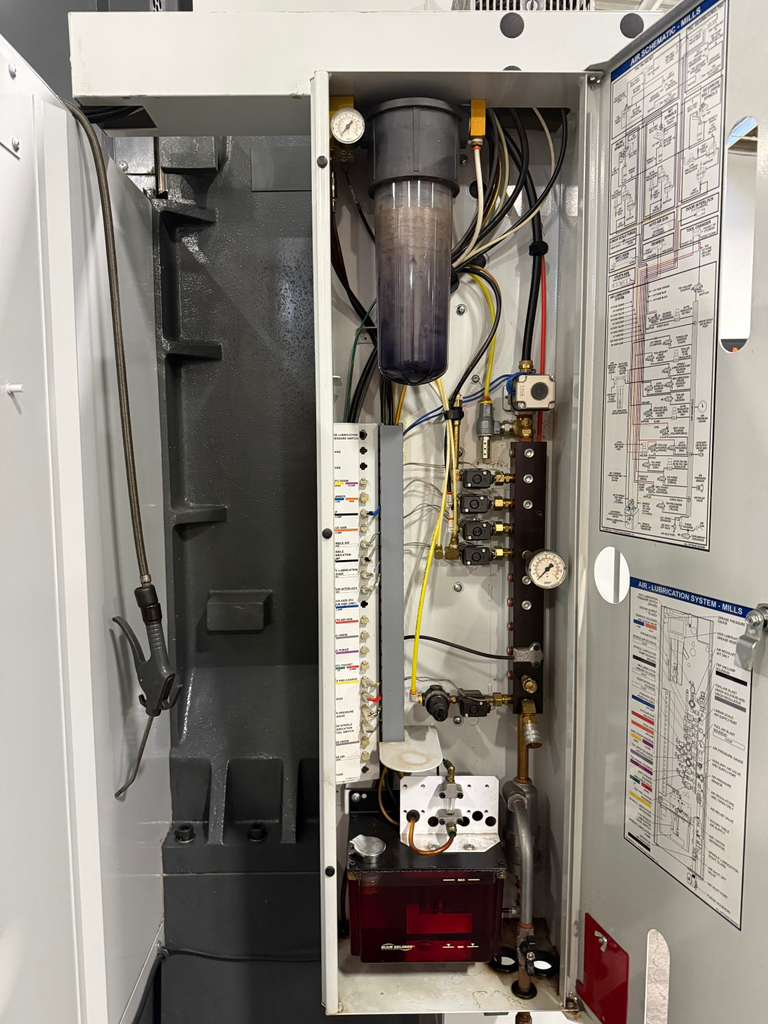

| Automatic Lubrication System |

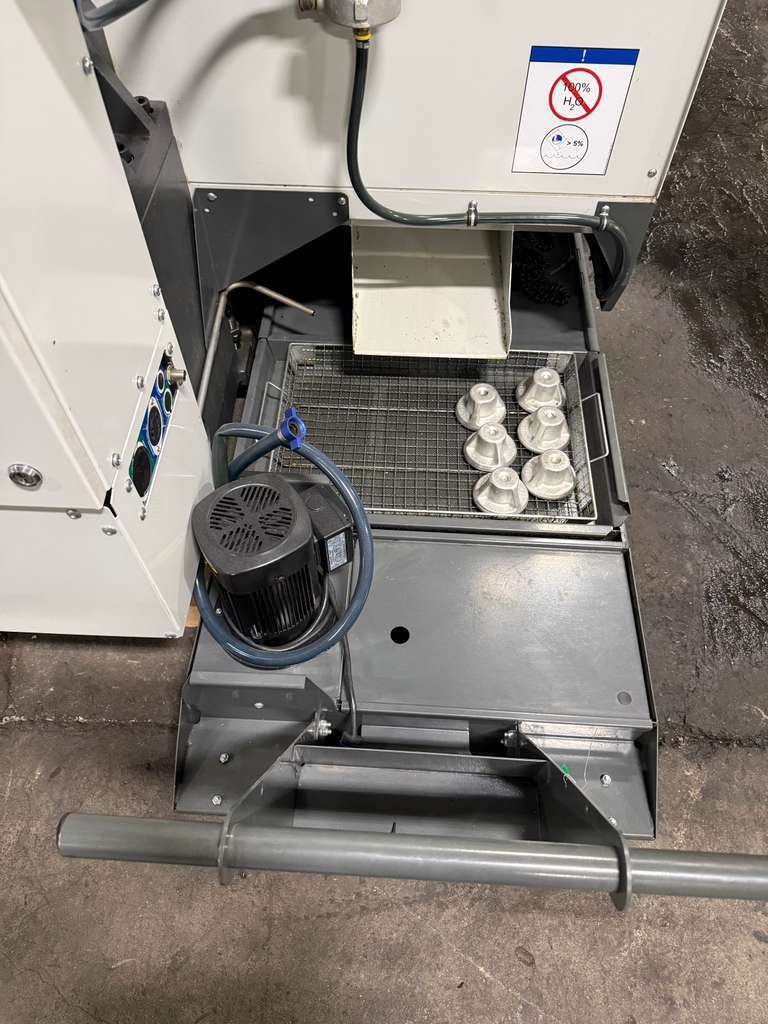

| Coolant System |
| Chip Auger (Upgraded $4,095 value Included) |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

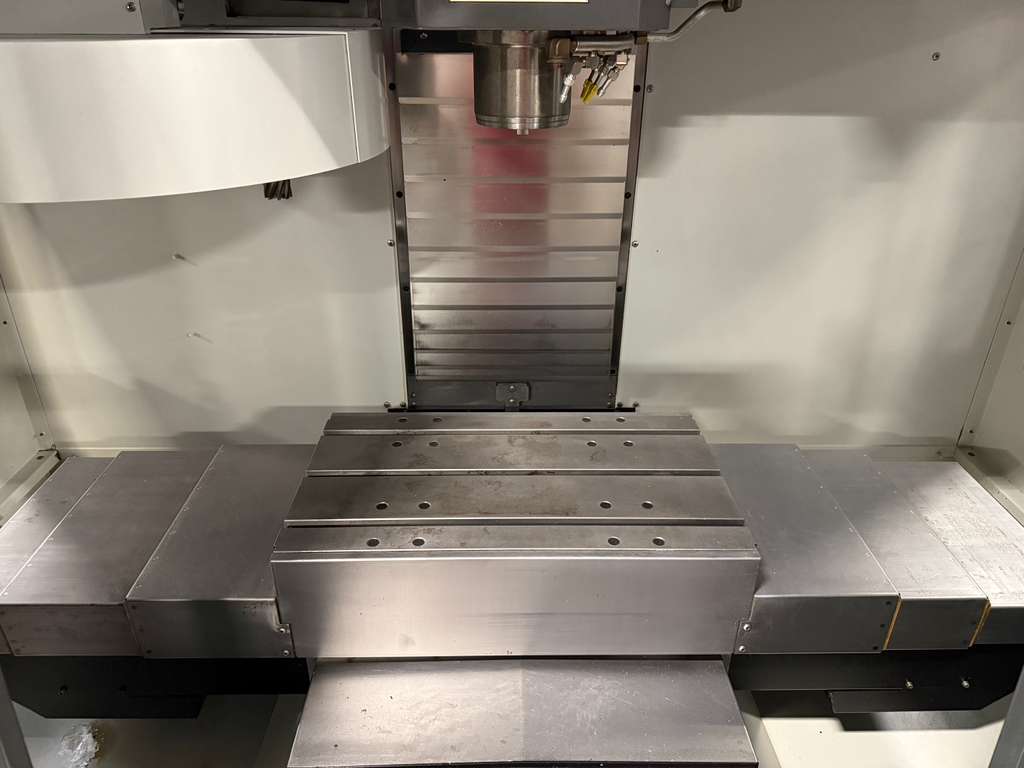

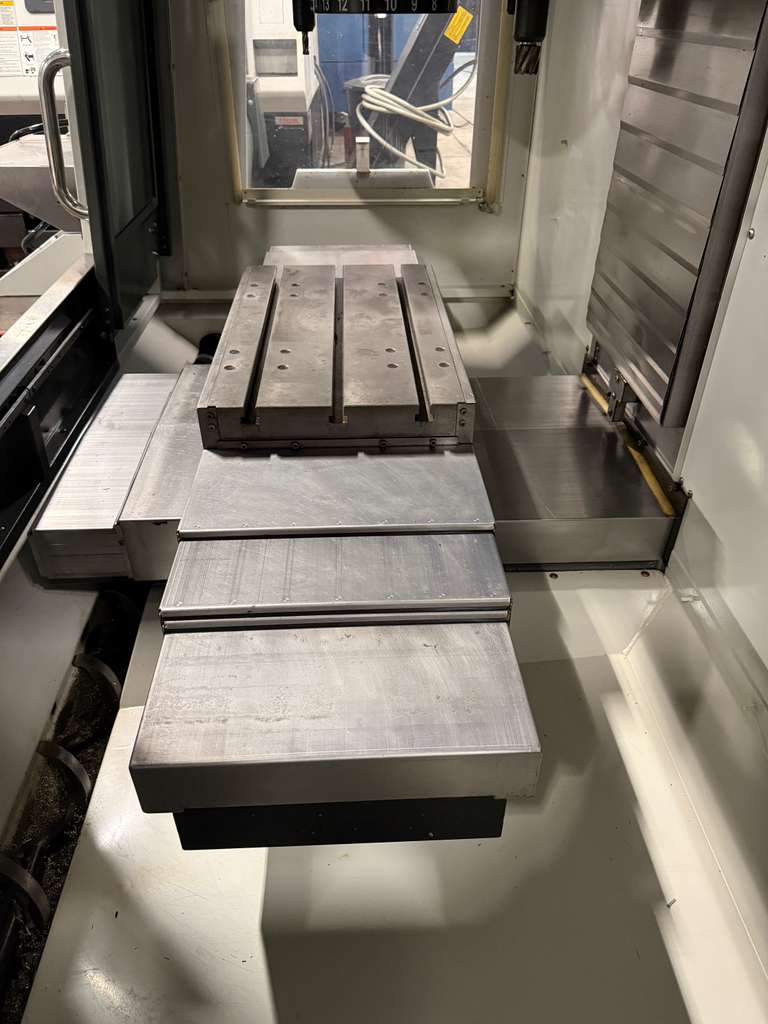

| Table: |
|---|
| Length: 26.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |

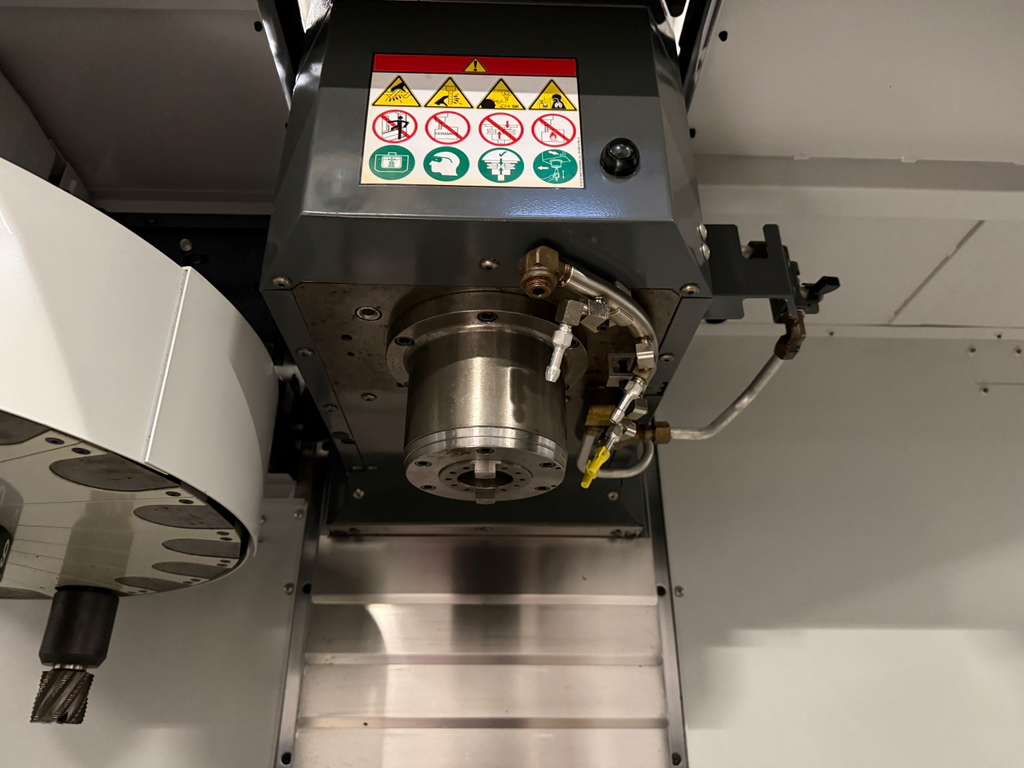

| Spindle: |
|---|

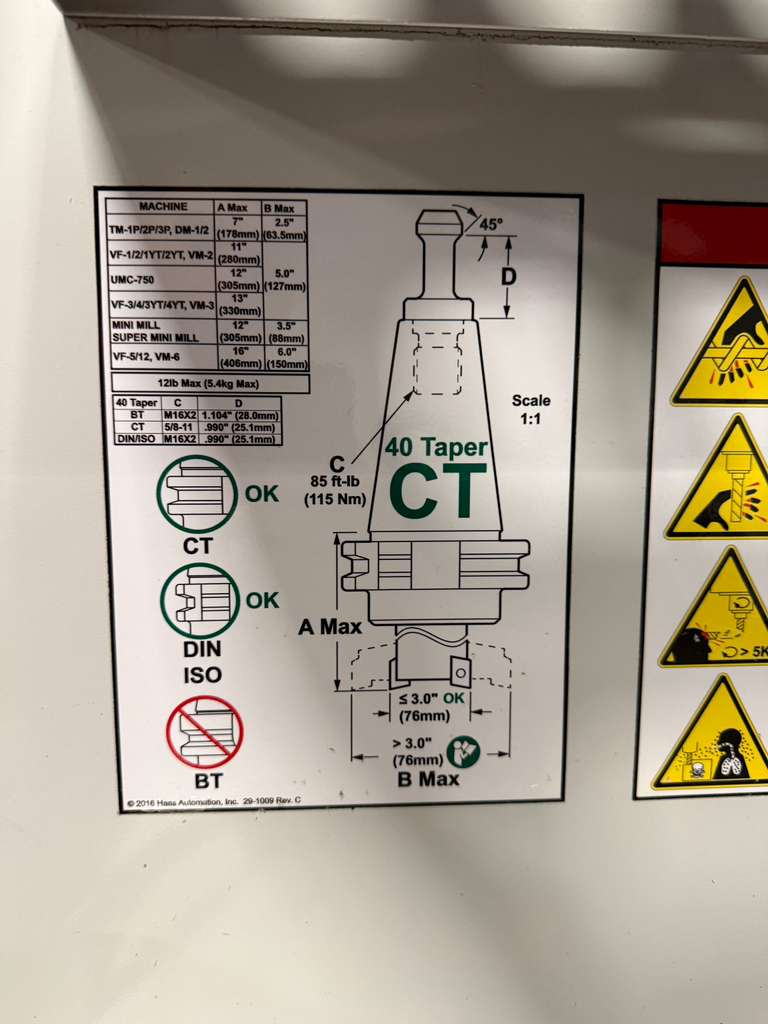

| Taper Size: CAT-40 |
| Speed Range: 8,100 RPM |
| Spindle Power: 15 HP |

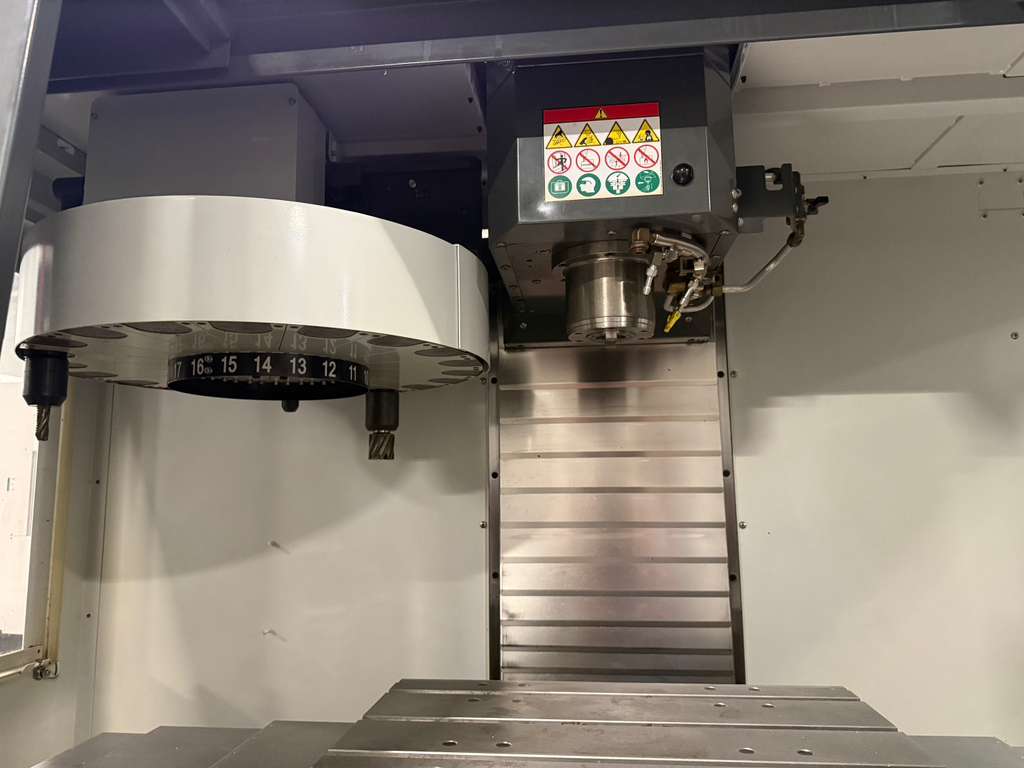

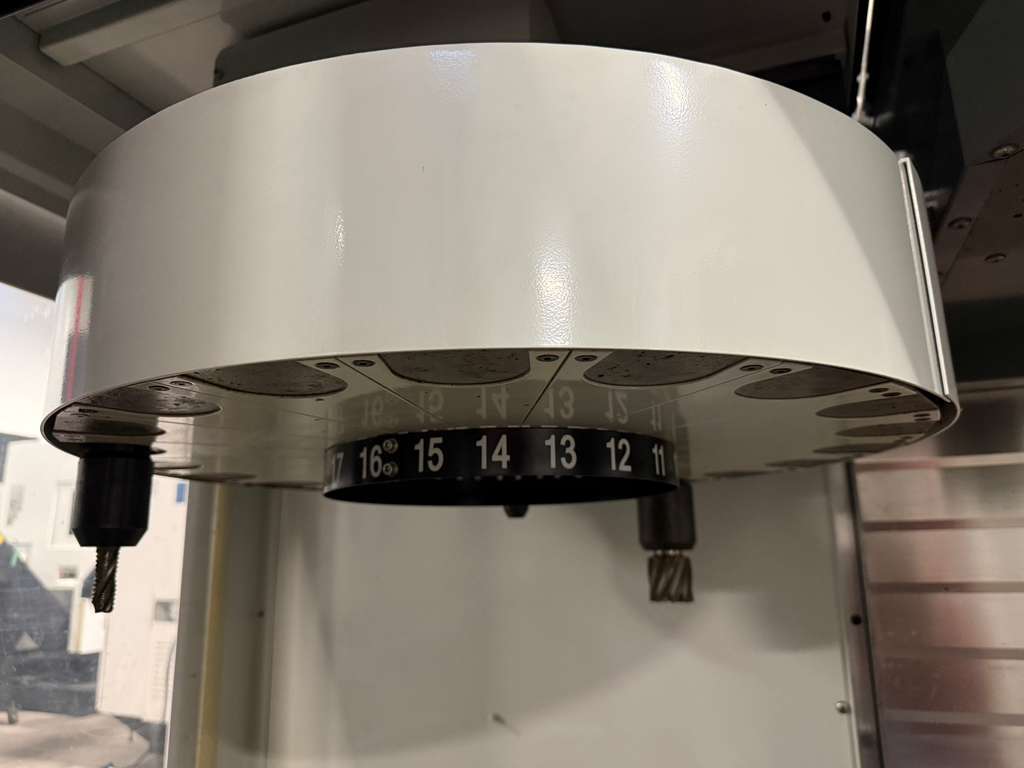

| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 2.0″ |
| Max Tool Length: 7″ |
| Tool Changing Time: 2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

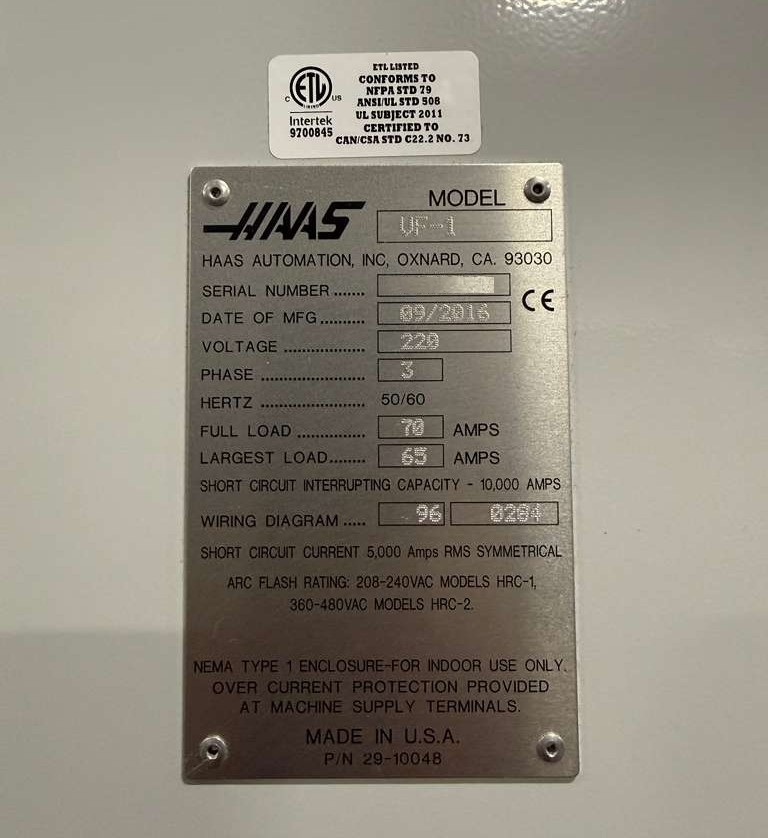

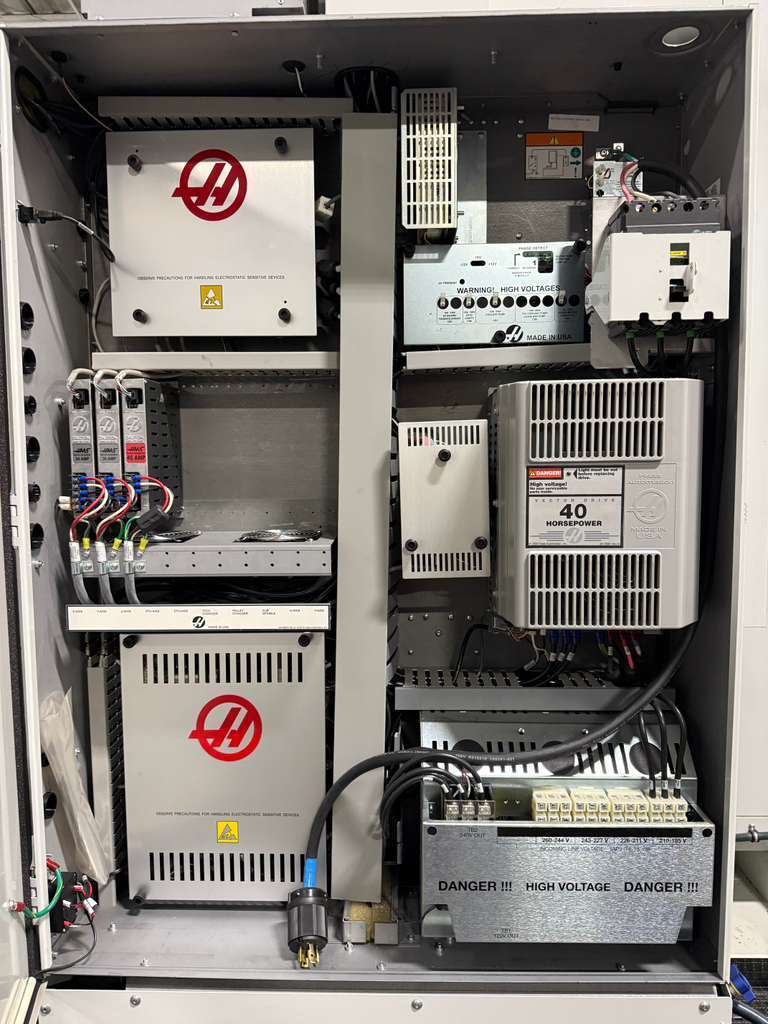

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 7800 lbs |
