Citizen L20 Swiss-Type CNC Lathe – 2005

Out of stock

SKU:	11185
Make/Model:	Citizen L20
Year:	2005
Condition:	Used – Good
Video:	On Request

Add to WishlistRemove from Wishlist

SKU: 11185

Share:

Description
Additional information

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

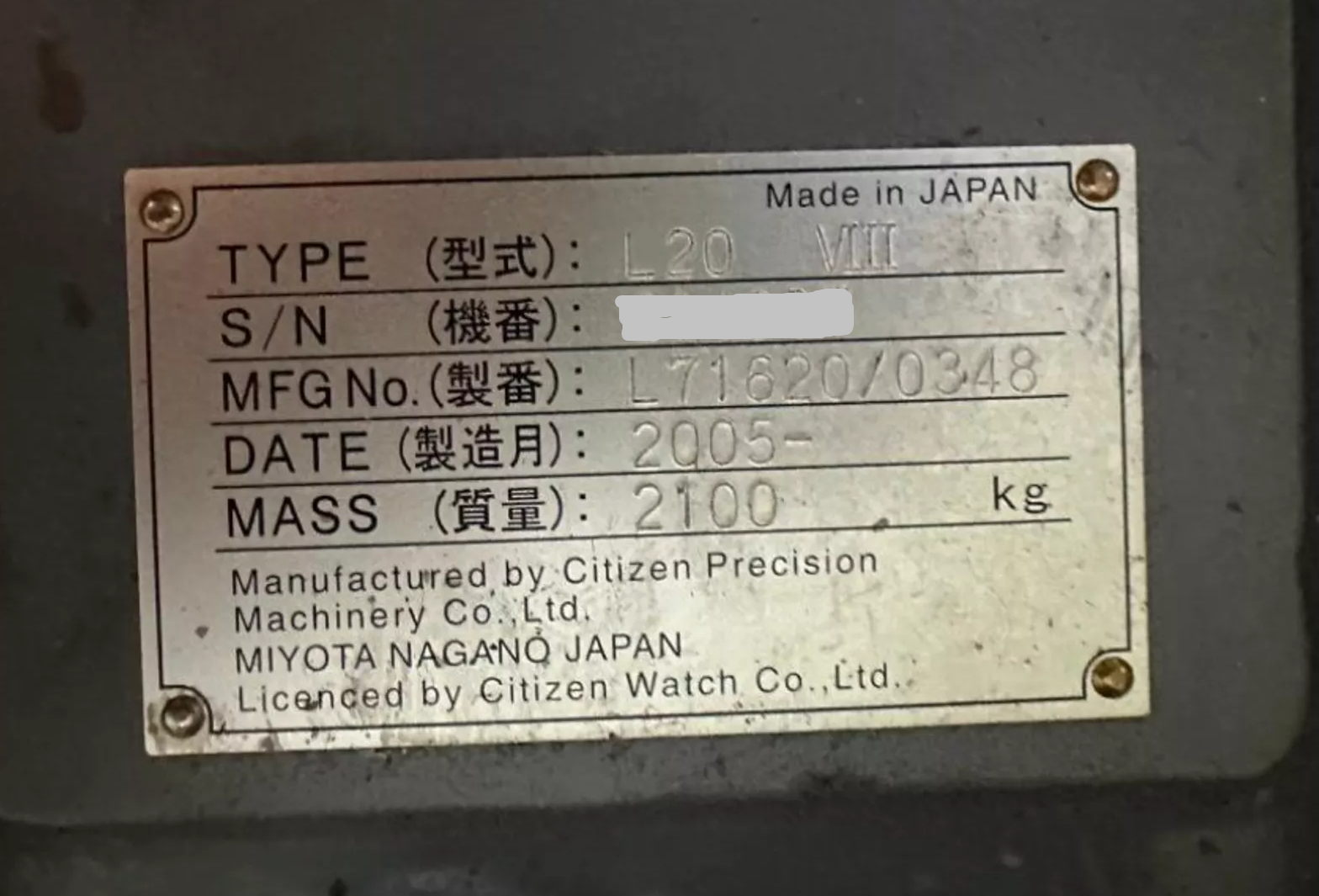

Make:	Citizen
Model No.:	L20
Year of Manufacture:	2005
Condition:	Used – Good
Machine Type:	Swiss-Type CNC Lathe

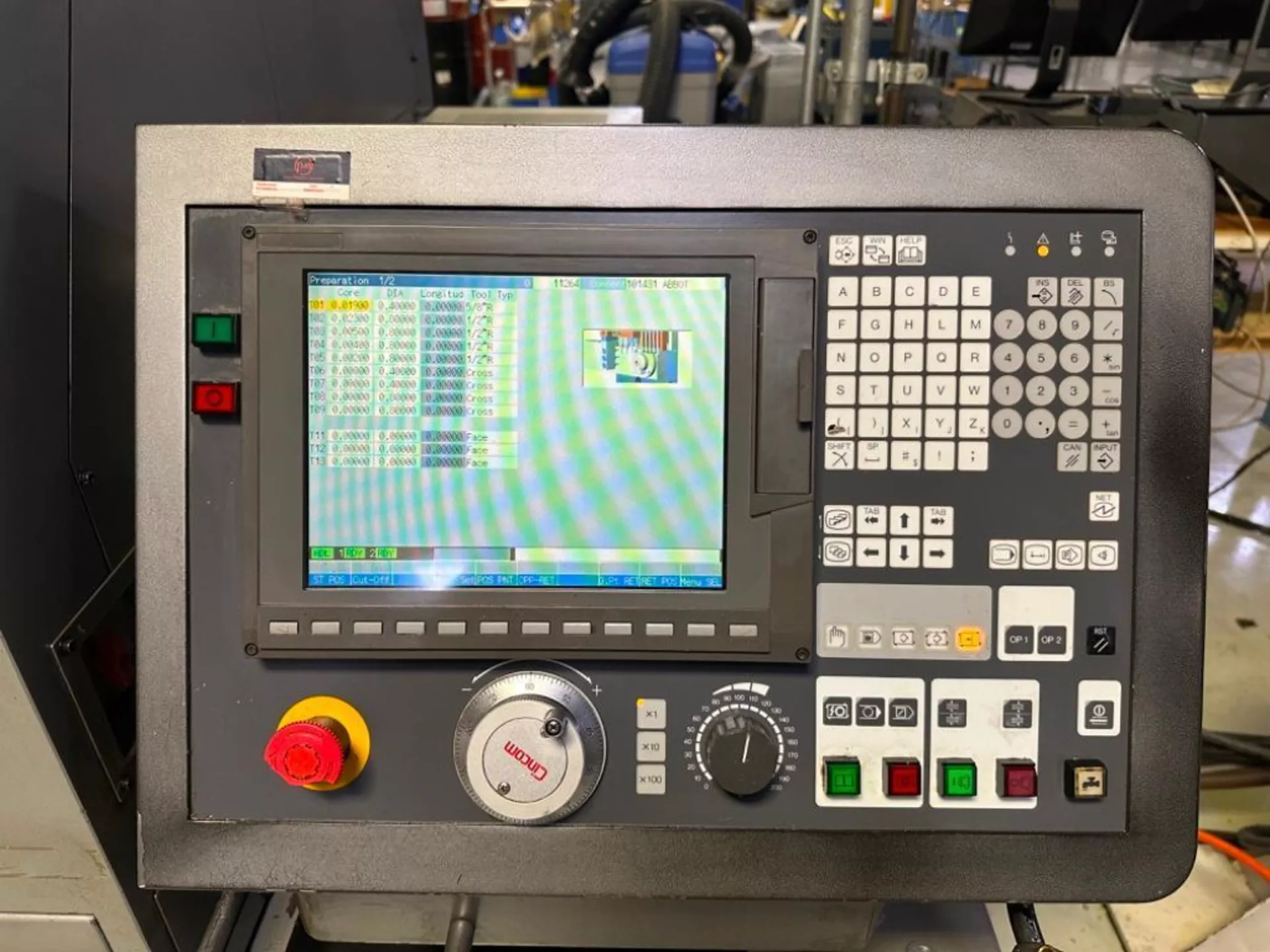

CNC Control:	Mitsubishi Meldas CNC Control

Equipped With:
Mitsubishi Meldas CNC Control
Main Spindle with C-Axis
Sub Spindle
Live Tooling

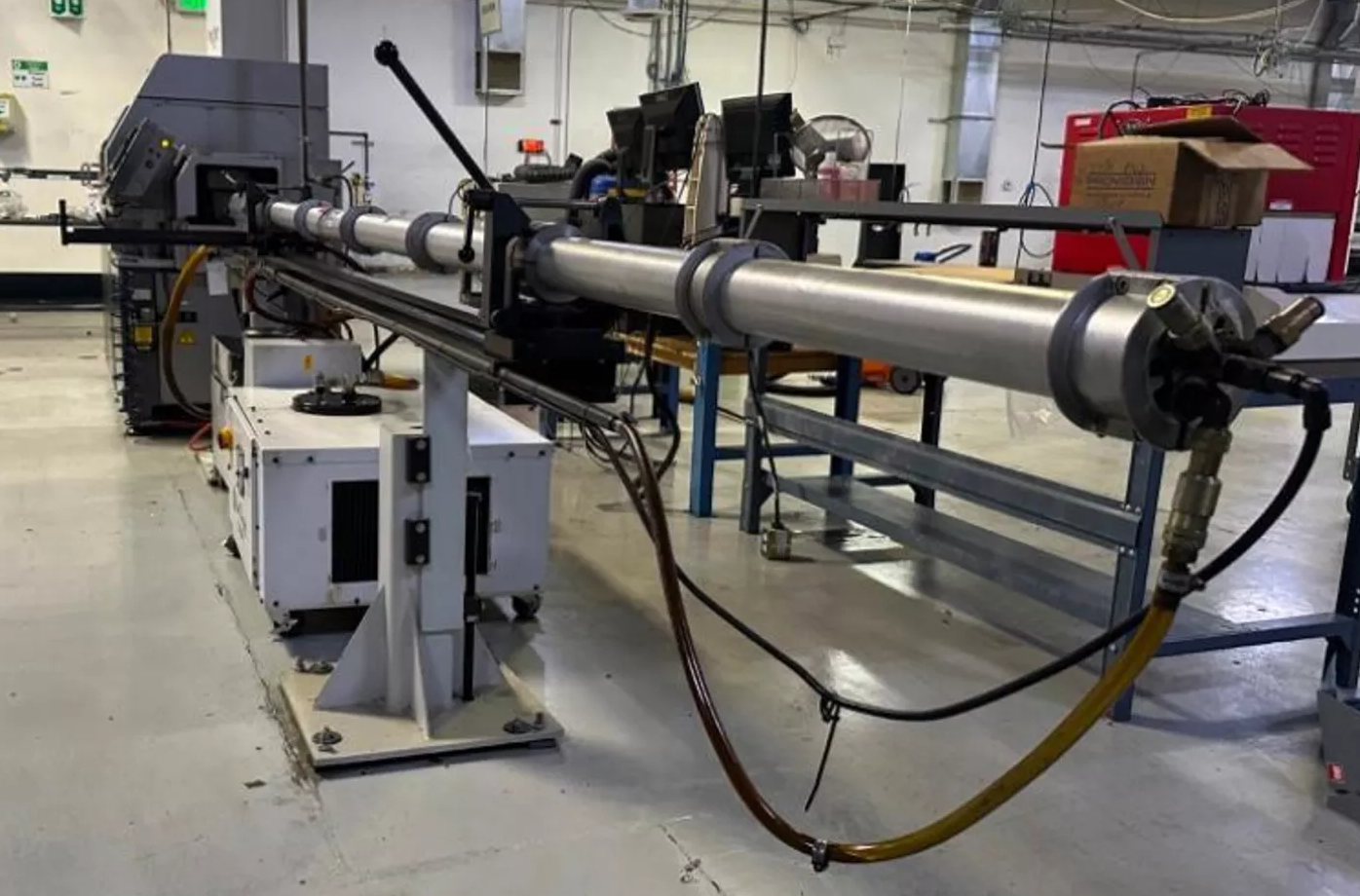

Bar Feeder Interface
Chip Conveyor
Parts Conveyor
Cool Blaster Mist Collector 1000
Automatic Lubrication System
Fully Enclosed Splash Guard

Capacity:
Maximum Bar Capacity: 20 mm (0.79″)
Maximum Machining Length: 200 mm (7.87″)
Maximum Front Drilling Diameter: 10 mm
Maximum Front Tapping: M8

Main Spindle:
Spindle Speed: Up to 10,000 RPM
Spindle Motor Power: Approx. 3.7 kW (5 HP)
Full C-Axis Positioning

Sub Spindle:
Spindle Speed: Up to 8,000 – 10,000 RPM
Sub Spindle Motor: Approx. 2 HP

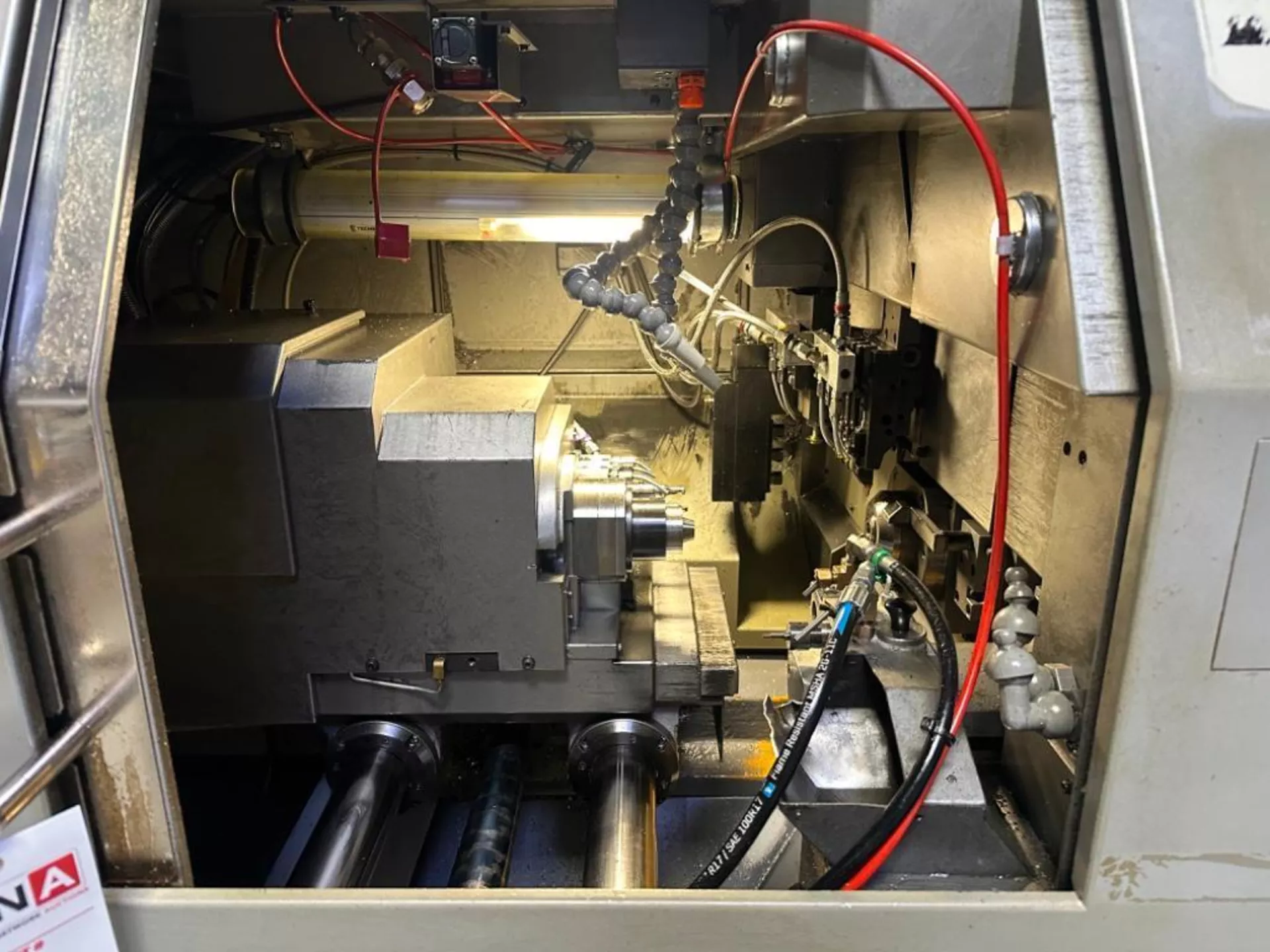

Tooling System:
Gang Tooling Layout
Approx. 8 Tool Positions
4 Live Rotary Tools
Back Tool Post for Secondary Operations

Electrical:
Power Requirement: AC 200 V
Phase: 3-Phase
Frequency: 50 / 60 Hz

General:
Machine Dimensions: Approx. 95.7″ × 42.7″ × 69.7″ (2430 × 1085 × 1770 mm)
Machine Weight: Approx. 4,630 lbs (2,100 kg)

Features:
Swiss-type sliding headstock design for long, slender parts
Dual spindle configuration for front and back machining
Live tooling for milling, drilling, and tapping operations
High-speed spindle up to 10,000 RPM
Bar feeder compatible with automated production
Ideal for medical, aerospace, electronics, and precision micro-components
