All specifications are approximations and are subject to verification.

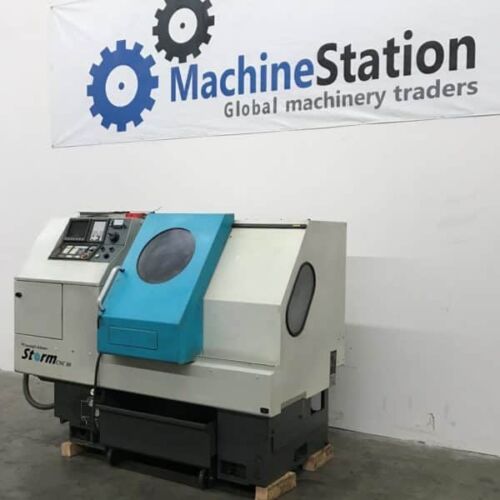

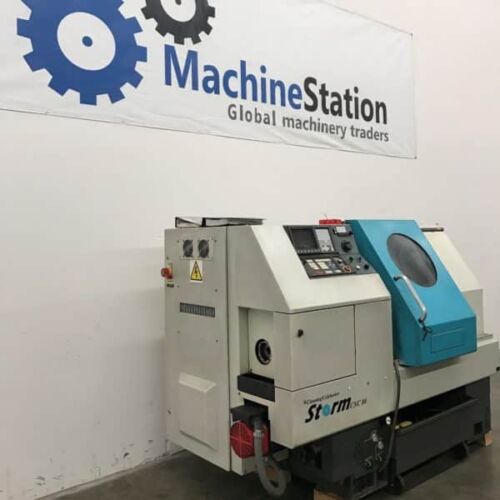

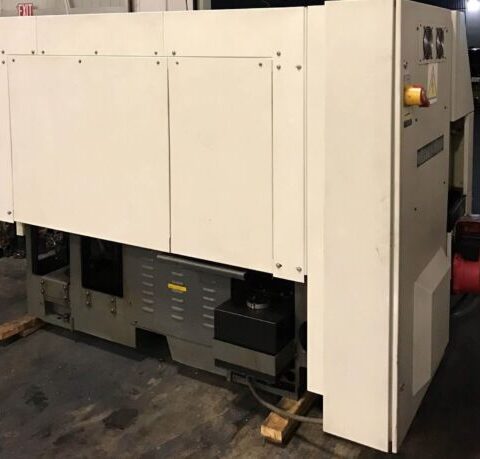

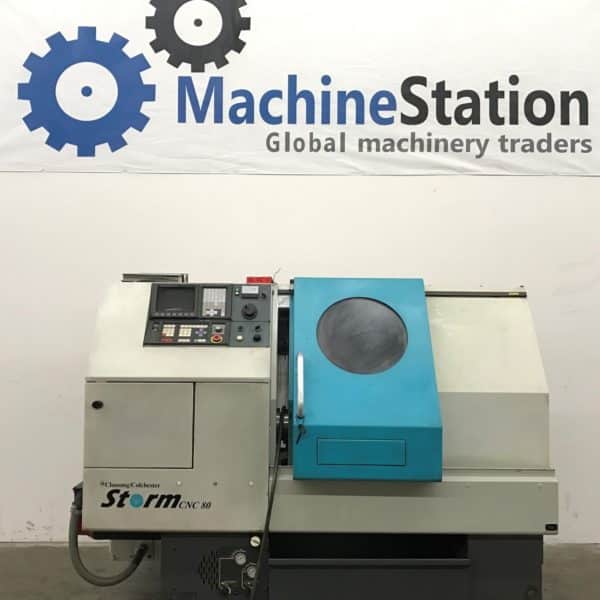

“This Machine has low cutting hours. Its a Clean one Owner machine with 6.5″ Chuck & Fanuc 21T control. On Our Floor now, Fully powered / tested & is in Great working condition.”
-
CLAUSING COLCHESTER STORM 80 CNC TURNING Equipped With:

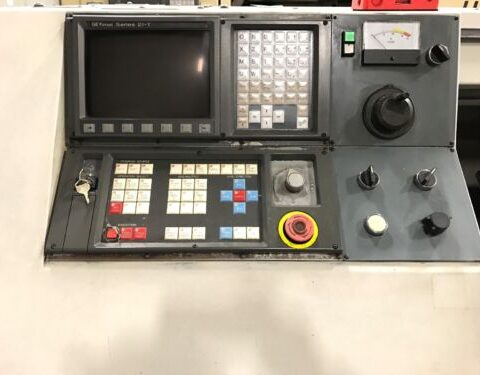

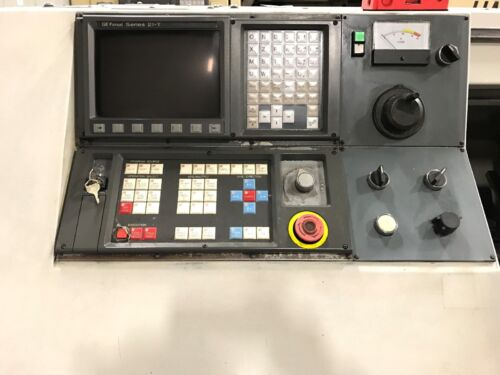

- Fanuc 21T CNC Control

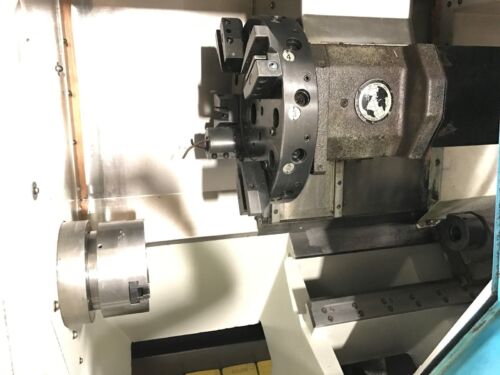

- 6.5″ 3 Jaw Hydraulic Chuck
- Coolant System
- Barfeed Interface
- RS-232 ports

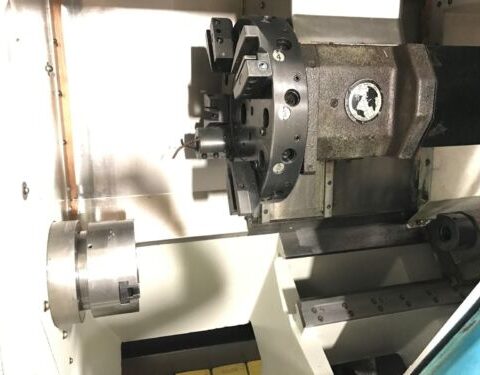

- 12 Station Automatic Turret

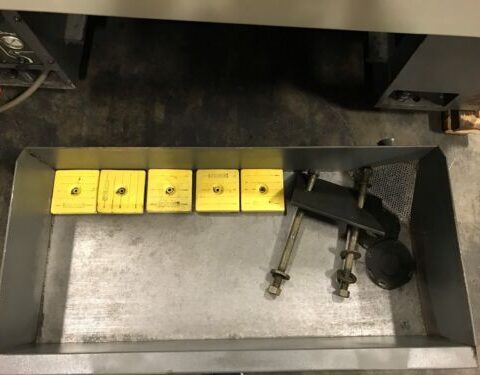

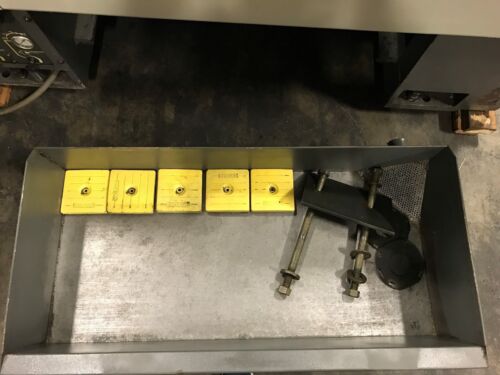

- Chip Pan
-
CLAUSING COLCHESTER STORM 80 CNC TURNING Specifications: Capacity:
- Max Turning Diameter: 6.69″
- Max Turning Length: 13.78″
- Max Bar Capacity: 1.65″
- Swing Over Bed: 16.54″
- X Axis Travel: 6.5″
- Z Axis Travel: 13.78″
- Rapid Traverse X Axis: 591 IPM
- Rapid Traverse Z Axis: 591 IPM
- Spindle Nose: A2-5
- Spindle Bore: 1.90″
- Spindle Speed: 60 – 6000 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1.5 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
-
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 112″ x 74″ x 74″ High
- Weight: 7500 lbs
