*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

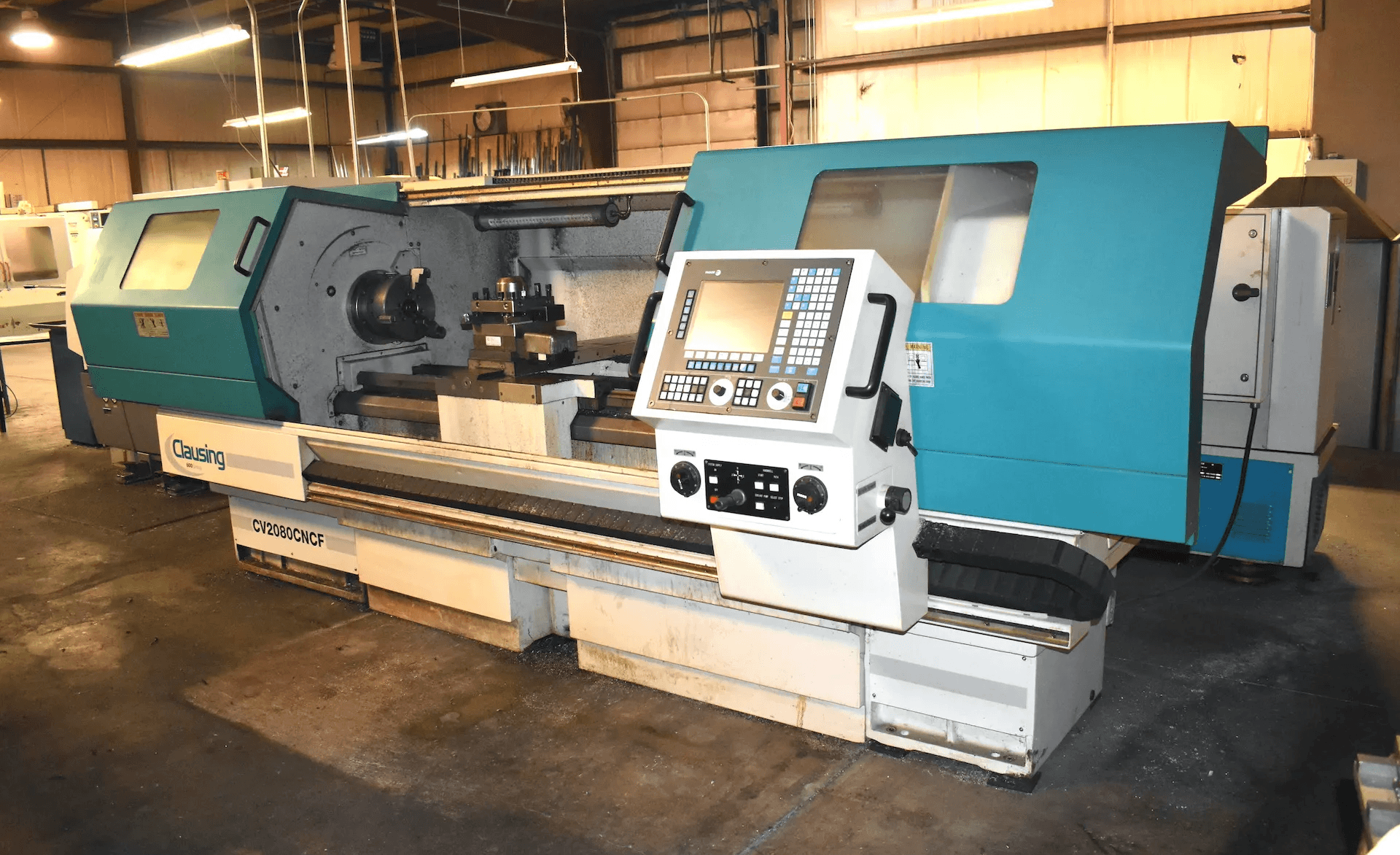

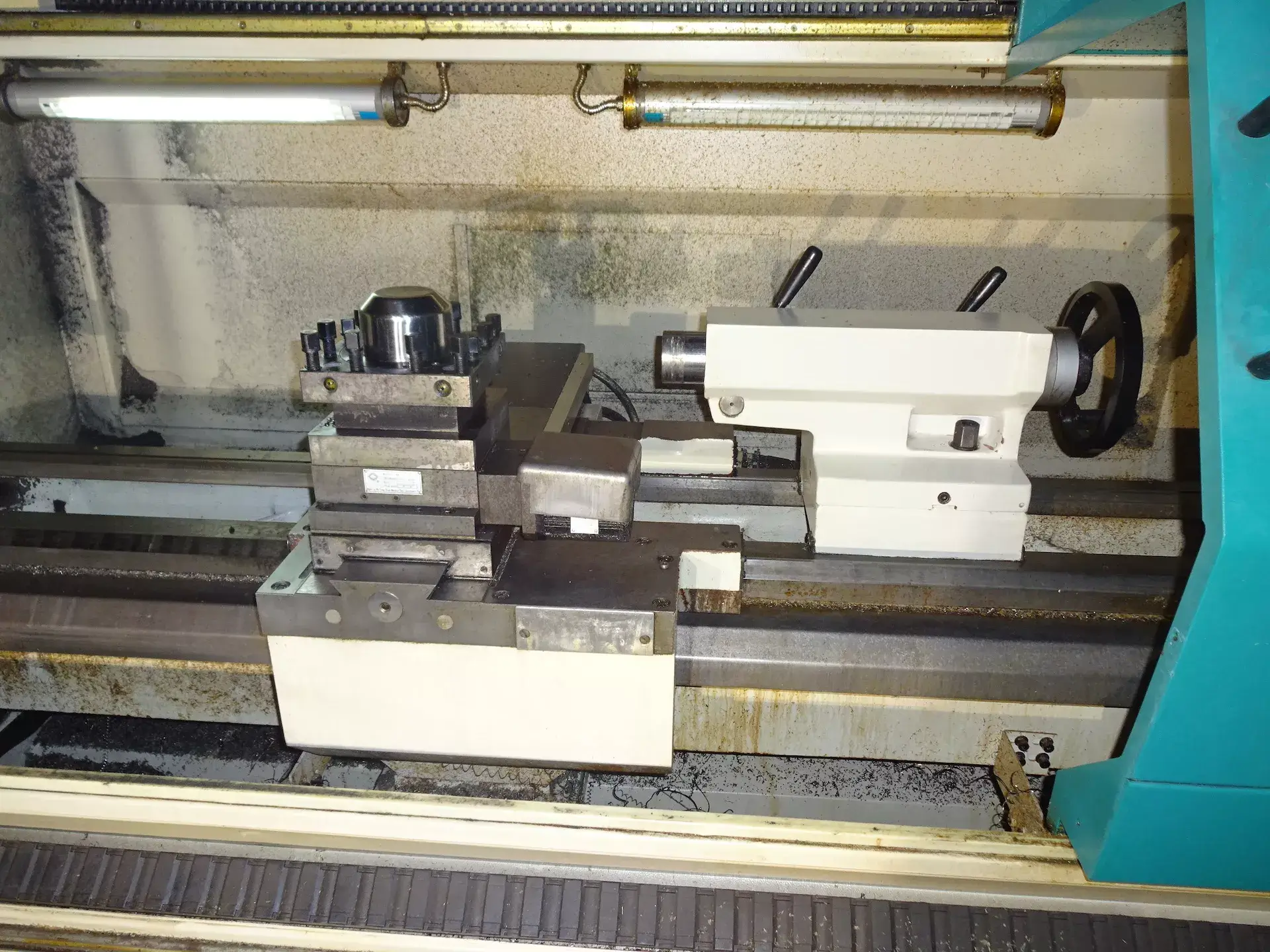

| Make: | Clausing |
| Model: | CV2080CNCF |
| Year: | 2007 |
| Equipped With: |
|---|

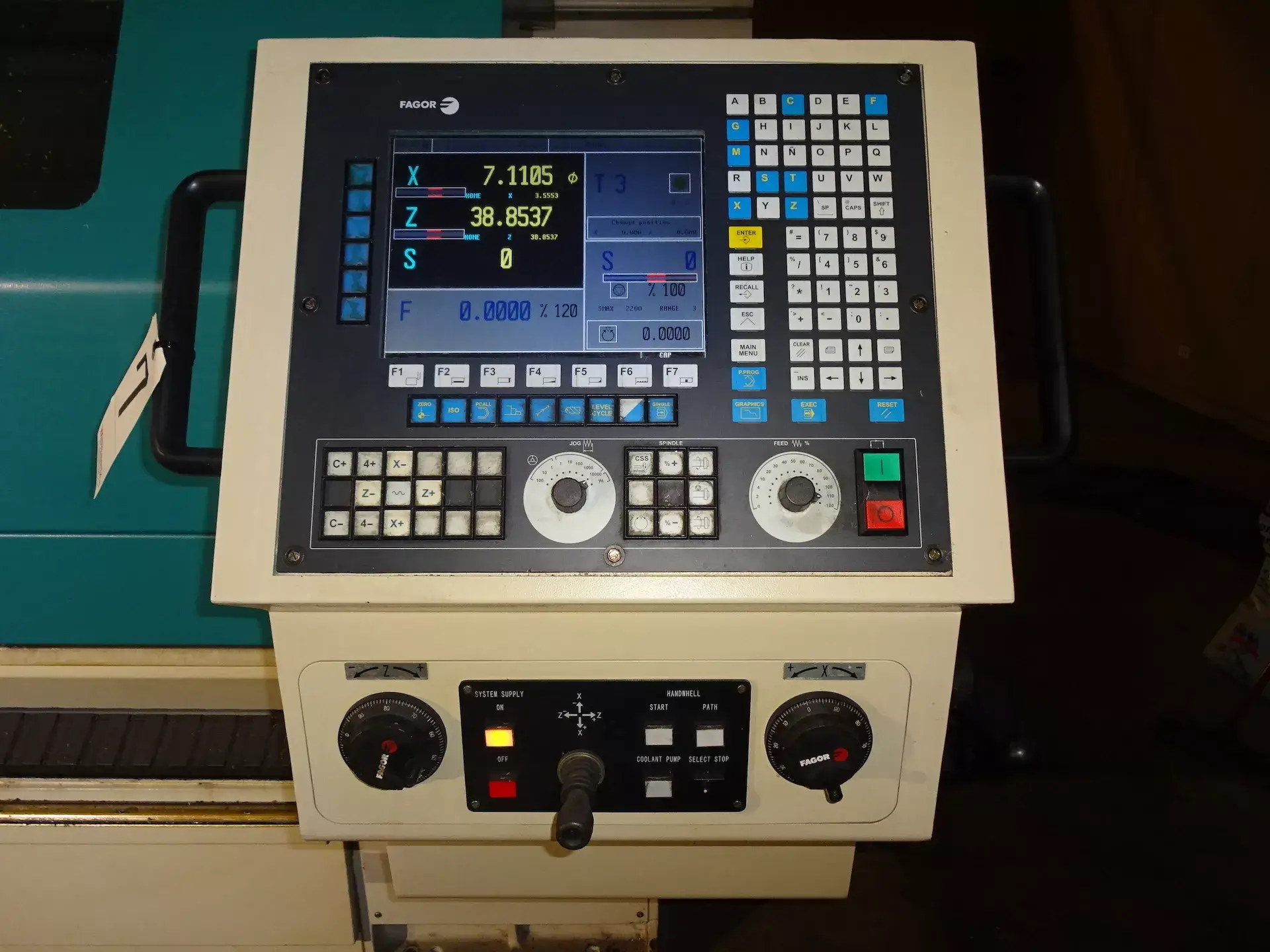

| FAGOR CNC Control |
| 10″ 3-Jaw Chuck |
| 4-Position Automatic Tool Changer |
| Tailstock |
| Fully Enclosed Splash Guard |
| Work Light |
| Coolant System |
| Automatic Lubrication System |
| Capacity: |
|---|
| Swing Over Bed: 20.00″ |
| Swing Over Cross Slide: 11.80″ |
| Distance Between Centers: 80.00″ |
| Max Turning Diameter: 11.80″ |
| Max Turning Length: 80.00″ |
| Chuck Size: 10.00″ |
| Spindle Bore: 3.125″ (3-1/8″) |
| Travels: |
|---|
| X-Axis Travel: 12.00″ Approx. |
| Z-Axis Travel: 82.00″ Approx. |
| Rapid Traverse (X & Z-Axis): 394 IPM |
| Spindle: |
|---|
| Spindle Speed Range: 2,200 RPM |
| Spindle Bore: 3.125″ |
| Spindle Nose: A2-8 |
| Main Motor: 20 HP |
| Turret: |
|---|
| Turret Type: 4-Position Automatic Tool Changer |
| Tailstock: |
|---|
| Tailstock: Yes |
| Tailstock Quill Diameter: 3.15″ |
| Tailstock Quill Travel: 5.90″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Requirement: 220-240v/ 3 Phase/ 60 Hz |
| Machine Dimensions (Approx.): 190″ × 80″ × 75″ |
| Machine Weight (Approx.): 9,500 lbs |
