*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

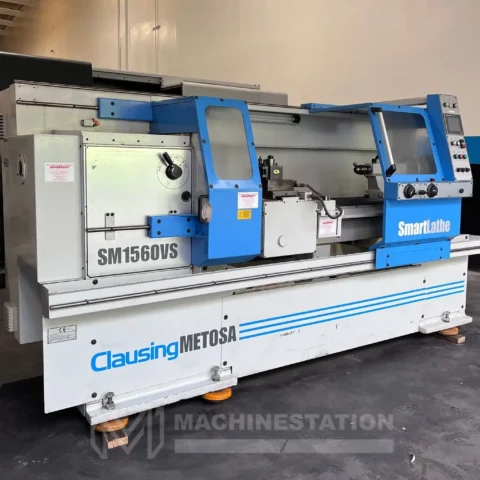

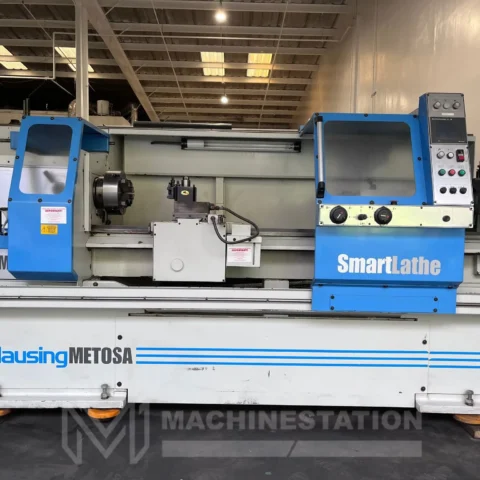

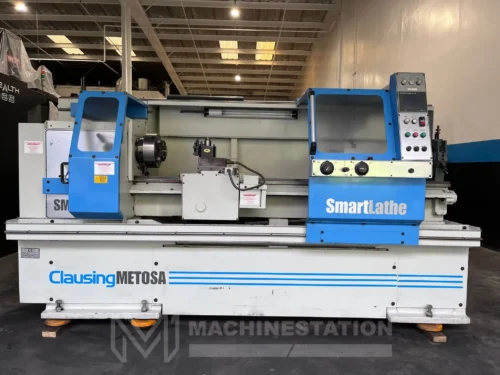

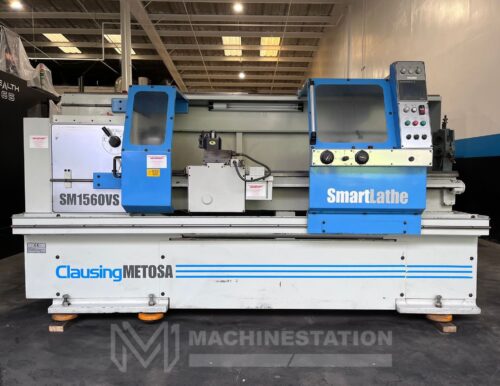

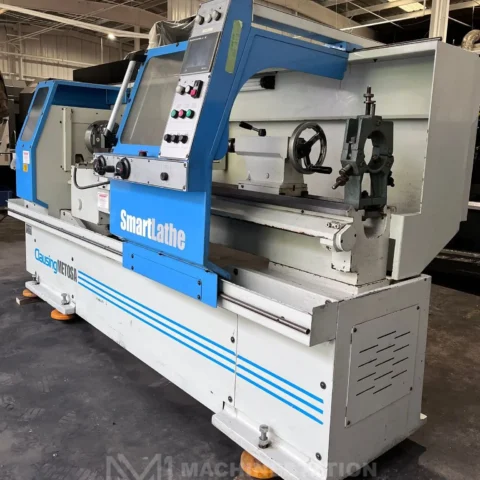

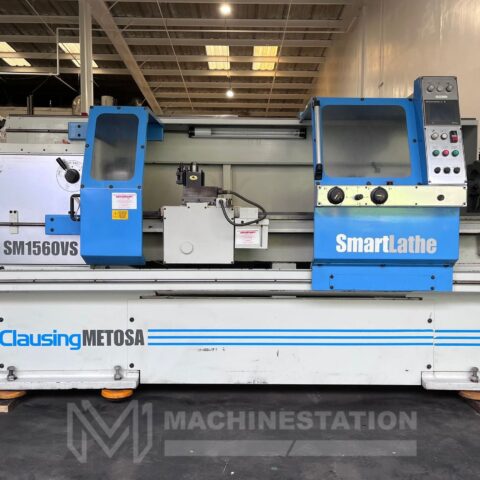

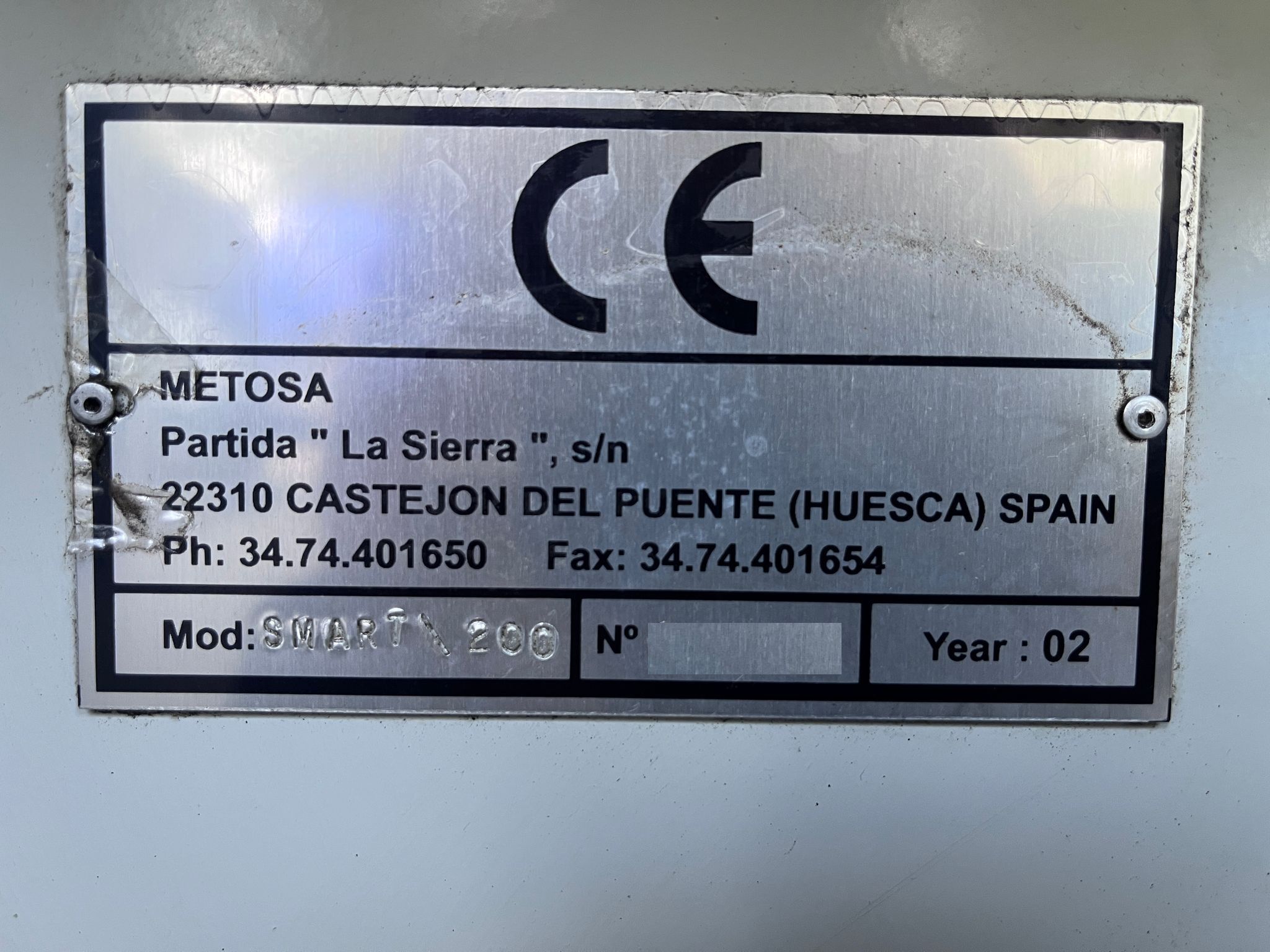

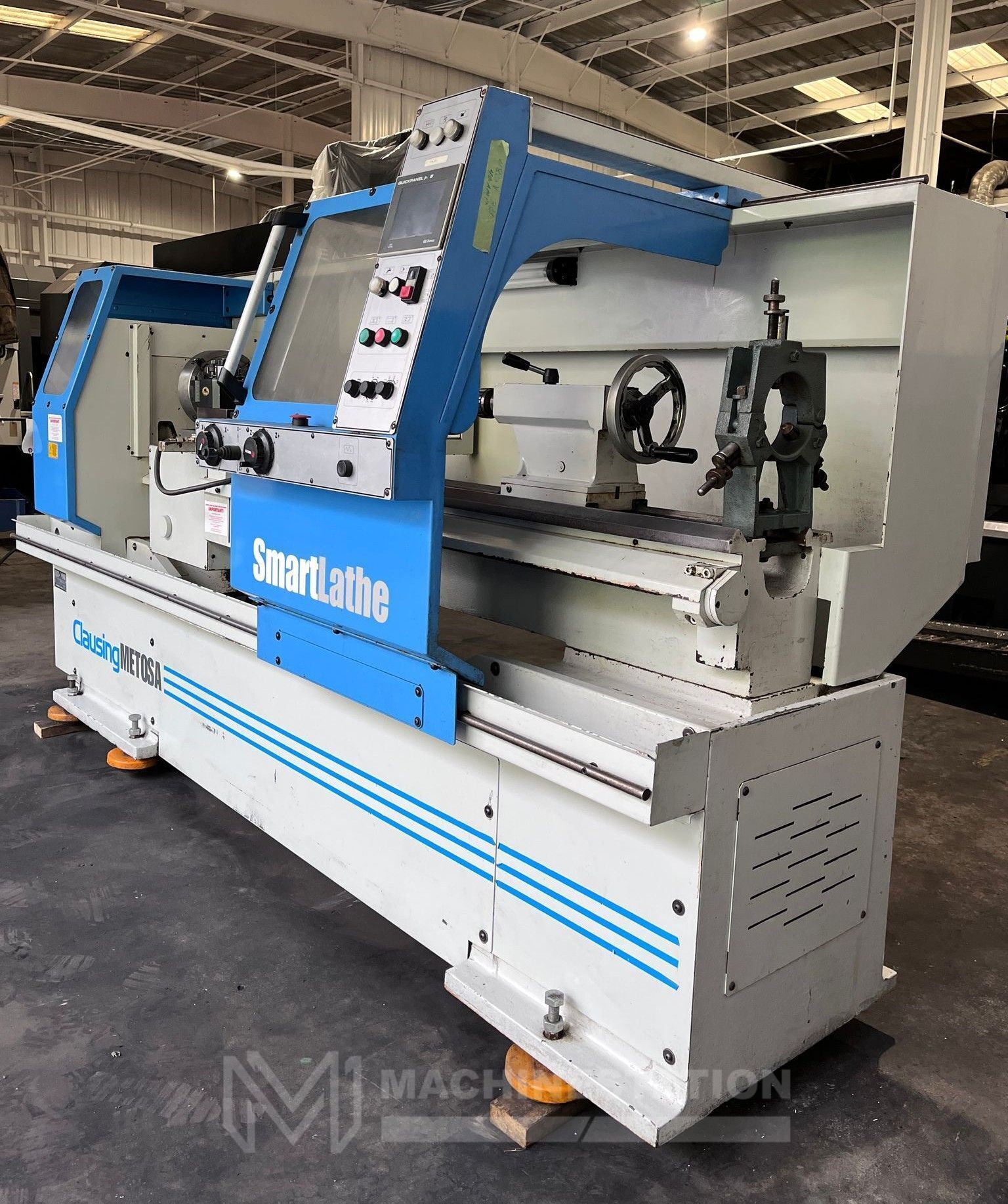

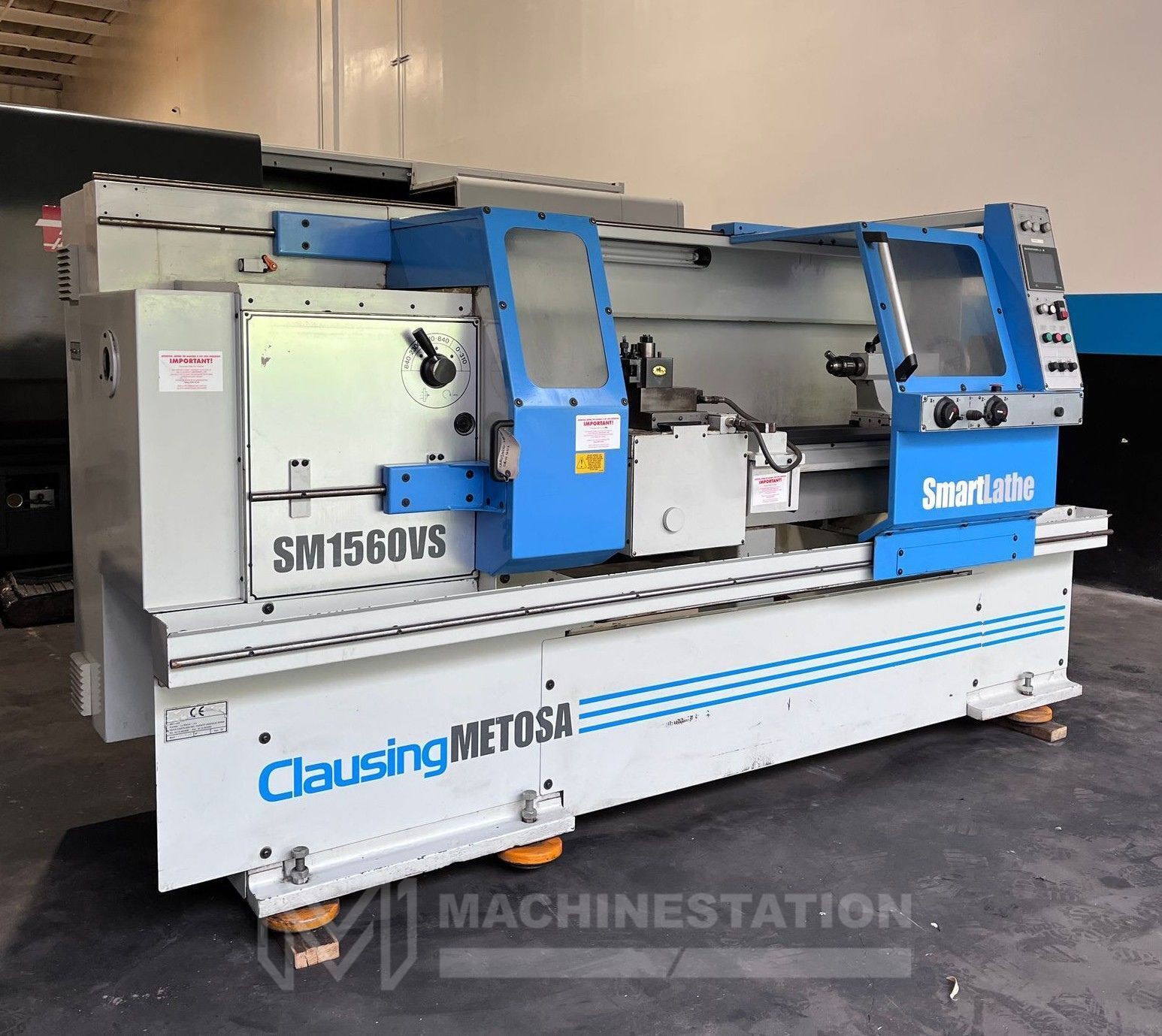

| Make: | Clausing Metosa |

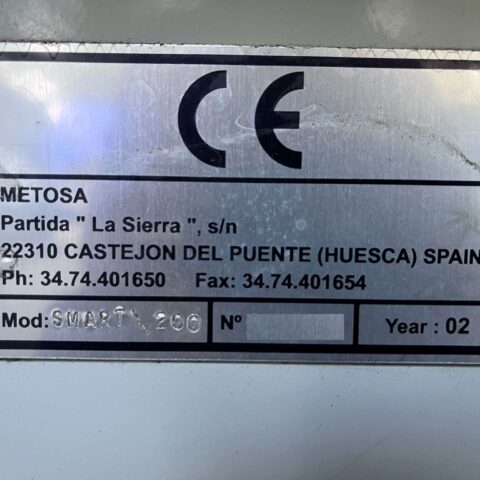

| Model: | SM1560VS Smart 200 |
| Year: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Fanuc GE CNC Control |

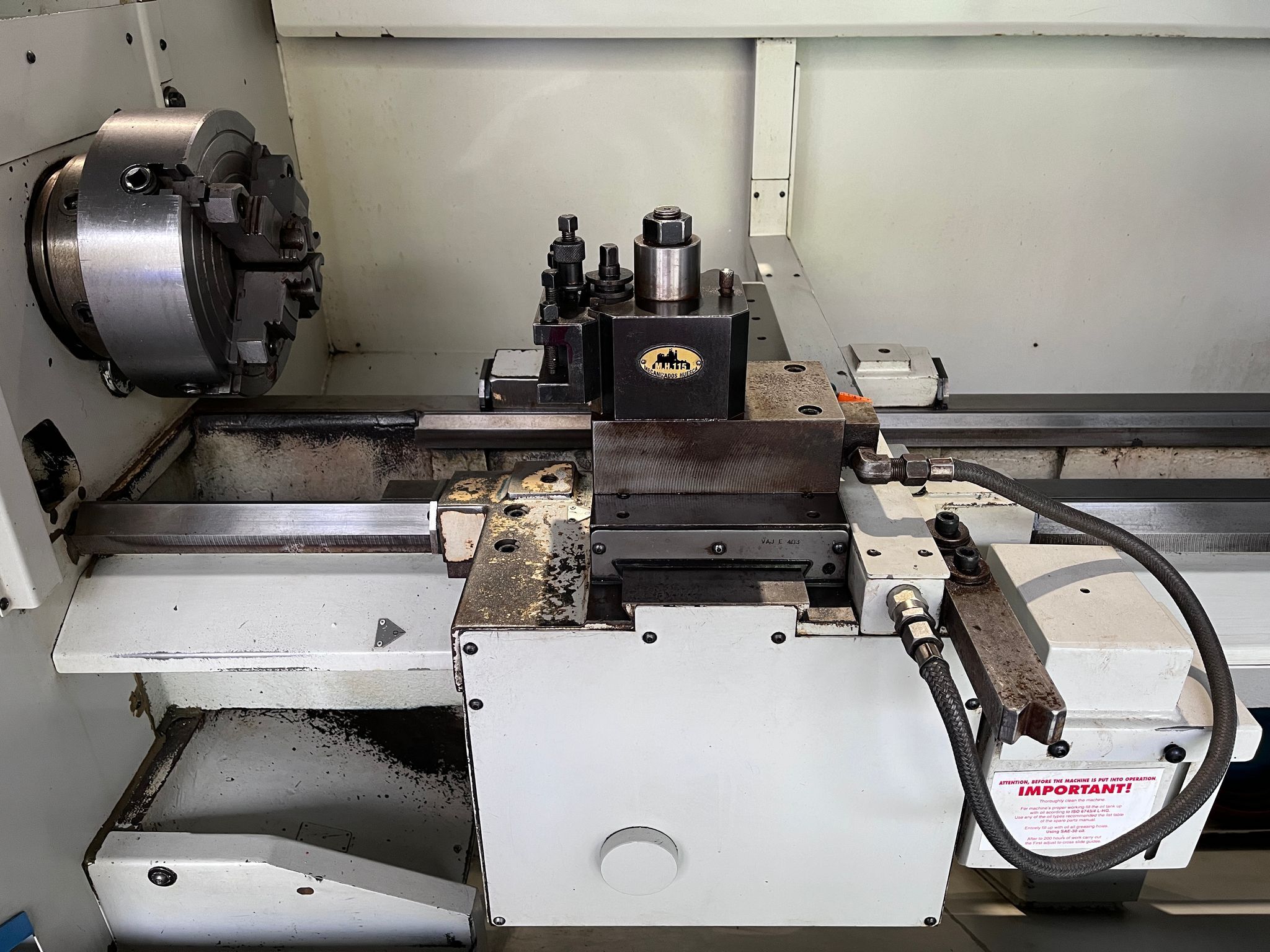

| 10″ 4-Jaw Manual Chuck |
| Geared Headstock |

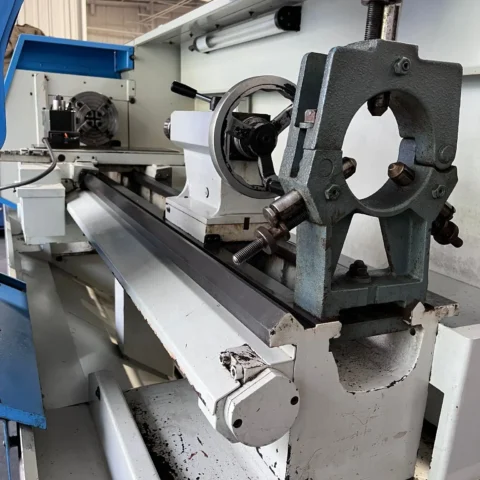

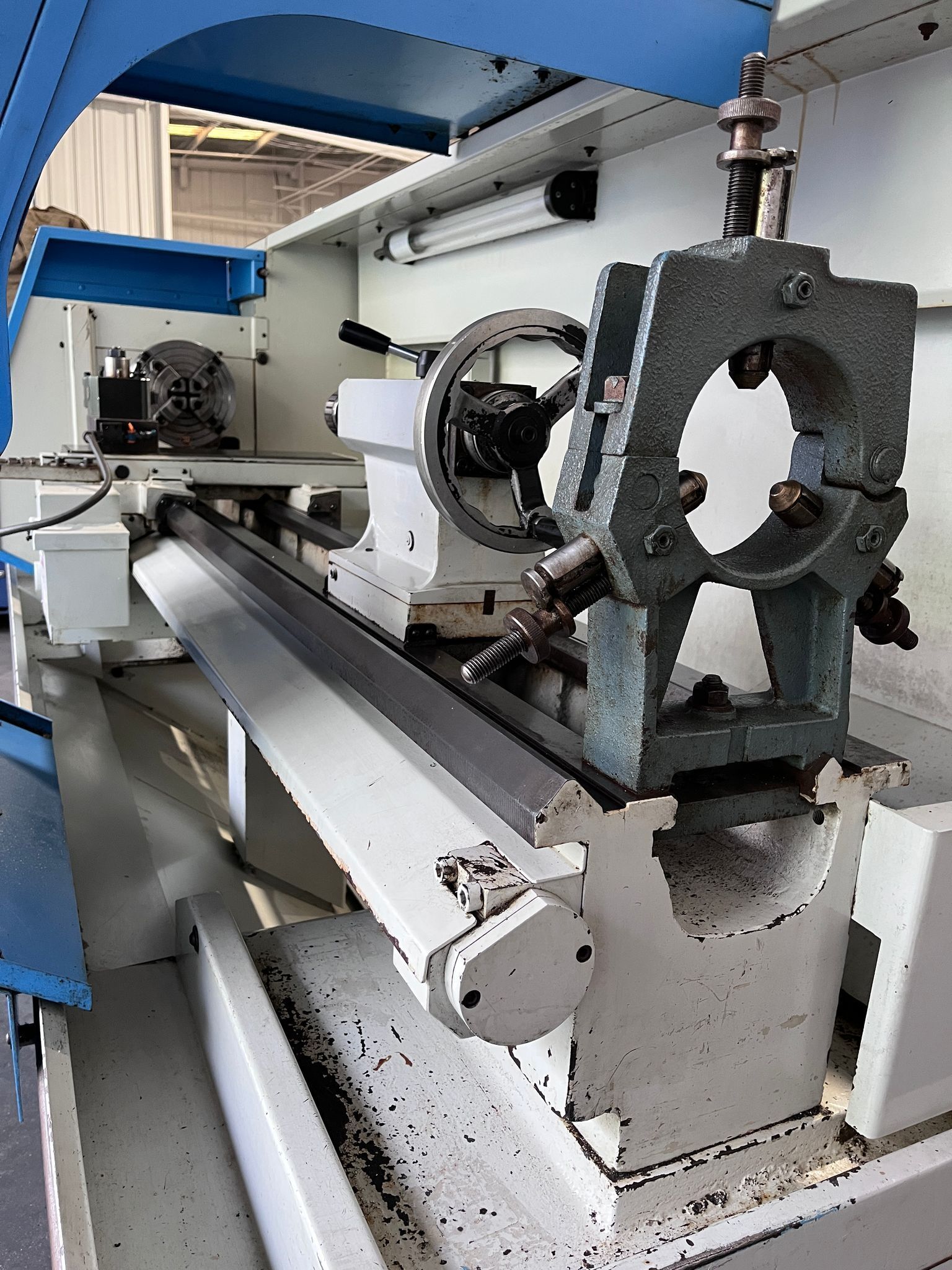

| Manual Steady Rest |

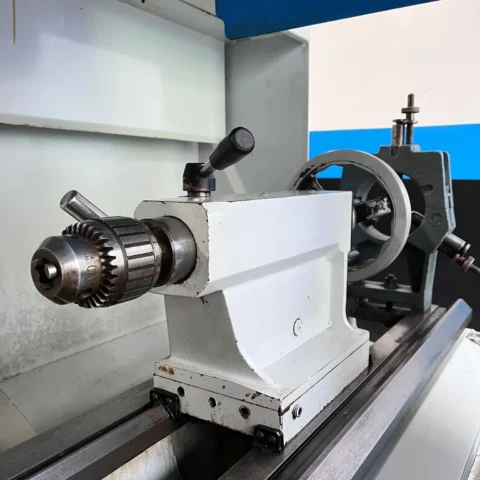

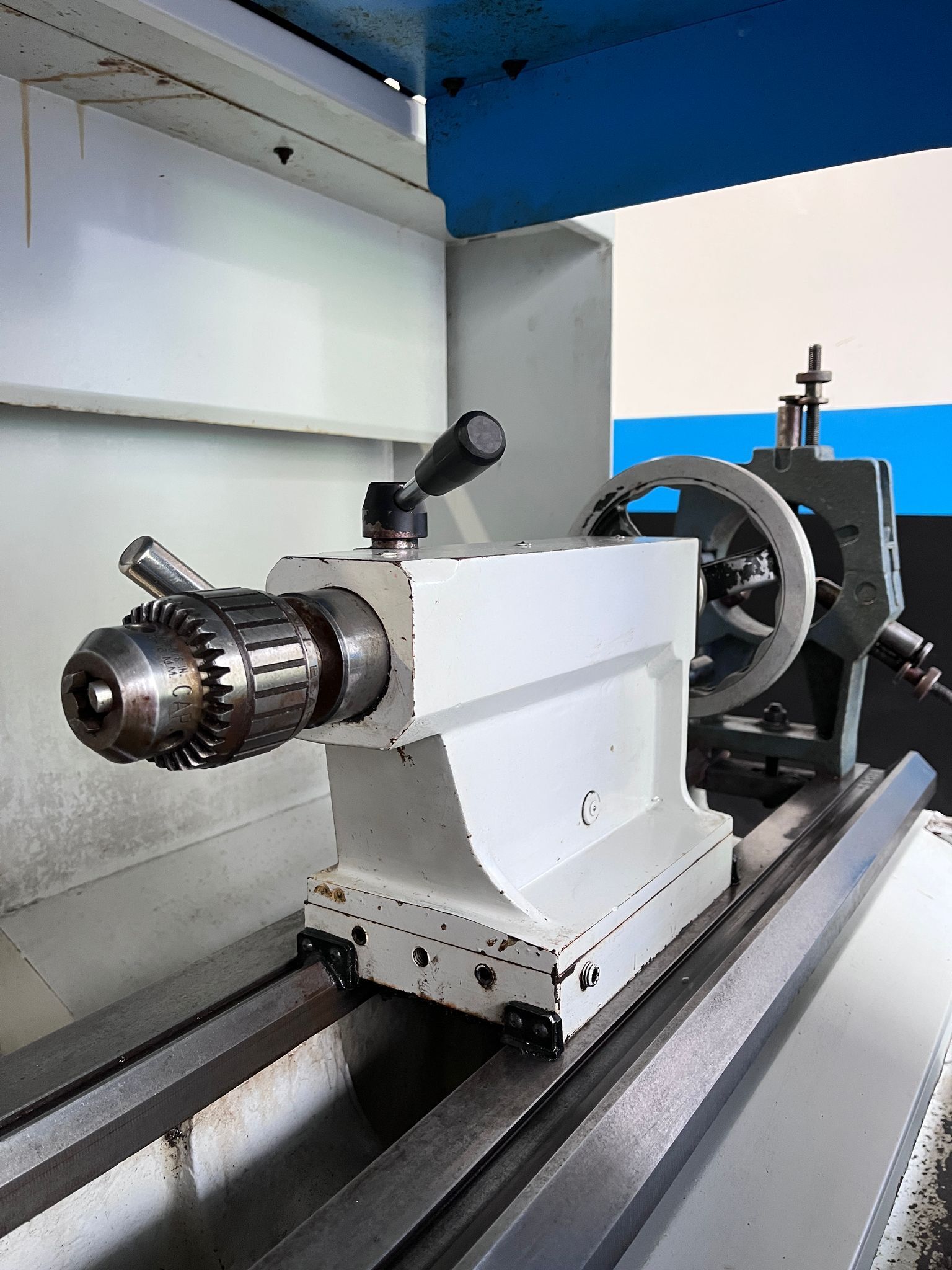

| Manual Tailstock |

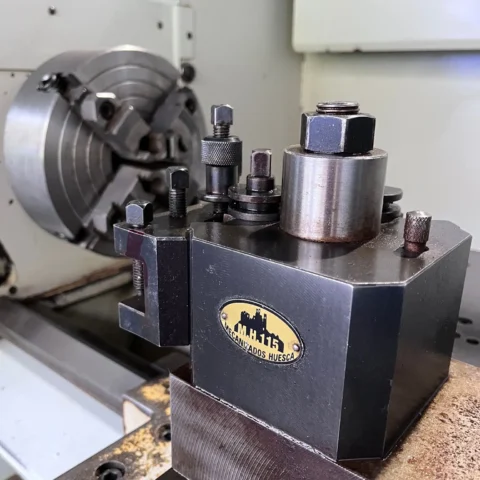

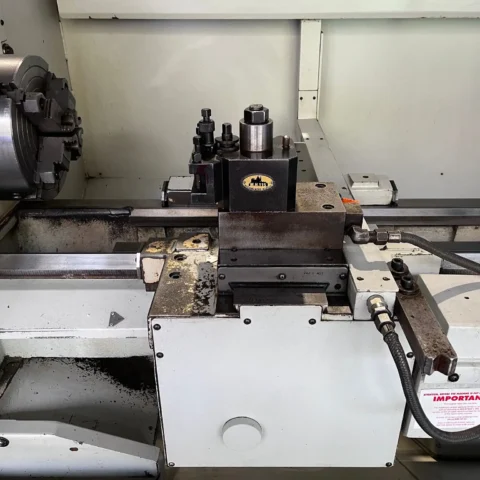

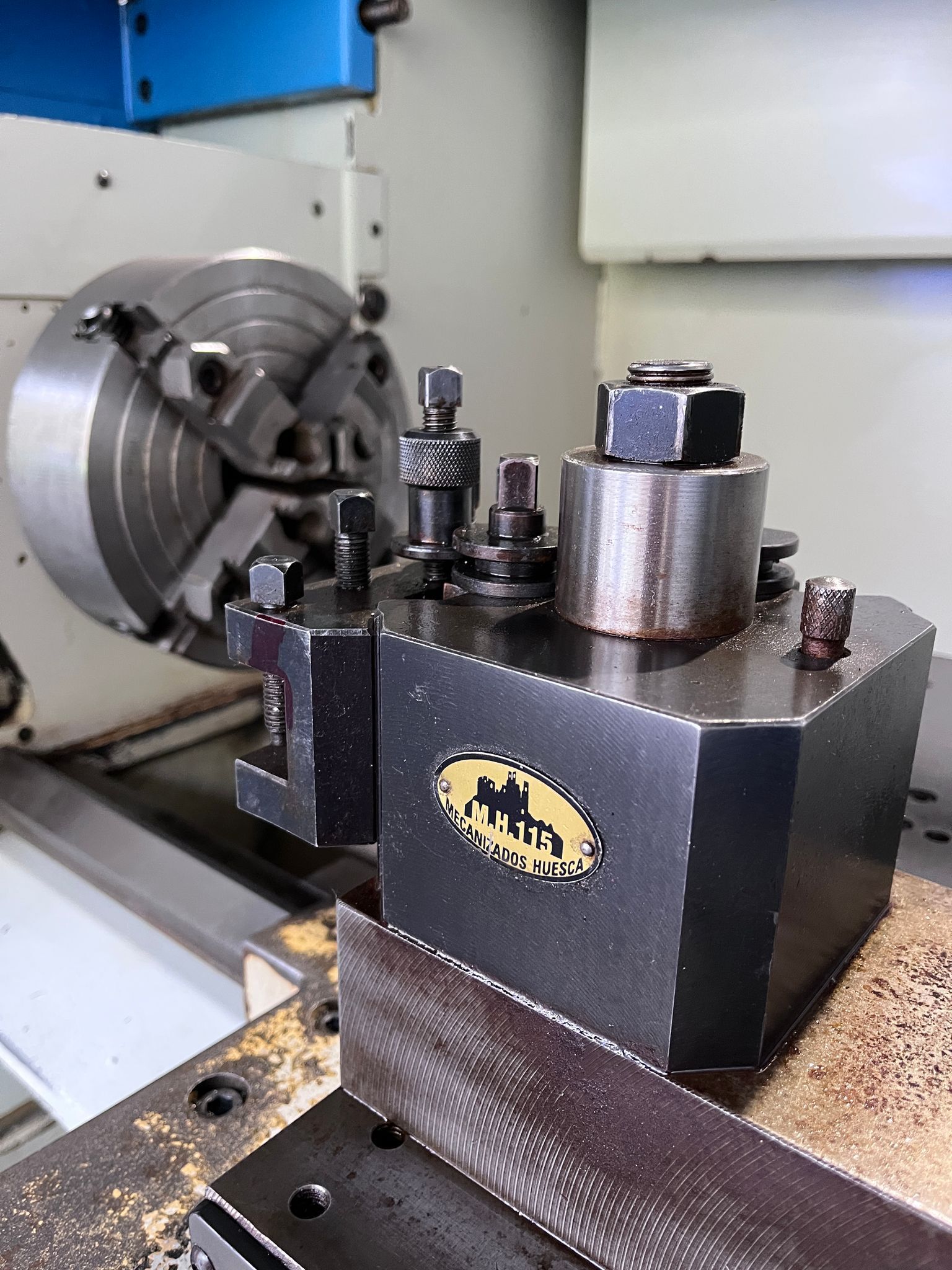

| Tool Post |

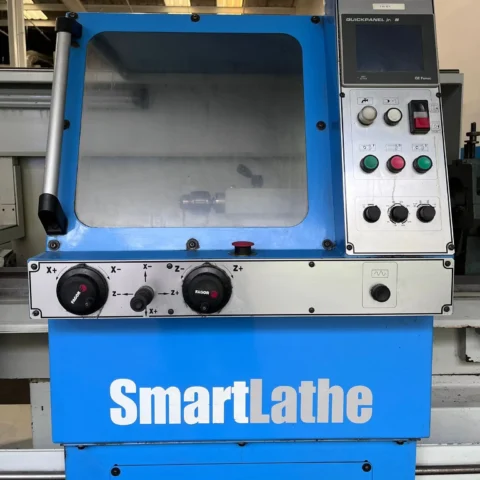

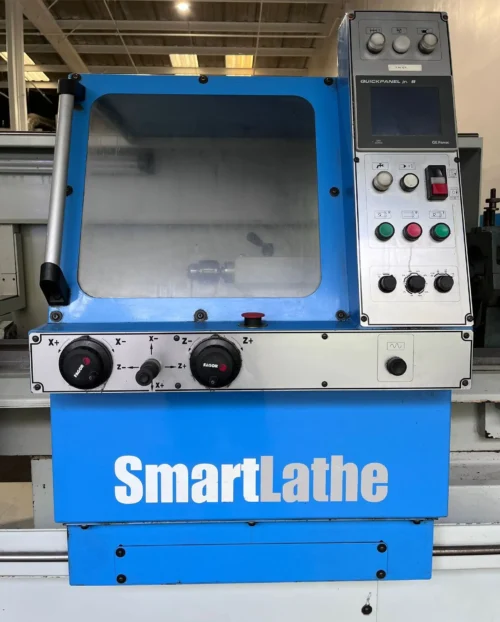

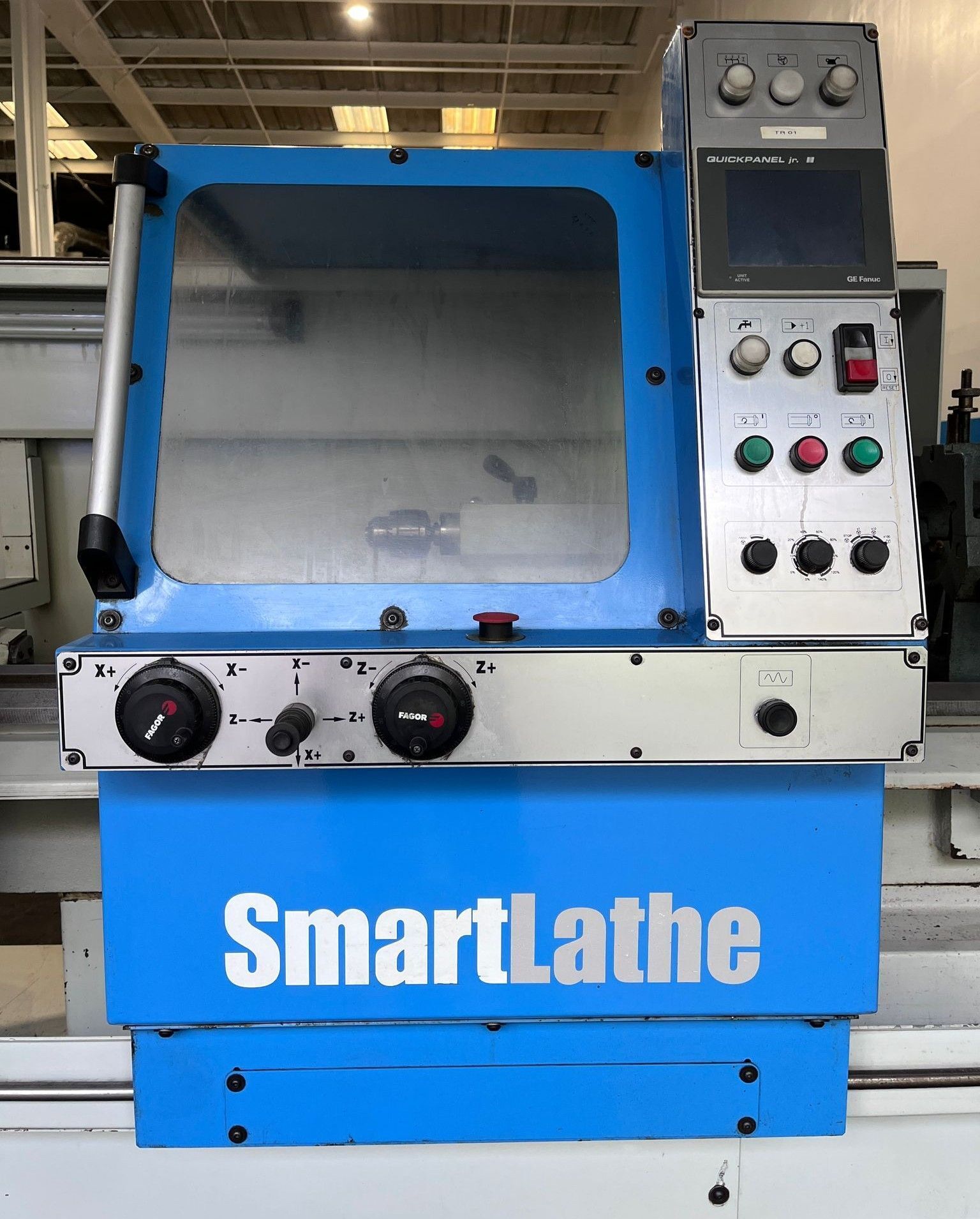

| Dual MPG Control |
| Coolant system |
| Capacity: |
|---|
| Max Height of Centers: 7.5″ |
| Max Swing Over Bed : 15.0″ |
| Distance Between Centers : 60.0″ |
| Travels: |
|---|
| X Axis Travel (Cross Slide): 8.25″ |
| Z Axis Travel (Longitudinal) : 60.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 394 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Bore: 2.5″ |
| Spindle Speed: 0-2300 RPM (3 steps) |
| Spindle Motor: 10 HP |
| Tailstock: |
|---|
| Tailstock Type: Manual |
| Taper: MT-4 |
| General: |
|---|
| Power Requirement: 3 phase / 60 Hz |
| Overall Dimensions: 160″ x 64″ x 68″ High Approx. |
| Machine Weight: 5,070 lbs. Approx. |
