*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Colchester |
| Model: | Triumph VS 2500 |
| Year: | 2015 |
| Machine Type: | Manual Gap-Bed Centre Lathe |
| Control: | Manual |
| Equipped With: |
|---|

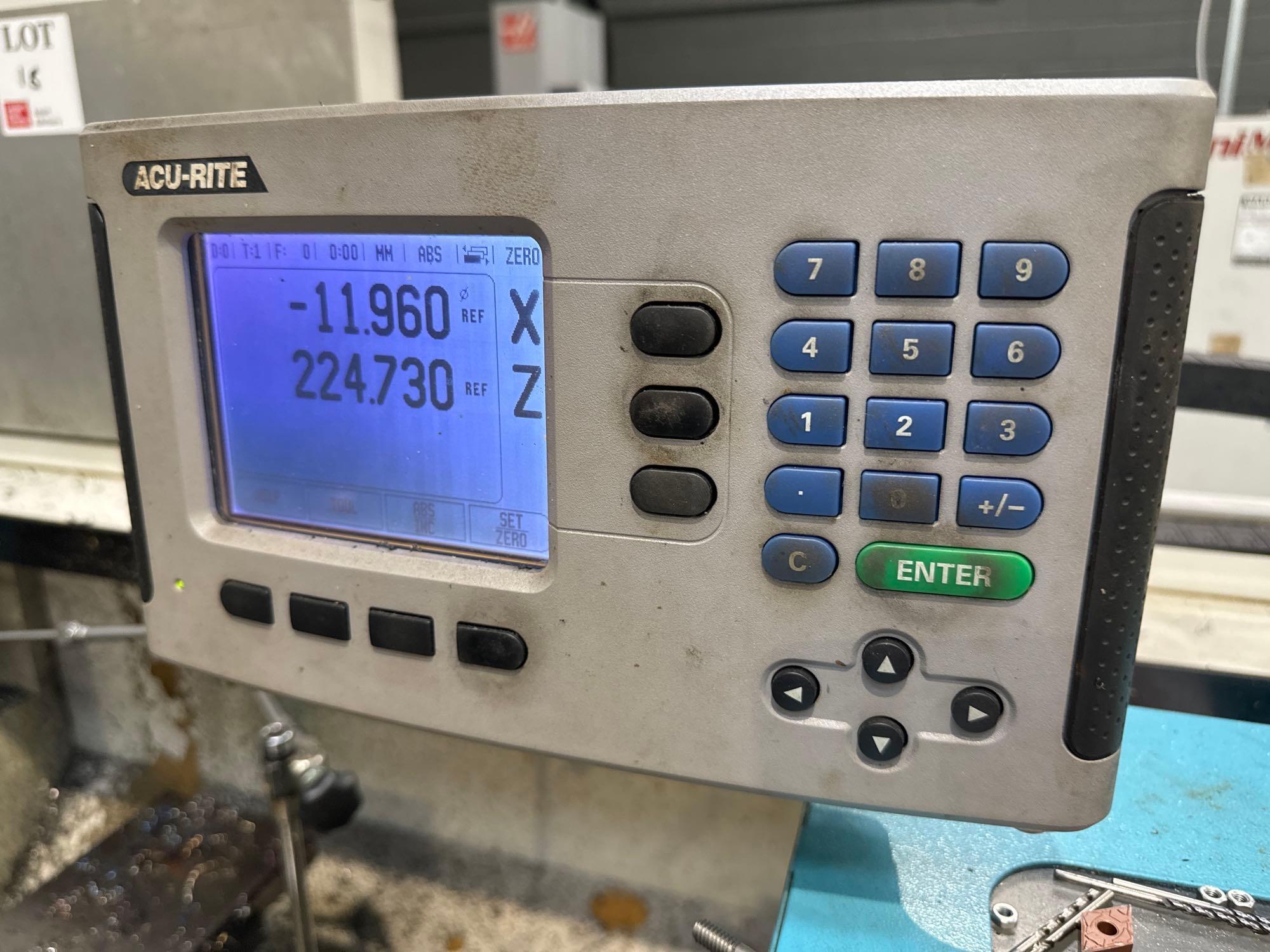

| ACU-RITE 2-Axis Digital Readout |
| Constant Surface Speed (CSS) |
| Infinitely Variable Spindle Speed |
| 10″ 3-Jaw Chuck |
| D1-6 Camlock Spindle |
| Quick-Change Toolpost |
| Multiple Toolholders |
| Tailstock |
| Coolant System |
| Machine Work Light |
| Spindle Load Meter |
| Thread Dial Indicator |
| Gap-Bed Design |
| Full-Length Chip/Splash Guard |
| Extensive Tooling Included |
| Capacity: |
|---|
| Swing Over Bed: 15.75″ |
| Swing Over Cross Slide: 9.69″ |
| Swing in Gap: 23.03″ |
| Centre Height: 7.68″ |
| Distance Between Centres: 50″ |
| Bed Length: 50″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 2,500 RPM |
| Speed Range: 14–2,500 RPM |
| Spindle Bore: 2.13″ |
| Spindle Nose: D1-6 Camlock |
| Motor Power: 10 HP |
| Threading: |
|---|
| Imperial Threads: 2–56 TPI |
| Metric Threads: 0.2–14 mm Pitch |
| Diametral Pitch: 8–56 DP |
| Module Threads: 0.2–3.5 MOD |
| Number of Imperial Pitches: 56 |
| Number of Metric Pitches: 51 |
| Number of DP Pitches: 20 |
| Number of Module Pitches: 20 |
| Slides: |
|---|
| Cross-Slide Travel: 9.84″ |
| Top-Slide Travel: 5.12″ |
| Tailstock: |
|---|
| Tailstock Included |
| No. 5 MT Quill |
| Quill Travel (Approx.): 5.71″ |
| Manual Tailstock Operation |
| General: |
|---|
| Power Source: 415V / 3-Phase / 50 Hz |
| Machine Weight (Approx.): 3,968 lbs. / 1,800 kg |
