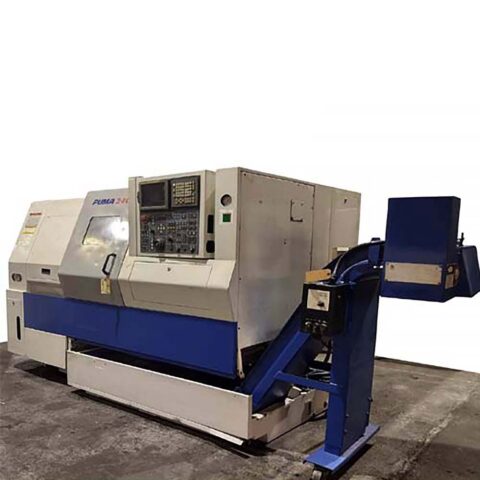

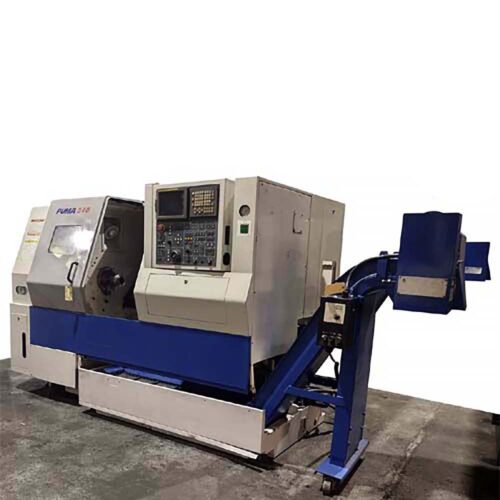

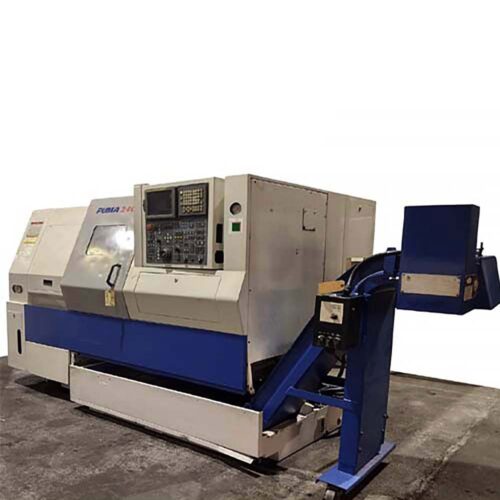

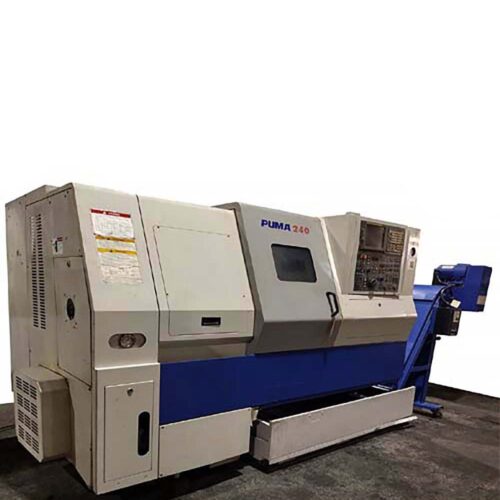

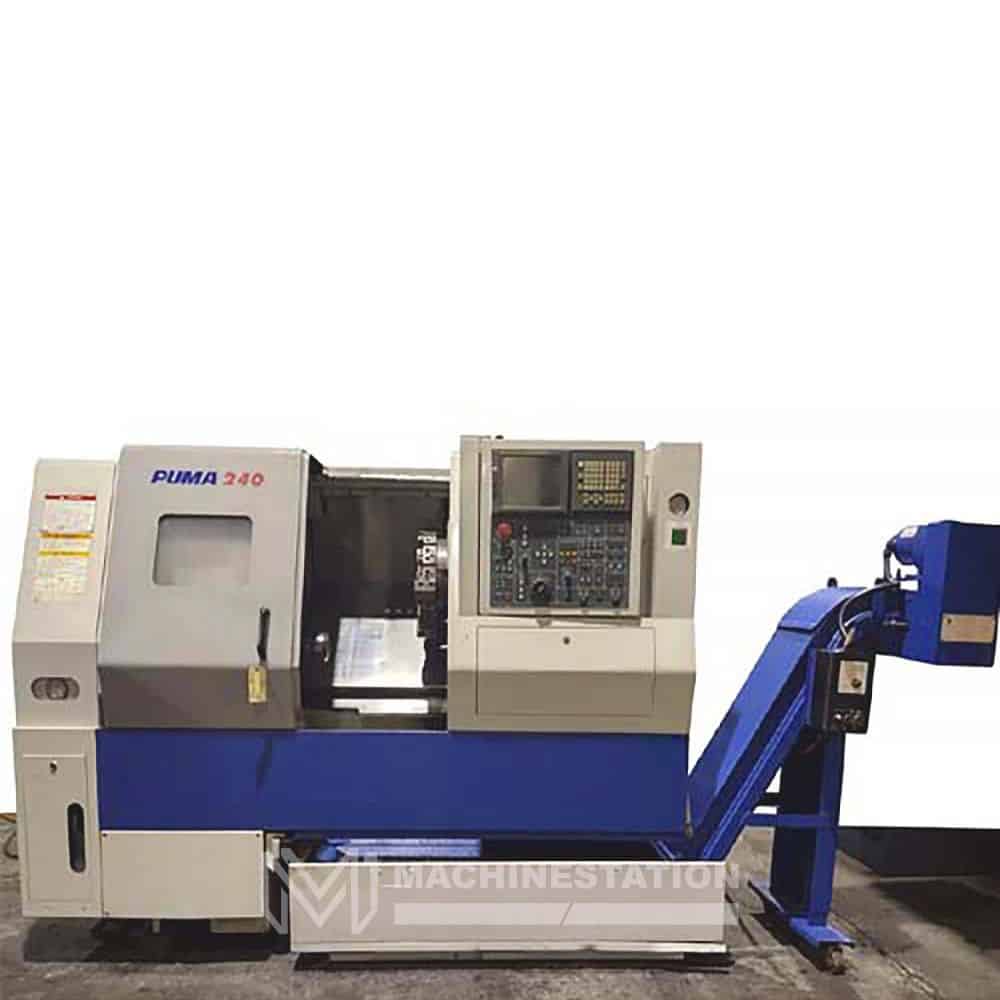

Daewoo Doosan Puma 240 CNC Turning Center

Out of stock

Used Daewoo Doosan Puma 240 CNC Turning Center for Sale. This Daewoo Doosan Puma 240 has minimal cutting hours and is in almost new condition.

Location: Houston, TX
SKU: 2066
Make/Model: Daewoo Puma 240
Video: [fusion_button link=”www.youtube.com/embed/HP5Pz3yz-HE?rel=0&showinfo=0&modestbranding=0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_color=”” accent_hover_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_color=”” border_hover_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]Play Video[/fusion_button]
SKU: 2066

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2066
Make: Daewoo Puma
Model: 240A

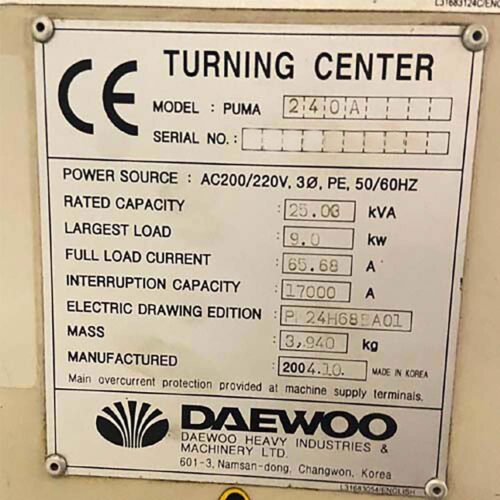

Serial: PM240926
Year: 2004
Condition: Very Good



Equipped With:

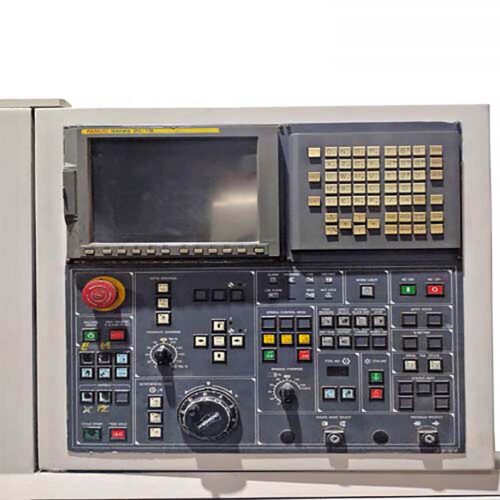

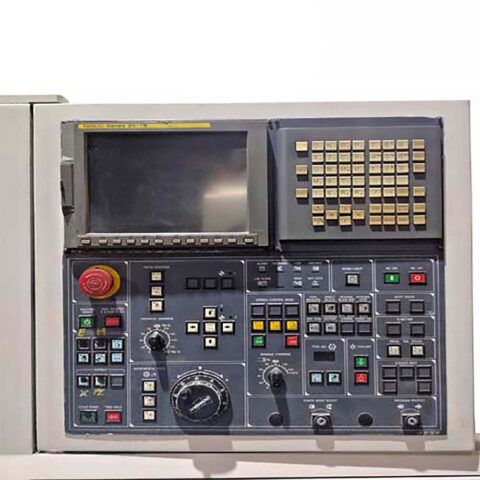

Fanuc 21i-TB CNC Control

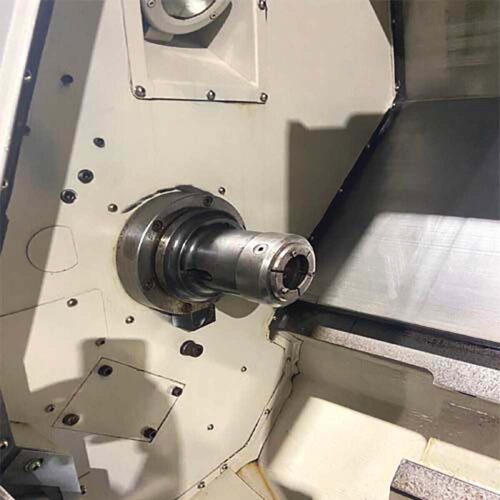

Collet Nose (8″ Chuck Capable)

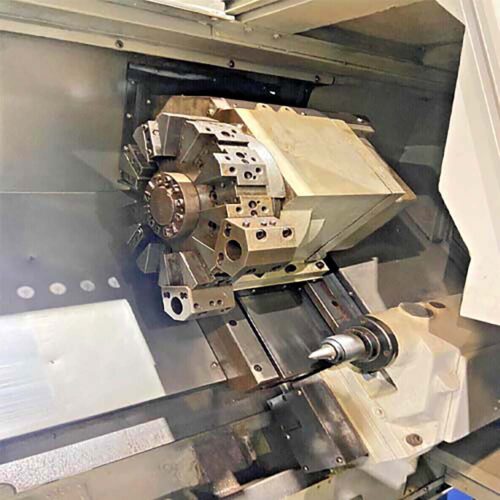

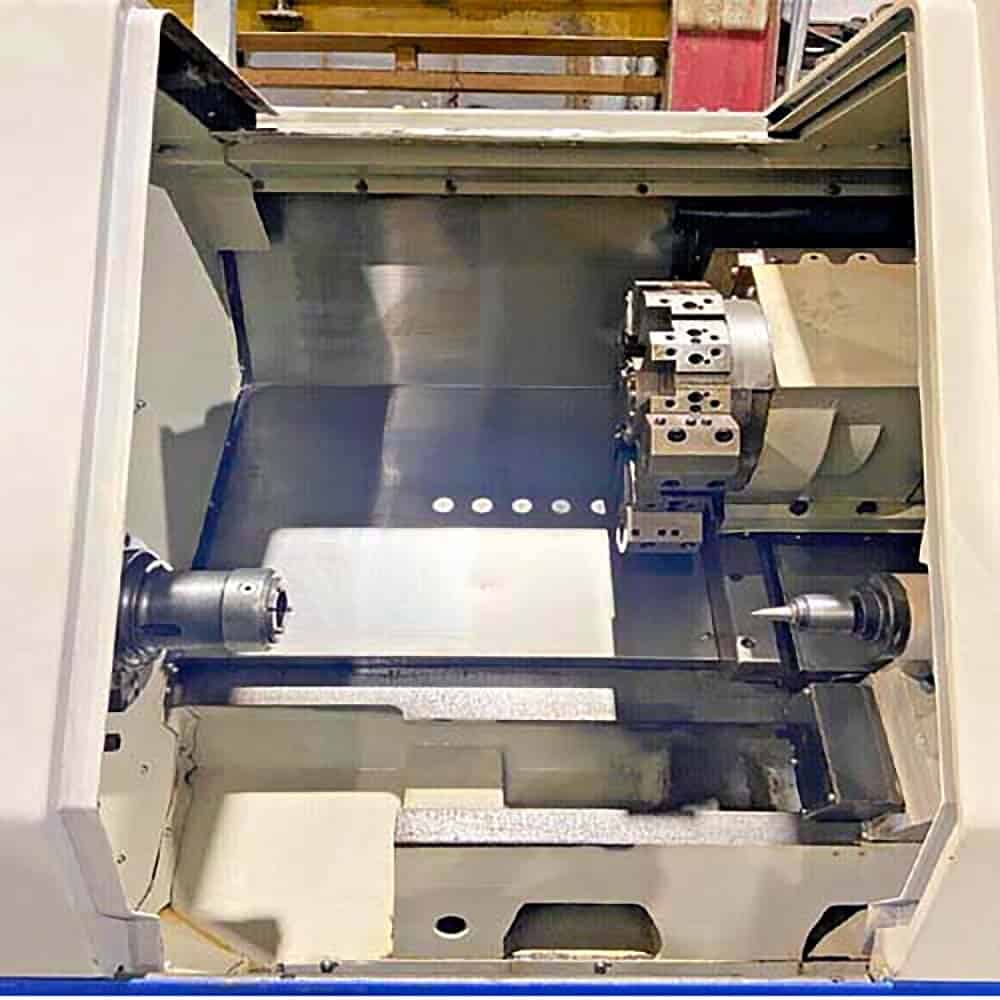

12 Station Turret
Tool Presetter
Tool Holders
Programmable Tailstock and Power Quill
PCMCIA Port
Coolant System
Foot Switch
Chip conveyor



Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.99″
Spindle Speed: 4500 RPM
Spindle Motor: 20 hp



Tailstock:
Tailstock Taper: MT- 4
Tailstock Body Travel: 16.3″
Tailstock Quill Dia.: 2.95″
Tailstock Quill Stroke: 3.14″



Capacity:
Max Turning Diameter: 11.83″
Max Turning Length: 20.19″
Max Bar Capacity: 2.55″
Swing Over Bed: 21.65″
Distance Between Centers: 20.19″



Travels:
X Axis Travel: 8.07″
Z Axis Travel: 22.83″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second



General:
Power: 25 kva, 220v / 3-Phase /60Hz
Overall Dimensions: 117″ X 63″ X 69″ High
Weight: 8907 lbs



Daewoo Doosan Puma 240 CNC Turning Center

The Daewoo Doosan Puma 240 is a state-of-the-art, high-speed, low-cost turning center for businesses in a growth phase. With a collet nose capable of holding an 8″ chuck and 12-station turret, this machine is perfect for any job shop looking to increase production while cutting down on set-up time. The Puma 240 features a programmable tailstock with a power quill, making it easier to use and more productive than ever before. This machine was manufactured in 2004 and is in very good used condition. You can inspect this turning center at our Houston, TX, location.

With its range of features and advanced technology, this turning center is an excellent choice for any business looking to increase its machining capabilities. This state-of-the-art turning center can easily handle even the most challenging tasks thanks to its powerful spindle, rigid construction, and intuitive control system. Let’s take a closer look at what makes this machine so unique.

The Doosan Puma 240 CNC Turning Center is powered by a high-torque spindle that provides up to 7500 rpm output speed and 20 hp of power. The tooling system includes static and live tools, as well as a variety of features.

The Doosan Puma 240 CNC Turning Center is equipped with modern technology that enables it to operate more efficiently than ever before. It utilizes a user-friendly Fanuc CNC control system which provides precise control over all aspects of the machine’s operation, including cutting parameters, spindle speed, feed rate, and more. Additionally, it comes with standard linear scales on each axis, providing high-accuracy feedback and allowing for tight tolerances even when machining complex parts.

This machine is highly rigid to provide tight accuracy levels at high speeds. Its robust construction includes heavy-duty roller-type linear guides on each axis and hardened box ways on the X-axis for added stability. This ensures smooth operation throughout its range of motion and minimizes vibration during high-speed operations. Additionally, the machine offers excellent repeatability for consistent results time after time.

This turning center is an excellent choice for businesses looking to expand their machining capabilities or upgrade their existing equipment. Its powerful spindle, advanced control system, and rigid construction make it capable of handling even the most demanding tasks while still providing consistent results every time it runs.
