*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

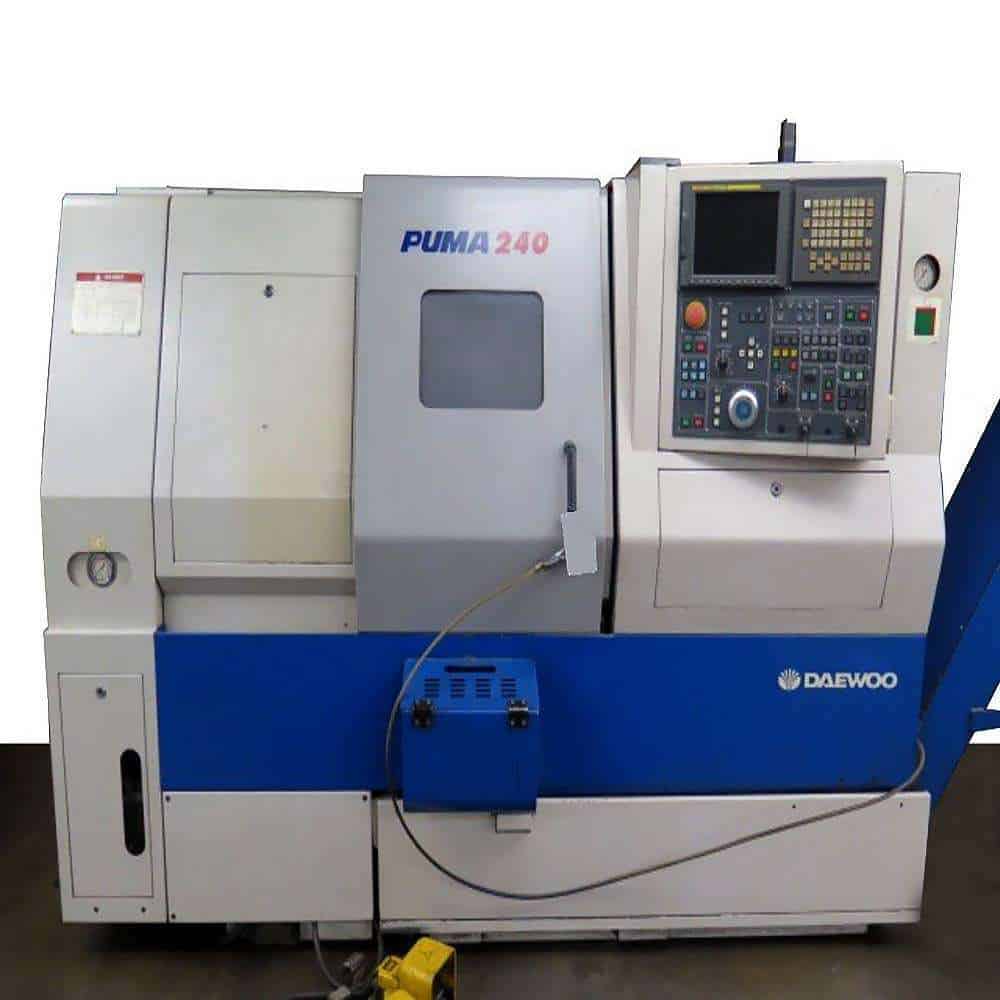

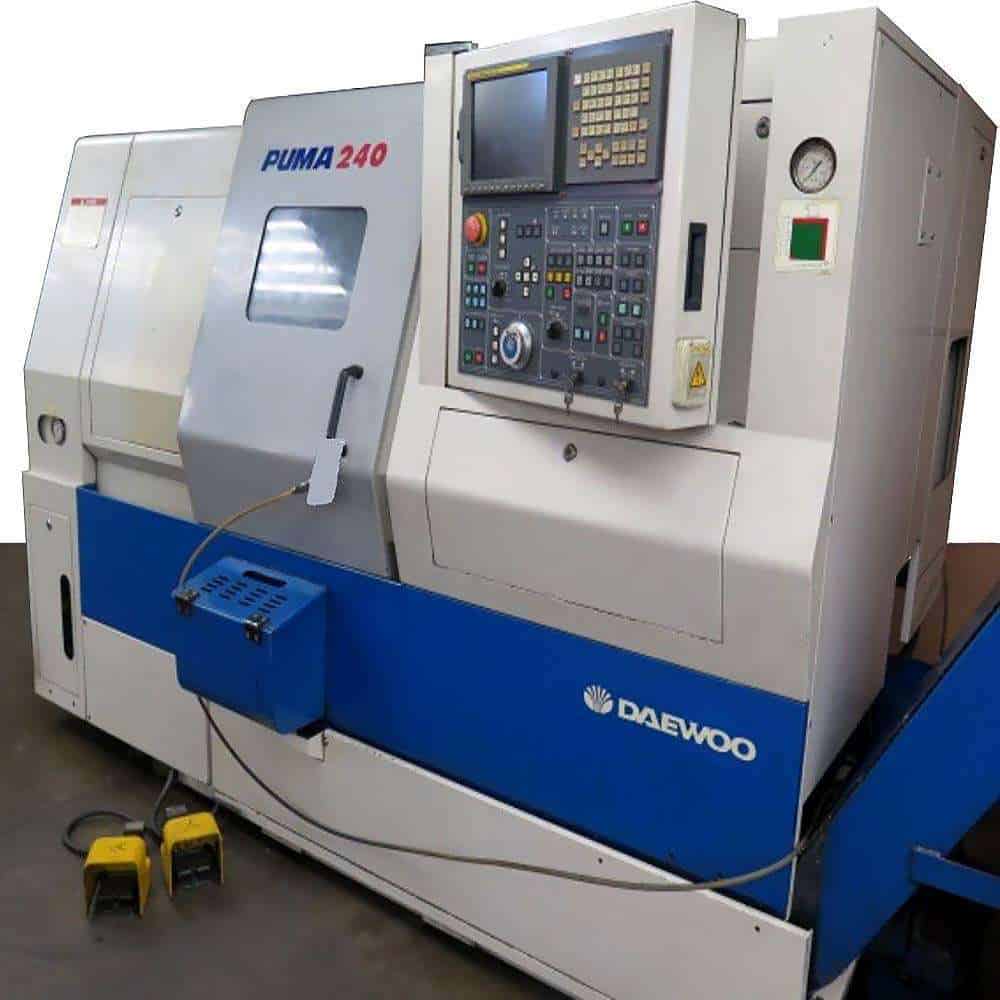

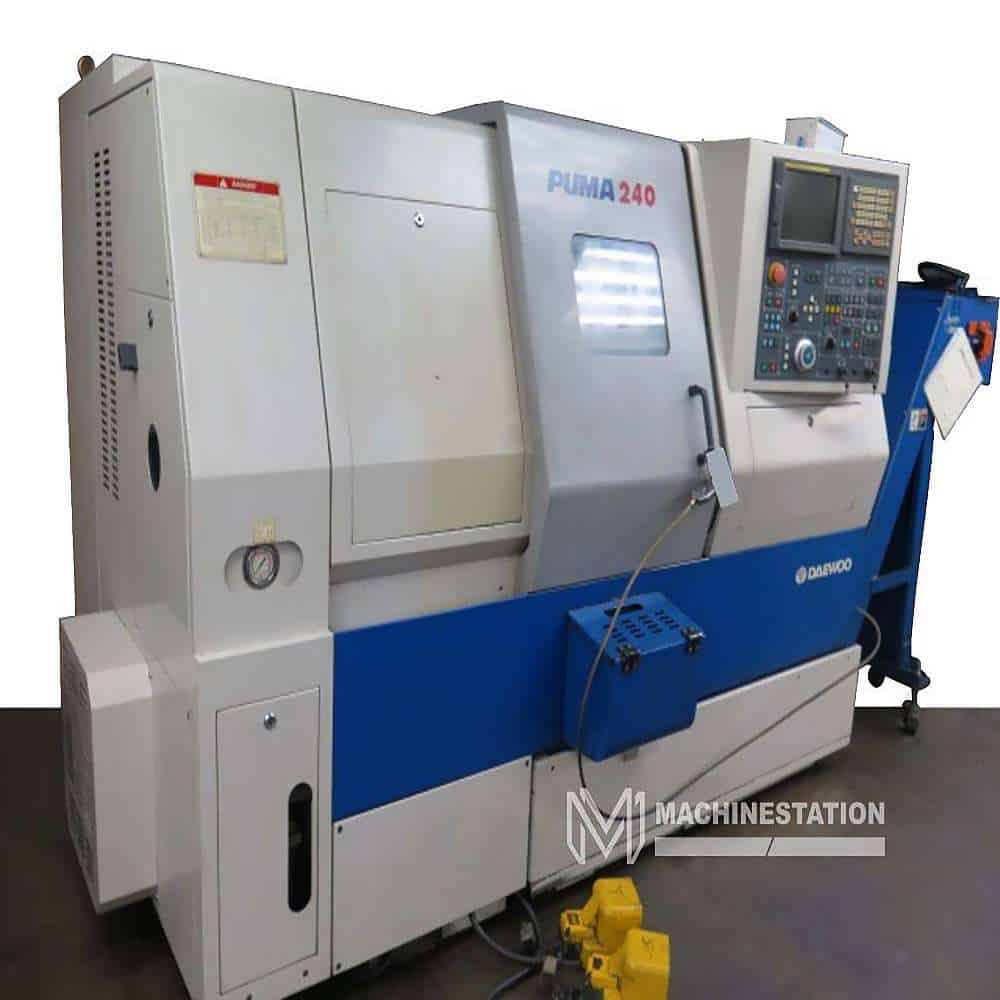

| Make: | Daewoo Doosan |
| Model: | Puma 240A |
| Year: | 2004/2005 |
| Condition: | Good |
| Equipped With: |
|---|

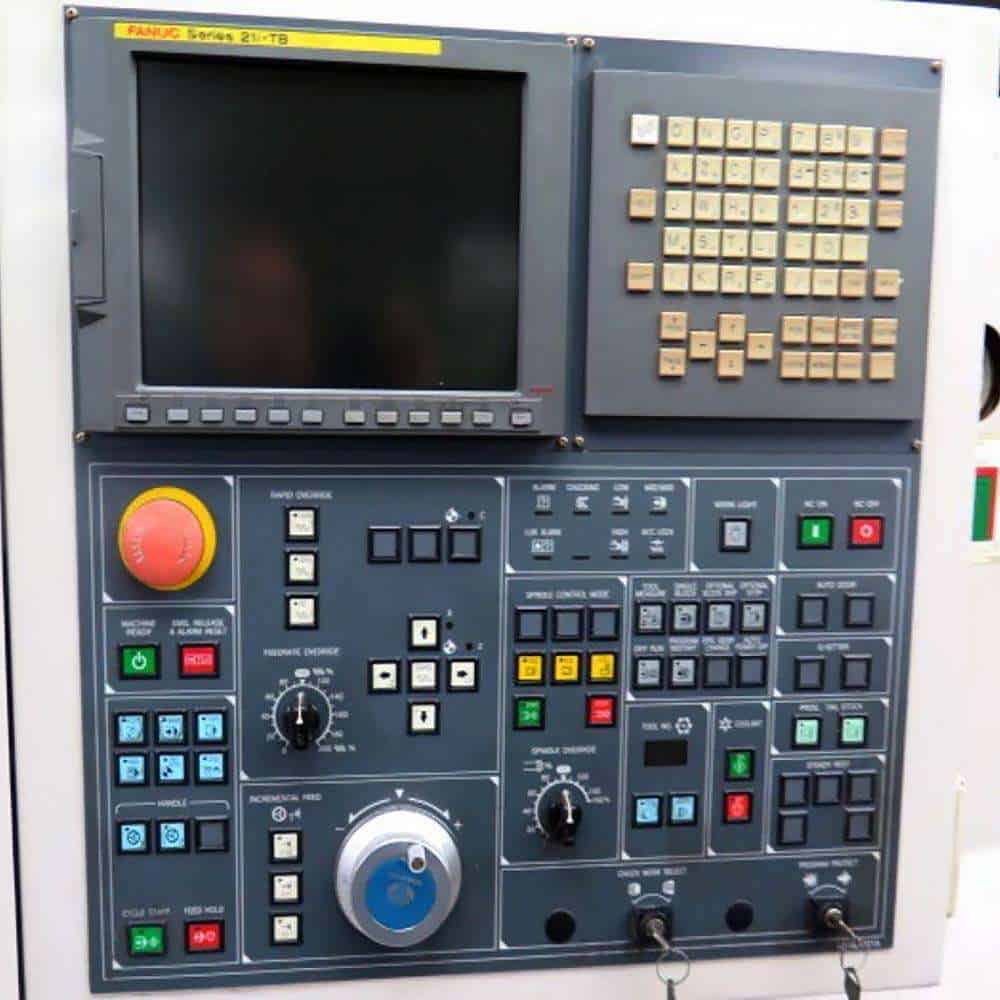

| Fanuc 21i-TB CNC Control |

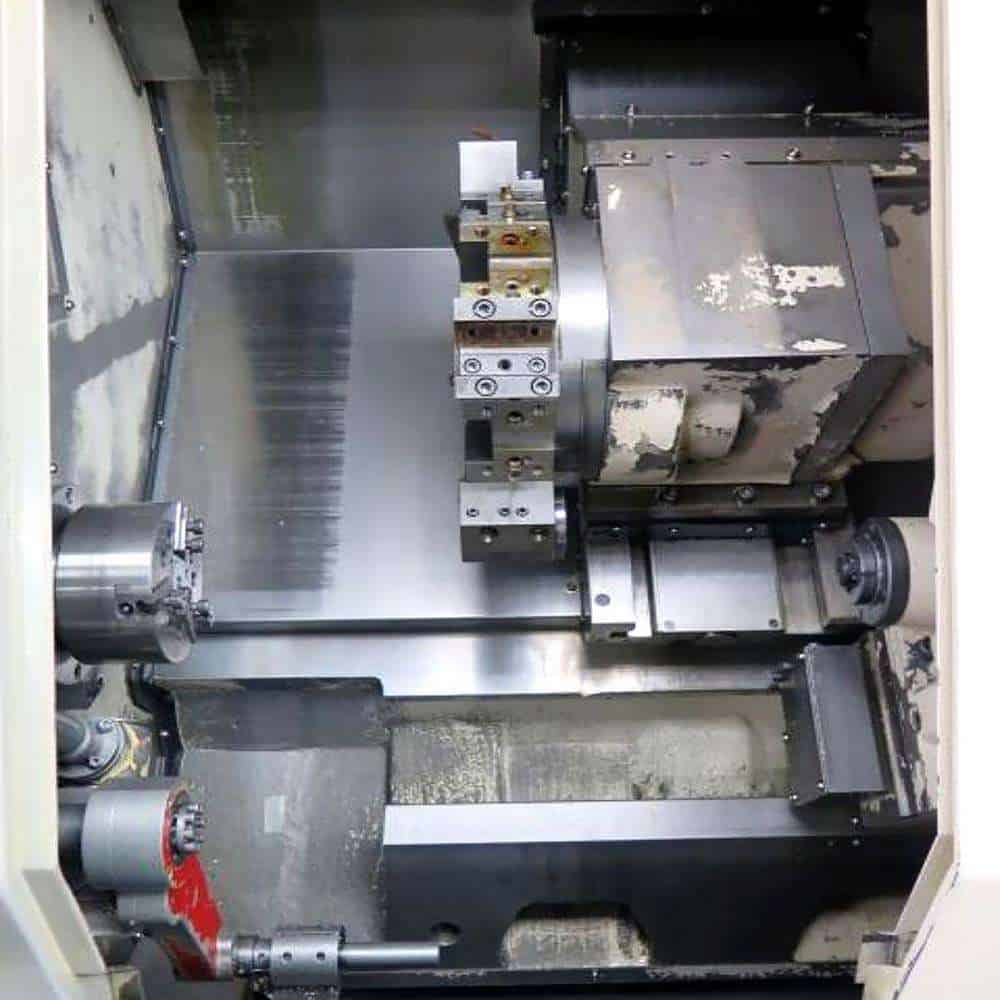

| 6″ 3-Jaw Hydraulic Chuck (8″ Chuck Capable) |
| 12 Station High Speed Turret |
| Tool Presetter |
| Part Catcher |
| Tool Holders |
| Programmable Tailstock and Power Quill |
| PCMCIA Port |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 11.83″ |
| Max Turning Length: 20.19″ |
| Max Bar Capacity: 2.55″ |
| Swing Over Bed: 21.65″ |
| Distance Between Centers: 20.19″ |
| Travel: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 22.83″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.99″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 20 HP |

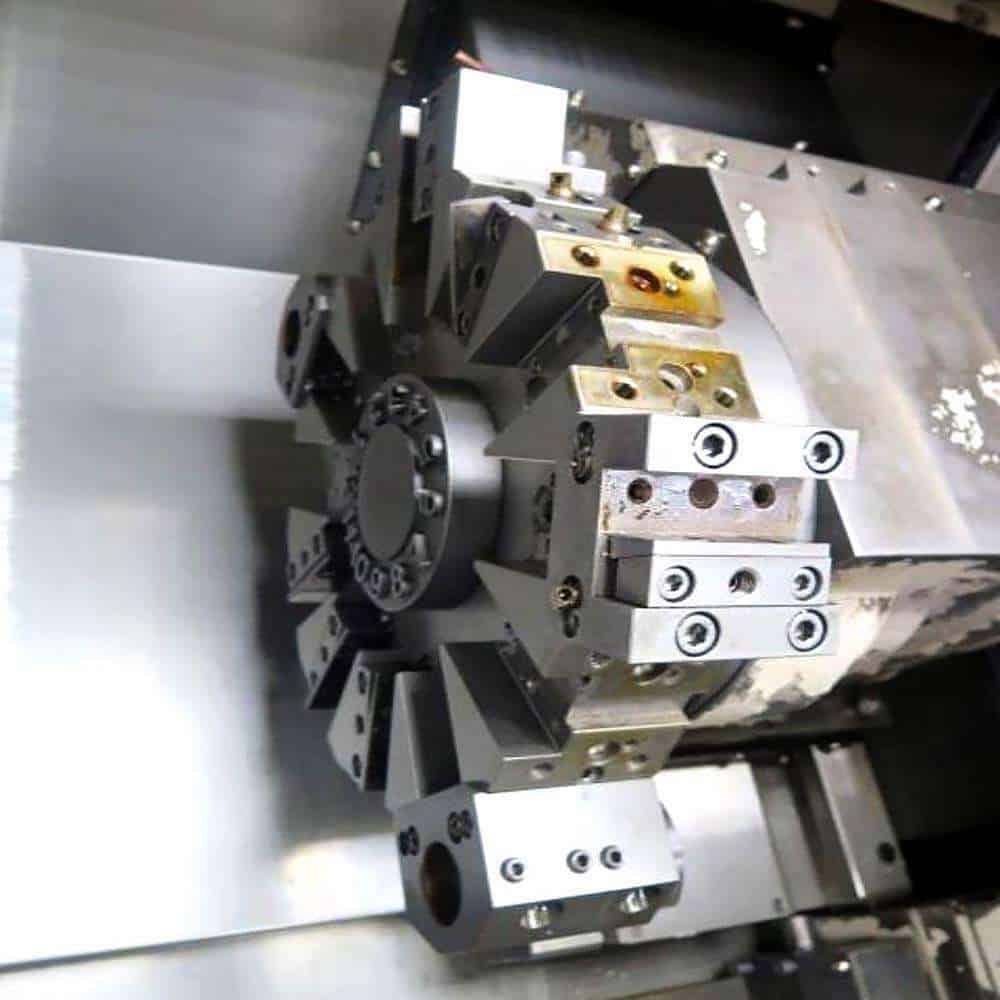

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |

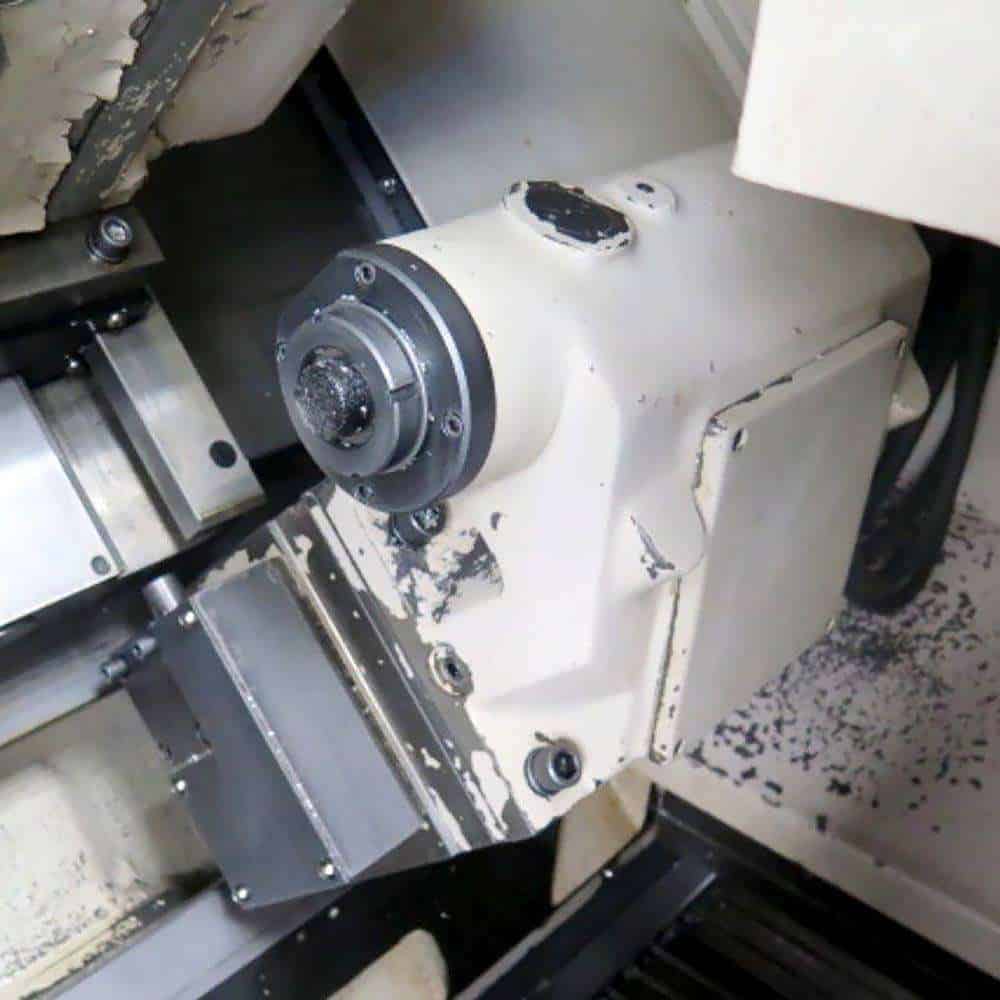

| Tailstock: |
|---|
| Tailstock Taper: MT- 4 |
| Tailstock Body Travel: 16.3″ |
| Tailstock Quill Dia.: 2.95″ |
| Tailstock Quill Stroke: 3.14″ |
| General: |
|---|

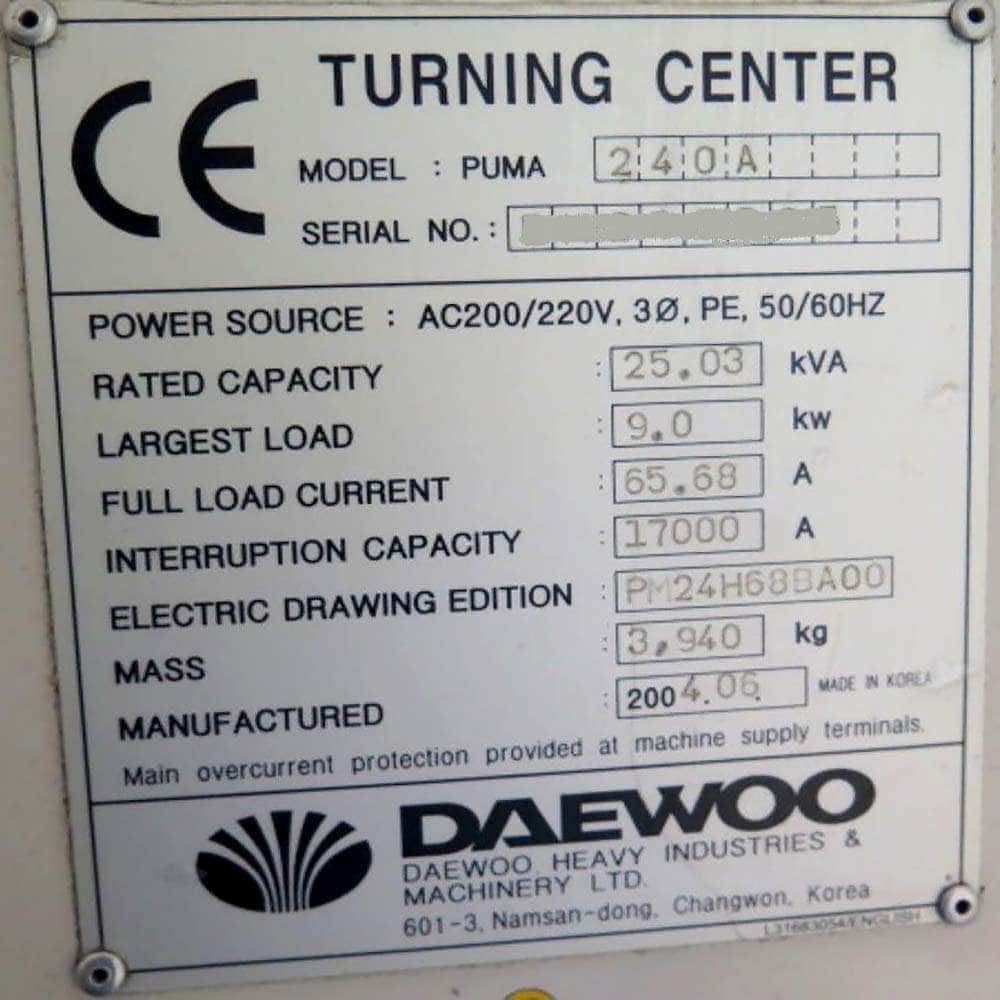

| Power: 25 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 117″ X 63″ X 69″ High |
| Weight: 8,907 lbs Approx. |
