All specifications are approximations and are subject to verification.

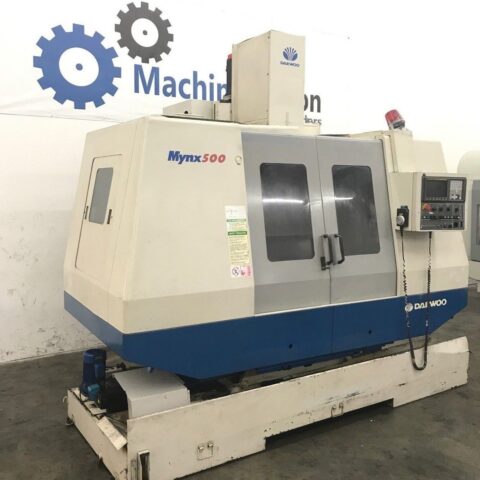

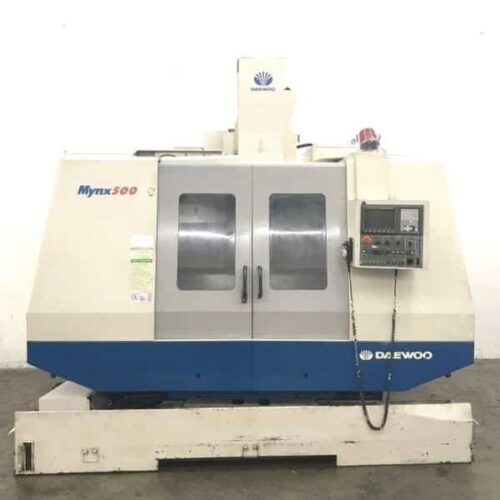

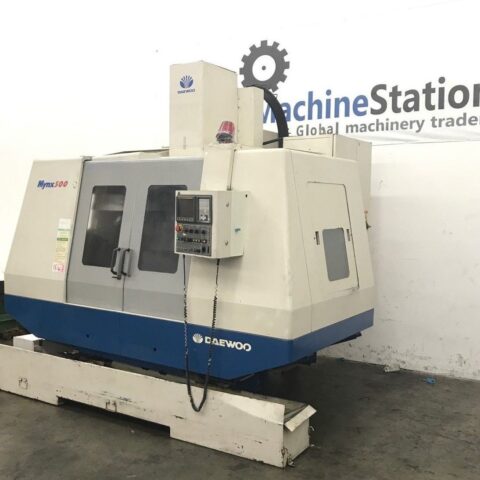

“This One Owner Machine has 9043 Cutting Hours, 8000RPM, 24 Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
-

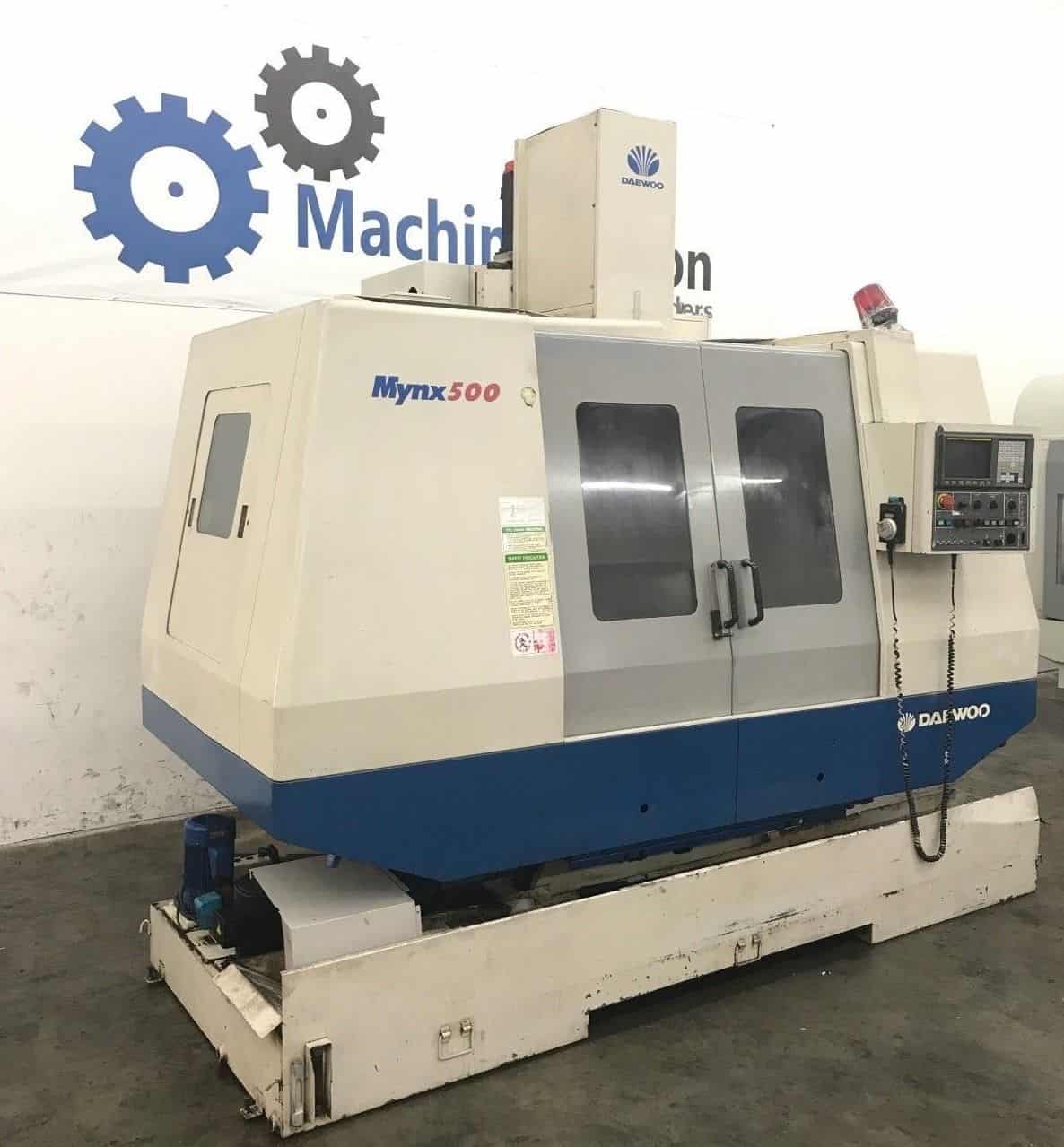

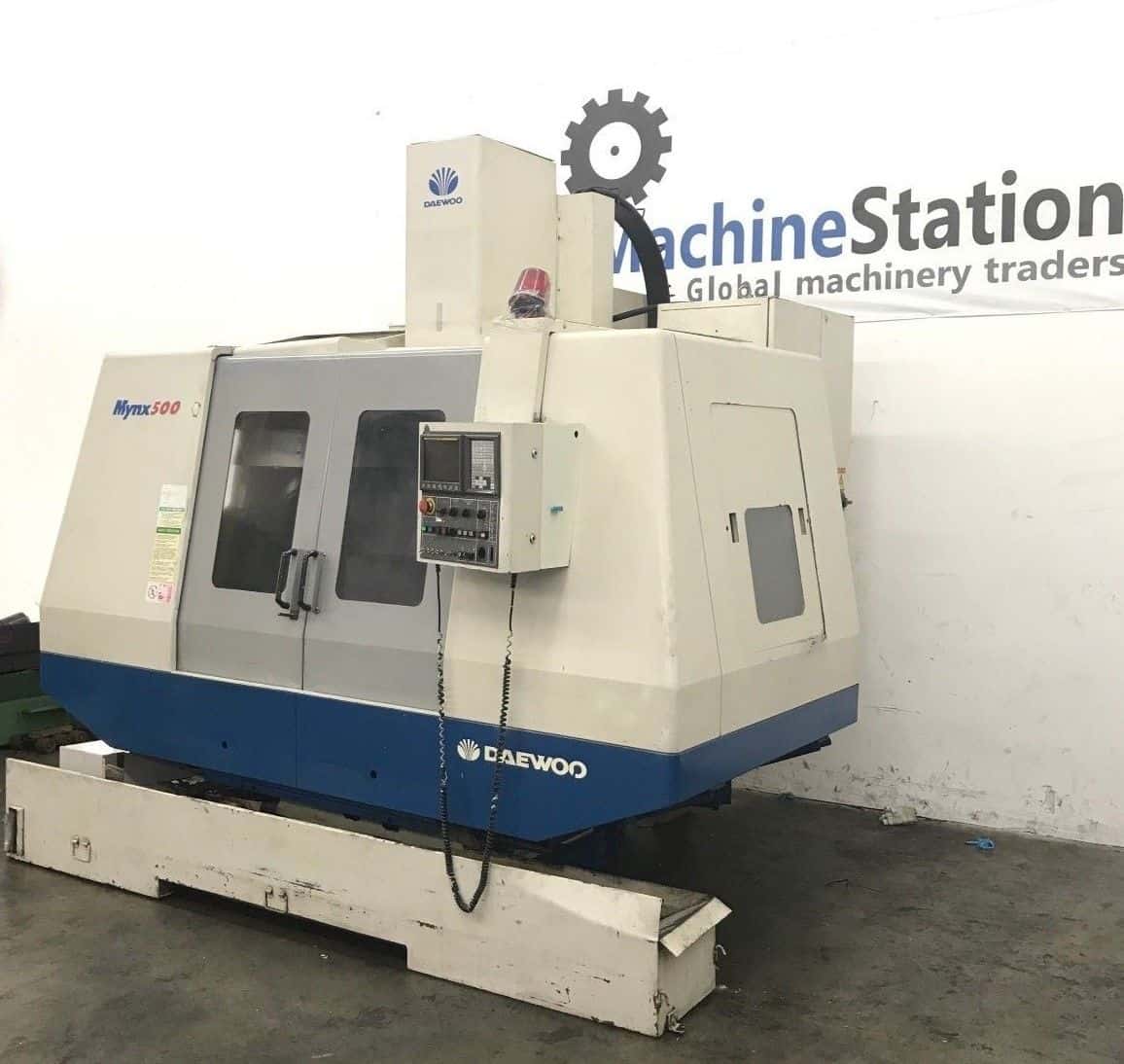

DAEWOO MYNX 500 Features:

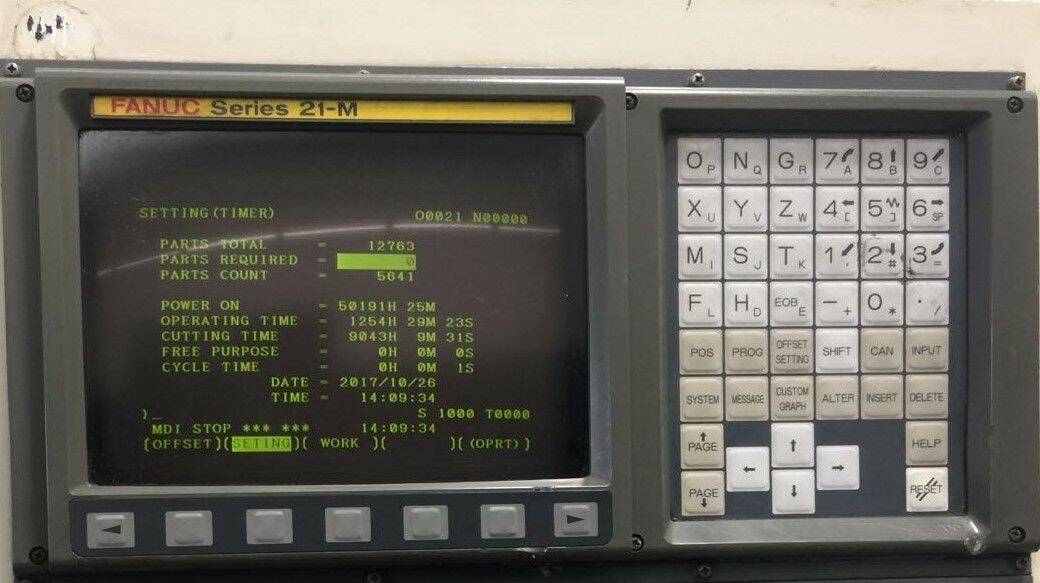

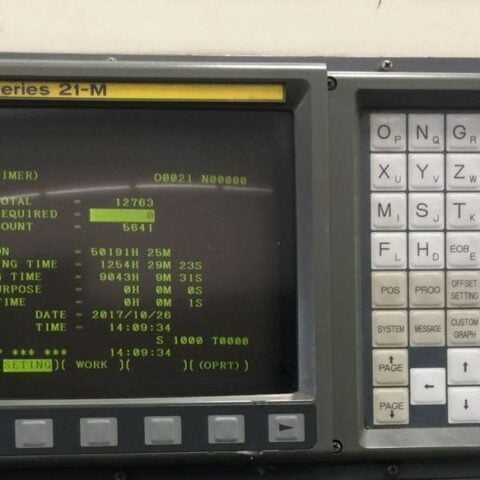

- Fanuc 21M CNC Control
- 24 Tools Tool Changer
- High precision 8000 RPM Spindle
- Box Way Construction All Axis
- Powerful 20 hp high torque spindle motor
- Manual Pulse Generator
- Spindle Orientation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light
-
DAEWOO MYNX 500 Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 20.1″
- Z-Axis: 22.6″
- Spindle Nose to Table (Min.- Max.): 4.9″ – 26″
- Table Load Capacity: 1760 lbs
-

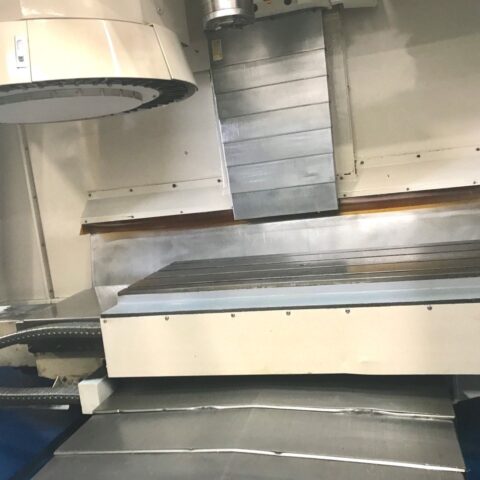

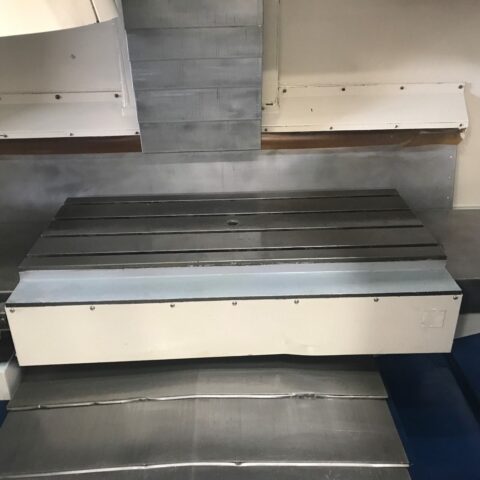

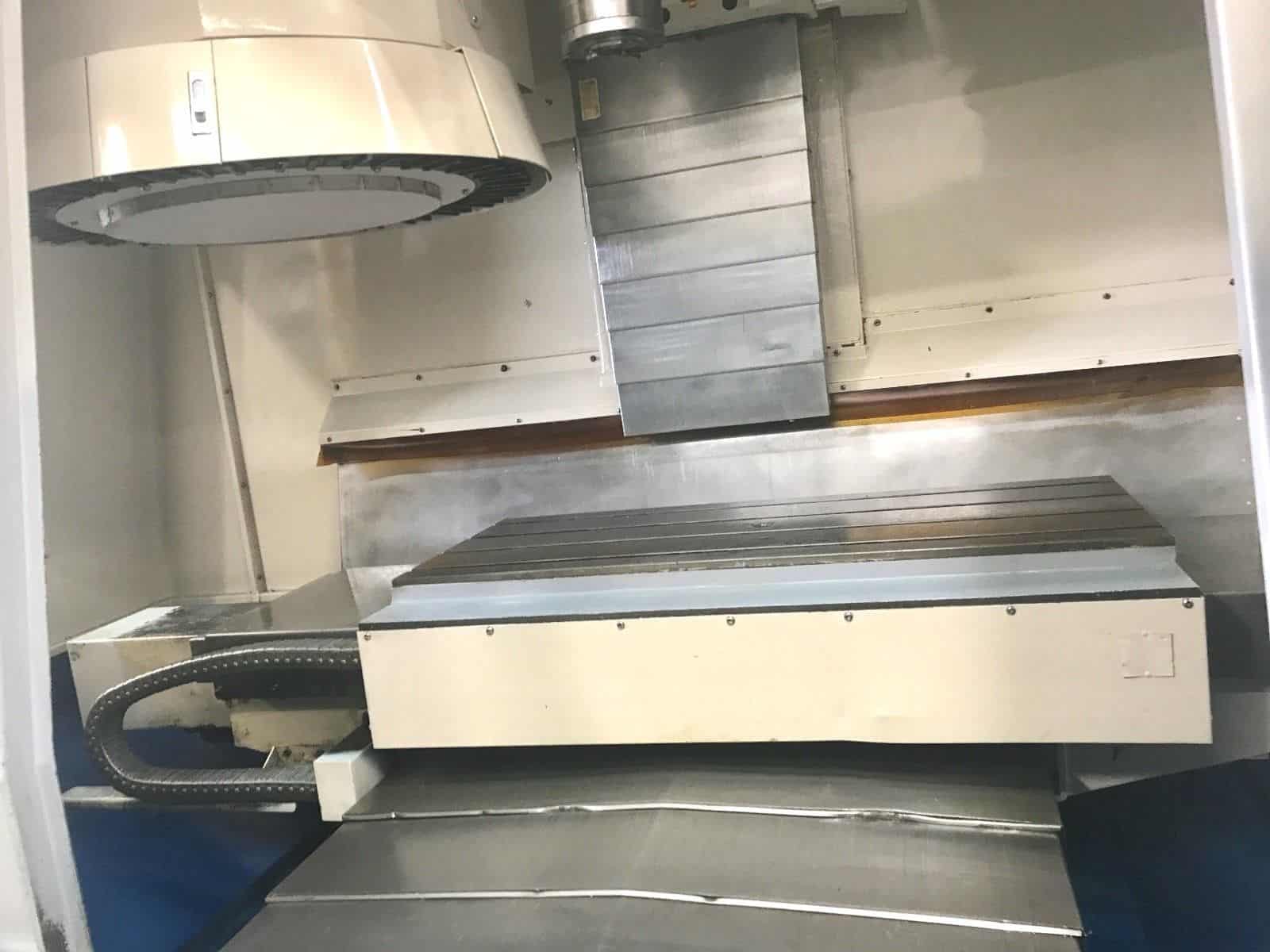

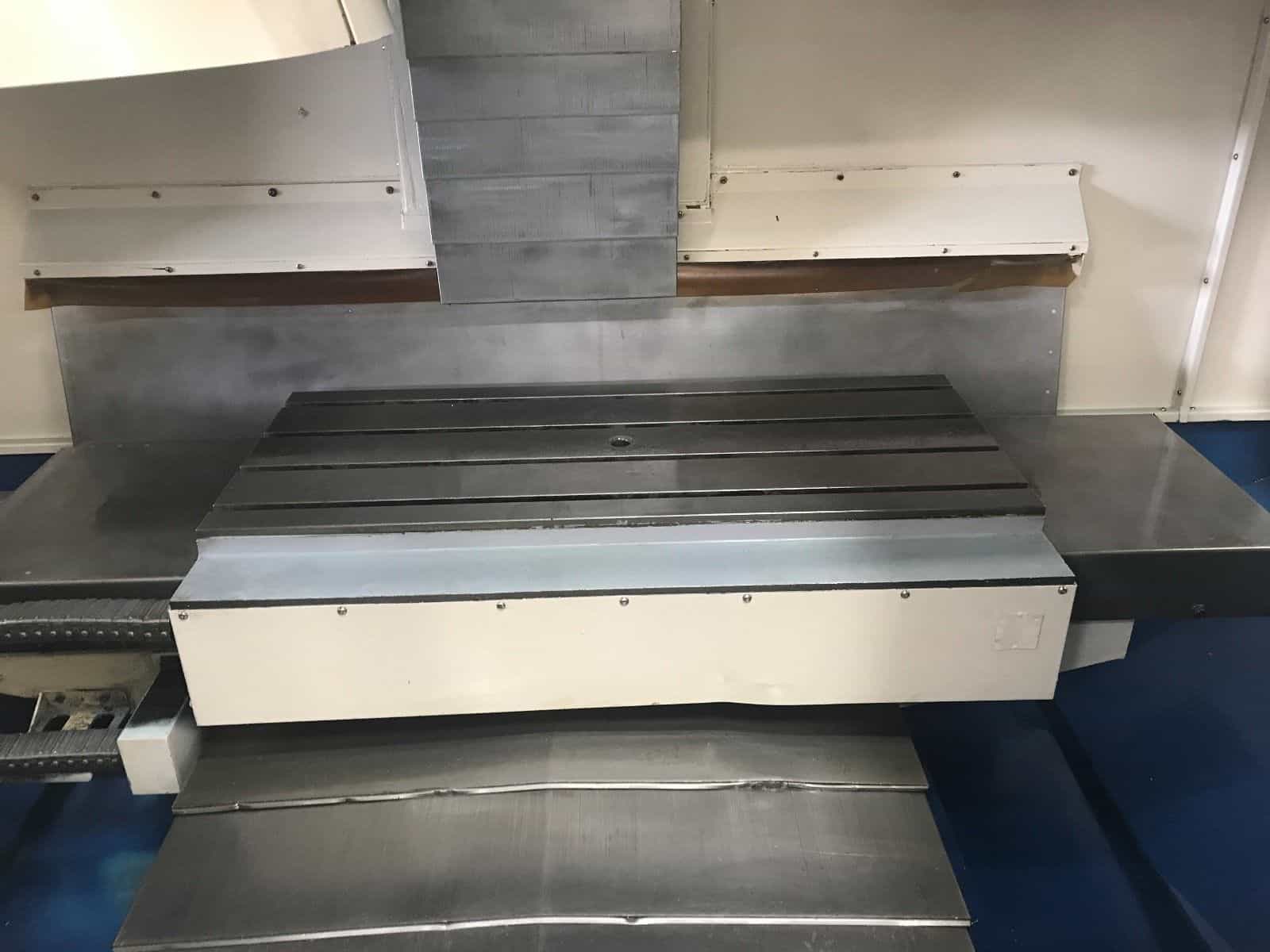

Table:
- Length: 47.2″
- Width: 19.7″
- Max Weight on Table: 1800 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8000 RPM
- Spindle Power: 20 HP
-
Feed rates:
- Rapid X,Y & Z: 945 inch/P.M
- Cutting Feedrate: 315″ inch/ P.M
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 5.90″
- Tool Change Time: 1.5 Second
-
General:
- Air Required: 80 psi, 4 scfm

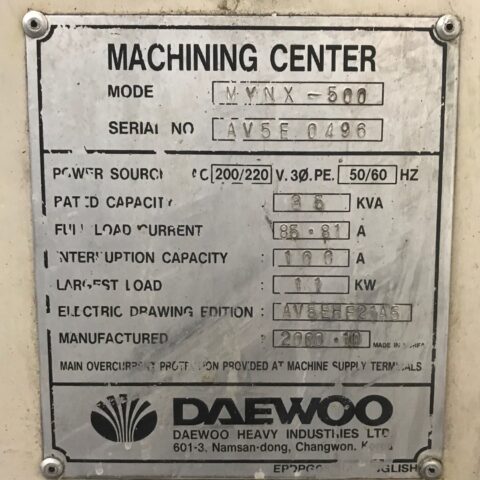

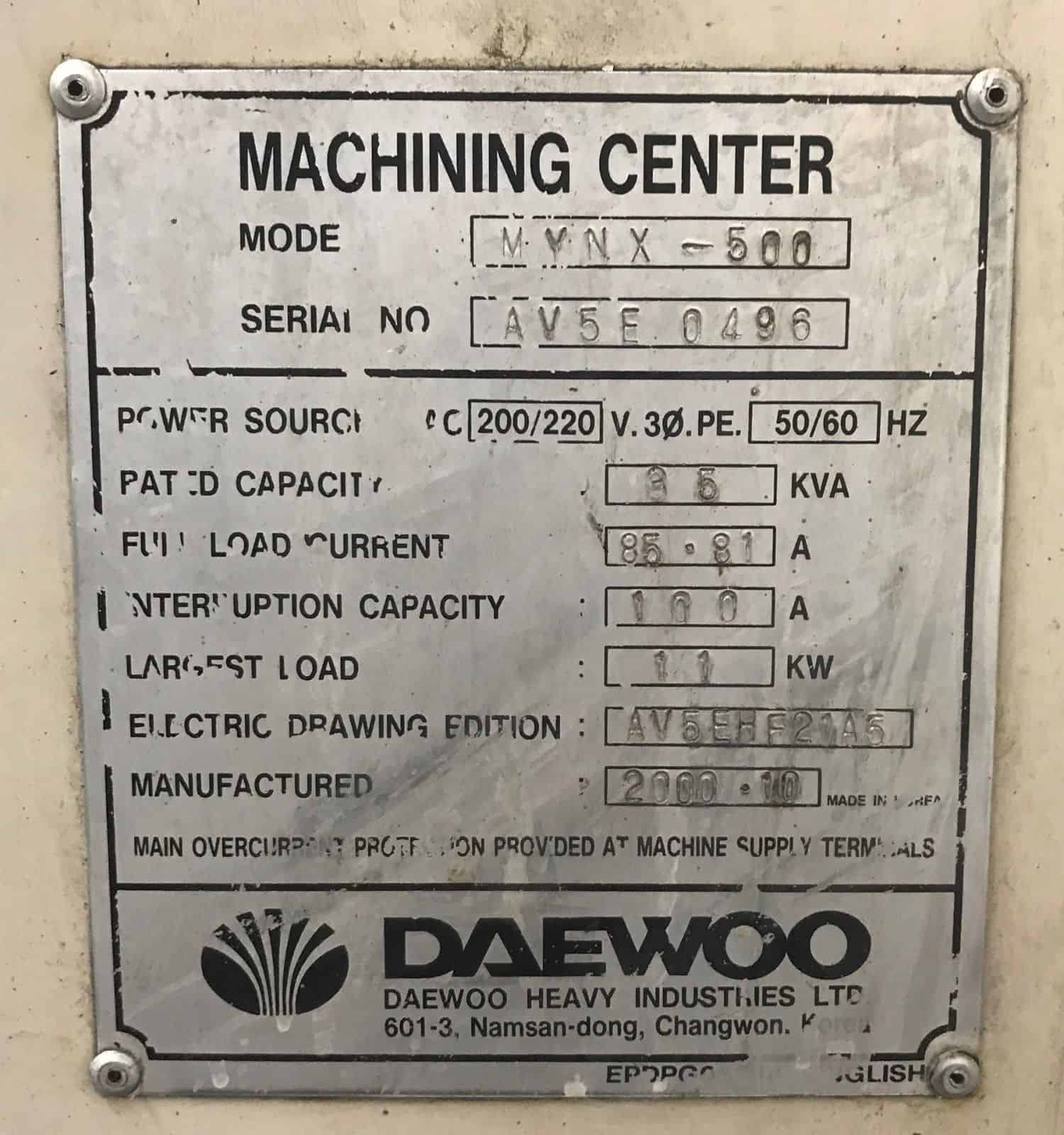

- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 130″ x 104″ x 110″ High
- Weight: 16500 lbs
