“This machine is in good running condition. It is equipped with 12″ Chuck & Programmable Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”

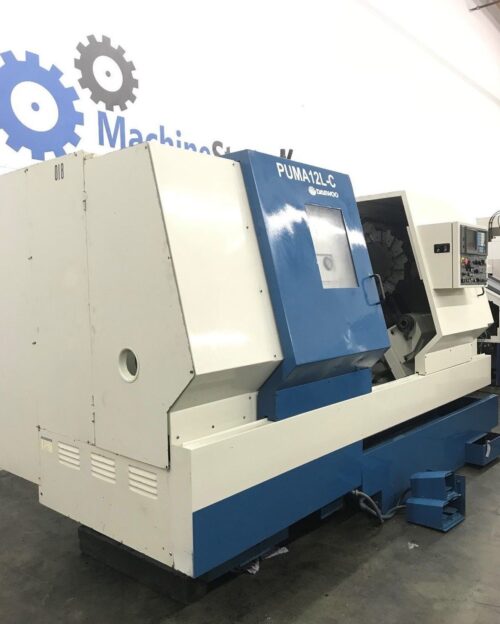

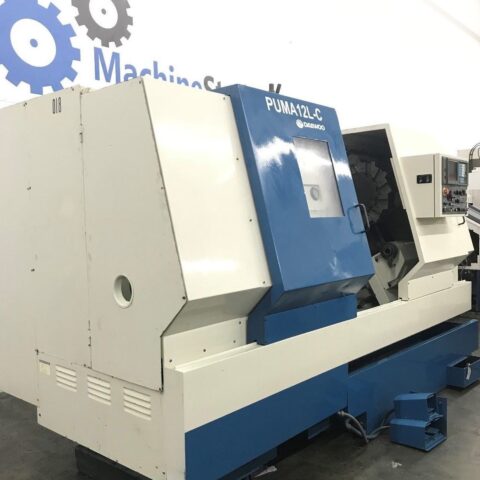

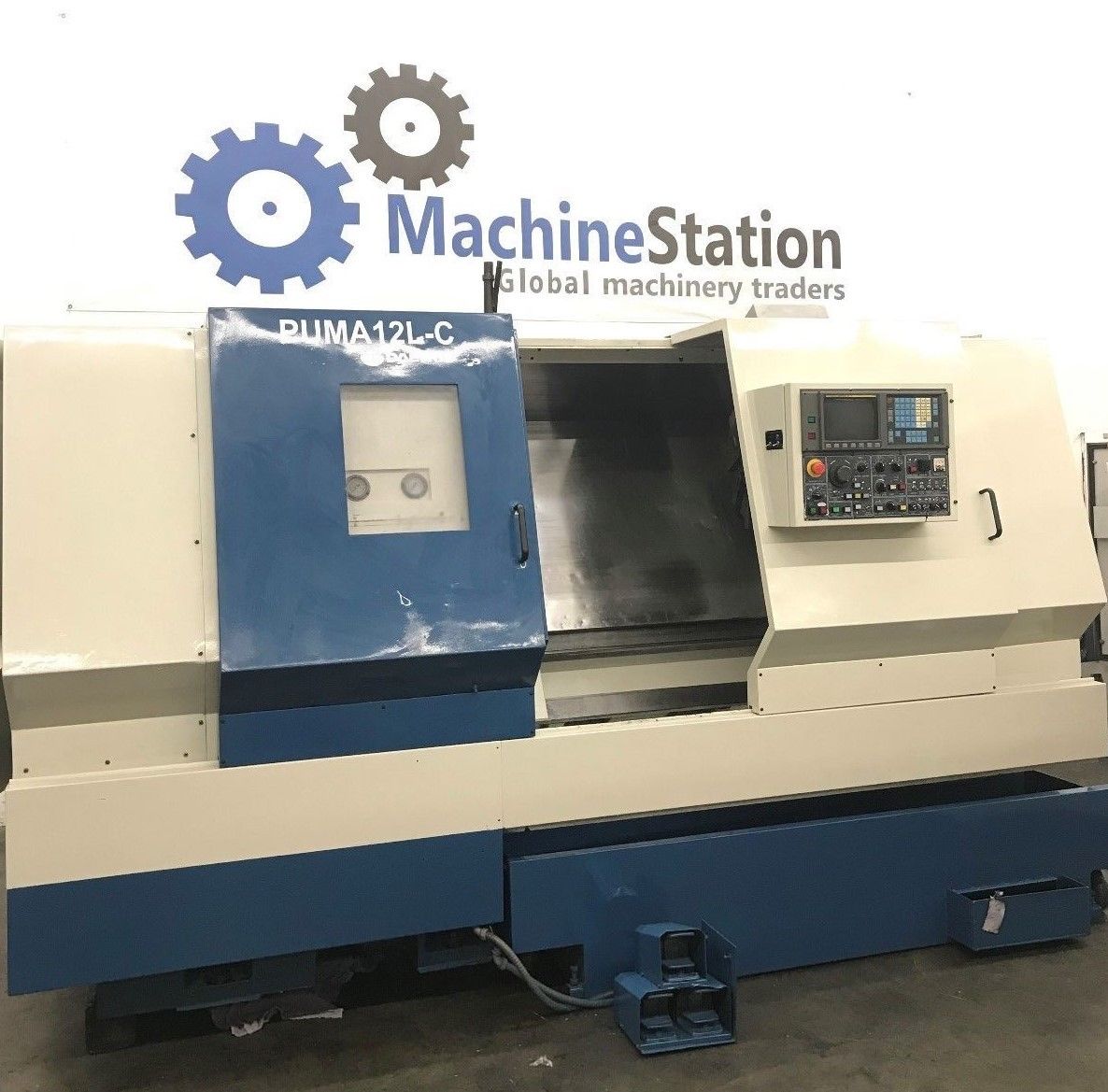

Daewoo Puma 12LC CNC Turning
Out of stock
Description
| DAEWOO PUMA 12LC CNC TURNING | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 12L-C |
| Serial # | PL120456 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine is in good running condition. It is equipped with 12″ Chuck & Programmable Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
- DAEWOO PUMA 12LC Equipped With:
- Fanuc OT-C CNC Control
- 5.25″ Big Bore Spindle

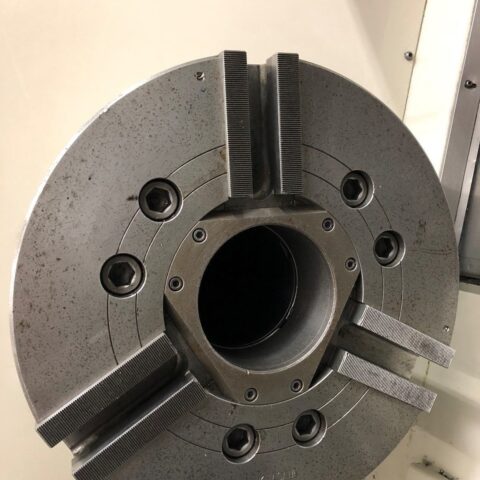

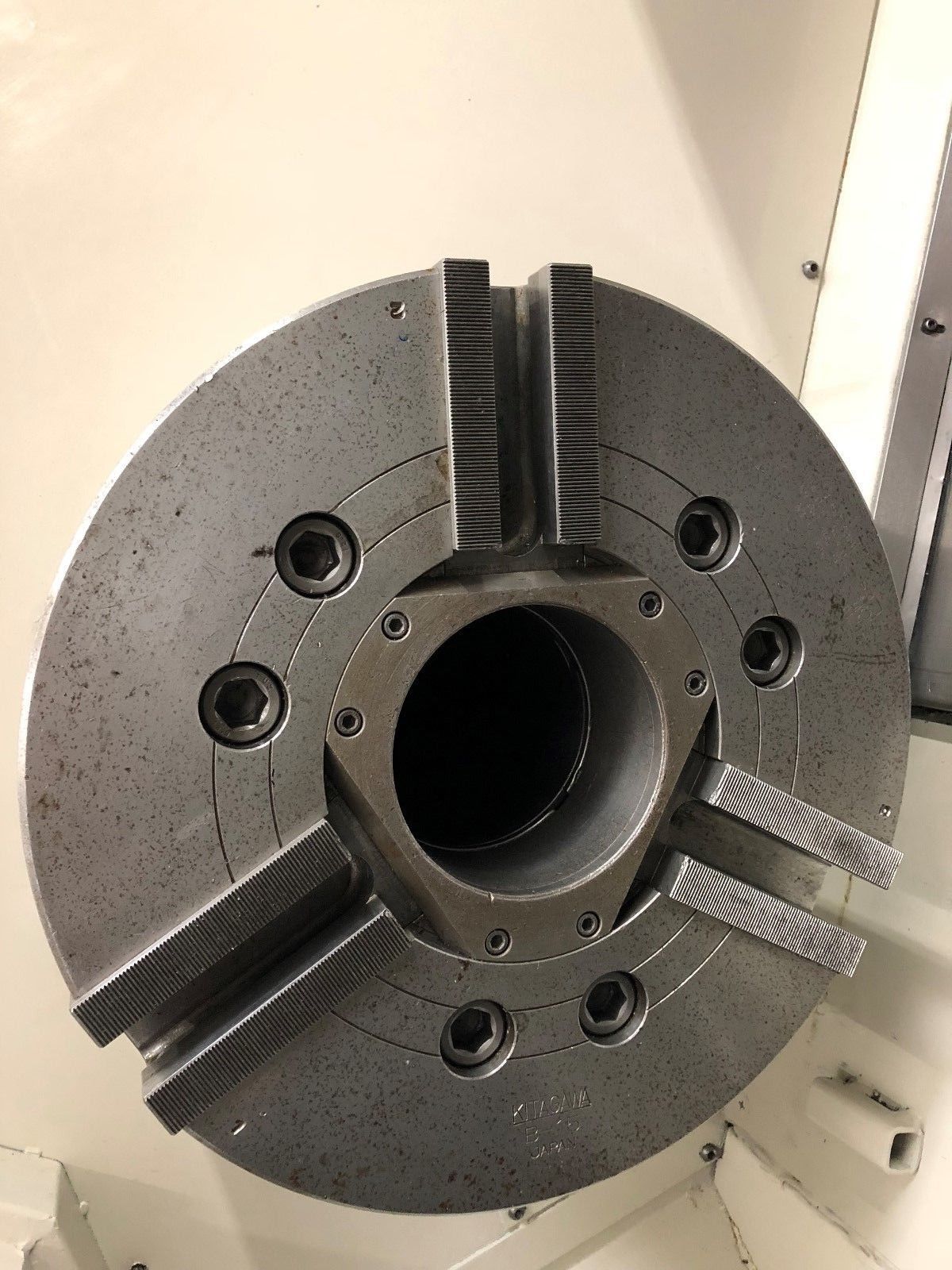

- 15″ 3 Jaw Kitagawa Hydraulic Chuck ( 18-21″ Capable )
- A2-11 Gear Head Spindle
- Hydraulic Programmable Tailstock and Quill
- 6080 lbs of Z Axis thrust
- 1013 ft-lbs of Spindle Torque
- Coolant System
- Box Way construction
- RS-232 ports

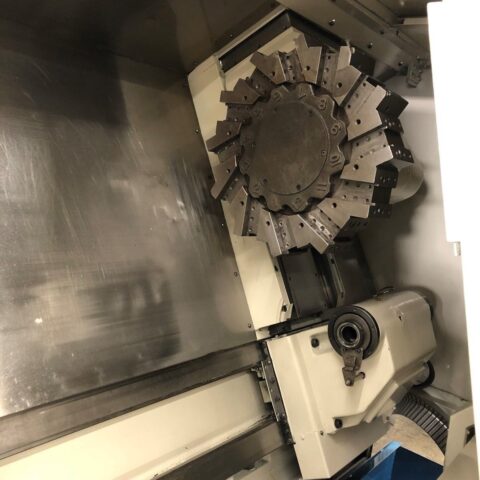

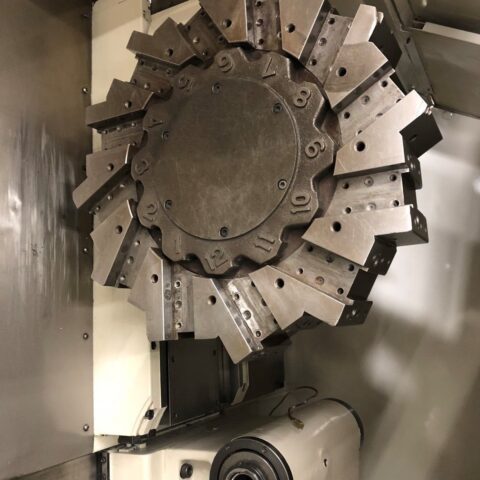

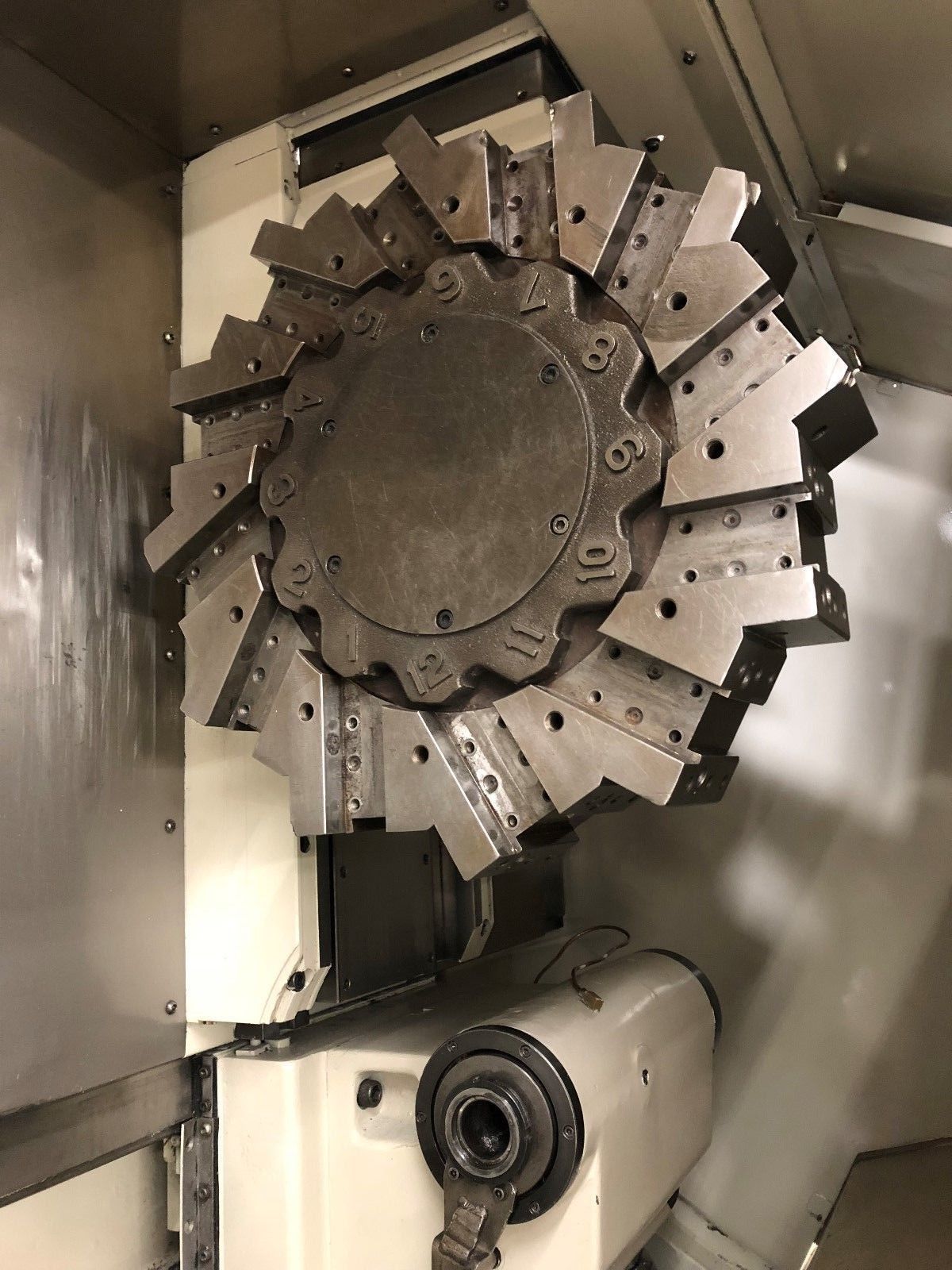

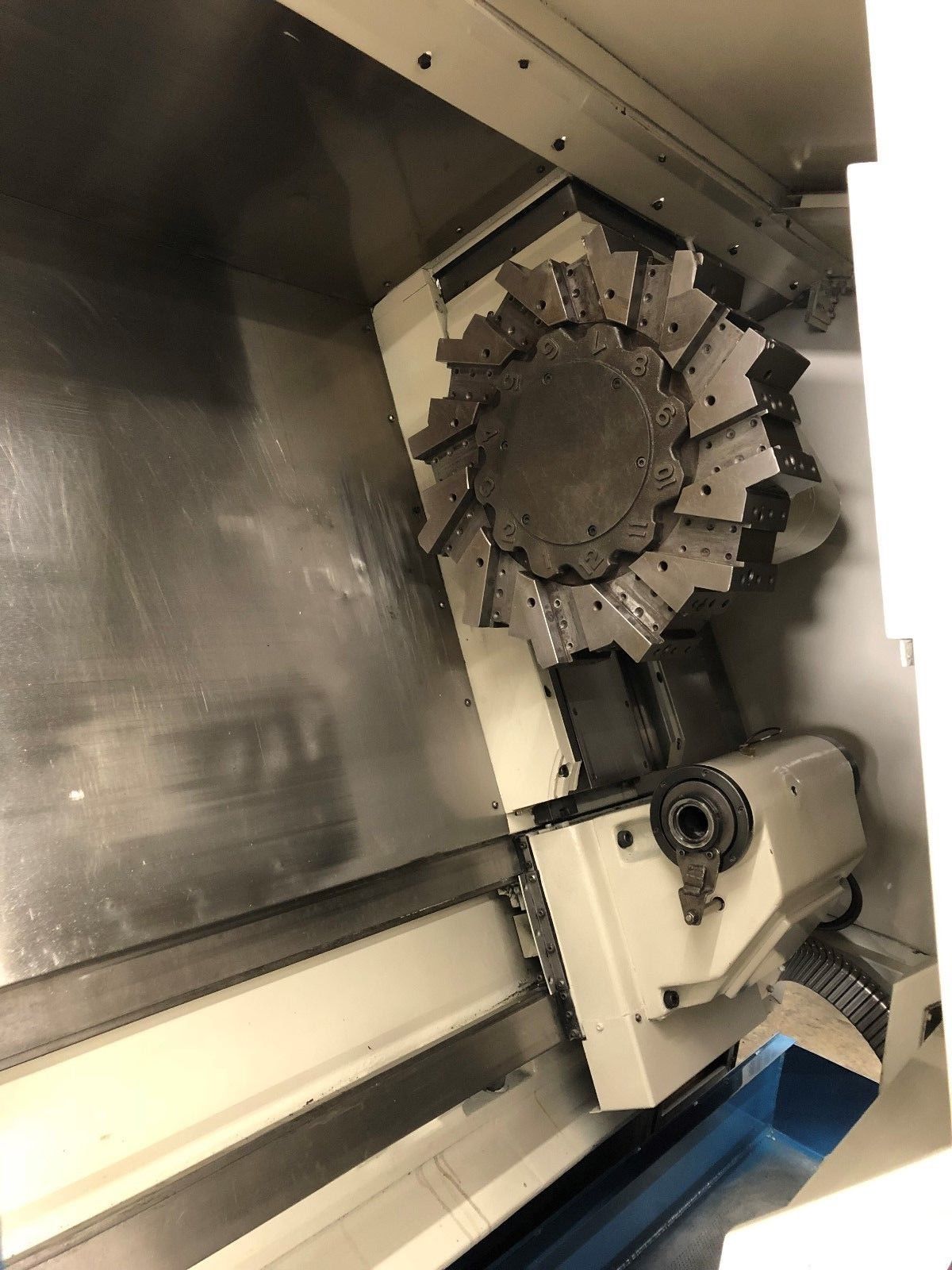

- 12 Station Automatic Turret
- Foot Switch
- Coolant Tank
- General:
- Power: 125 Amps, 220v / 3-Phase
- Overall Dimensions: 137″ X 76″ X 79″ High
- Weight: 17500 lbs
- DAEWOO PUMA 12LC Specifications:
- Capacity:
- Max Turning Diameter: 19.0″
- Max Turning Length: 40.2″
- Max Bar Capacity: 4.62″
- Swing Over Bed: 22.4″
- Distance Between Centers: 42.0″
- X Axis Travel: 10.2″
- Z Axis Travel: 41.3″
- Rapid Traverse X Axis: 480 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-11
- Spindle Bore: 5.20″
- Spindle Speed: 20 – 2000 RPM
- Spindle Motor: 35 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Travel: 4.0″

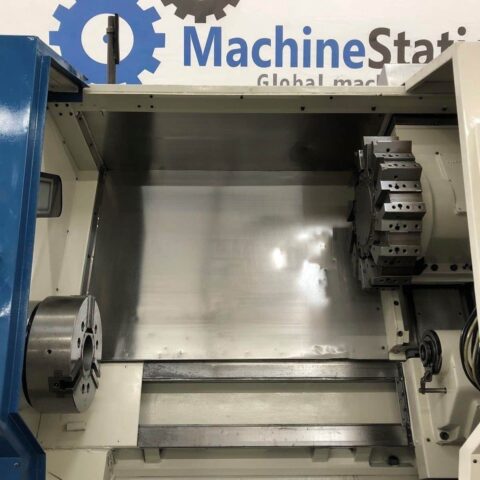

DAEWOO PUMA 12LC Comes as shown in pictures..
