*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 105438 |

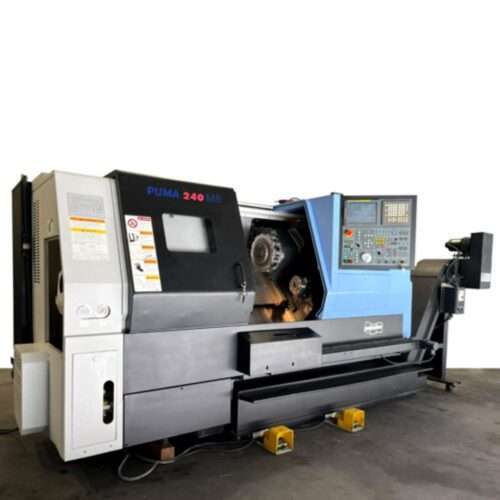

| Make: | DOOSAN PUMA |
| Model No.: | 240MSC |
| Year of Manufacture: | 06/2005 |
| Condition: | Used-Good |
| Equipped With: |
|---|

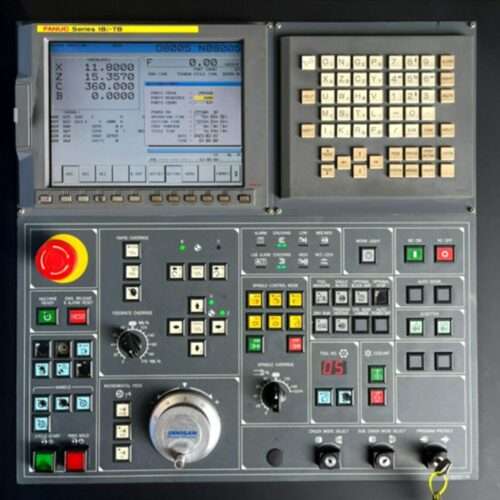

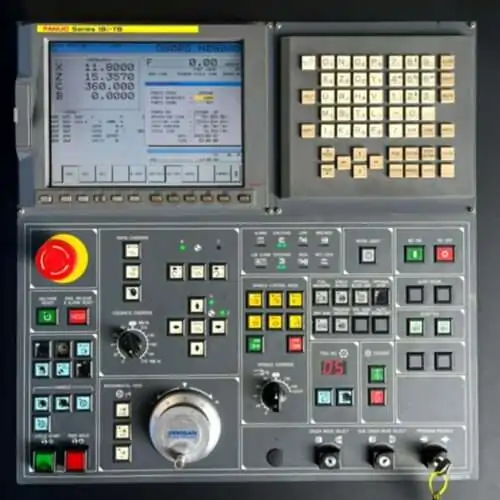

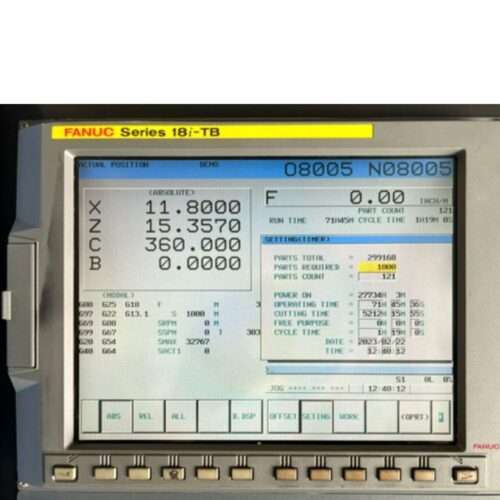

| Fanuc 18i-TB CNC Control |

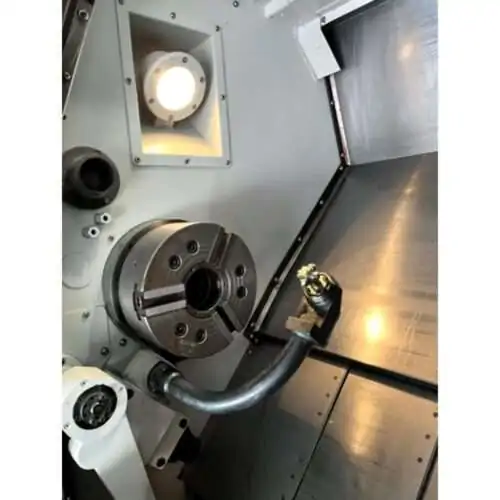

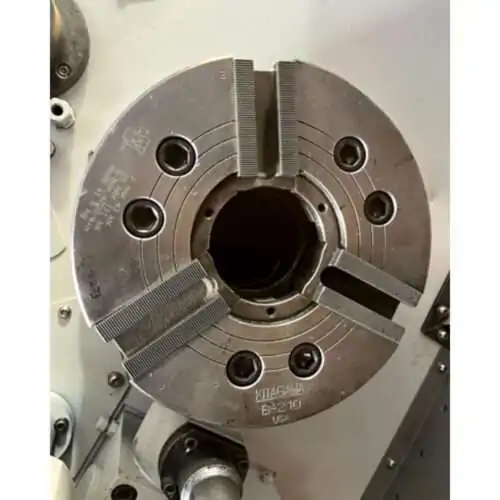

| 10″ 3-Jaw Hydraulic Chuck |
| Sub Spindle |
| Full C-Axis on Both Spindles |

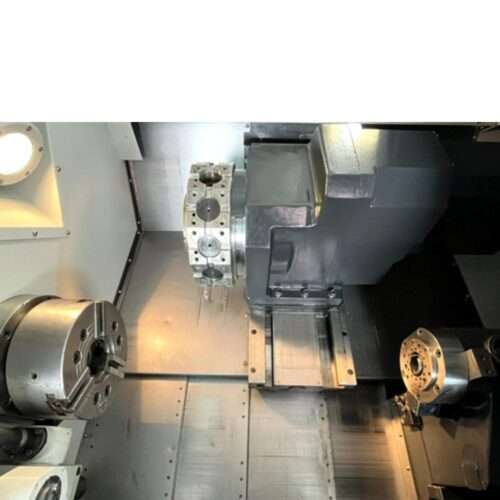

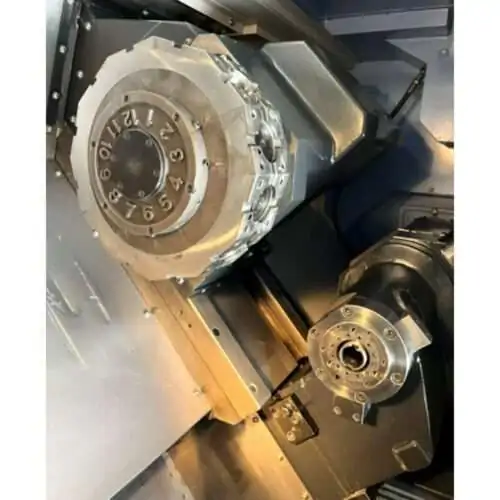

| 12 Station Live Tool Turret |
| Tool Presetter |
| Part Catcher |
| PCMCIA Port |

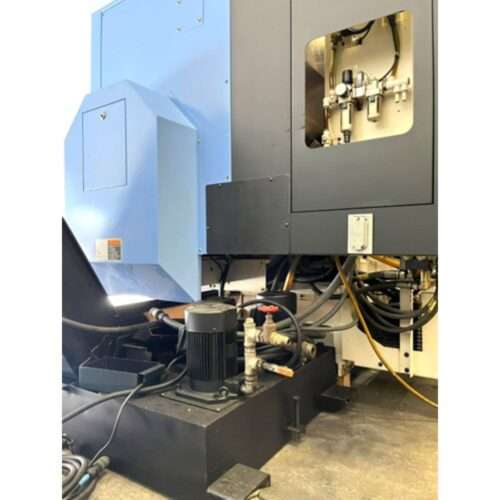

| Coolant System |
| Foot Switch |
| Chip conveyor |
| Work Light |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 13.78″ |
| Max Turning Length: 20.19″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 21.65″ |
| Distance Between Spindles: 20.19″ |
| Travel: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 22.83″ |
| B Axis Travel (Sub Spindle): 15″ |
| C Axis: 360 Degree (0.001) on Both Spindle |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 630 IPM |
| Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Bore: 3.15″ |
| Sub Spindle Bore: 1.56″ |
| Main Spindle Speed: 3500 RPM |
| Sub Spindle Speed: 6000 RPM |
| Main Spindle Motor: 20 HP |
| Sub Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Live Tool Speed: 5000 RPM |
| Live Tool Motor: 7.5 HP ? |
| General: |
|---|

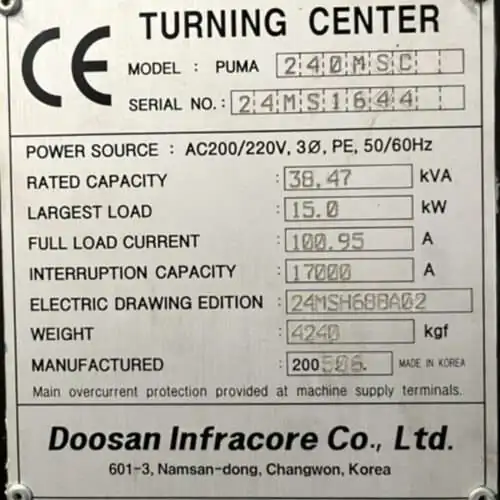

| Power: 38.47 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 117″ X 63″ X 69″ High |
| Weight: 8907 lbs |
*“No Charges for loading at list Price”

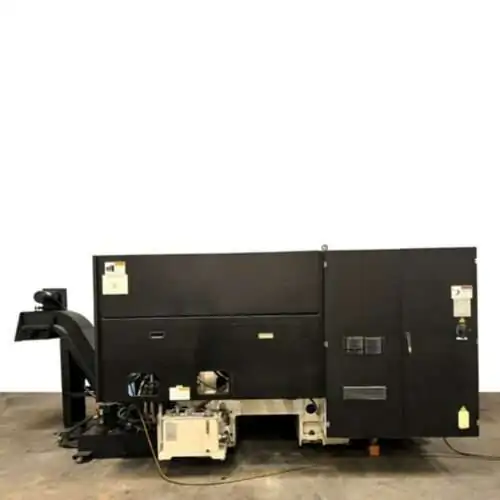

Comes as shown in pictures..
