*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

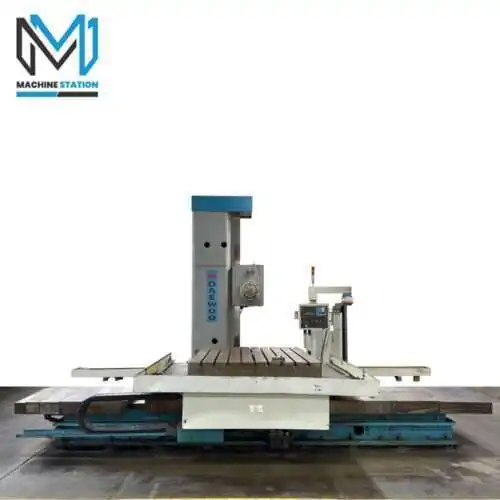

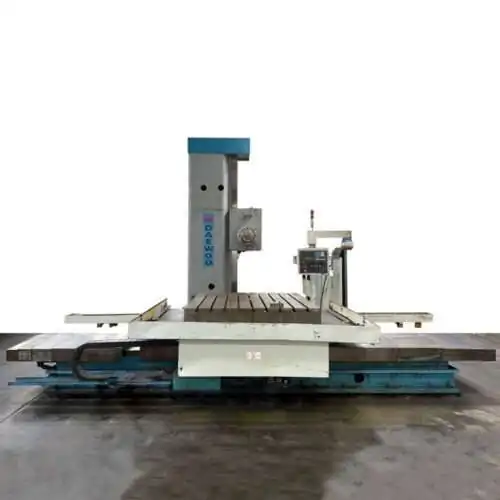

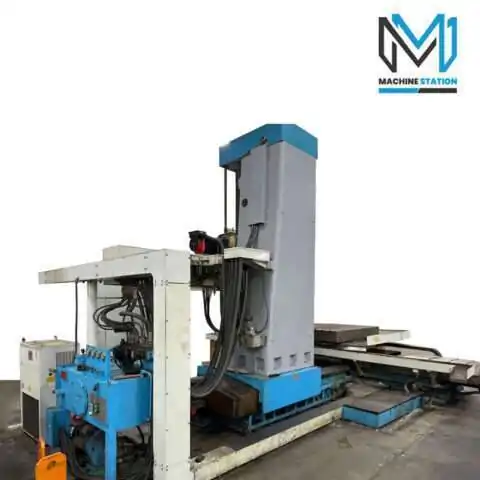

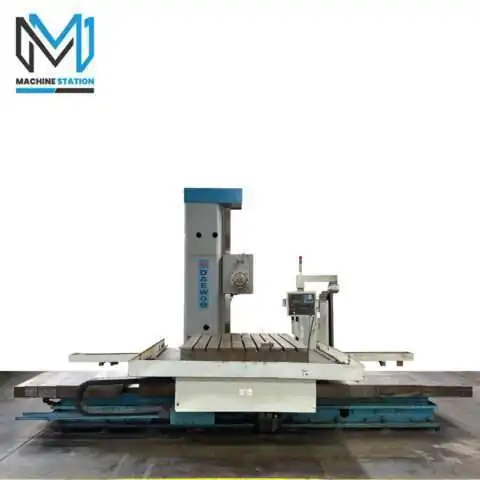

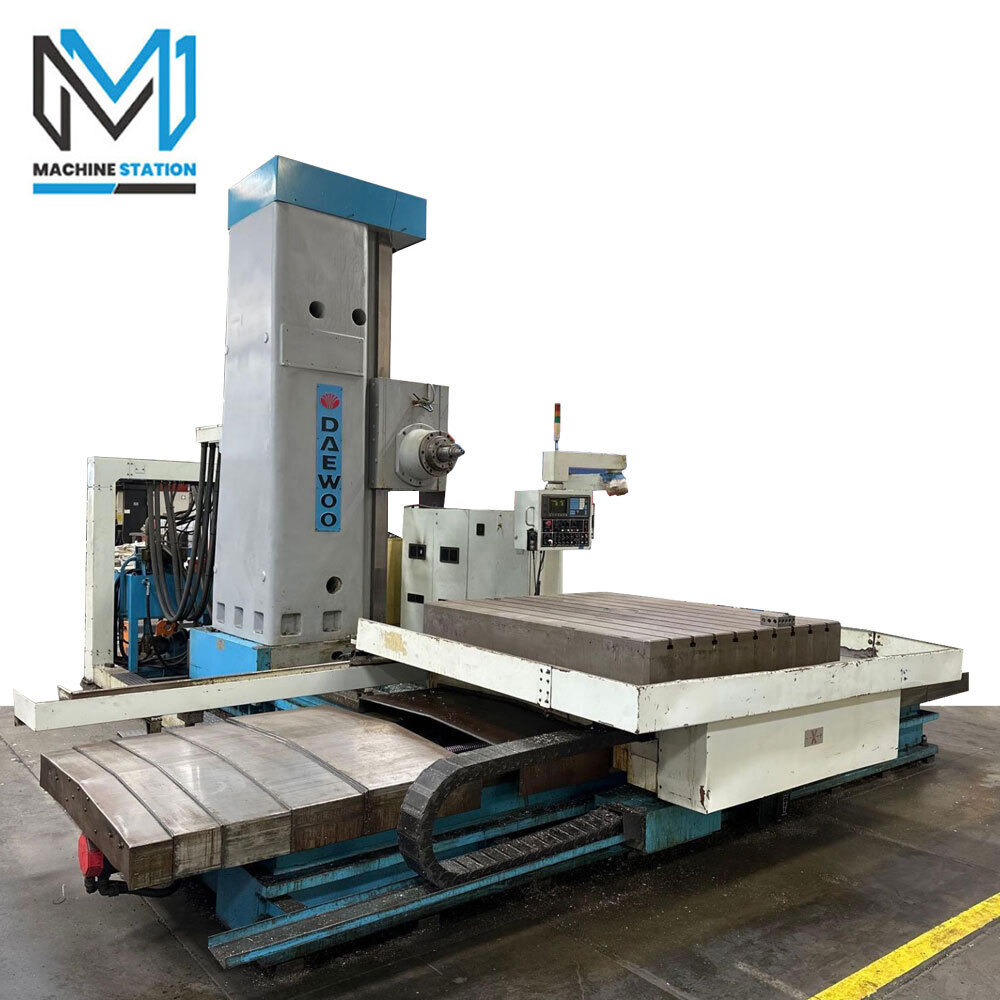

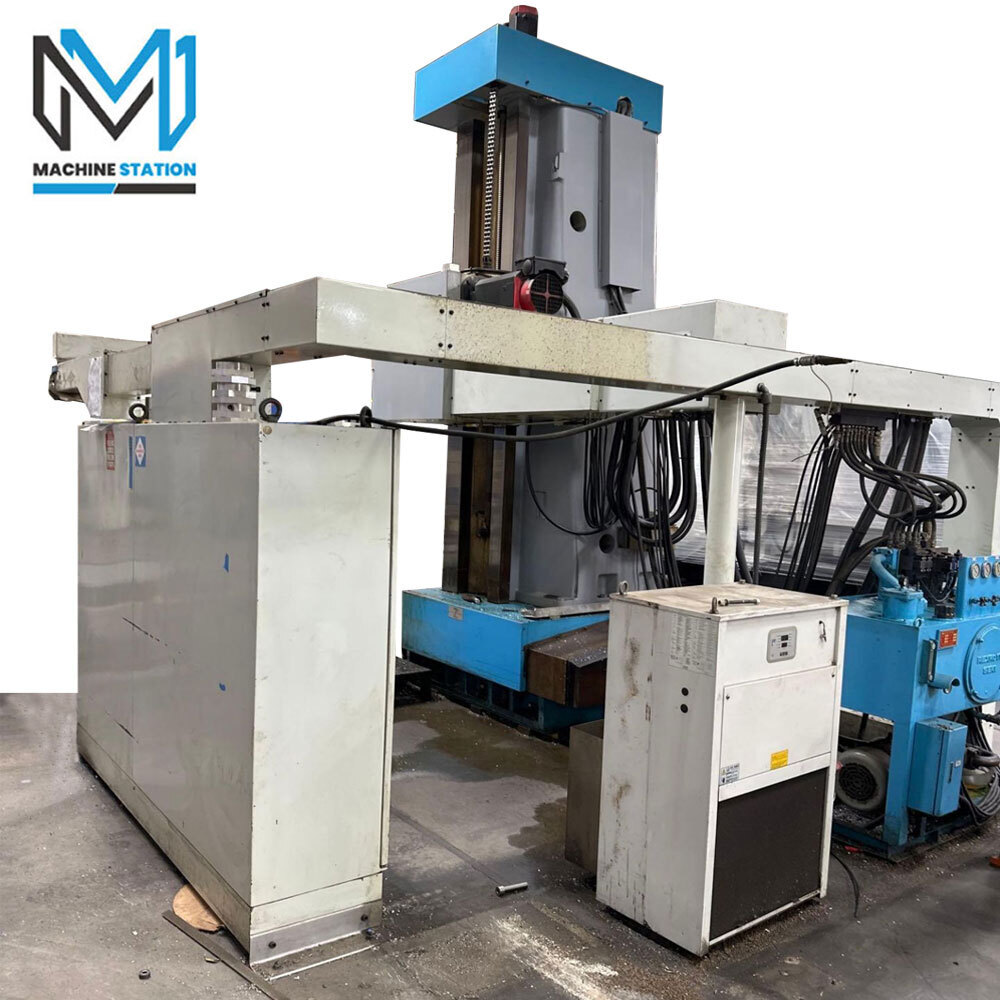

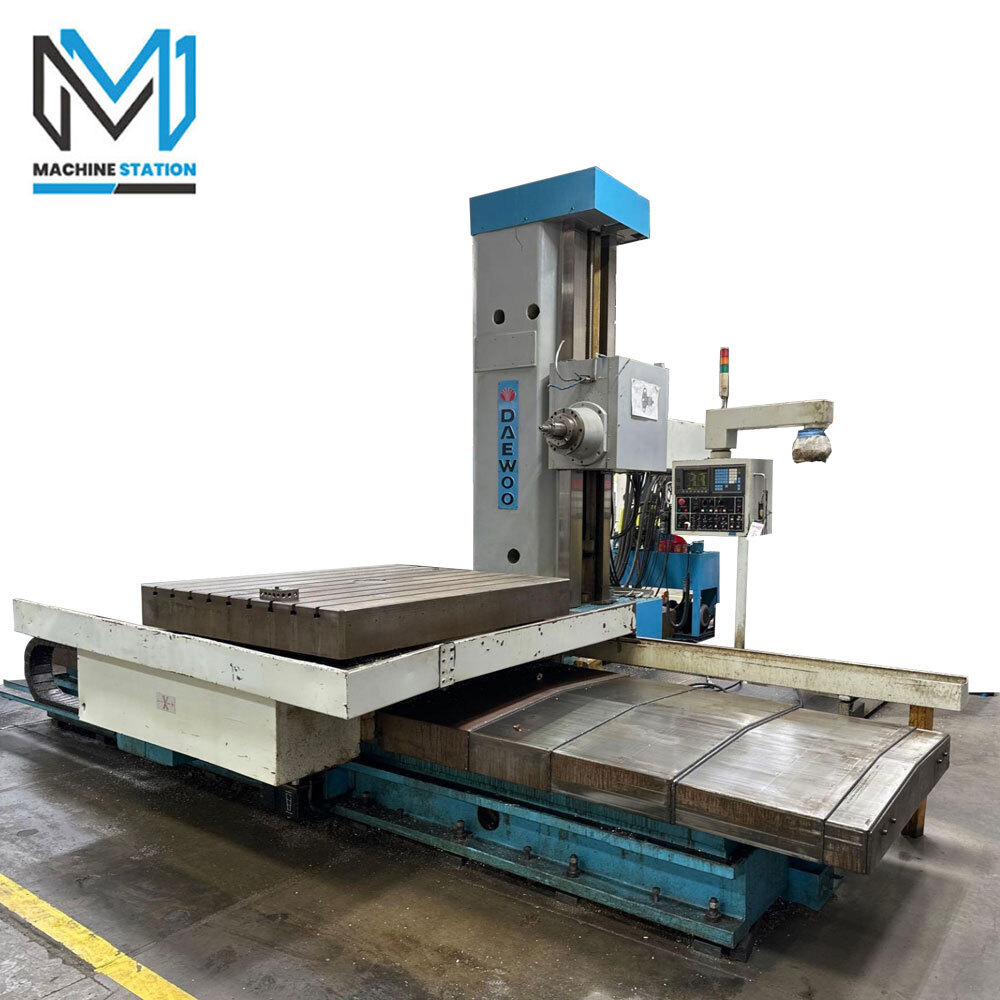

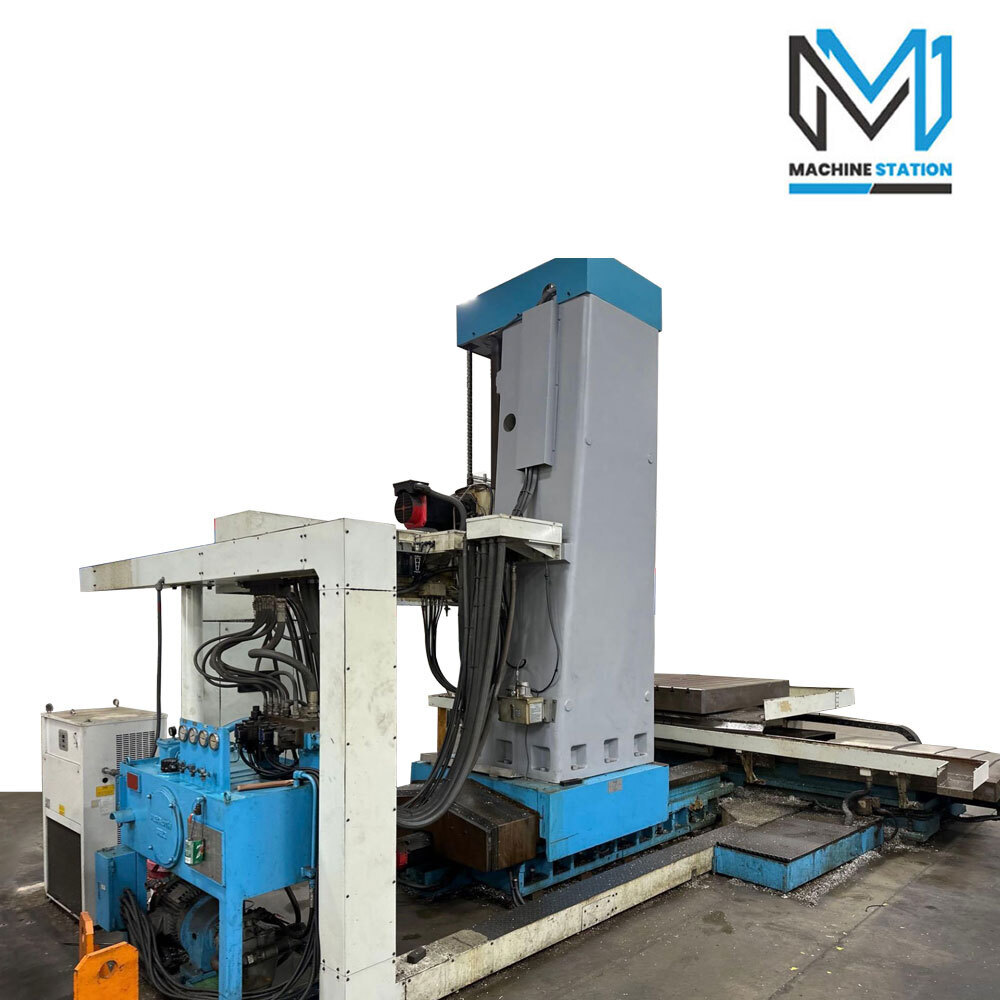

The Daewoo DNB-130R CNC Horizontal Table Type Boring Mill is a highly reliable machine designed for heavy-duty applications. Equipped with a Fanuc 15-M CNC Control and a powerful 25 HP spindle, The machine delivers exceptional precision and performance, making it an ideal choice for large-scale industrial operations.
Additionally, it features robust table load capacities and advanced rigid tapping capabilities, ensuring maximum efficiency in demanding machining tasks.
| Features of Daewoo DNB-130R Boring Mill: |
|---|

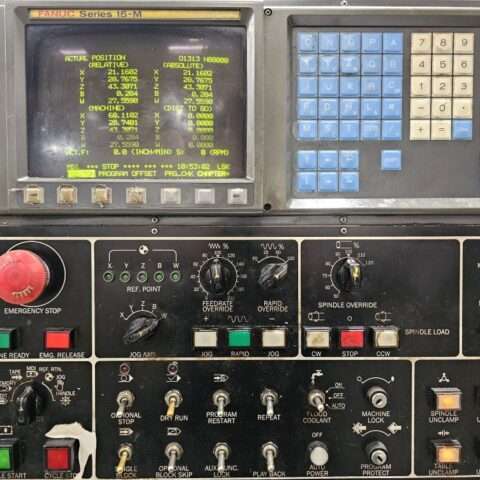

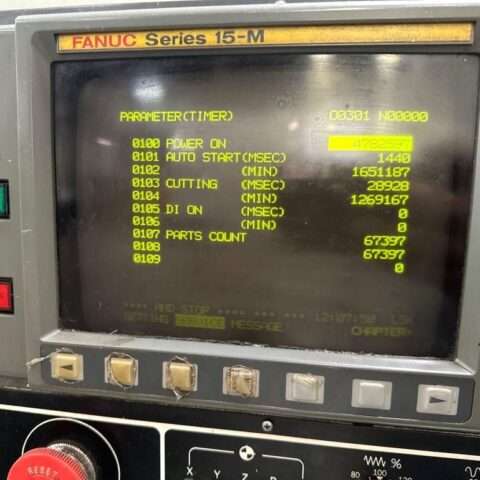

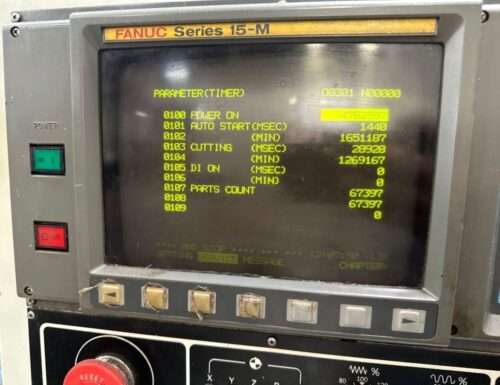

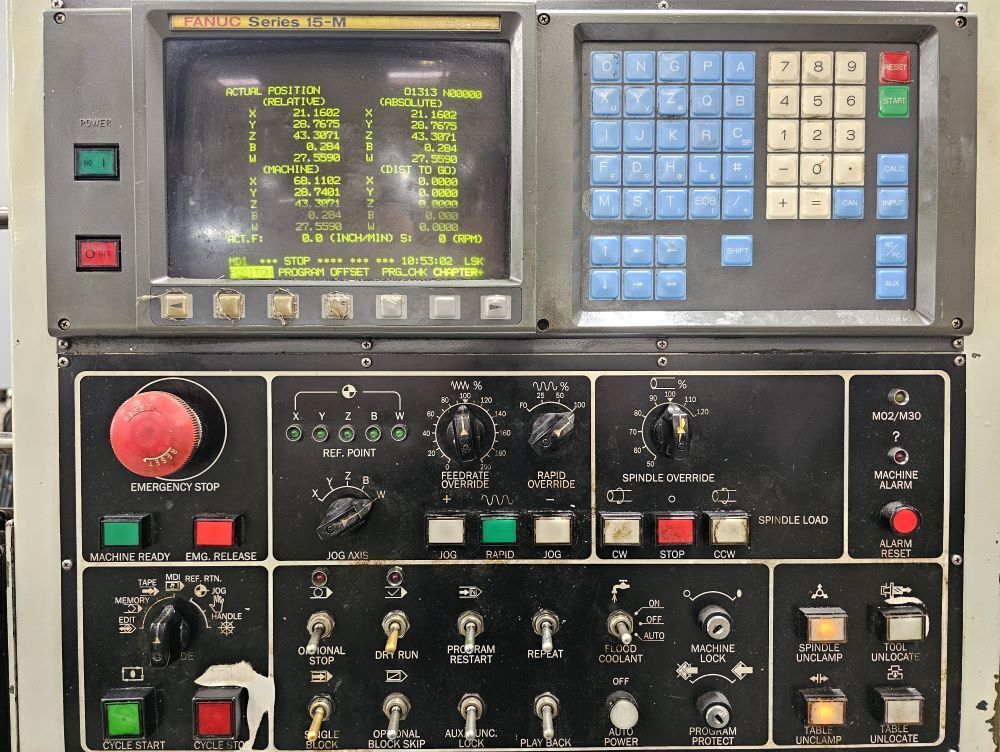

| Fanuc 15-M CNC Control |
| 5.1″ Spindle Diameter |
| Gear Head Spindle for Powerful Torque |
| 1 Degree Indexing 4th Axis Rotary Table |
| Heavy Table Load Capacities |
| Remote Jog Handle |
| Rigid Tapping |
| Telescopic Way Covers |
| Specifications: |
|---|
| Travels: |
| X Axis: 78.7″ |
| Y Axis: 62.9″ |
| Z Axis: 43.3″ |
| W Axis: 27.6″ |

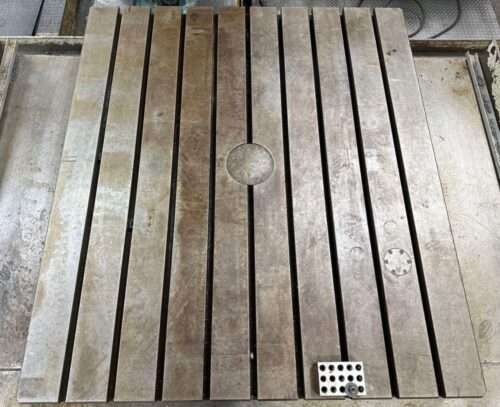

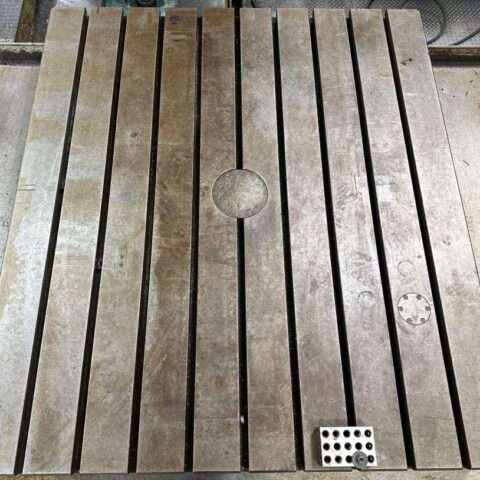

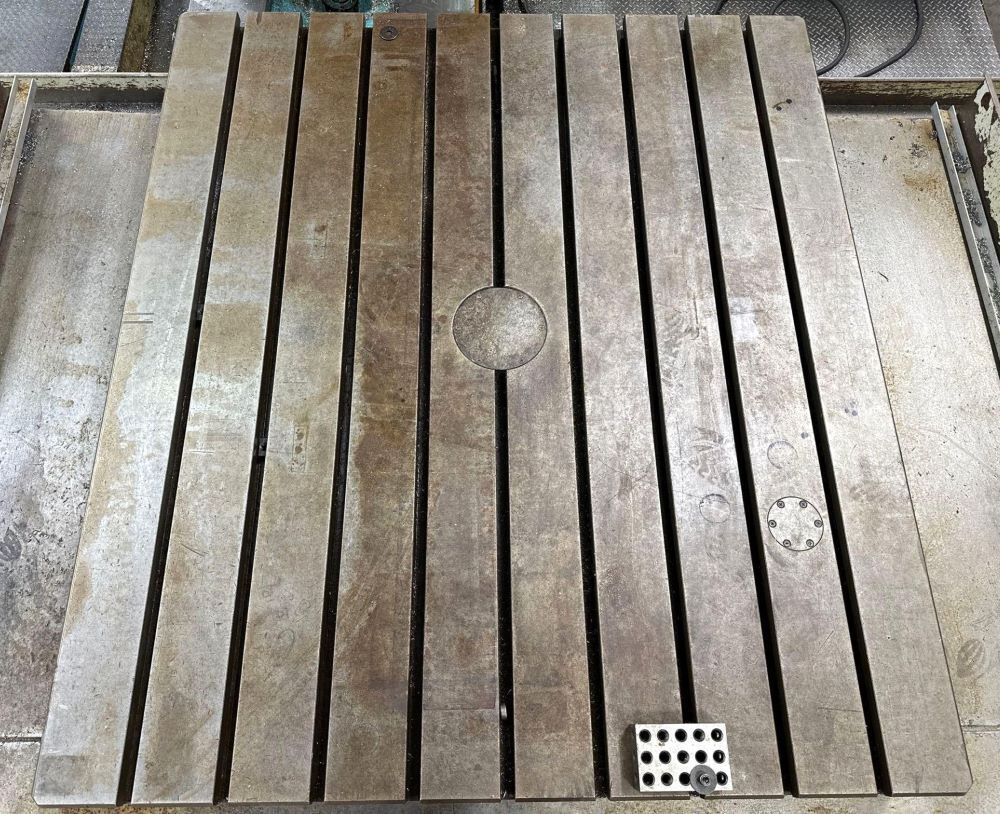

| Rotary Table: |
|---|
| Length: 70.9″ |
| Width: 62.9″ |
| Max Weight on Table: 20,000 lbs |
| Indexing: 1 Degree |

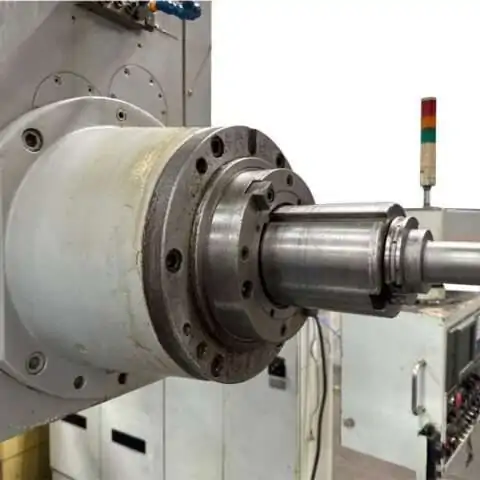

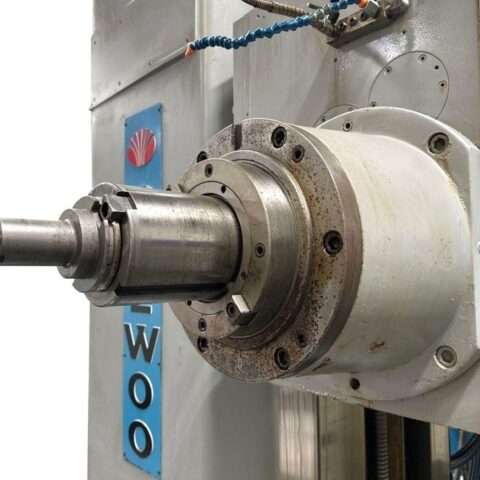

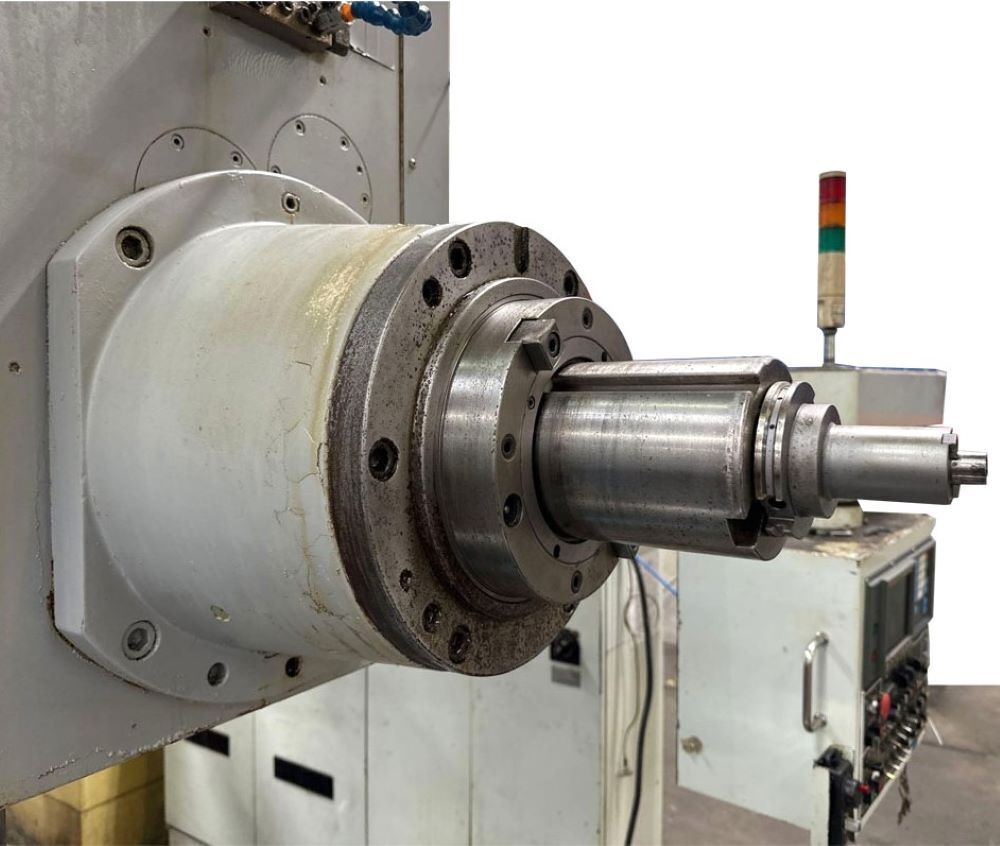

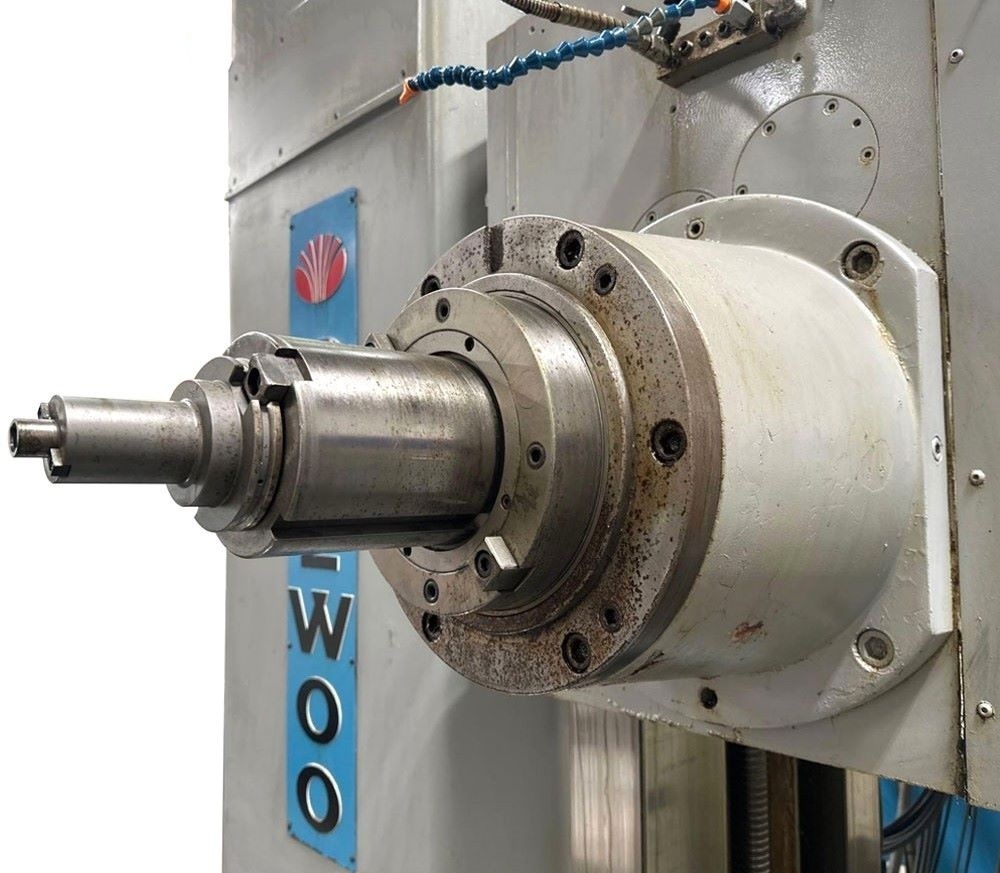

| Spindle: |
|---|
| Bar Diameter: 5.1″ |
| Spindle Speed: 2000 RPM |
| Spindle Taper: CAT-50 |
| Power: 25 HP |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

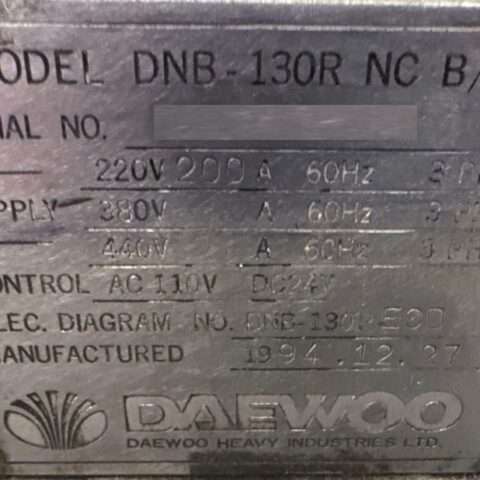

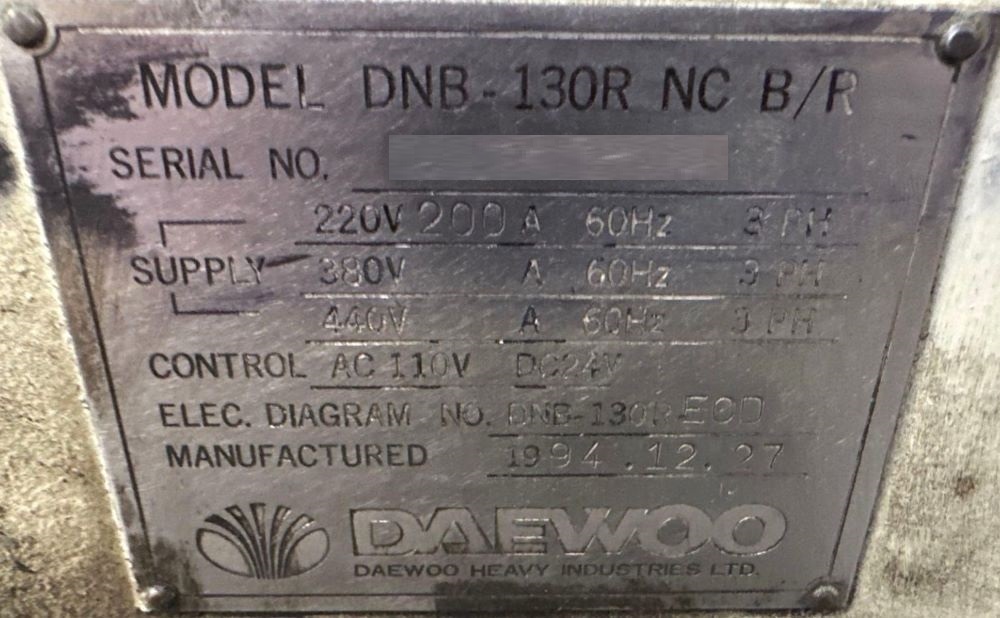

| Power: 66FLA / 205-220v / 3-Phase |
| Floor Dimensions: 240″ x 168″ x 108″ High |
| Shipping Dimensions: Call for Dimensions |
| Weight: 48000 lbs. Approx. |
