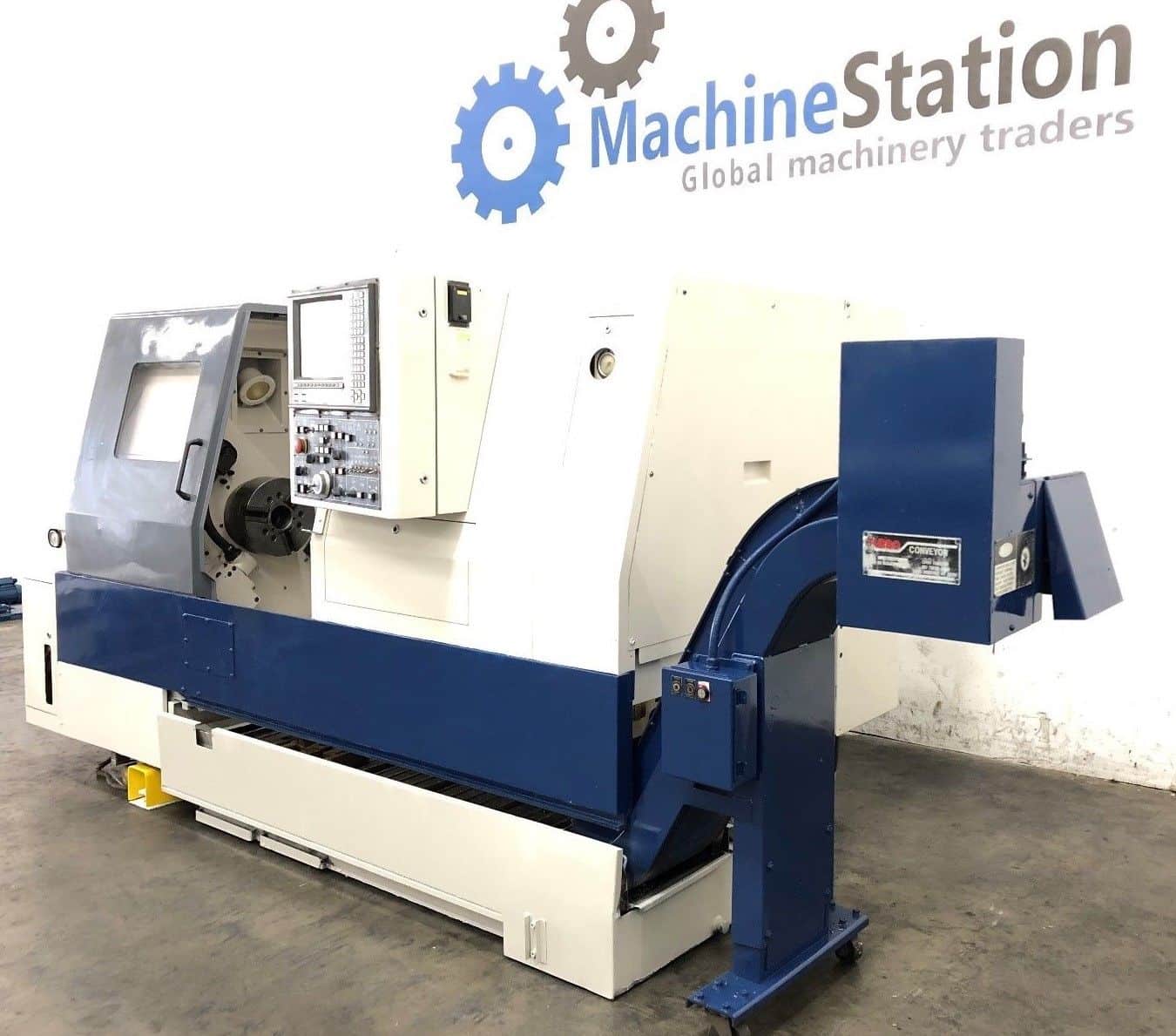

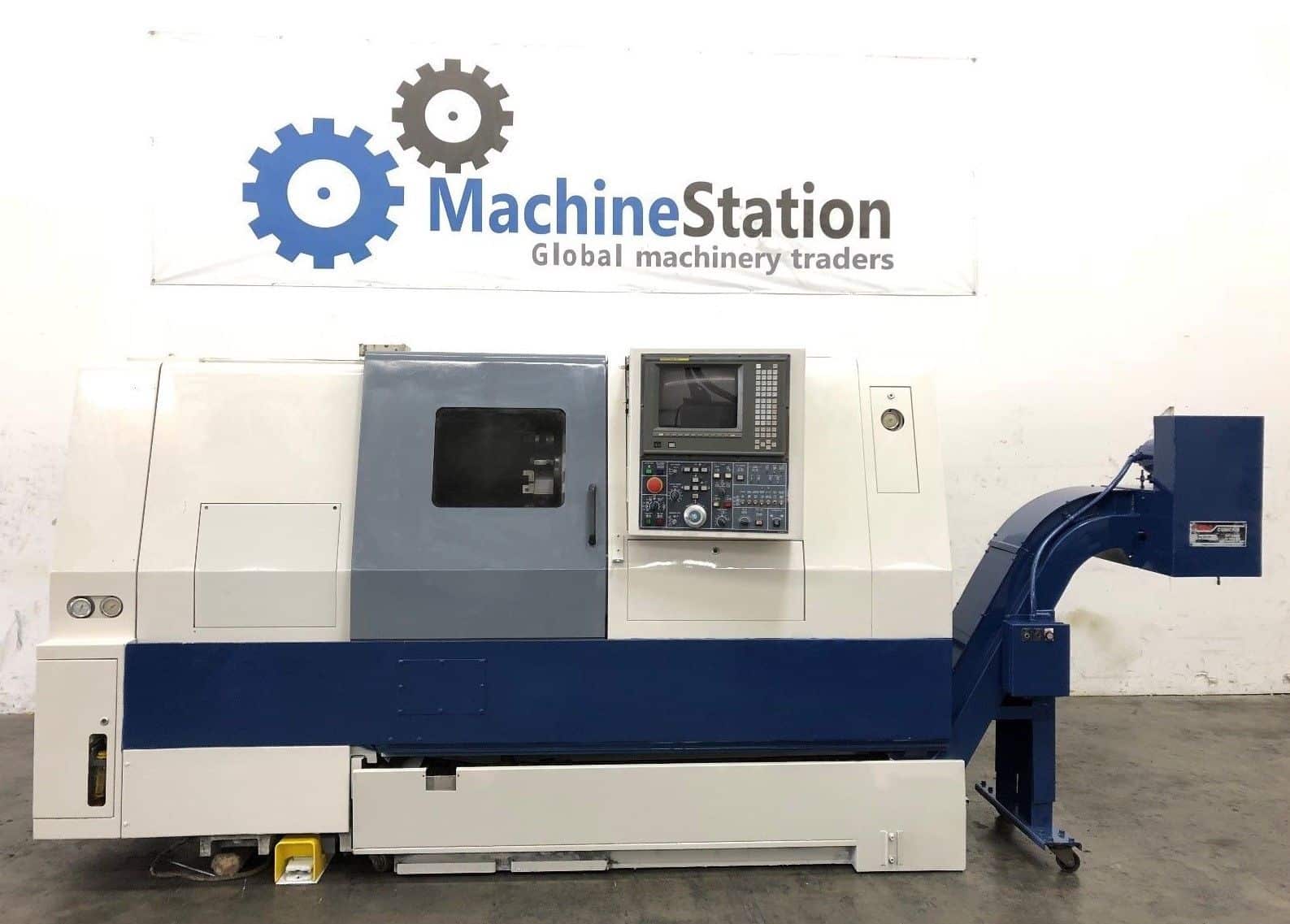

Comes with 12″ Chuck, Tailstock & Chip Conveyor
All specifications are approximations and are subject to verification.
| Make | Daewoo |
| Model No. | Puma 250MB |
| Serial # | P25M0118 |
| Condition | Very Good |
-
DAEWOO PUMA 250MB Equipped With:

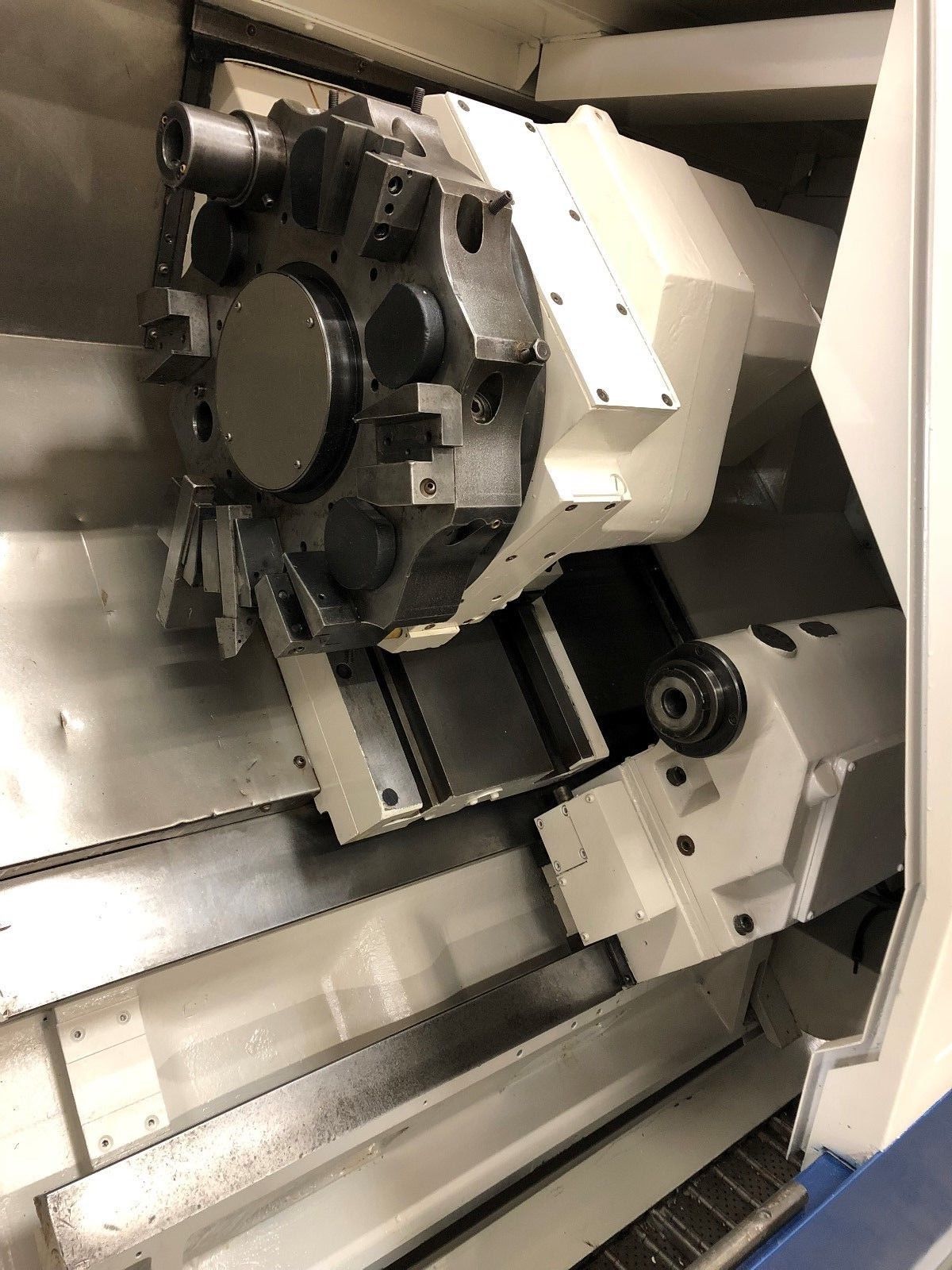

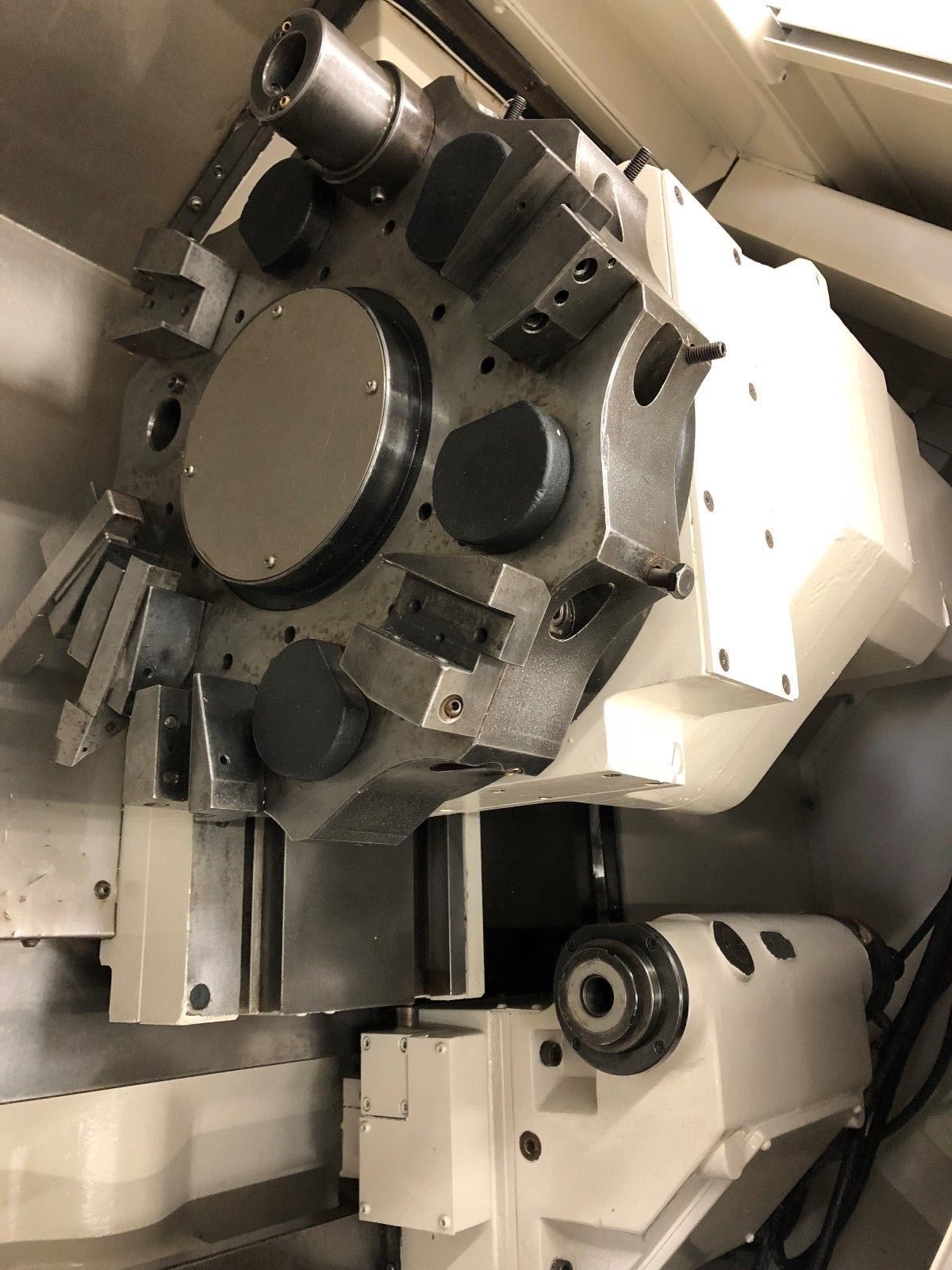

- 12 Station Live Tool Turret
- Full C Axis
- Box way construction

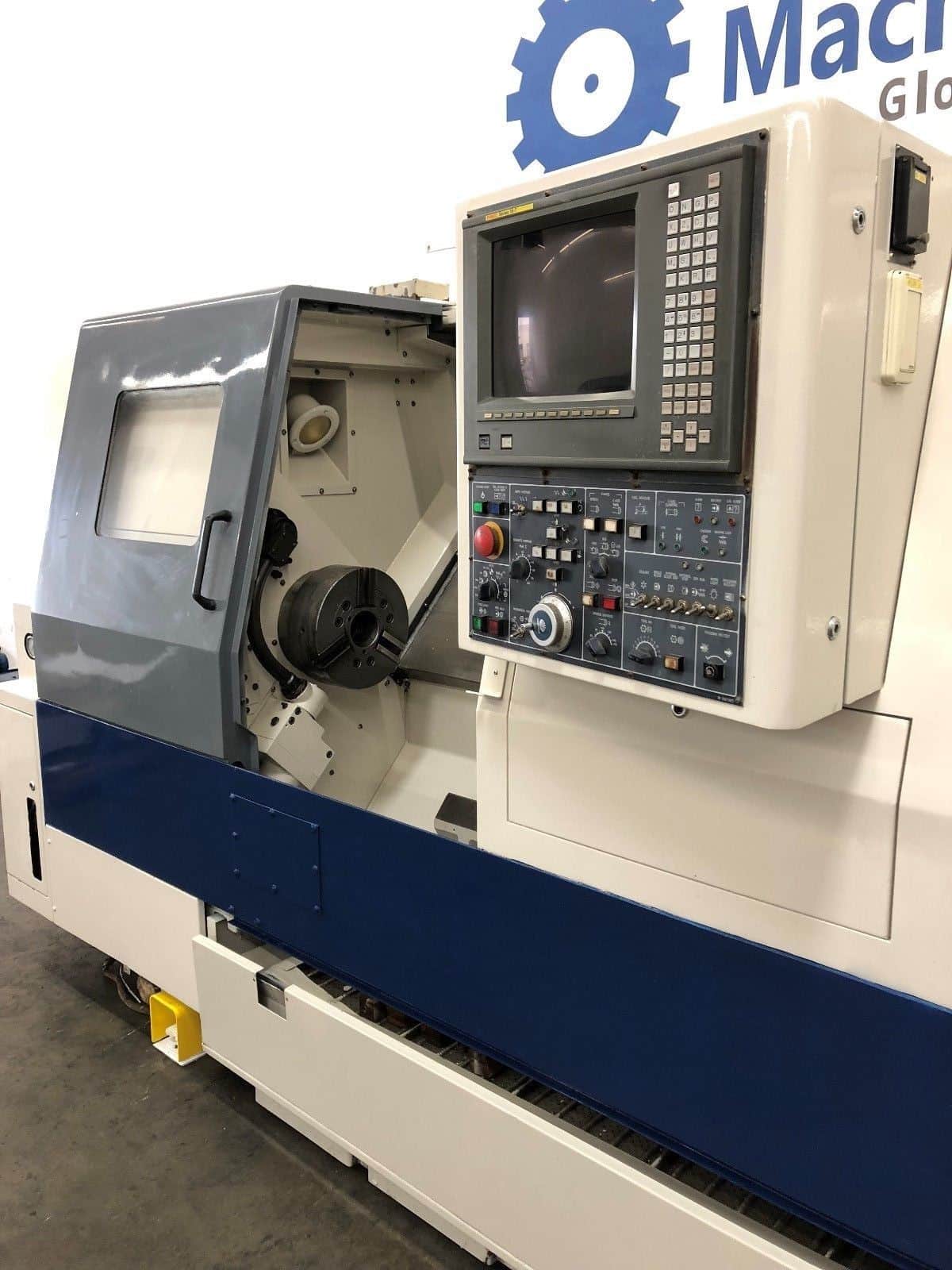

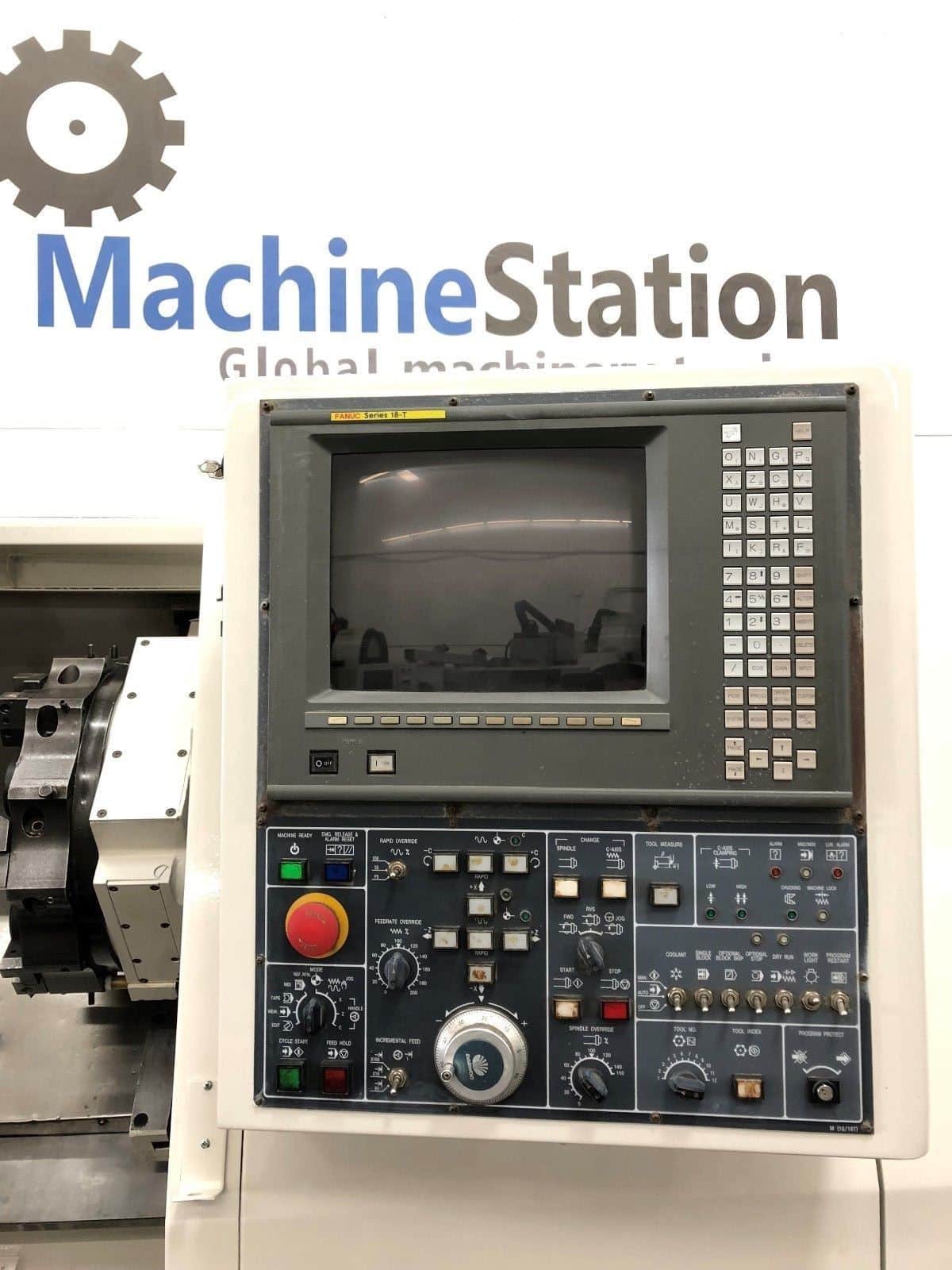

- Fanuc 18T Control

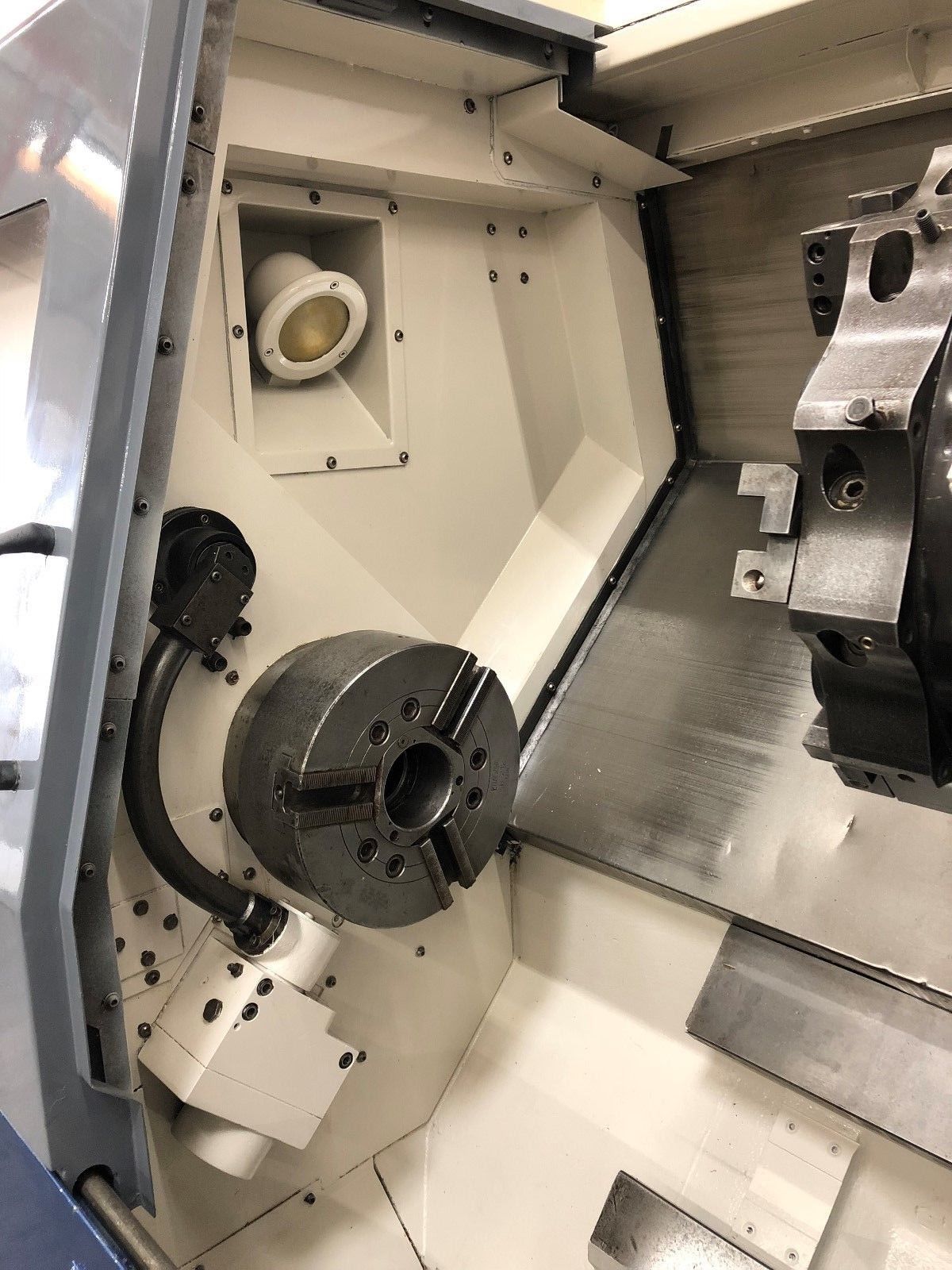

- 12″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle

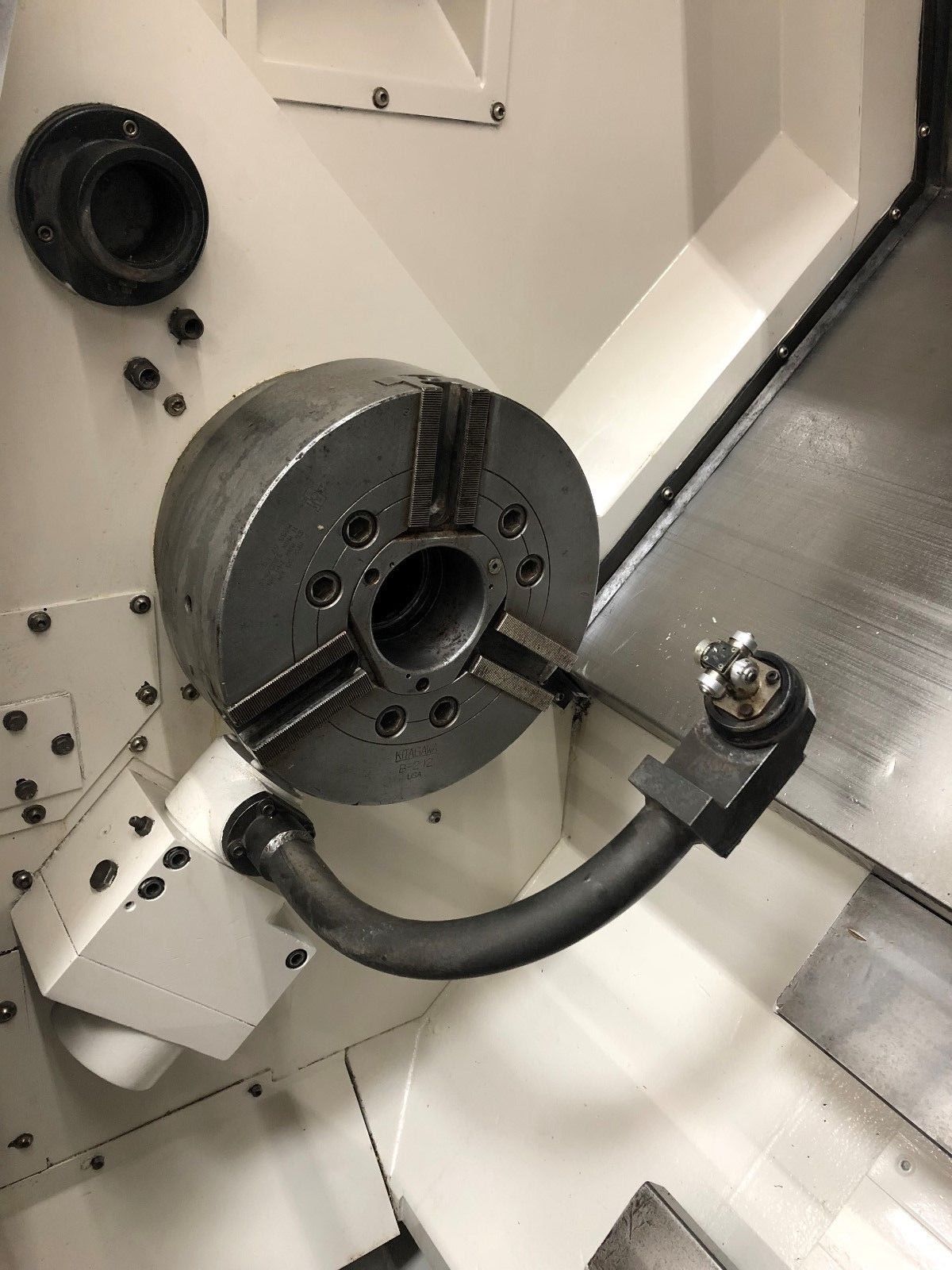

- Auto Tool Presetter
- Hydraulic Programmable Tailstock and Quill
- Coolant System
- Barfeed Interface
- Foot Switch
- Chip Conveyor
-
DAEWOO PUMA 250MB Specifications:
- Capacity:
- Max Turning Diameter: 15.75″
- Max Turning Length: 25.6″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 22.4″
- Distance Between Centers: ”
- X Axis Travel: 11.1″
- Z Axis Travel: 26.8″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Live Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 3.94″
-
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 70″ x 80″ High
- Overall Dimensions: 158″ x 70″ x 80″ High with Chip Conveyor
- Weight: 12500 lbs
