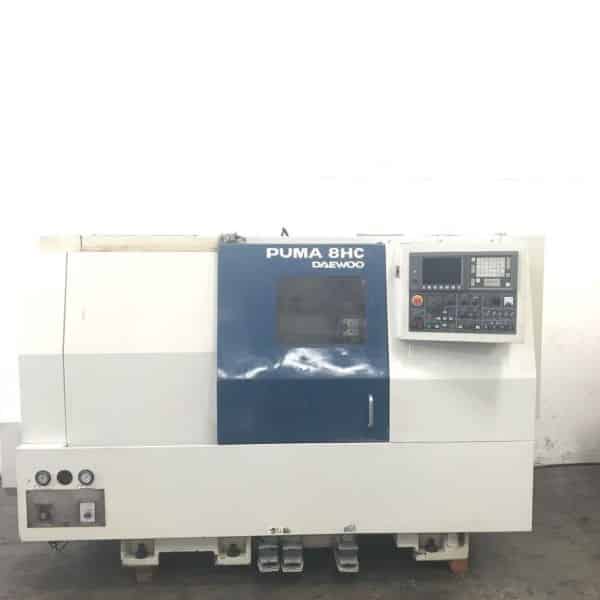

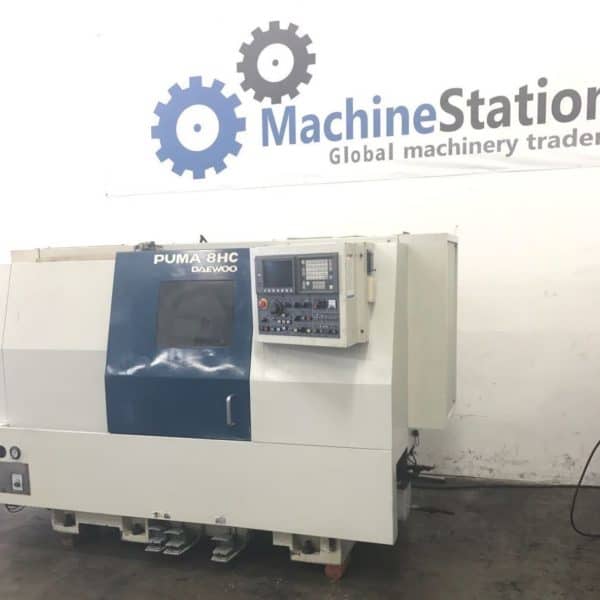

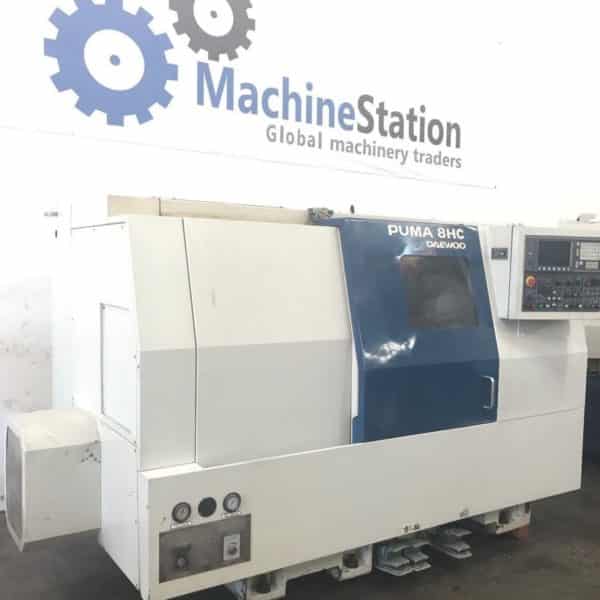

| DAEWOO PUMA 8HC CNC TURNING CENTER | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 8HC |

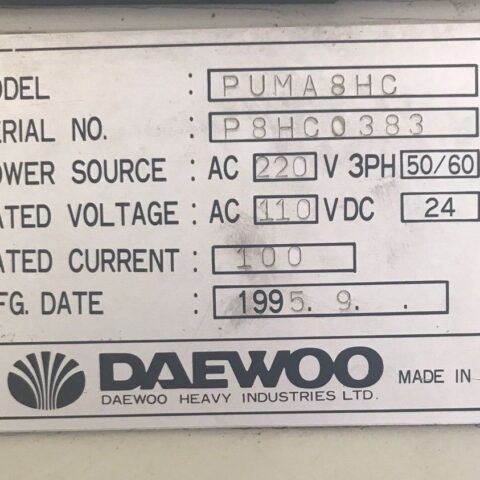

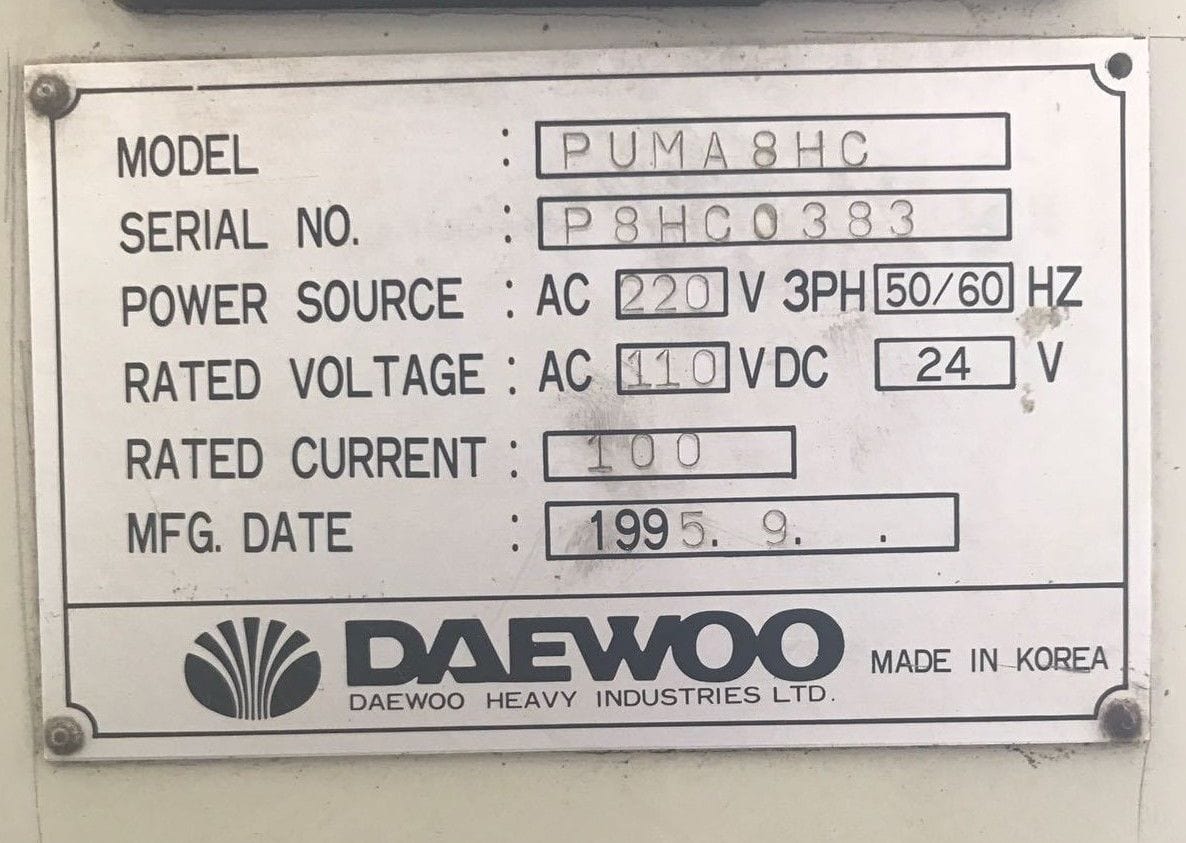

| Serial # | P8HC0383 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine is in good running condition. It is equipped with 8″ Chuck & Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
- DAEWOO PUMA 8HC Equipped With:

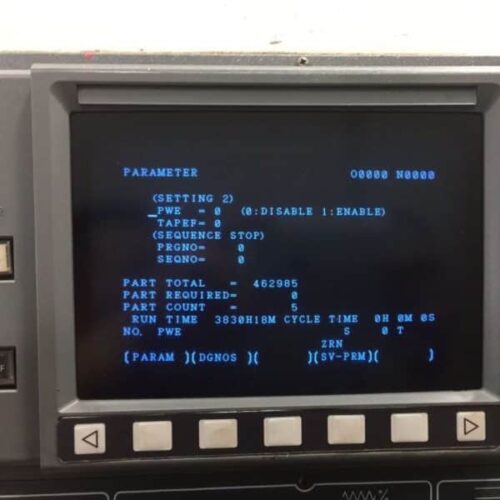

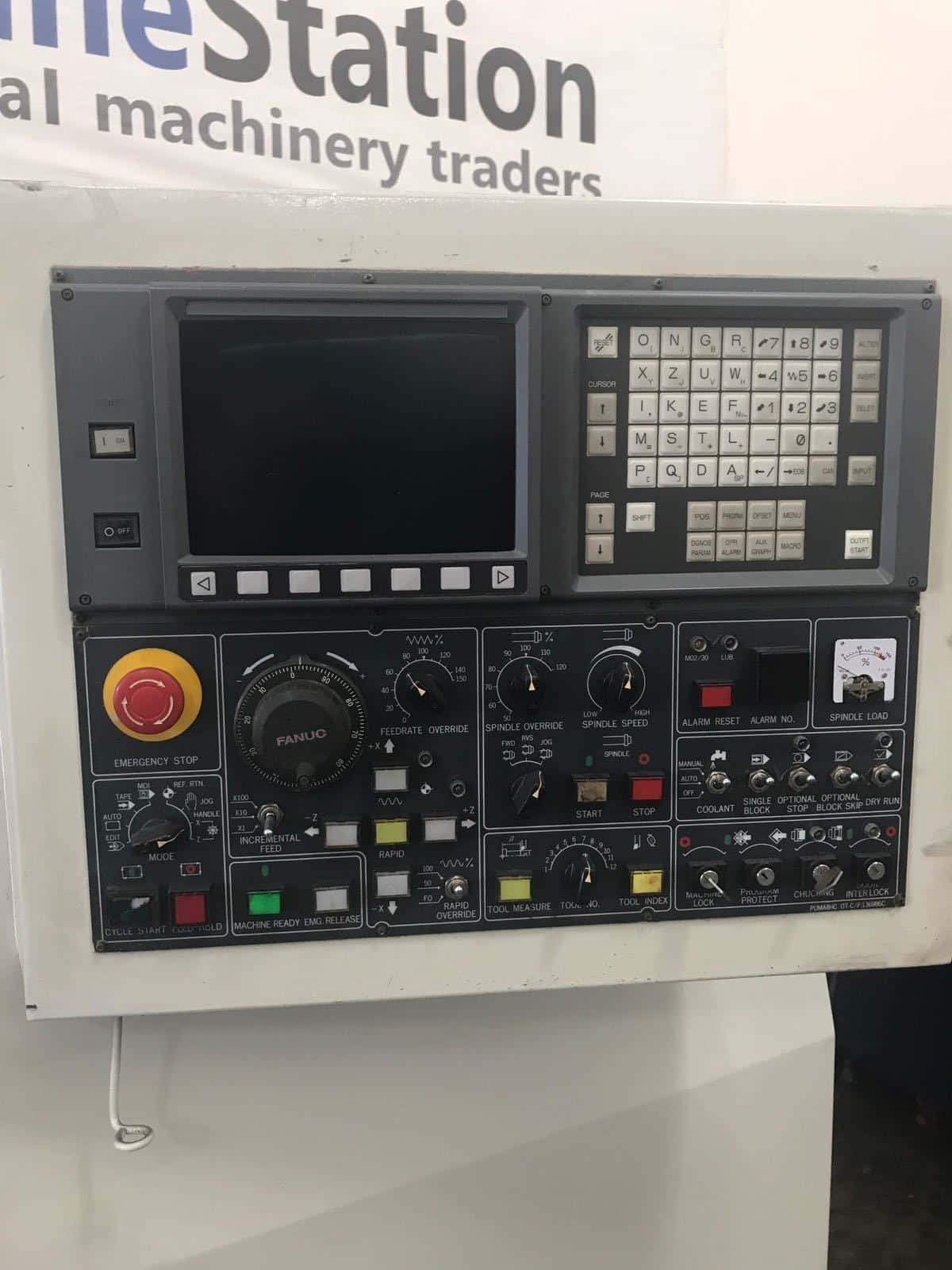

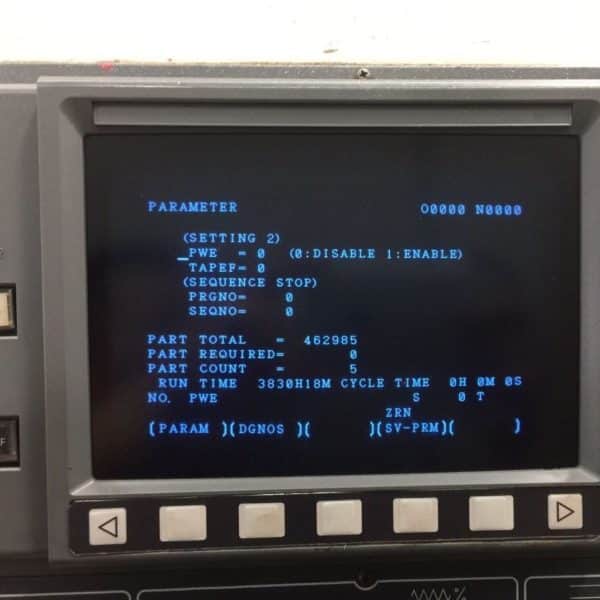

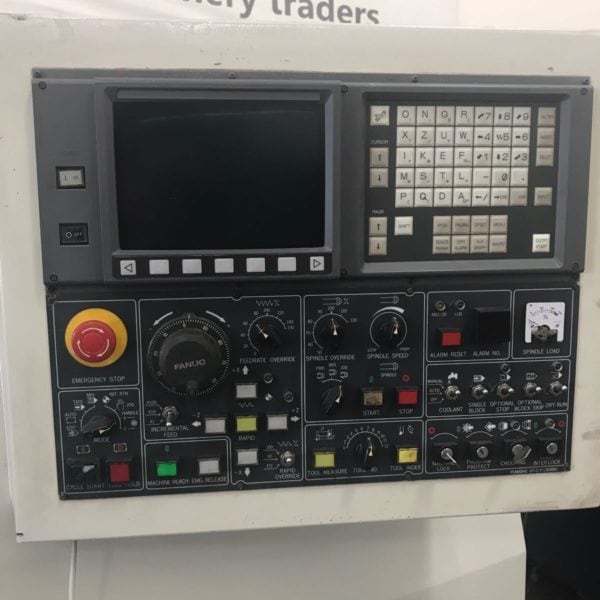

- Fanuc OT CNC Control

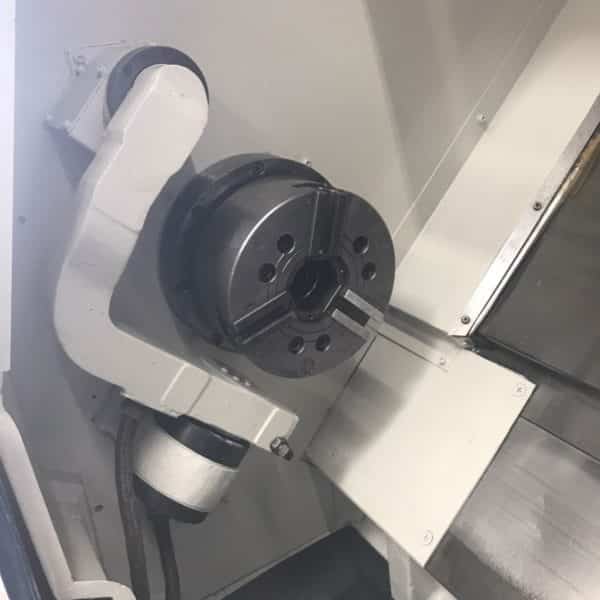

- 8″ 3 Jaw Hydraulic Chuck
- Tool Presetter
- A2-6 Spindle

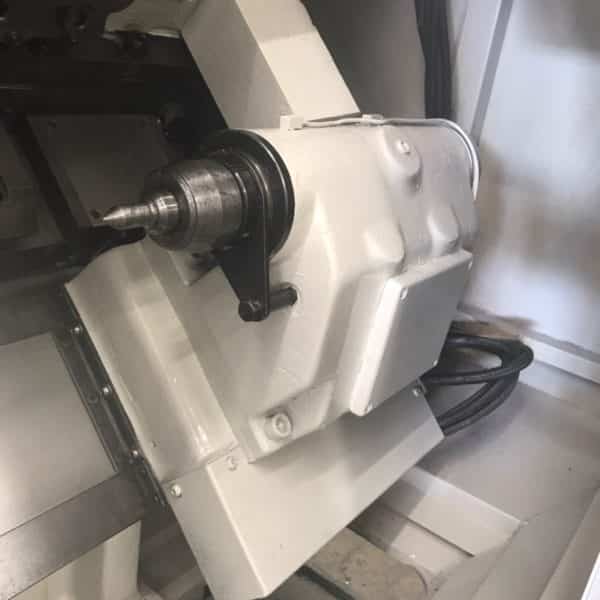

- Hydraulic Programmable Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

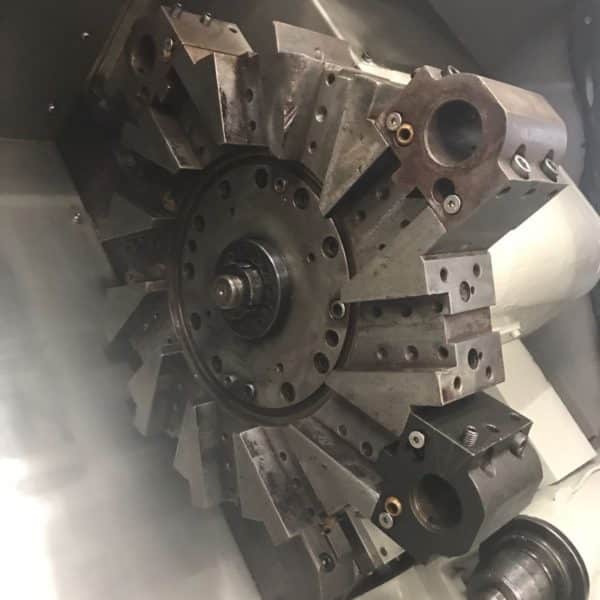

- 12 Station Automatic Turret
- Foot Switch
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 114″ x 76″ x 77″ High
- Weight: 11000 lbs
- DAEWOO PUMA 8HC Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 19.7″
- Distance Between Centers: 21.9″
- X Axis Travel: 8.3″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 0 – 4000 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
DAEWOO PUMA 8HC Comes as shown in pictures..
