*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

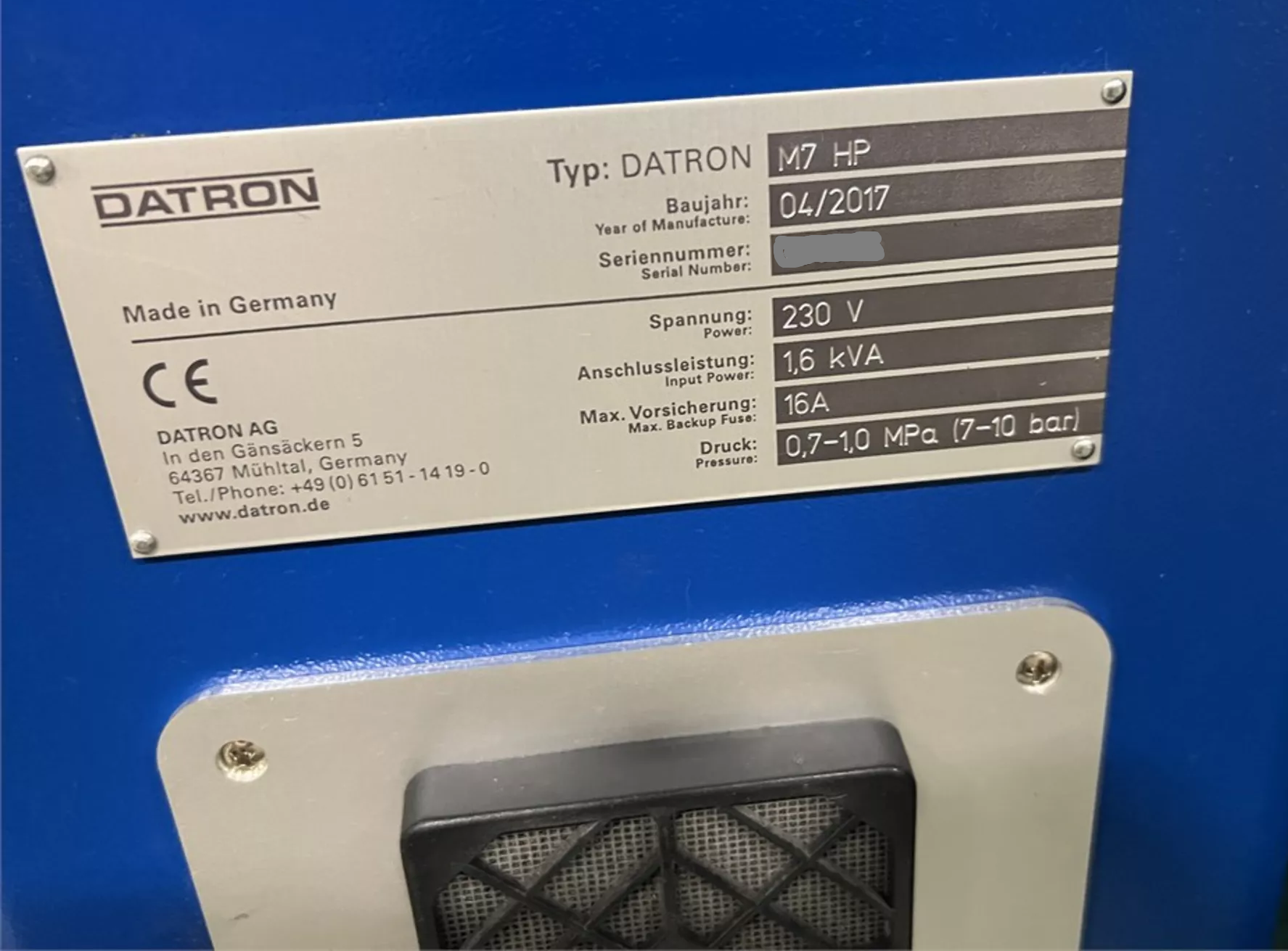

| Make: | Datron |
| Model: | M7HP |
| Year of Manufacture: | 2017 |
| Condition: | Used – Good |
| Machine Type: | CNC High-Speed Milling & Engraving Machine |
| Country of Origin: | Germany |
| Equipped With: |
|---|
| Datron CNC Control Software |
| High-Frequency Precision Spindle |
| Automatic Tool Changer (Up to 11 Tools) |
| HSK-E25 Tool Interface |
| Integrated PC Control System |
| Fully Enclosed Work Area |

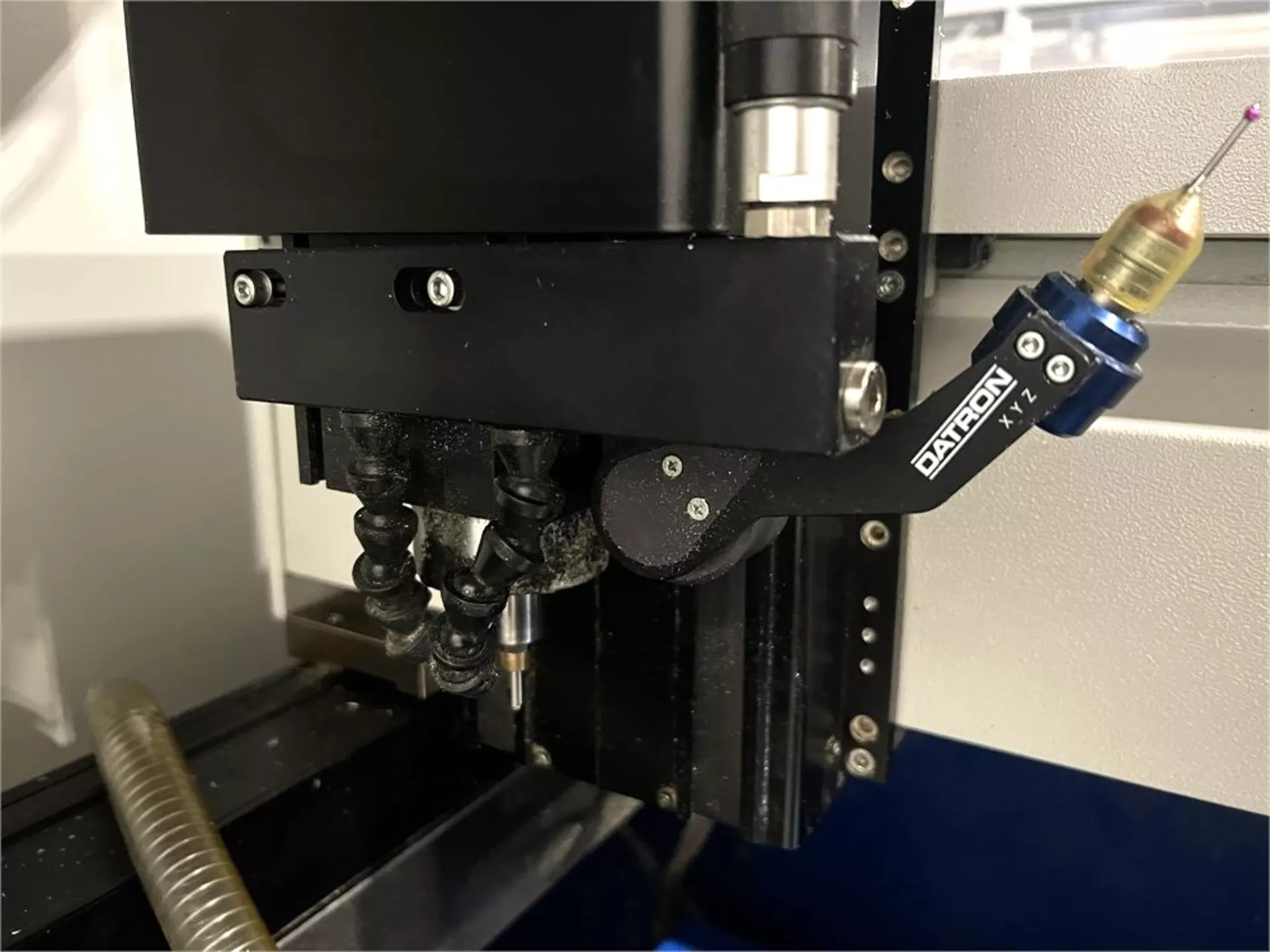

| Automatic Tool Length Measurement |
| Minimum Quantity Lubrication (MQL) System |
| Ethernet / USB Interface |
| Travel: |
|---|
| X-Axis Travel: 20.1″ (520 mm) |
| Y-Axis Travel: 25.6″ (650 mm) |
| Z-Axis Travel: 9.4″ (240 mm) |
| Table: |
|---|
| Table Type: Solid Granite Machine Table |
| Table Size: Approx. 38.5″ × 23.7″ |
| Spindle: |
|---|
| Spindle Type: High-Frequency Precision Spindle |
| Maximum Speed: Up to 48,000 – 60,000 RPM |
| Spindle Taper: HSK-E25 |
| Tool Changer: |
|---|
| Automatic Tool Changer Capacity: Up to 11 Tools |
| Feedrates: |
|---|
| Rapid Traverse: Approx. 275 IPM |
| Electrical: |
|---|
| Voltage: 230 V |
| Power Requirement: 1.6 kVA |
| Maximum Fuse: 16 A |
| Air Pressure Requirement: 0.7 – 1.0 MPa (7 – 10 bar) |
| General: |
|---|
| Machine Weight: Approx. 1,500 lbs (≈680 kg) |
| Features: |
|---|
| Ultra-high spindle speeds (up to 60,000 RPM) for micro-machining |
| Excellent for engraving, small aluminum parts, electrodes, plastics, and graphite machining |
| The granite base provides high precision and vibration damping |
| Compact footprint ideal for precision manufacturing and prototyping |
