*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

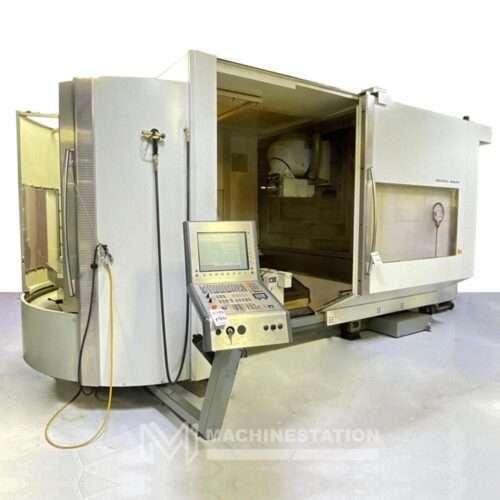

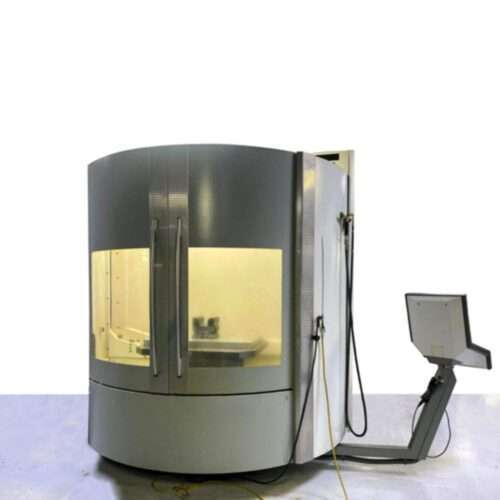

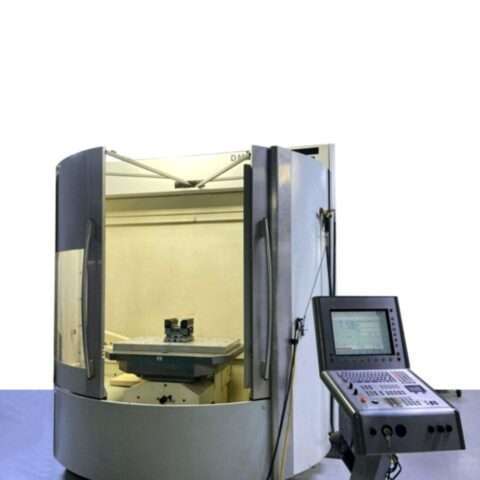

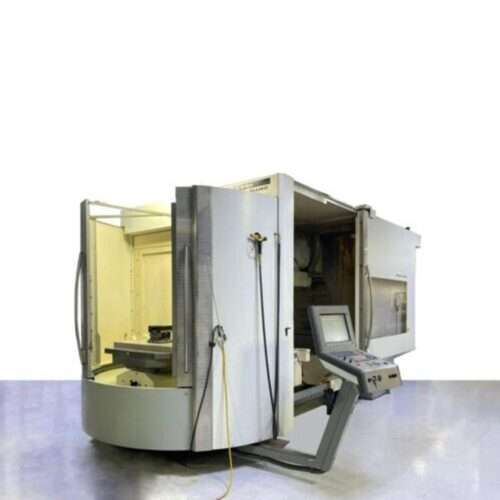

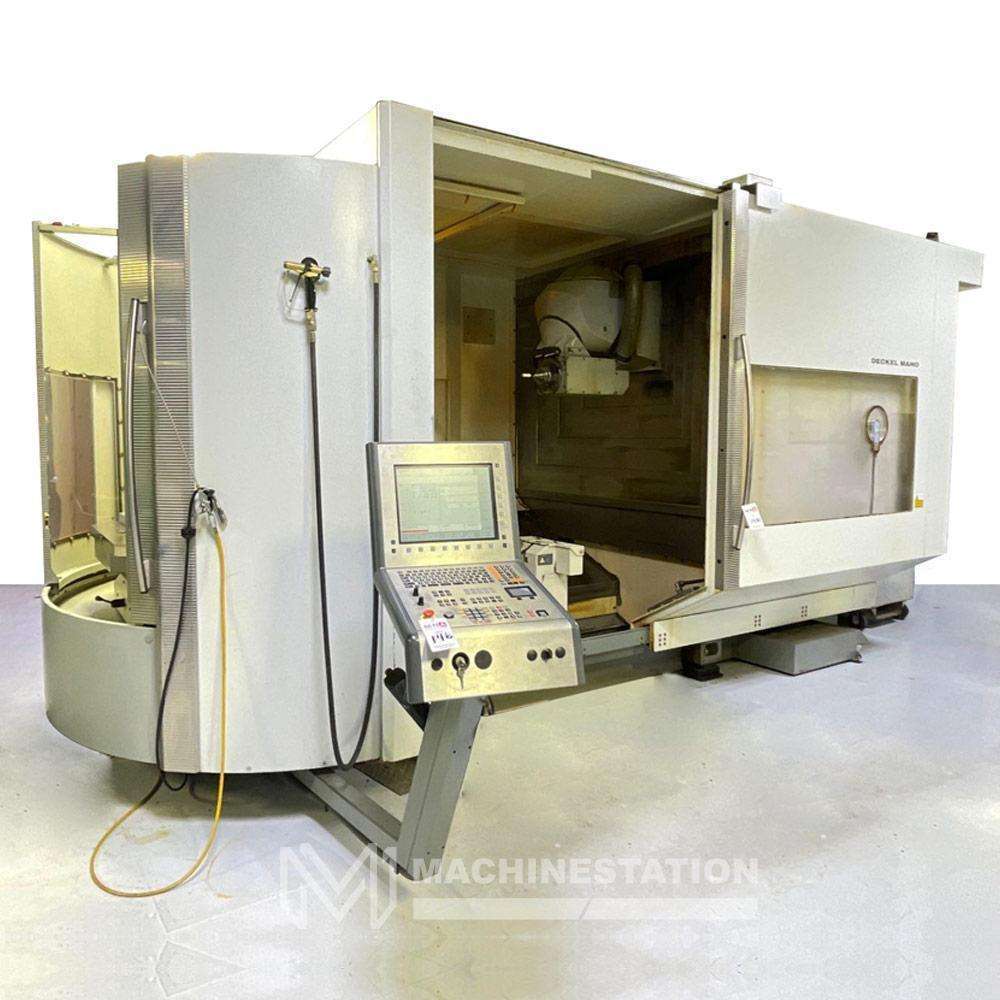

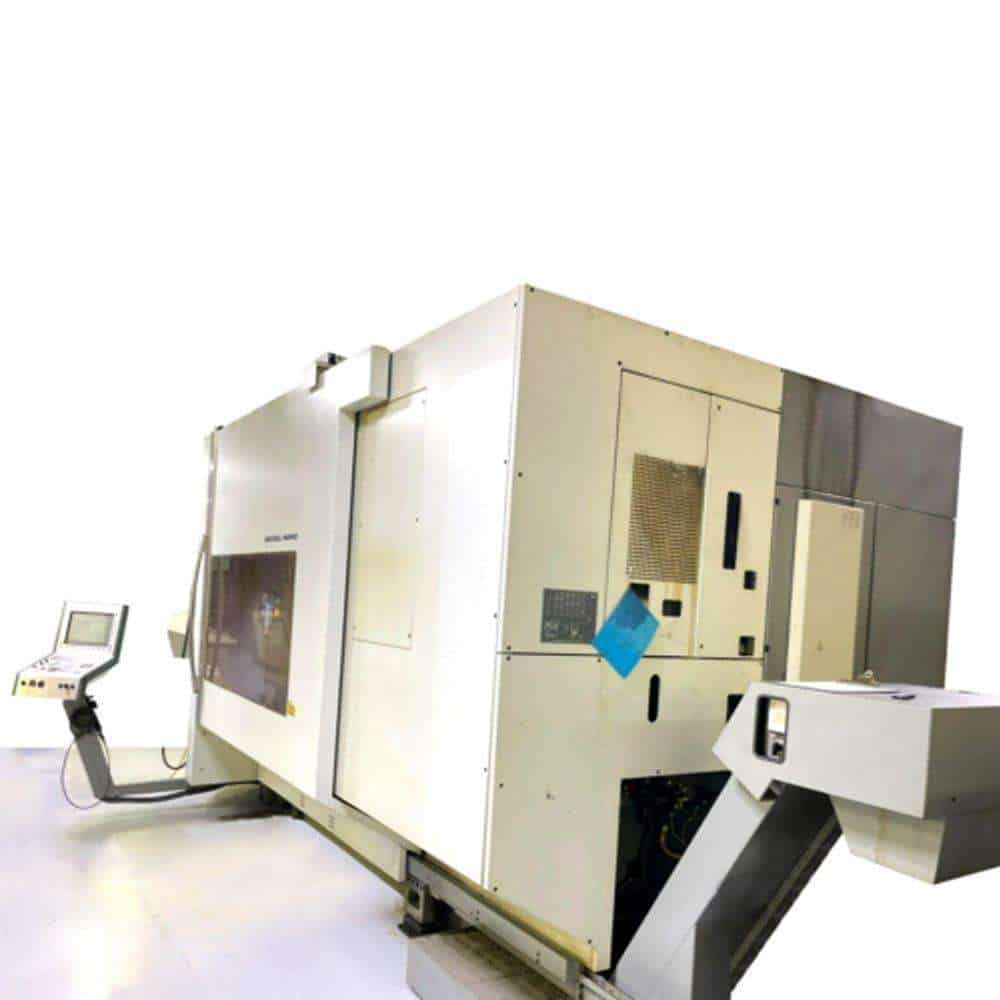

| Make: | DMG DECKEL |
| Model: | DMC 125U HI-DYN |

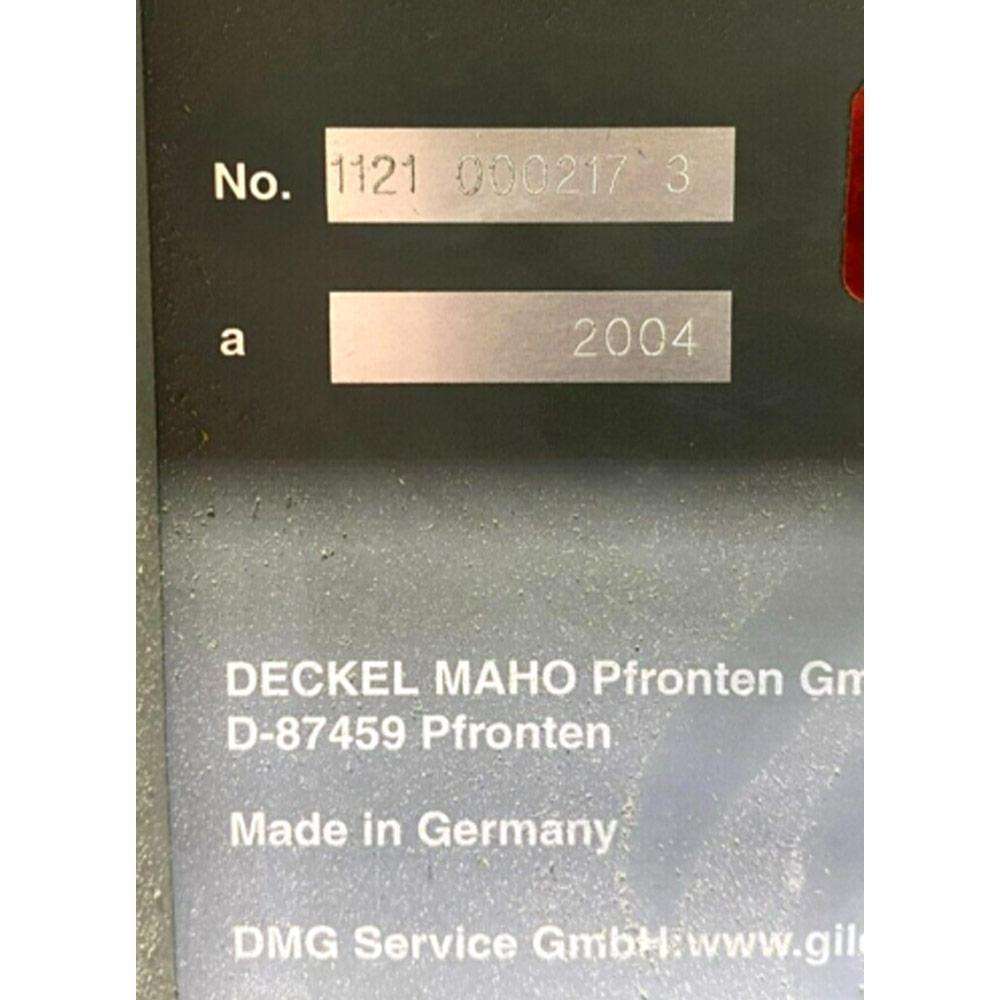

| Year: | 2004 |
| Condition: | Used – Good |
| Features: |
|---|

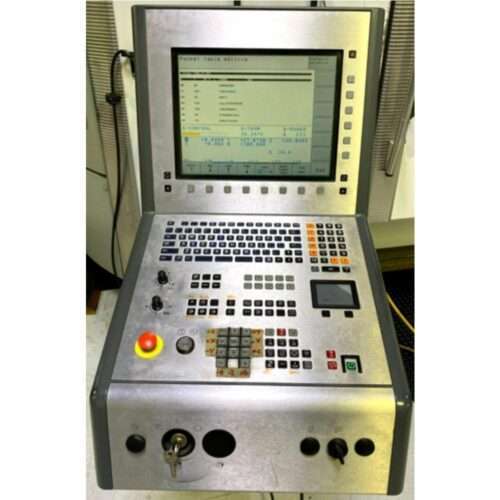

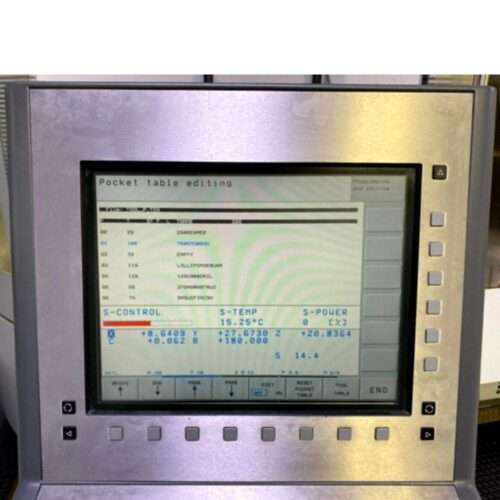

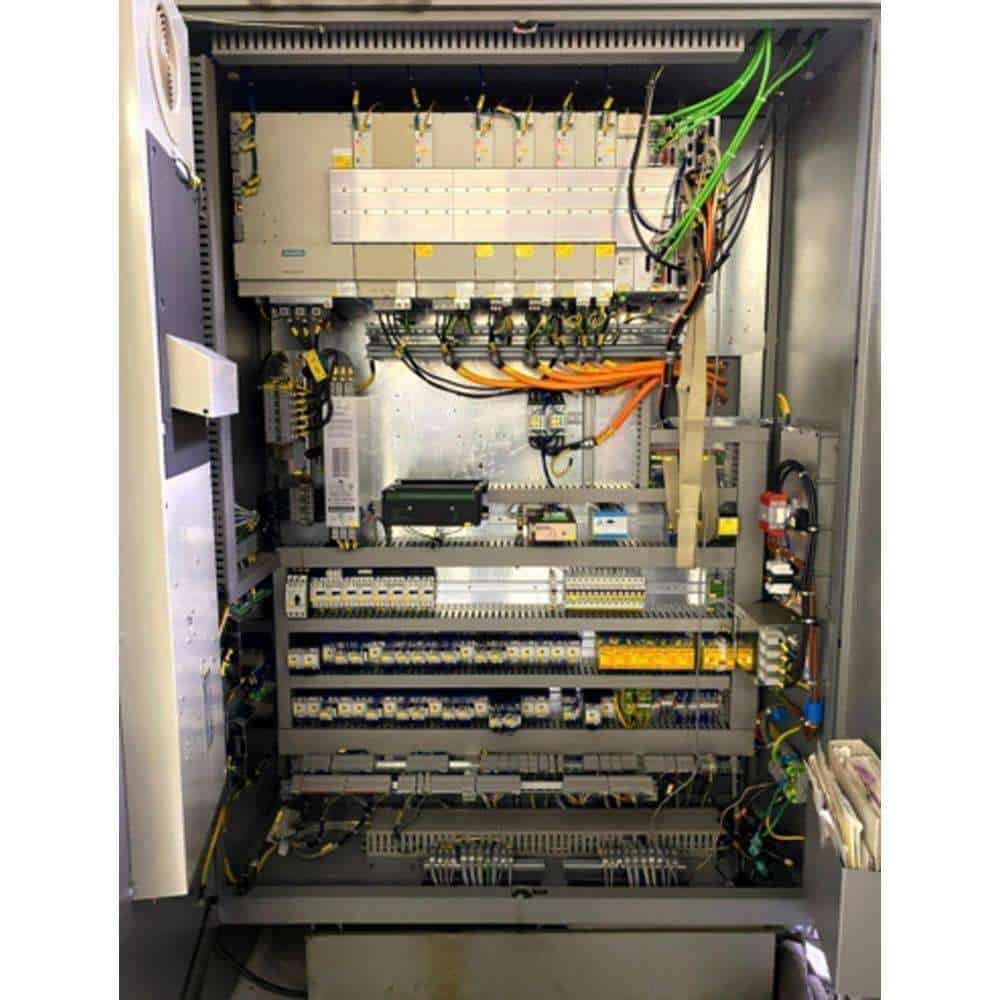

| Heidenhain CNC Control |

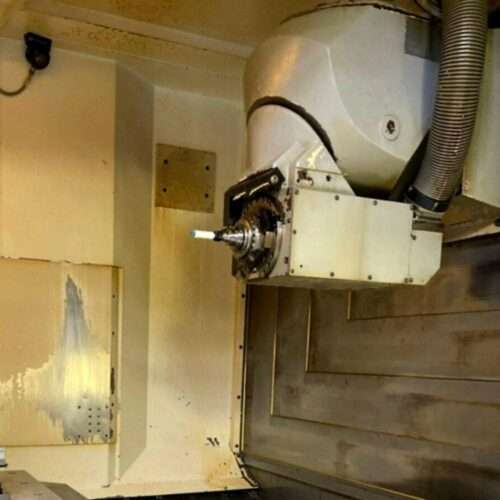

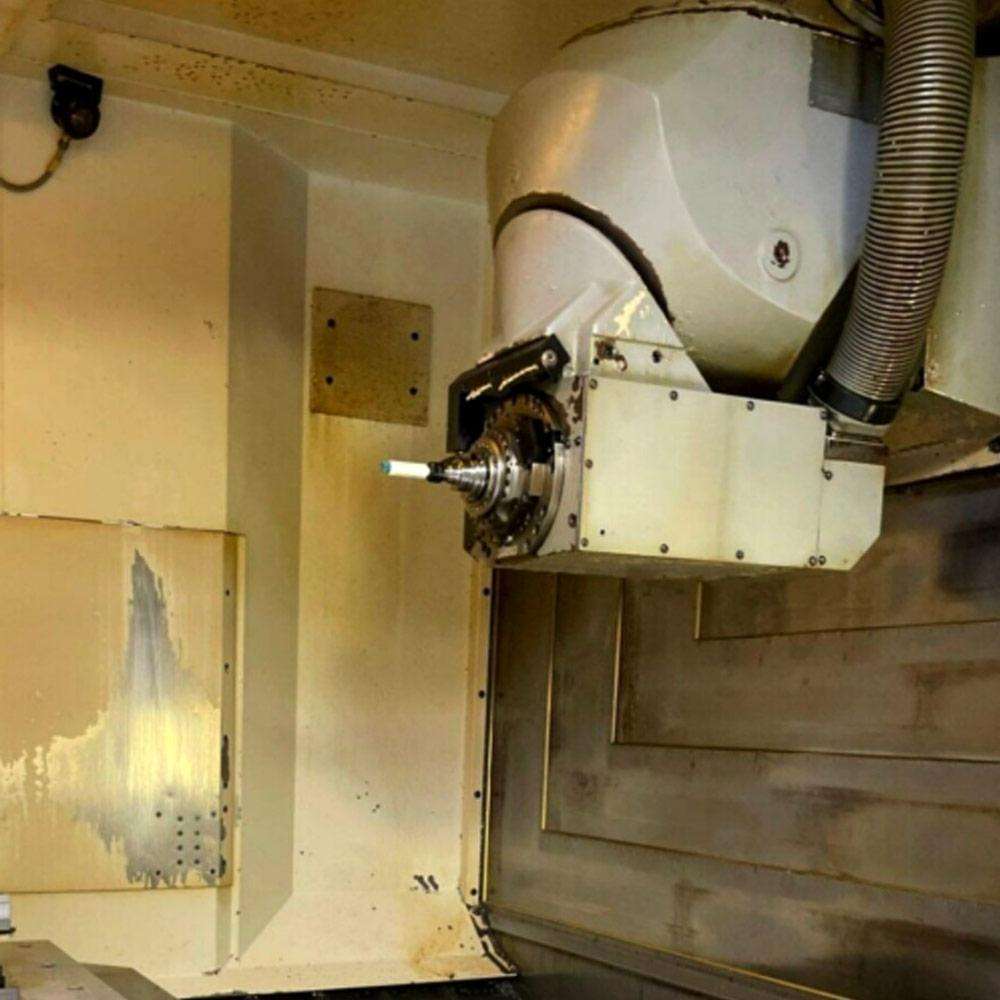

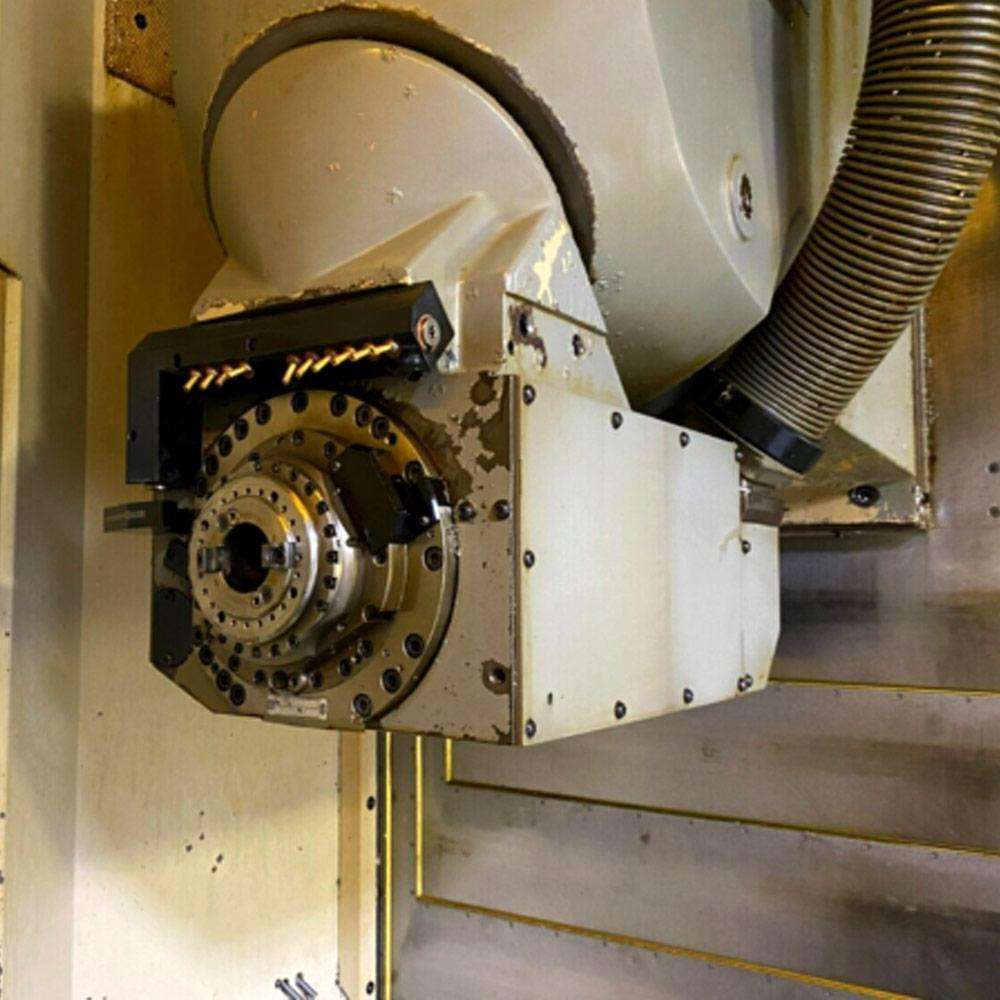

| Swivel Milling Head Horizontal/Vertical (B Axis Controlled) |
| Pallet Changer |

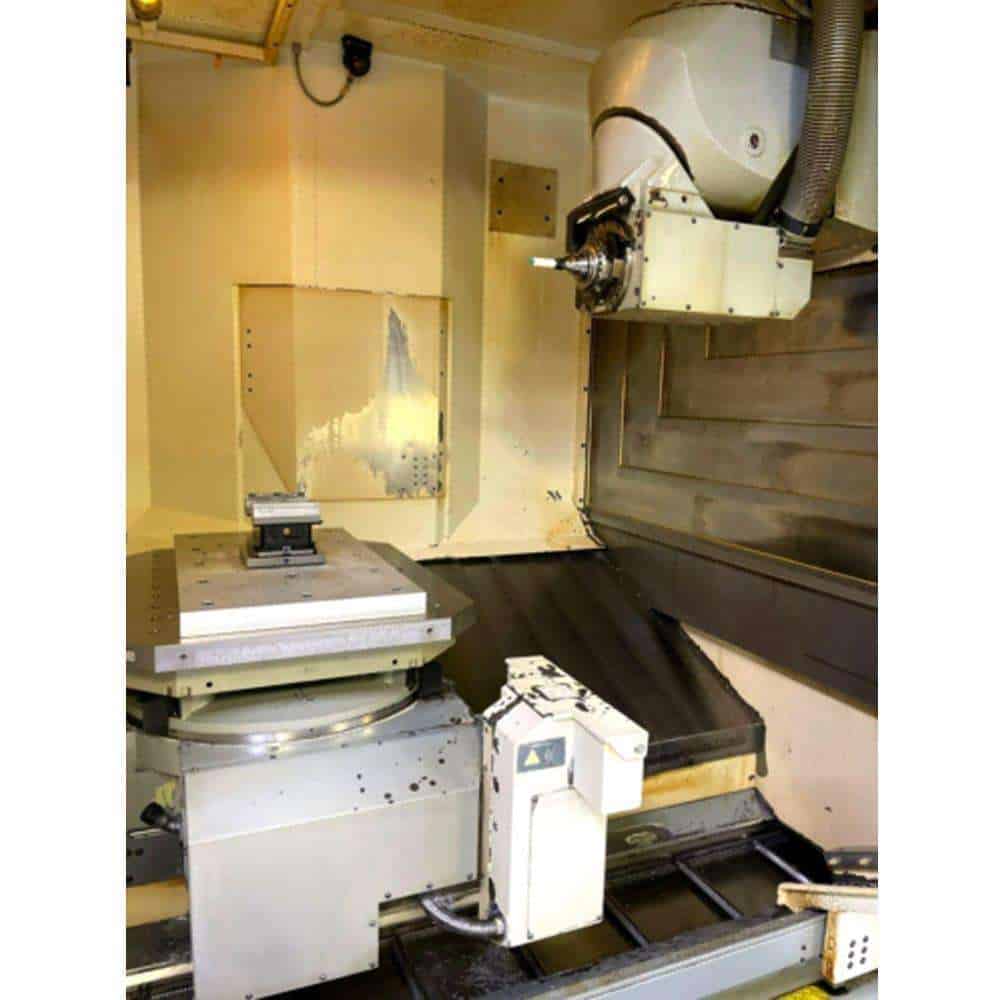

| 360° (0.001°) Rotary Table Positioning |
| 14000 RPM High Precision Spindle ? |
| Through Spindle Coolant |

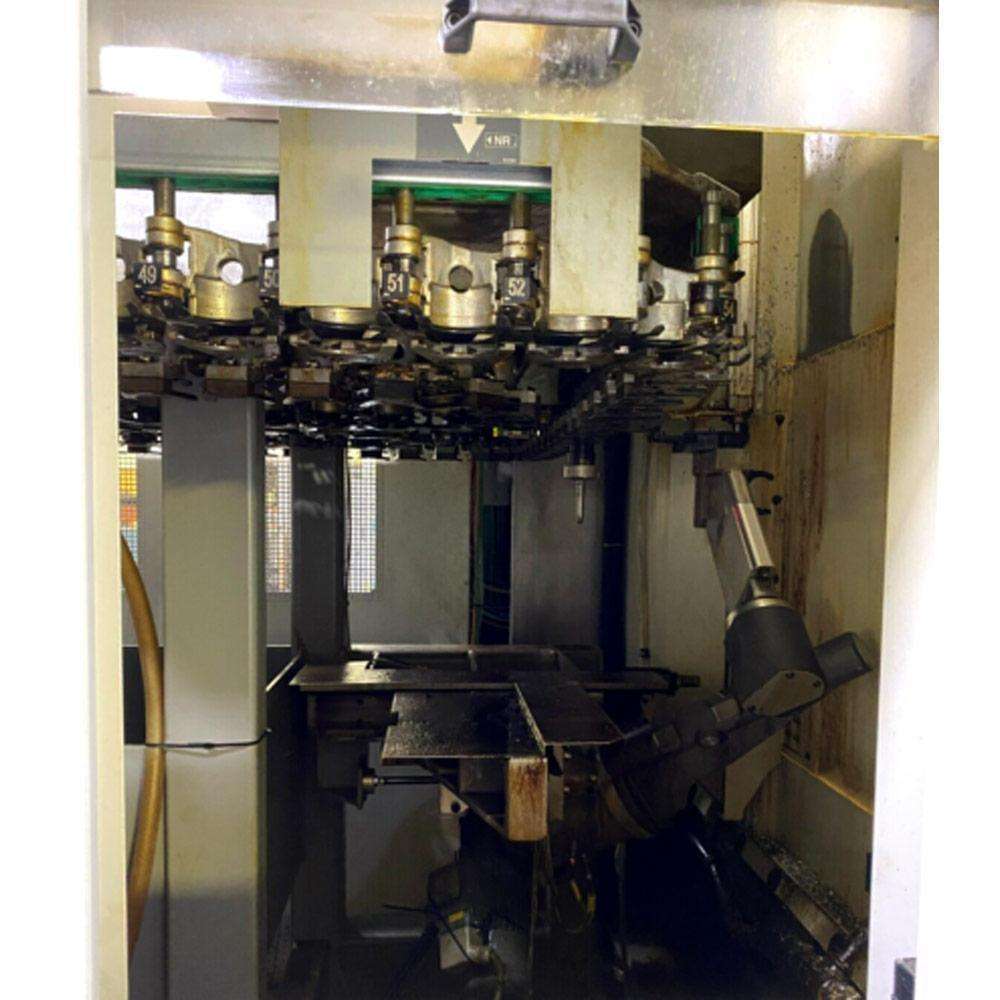

| 180 Station Automation Tool Changer |
| Renishaw Probing System |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |

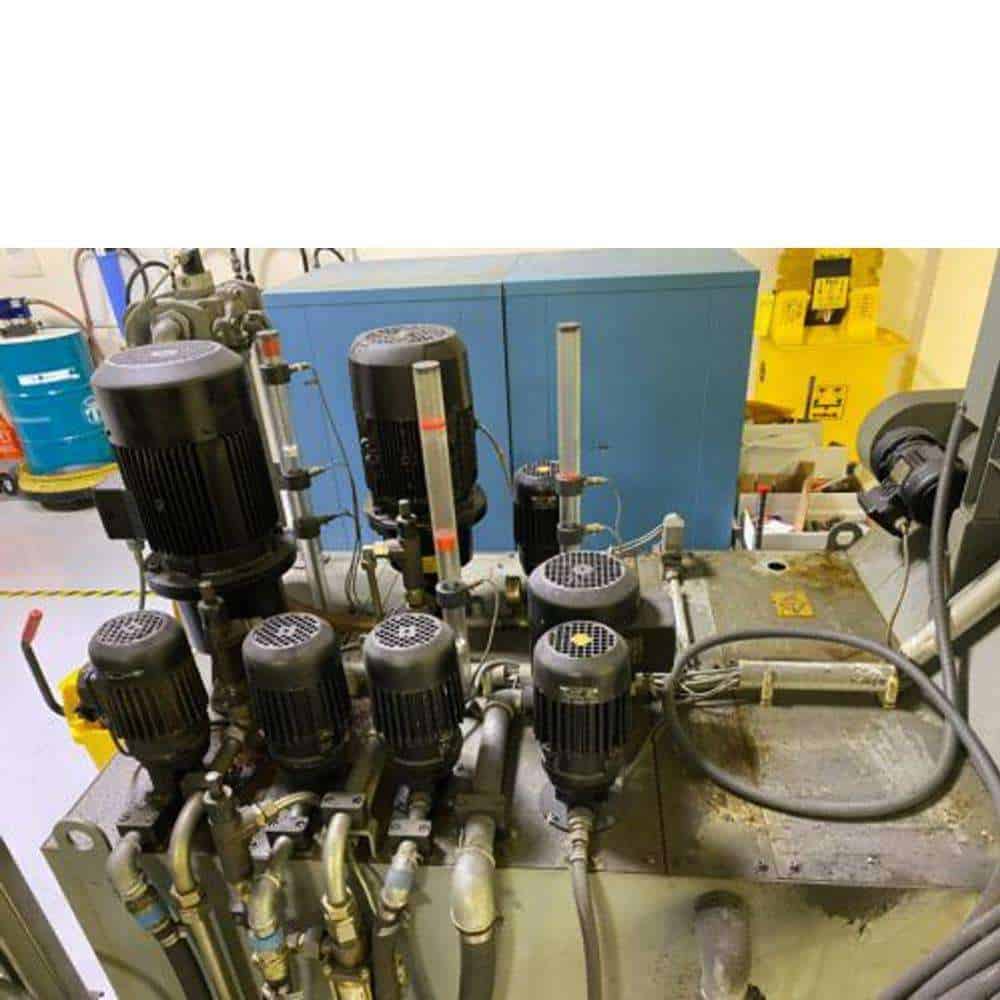

| Flood coolant with large separate coolant tank |
| Chip Conveyor |

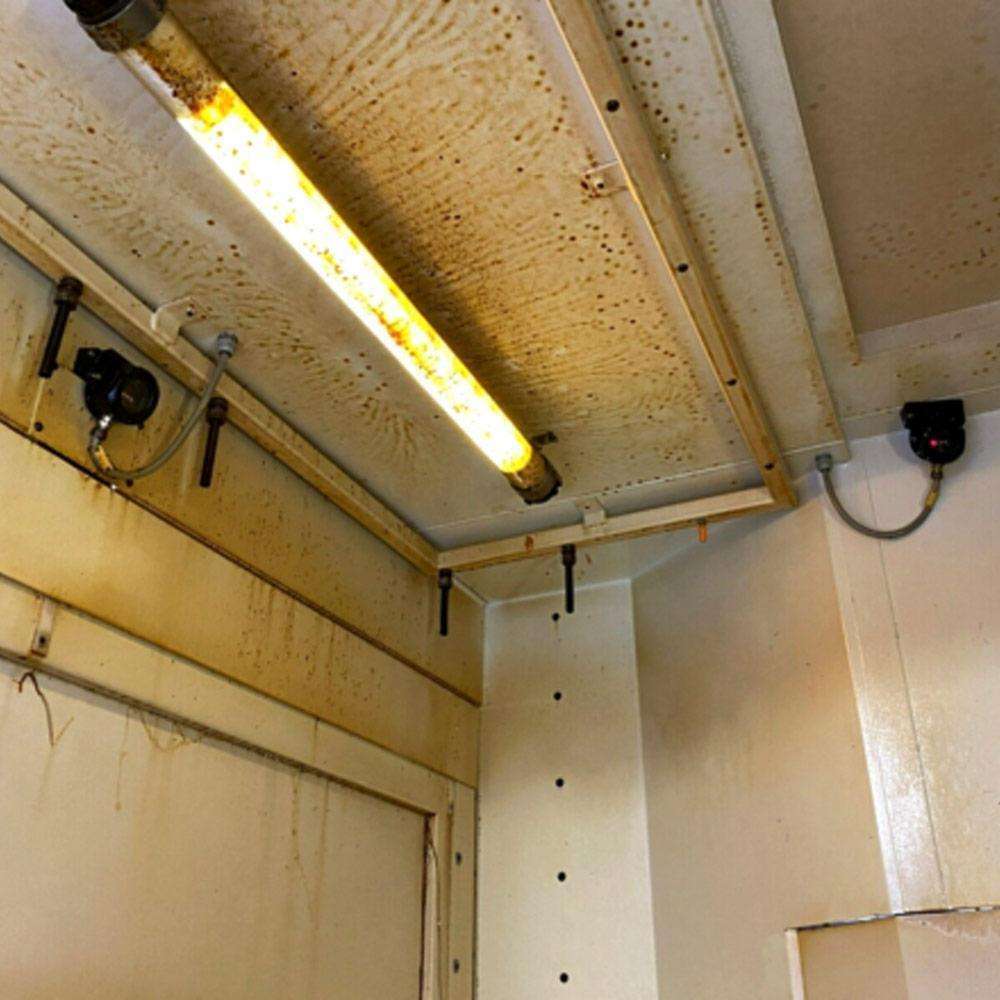

| Work light |
| Travels: |
|---|
| X Axis: 49.21″ |
| Y Axis: 34.64″ |
| Z Axis: 31.49″ |
| B Axis (Swivel Milling Head): +180° / -30 ° |

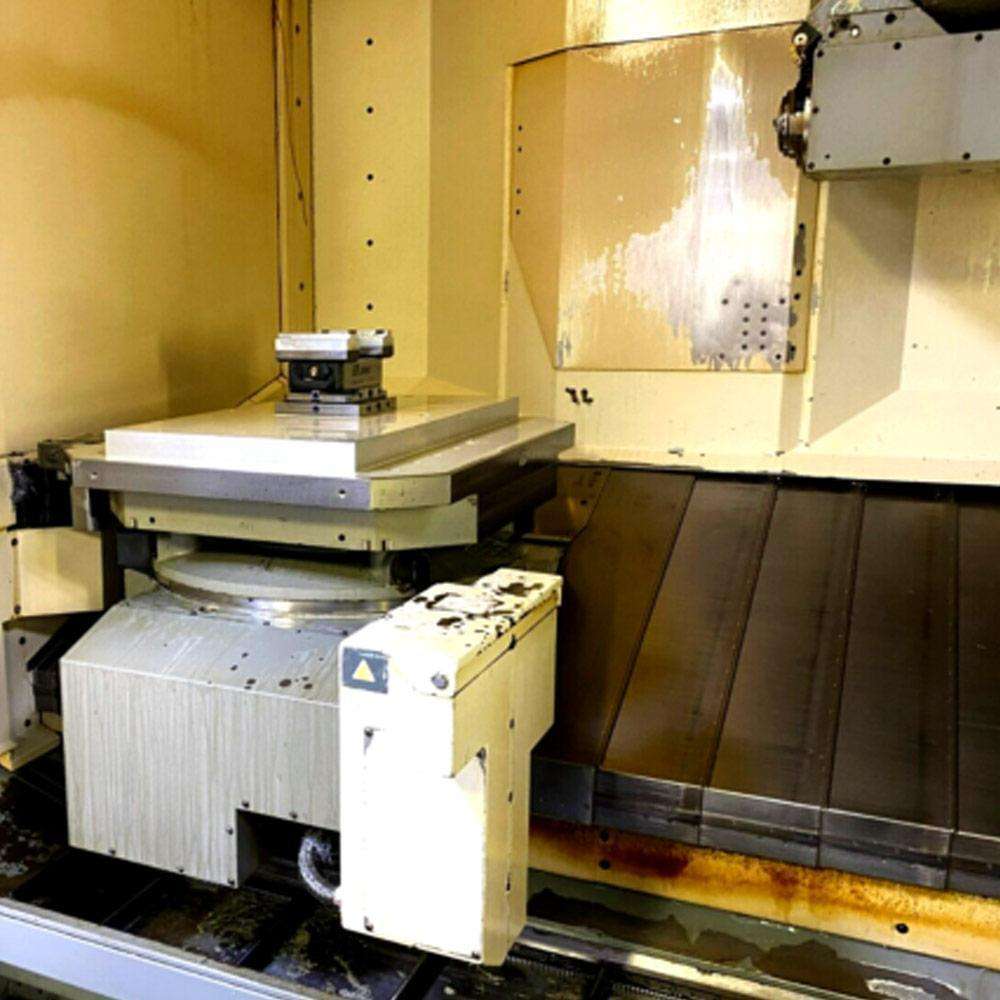

| C Axis (Table Rotation): 360° (0.001°) |

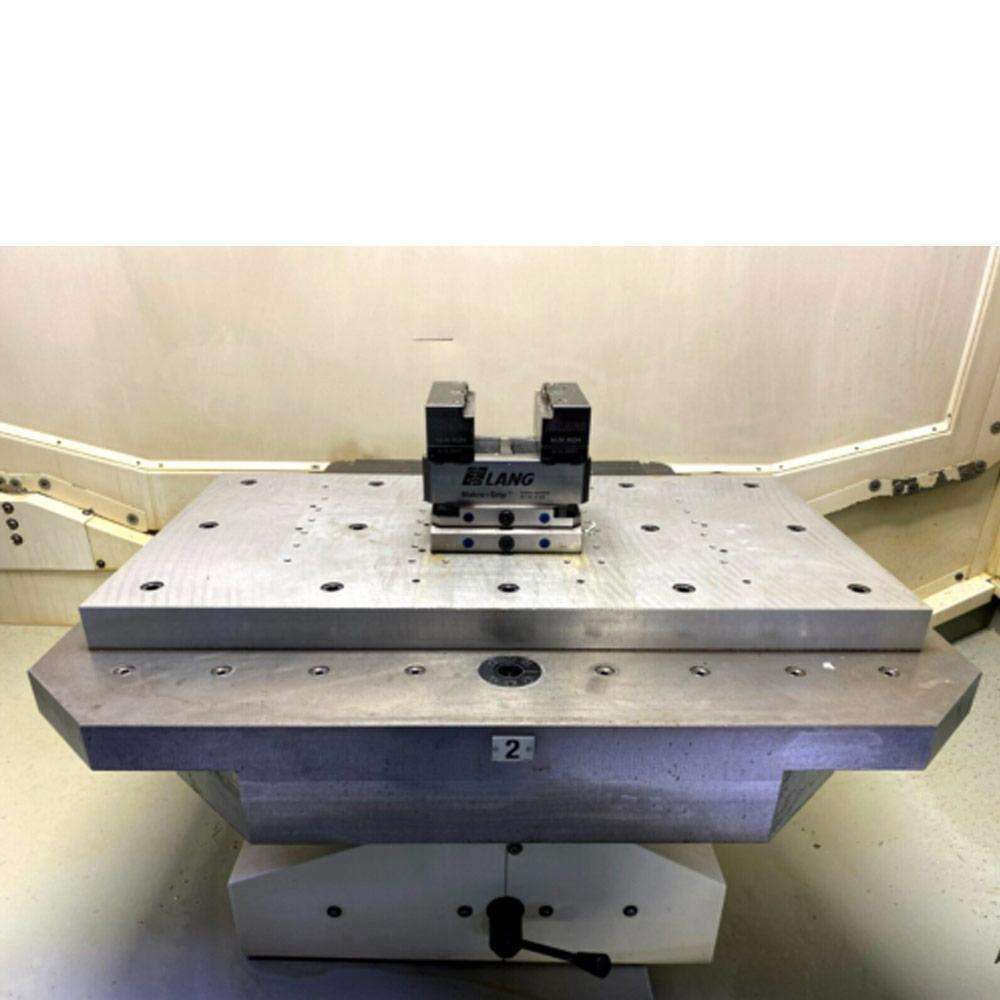

| Pallet: |
|---|
| No. of Pallets: 2 |
| Length: 39.37″ |
| Width: 31.49″ |
| Max Weight on Table: 3300 lbs |
| Max Workpiece Diameter: 43.3″ |
| Index Time: 13 seconds |
| Spindle: |
|---|
| Taper Size: CAT 40 |
| Max. Speed: 14000 RPM ? |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X Y & Z : 1574 Inch Per Minute |
| Cutting Feedrate: 590 Inch Per Minute |

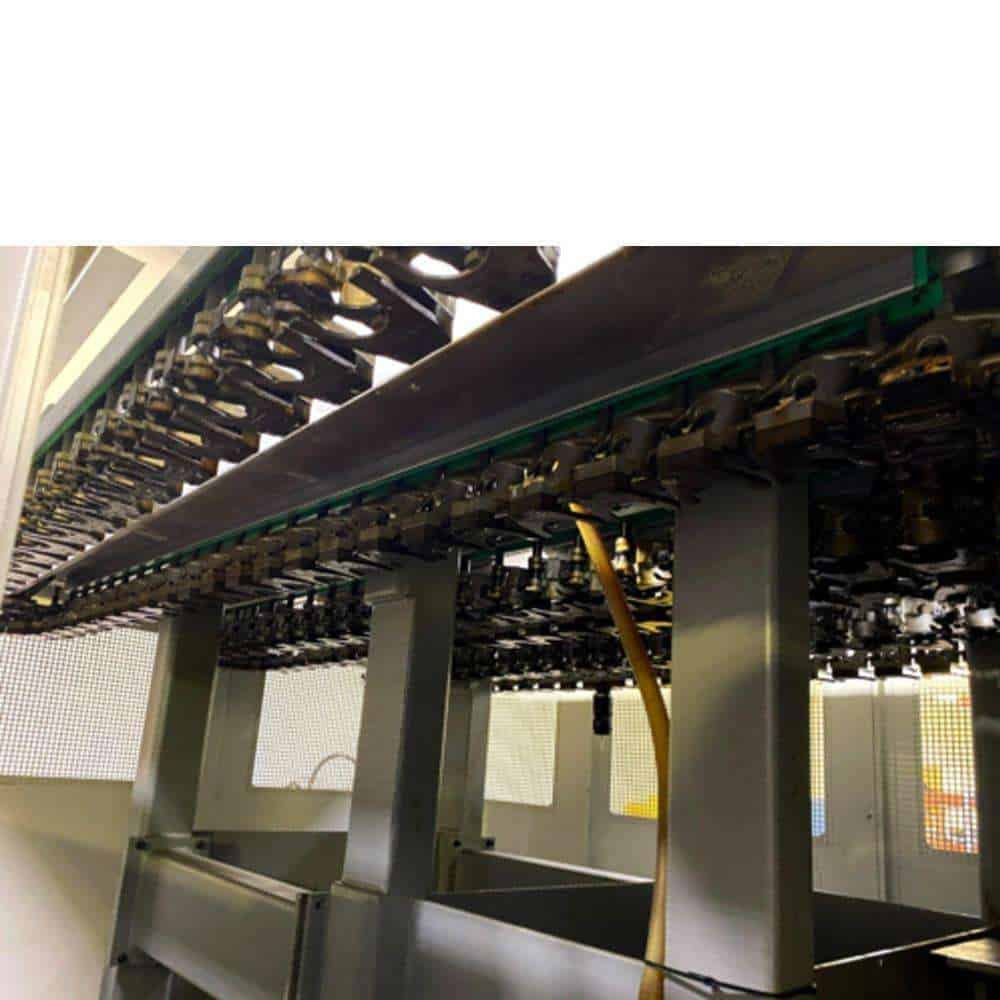

| Tool changer: |
|---|
| Capacity: 180 Station |
| Taper: CAT 40 |
| Max Tool Size: 4″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: Second |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

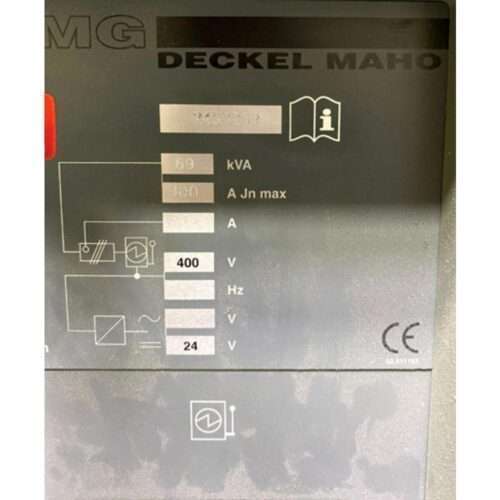

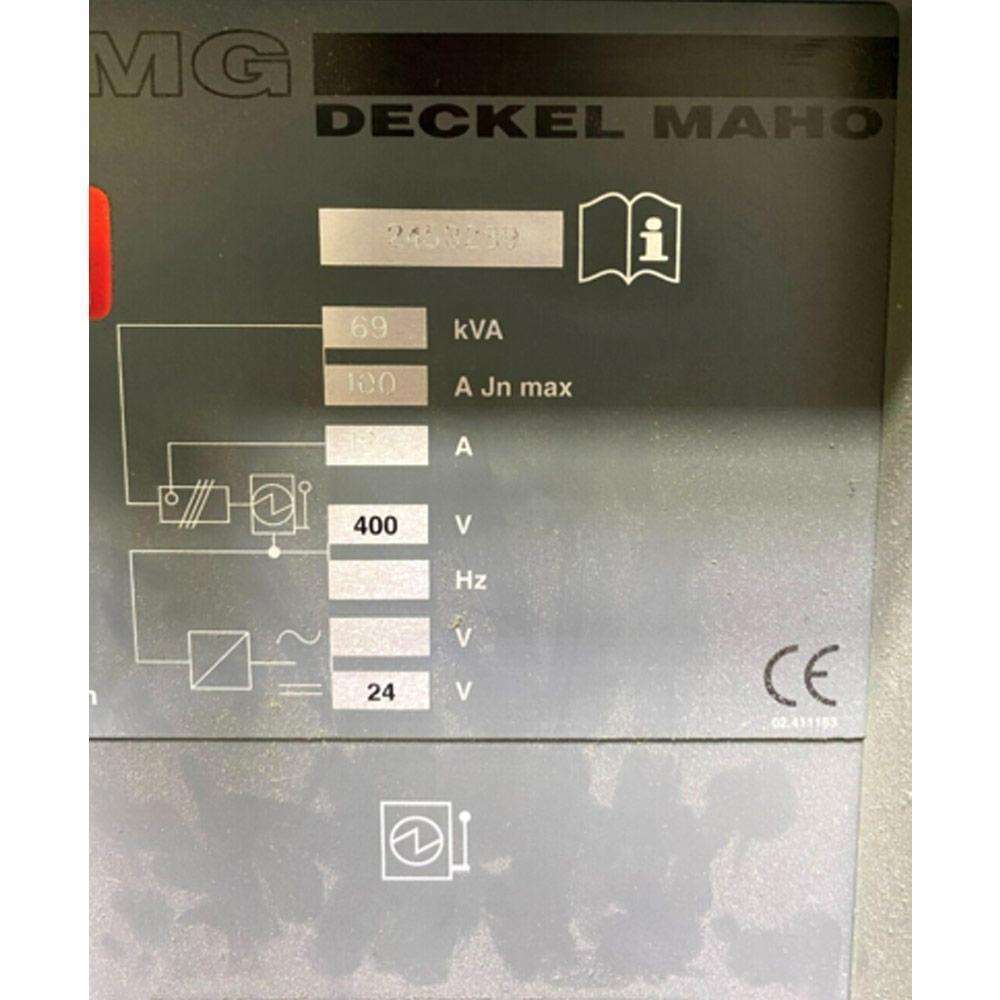

| Power: 69kva / 400v / 3-Phase |
| Shipping Dimension: 216″ X 177″ x 122″ High |
| Weight: 33000 lbs |
| “No Charges for loading at list Price” |
