*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

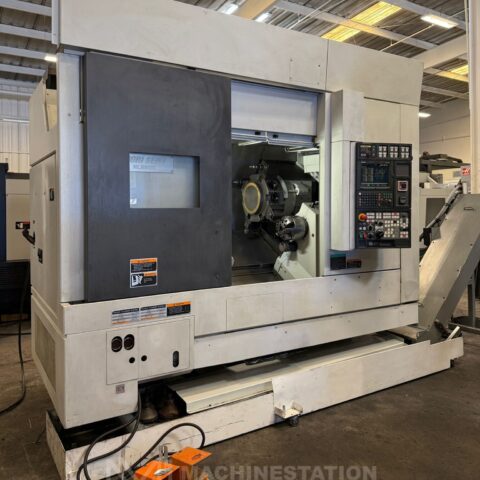

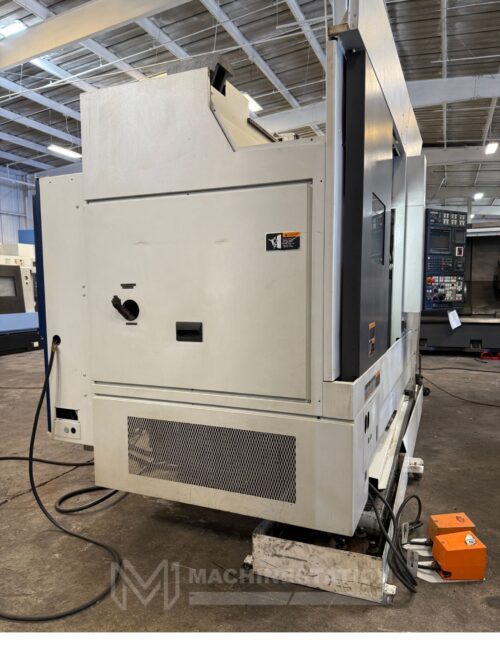

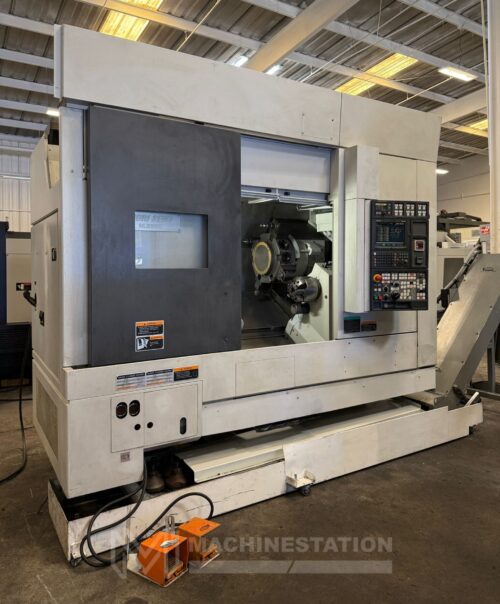

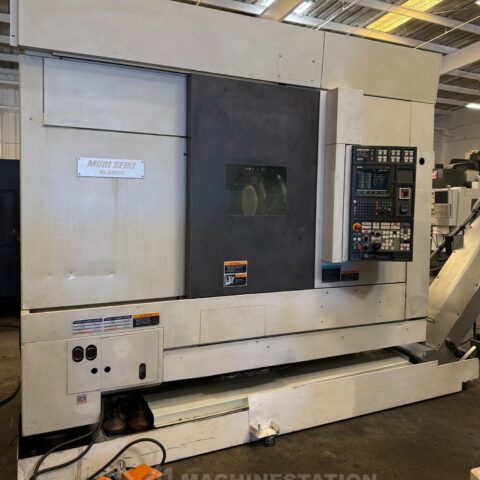

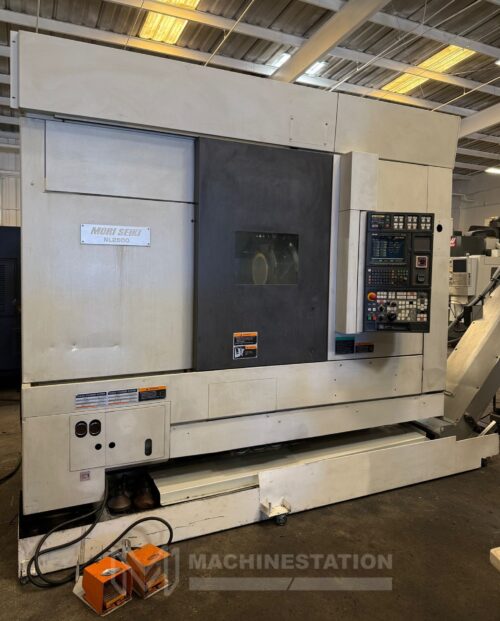

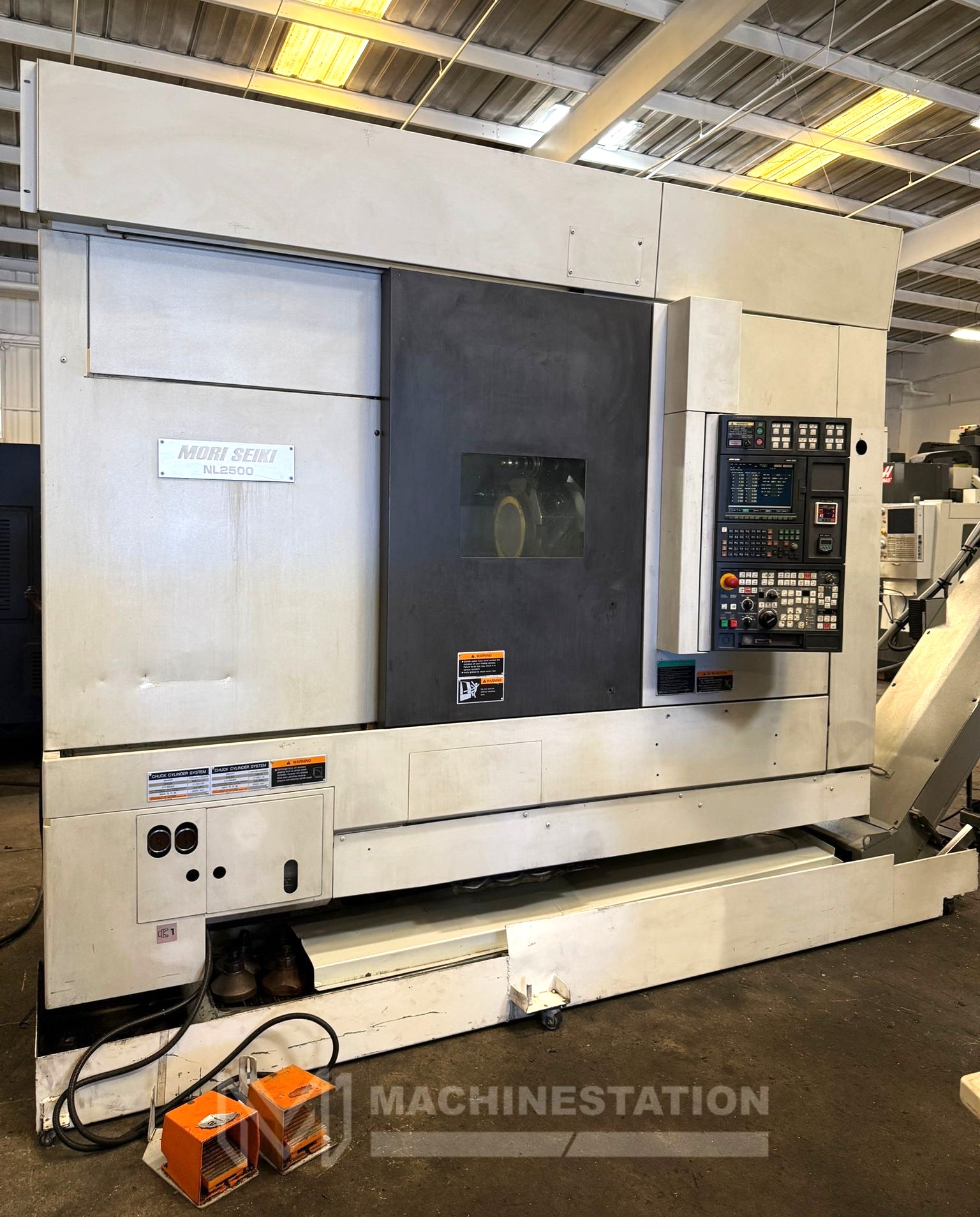

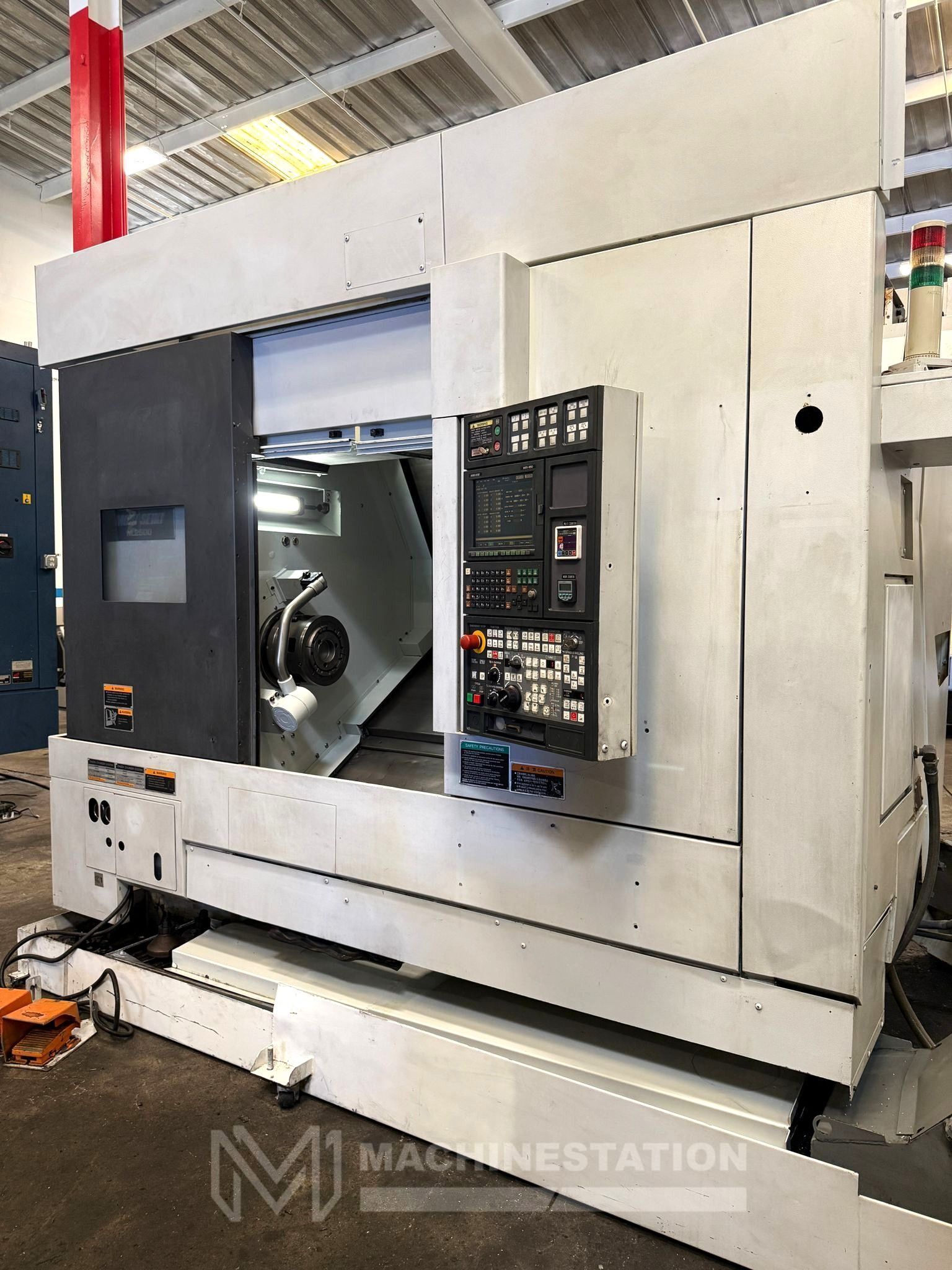

| Make: | Mori Seiki |
| Model: | NL2500SMC/700 |
| Year: | 2005 |
| Equipped With: |
|---|

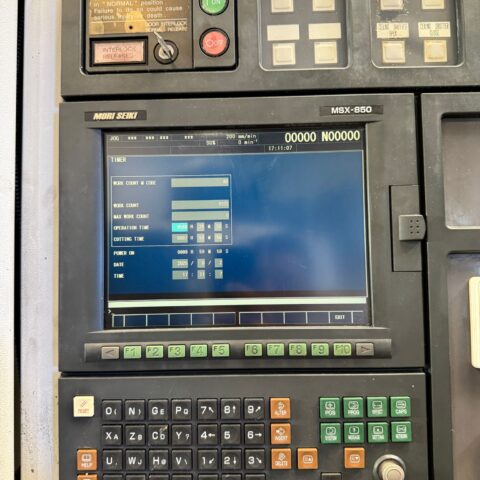

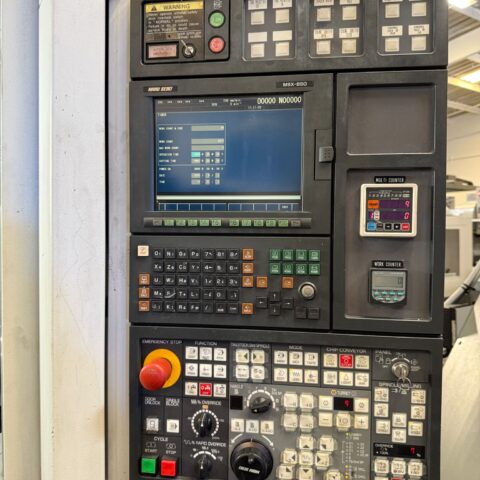

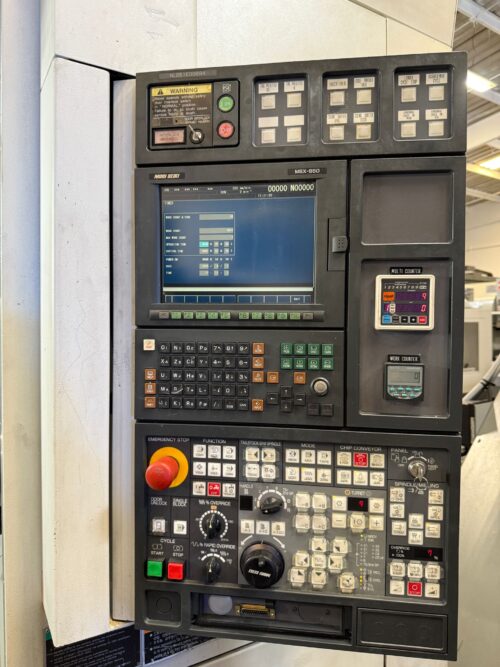

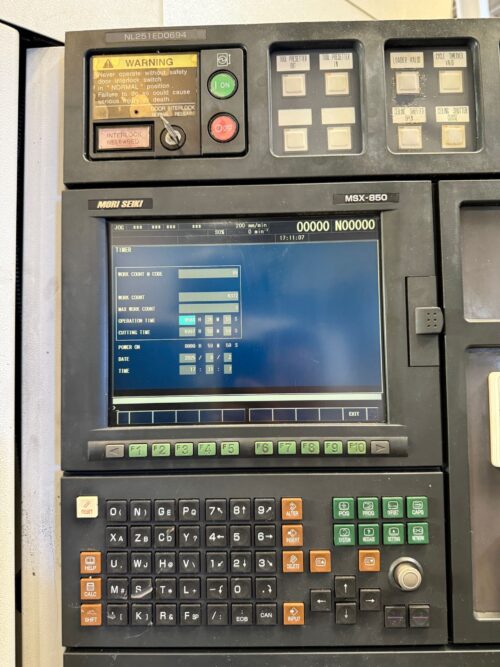

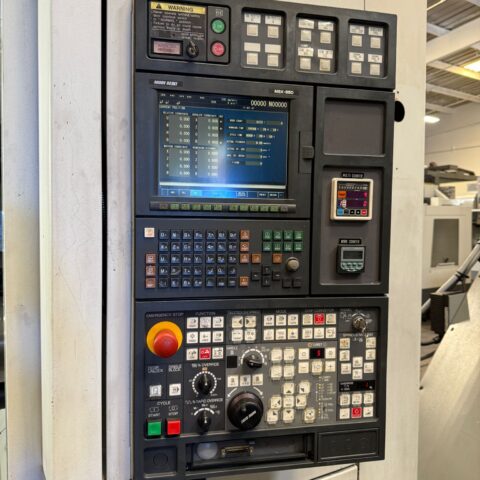

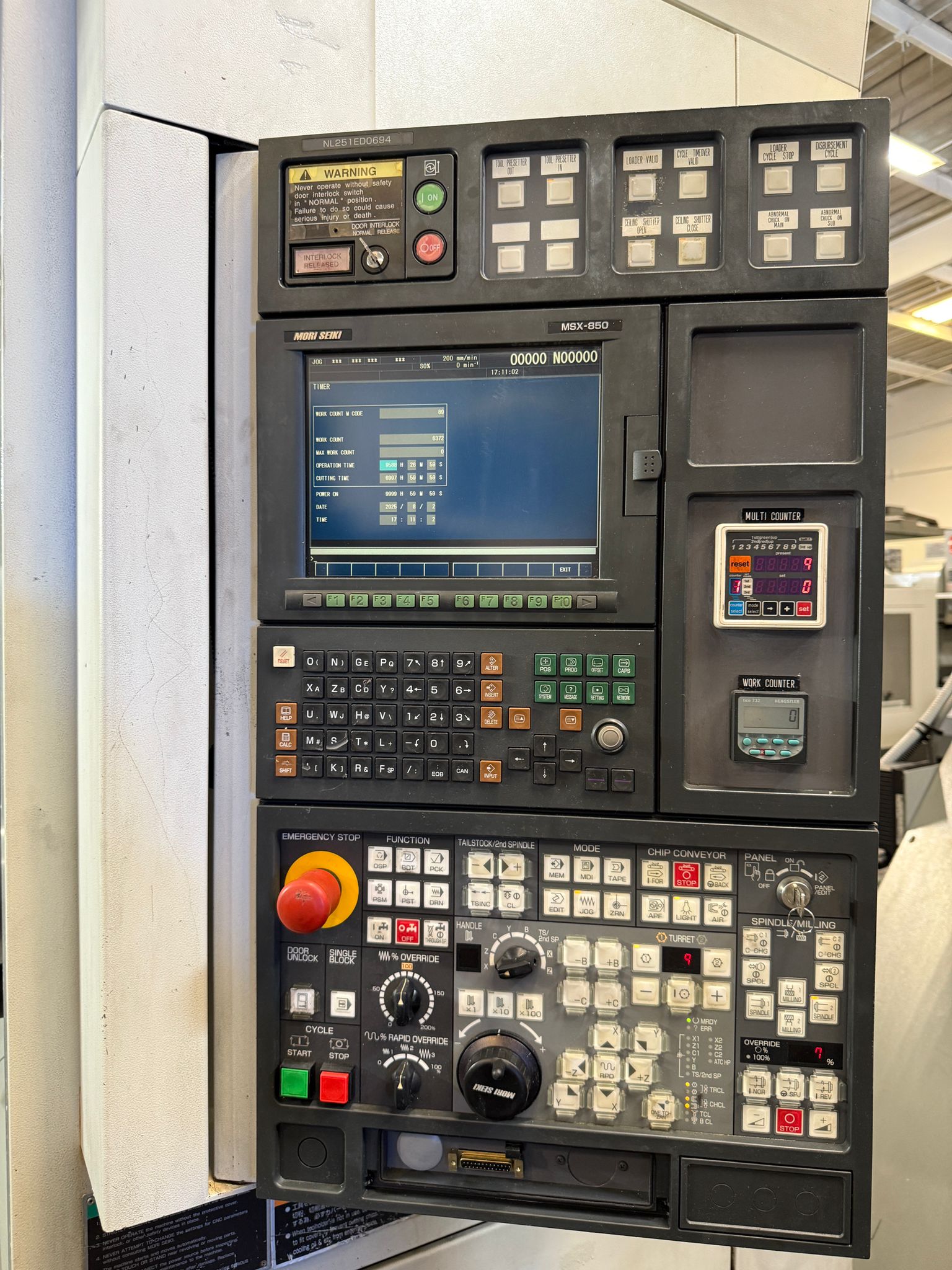

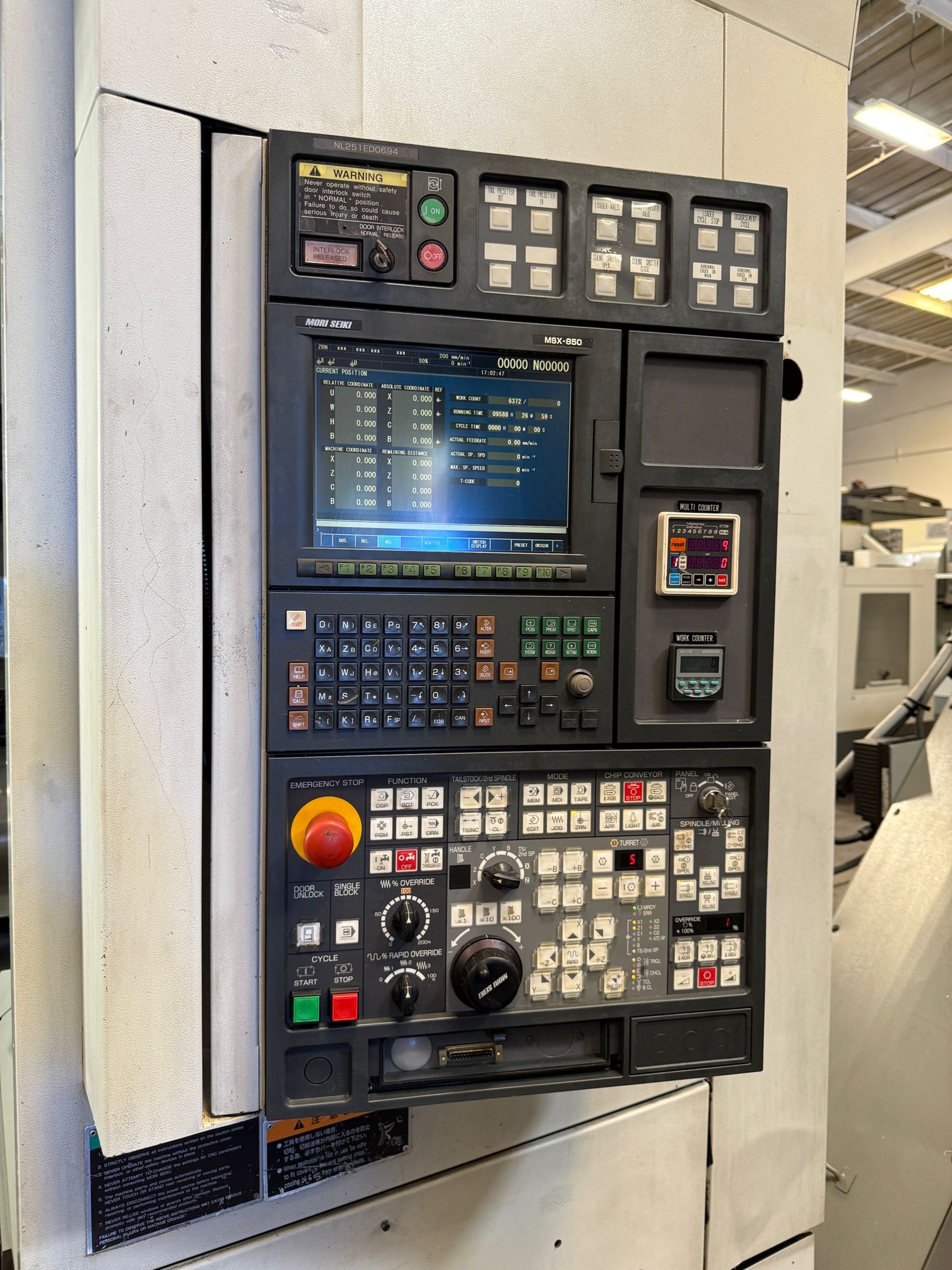

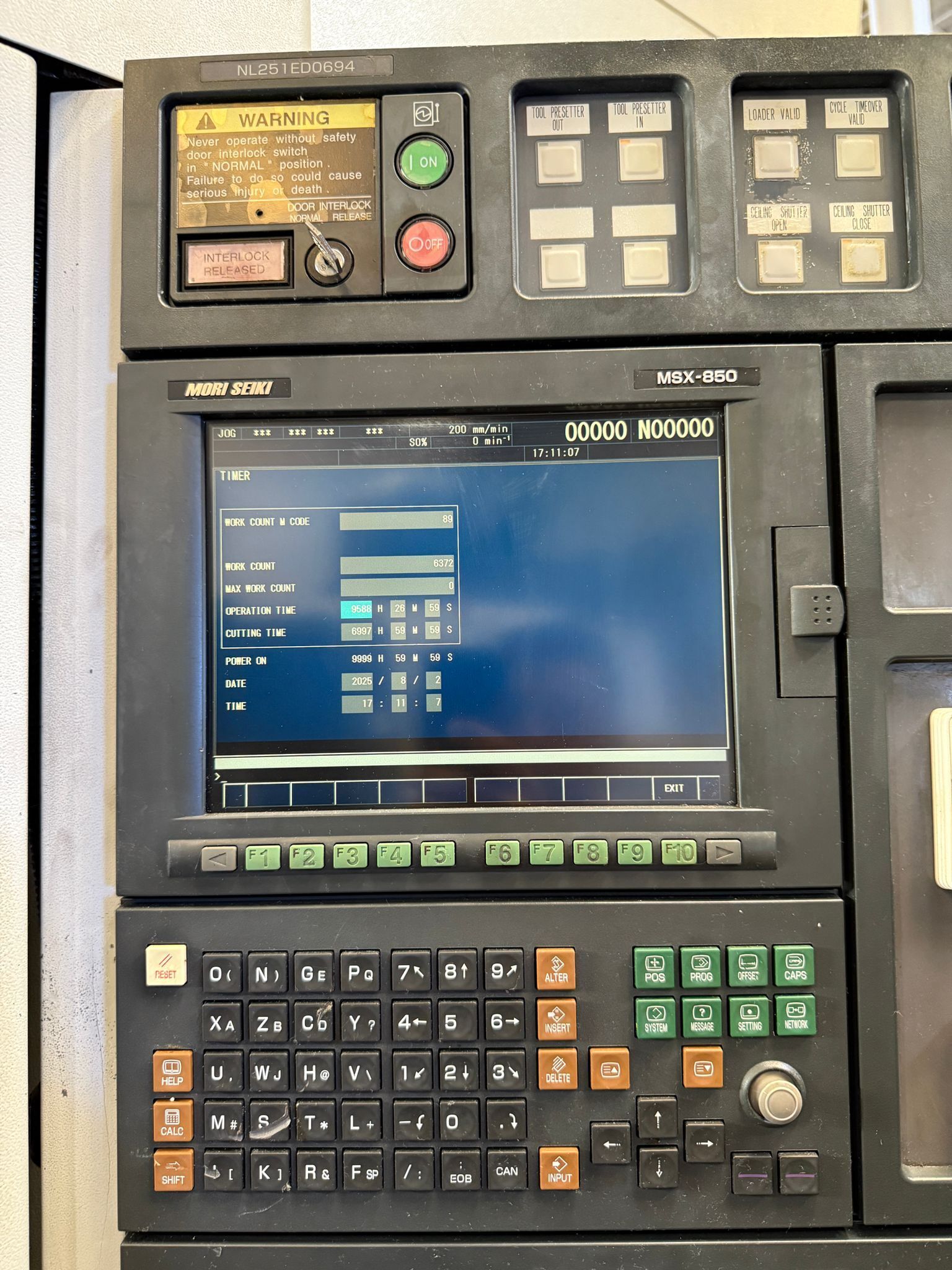

| Mori Seiki MSX-850 CNC Control |

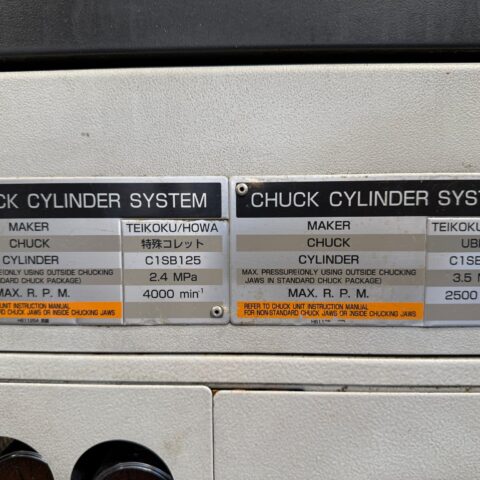

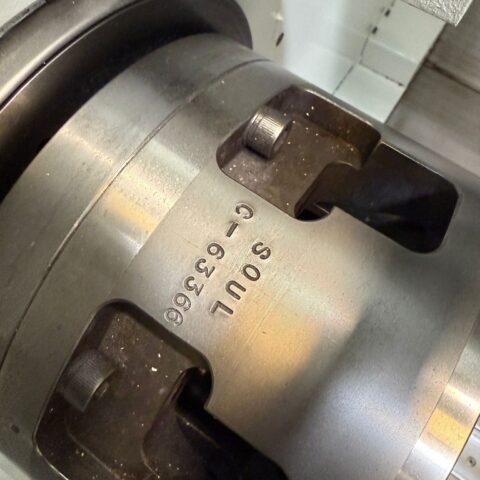

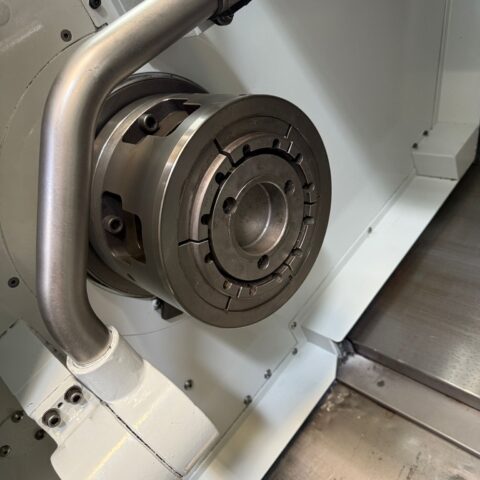

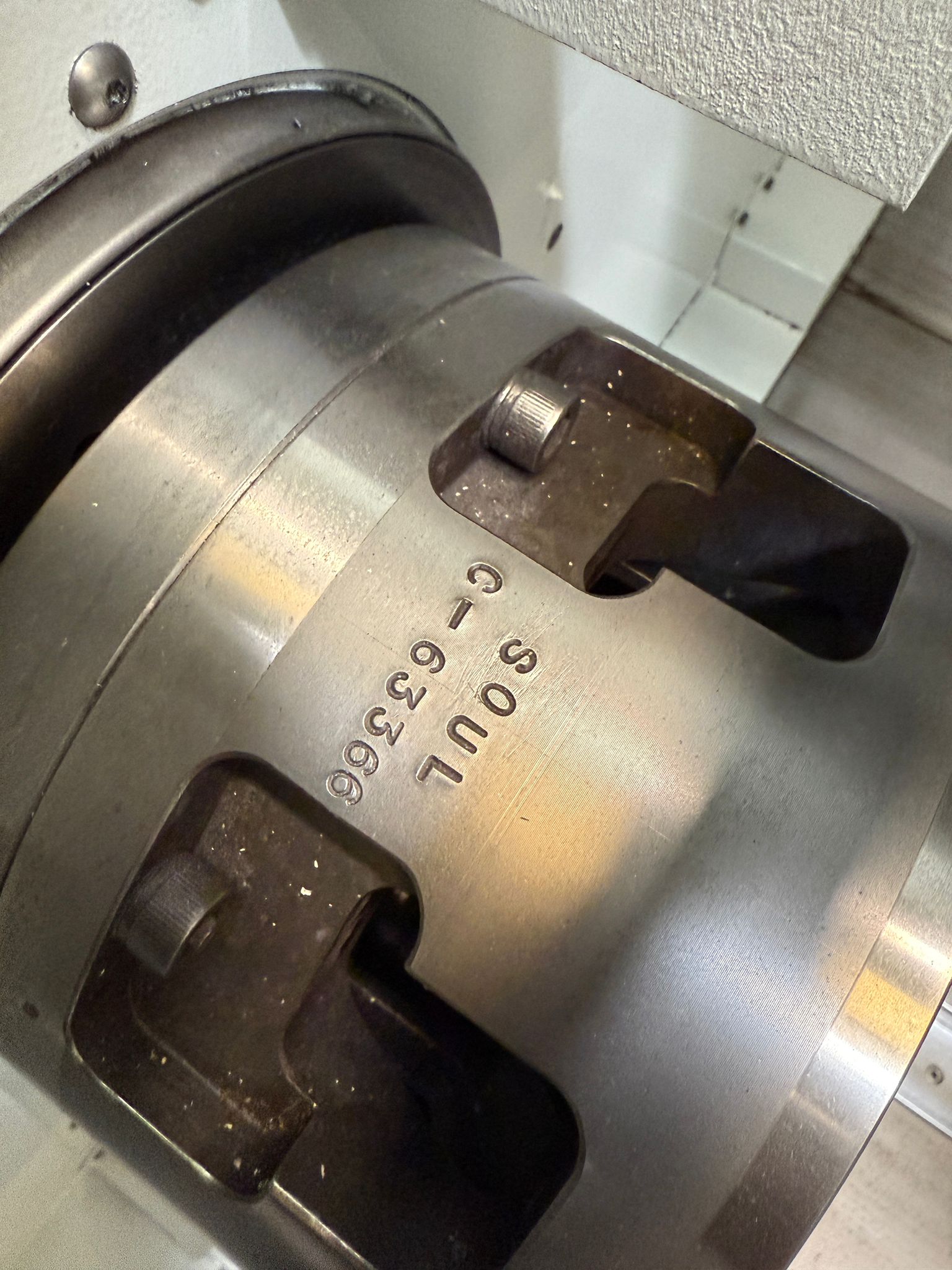

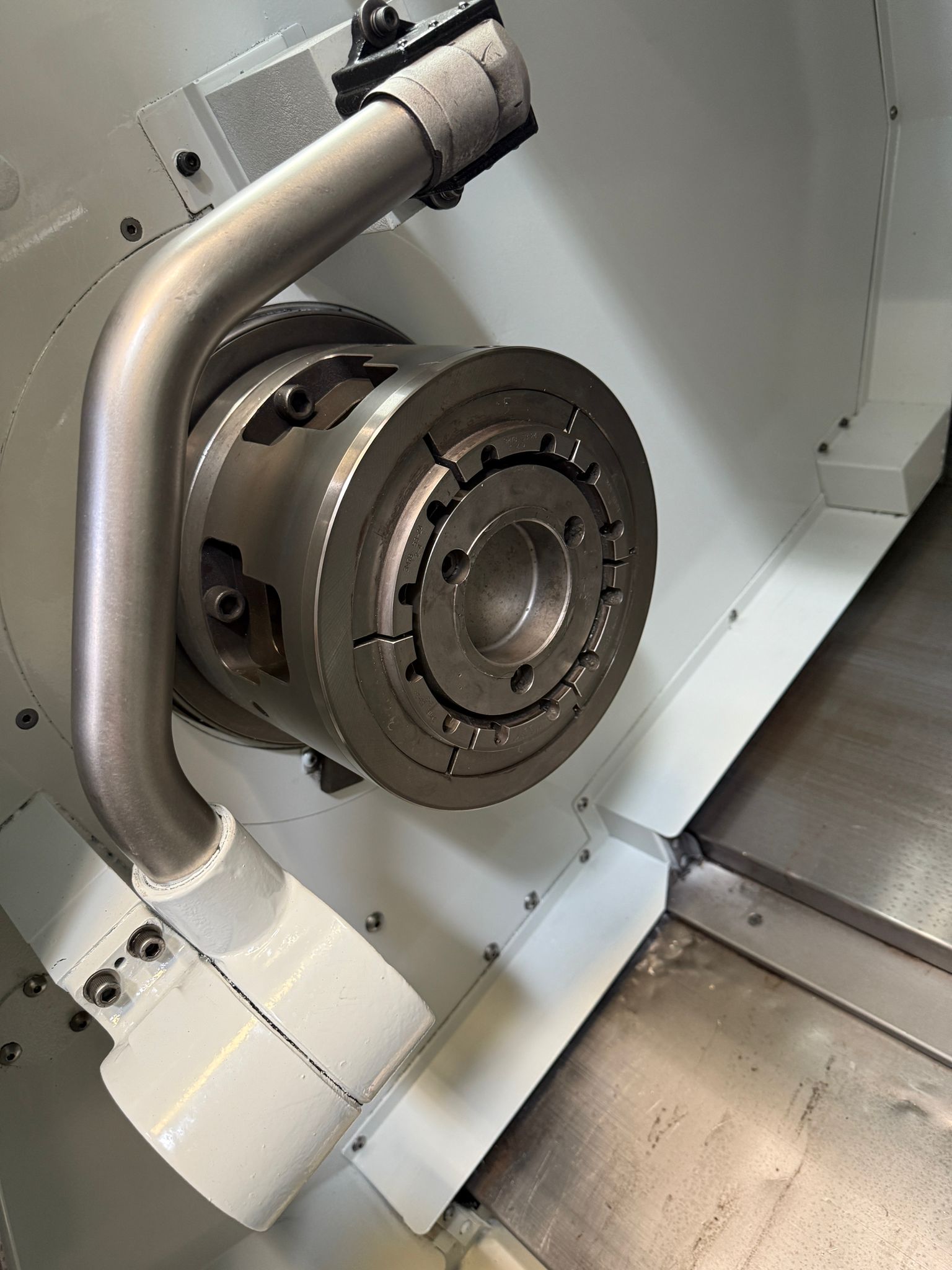

| Soul C-63366 Collet Chuck on Main Spindle (Capable 10″ Chuck) |

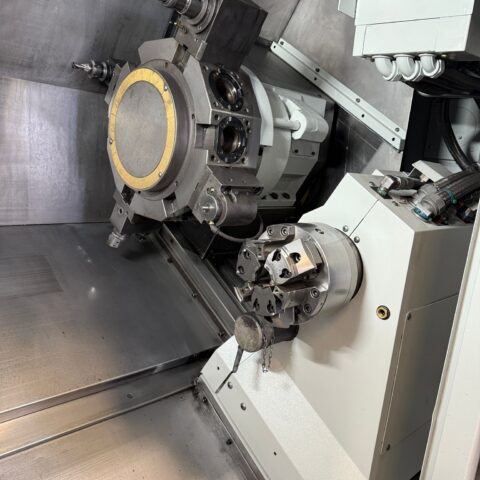

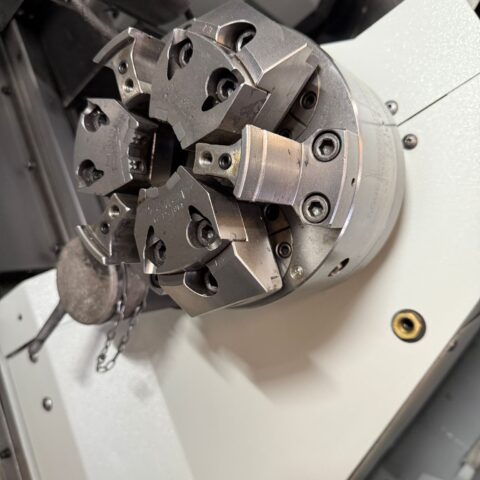

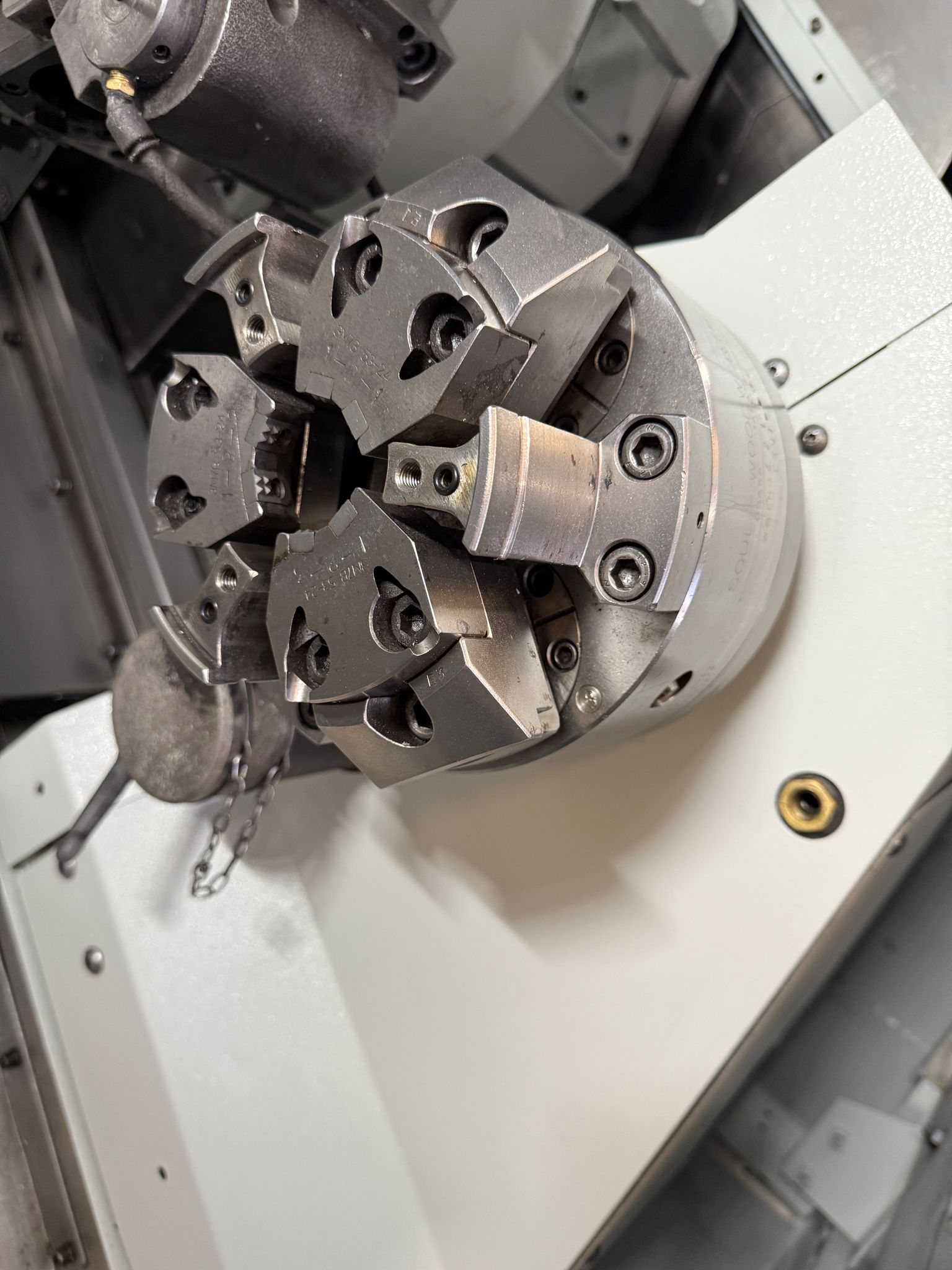

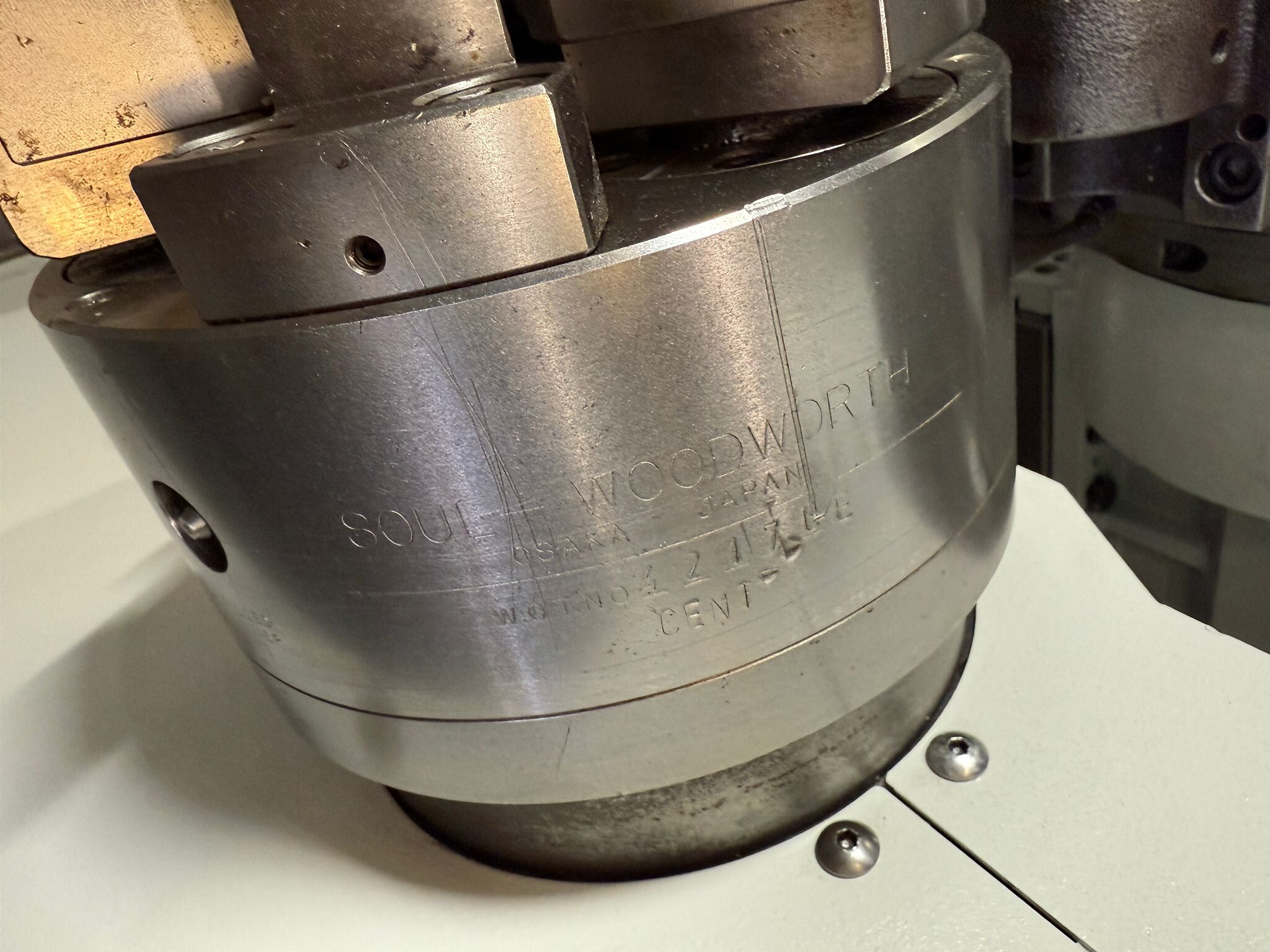

| Soul Woodworth UBL-8 6-Jaw Chuck on Sub Spindle |
| C Axis Capable |

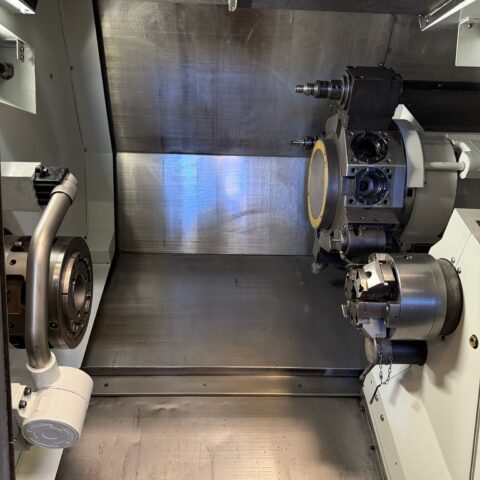

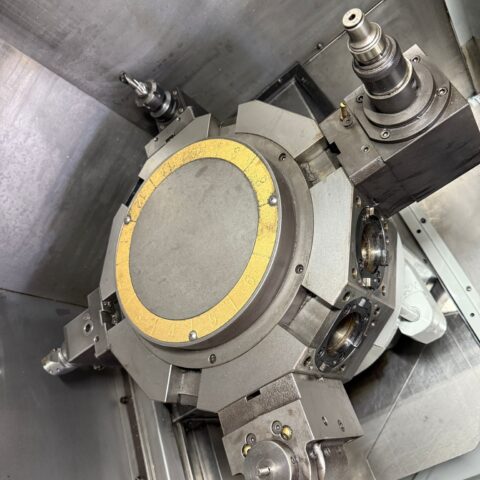

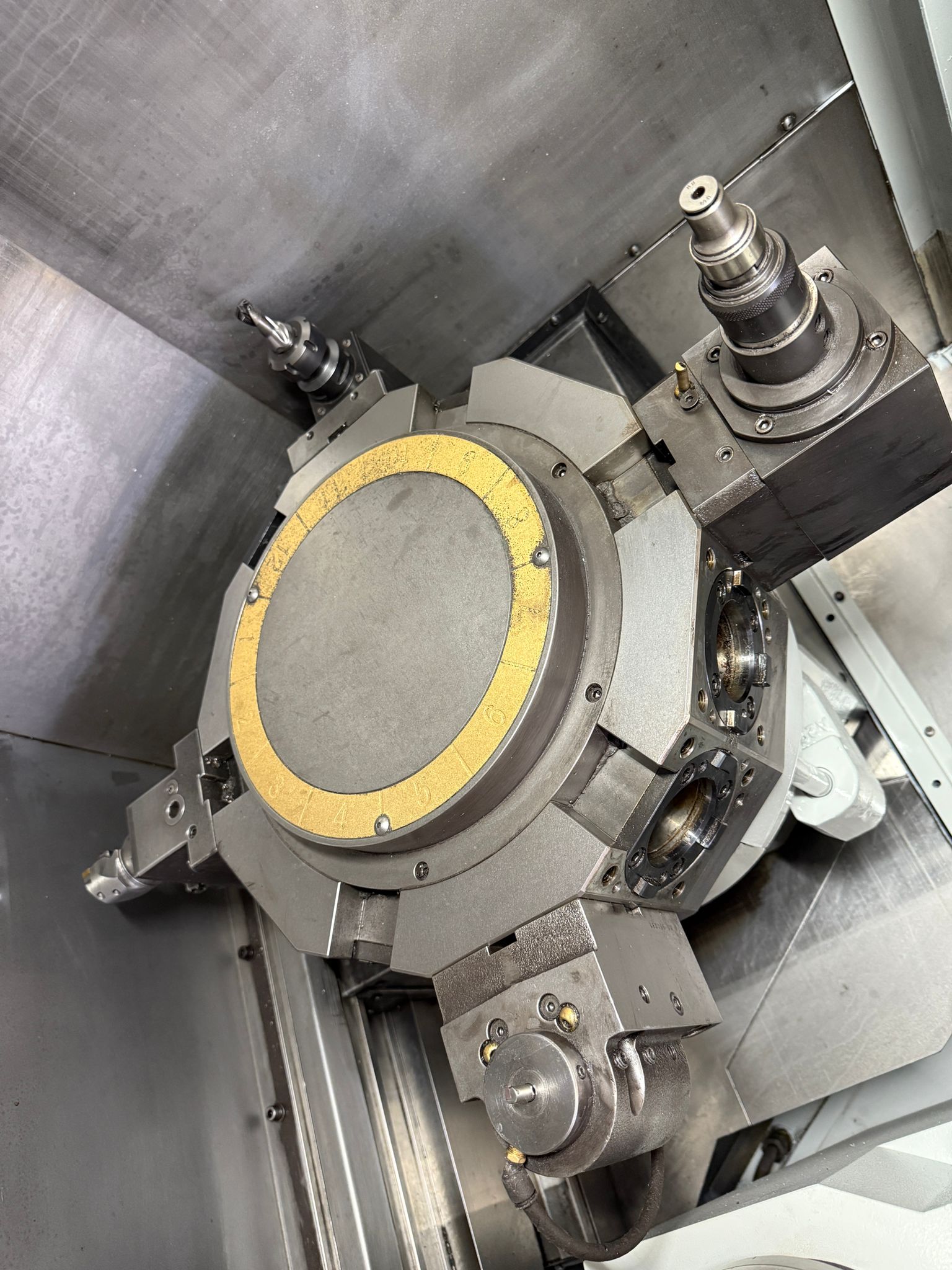

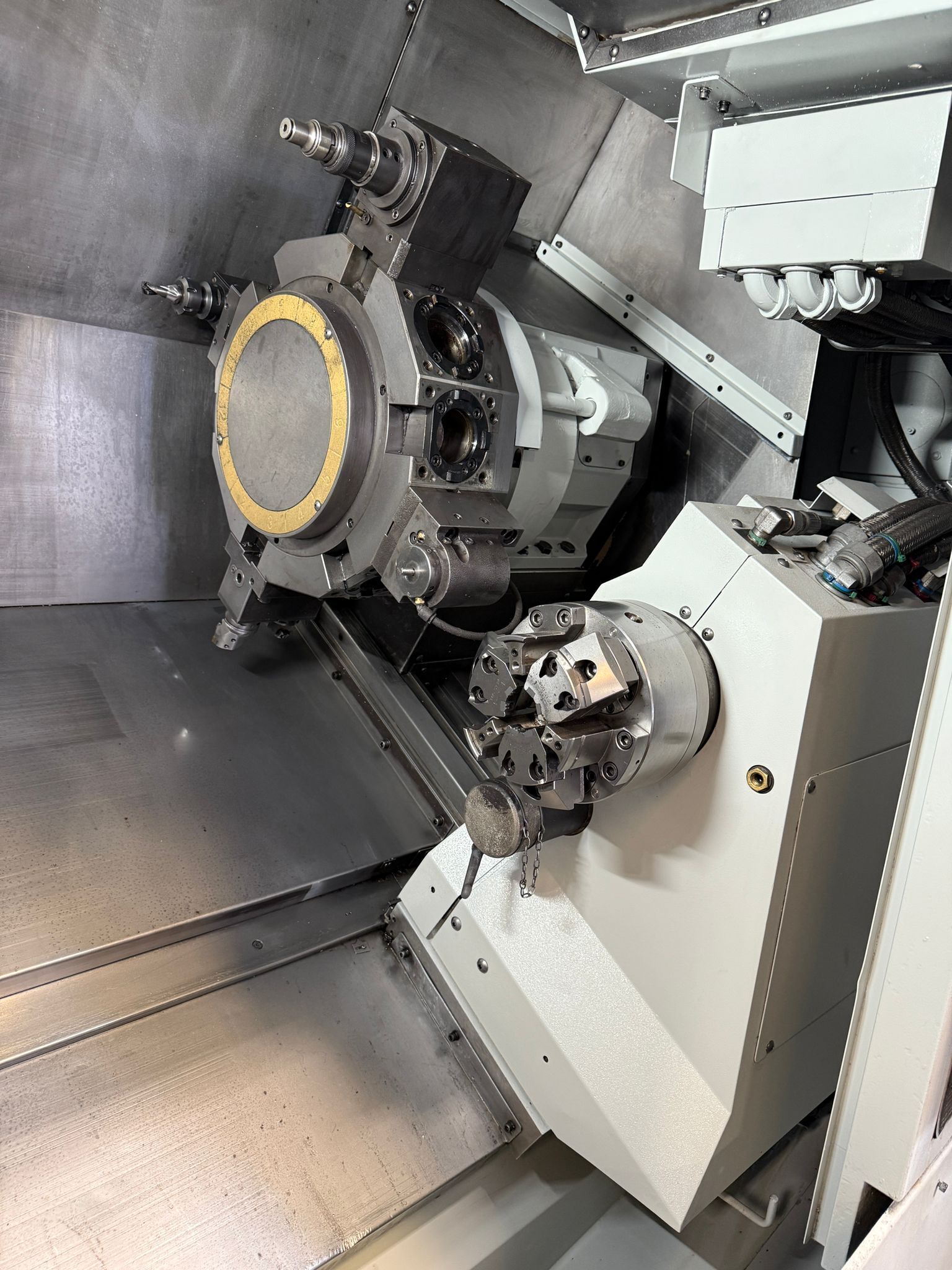

| 12 Station High Speed Live Tool Turret |
| 25 HP Spindle Power |
| Tool Presetter |
| PCMCIA Card Slot |
| Rigid Tapping |
| Coolant System |

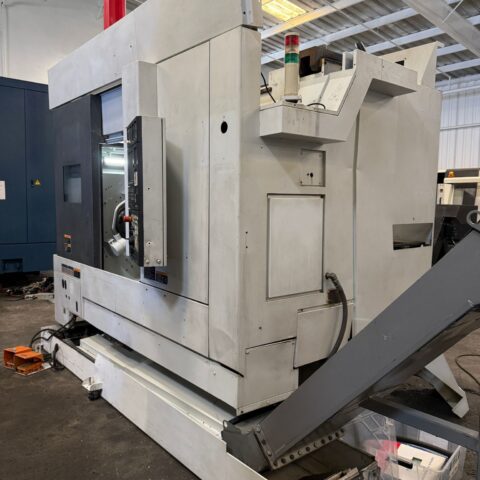

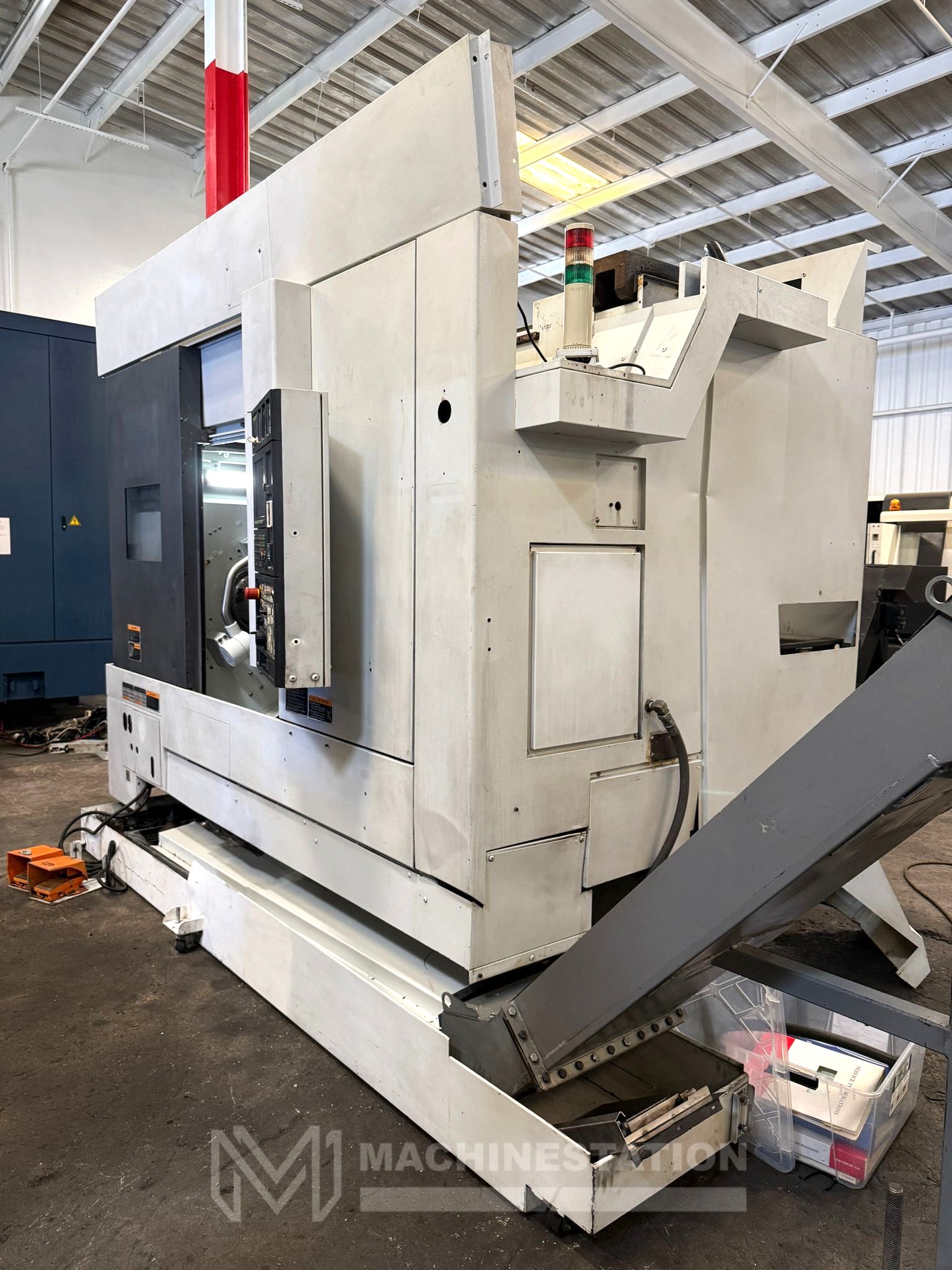

| Chip Conveyor |
| Foot Switches |
| Books & Manuals |
| Levelling Pads |

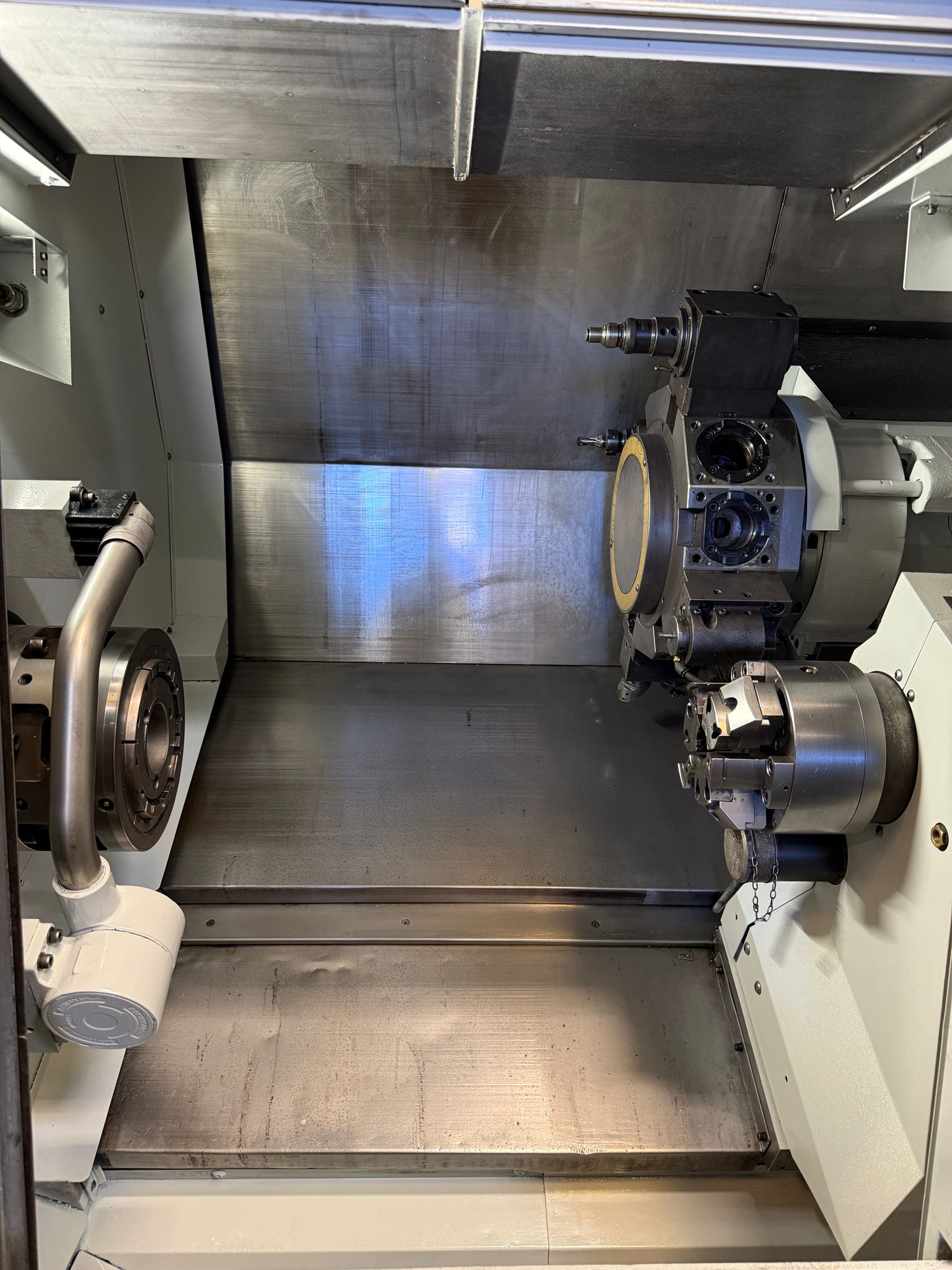

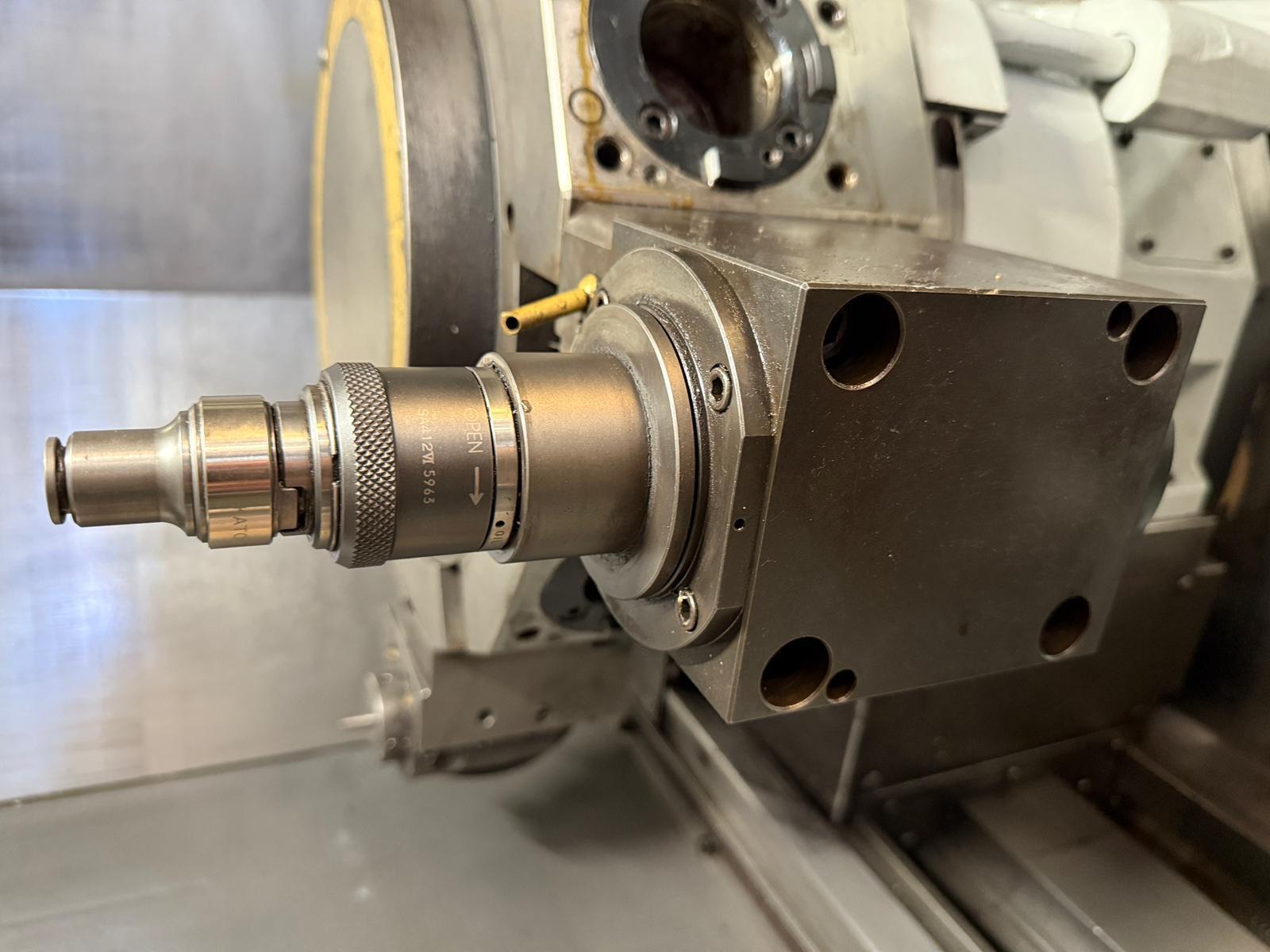

| Live & Statics Tool Holders (Mounted on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.0″ |
| Max Turning Length: 27.7″ |
| Swing Over Cross Slide: 29.7″ |
| Max Bar Capacity: 3.1″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.2″ |
| B Axis Travel (Sub Spindle): 28.9″ |
| C Axis (Both Spindles): 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.6″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 1.7″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Rotary Tool Speed: 6000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Turret Type: BMT |
| General: |
|---|

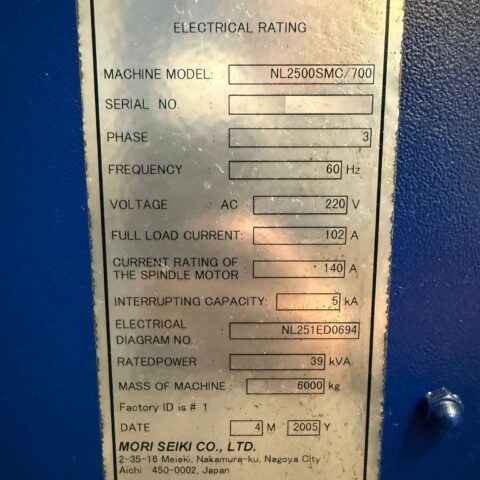

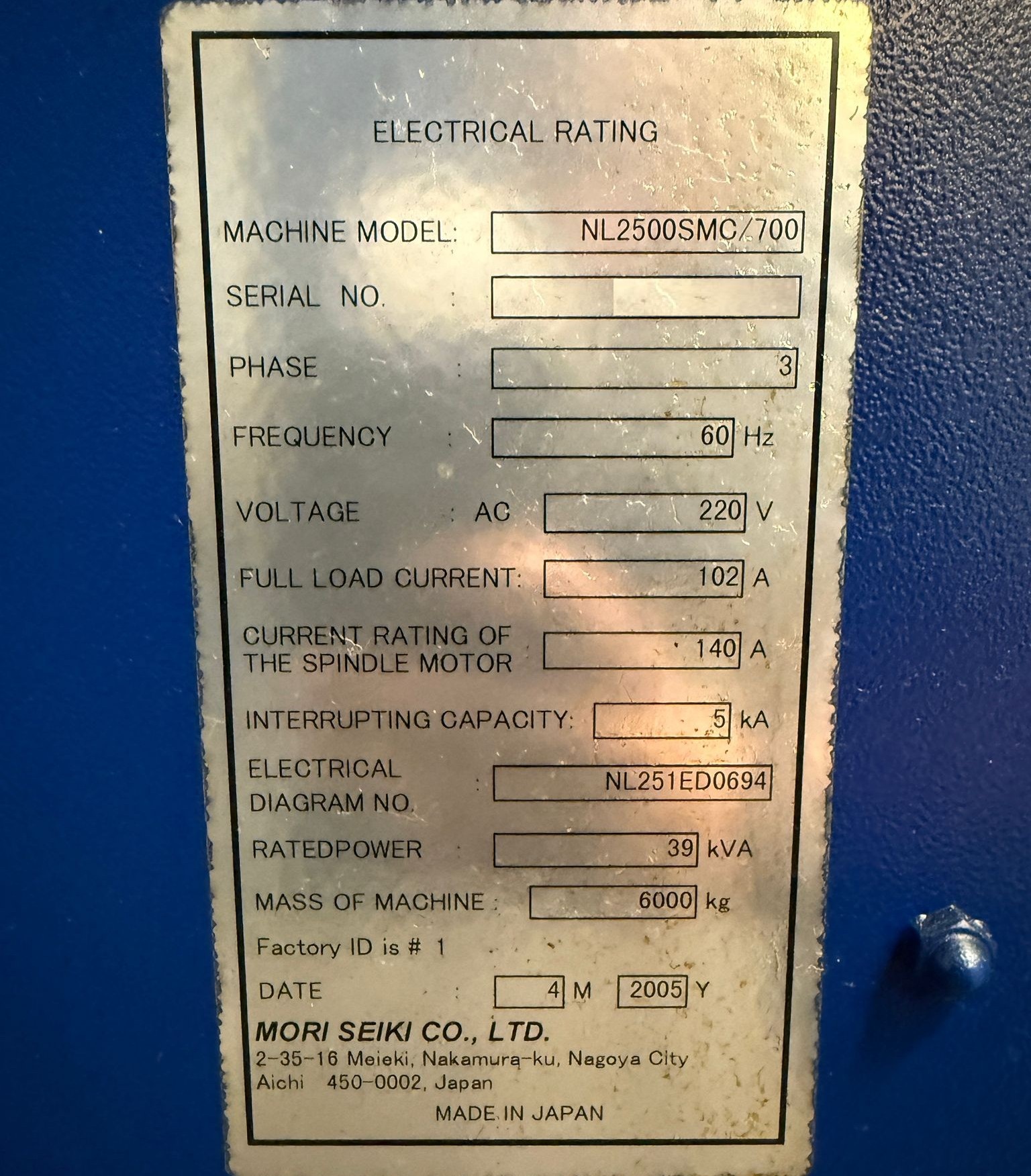

| Power Source: AC 220 V Three Phase 60 Hz |
| Power Requirement: 39 kva |
| Overall Dimensions: 122″ x 78.7 ″ x 83.5″ High |
| Weight : 13,200 lbs Approx. |
