*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

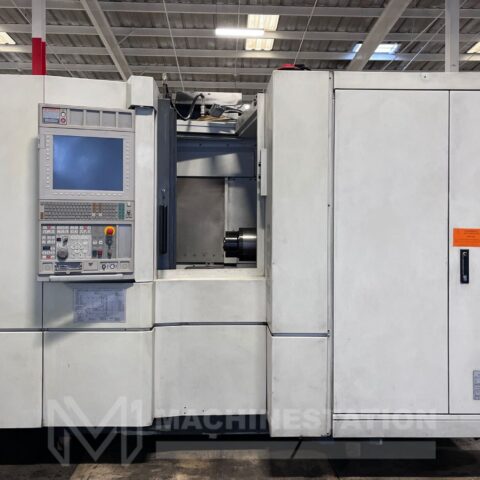

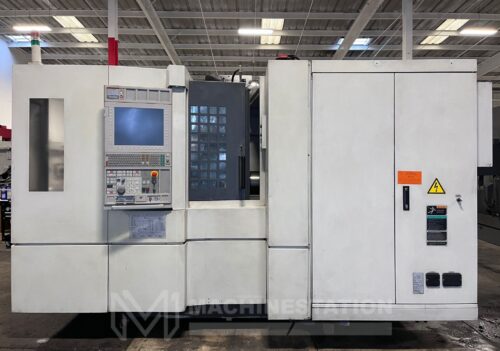

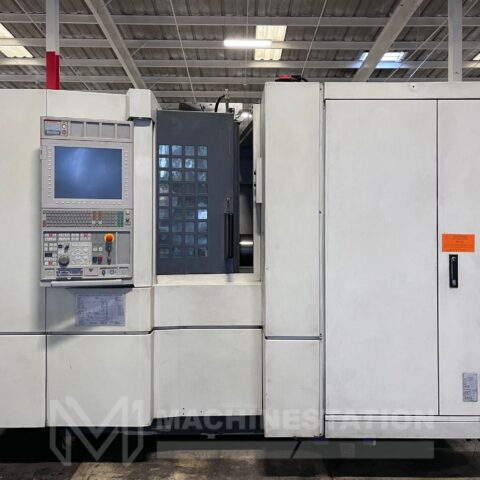

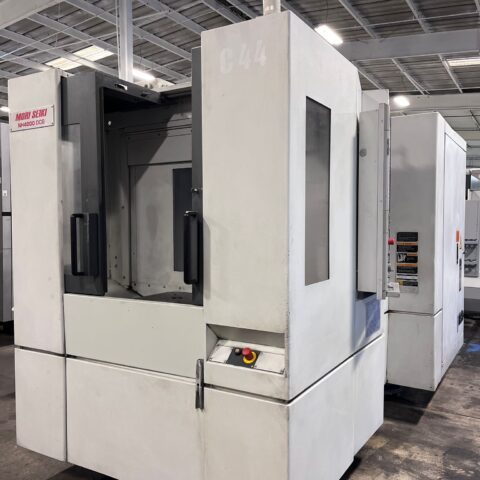

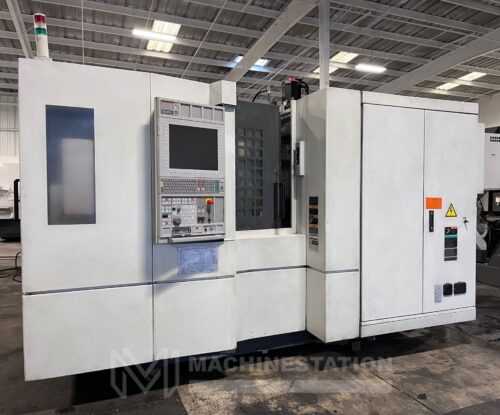

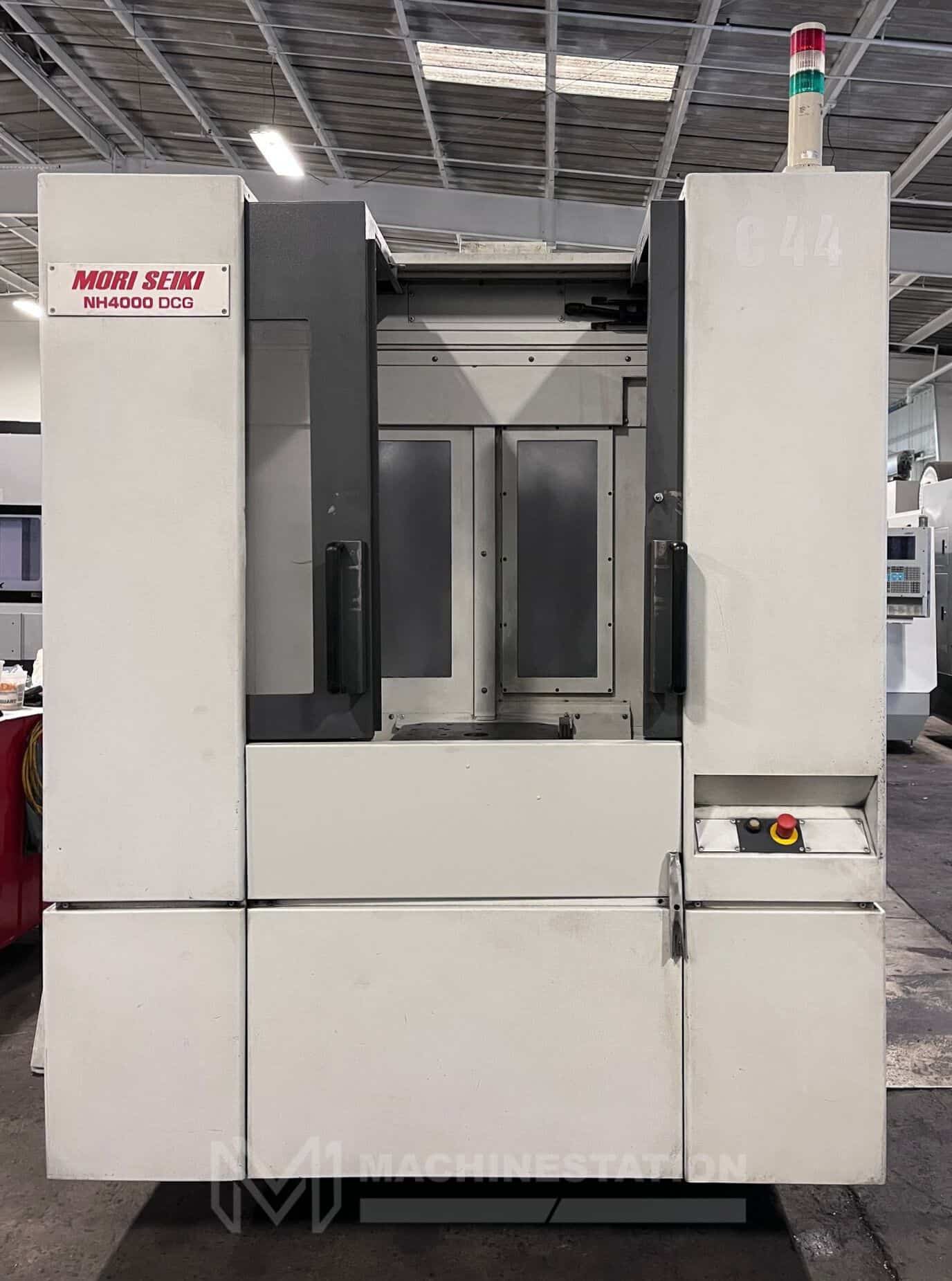

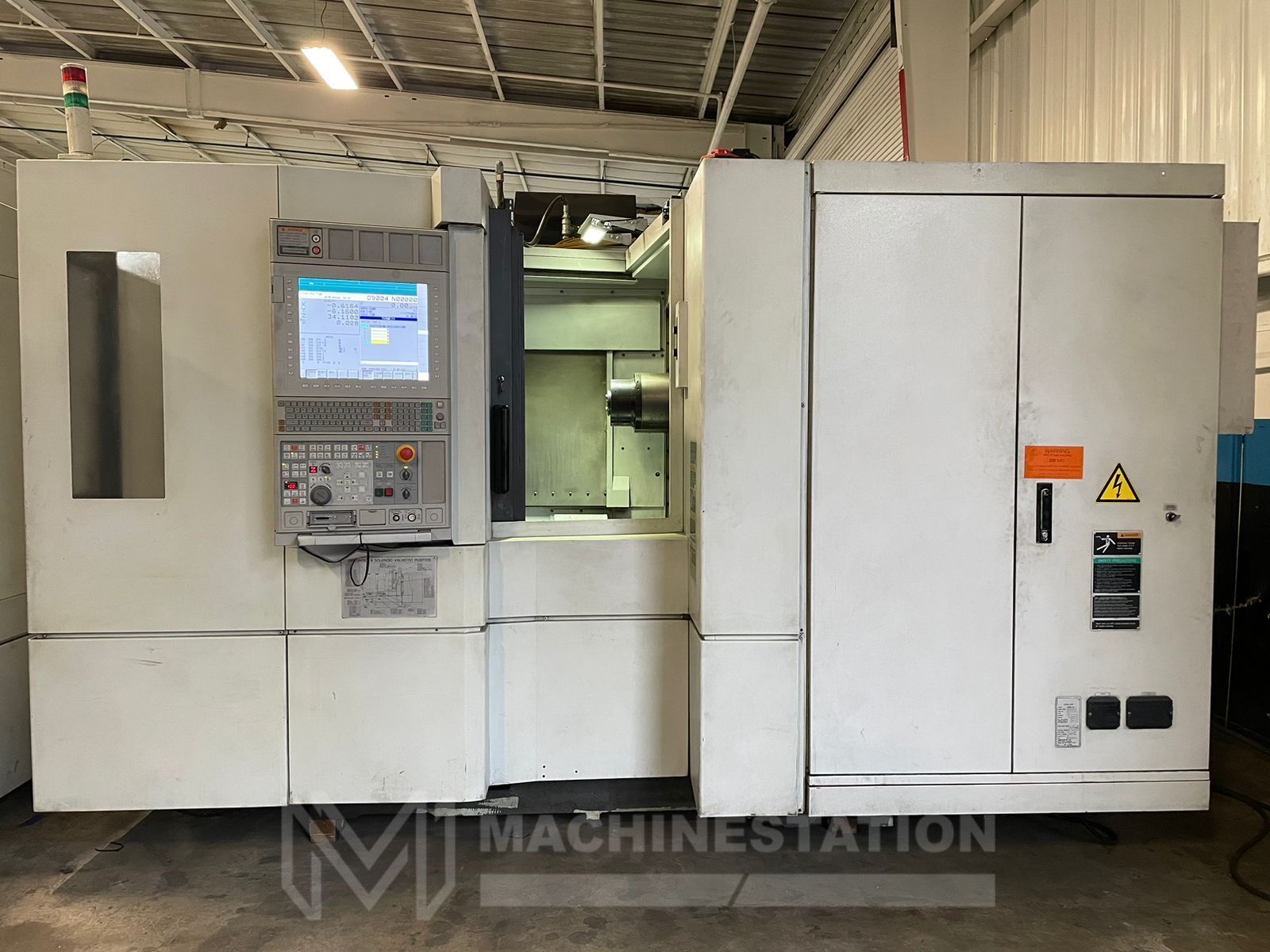

| Make: | DMG Mori Seiki |
| Model: | NH4000 DCG |
| Year: | 2011 |
| Features: |
|---|

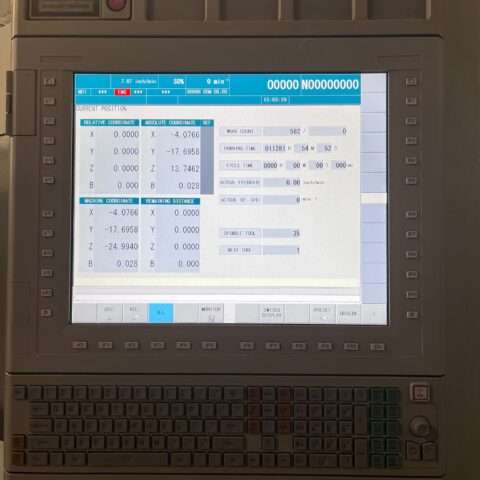

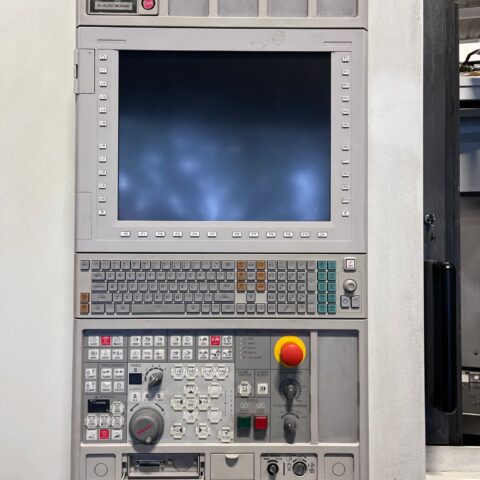

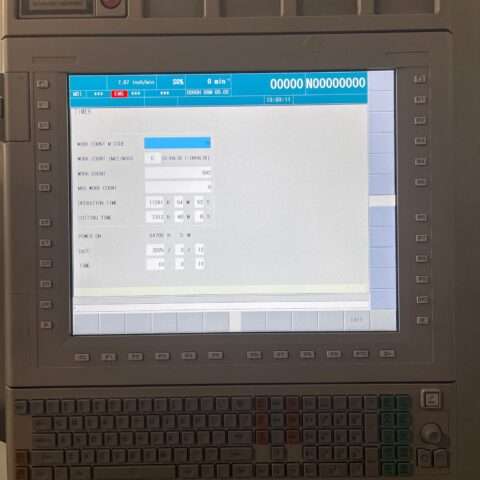

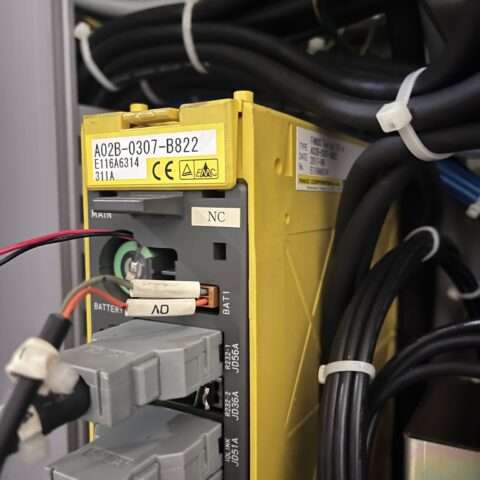

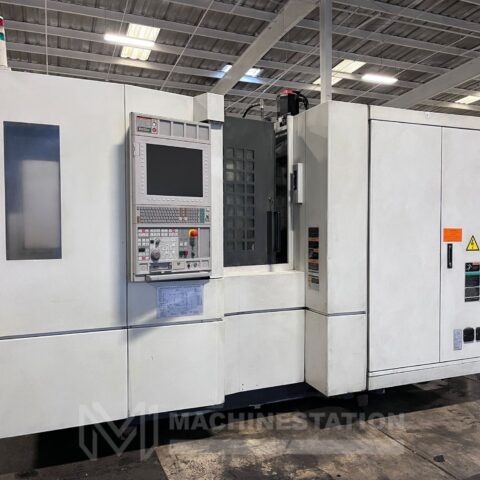

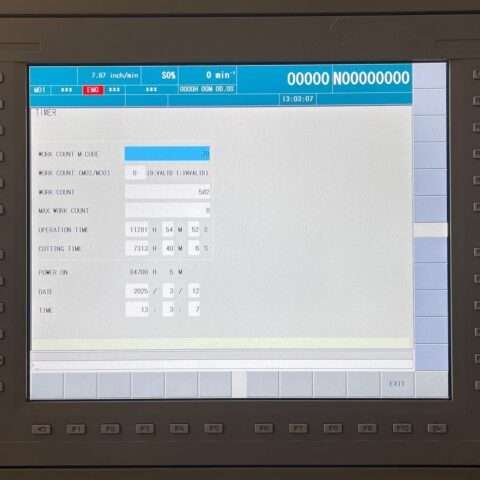

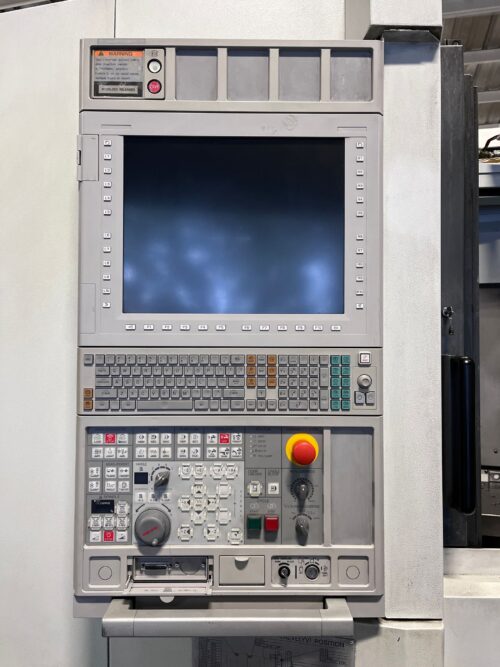

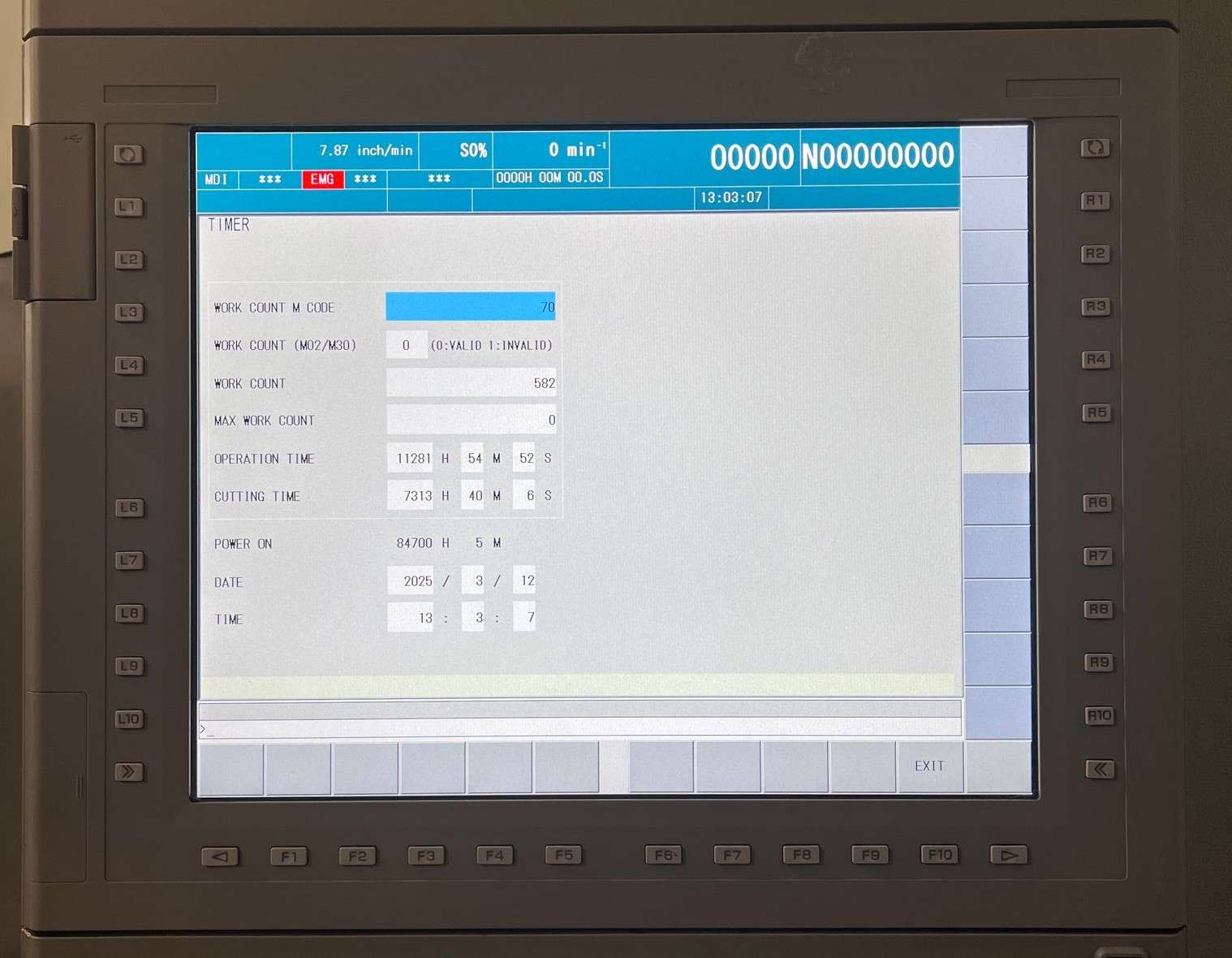

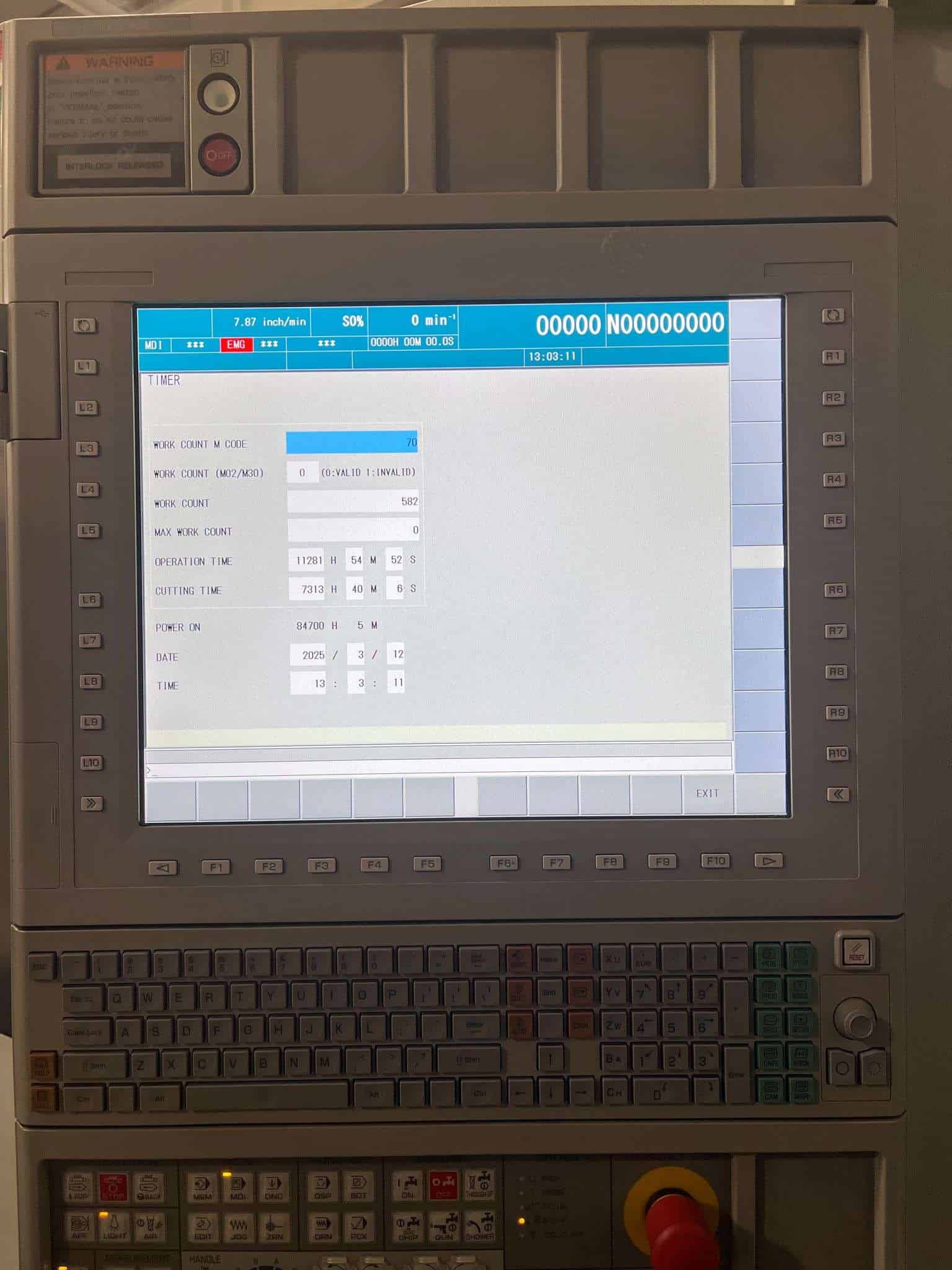

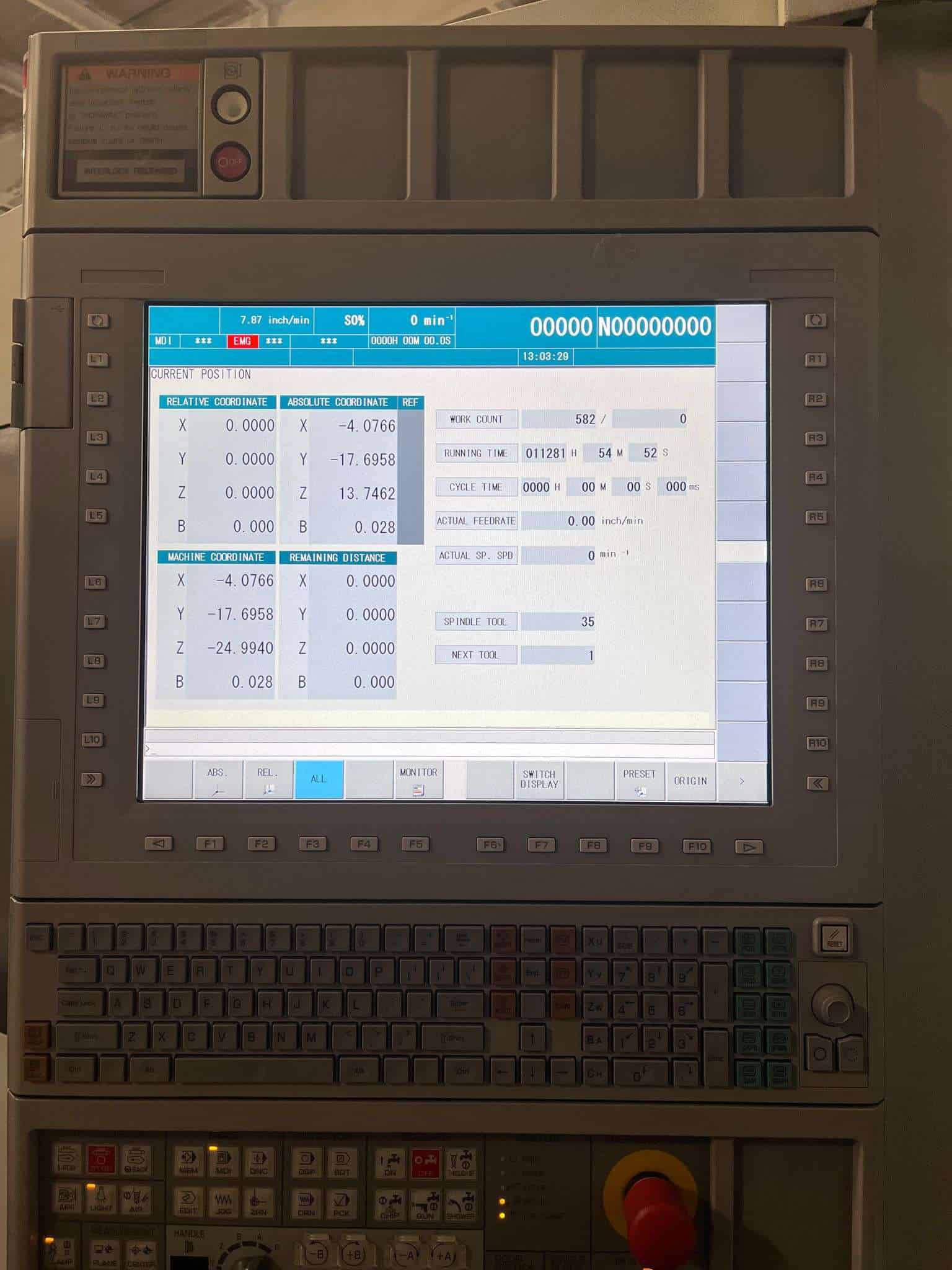

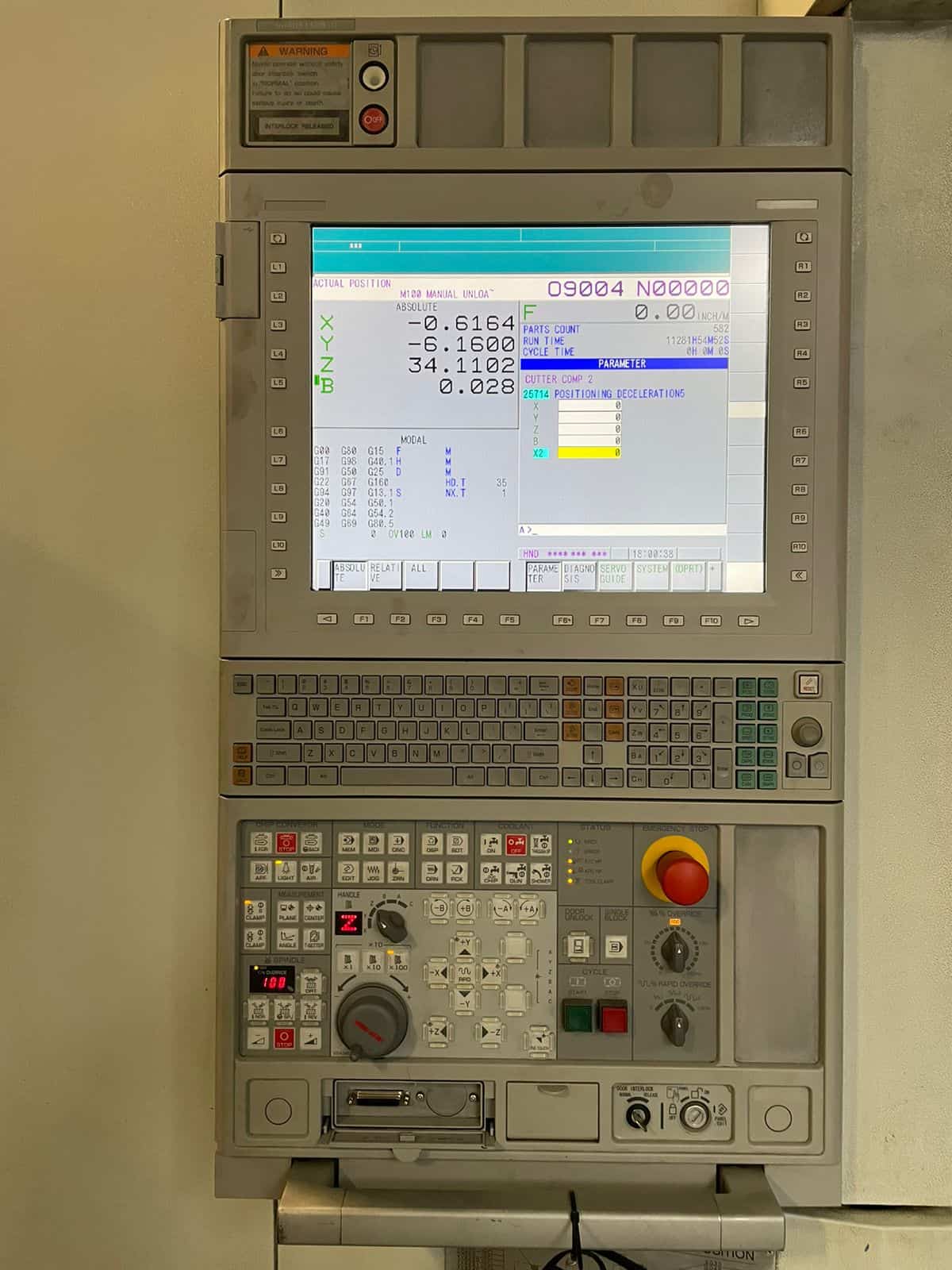

| Fanuc 31i-A CNC Control |
| 14,000 RPM High Precision Spindle |

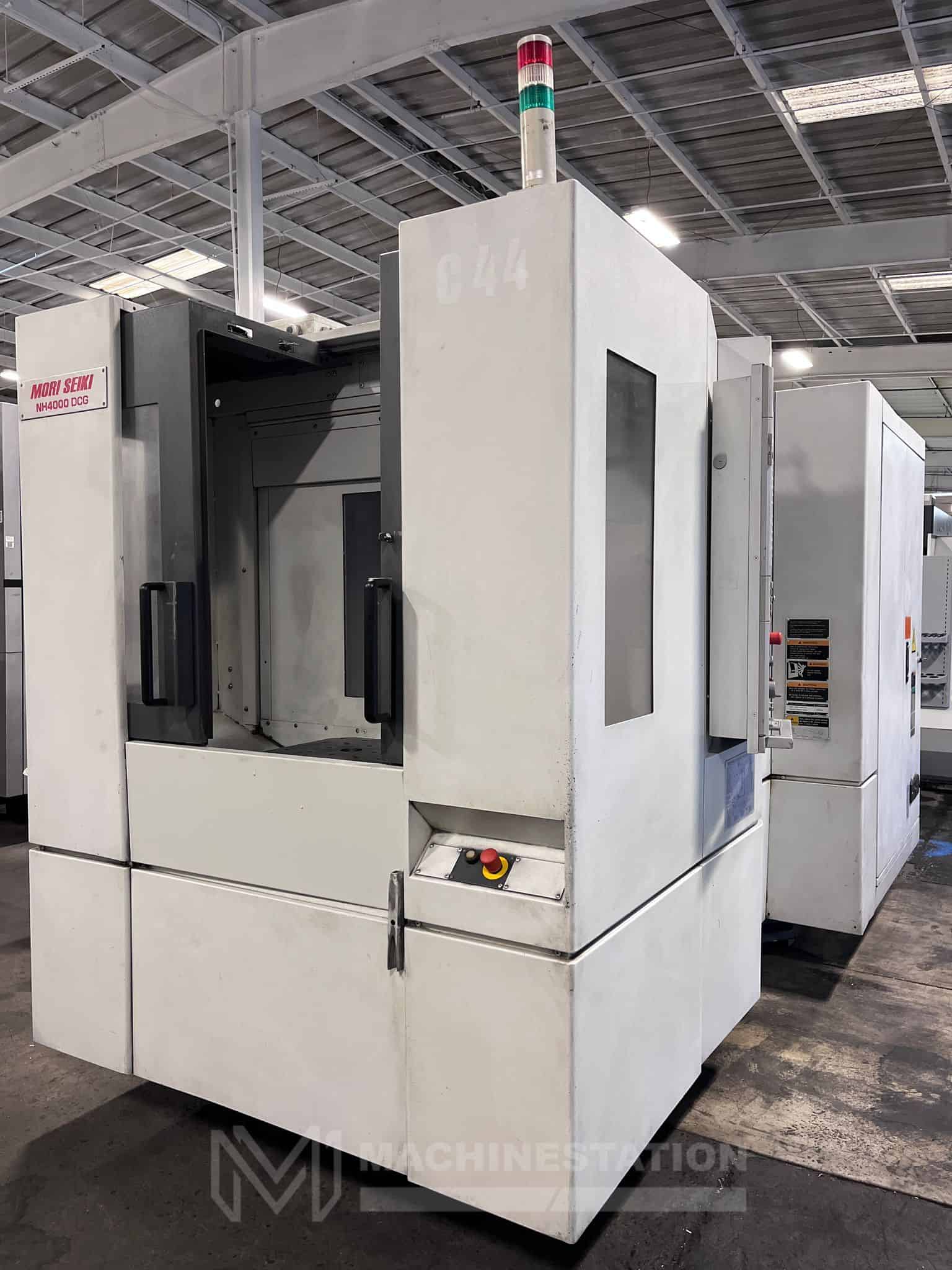

| Twin Pallet Changer |

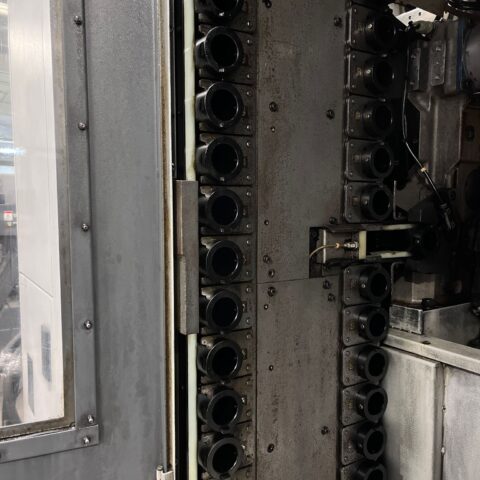

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant Ready (Pump Needed) |
| 25 HP Build in Spindle Motor |
| Oil Chiller Unit |
| (2) USB Ports & RS-232 Port |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Coolant System |

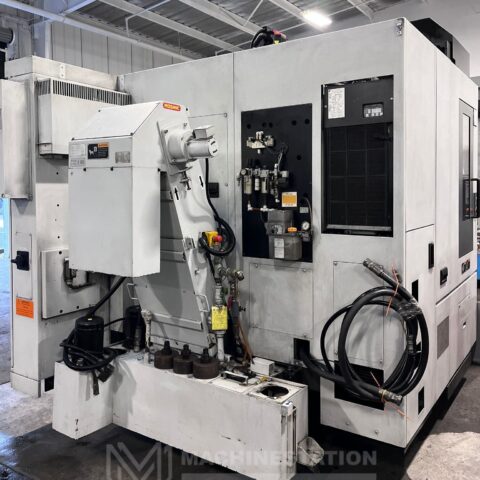

| Chip Conveyor |

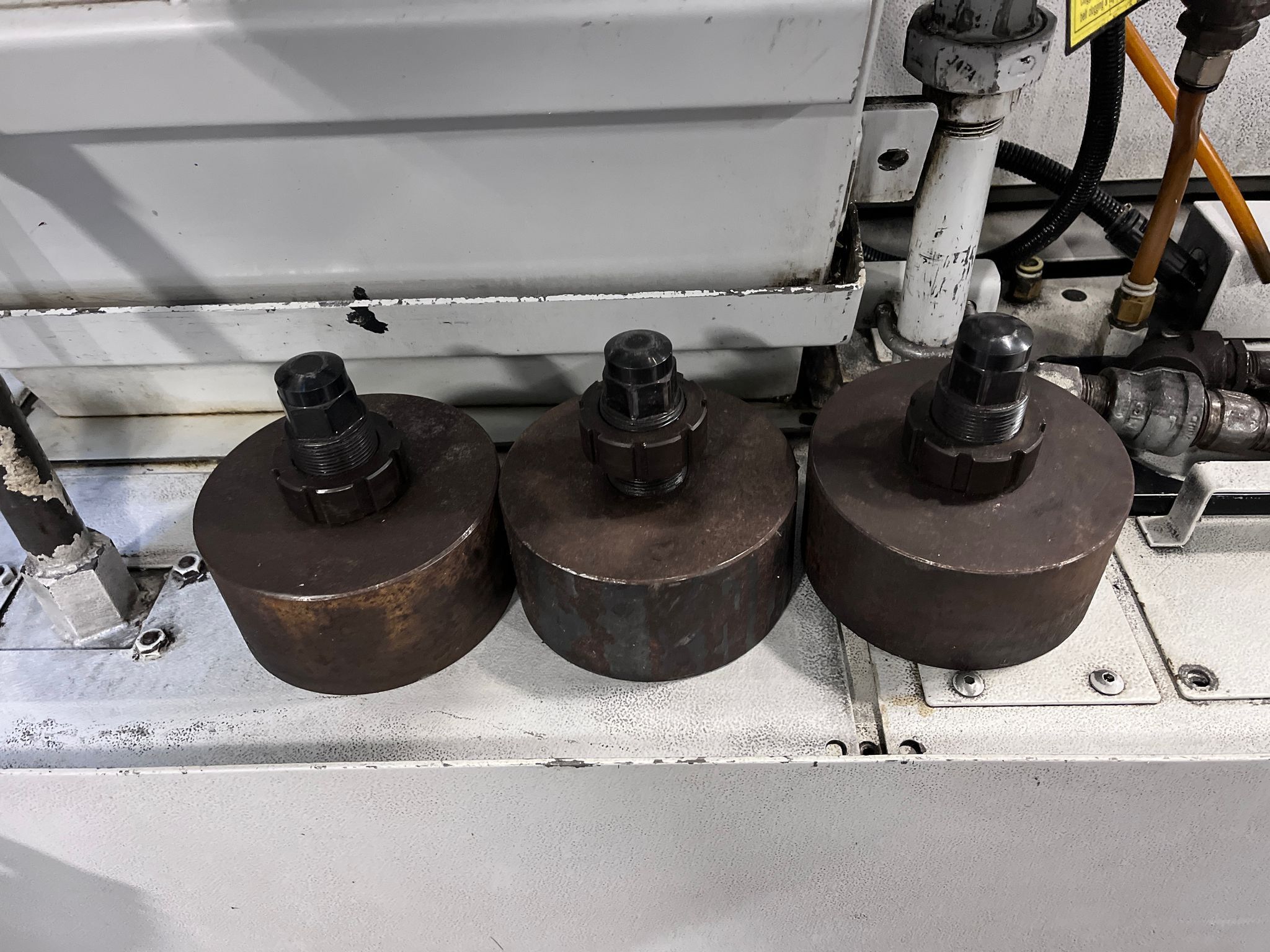

| Levelling Pads |
| Travels: |
|---|
| X Axis: 22.0″ |
| Y Axis: 22.0″ |
| Z Axis: 24.8″ |
| B Axis: 1° Indexing |
| Distance From Pallet Surface to Spindle Center: 3.1″ – 25.2″ |

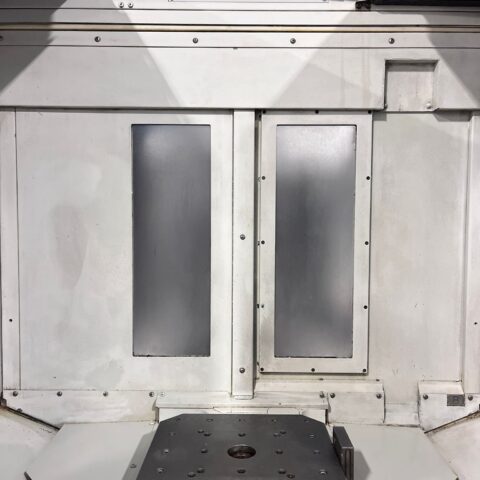

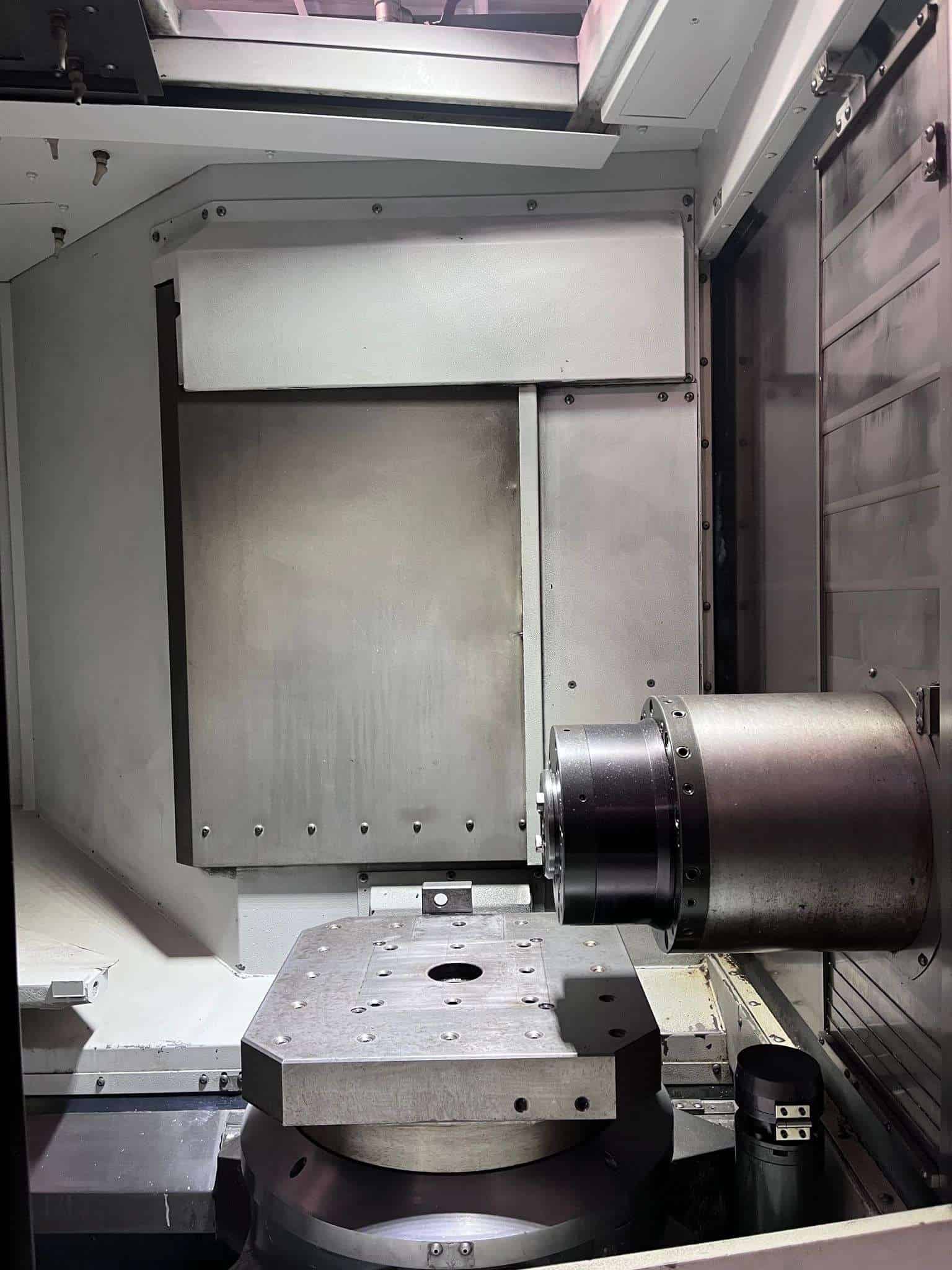

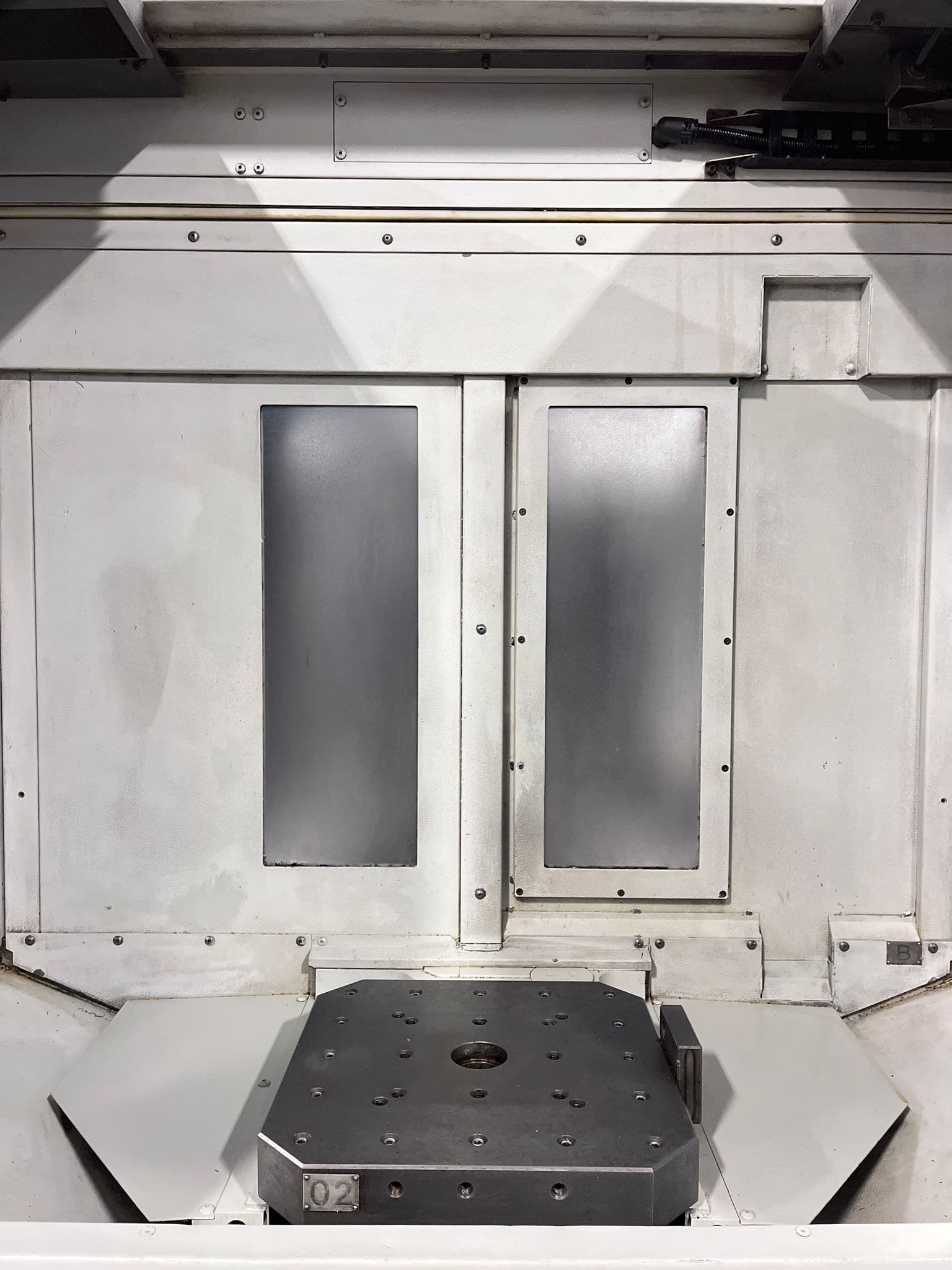

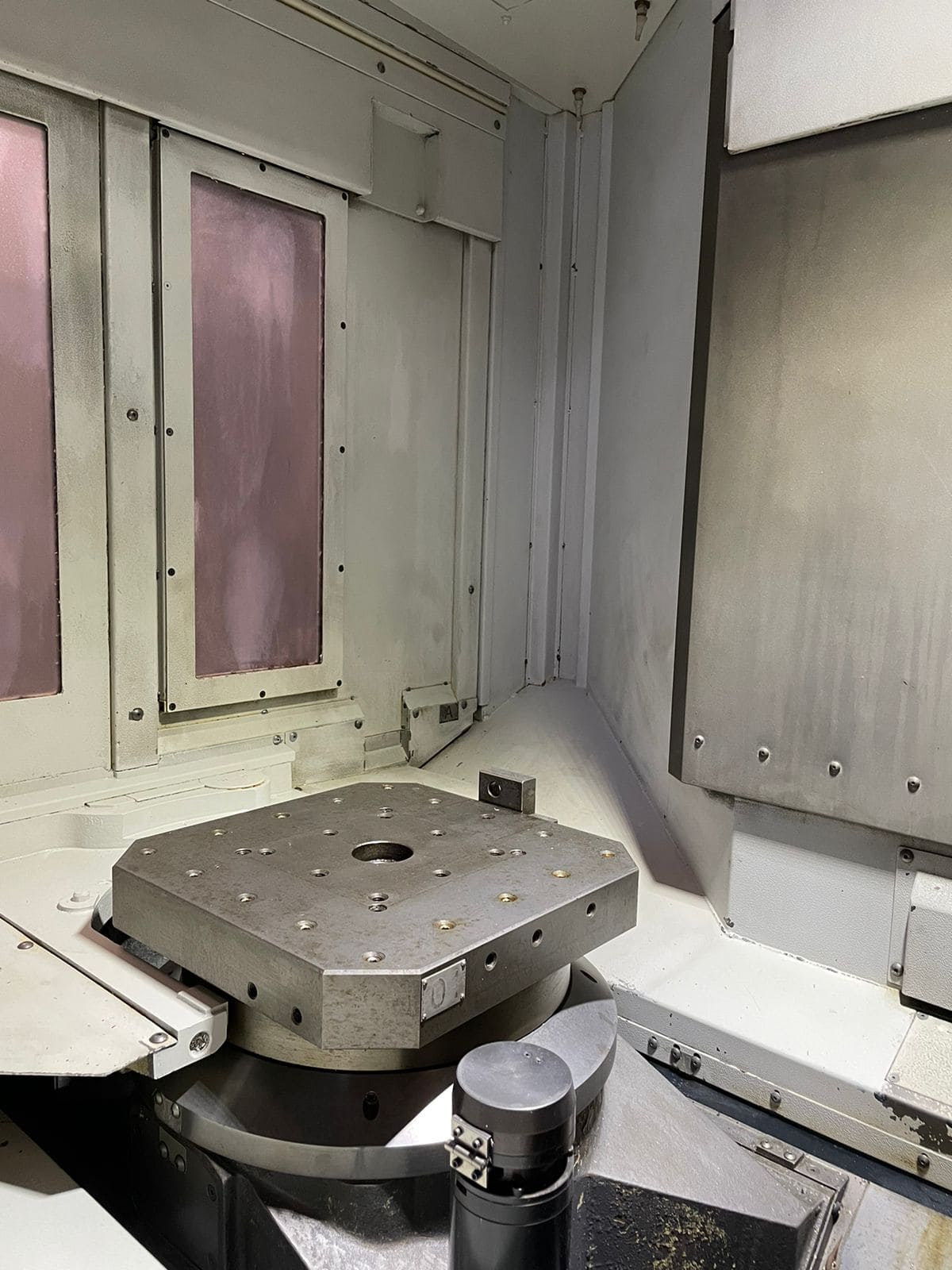

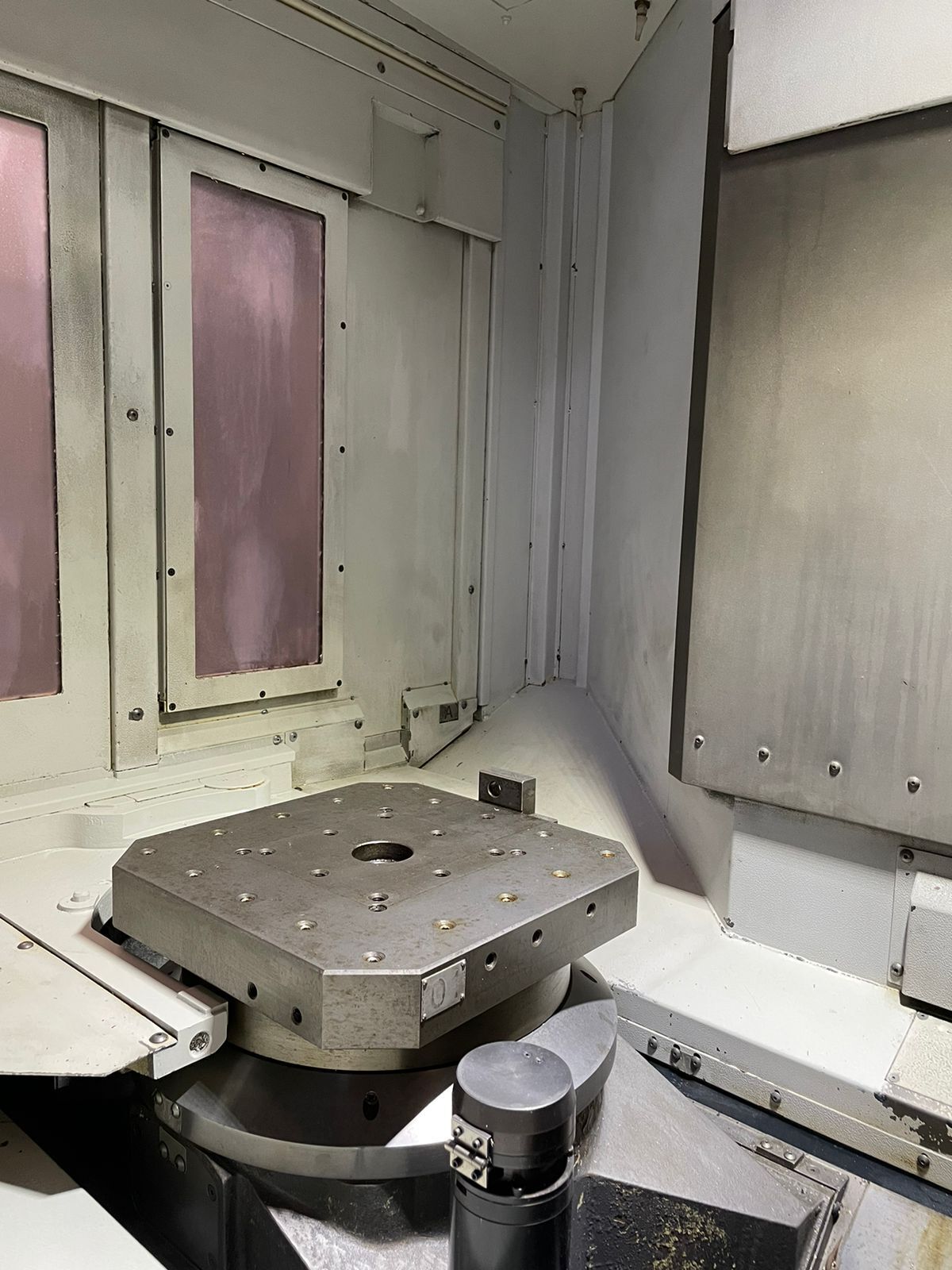

| Table: |
|---|
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 880 lbs |
| Max Workpiece Swing Diameter: 24.8″ |
| Max Workpiece Height: 35.4″ |
| Index Time: 8 seconds 90° |

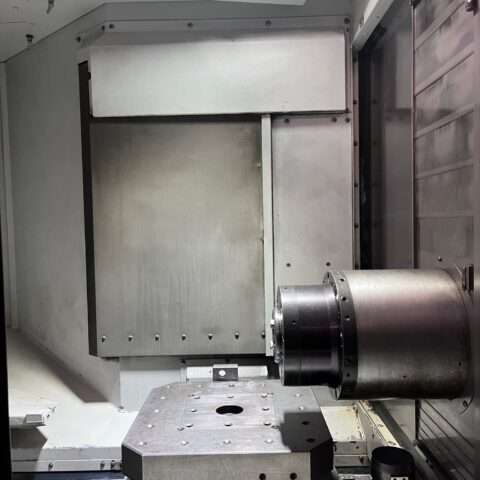

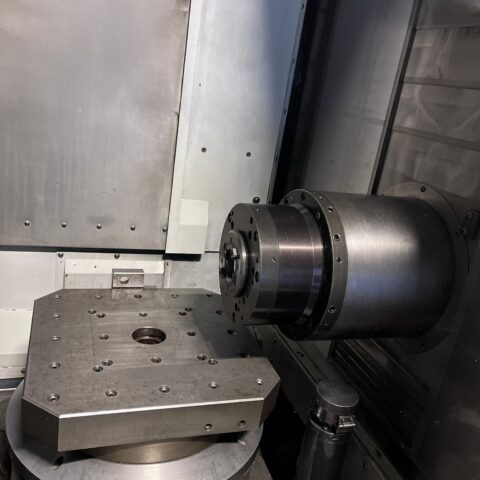

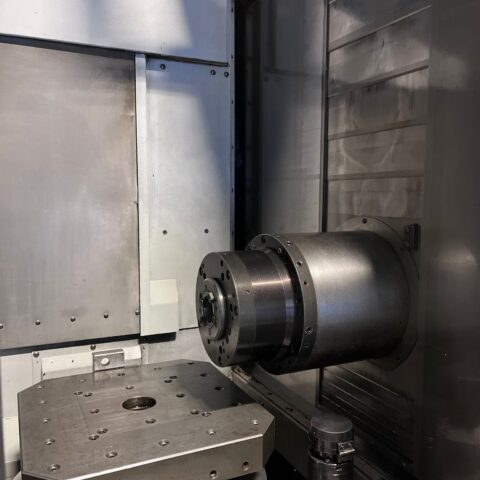

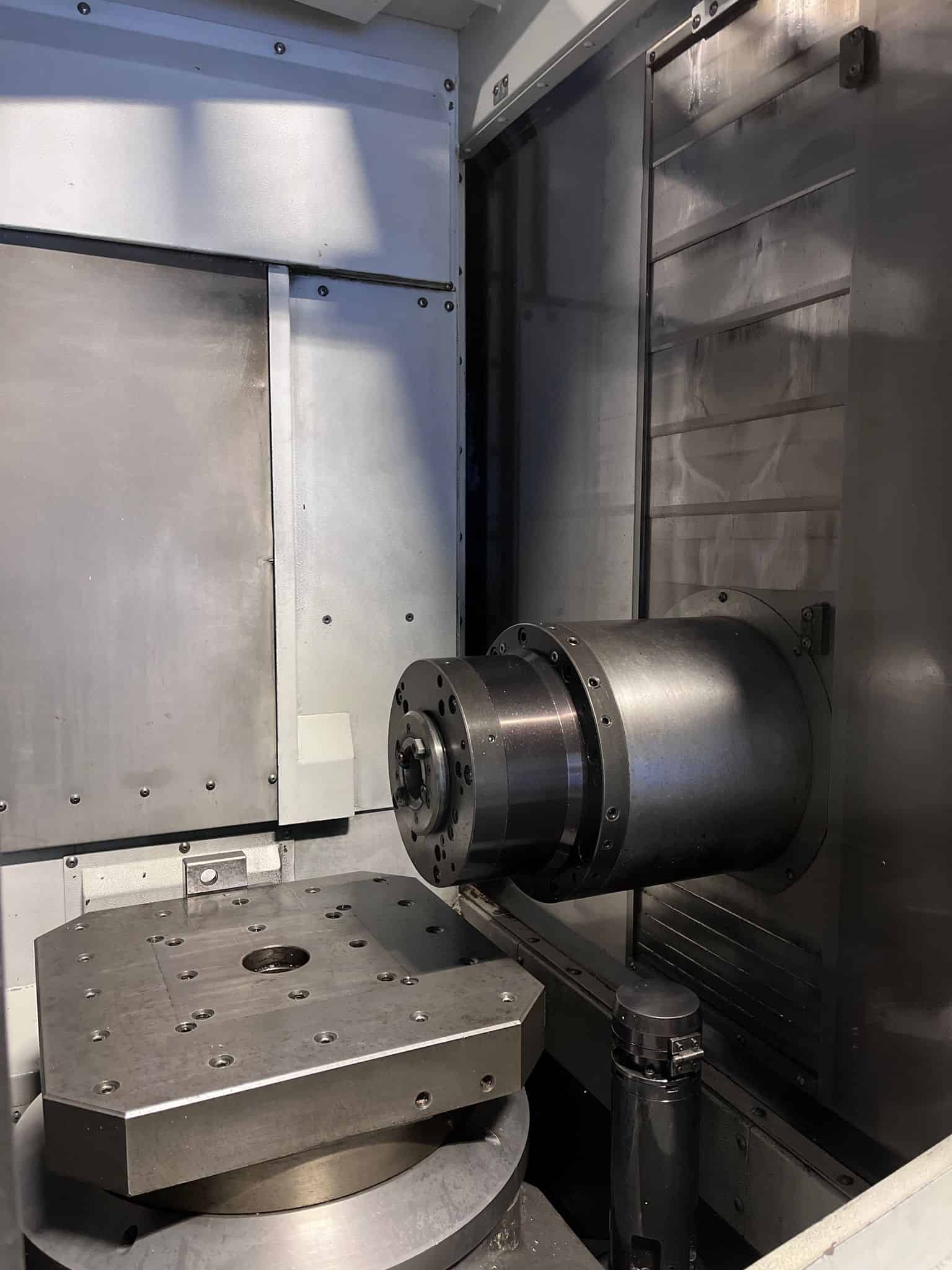

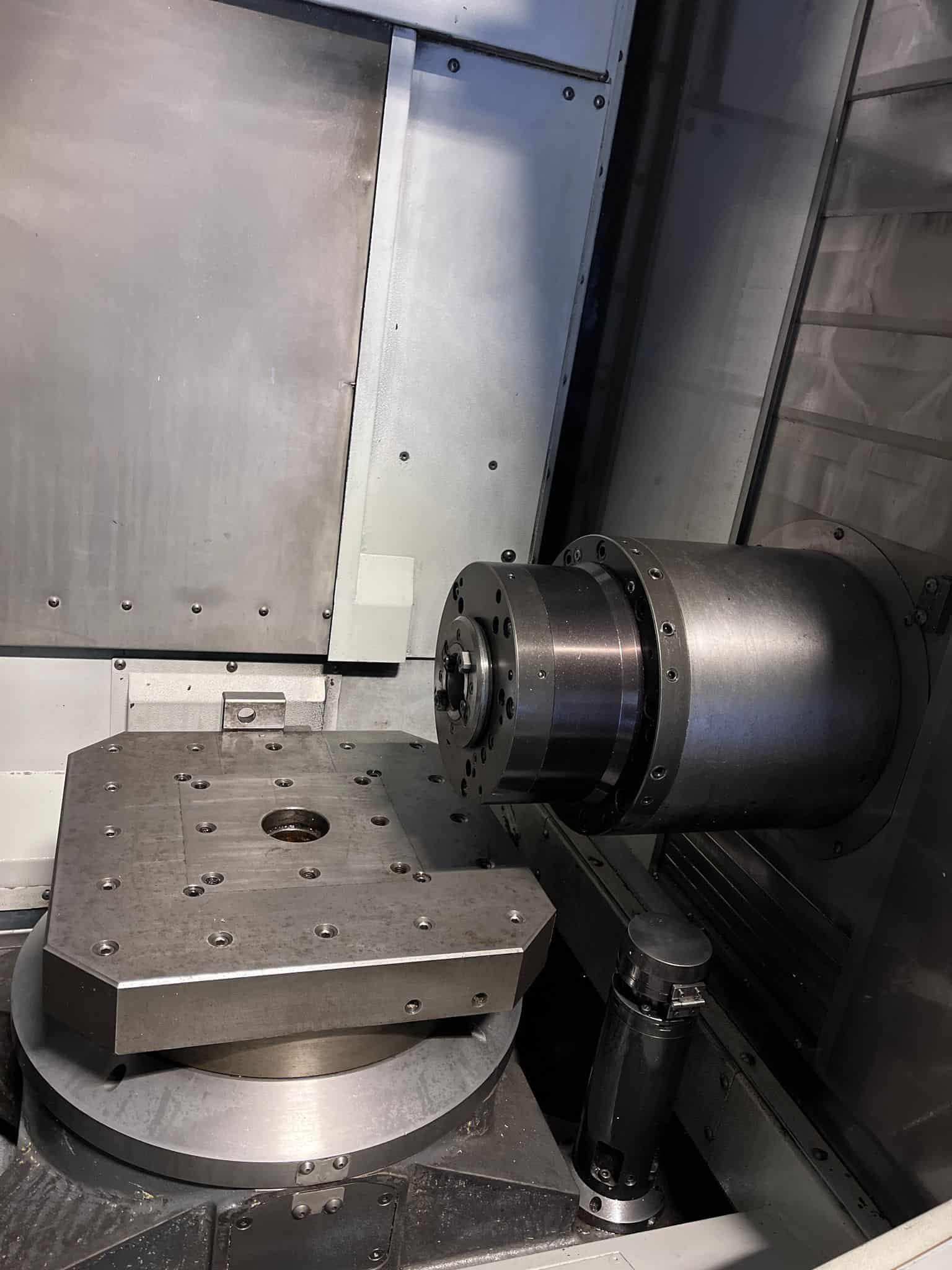

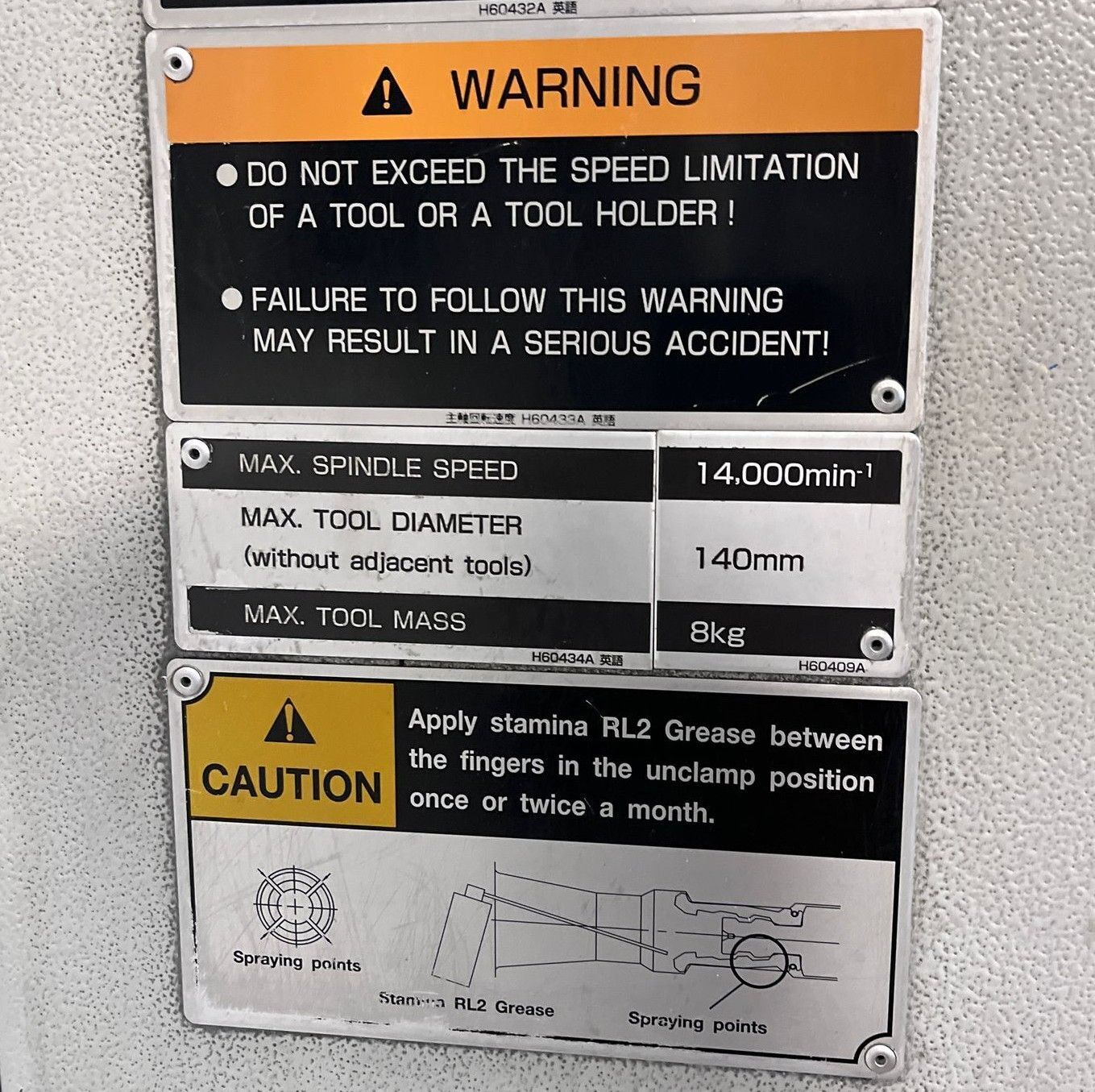

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Max. Speed: 14,000 RPM |
| Spidle Motor Power: 25 HP |
| Feed rates: |
|---|
| Rapid Traverse Rate X,Y,Z Axis : 1968 Inch Per Minute |
| Cutting Feedrate X,Y,Z Axis : 1968 Inch Per Minute |

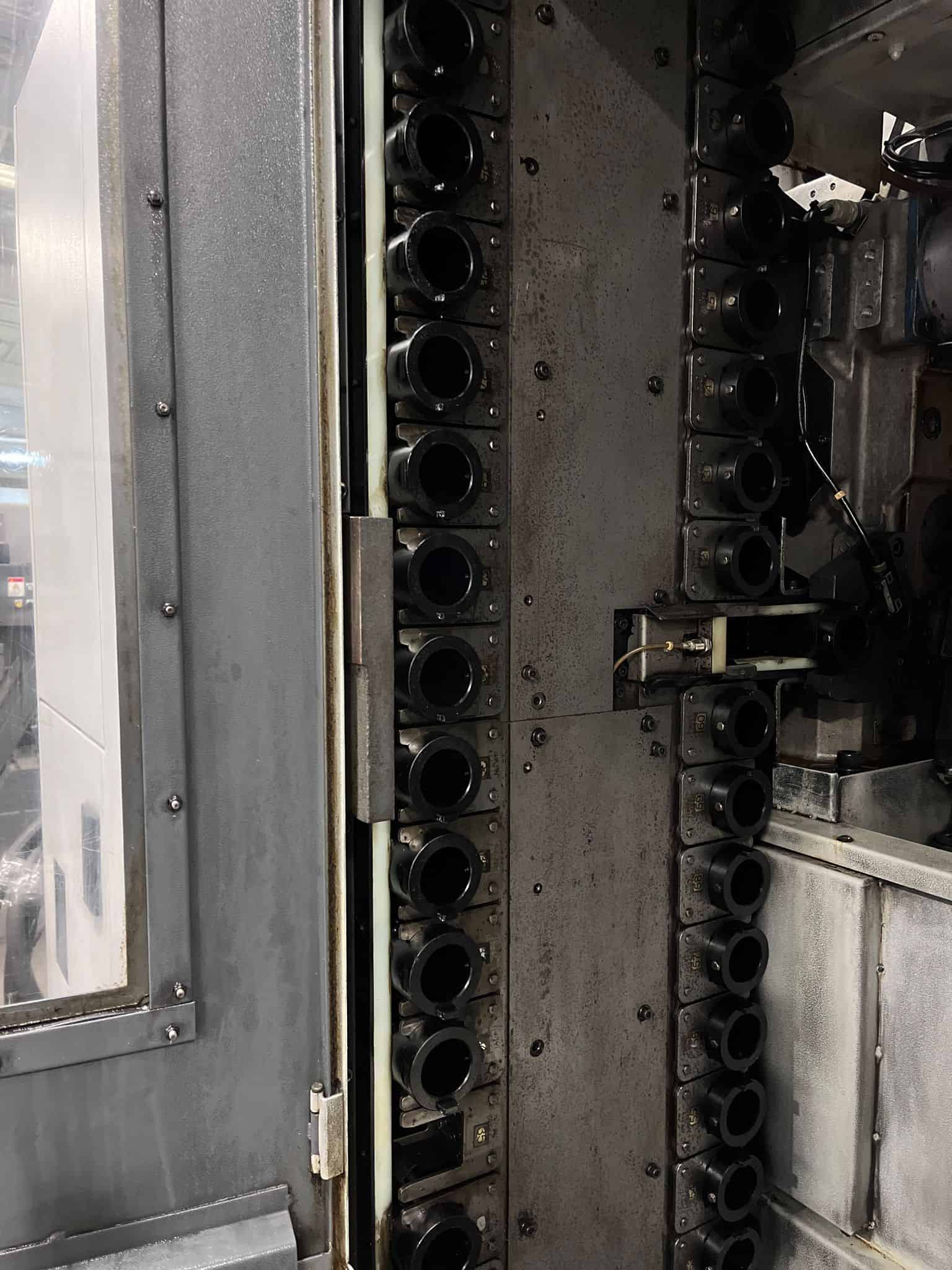

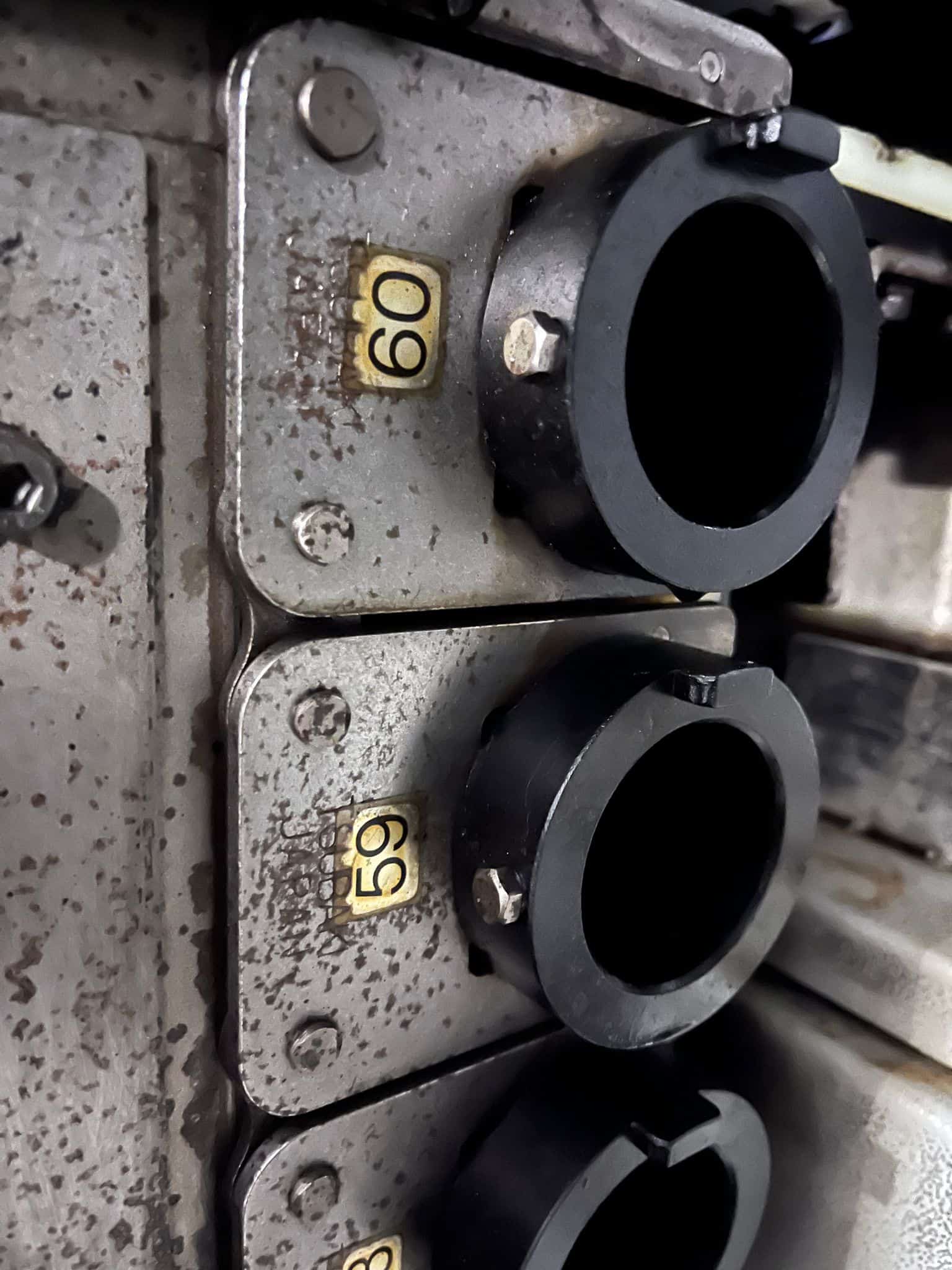

| Tool changer: |
|---|

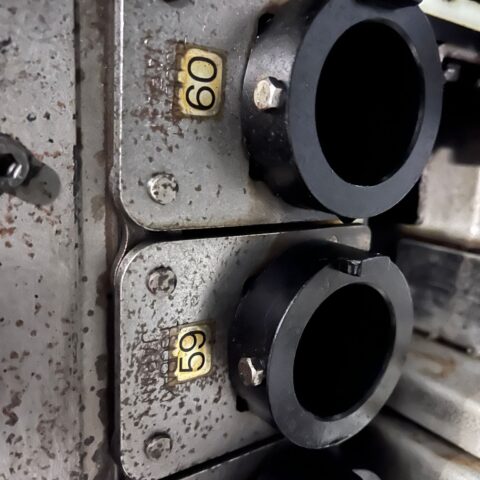

| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Diameter (without adjacent tools): 5.11″ |
| Max Tool Diameter (with adjacent tools): 2.70″ |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 17.6 lbs. |
| Tool to Tool Change Time: 0.9 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

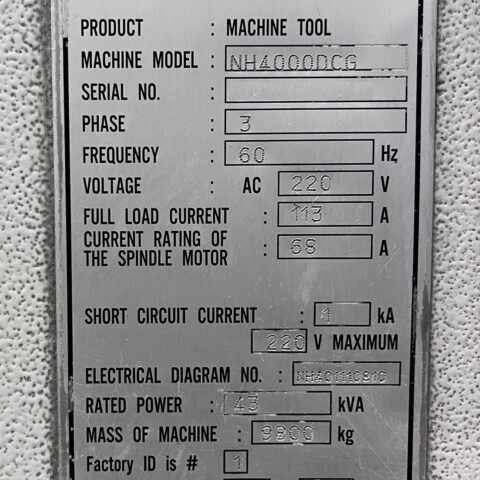

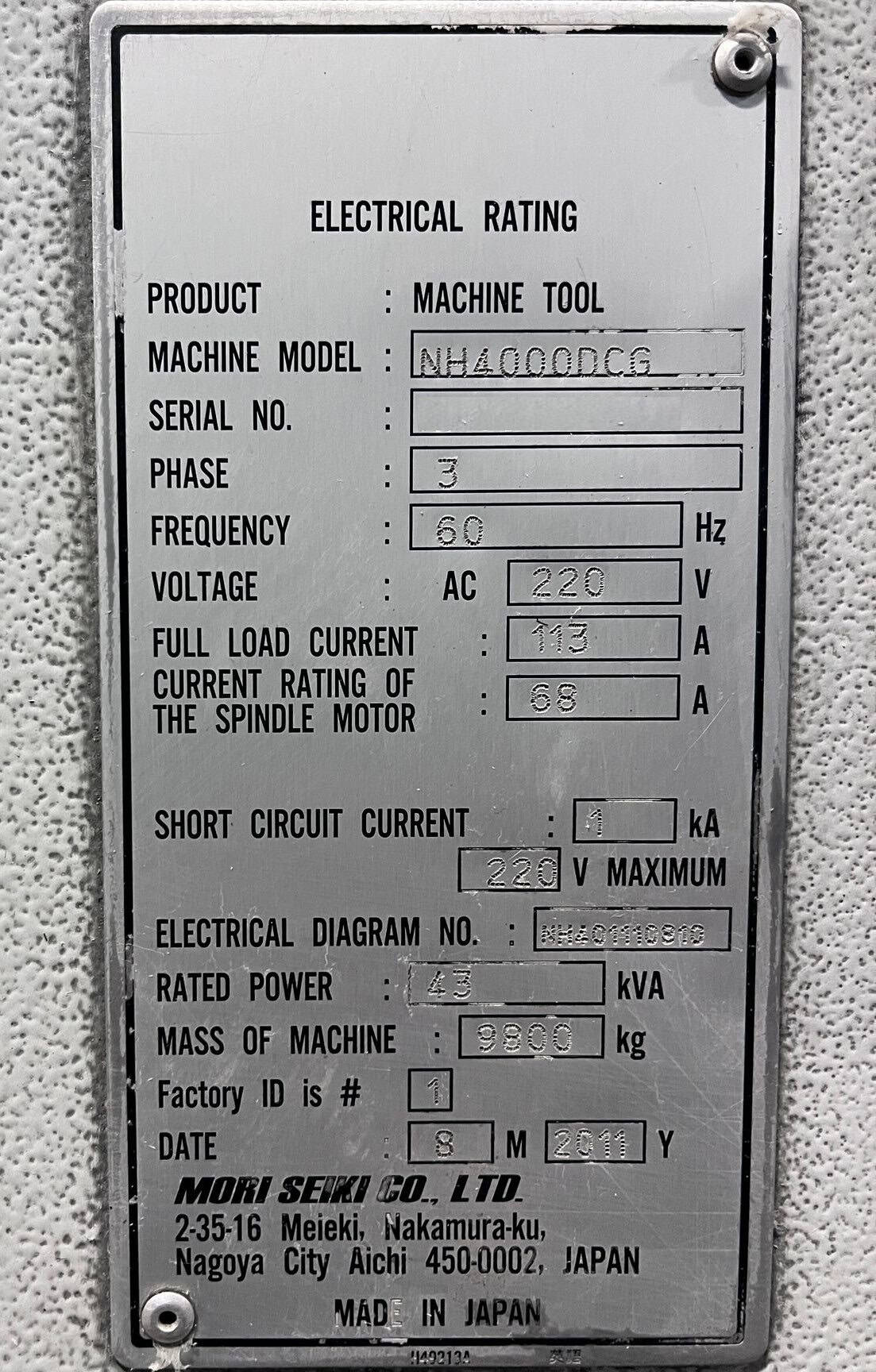

| Power: 43 kva / 220v / 3-Phase |
| Overall Dimensions: 157.6″ X 94.4″ x 106.7″ High |
| Weight: 21,605 lbs. Approx. |
Tags:DMG, DMG MORI, DMG Mori Seiki
