*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG |

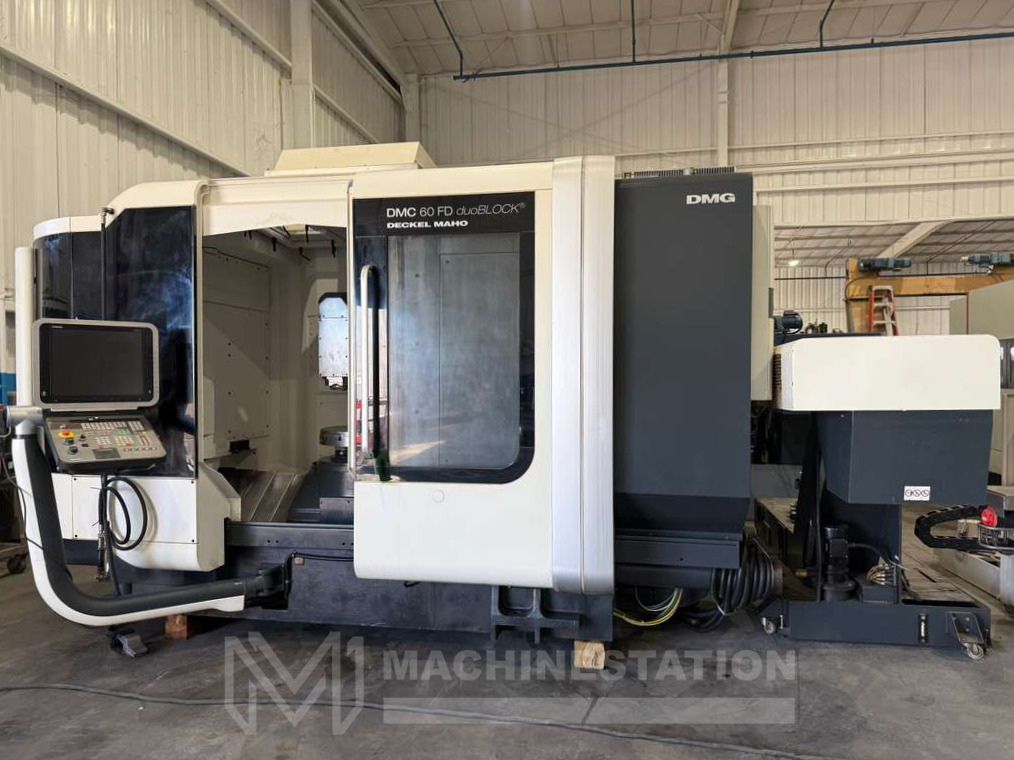

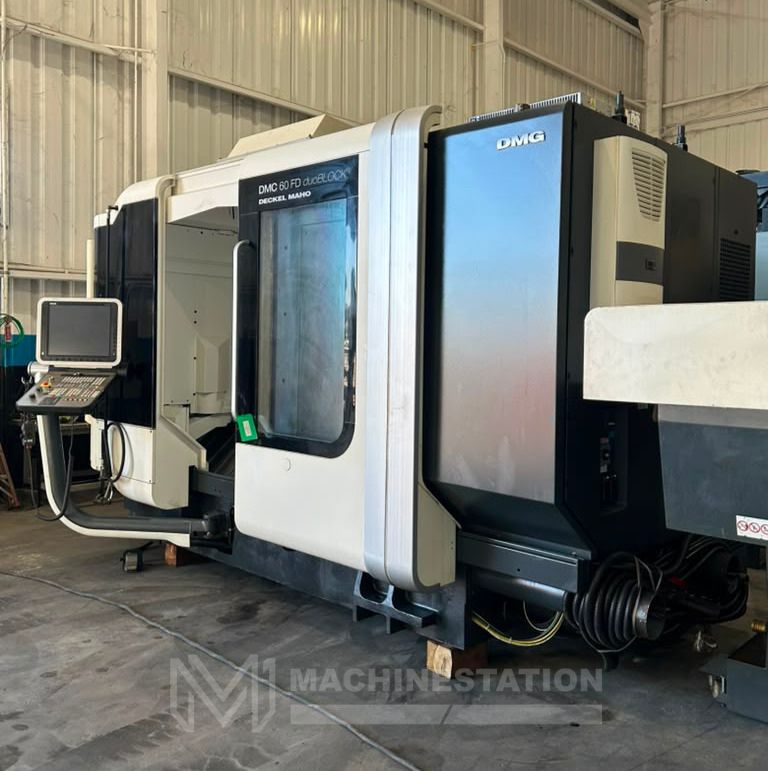

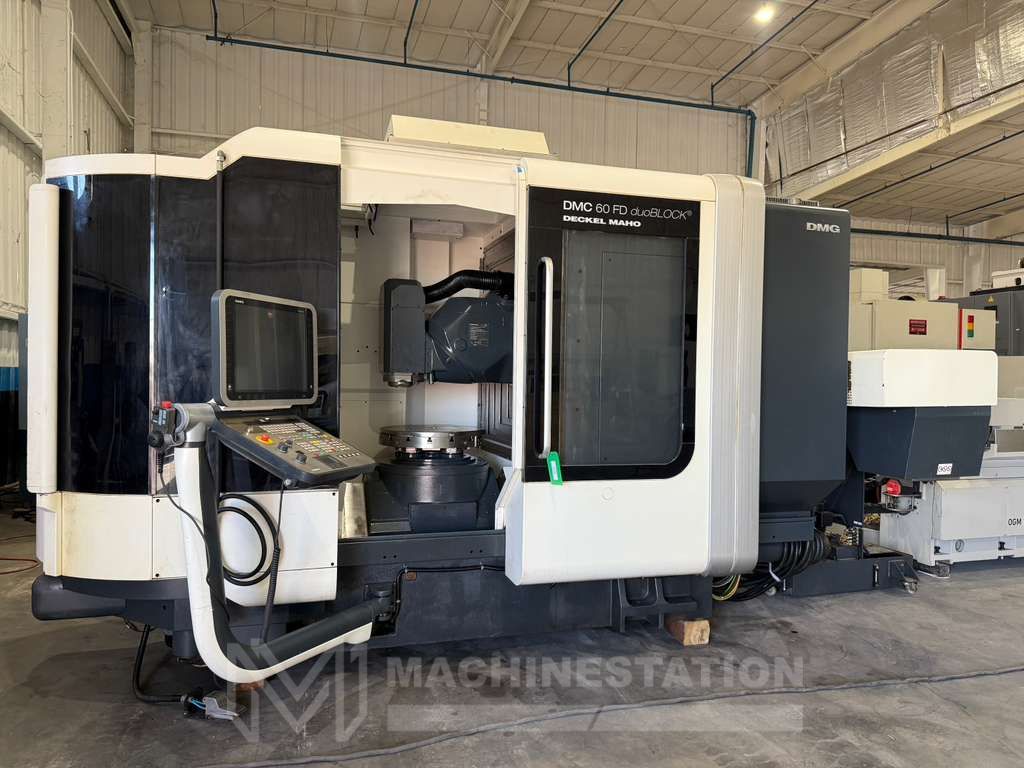

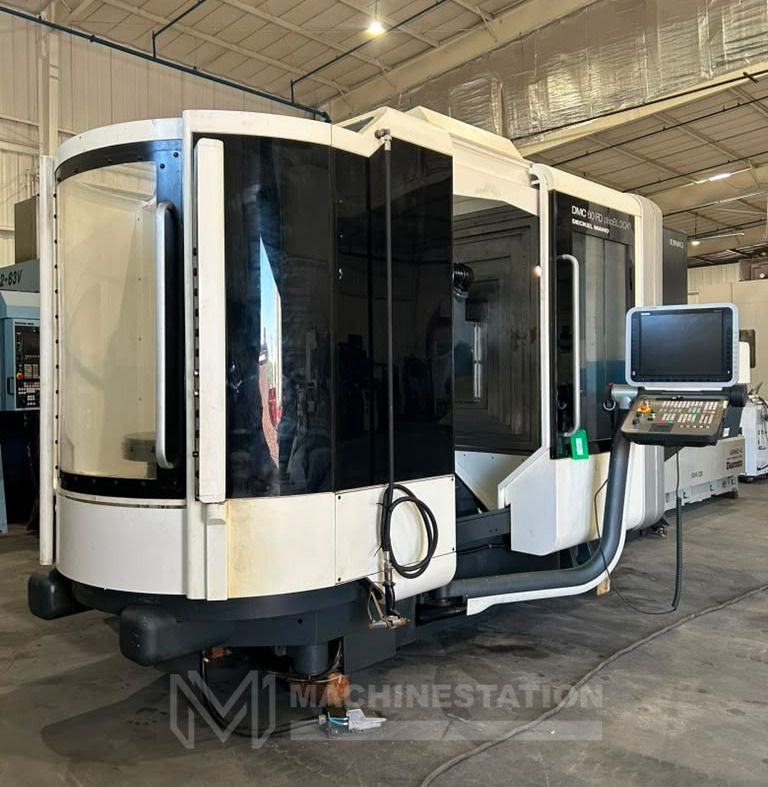

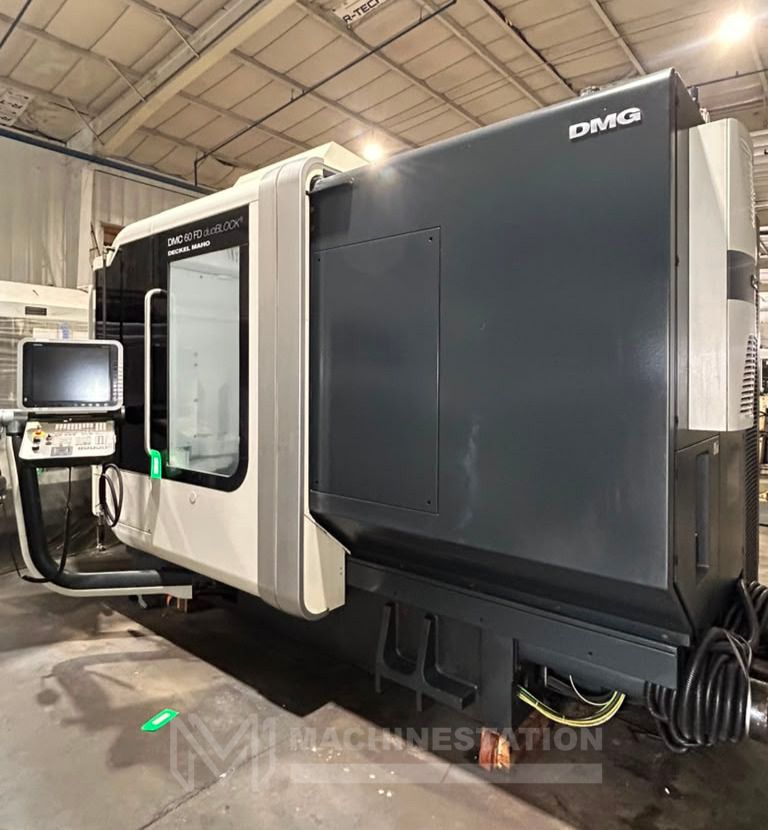

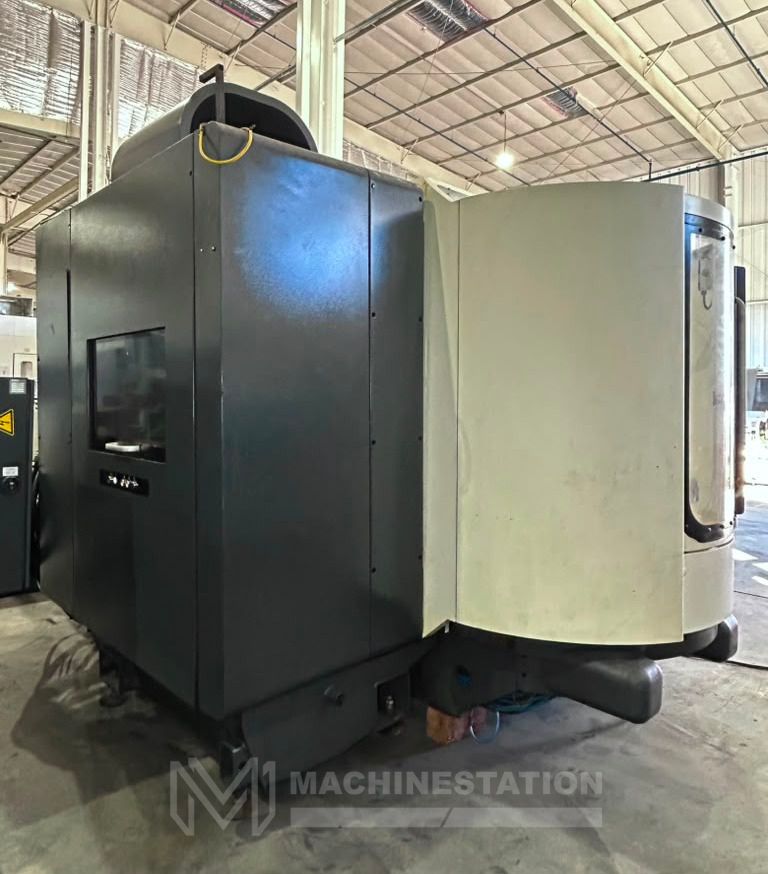

| Model No.: | DMC 60 FD duoBLOCK |
| Year of Manufacture: | 2011 |
| Equipped With: |
|---|

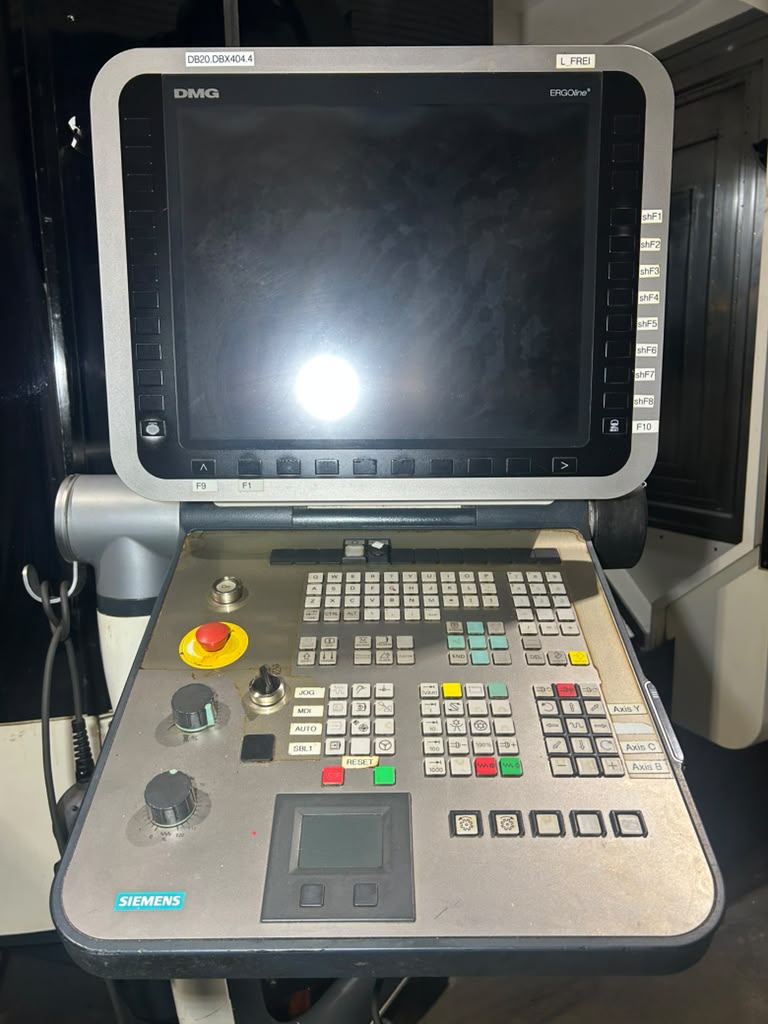

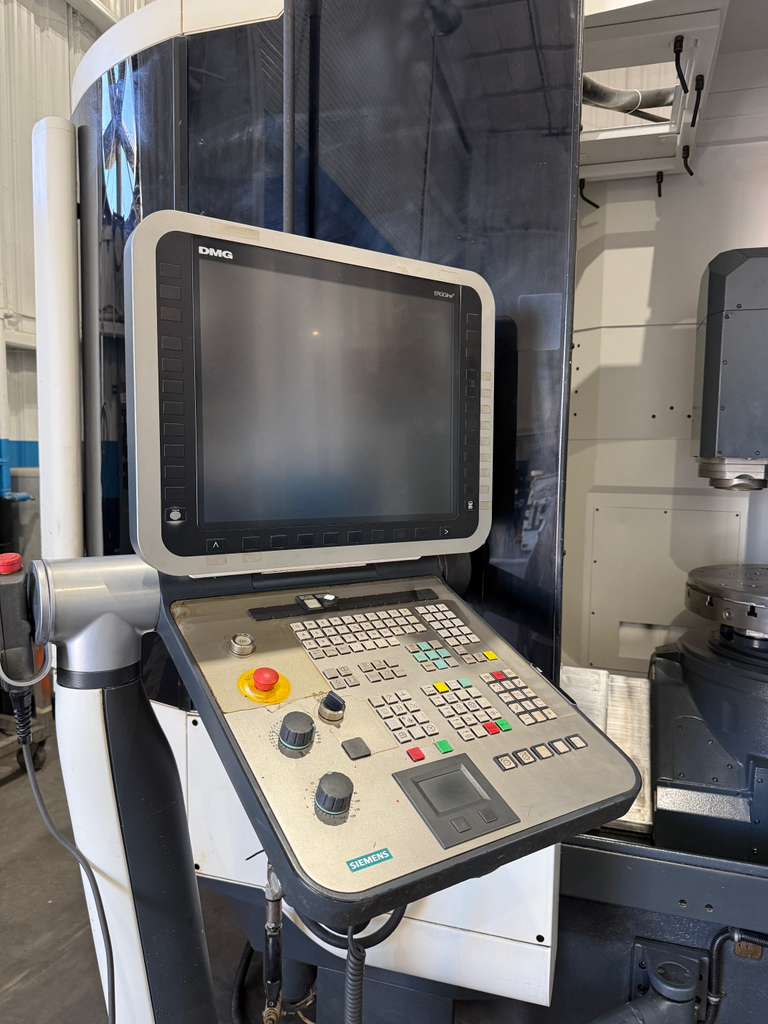

| Siemens 840D DMG ERGOline CNC Control |

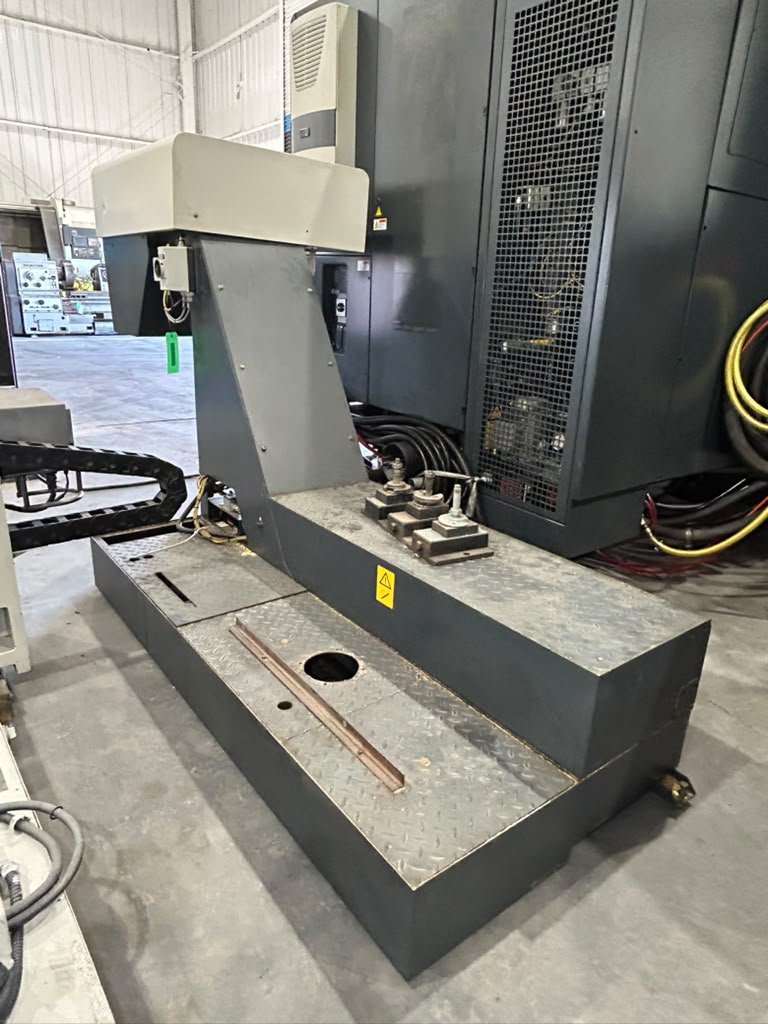

| Twin Pallet Automatic Pallet Changer |
| Full 5-Axis Simultaneous Machining |
| 1200 RPM Turn-mill table (FD) |

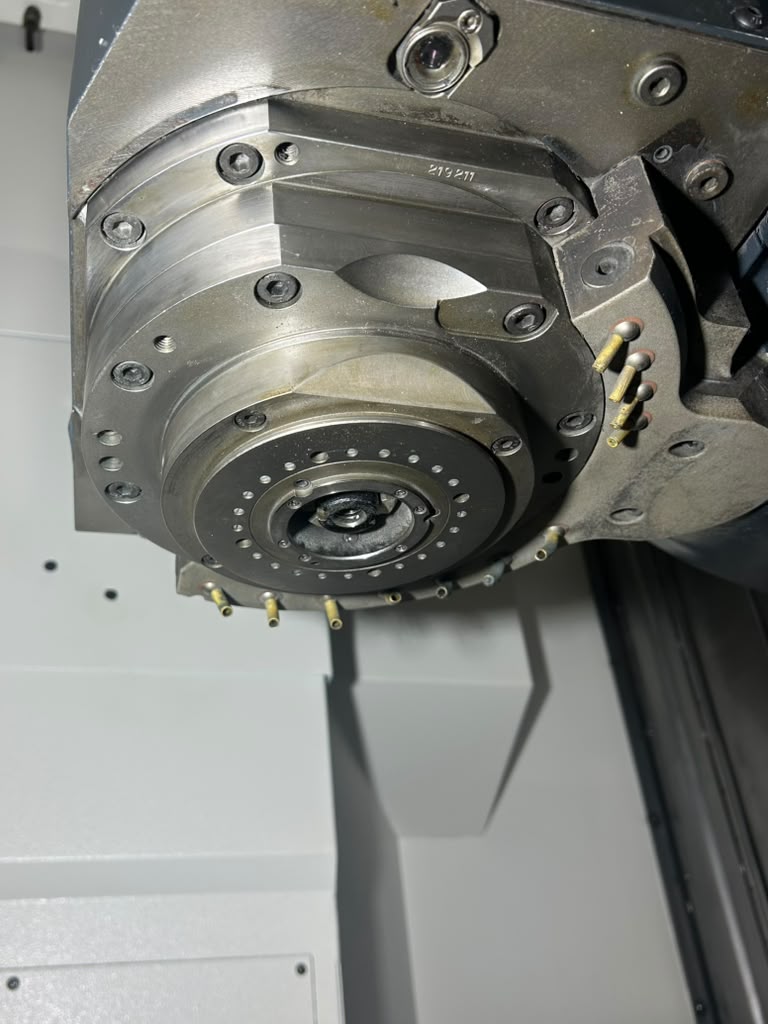

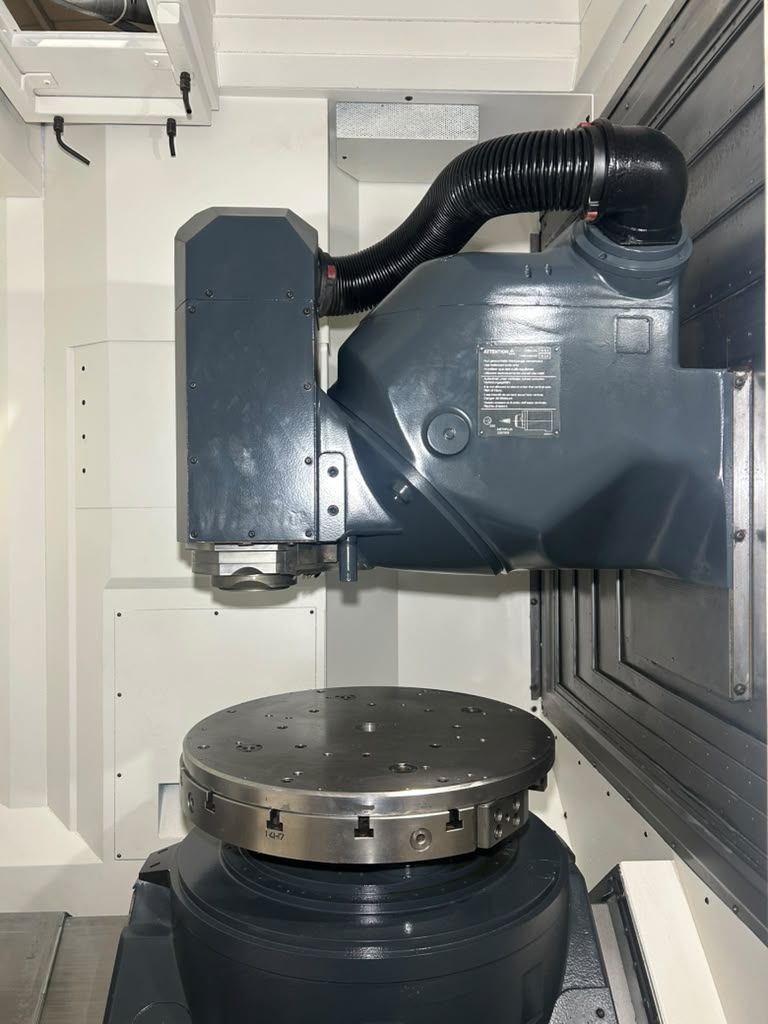

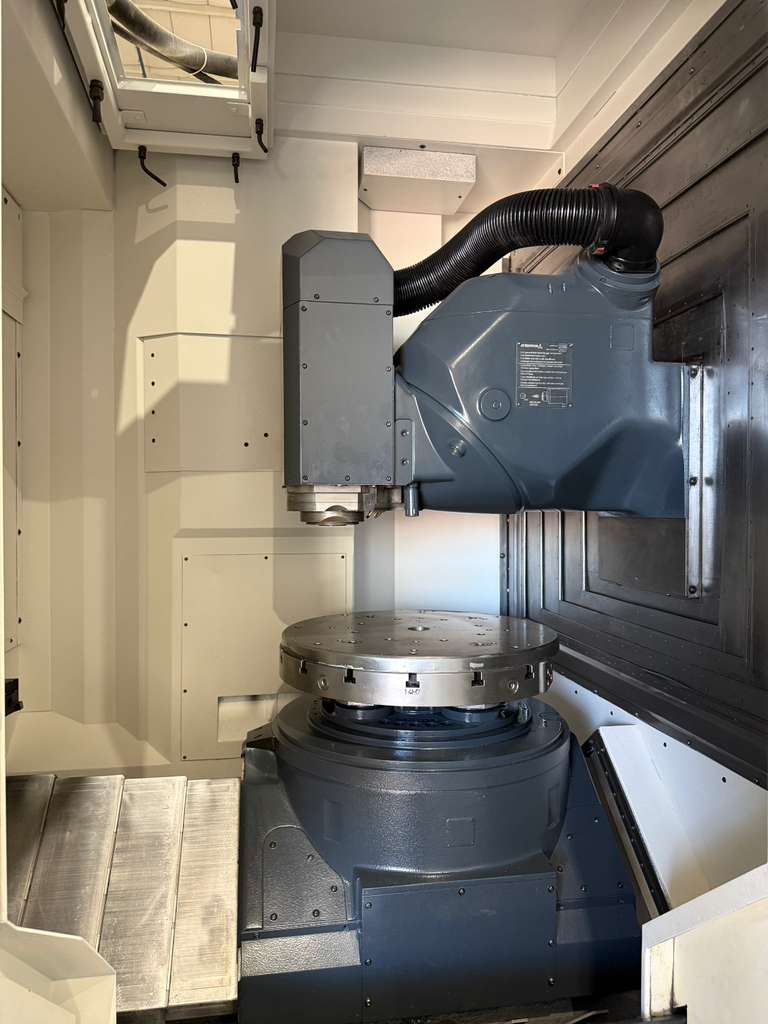

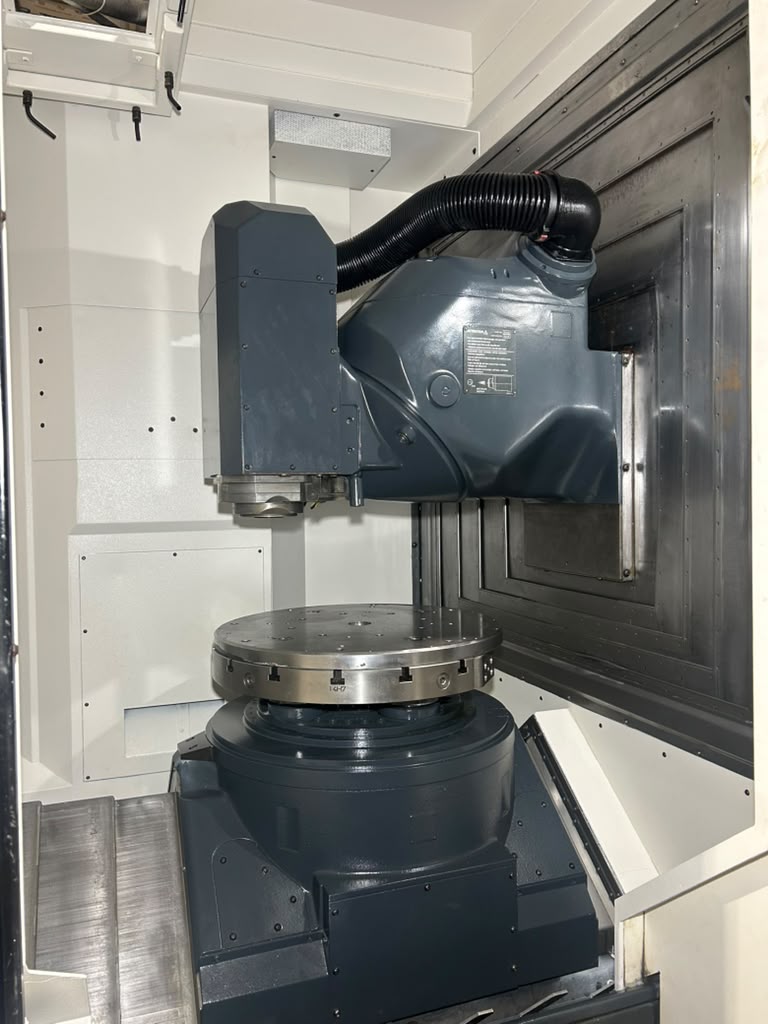

| Integrated B-Axis Milling Head |
| 12,000 RPM HSK-A63 Taper Spindle |

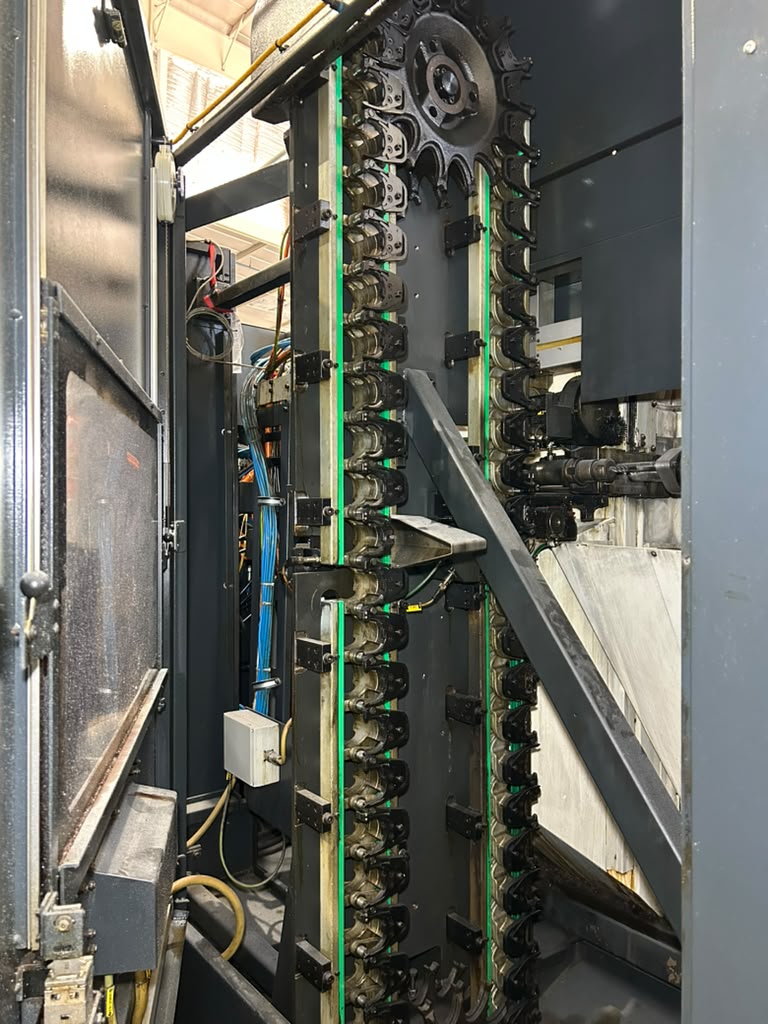

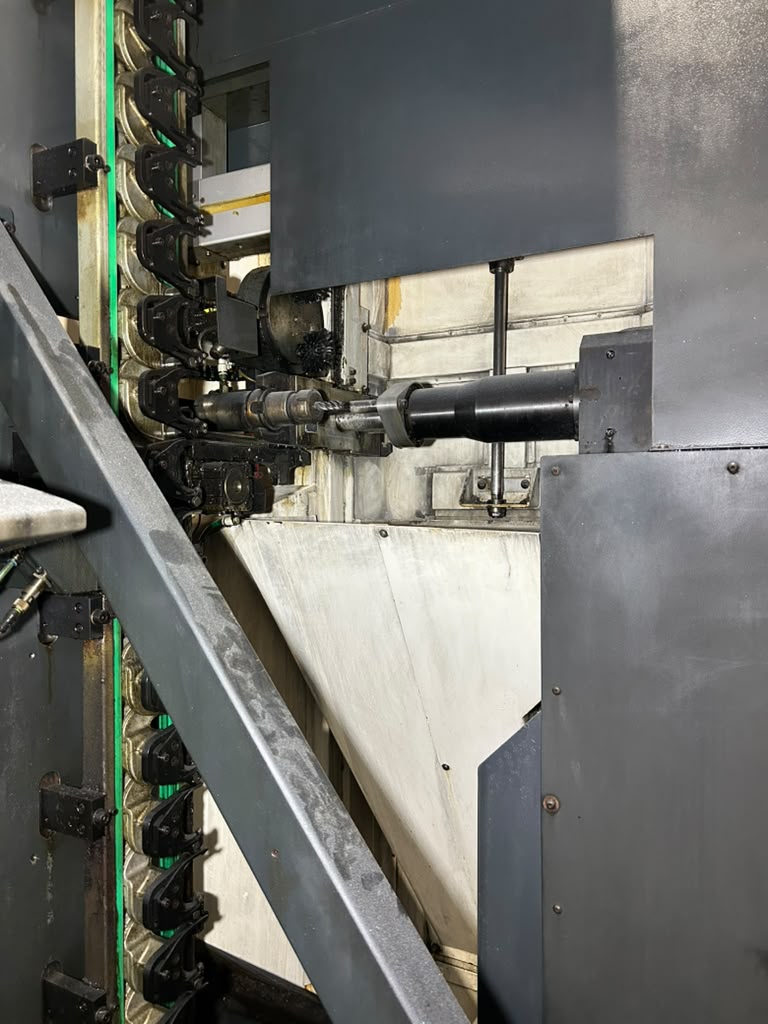

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |
| Rigid Tapping |
| Spindle Orientation |
| Coolant Tank |
| Chip Conveyor |
| Books & Manuals |
| Levelling Pads |
| Travels: |
|---|
| X Axis: 23.62″ |
| Y Axis: 27.56″ |
| Z Axis: 23.62″ |
| B Axis: -30° To +180° |
| C Axis: 360° Continuous |

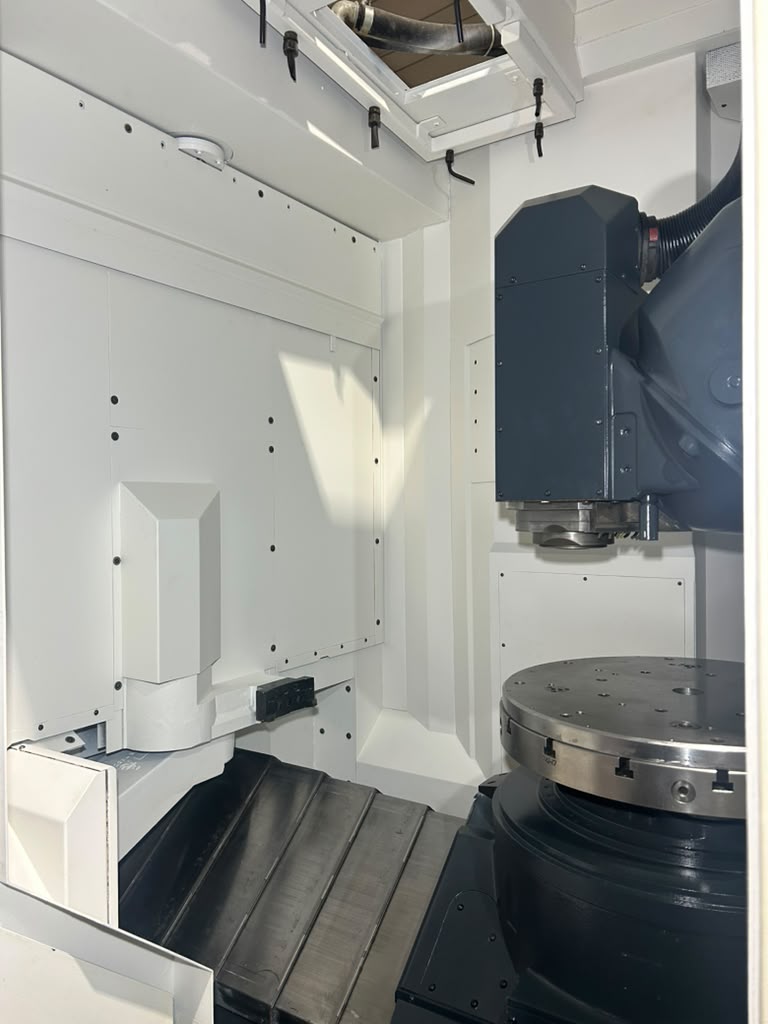

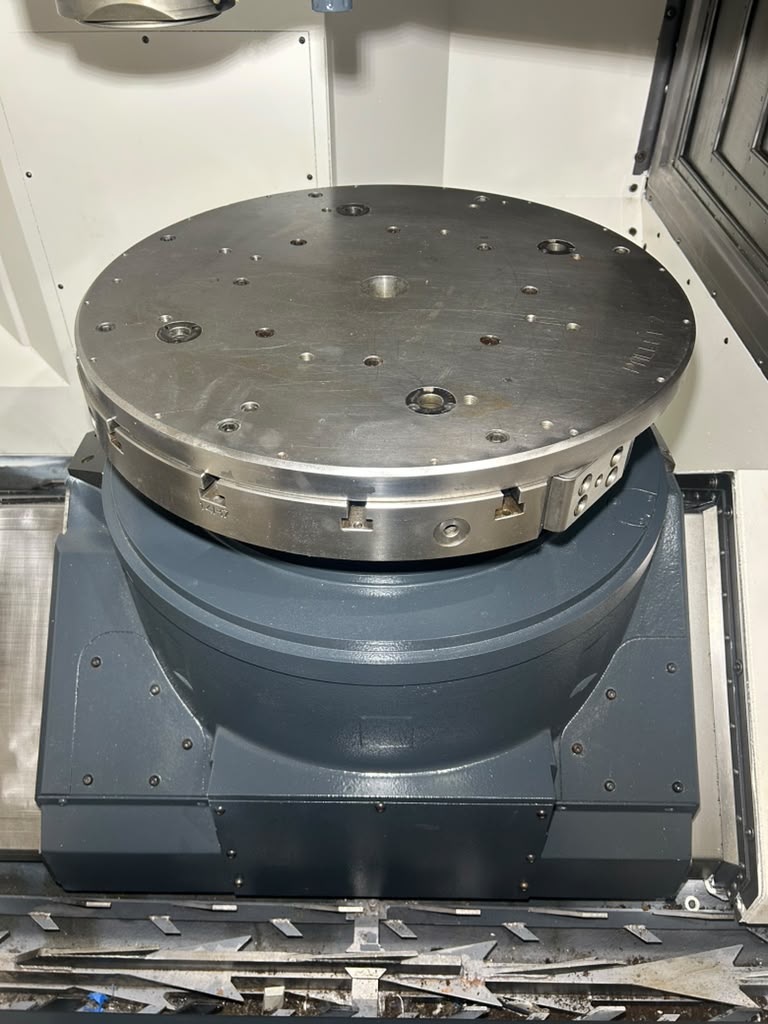

| Table: |
|---|
| Number of Pallets: 2 |
| Table Diameter: 24.80″ |
| Maximum Table Load: 1,102 lbs |
| Table Speed (Turning Mode): 1,200 RPM |
| Maximum Workpiece Diameter: 27.56″ |
| Maximum Workpiece Height: 33.46″ |
| Spindle: |
|---|
| Taper Size: HSK-A63 |
| Maximum Speed: 12,000 RPM |
| Power: 46 HP |
| Feed Rates: |
|---|
| Rapid Traverse X, Y & Z: 2,362 IPM |
| Cutting Feed Rate: 2,362 IPM |
| B-Axis Rapid Traverse: 30 RPM |
| C-Axis Rapid Traverse: 30 RPM |

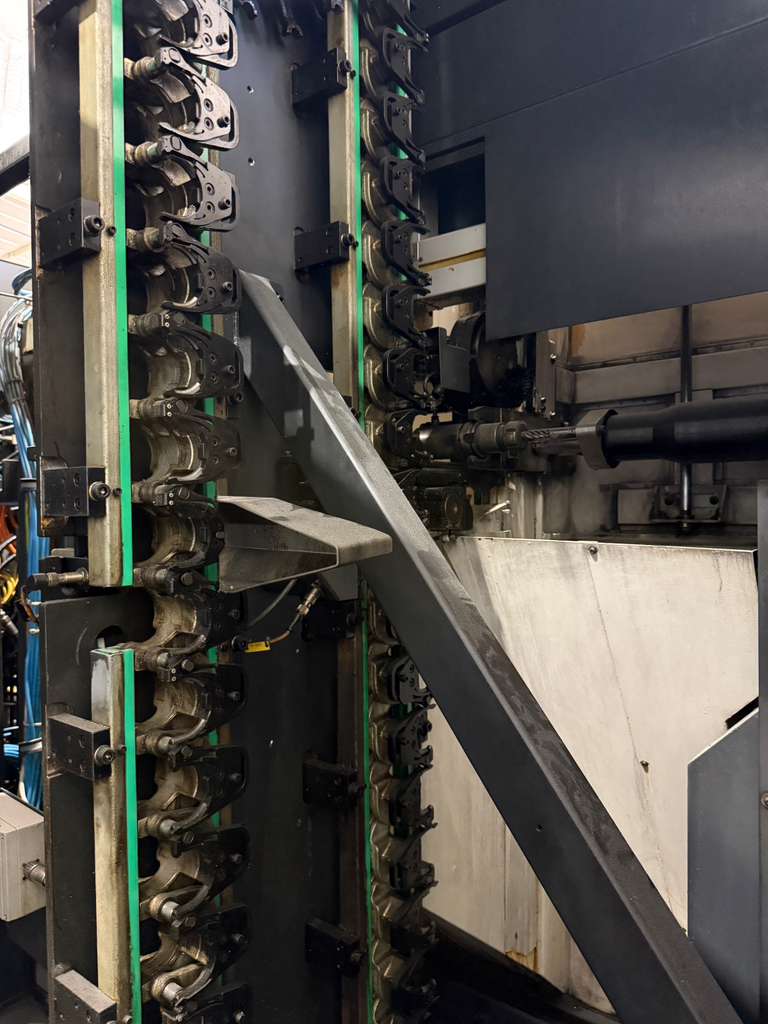

| Tool Changer: |
|---|
| Capacity: 60 Station |
| Taper: HSK-A63 |
| Maximum Tool Diameter: 4.72″ |
| Maximum Tool Length: 17.71″ |
| Maximum Tool Weight: 33 lbs |
| General: |
|---|

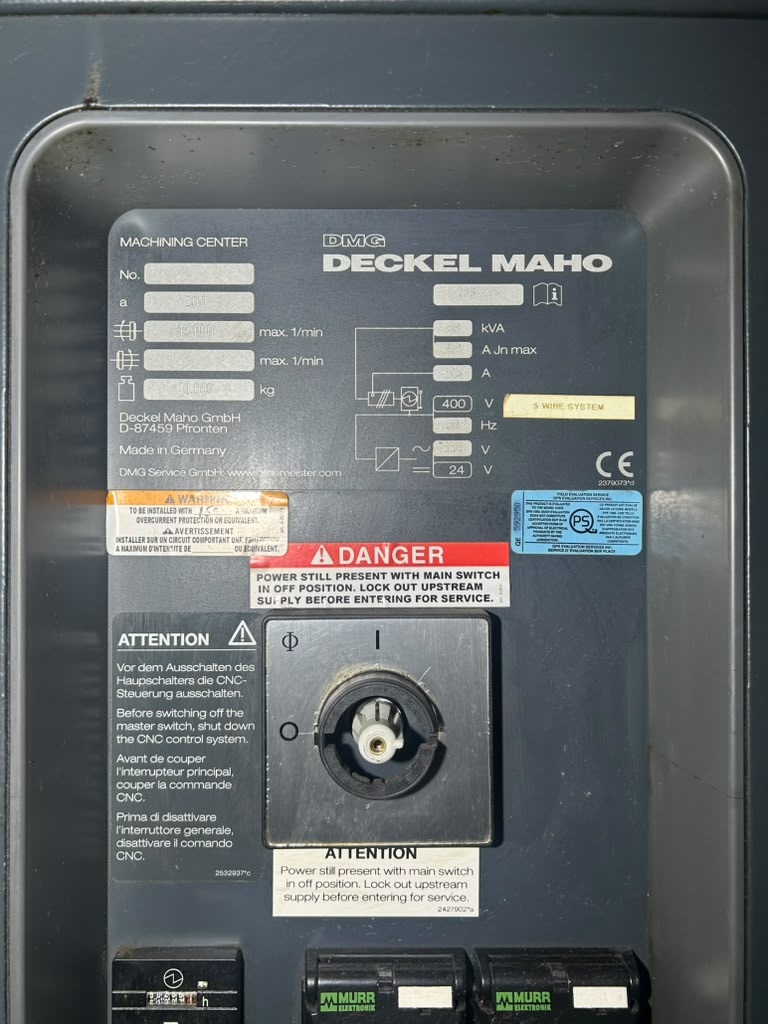

| Power: 400v / 3-phase / 60 Hz / 83 kva |
| Machine Overall Dimensions: 198″ x 133″ x 122″ High Approx. |
| Machine Weight: 22,000 lbs Approx. |
