*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG |
| Model No.: |
DMU 340P |
| Year of Manufacture: |
2012 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis Universal CNC Machining Center (Portal / Gantry Type) |

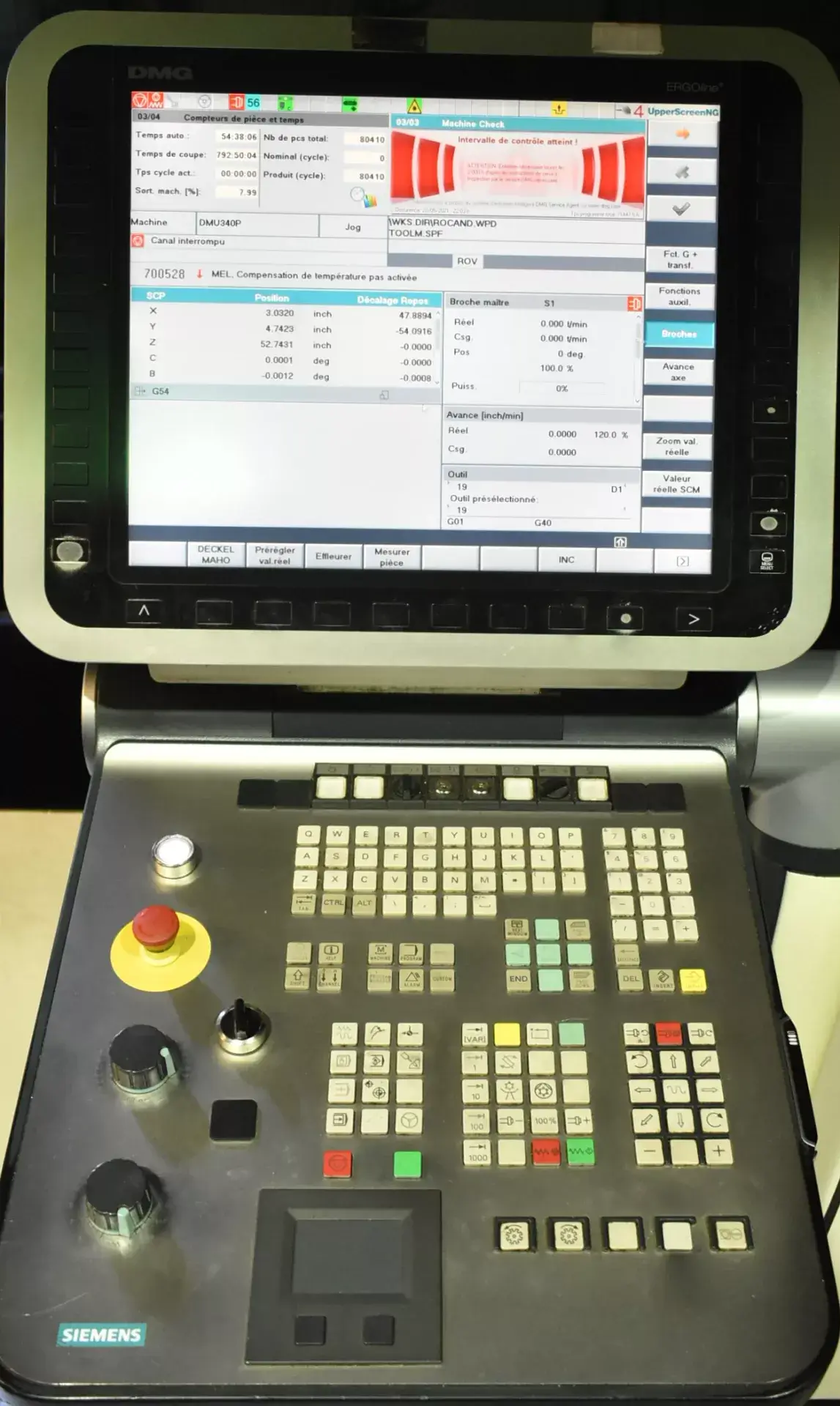

| CNC Control: |
Siemens 840D Solutionline with ERGOline Control Panel |
| Equipped With: |
| Siemens 840D Solutionline CNC Control |
| ERGOline Control Panel with Large Display |
| Full 5-Axis Simultaneous Machining |
| Motorized Swivel Milling Head |
| NC Rotary Table (C-Axis) |
| Automatic Tool Changer (ATC) |
| Tool Magazine System |
| Through Spindle Coolant (TSC – High Pressure) |
| Renishaw / Blum Tool Measurement System |
| Renishaw Workpiece Probing System |
| Chip Conveyor System |
| Coolant Filtration & High-Capacity Tank |
| Spindle Chiller Unit |
| Hydraulic & Pneumatic Systems |
| Automatic Central Lubrication |
| Fully Enclosed Cabin with Safety Interlocks |
| Electronic Handwheel (MPG) |
| Internal Work Lighting |
| Capacity: |
| Table Size: 3,400 × 2,800 mm (133.8″ × 110.2″) |
| Max Table Load: 10,000 kg (22,000 lbs) |
| Max Workpiece Diameter: 3,500 mm (137.8″) |
| Max Workpiece Height: 2,000 mm (78.7″) |
| Distance Spindle Nose to Table: Approx. 300 – 1,900 mm |
| Travels: |
| X-Axis Travel: 3,400 mm (133.8″) |
| Y-Axis Travel: 2,800 mm (110.2″) |
| Z-Axis Travel: 1,600 mm (63″) |
| A-Axis (Head Swivel): ±120° |
| C-Axis (Table): 360° Continuous |
| Rapid Traverse (X/Y/Z): 60 / 60 / 60 m/min |
| Feed Rate: Up to 30 m/min |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 35 – 50 kW (47 – 67 HP) |
| Spindle Torque: Approx. 300 – 500 Nm |
| Spindle Taper: HSK-A100 |
| Spindle Type: Motorized High-Speed Spindle |
| Bearing Type: Hybrid Ceramic Bearings |
| Cooling: Liquid Cooled Spindle System |
| Tool Changer & Magazine: |
| Tool Changer Type: Automatic Tool Changer |
| Tool Magazine Capacity: 60 / 90 / 120 Tools (Configurable) |
| Tool Change Time (T-T): 6 – 8 sec |
| Chip-to-Chip Time: Approx. 10–12 sec |
| Max Tool Diameter: 125 mm (adjacent) / 250 mm (without adjacent) |
| Max Tool Length: 400 mm |
| Max Tool Weight: 15 – 20 kg |
| Axis Drives & Accuracy: |
| Drive Type: Digital AC Servo Drives |
| Guideways: Linear Roller Guideways |
| Position Feedback: Direct Linear Scales (Glass Scales) |
| Positioning Accuracy: ±0.005 mm |
| Repeatability: ±0.003 mm |
| Ball Screws / Direct Drive Systems |
| Look-Ahead Function: Advanced High-Speed Processing |

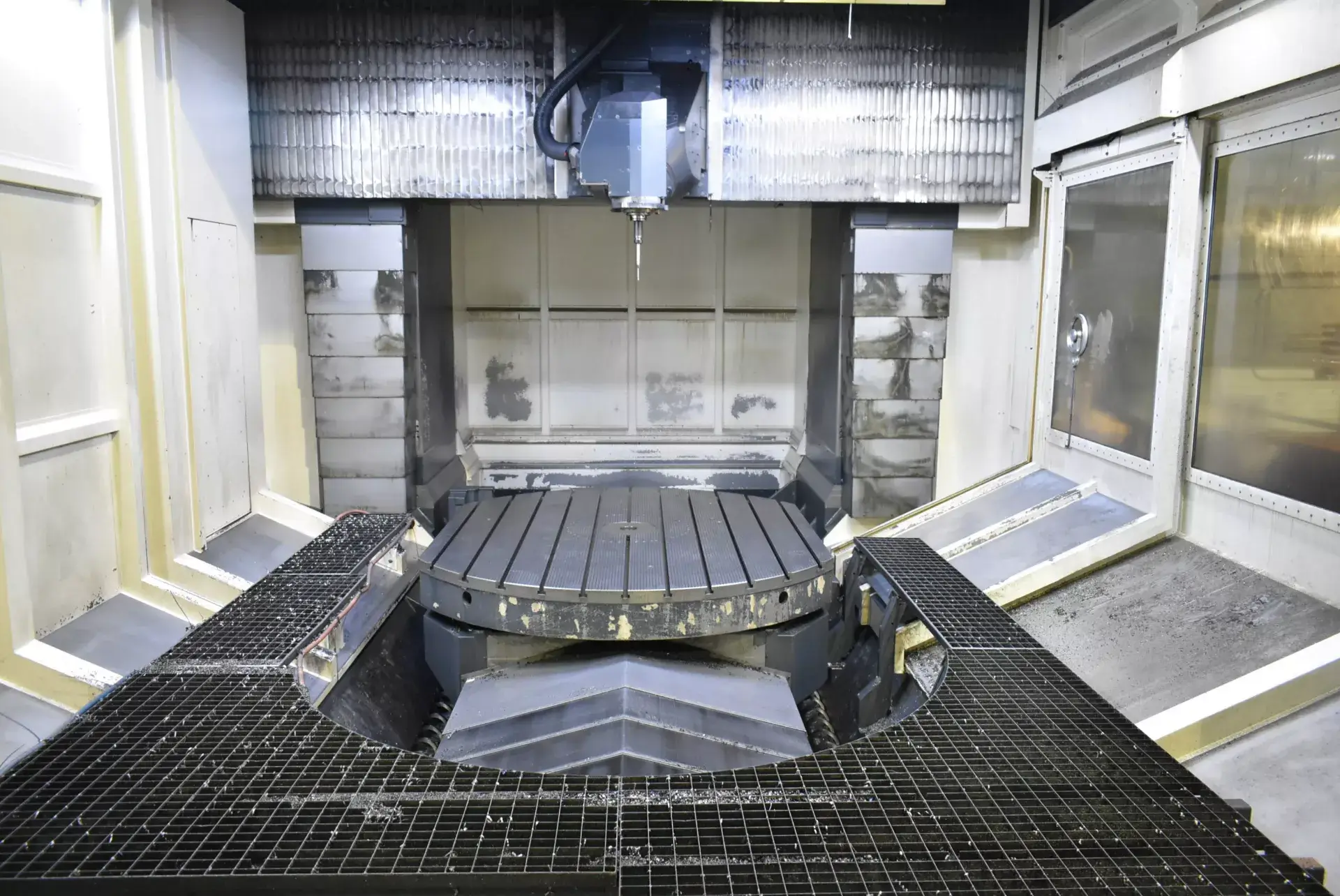

| Rotary Table (C-Axis): |
| Table Type: NC Rotary Table |
| Indexing Resolution: 0.001° |
| Drive System: Direct Drive / Gear Driven (Config Dependent) |
| Clamping System: Hydraulic Clamping |
| High Precision Continuous 5-Axis Machining |
| Machine Construction: |
| Portal Gantry Design for Large Part Stability |
| Thermo-Symmetric Machine Frame |
| High-Damping Cast Structure |
| Bridge-Type Construction for Rigidity |
| Designed for Heavy Cutting + High-Speed Finishing |
| Ideal for Aerospace, Molds, Energy, Large Components |
| Coolant & Chip Management: |
| Flood Coolant System |
| Through Spindle Coolant (High Pressure – up to 70 bar / 1000 PSI approx.) |
| Multi-Stage Coolant Filtration |
| Large Capacity Coolant Tank |
| Dual Chip Conveyor System |
| Oil Skimmer |

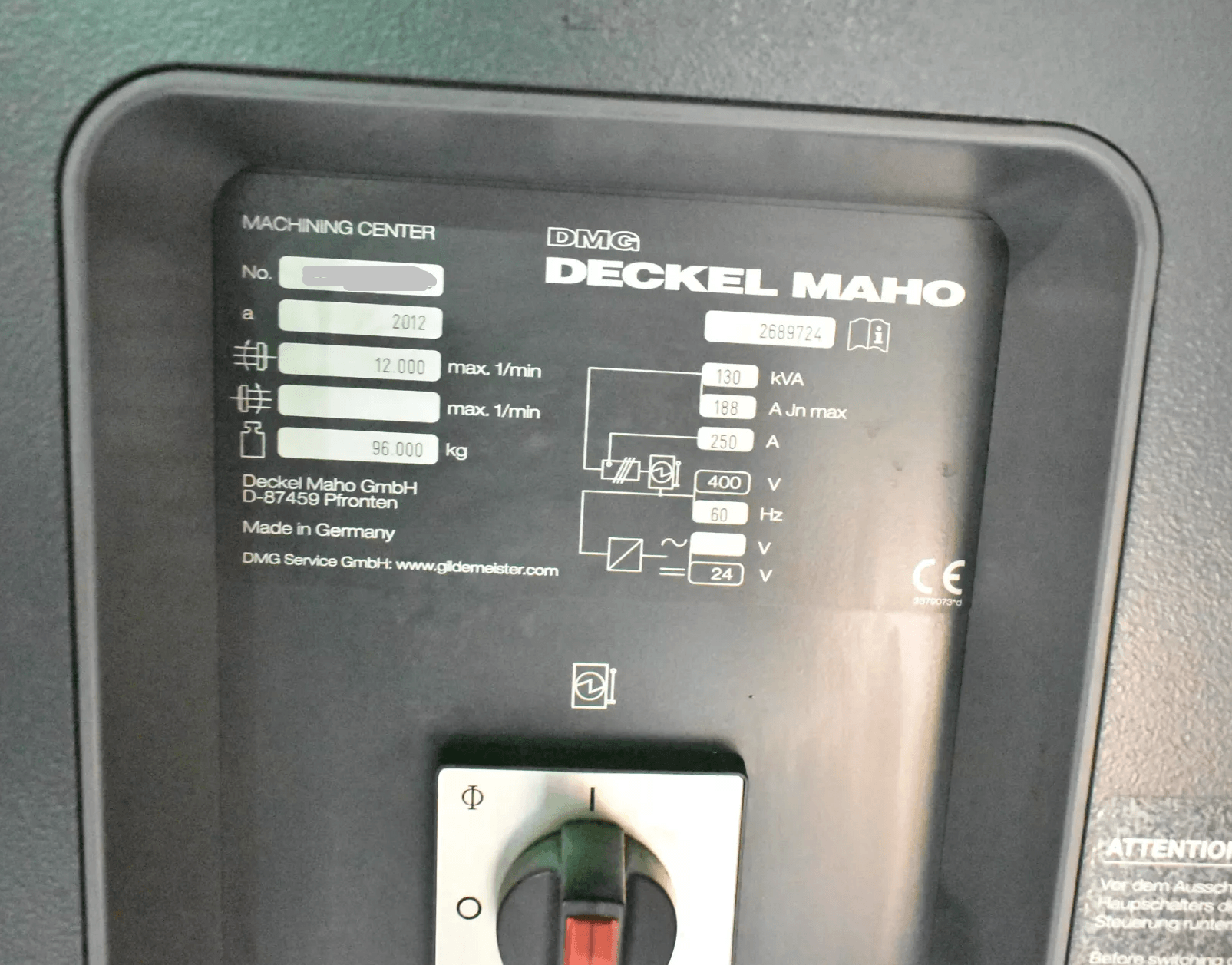

| Electrical: |
| Power Requirement: 400V / 3 Phase / 50-60 Hz |
| Connected Load: 130 kVA |
| Main Drive Current: ~188 A |
| Control Voltage: 24V DC |
| Siemens Digital Drive System |
| General: |
| Machine Weight: Approx. 90,000 – 100,000 kg (198,000 – 220,000 lbs) |
| Machine Dimensions: Approx. 10m × 8m × 5m (L × W × H) |
| Country of Origin: Germany |
| Optional Features: |
| Automatic Pallet Changer (APC) |
| Laser Tool Measurement System |
| 5-Axis Kinematic Compensation |
| Adaptive Feed Control |
| Tool Management Software |
| High-Pressure Coolant (100 bar+) |
| Mist Extraction System |
| Remote Diagnostics / Industry 4.0 Integration |
