*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG Mori |
| Model No.: | CMX 800 V |
| Year: | 2017 |
| Condition: | Used |
| Machine Type: | CNC Vertical Machining Center |

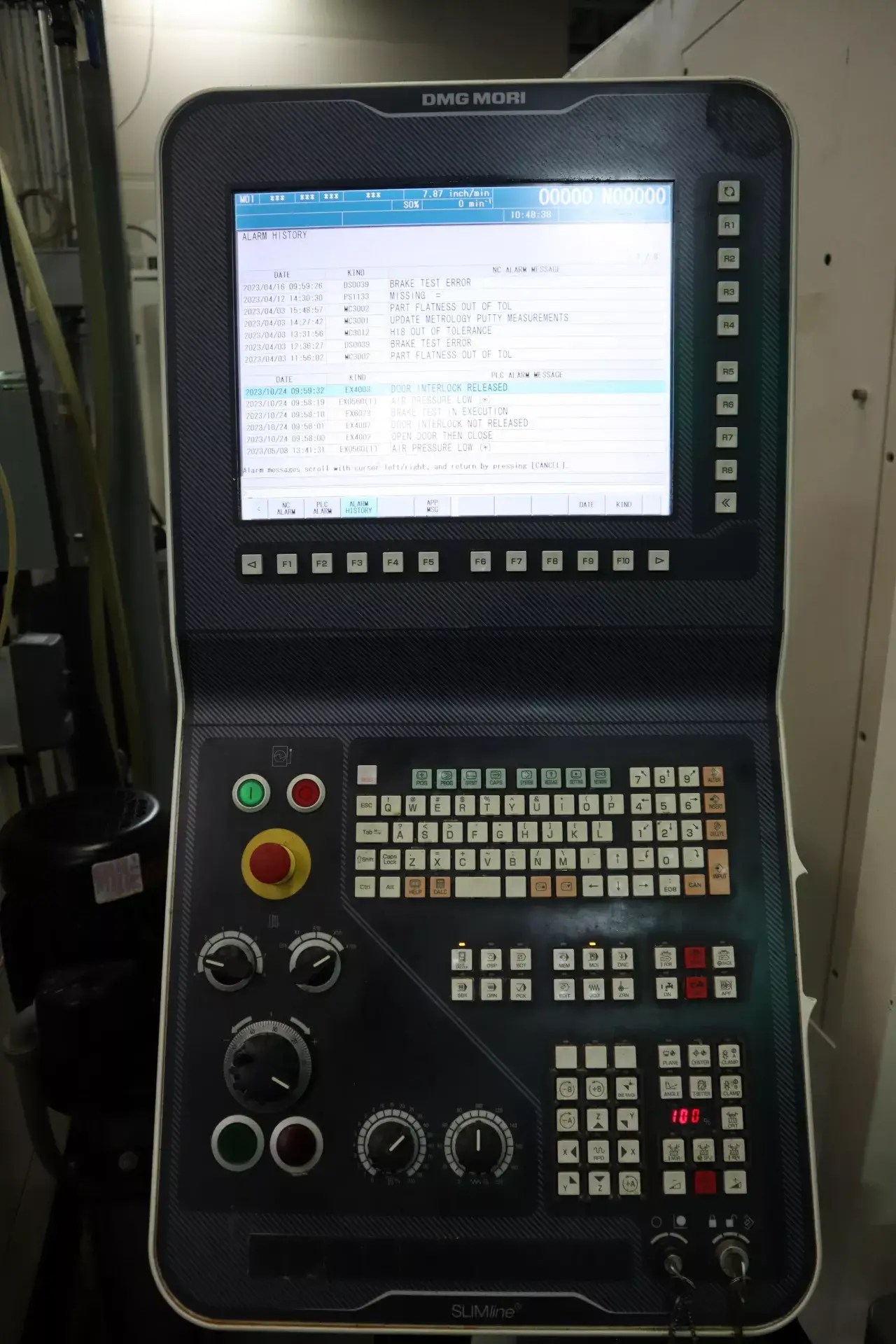

| Control: | MAPPS Fanuc CNC Control |
| Country of Origin: | Germany / Japan |
| Equipped With: |
|---|
| MAPPS Fanuc CNC Control |

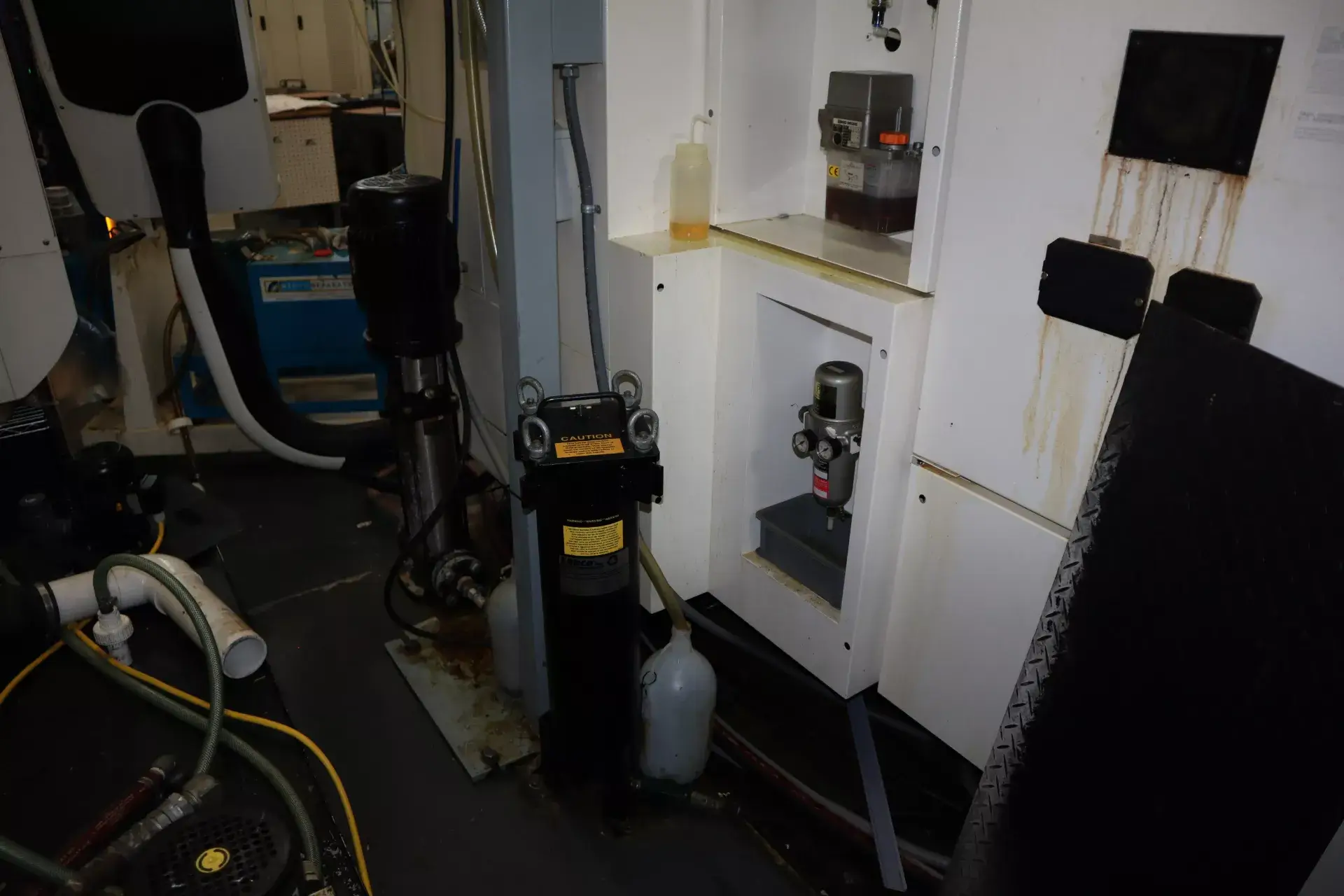

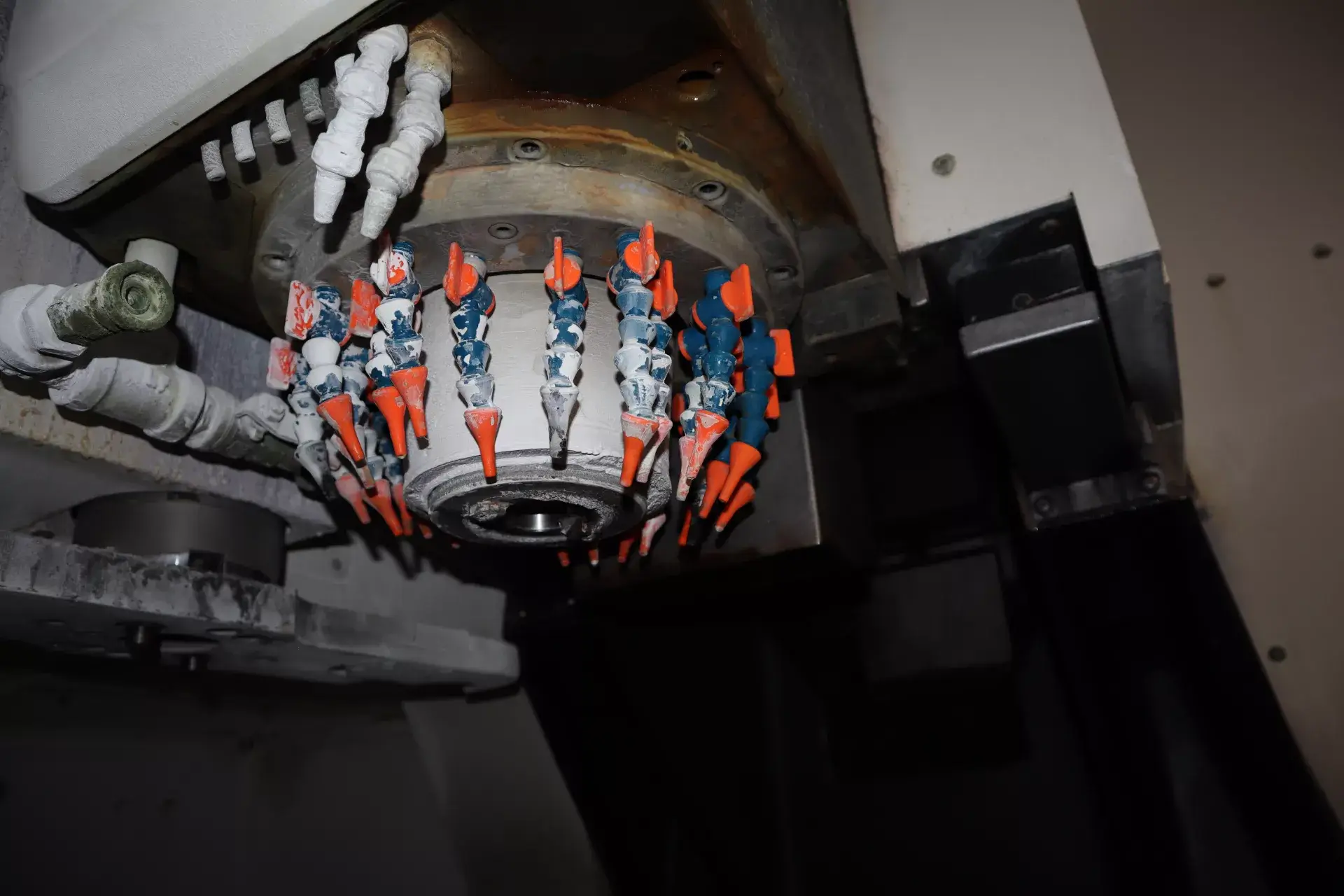

| High-Pressure Coolant Through Spindle |
| Mist Collector |
| Coolant Tank |
| 30 Position Automatic Tool Changer |
| CAT 40 Spindle |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 31.50″ |
| Y-Axis Travel: 22.05″ |
| Z-Axis Travel: 20.08″ |
| Distance from Table to Spindle Nose: 4.72″ – 24.8″ |
| Rapid Traverse X/Y/Z: 1,181 IPM |
| Table: |
|---|
| Table Size: 42.31″ x 22.05″ |
| Table Load Capacity: 1,764 Lbs. |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Dimensions & Weight: |
|---|
| Floor Space: 95.52″ x 108.54″ |
| Machine Weight: 12,500 Lbs. |
