*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

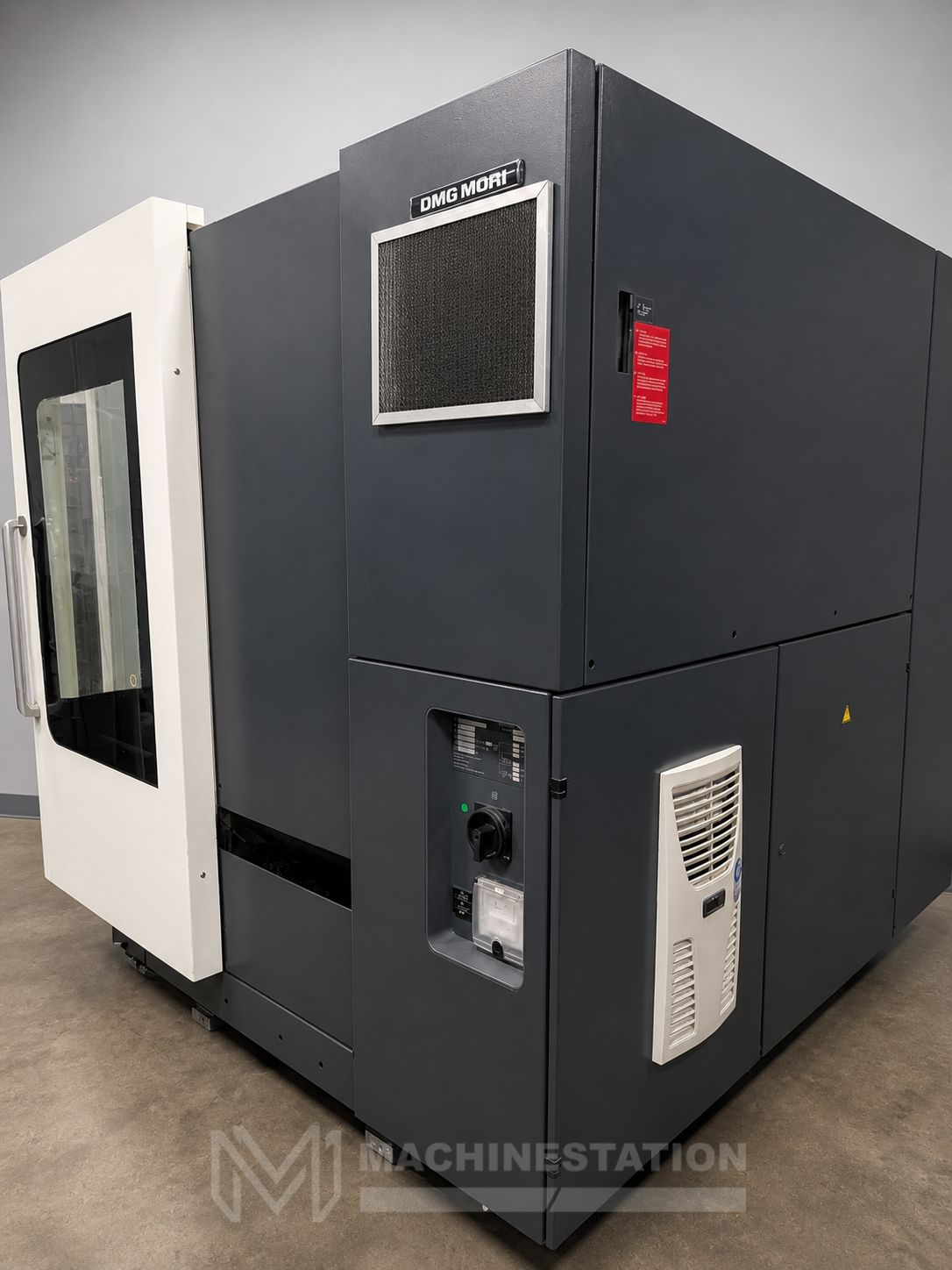

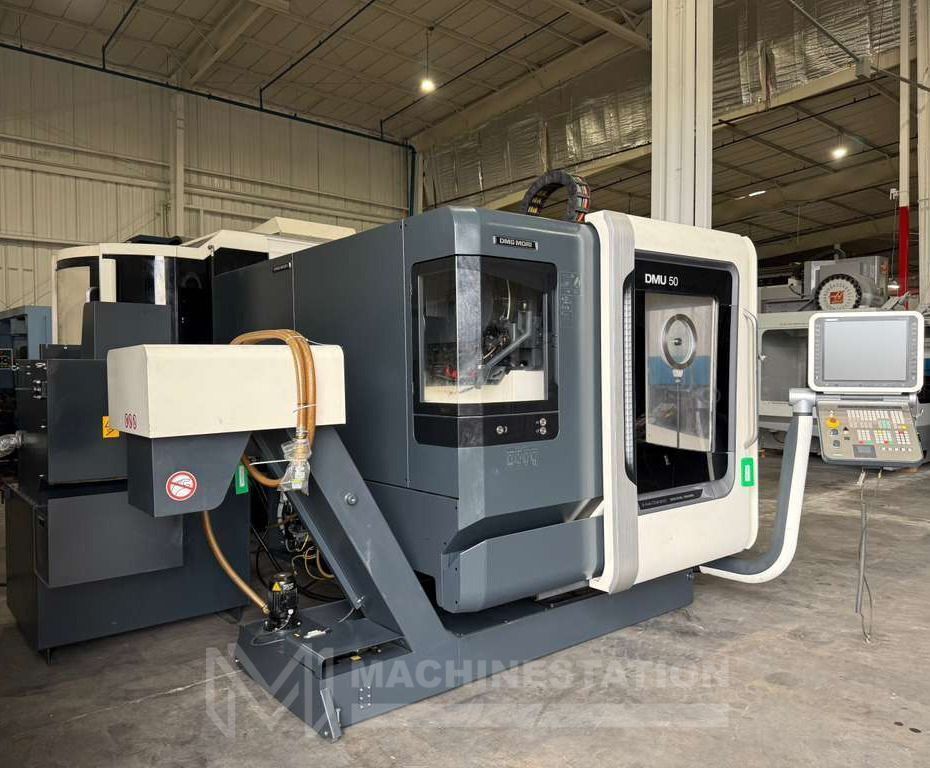

| Make: | DMG Mori |
| Model: | DMU 50 |
| Year: | 2015 |
| Condition: | Used – Excellent |
| Features: |
|---|

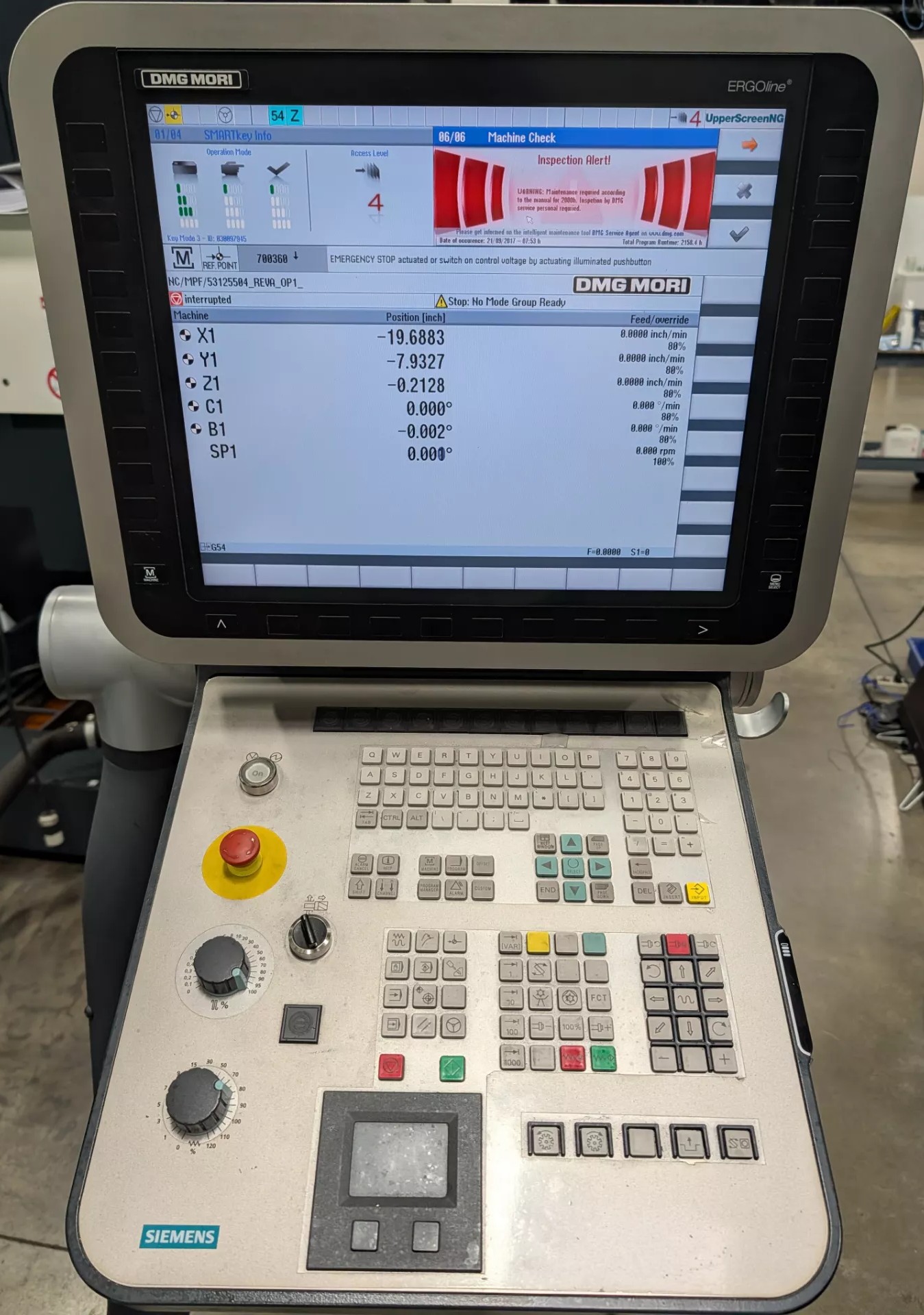

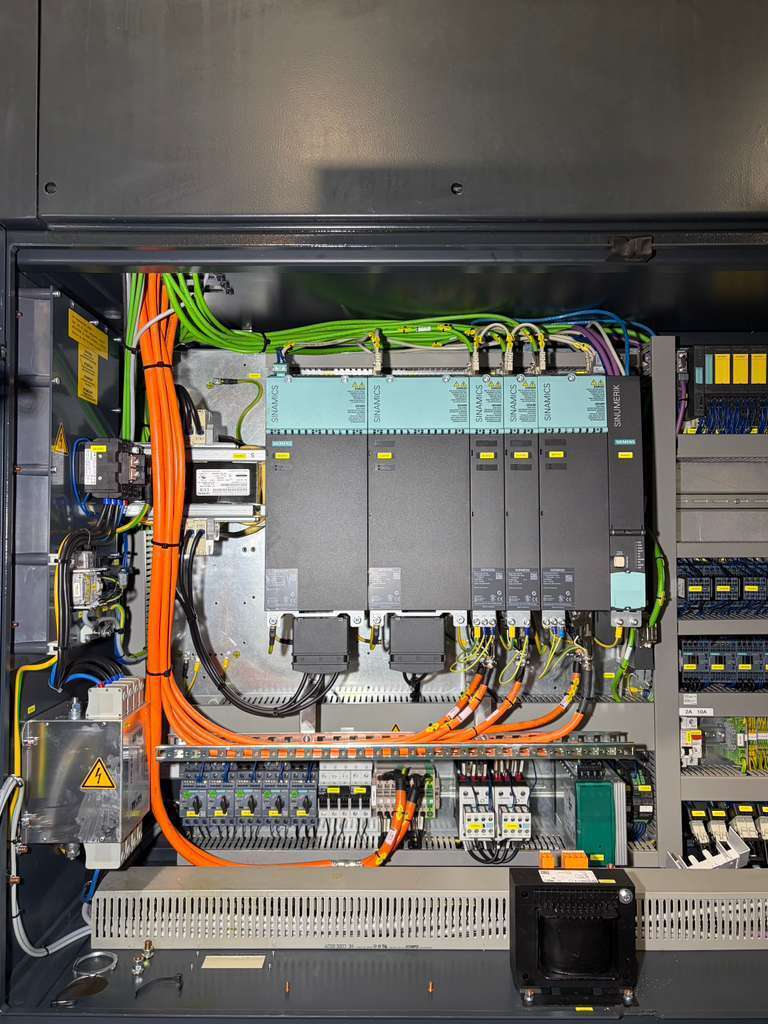

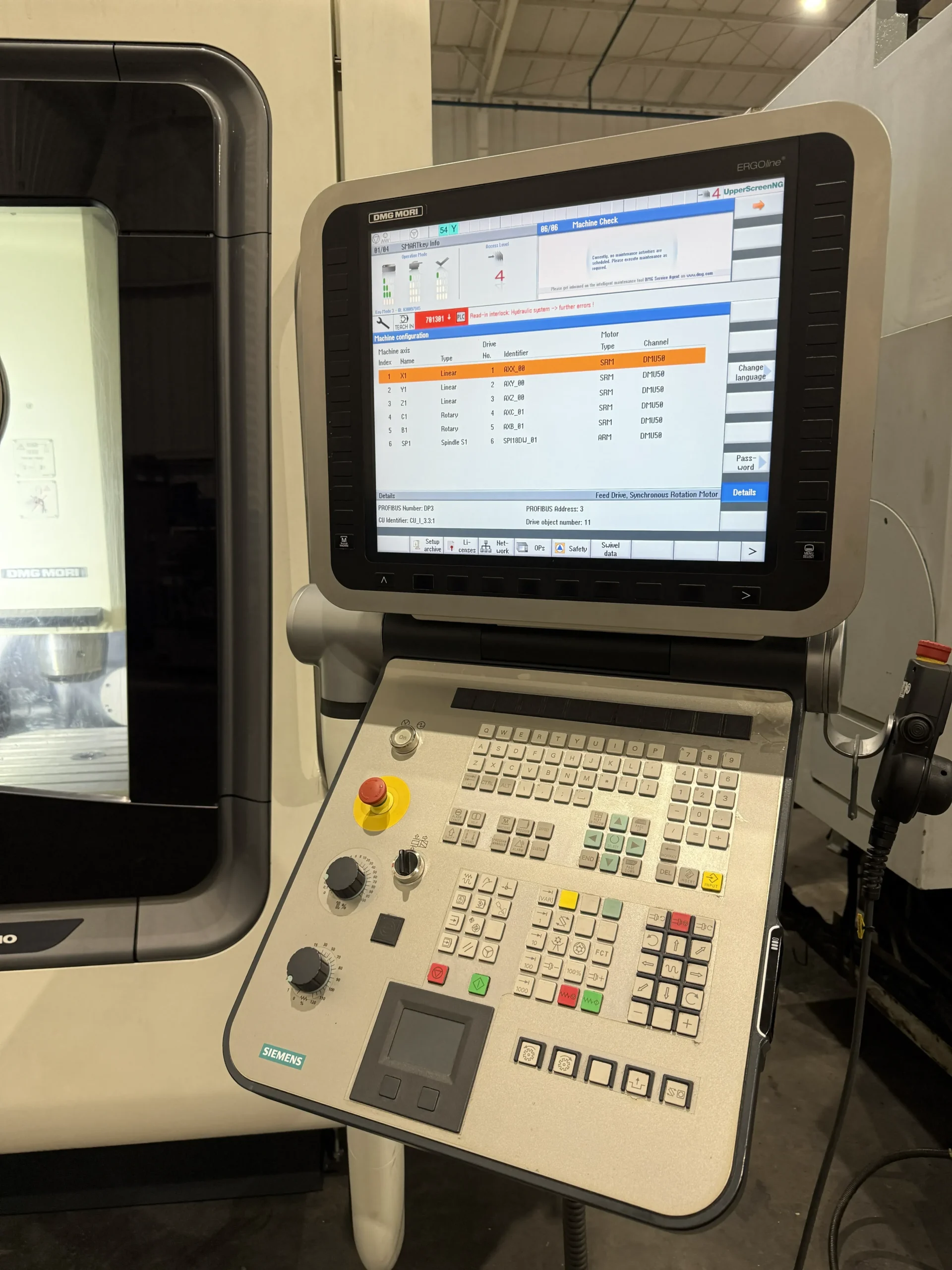

| Siemens ERGOline CNC Control |
| 5 Axis Simultaneous Machining |

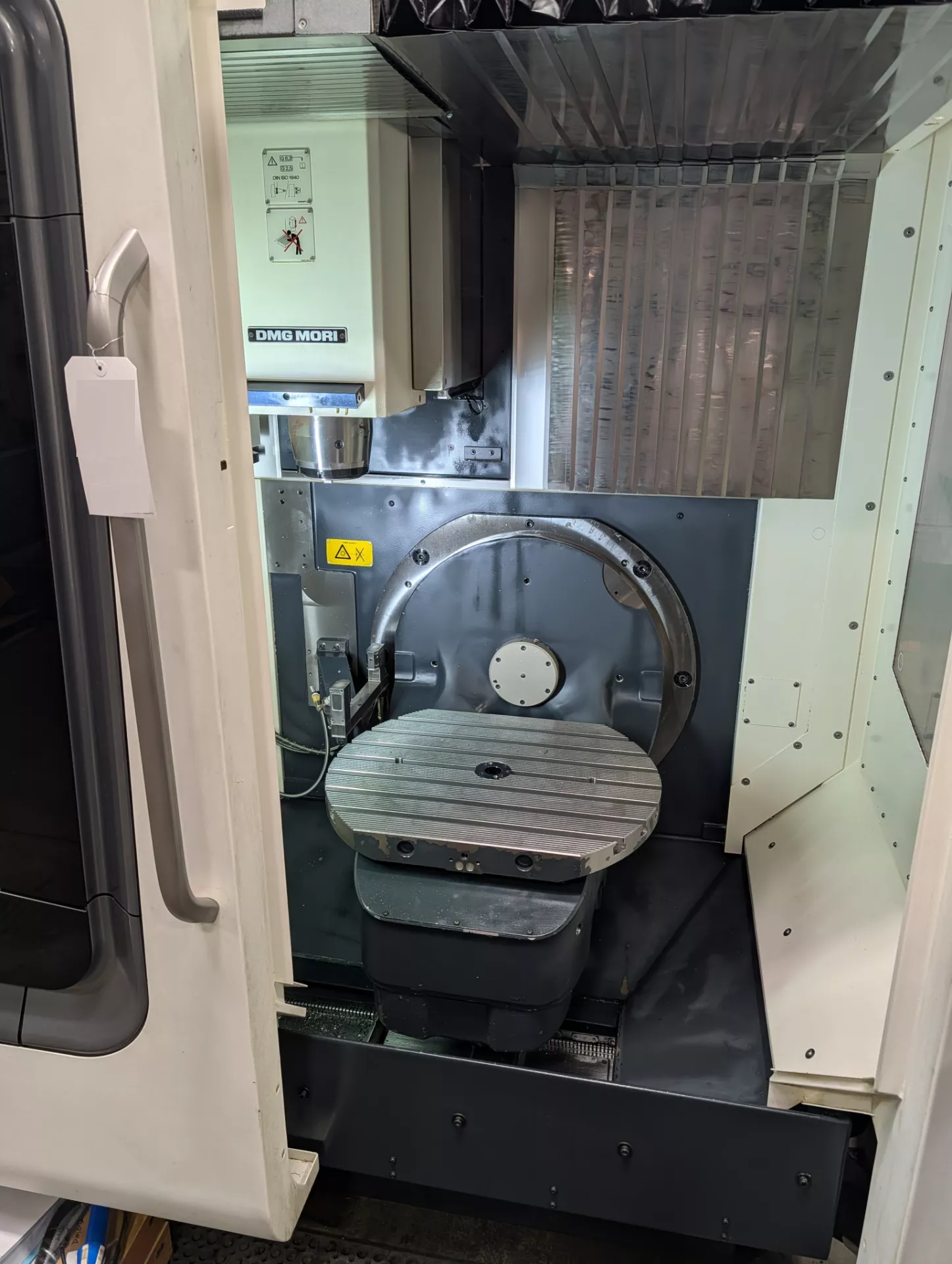

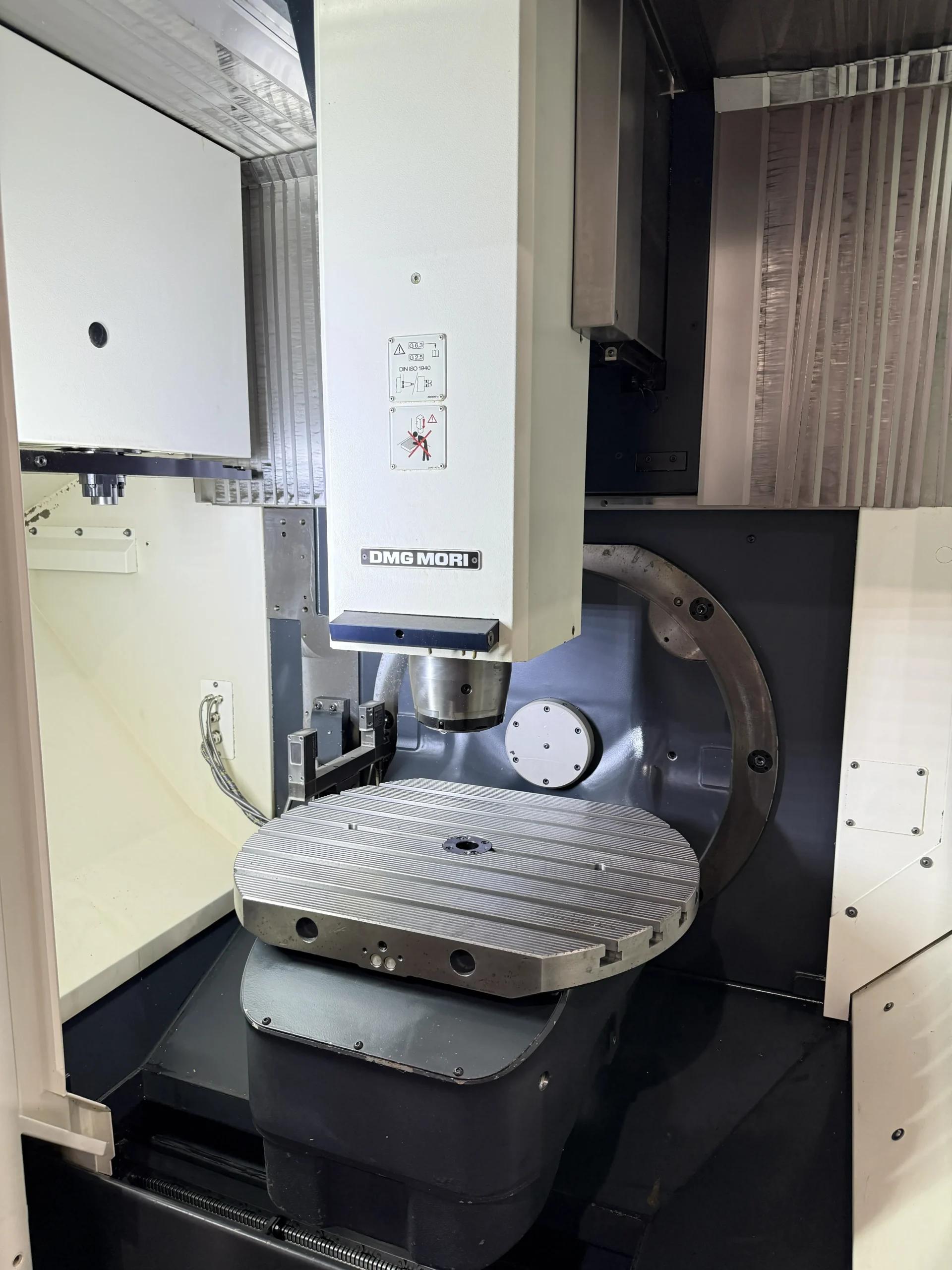

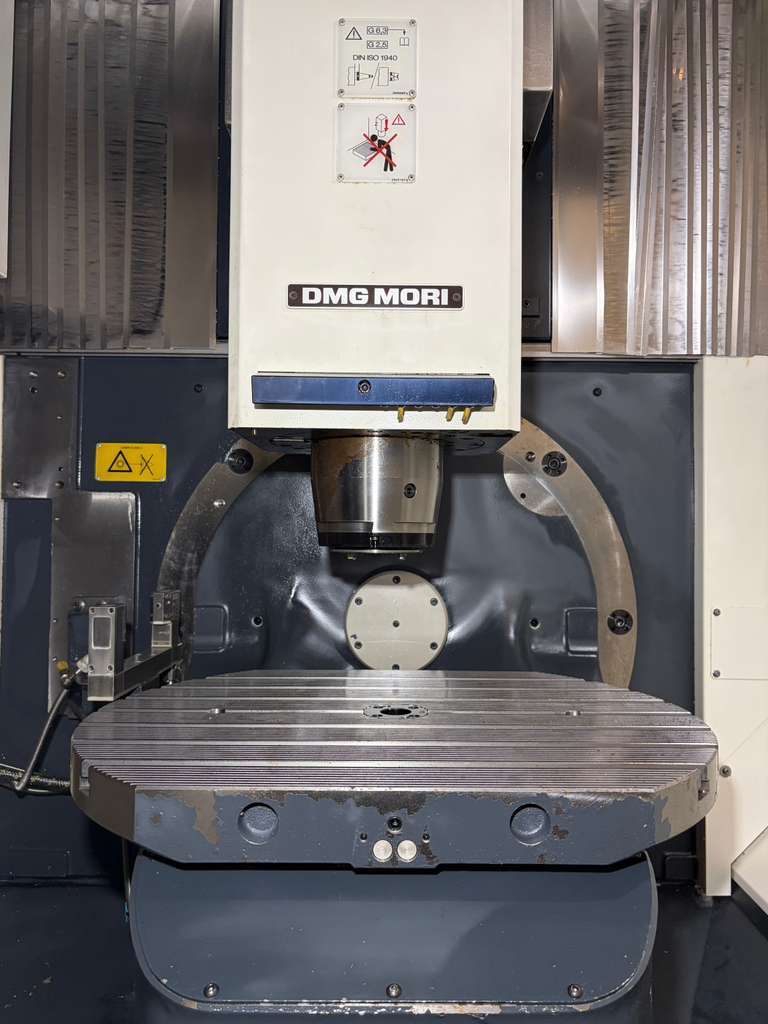

| ø 24.8″ × 19.7″ Trunnion Table |
| 18,000 RPM High Speed Spindle |

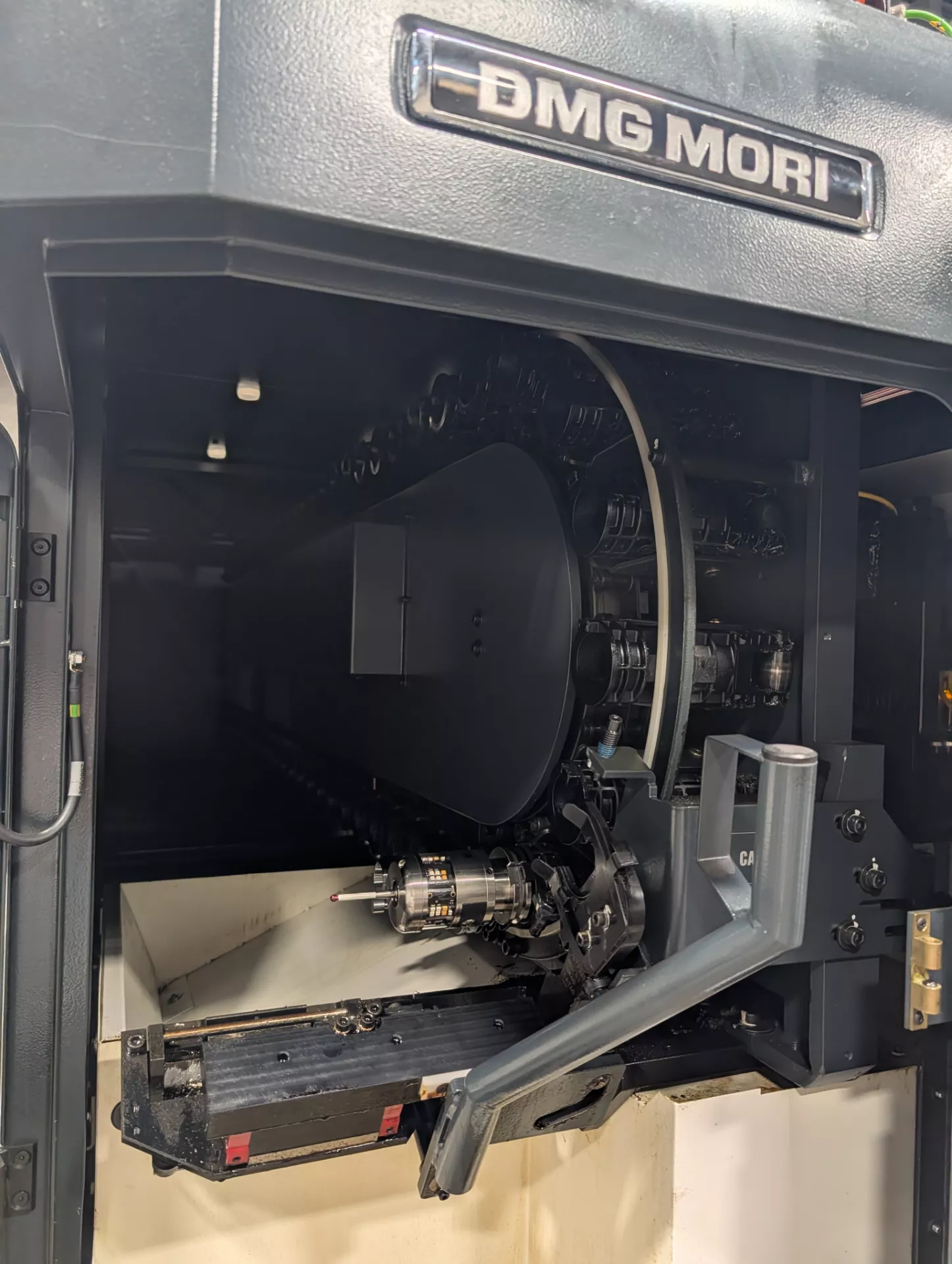

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |

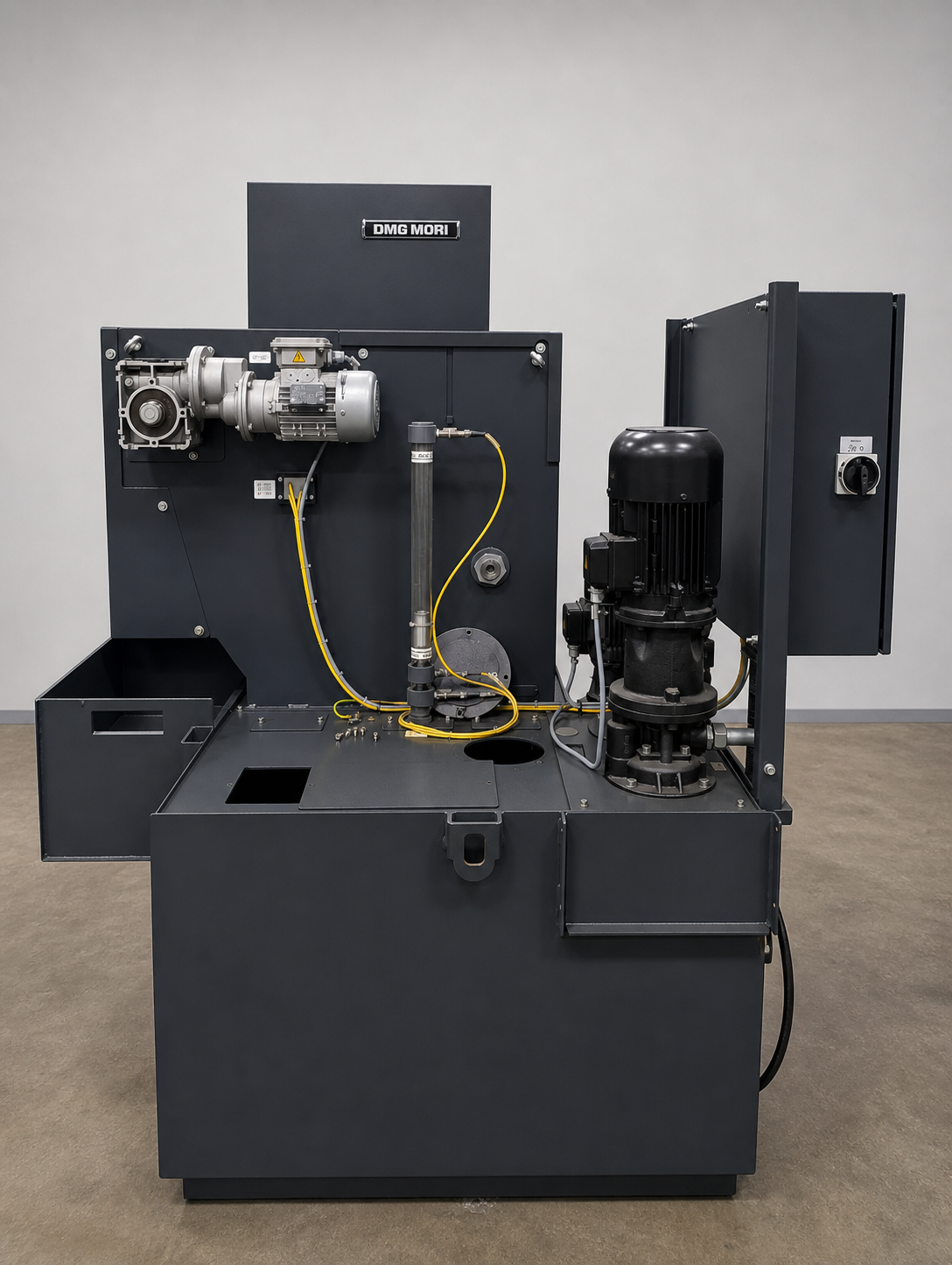

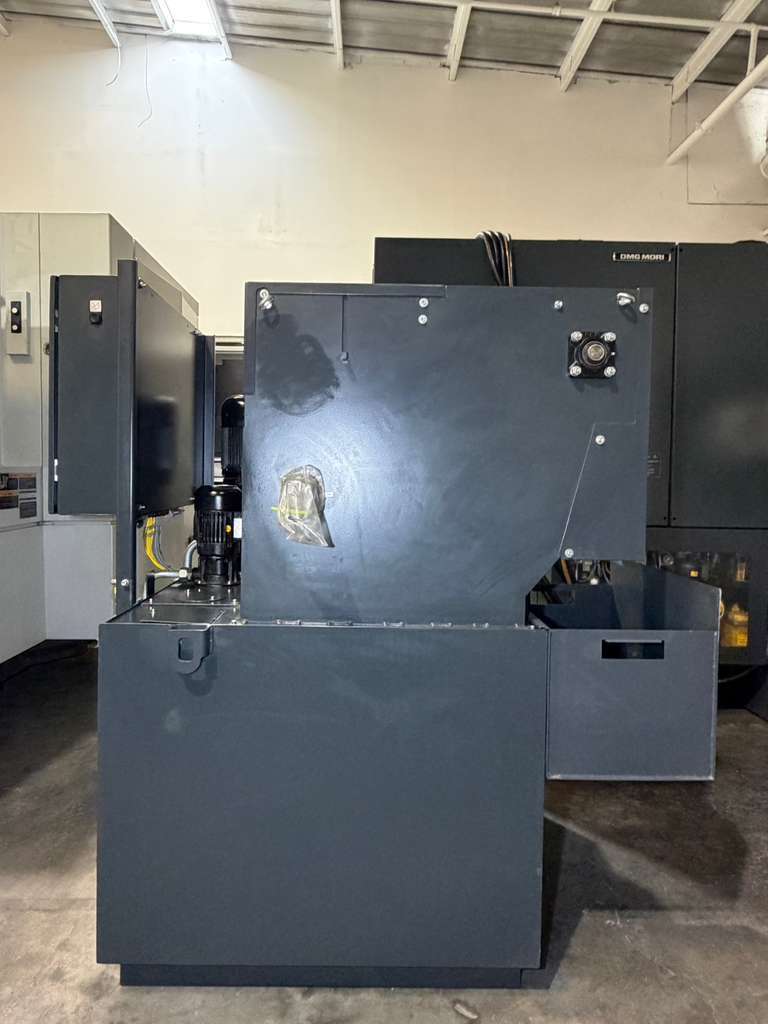

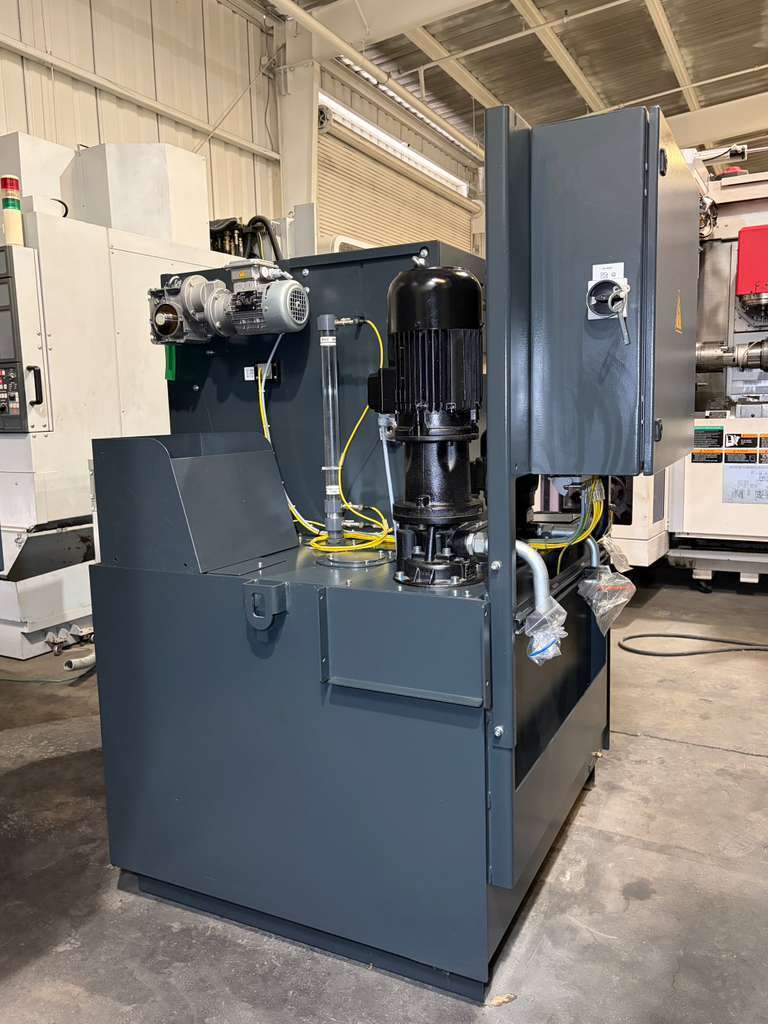

| Micron Paper Filteration Coolant System |

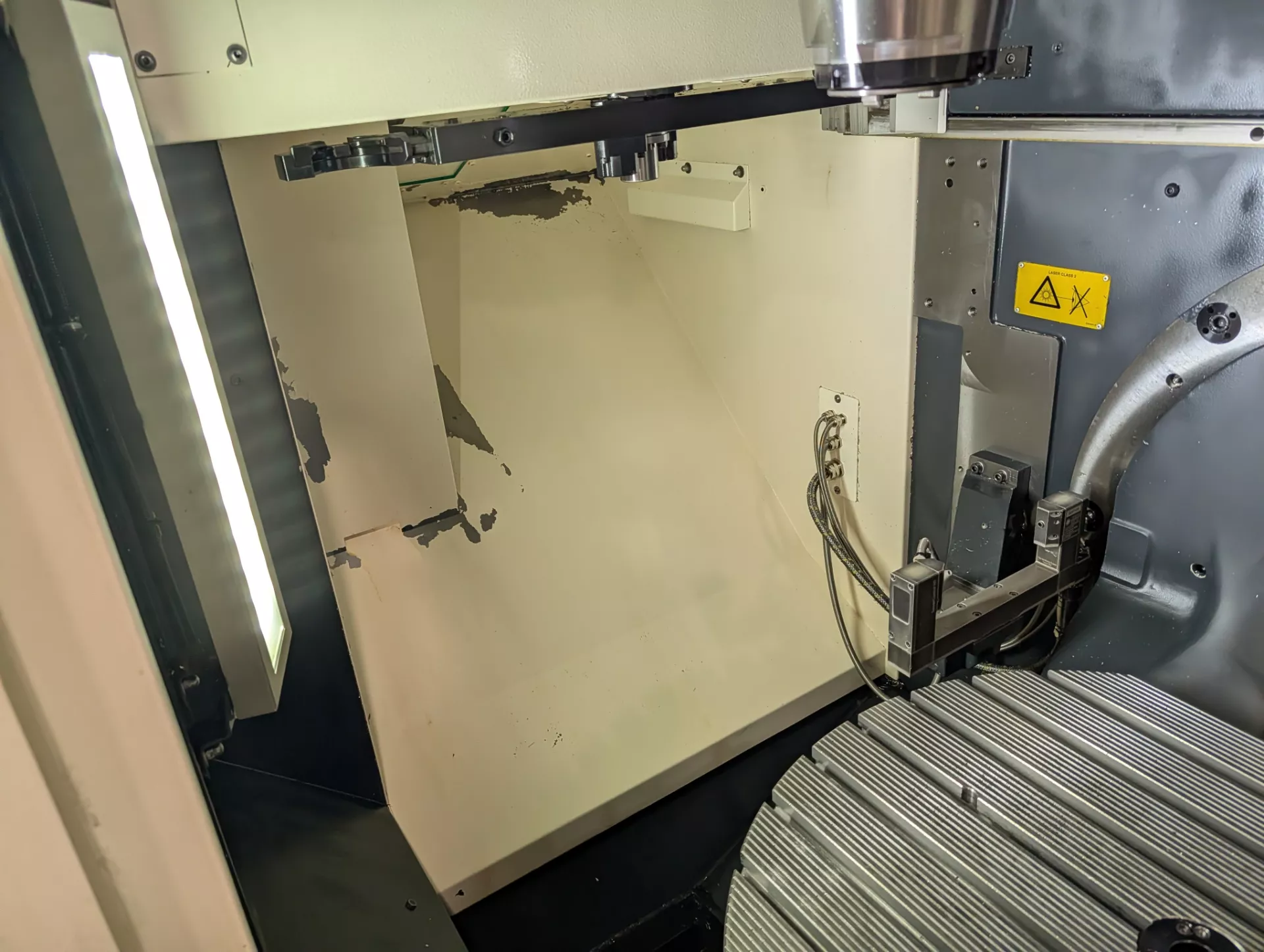

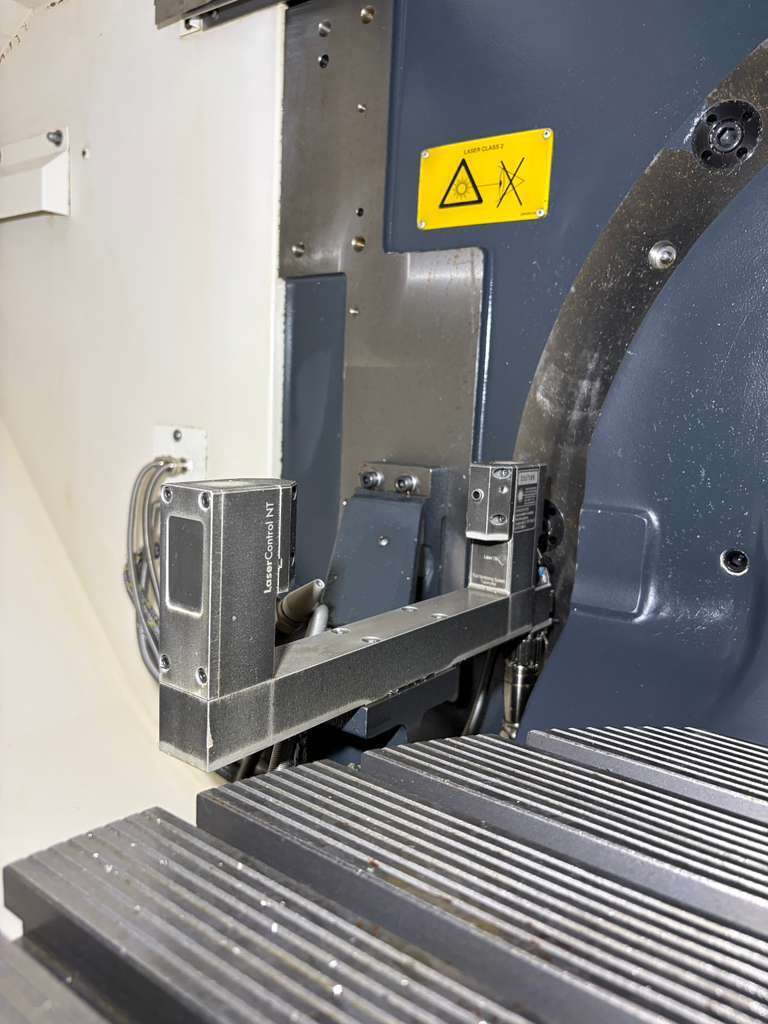

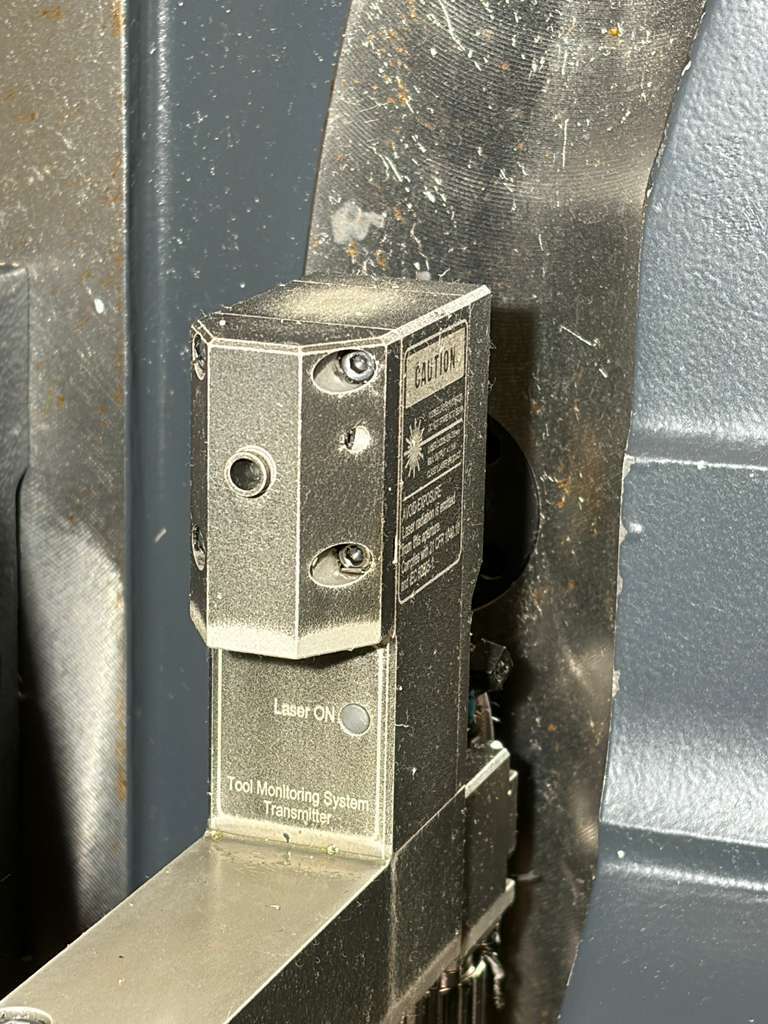

| DMG Mori Power Probing System (Tool Probe Included) |
| Internal Window Coolant Wiper |

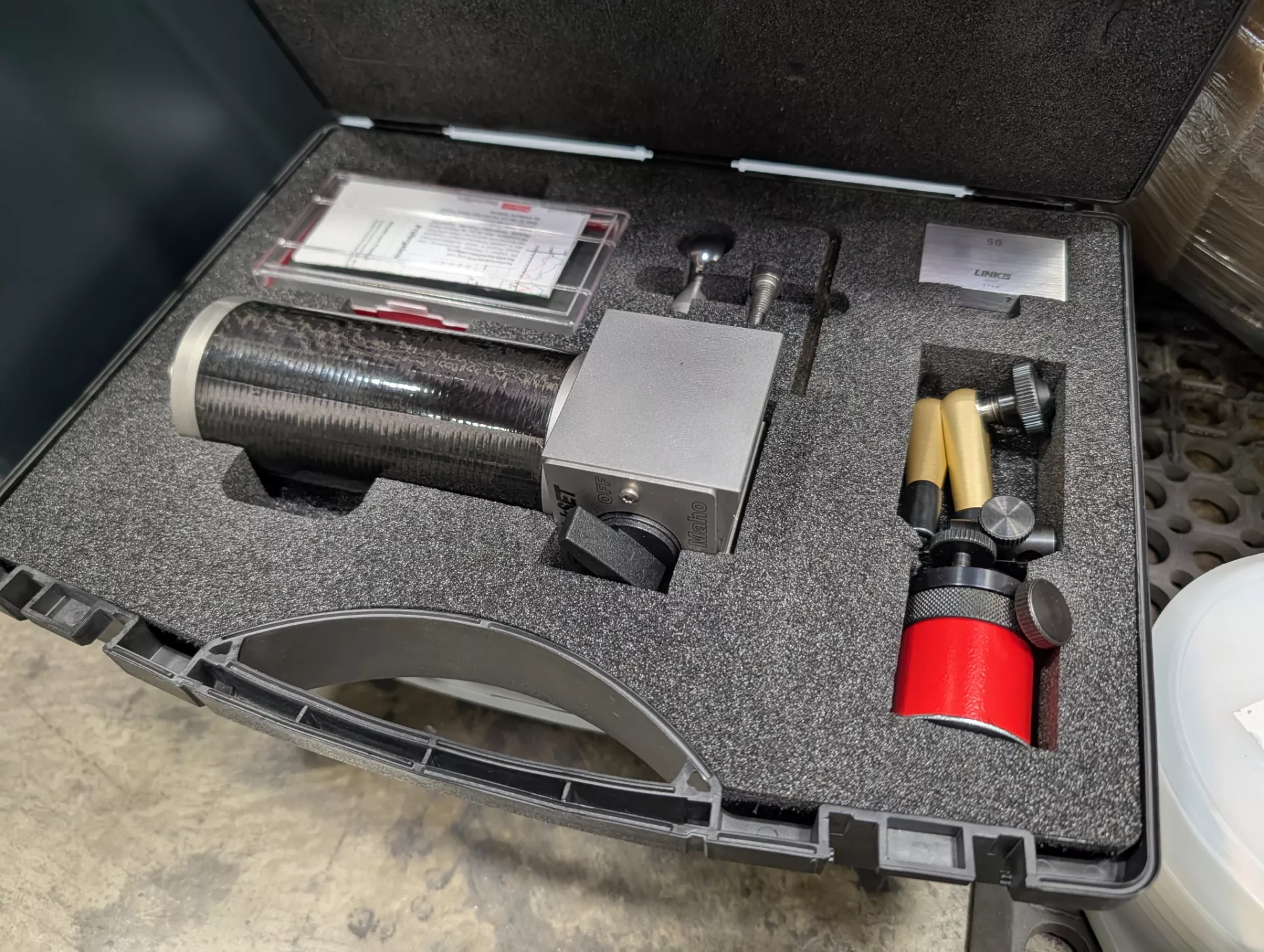

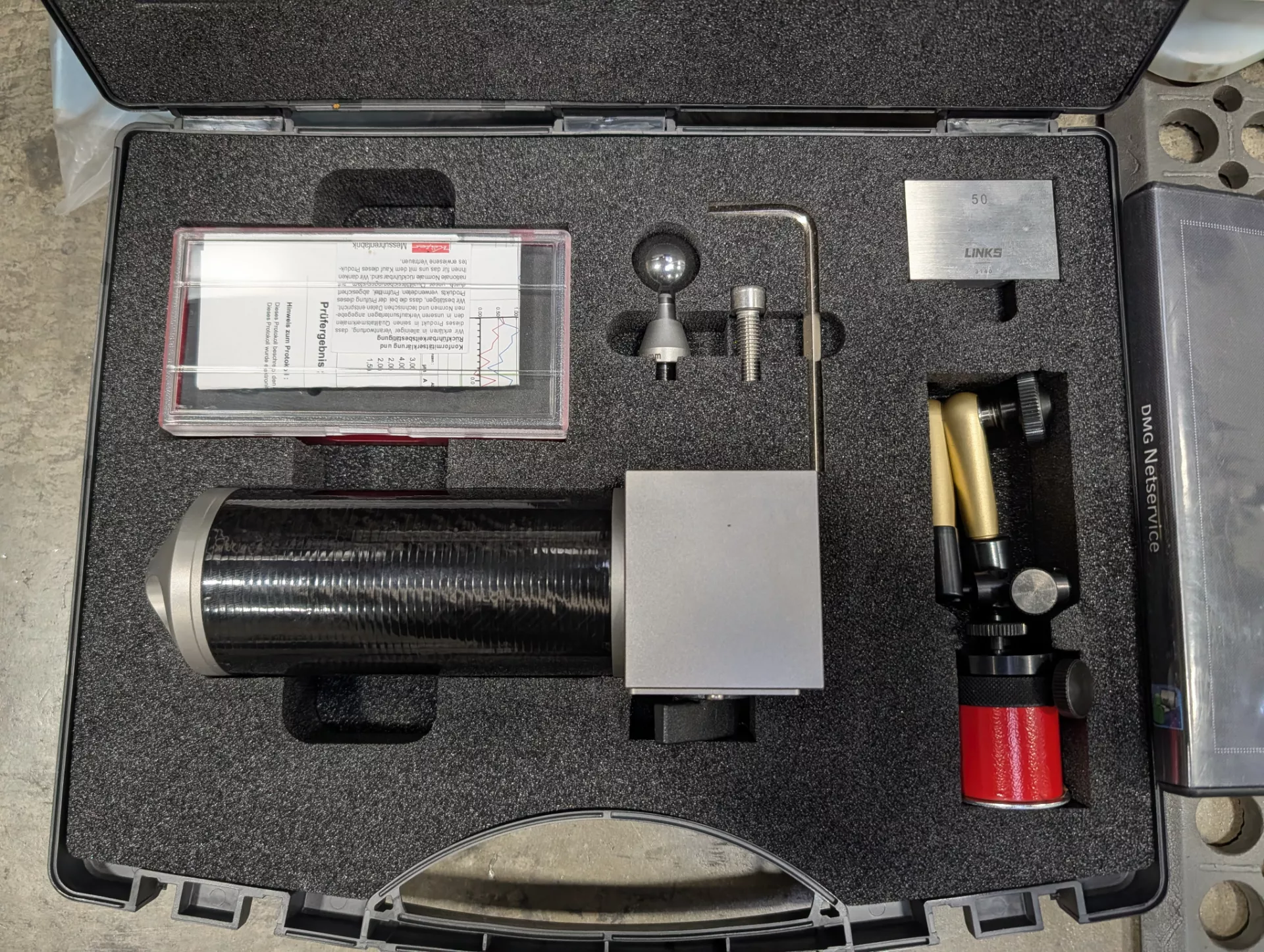

| 3D QuickSet |
| MPG Handwheel Control |
| PCMCIA Card Slot |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |

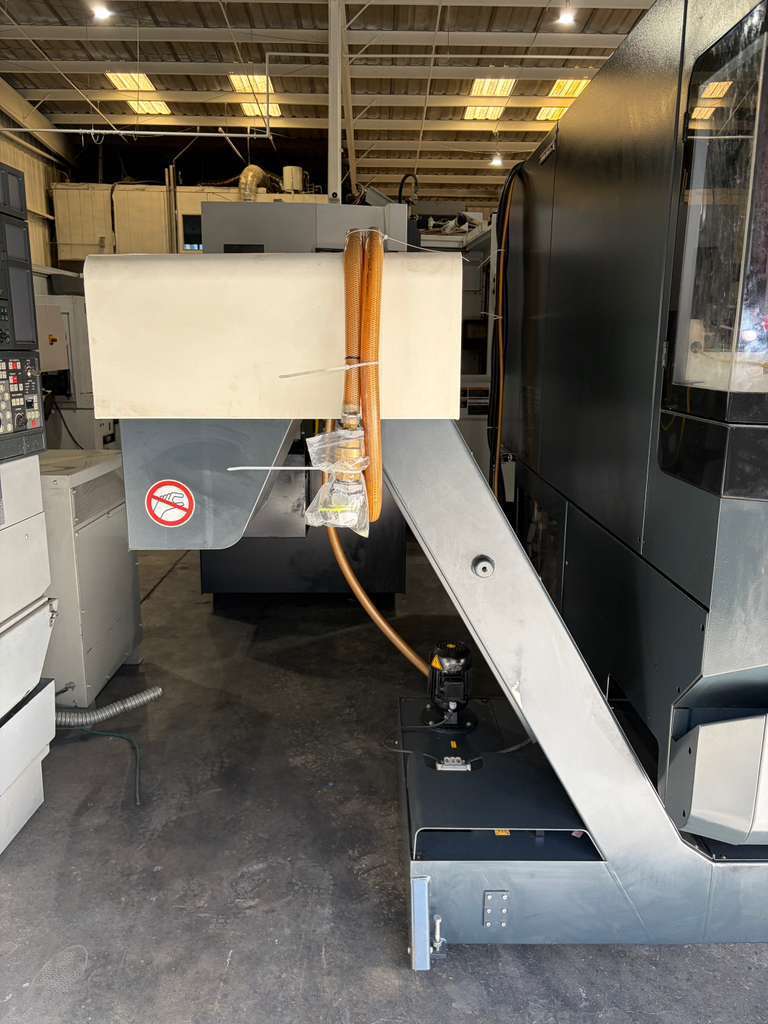

| Chip Conveyor |

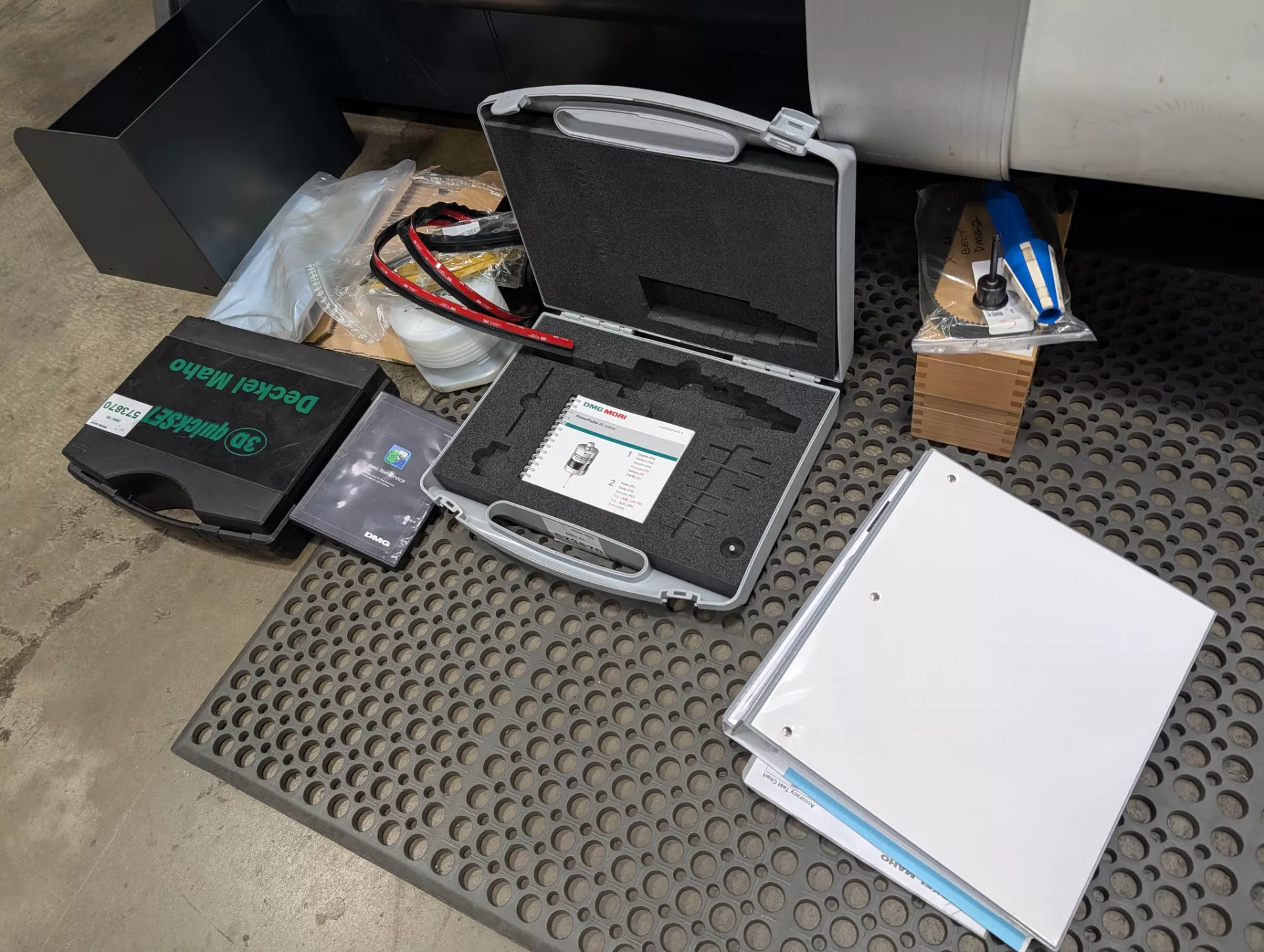

| Books & Manuals |
| Travels: |
|---|
| X – Axis: 19.7″ |
| Y – Axis: 17.7″ |
| Z – Axis: 15.7″ |
| B Axis: -35° +110° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Rapid X Y & Z: 945 Inch Per Minute |
| Feed Rate : 945 Inch Per Minute |

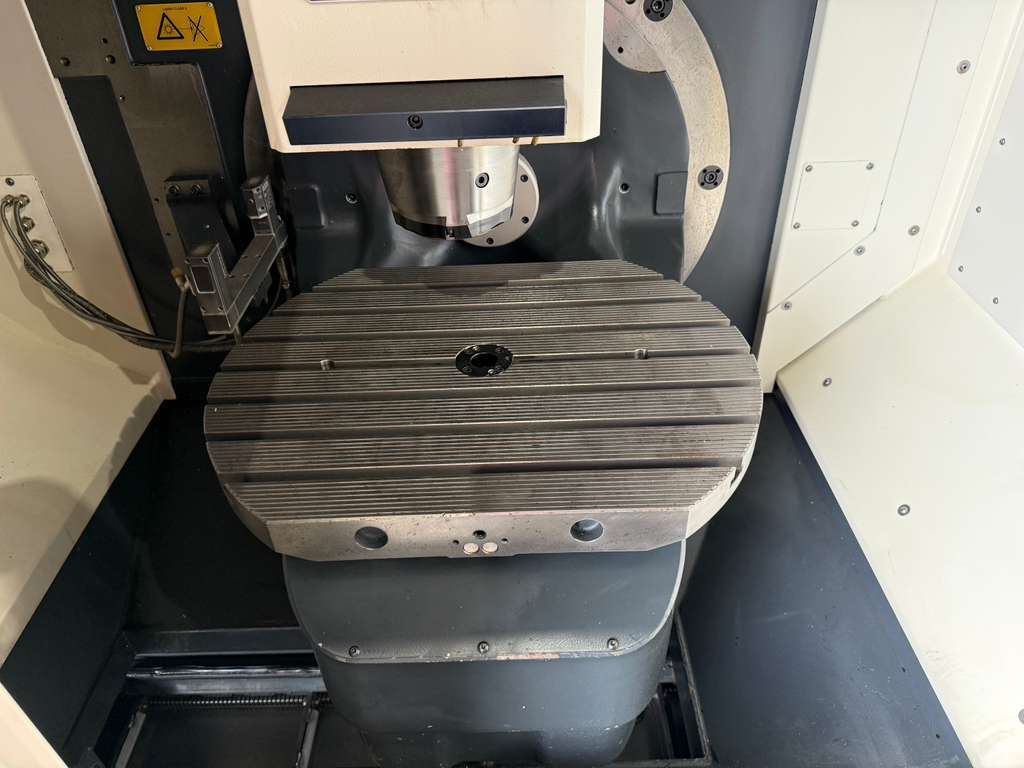

| Table: |
|---|

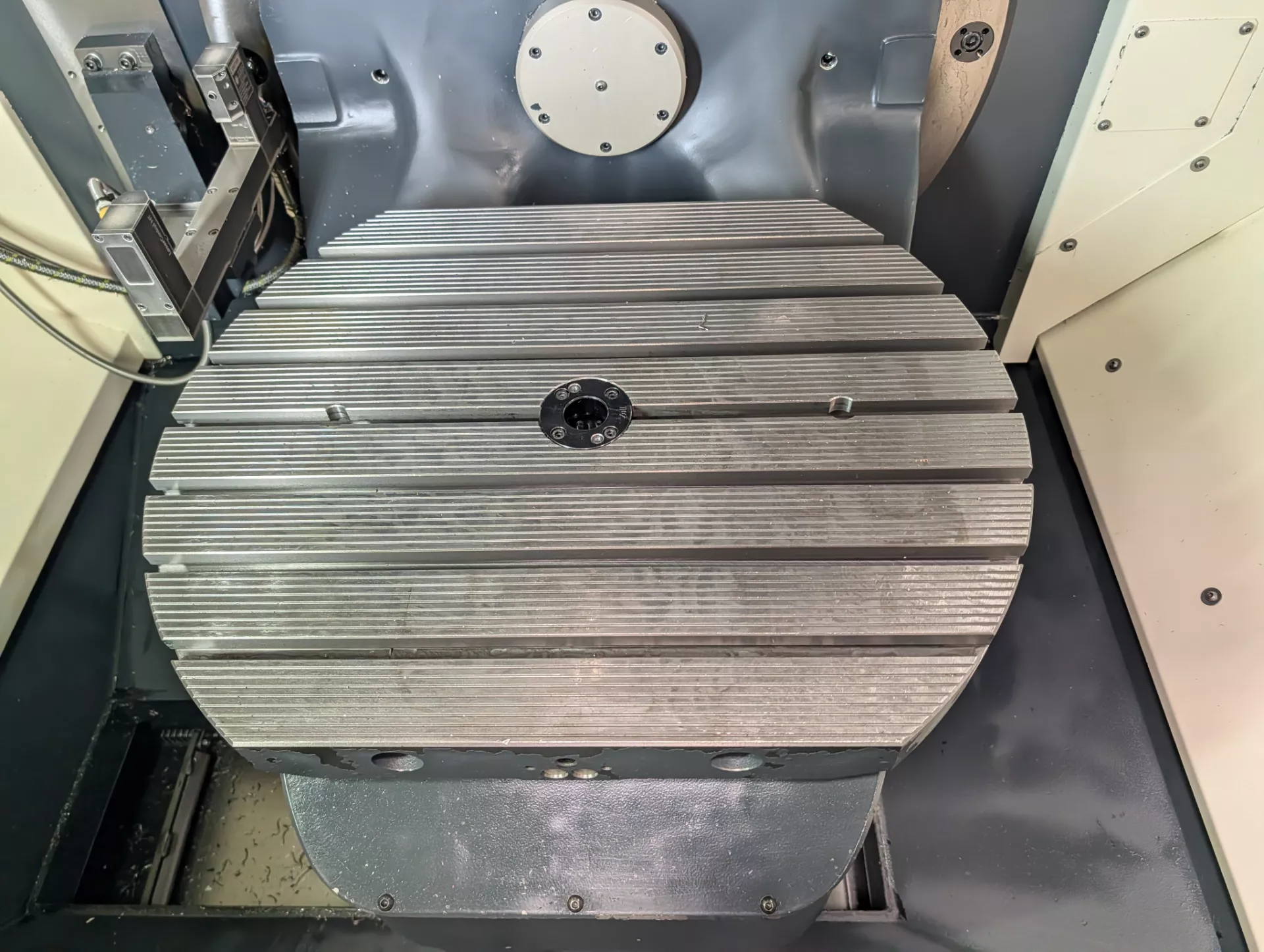

| Table size: ø 24.8″ × 19.7″ |
| Max Weight on Table: 661 lbs |

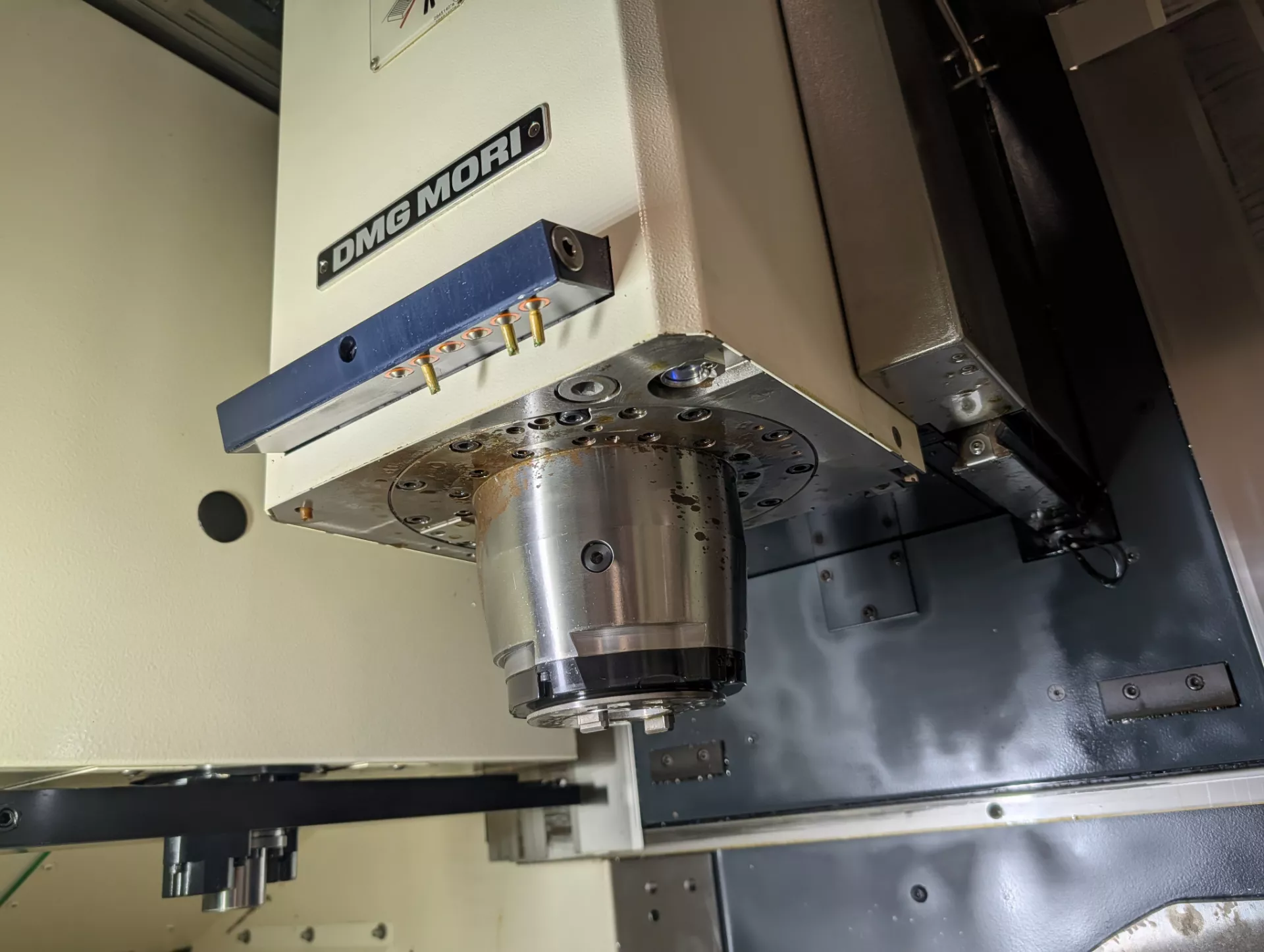

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 18,000 RPM |
| Spindle Power: 20 HP |

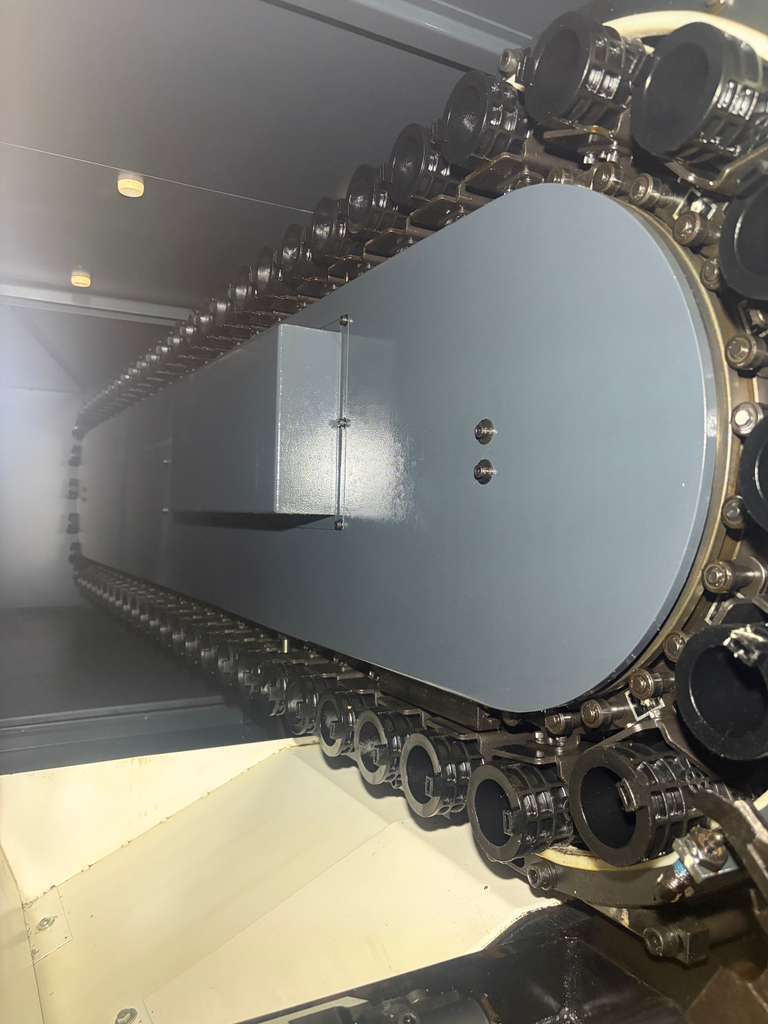

| Automatic Tool Changer |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Size: 3.14″ X 11.81″ |
| Max Tool Weight: 17.63 lbs. |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

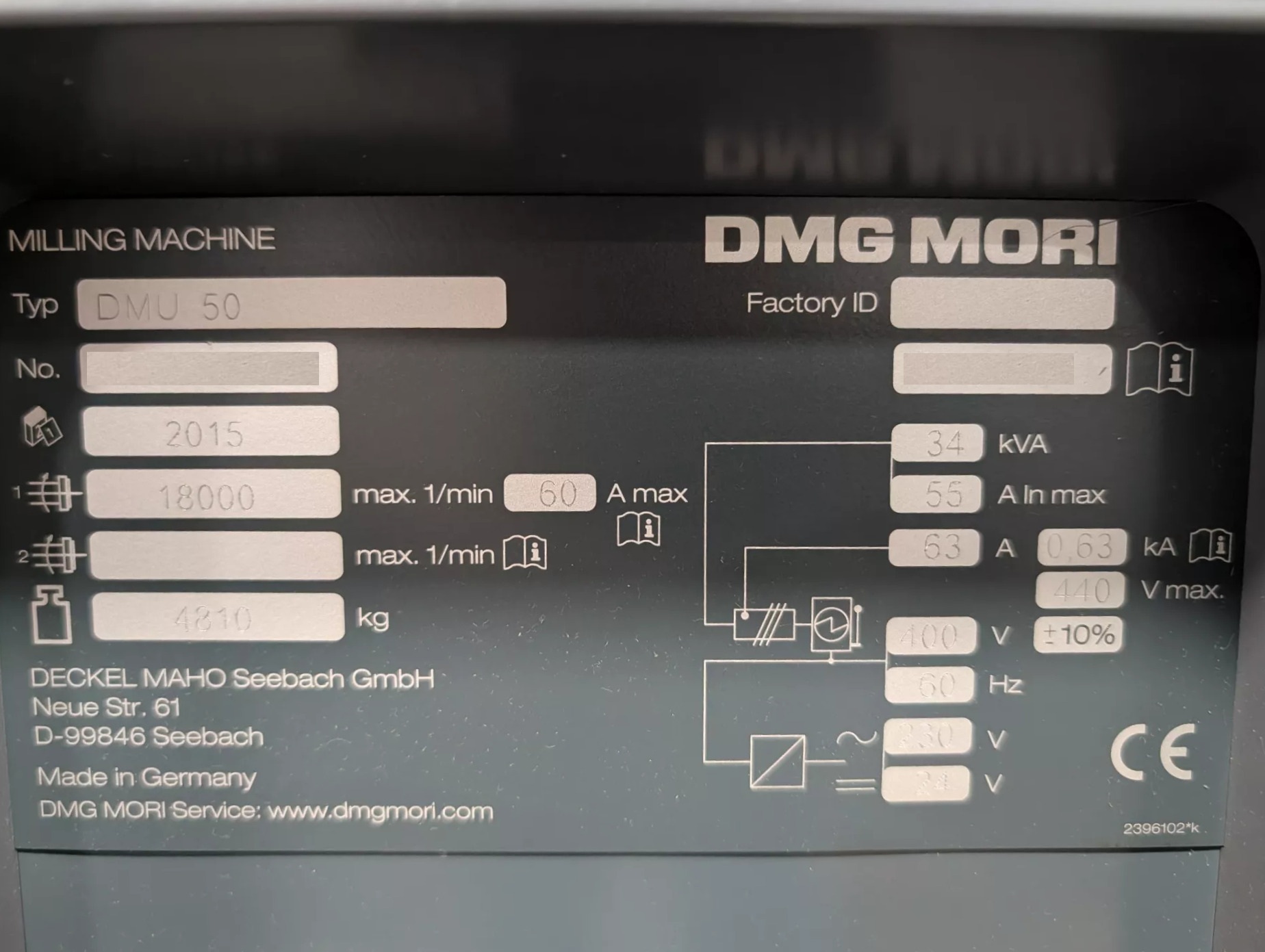

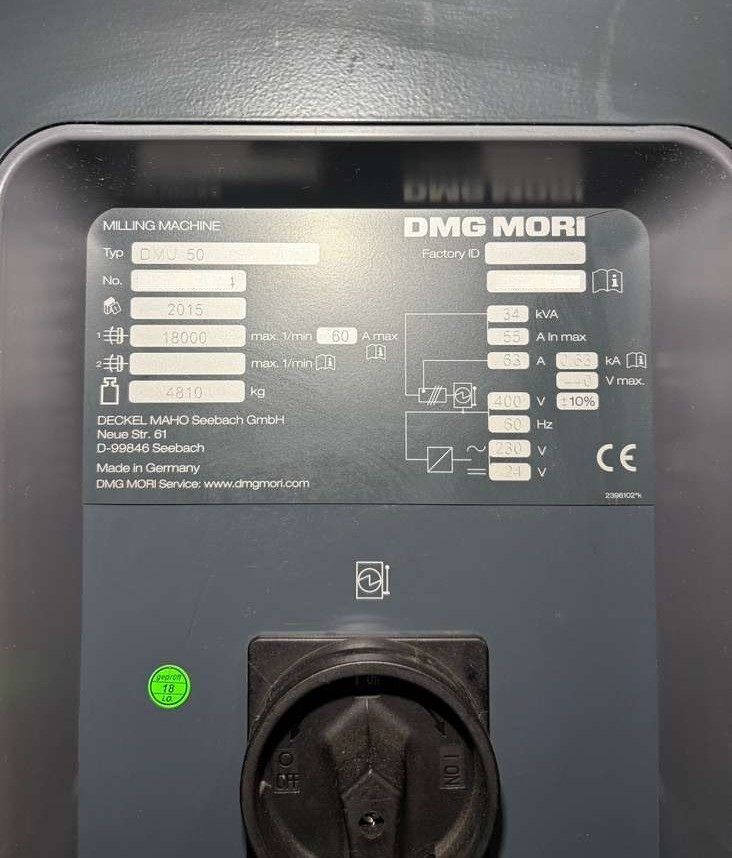

| Power: 400 v / 60 hz / 34 kva |
| Overall Dimensions: 216.5″ x 135″ x 106″ High Approx. |
| Weight: 10,604 lbs. Approx. |
