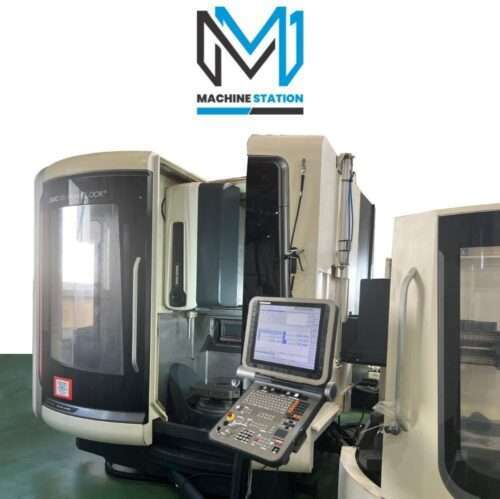

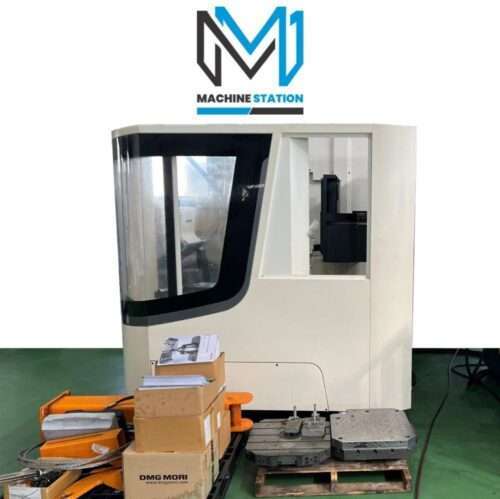

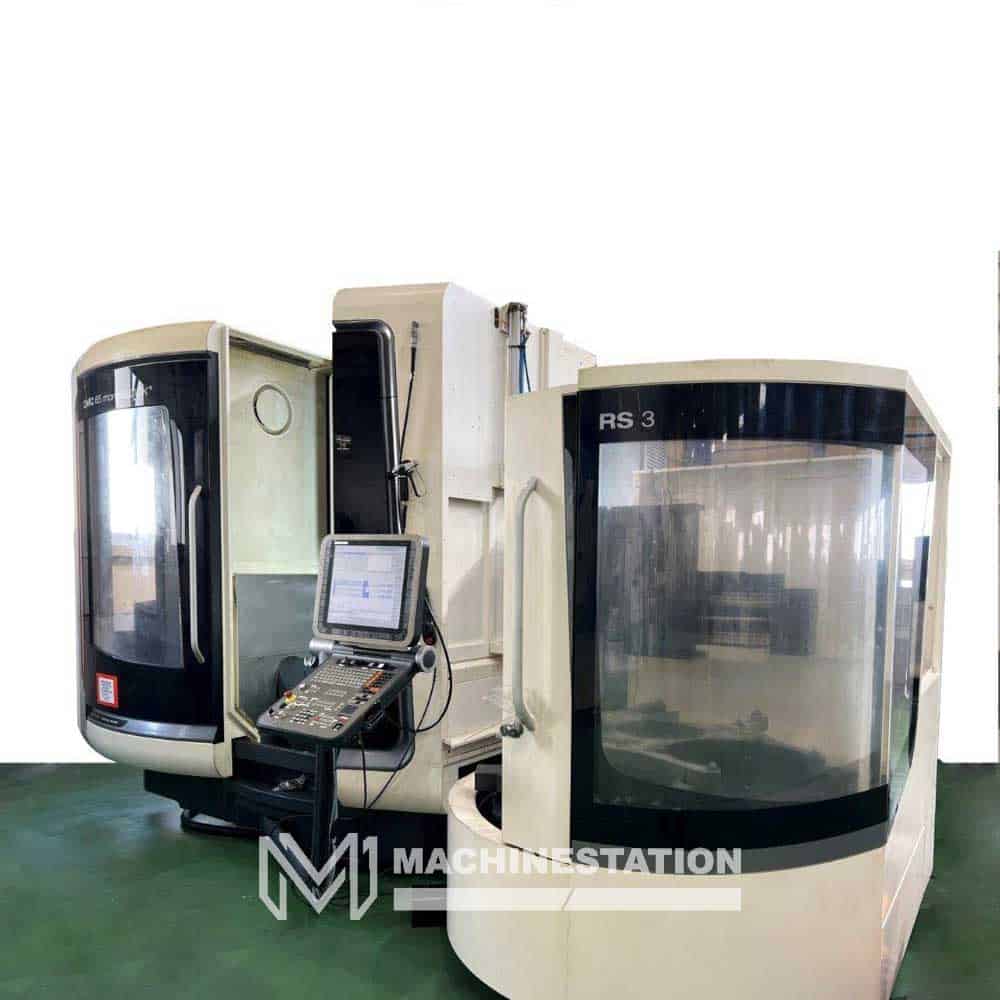

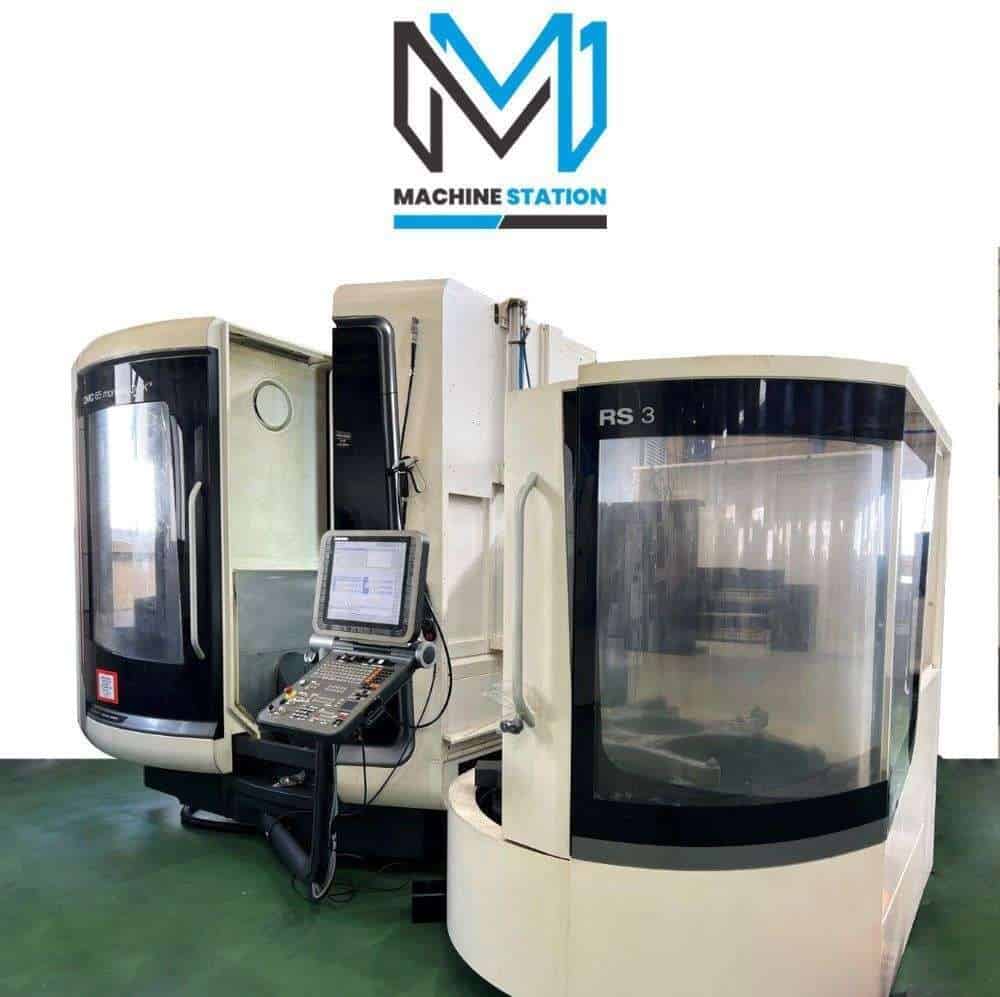

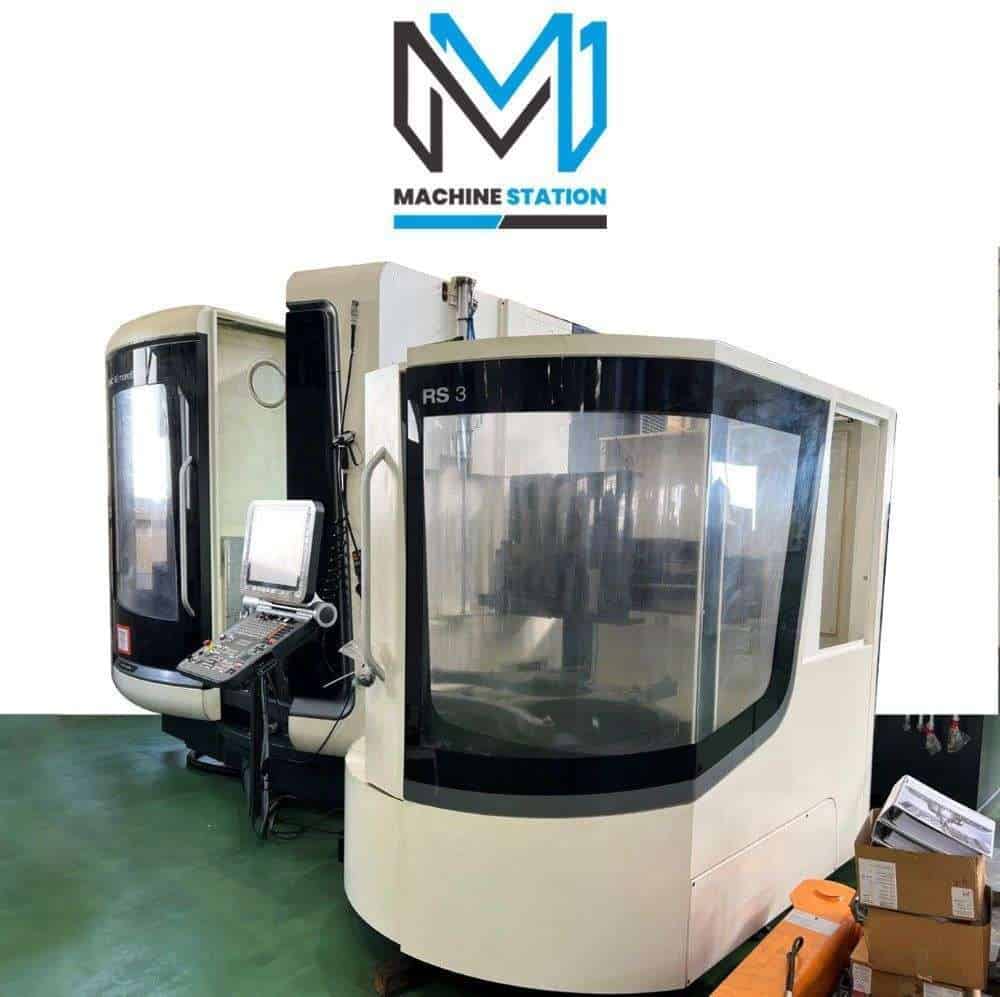

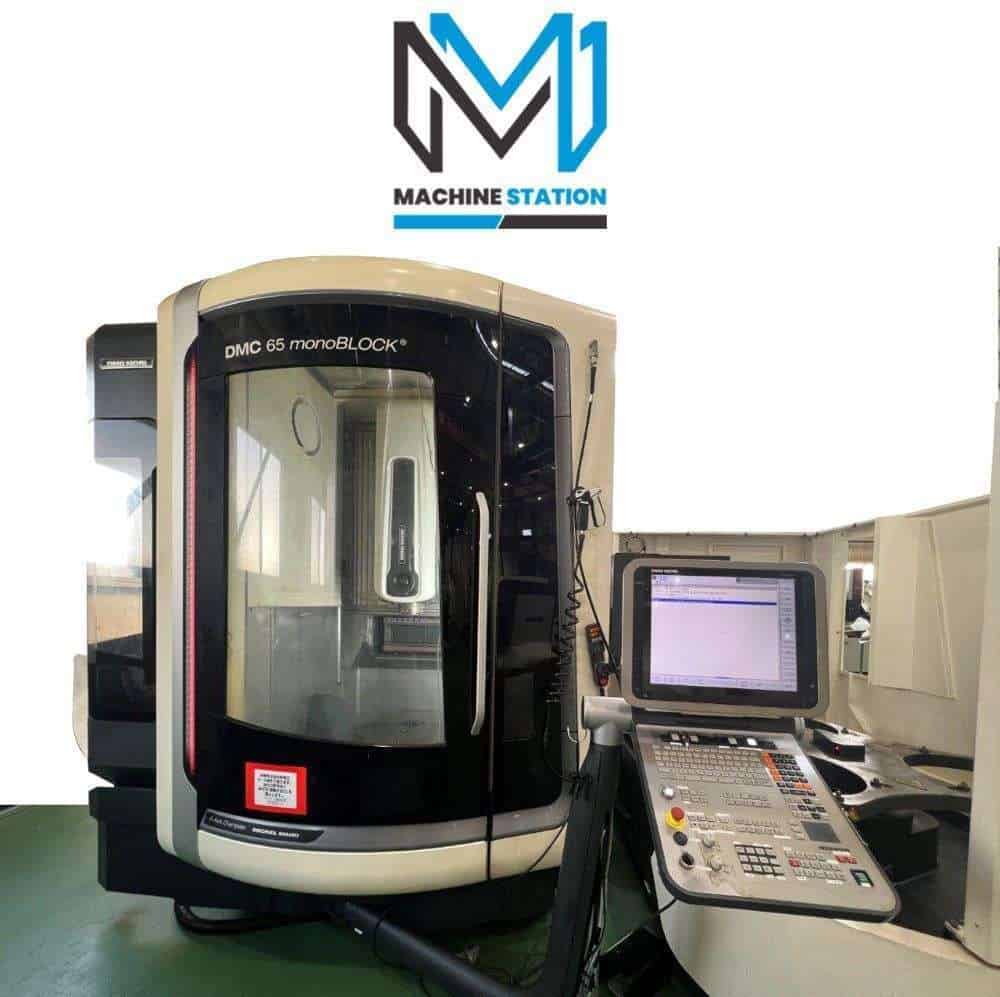

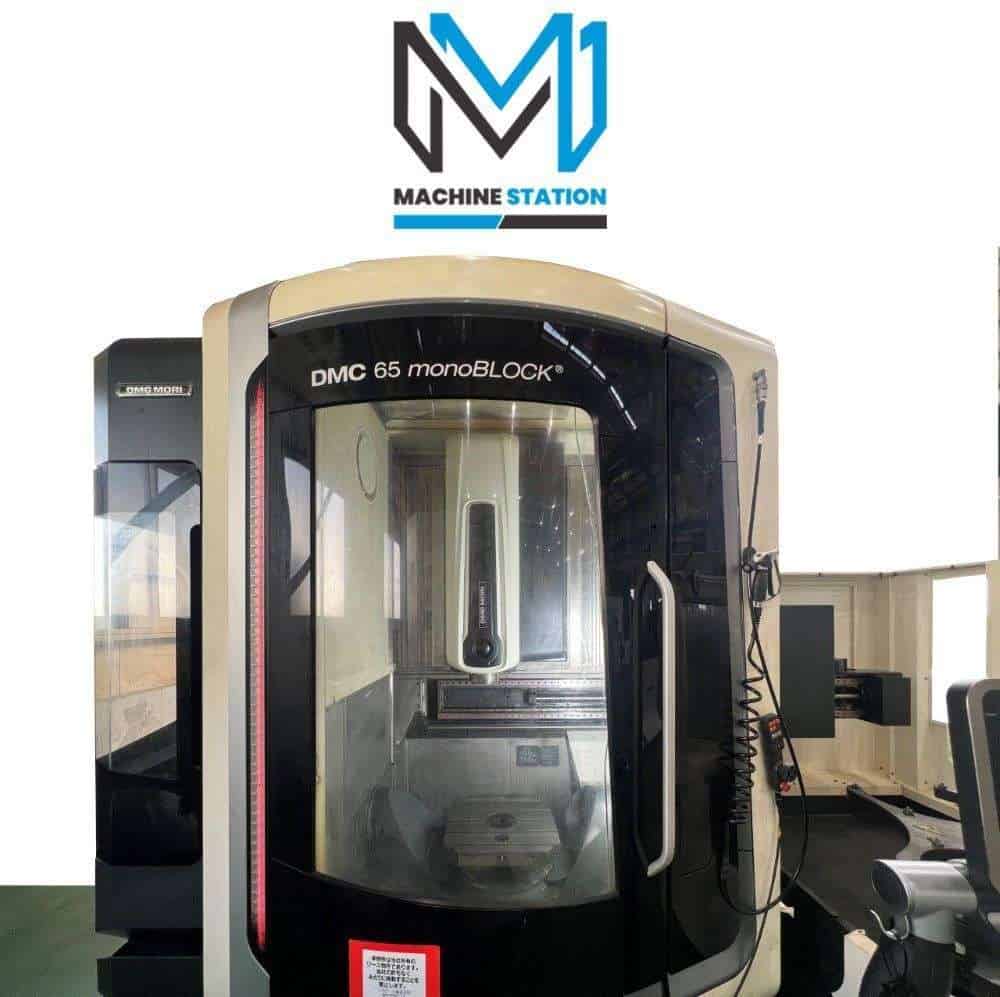

DMG Mori DMC 65 monoBLOCK 5 Axis CNC Vertical Machining Center

Out of stock
Location: Lake Elsinore, CA
SKU: 2513
Make/Model: DMG MORI DMC 65 monoBLOCK

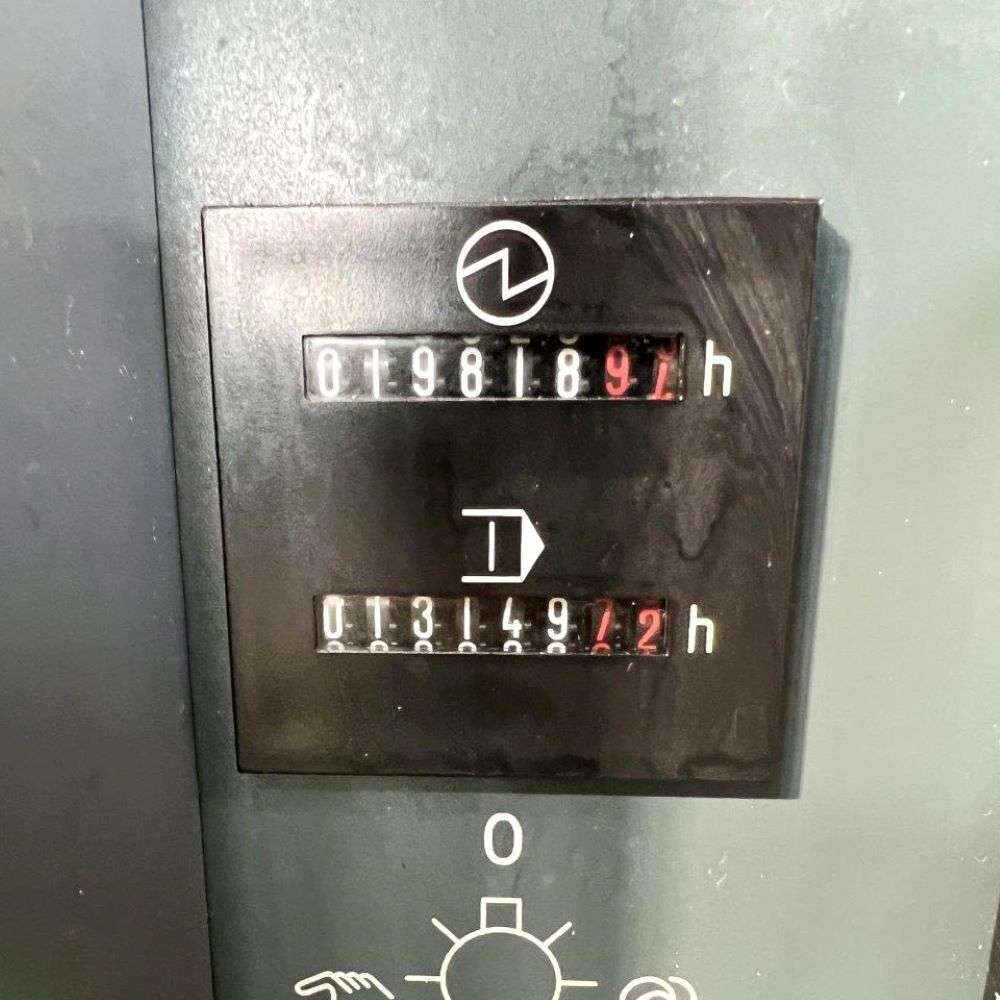

Cutting Time: 13,159 Hours
Video:
SKU: 2513

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: DMG MORI
Model: DMC 65 monoBLOCK
Year: 2017
Condition: Used – Excellent





Features:

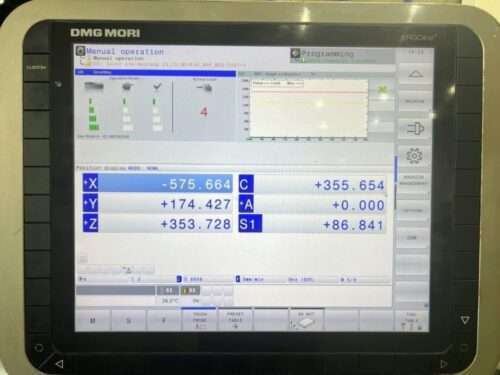

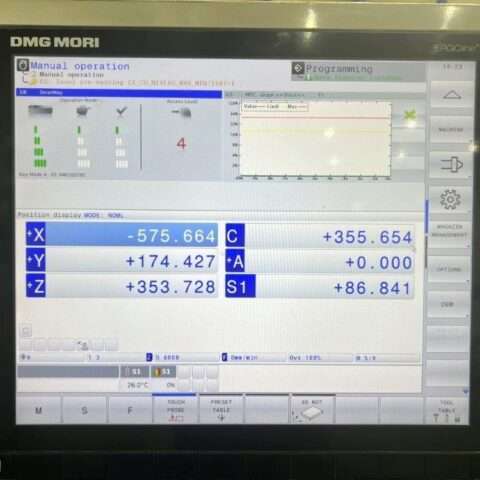

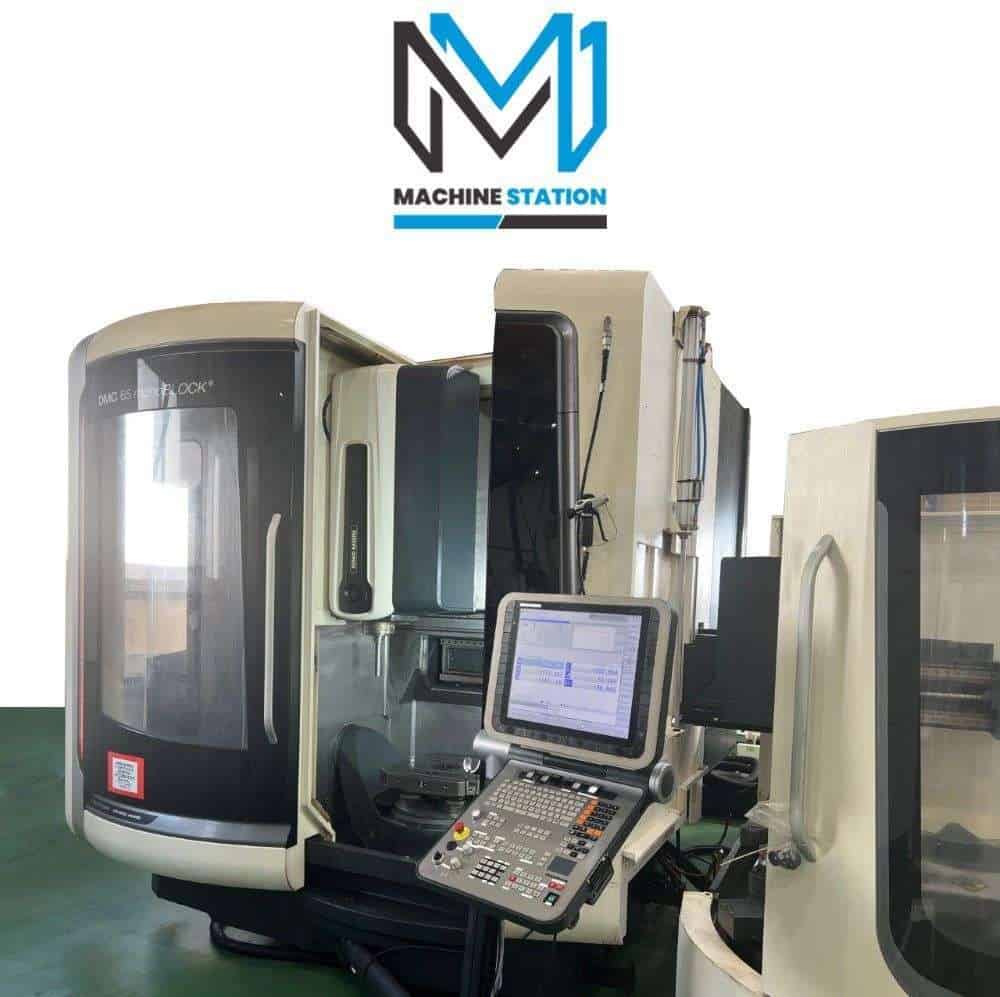

Heidenhain TNC 640 CNC Control
5 Axis Simultaneous Machining

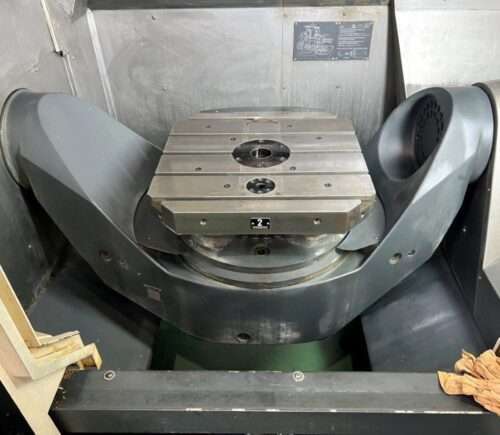

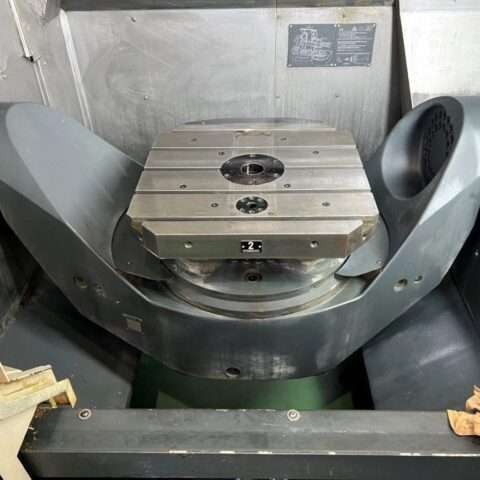

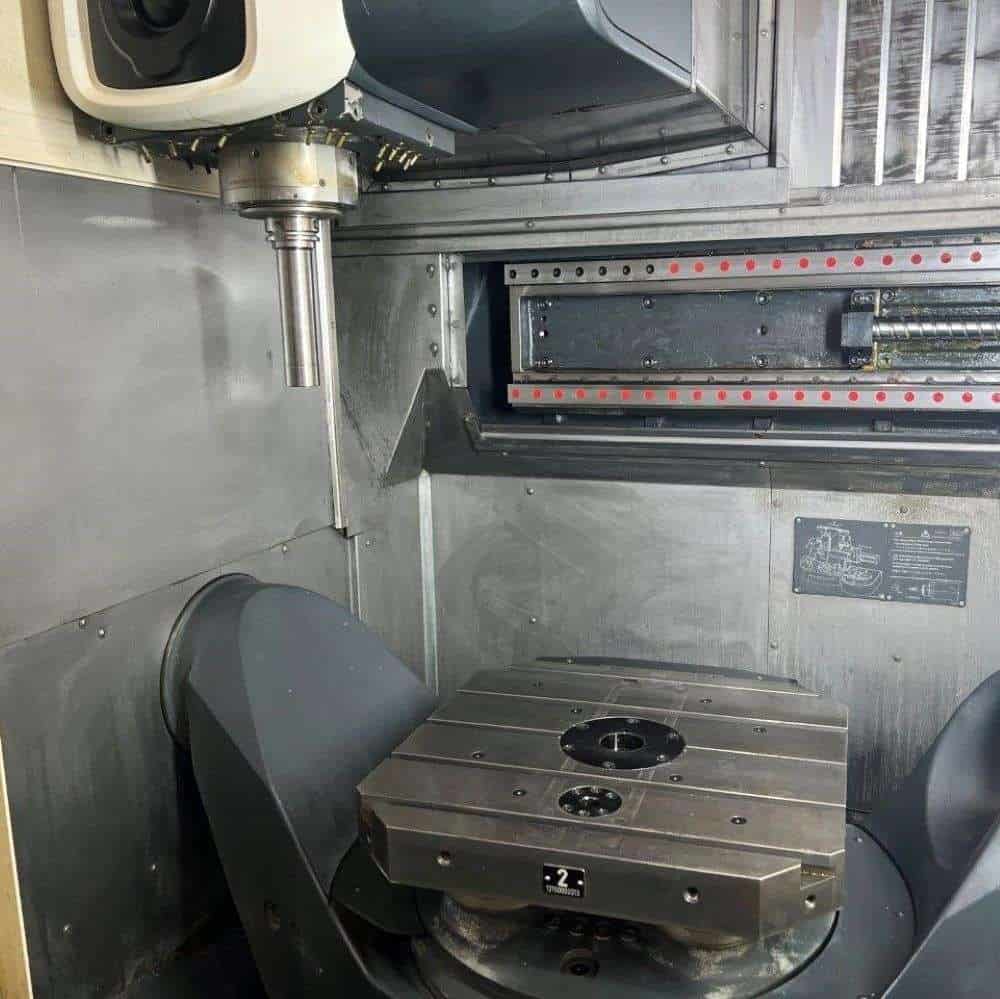

Programmable Swivelling Trunnion Table
19.7″ X 19.7″ Rotary Pallet

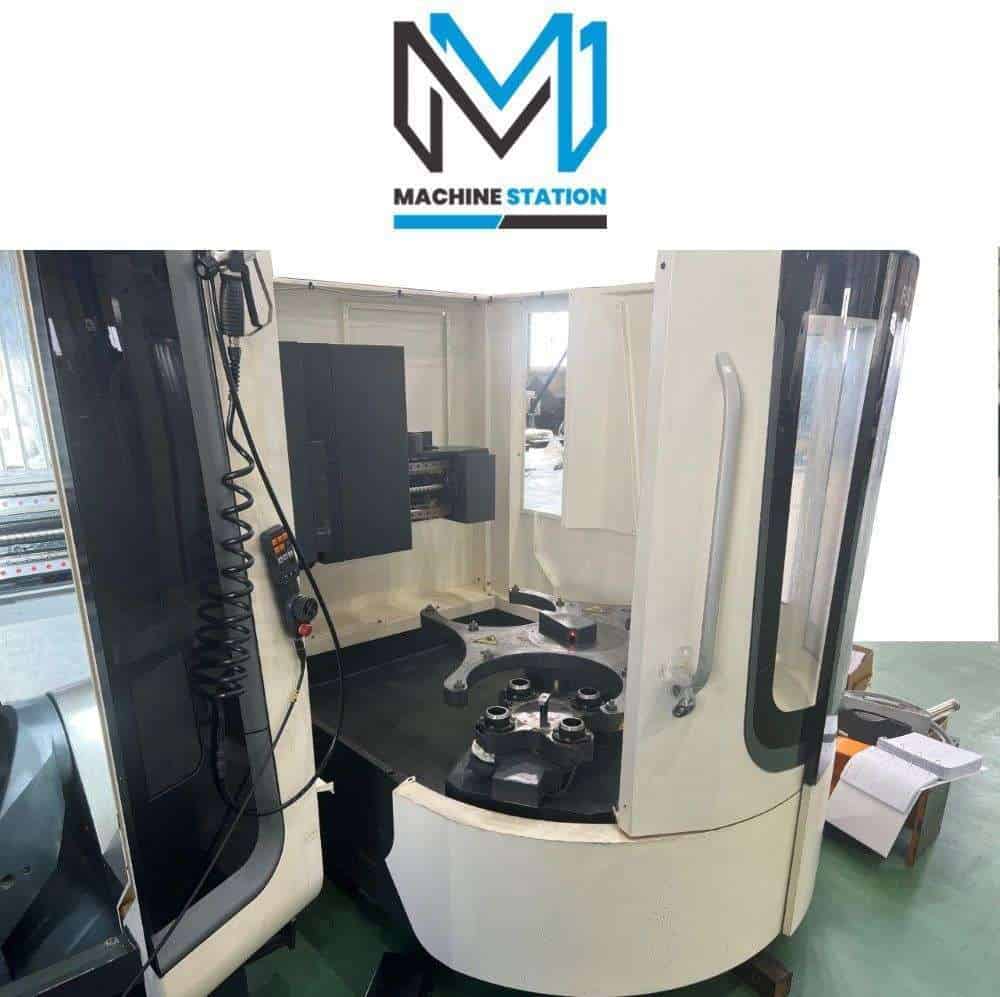

3 Station Auto Pallet Changer
20,000 RPM High Speed Spindle
60 Station Automatic Tool Changer
1000 PSI Coolant through Spindle
3D QuickSet
Touch Tool Probe

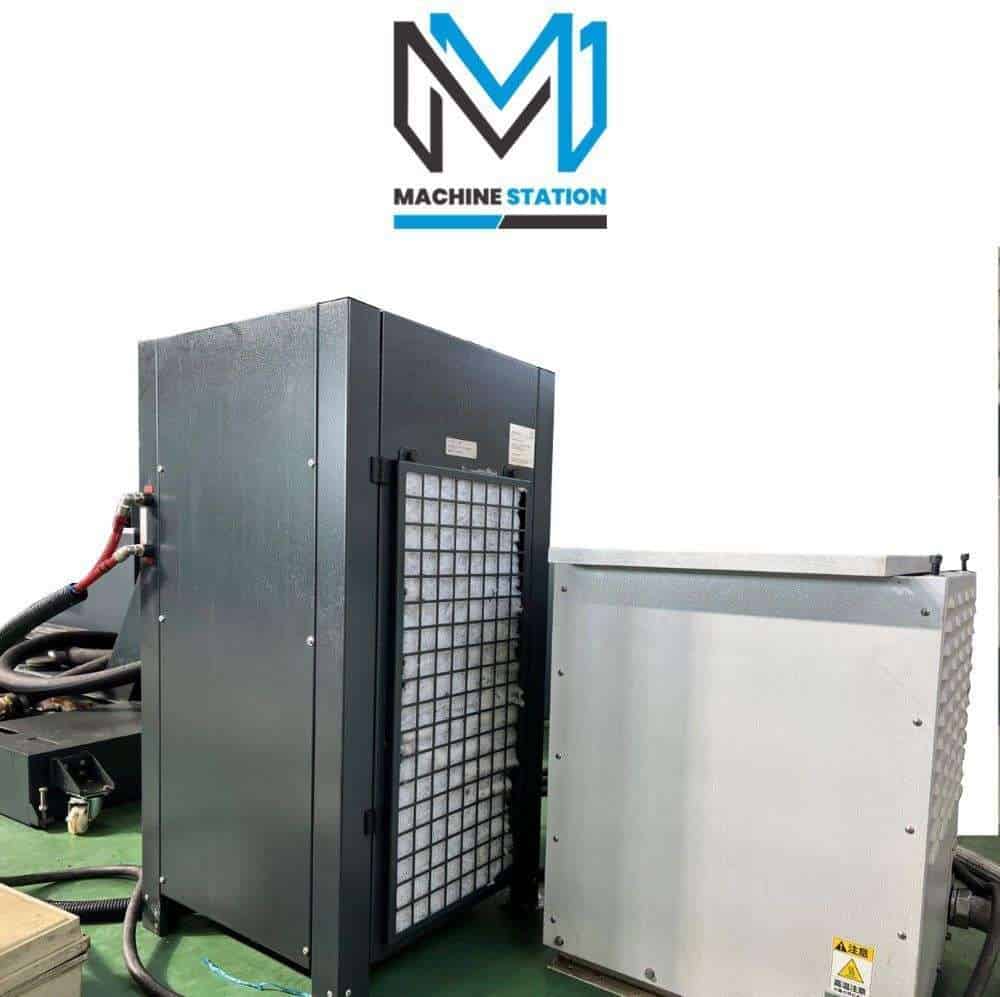

Spindle Chiller
PCMCIA Card Slot
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping

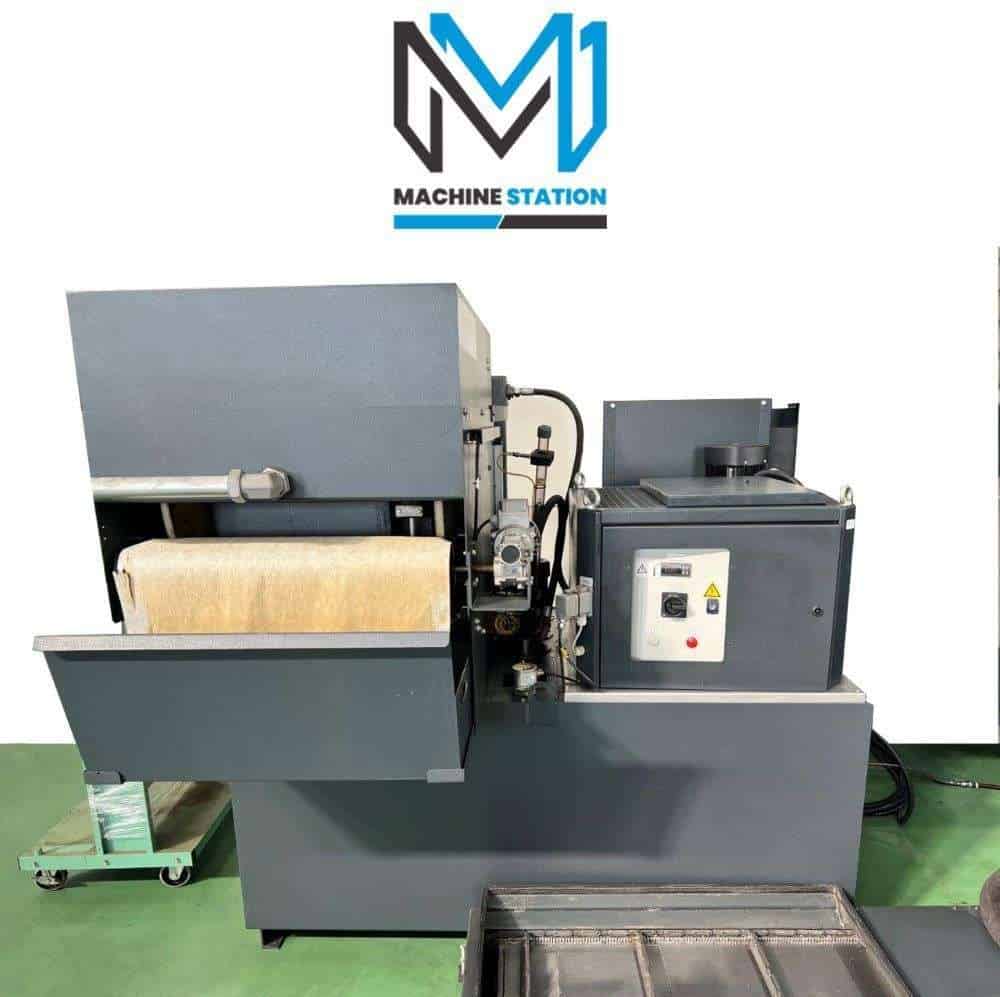

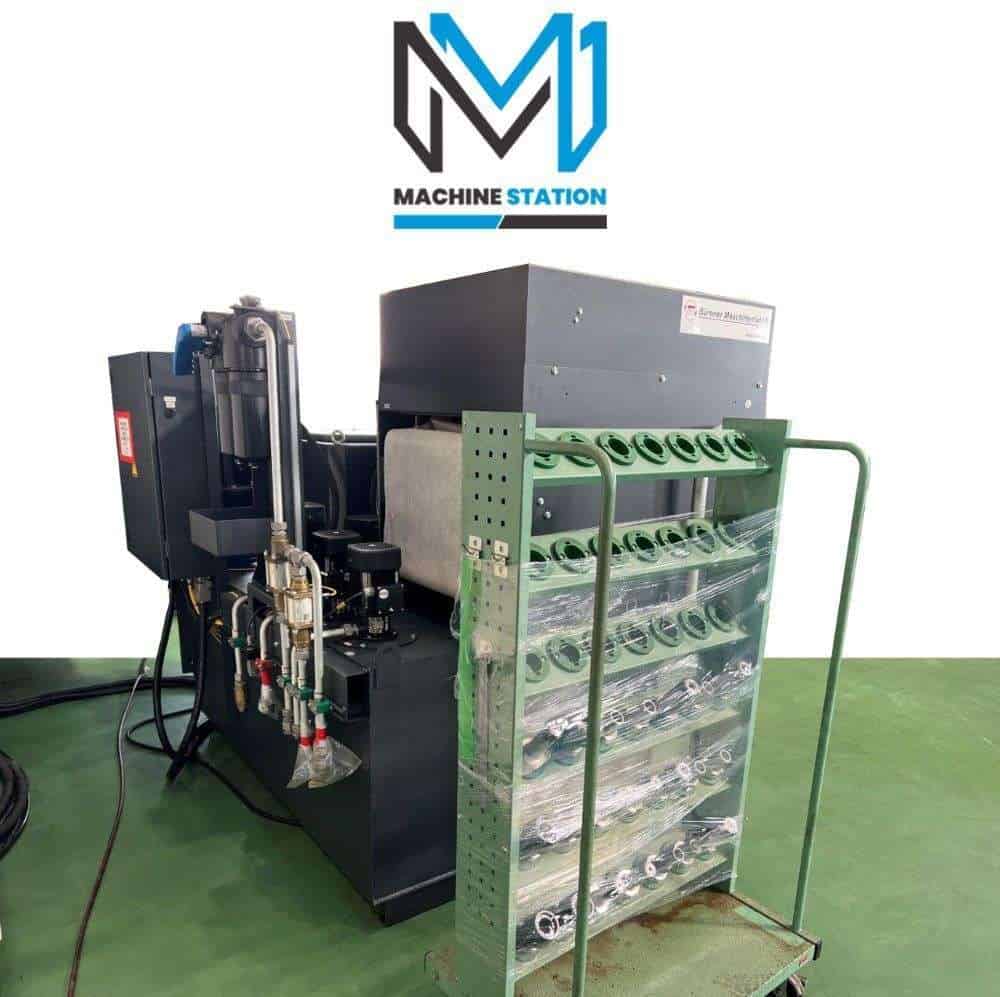

High Pressure Coolant System with Paper Filtration System
Chip Removal Package

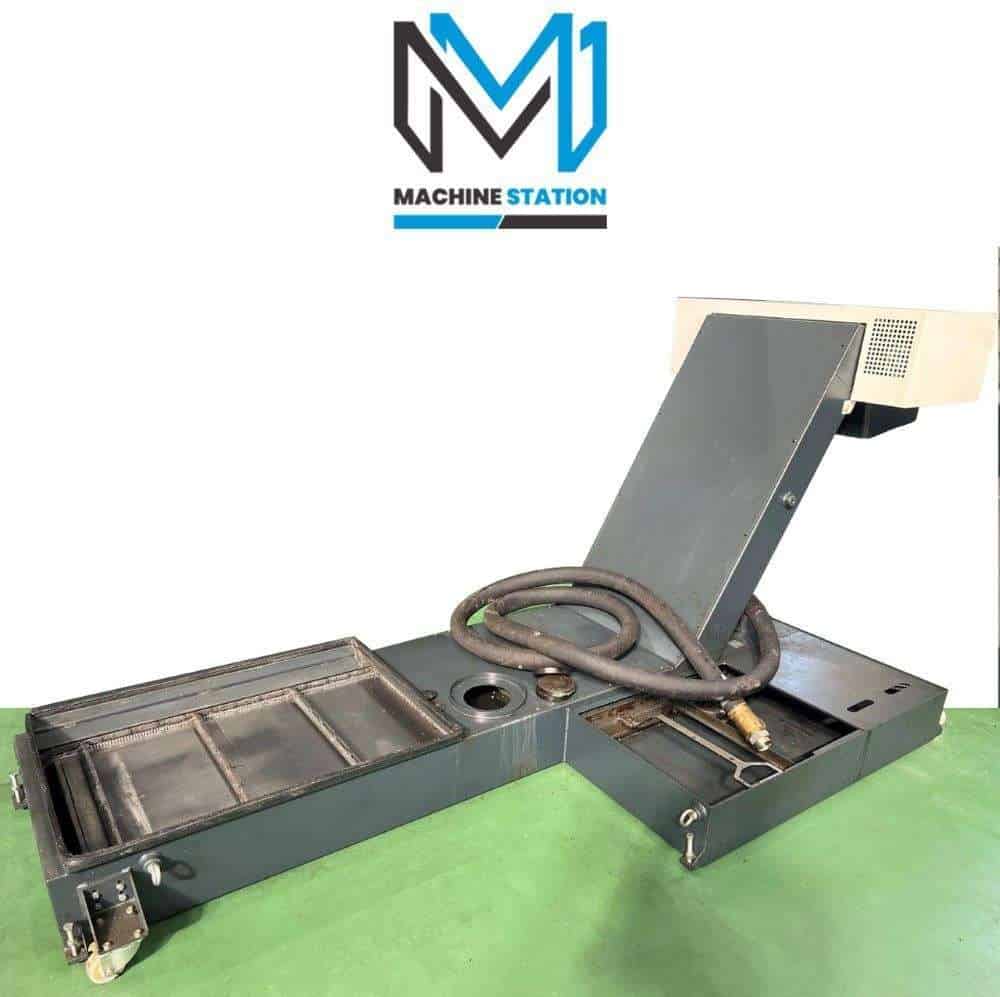

Chip Conveyor
Work light

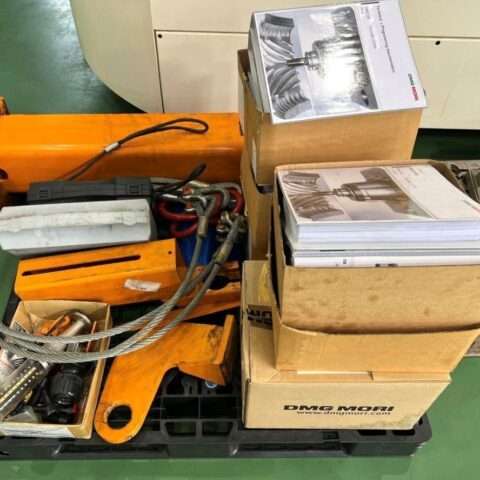

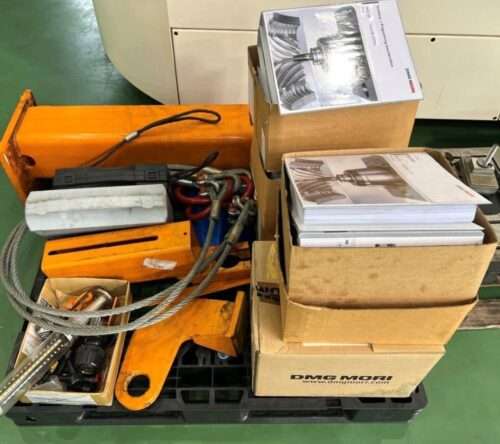

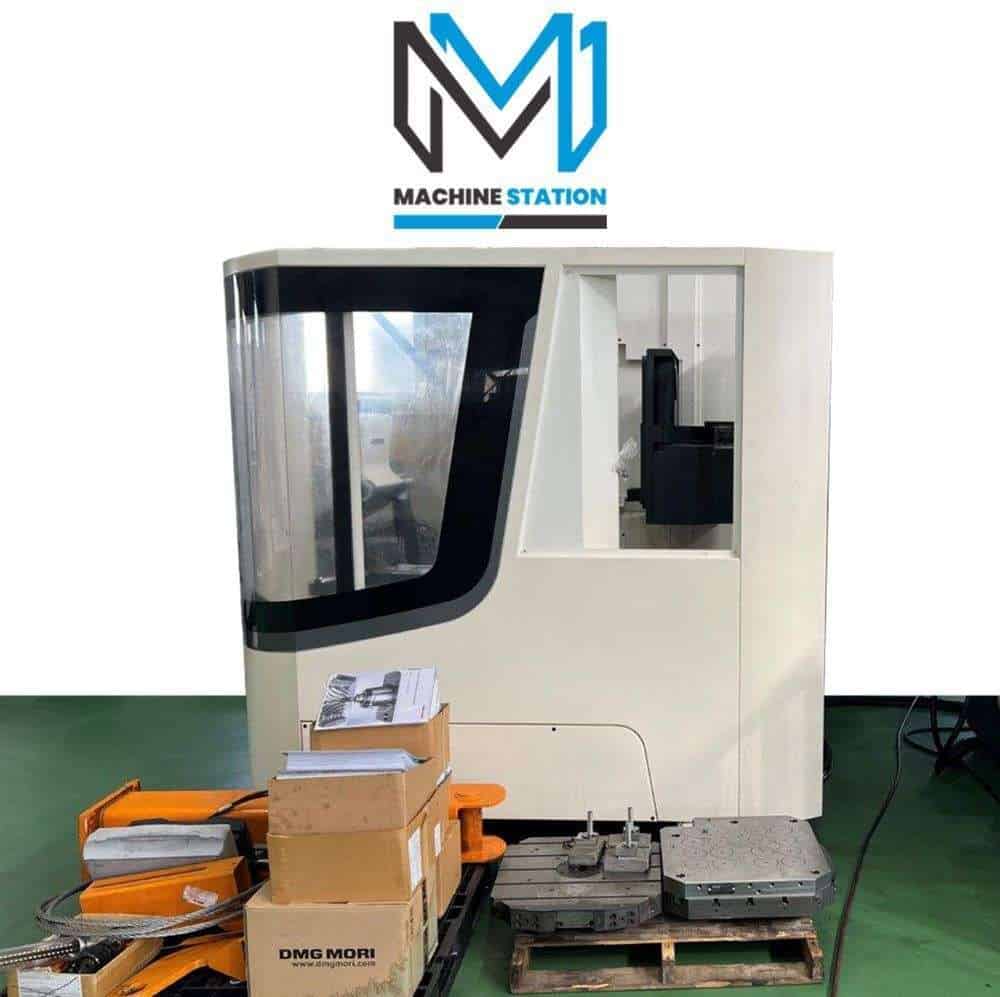

Books and Manuals

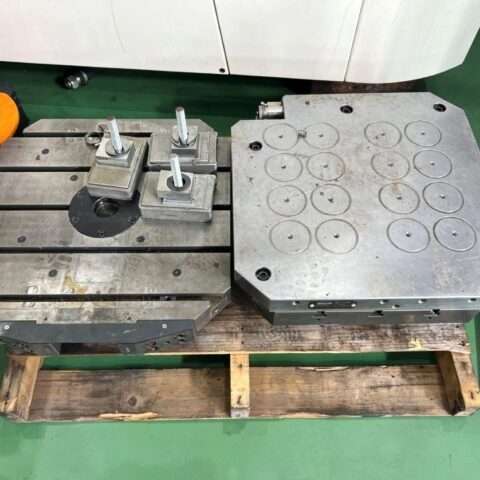

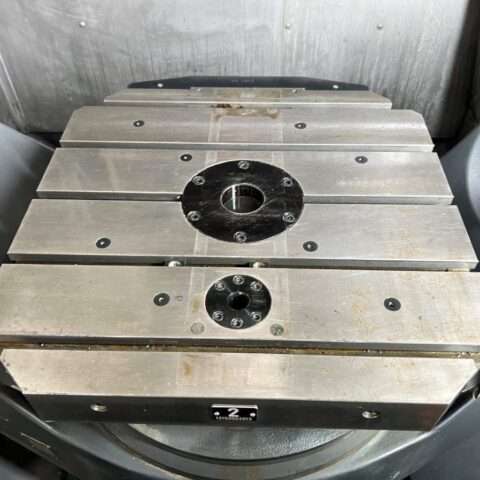

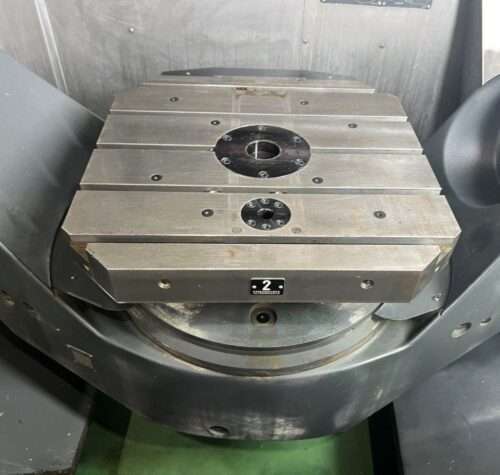

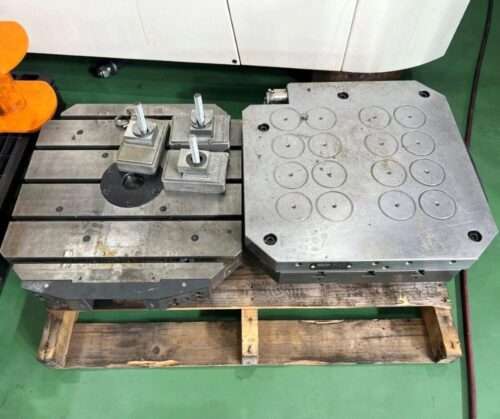

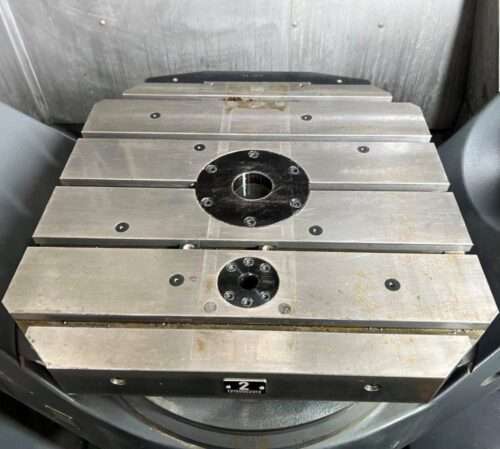

Pallet:

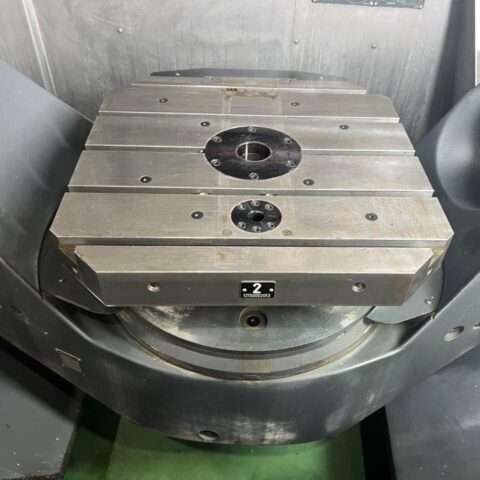

Pallet size: 19.7″ x 19.7″
Maximum Work Piece Diameter: 24.8″
Max. Height: 19.7″
Max Weight on Pallet: 1102 lbs





Travel:
X Axis: 28.9″
Y Axis: 25.6″
Z Axis: 22.0″
A Axis: ( Table Tilt )
C Axis: 360° ( Table Rotate )

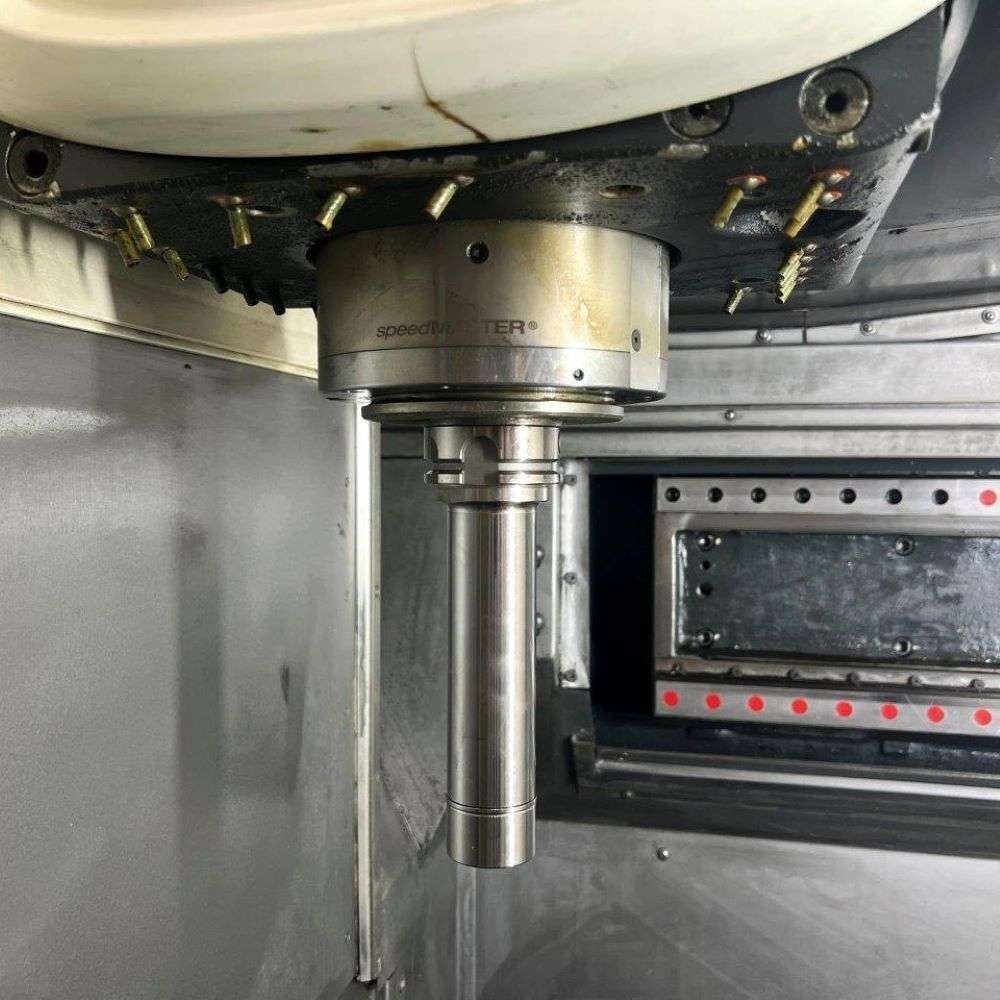

Spindle:
Taper Size: HSK-A63
Speed Range: 20,000 RPM
Spindle Power: 47 HP





Feed Rates:
Rapid X Y & Z: 1574 Inch Per Minute
Feed Rate : 1574 Inch Per Minute

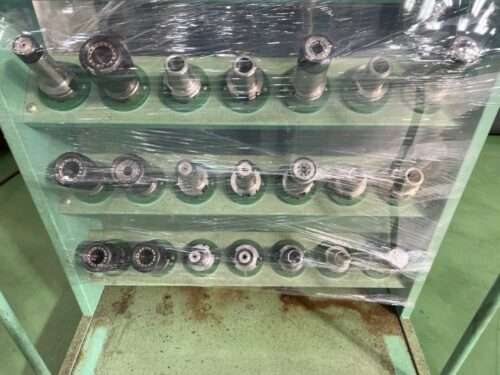

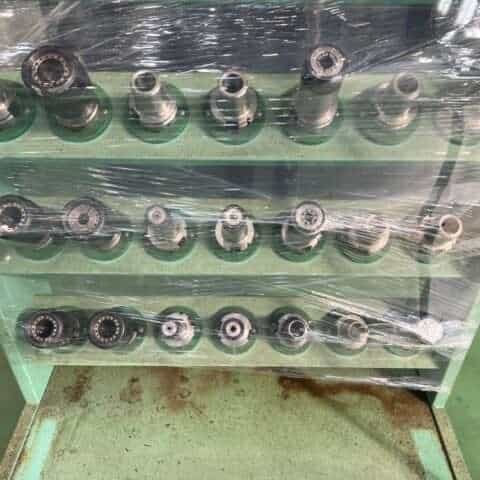

Tool Changer:
Capacity: 60 Tools
Taper: HSK-A63
Max Tool Size: 6.3″ X 12.4″
Max Tool Weight: 17.7 lbs.
Tool Change Time: 4.9 Second

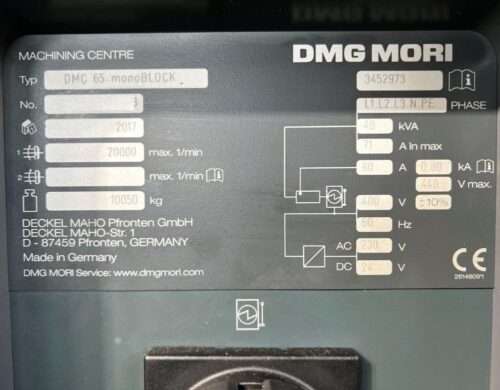

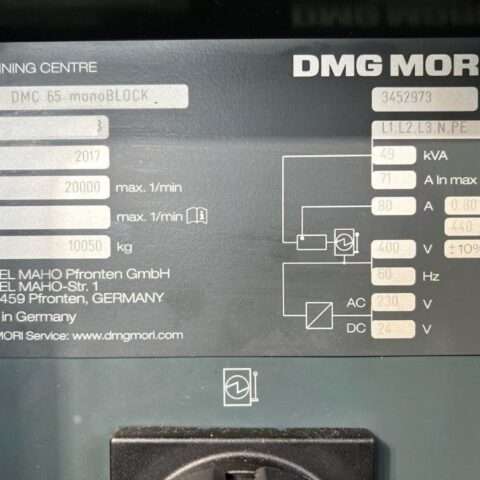

General:
Air Required: 100 psi, 4 scfm
Power: 49 kva / 220v / 3-Phase
Overall Dimensions: ″ x ″ x ″ High
Weight: 23,148 lbs
