*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

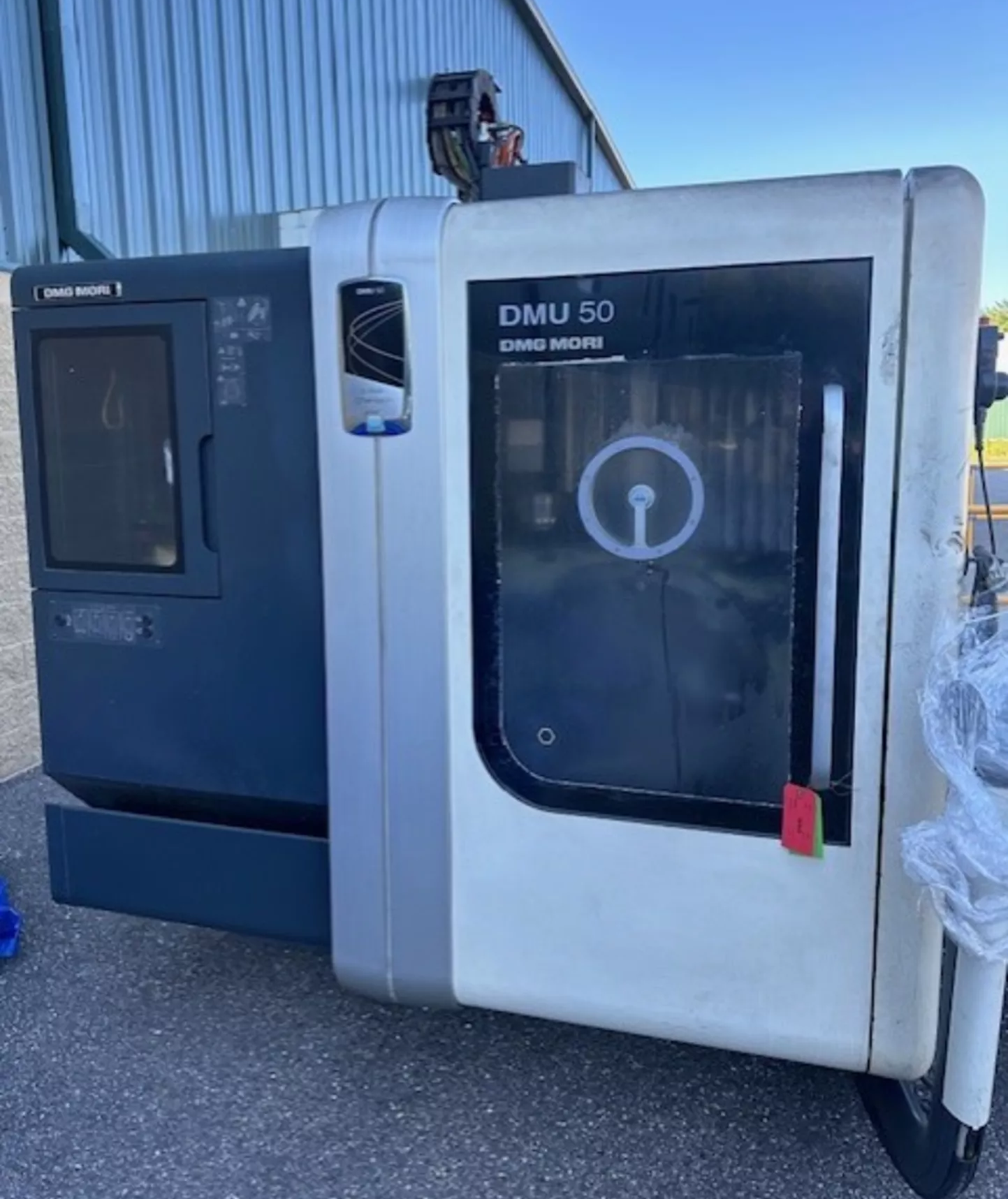

| Make: | DMG Mori |
| Model: | DMU 50 |
| Year: | 2015 |
| Machine Type: | 5-Axis CNC Vertical Machining Center |
| Control: | DMG ERGOline with Siemens 840D CNC |
| Features: |
|---|

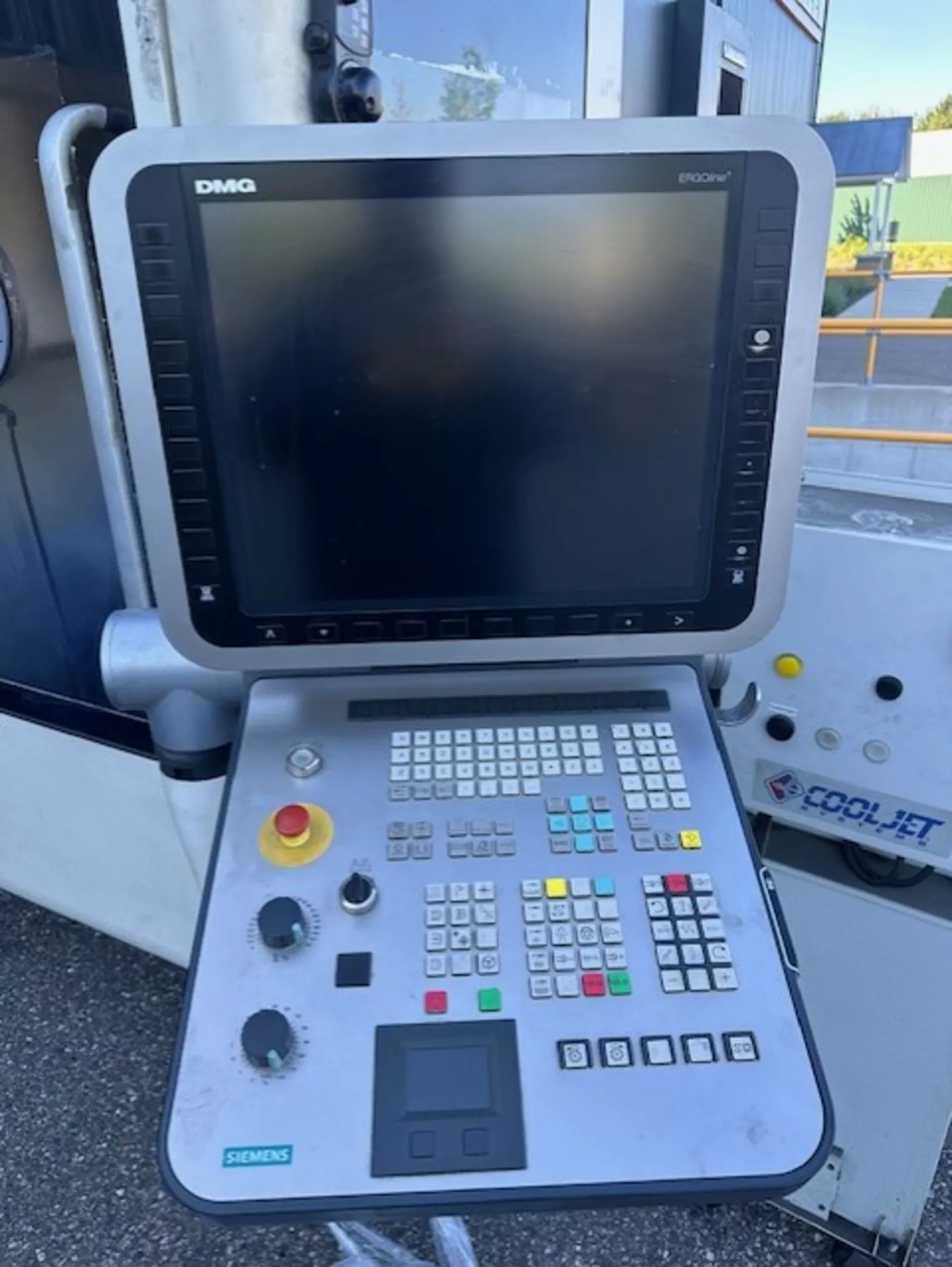

| DMG ERGOline with Siemens 840D CNC Control |
| Full 5-Axis Simultaneous Machining |
| HSK-A63 Spindle Taper |
| 30-Tool ATC (Expandable to 60) |
| NC Swivel Rotary Table (B & C Axis) |
| Through Spindle Coolant |
| CoolJet High-Pressure Coolant System |
| Chip Conveyor |
| Spindle Probe |
| Laser Tool Setter |
| Direct Path Measuring Systems on All Axes |
| Cooled Ball Screws |
| Cooled Table Bearings |

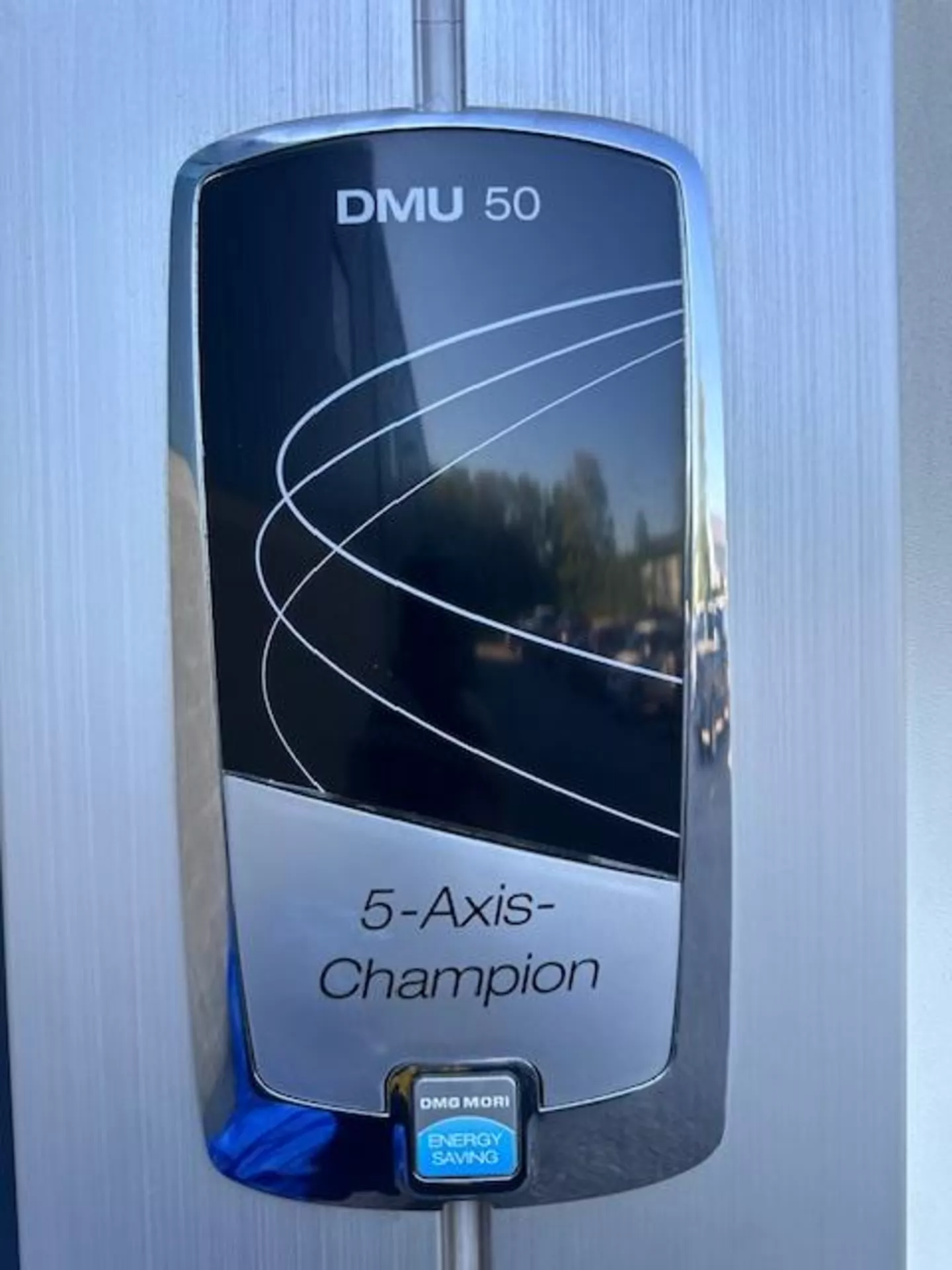

| DMG Mori Energy Saving System |
| Rigid Tapping |
| Flood Coolant System |
| 12,000 Cutting Hours Approx |
| Travels: |
|---|
| X-Axis Travel: 19.7″ |
| Y-Axis Travel: 17.7″ |
| Z-Axis Travel: 15.7″ |
| B-Axis Swivel Range: -5° / +110° |
| C-Axis (Table): 360° |
| X/Y/Z Rapid Rate: 1,654 IPM |
| Table: |
|---|
| Table Size: 27.6″ x 19.7″ |
| Max Workpiece Diameter: 24.8″ |
| Max Workpiece Height: 17.5″ |
| Max Table Load: 661 lbs |
| Spindle Nose to Table: 5.9″ – 24.6″ |
| Spindle: |
|---|
| Spindle Taper: HSK-A63 |
| Max Spindle Speed: 18,000 RPM |
| Spindle Motor: 46 HP |
| Voltage: 400V |
| Frequency: 60 Hz |
| Power: 79 KVA |
| Automatic Tool Changer: |
|---|
| Tool Storage Capacity: 30 (Expandable to 60) |
| ATC Type: Chain Magazine |
| Max Tool Diameter: 3.14″ / 5.11″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 13.2 lbs |
| Rotary: |
|---|

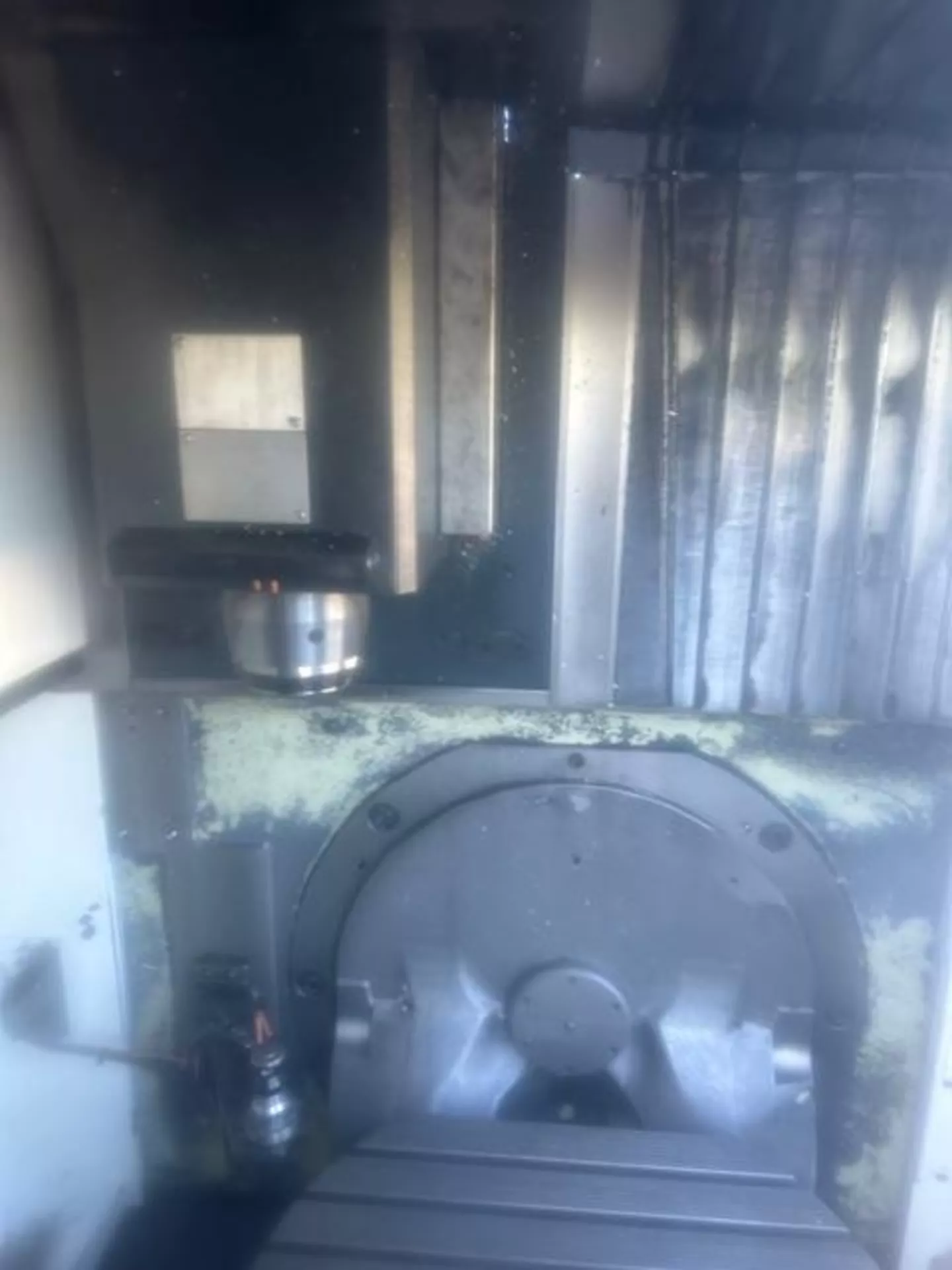

| Rotary Table Type: NC Swivel Rotary Table |
| B-Axis Swivel Range: -5° / +110° |
| C-Axis Rotation: 360° |
| Table Diameter: 19.7″ |
| General: |
|---|

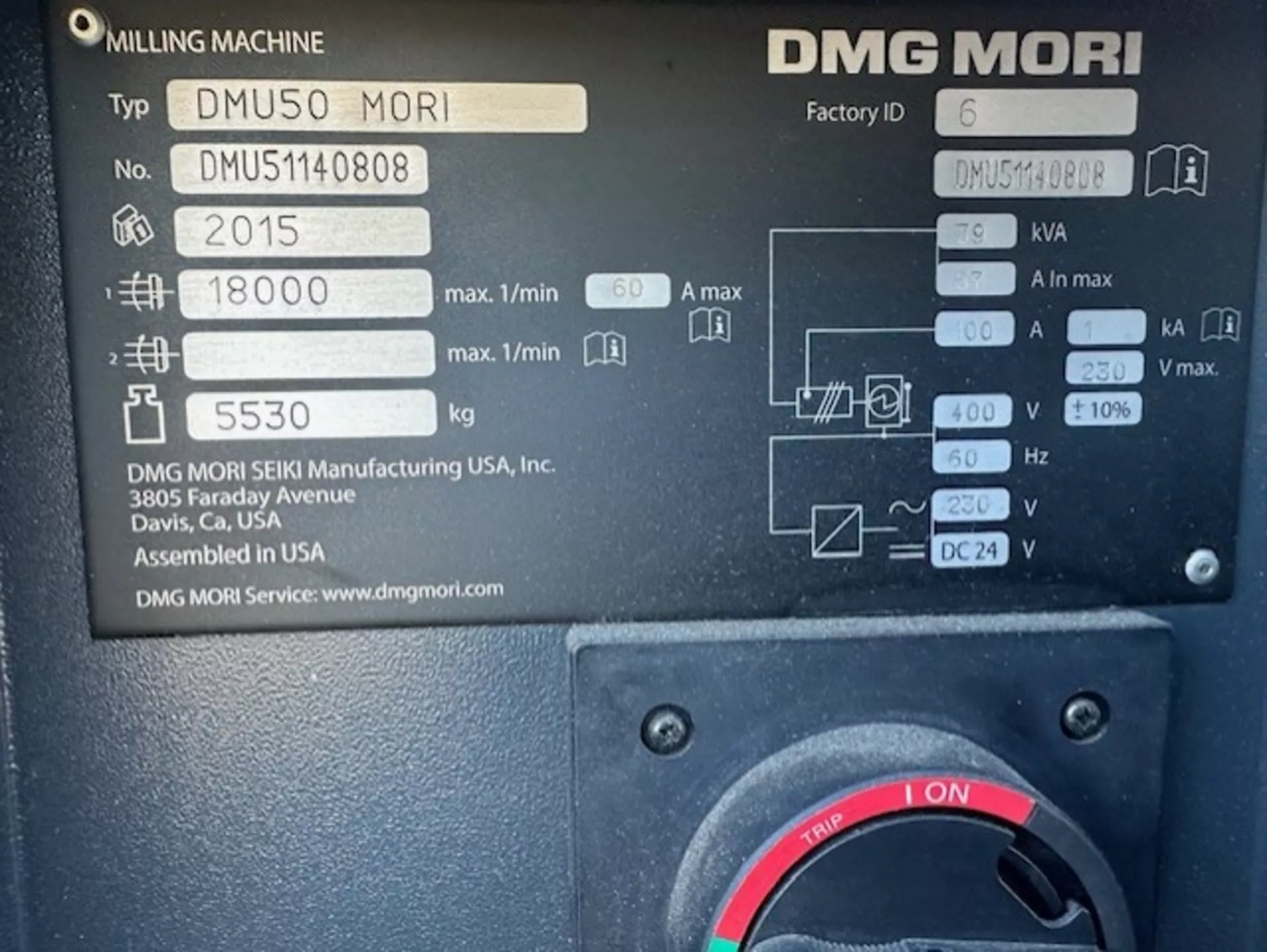

| Power: 400V / 60 Hz / 79 KVA |
| Overall Dimensions: 126″ L x 96″ W x 100″ High Approx. |
| Machine Weight: 12,192 lbs. Approx. |
