*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG MORI |
| Model No.: |
DMU 70 |
| Year of Manufacture: |
2015 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis Universal CNC Machining Center |
| CNC Control: |
Siemens 840D Solutionline with ERGOline |
| Equipped With: |
| Siemens 840D Solutionline CNC Control |
| ERGOline Control Panel with Touch Interface |
| Full 5-Axis Simultaneous Machining |

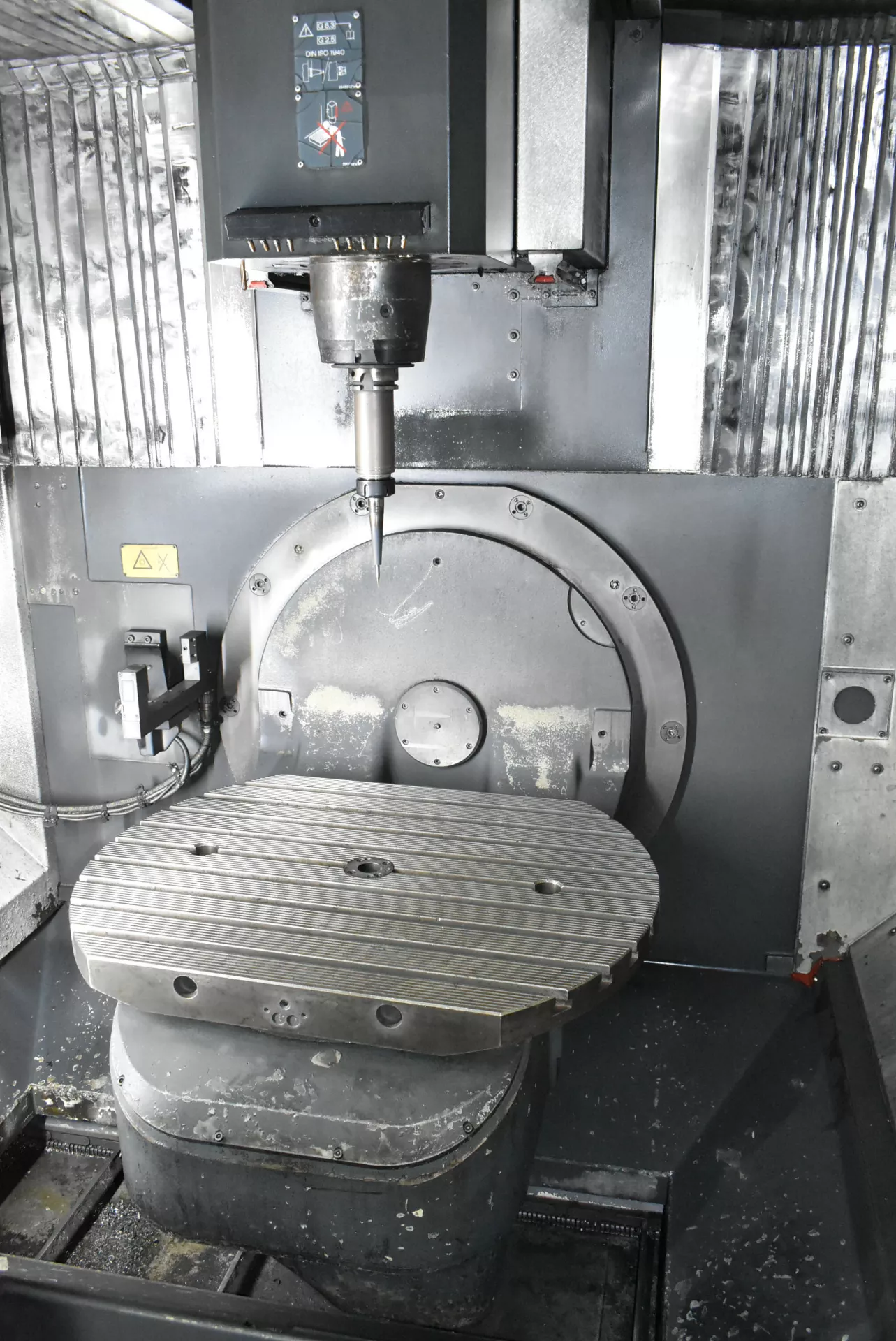

| Swivel Rotary Table (A/C Axis) |
| Motorized Milling Head |
| Automatic Tool Changer (ATC) |
| High-Speed Spindle |
| Renishaw / Blum Tool Measurement System |
| Workpiece Probing System |
| Through Spindle Coolant (TSC) |
| Chip Conveyor |
| Coolant Filtration System |
| Spindle Chiller |
| Automatic Central Lubrication |
| Fully Enclosed Splash Guard |
| Electronic Handwheel (MPG) |
| Capacity: |
| Table Size: 800 × 620 mm (31.5″ × 24.4″) |
| Max Table Load: 350 kg (770 lbs) |
| Max Workpiece Diameter: 750 mm (29.5″) |
| Max Workpiece Height: 550 mm (21.6″) |
| Distance Spindle Nose to Table: Approx. 150 – 650 mm |
| Travels: |
| X-Axis Travel: 750 mm (29.5″) |
| Y-Axis Travel: 600 mm (23.6″) |
| Z-Axis Travel: 520 mm (20.5″) |
| A-Axis (Table Tilt): -5° to +110° |
| C-Axis (Table Rotation): 360° Continuous |
| Rapid Traverse (X/Y/Z): 42 / 42 / 42 m/min |
| Cutting Feed Rate: Up to 20 m/min |
| Spindle: |
| Maximum Spindle Speed: 18,000 RPM |
| Spindle Motor Power: 20 – 35 kW (27 – 47 HP) |
| Spindle Torque: Approx. 120 – 200 Nm |
| Spindle Taper: HSK-A63 |
| Spindle Type: High-Speed Motorized Spindle |
| Cooling: Liquid Cooled |
| Tool Changer: |
| Tool Changer Type: Automatic Tool Changer |
| Tool Capacity: 30 / 60 Tools (Optional Expansion) |
| Tool-to-Tool Time: Approx. 2 sec |
| Chip-to-Chip Time: Approx. 5 sec |
| Max Tool Diameter: 80 mm (adjacent) / 130 mm (without adjacent) |
| Max Tool Length: 300 mm |
| Max Tool Weight: 8 kg |
| Axis Drives & Accuracy: |
| Drive System: Digital AC Servo Drives |
| Guideways: Linear Roller Guideways |
| Position Feedback: Linear Glass Scales |
| Positioning Accuracy: ±0.005 mm |
| Repeatability: ±0.003 mm |
| High-Speed Look-Ahead Processing |
| Rotary Table (A/C Axis): |
| Table Type: NC Tilting Rotary Table |
| A-Axis Range: -5° to +110° |
| C-Axis: 360° Continuous |
| Indexing Resolution: 0.001° |
| Clamping: Hydraulic |
| Machine Construction: |
| Thermo-Symmetric Design for Stability |
| High-Rigidity Cast Iron Base |
| Compact Footprint with High Performance |
| Designed for Precision 5-Axis Machining |
| Ideal for Aerospace, Medical & Toolroom Applications |
| Coolant System: |
| Flood Coolant System |
| Through Spindle Coolant (40–70 bar approx.) |
| Coolant Filtration System |
| Chip Conveyor |
| Electrical: |
| Power Requirement: 400V / 3 Phase / 50-60 Hz |
| Connected Load: Approx. 35 – 45 kVA |
| Control Voltage: 24V DC |
| General: |
| Machine Weight: Approx. 7,000 kg (15,400 lbs) |
| Machine Dimensions: Approx. 3.5m × 2.5m × 2.8m |
| Country of Origin: Germany |
| Optional Features: |
| Higher Speed Spindle (20K RPM+) |
| Pallet Changer System |
| Laser Tool Measurement |
| 5-Axis Kinematic Compensation |
| High-Pressure Coolant System |
| Mist Extraction Unit |
| Tool Management Software |
| Automation / Robot Integration |
