*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

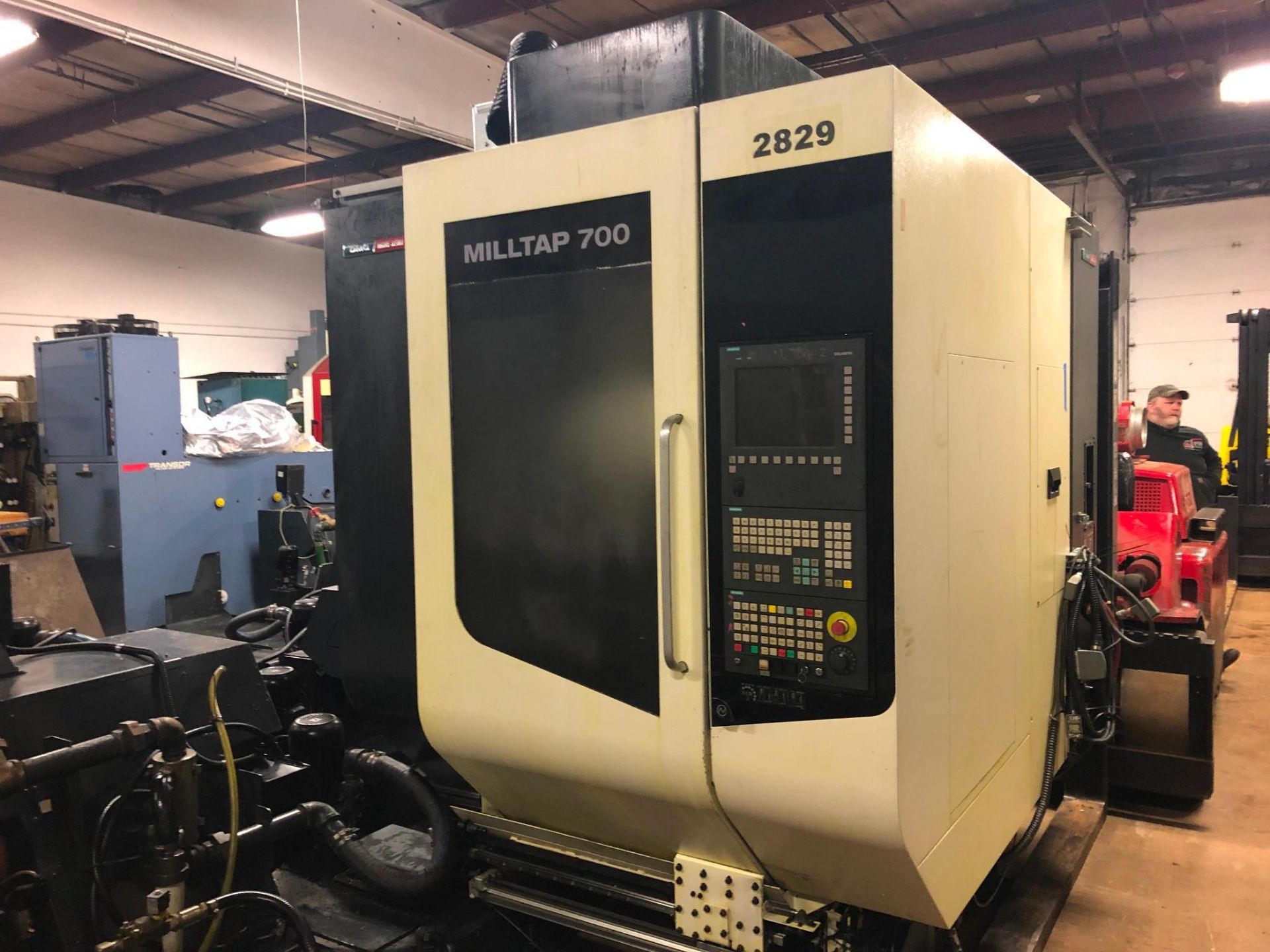

| Make: | DMG MORI |
| Model: | MILLTAP 700 |
| Machine Type: | High-Speed Vertical Machining Center |
| Condition: | Used – Good |
| Equipped With: |
|---|
- Siemens CNC Control (Sinumerik Series)
- High-Speed Rigid Tapping Capability
- Automatic Tool Changer
- Full Enclosure
- Coolant System
- Chip Management System
- Manual Pulse Generator (MPG)
- Work Light
- Emergency Stop & Safety Interlocks
|
| Travels: |
|---|
- X-Axis Travel: 27.6″ (700 mm)
- Y-Axis Travel: 16.5″ (420 mm)
- Z-Axis Travel: 14.6″ (370 mm)
- Spindle Nose to Table: Approx. 5.9″ – 20.5″
|
| Table: |
|---|
- Table Size: 33.5″ × 16.5″ (850 × 420 mm)
- Max Table Load: 660 lbs (300 kg)
- T-Slots: Multiple T-Slots
|
| Spindle: |
|---|
- Spindle Taper: BT30
- Max Spindle Speed: 24,000 RPM
- Spindle Motor: Approx. 10 HP
- Spindle Cooling: Air/Oil Cooled
- High-Speed Milling & Tapping Optimized
|
| Feedrates: |
|---|
- Rapid Traverse X/Y/Z: 2362 IPM (60 m/min)
- Max Cutting Feed: Approx. 2000 IPM
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 25 Tools
- Tool-to-Tool Time: ~1.5 Seconds
- Max Tool Diameter: Approx. 3.1″
- Max Tool Length: Approx. 9.8″
- Max Tool Weight: Approx. 6.6 lbs
|

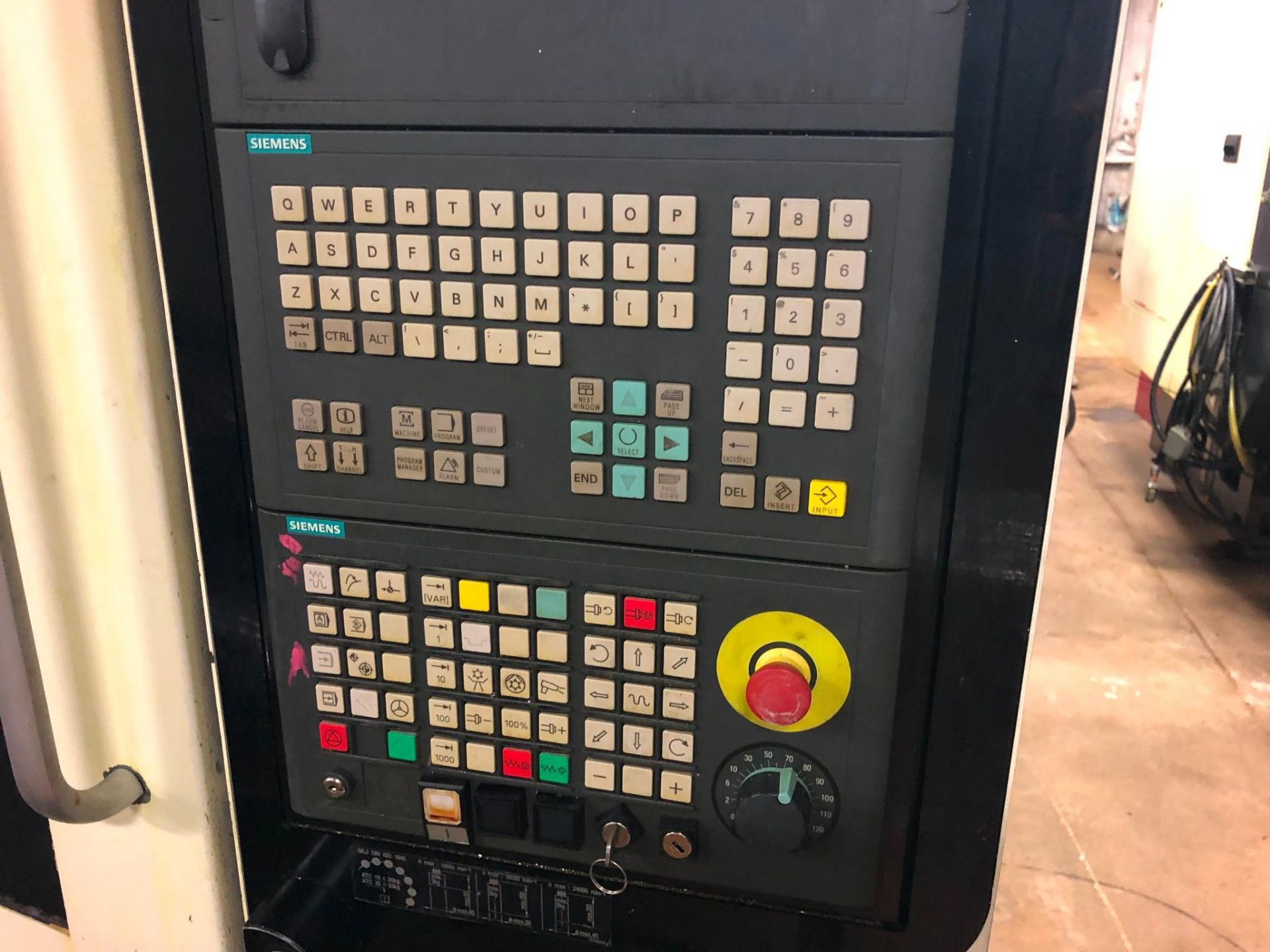

| Control: |
|---|

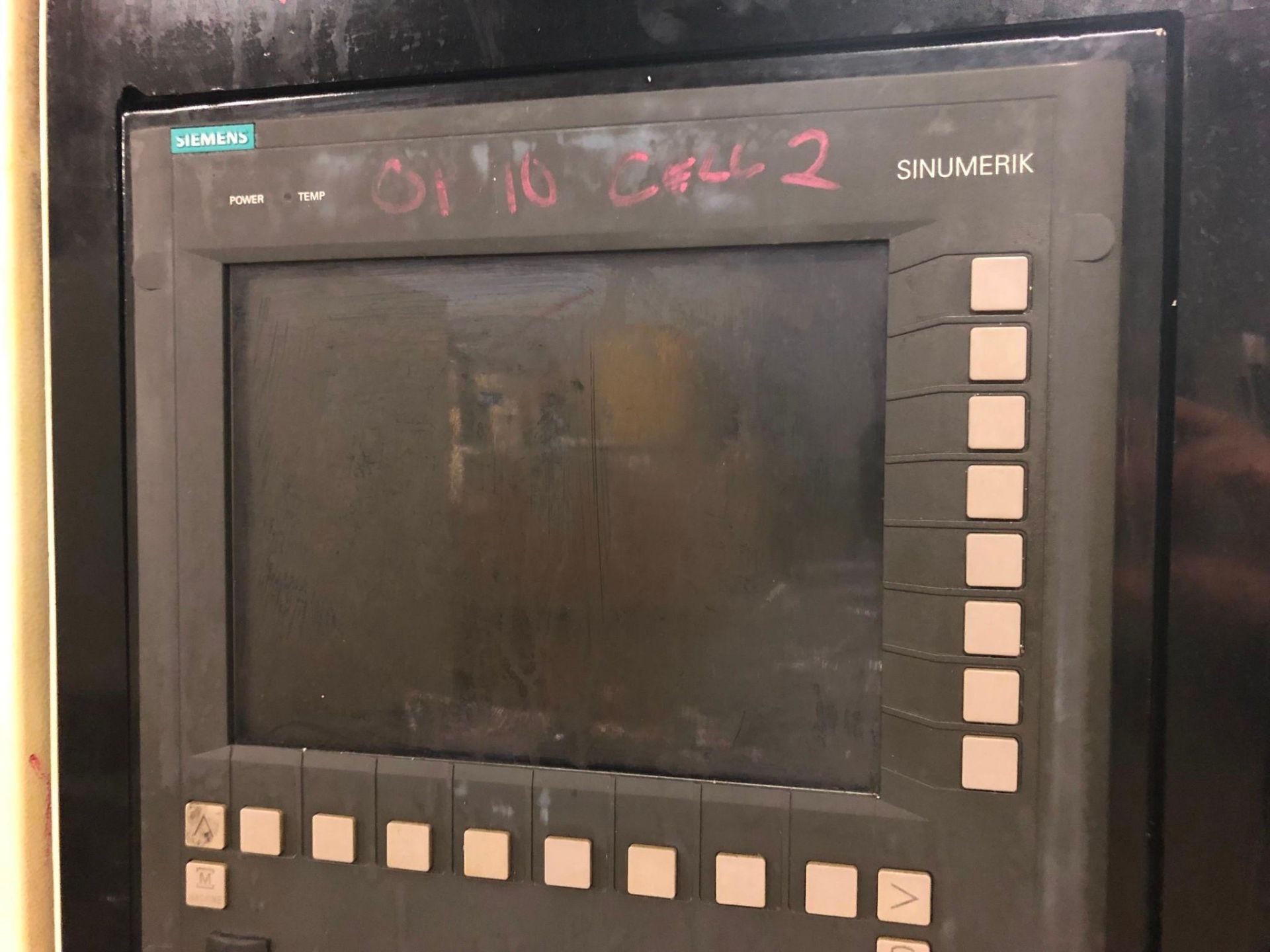

- Siemens Sinumerik CNC Control
- Full QWERTY Keyboard
- Graphical Program Simulation
- Rigid Tapping Cycles
- High-Speed Look-Ahead
- Ethernet & USB Connectivity
|
| General: |
|---|
- Compact High-Speed Machining Design
- Machine Dimensions (Approx.): 98″ × 85″ × 98″
- Machine Weight (Approx.): 8,500 lbs
- Power: 220V / 3-Phase
|
