*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

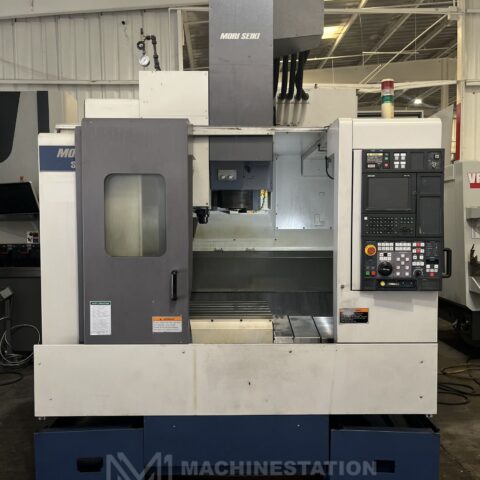

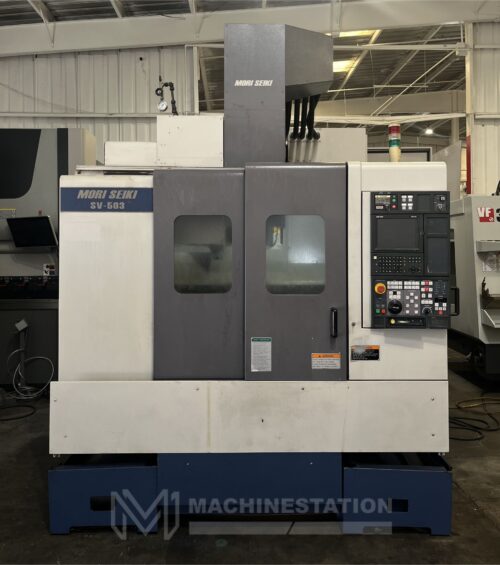

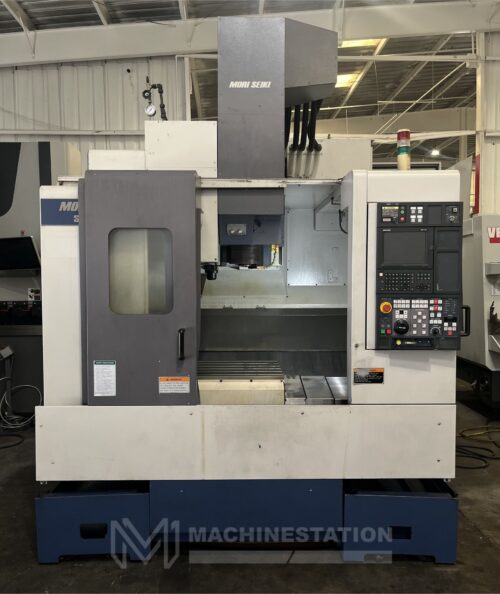

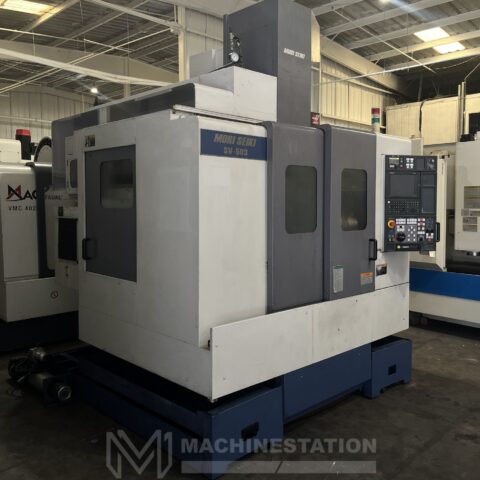

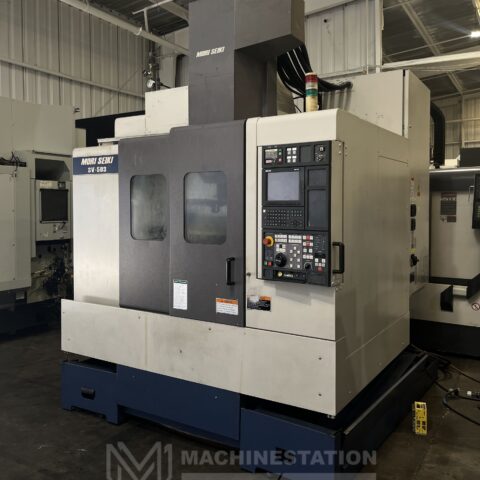

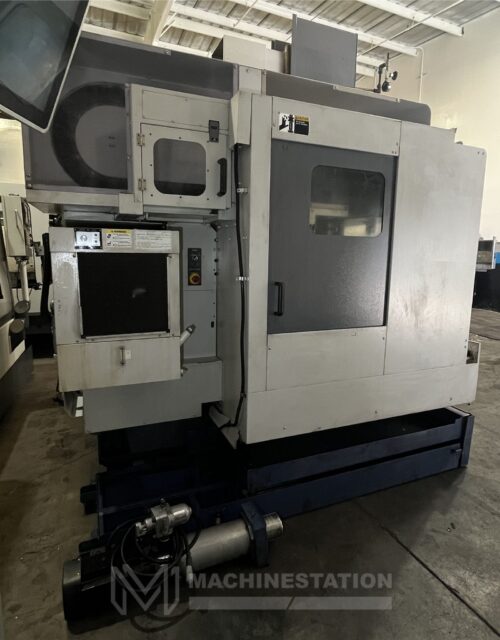

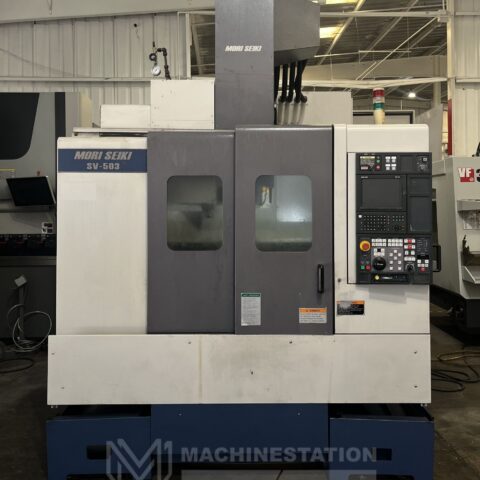

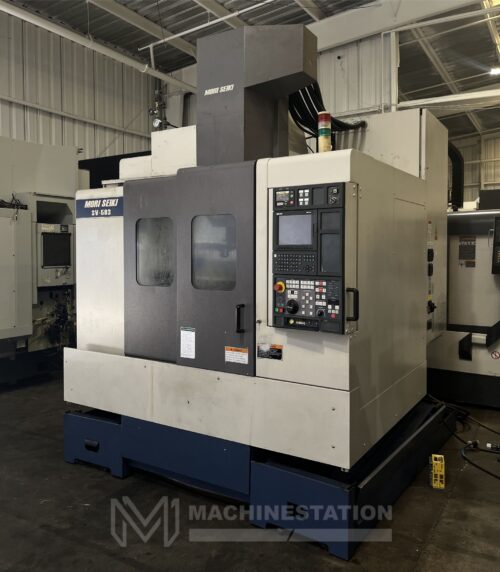

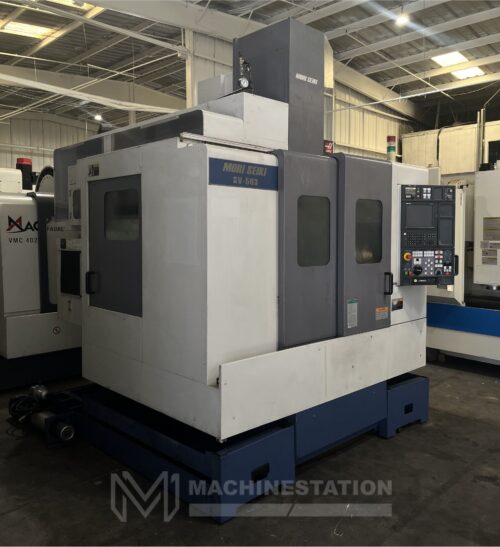

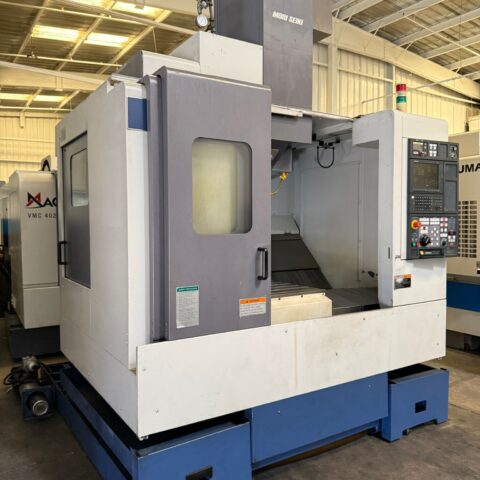

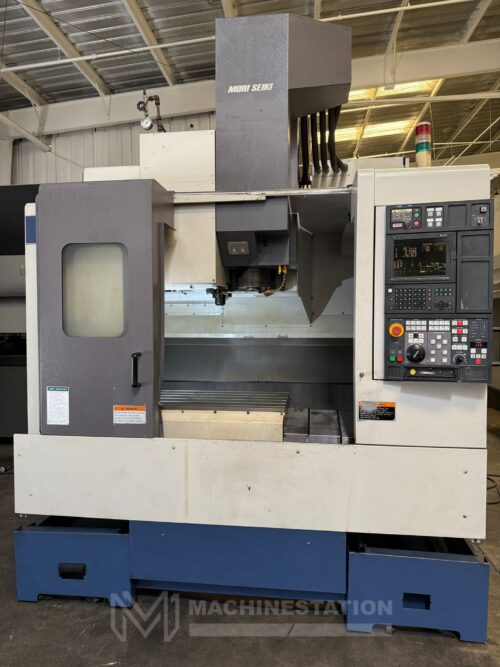

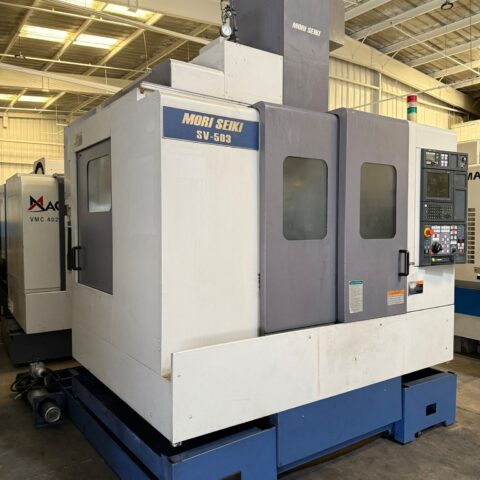

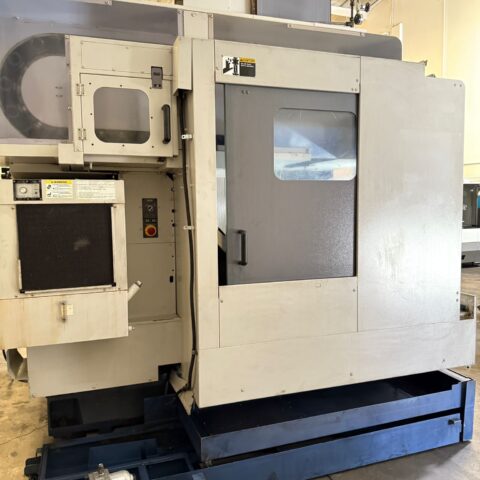

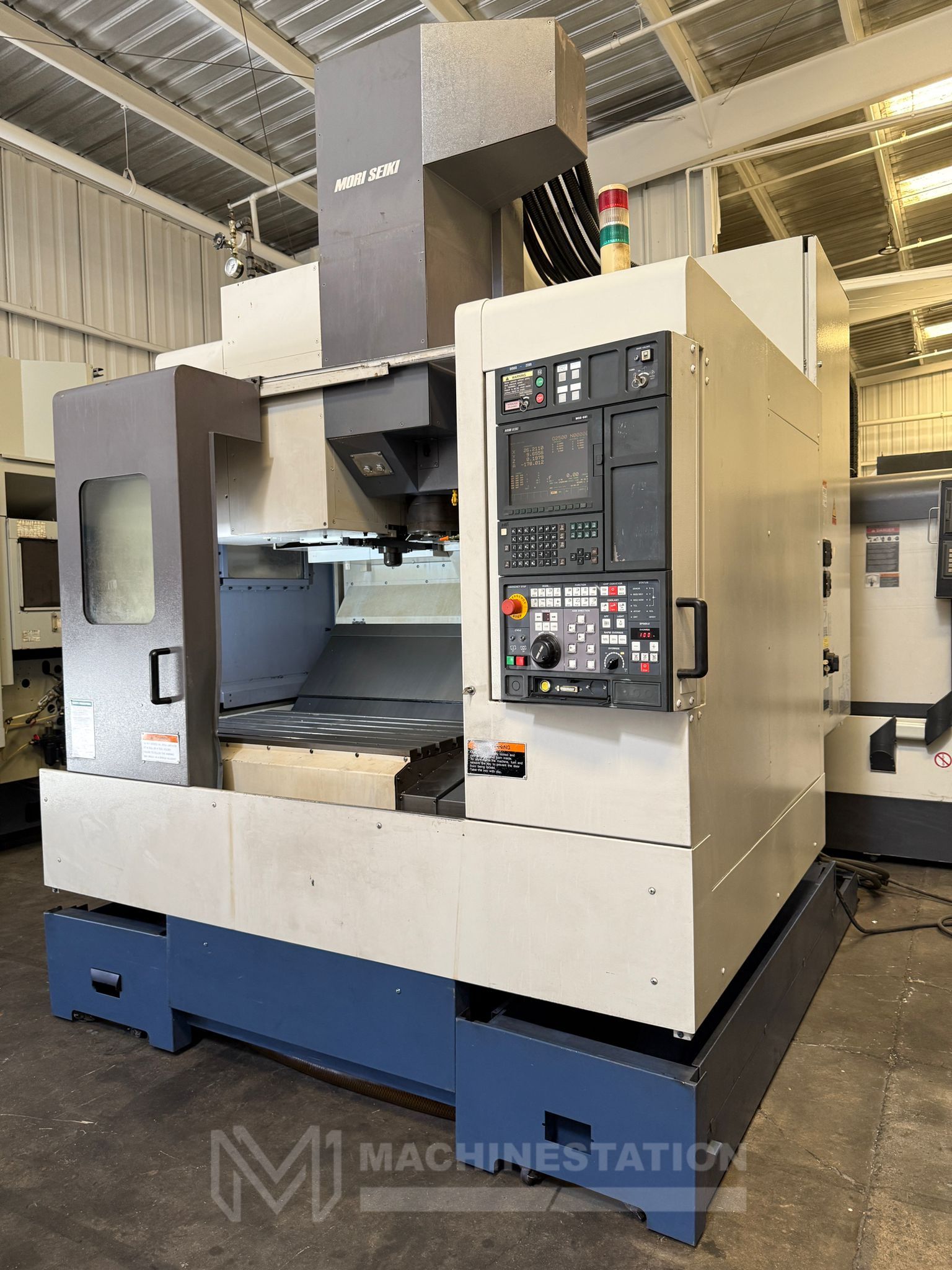

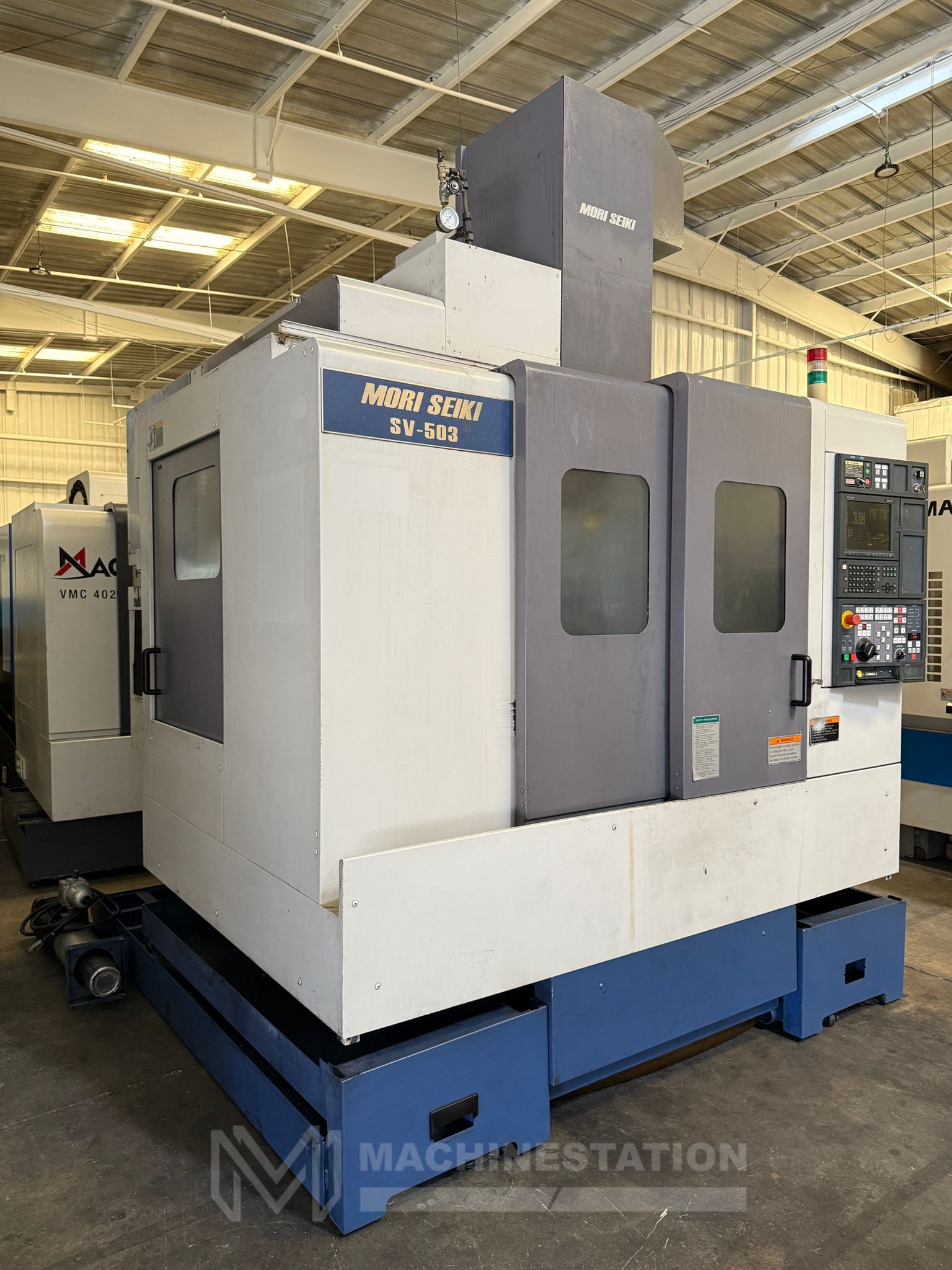

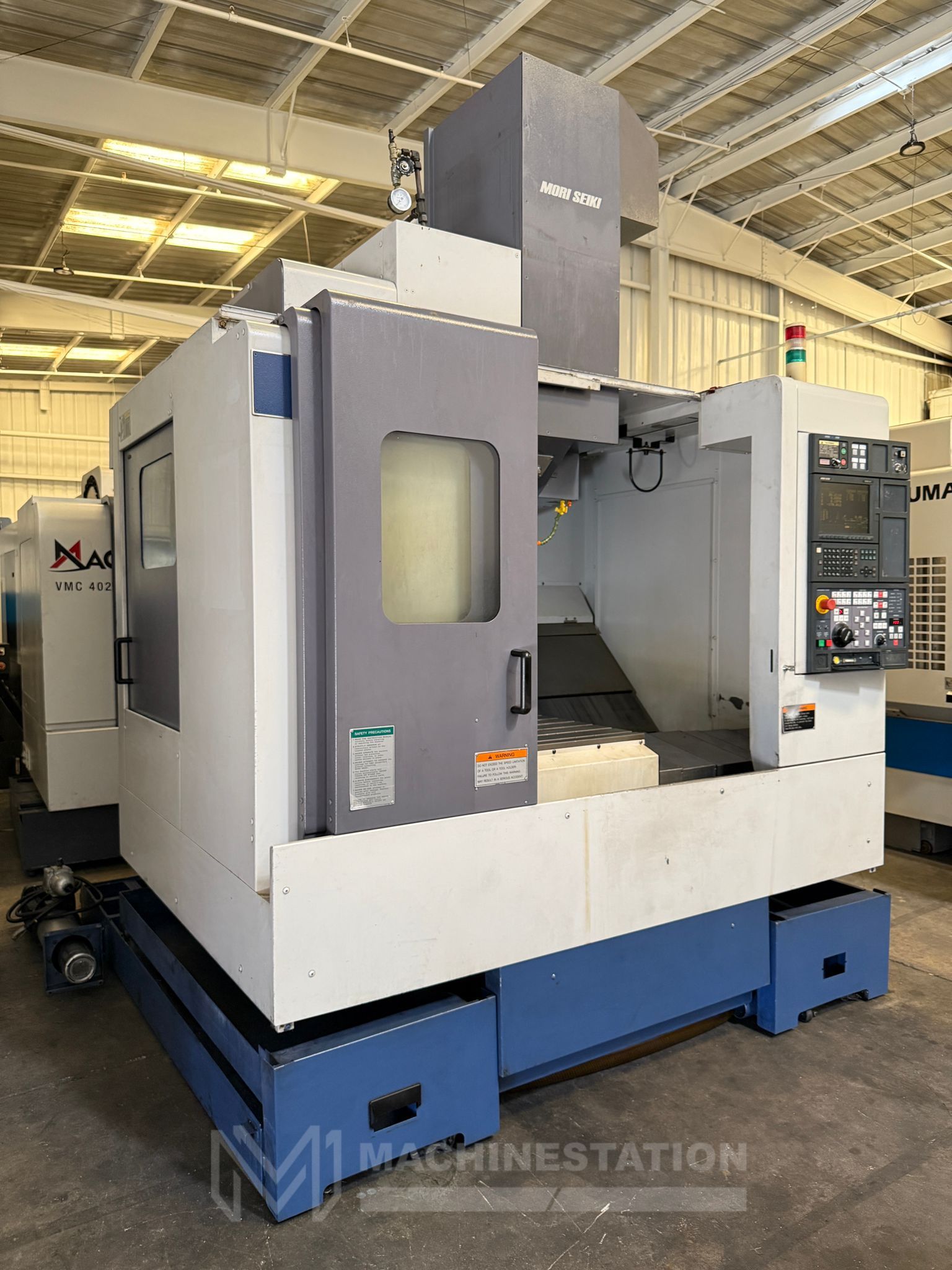

| Make: | Mori Seiki |
| Model: | SV503/40 |
| Year: | 2000 |
| Equipped With: |
|---|

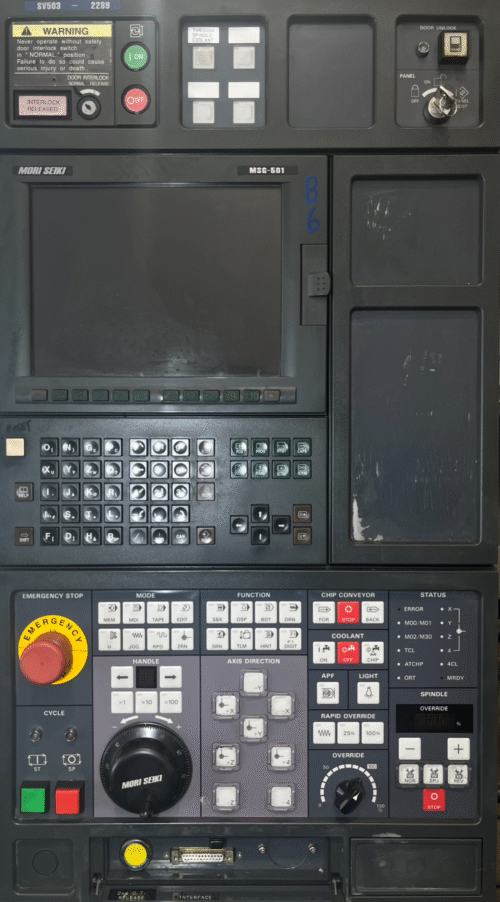

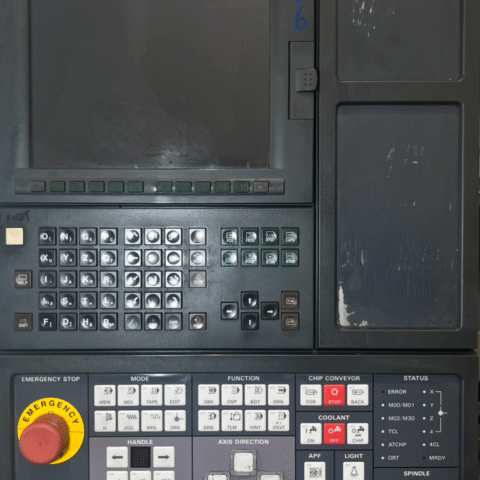

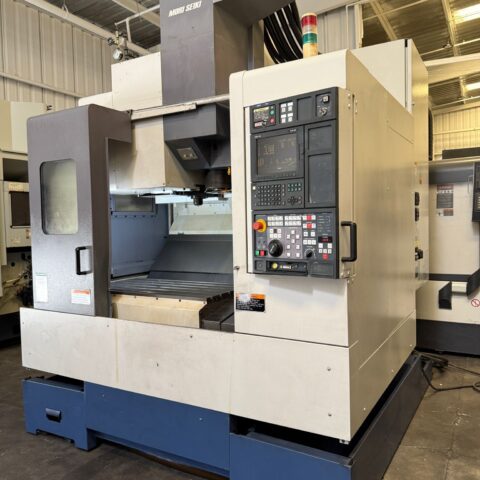

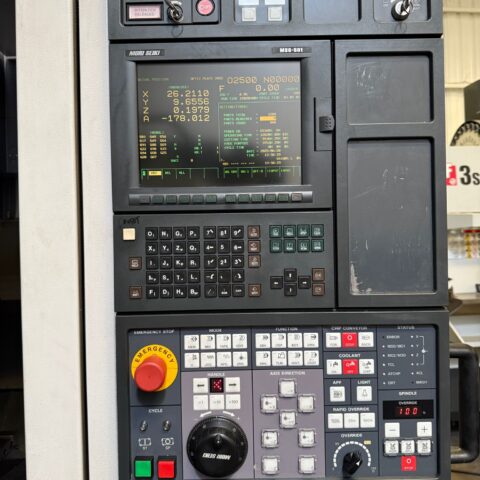

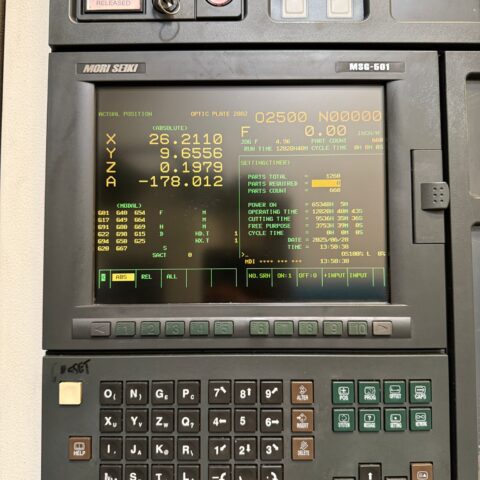

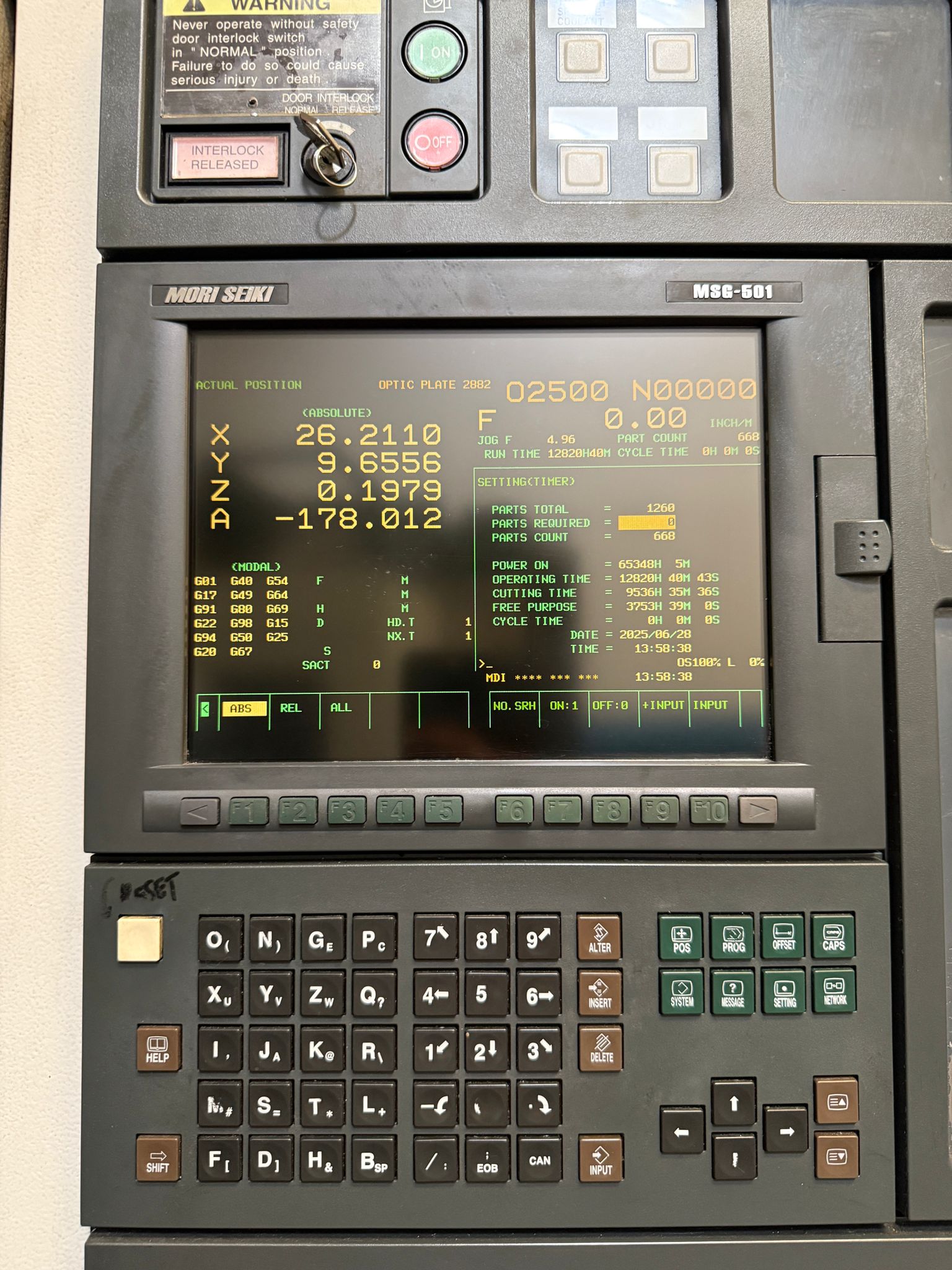

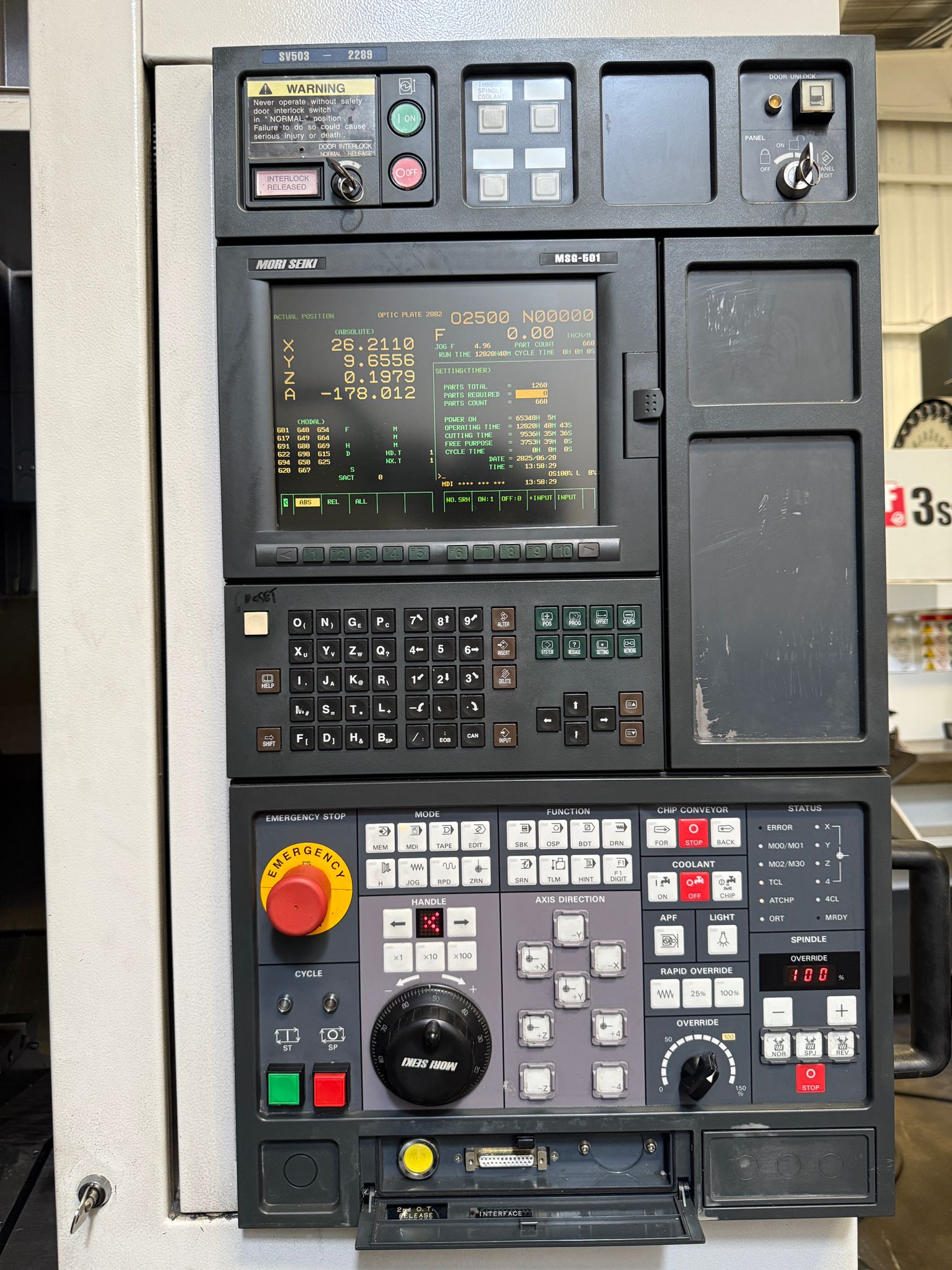

| MSG 501 ( Fanuc ) CNC Control |
| 4th Axis Ready |
| Box Way Construction |

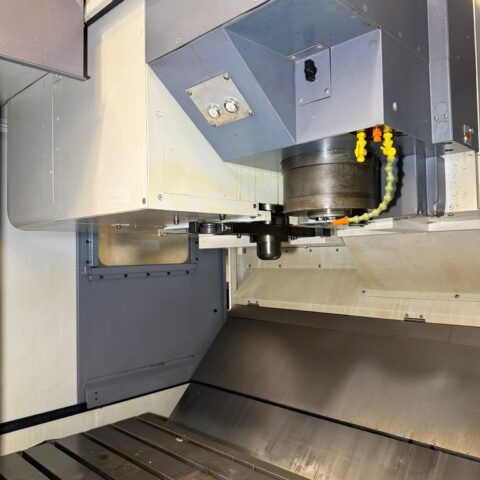

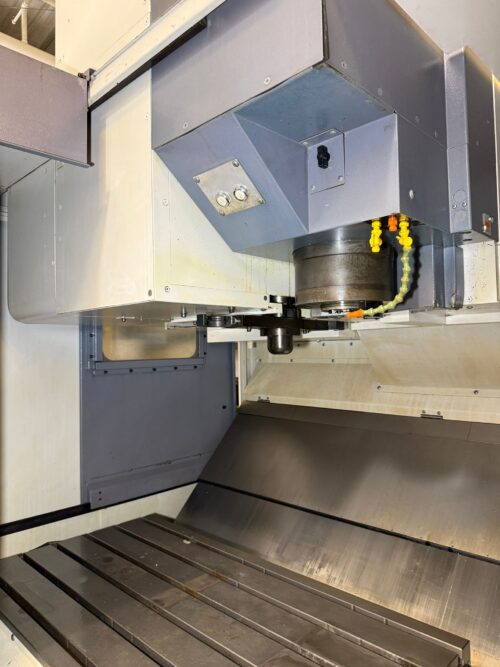

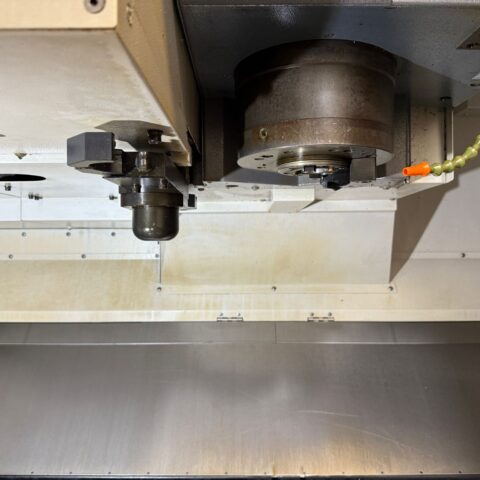

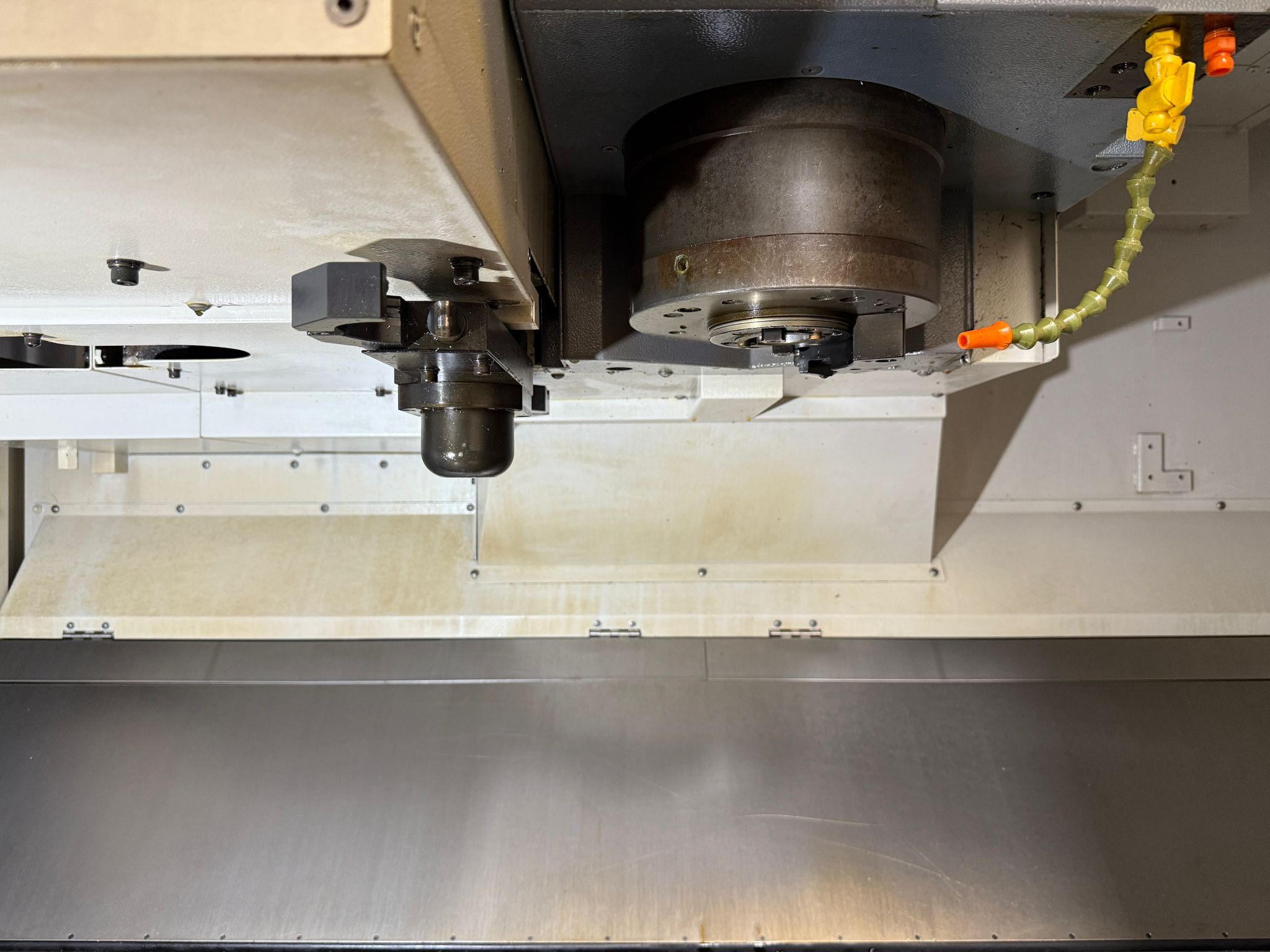

| CAT-40 Taper 12,000 RPM Spindle |

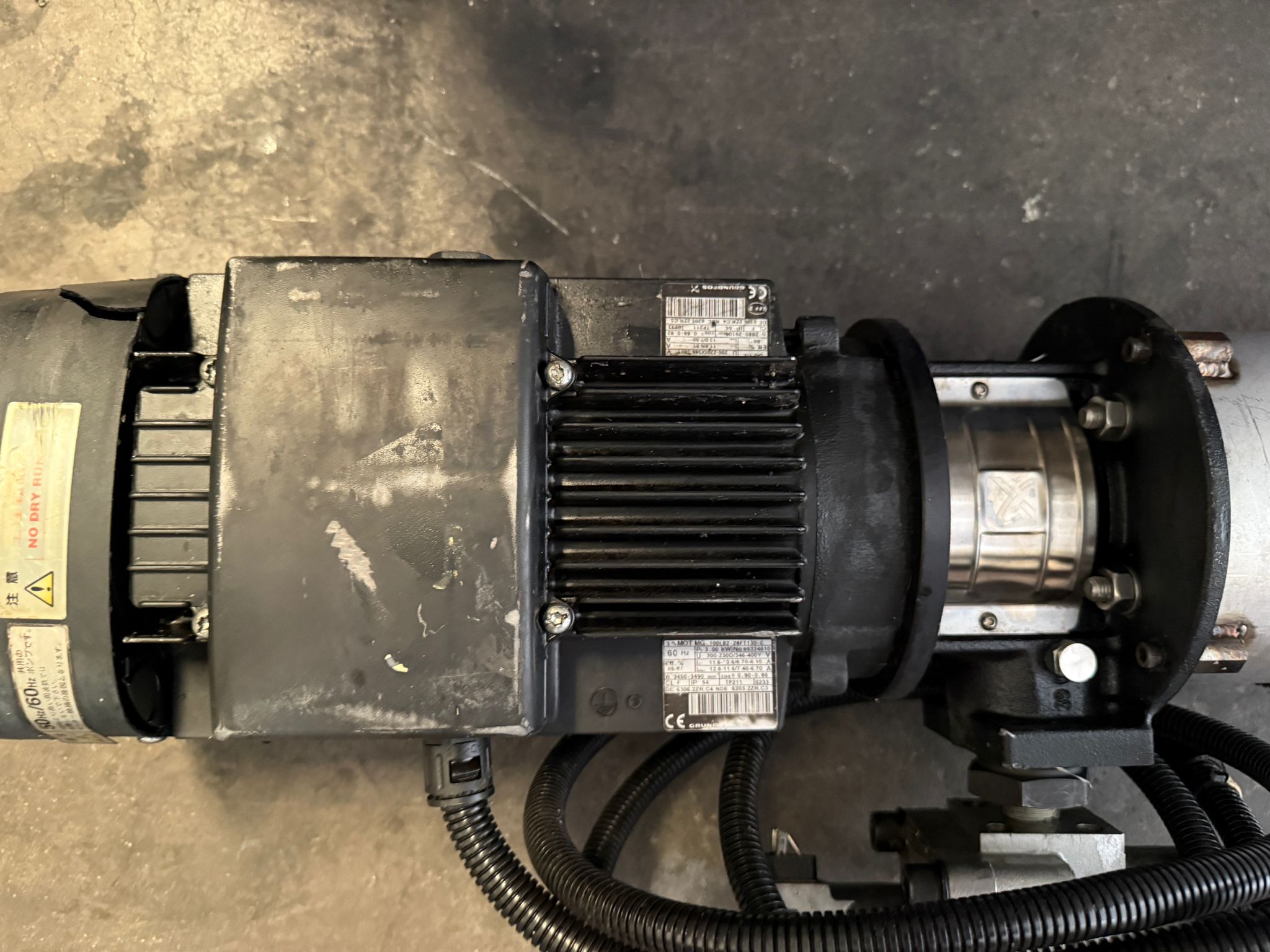

| Through Spindle Coolant |

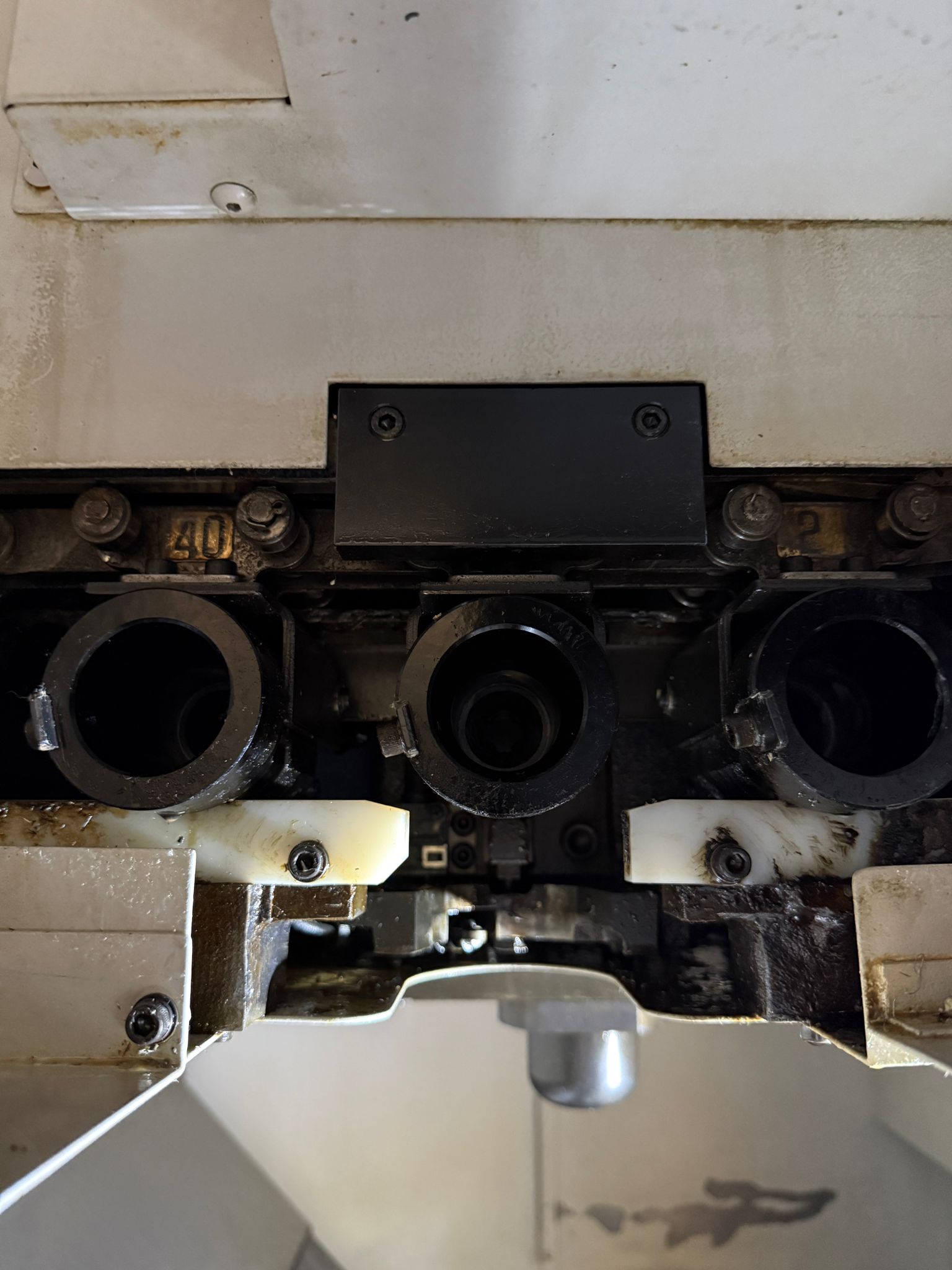

| 40 Station Automatic Tool Changer |
| Powerful 30 HP high torque Spindle Motor |
| Spindle Orientation |
| Rigid Tapping |

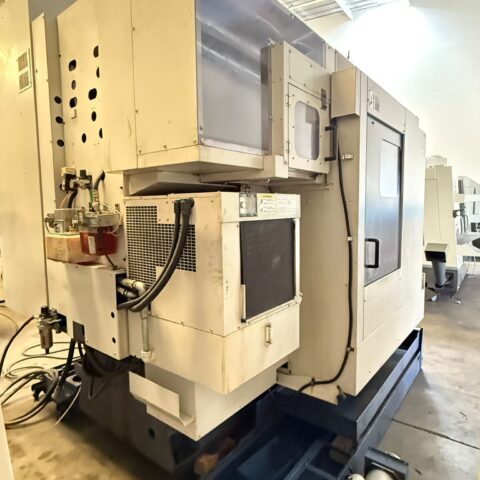

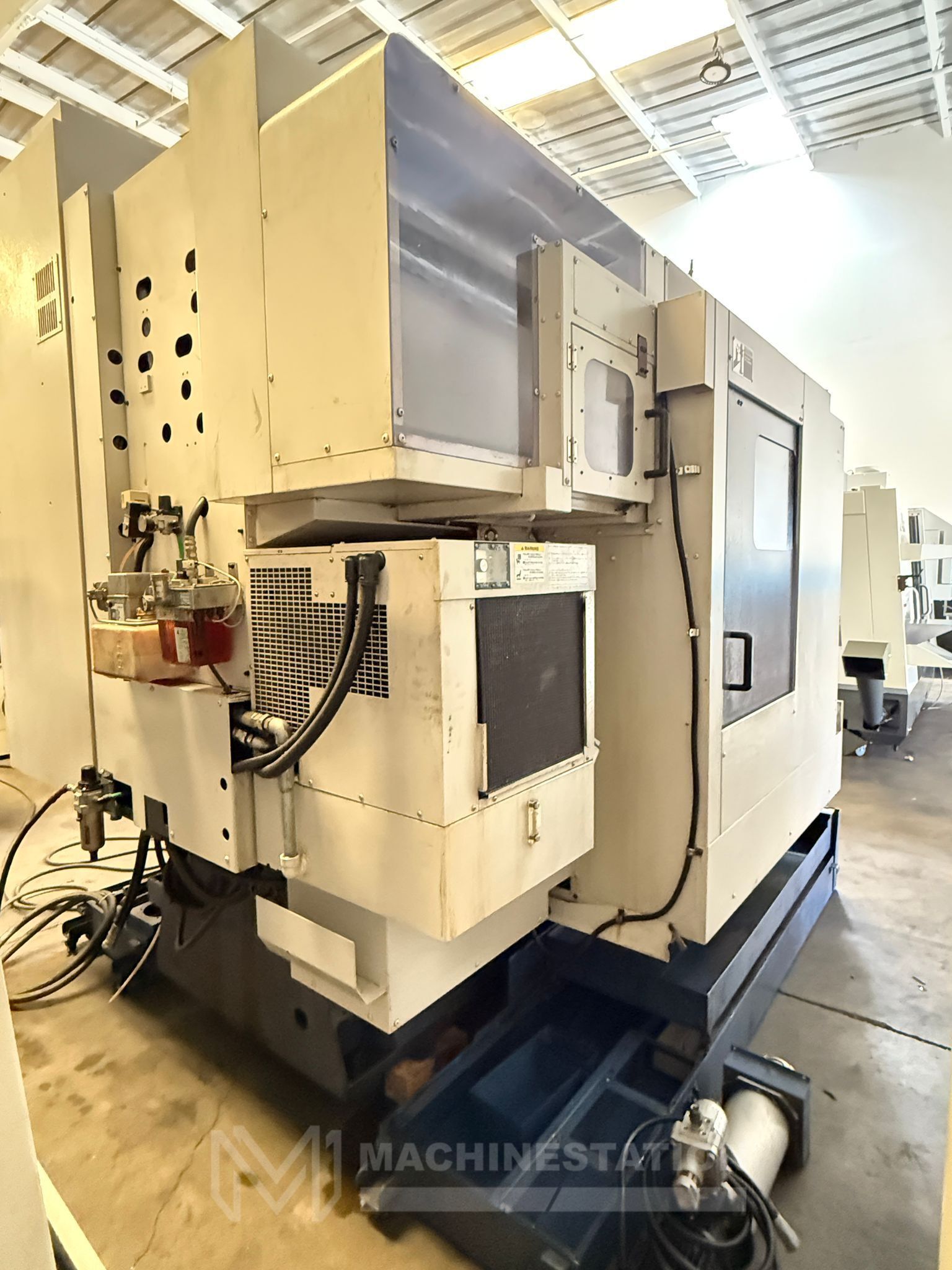

| Spindle Chiller Unit |

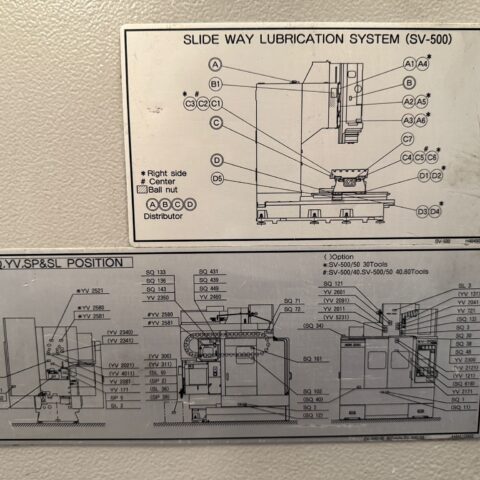

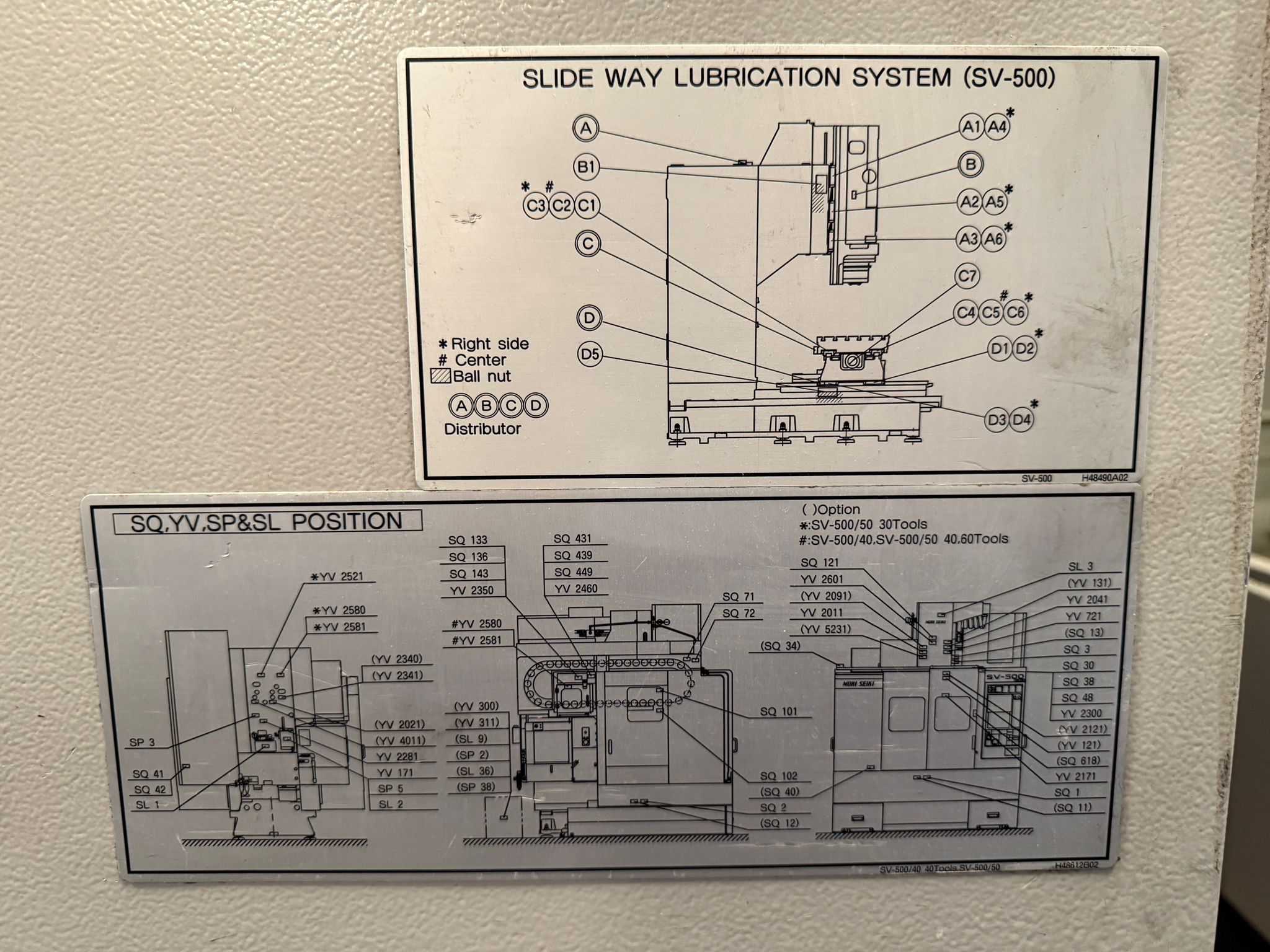

| Automatic Lubrication System |
| Coolant System |
| Travels: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |

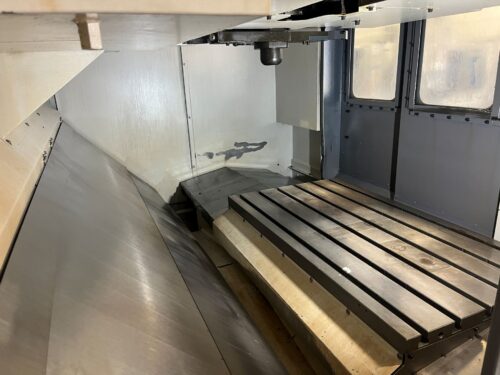

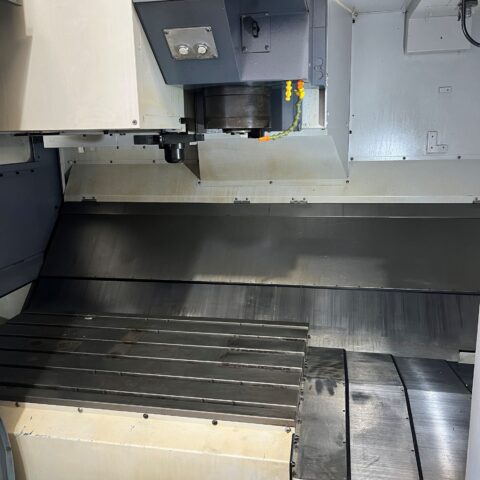

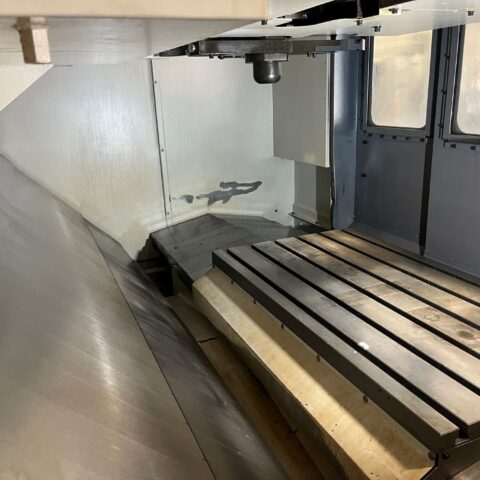

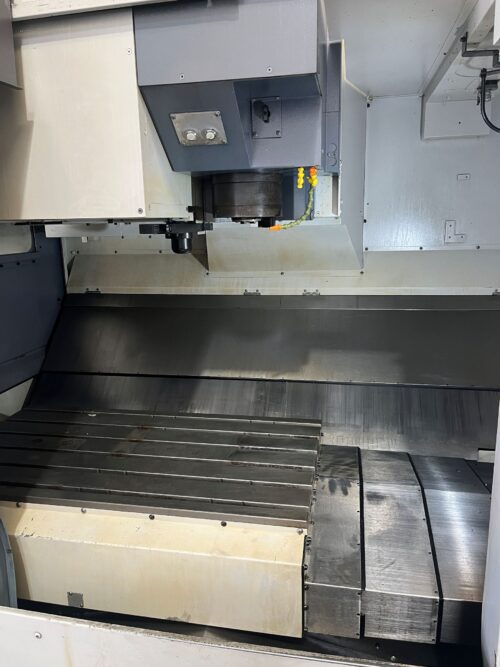

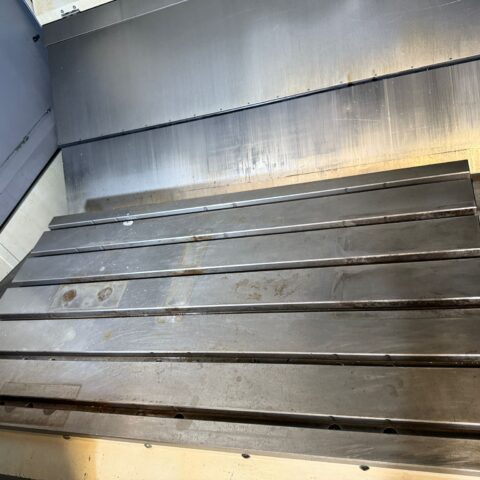

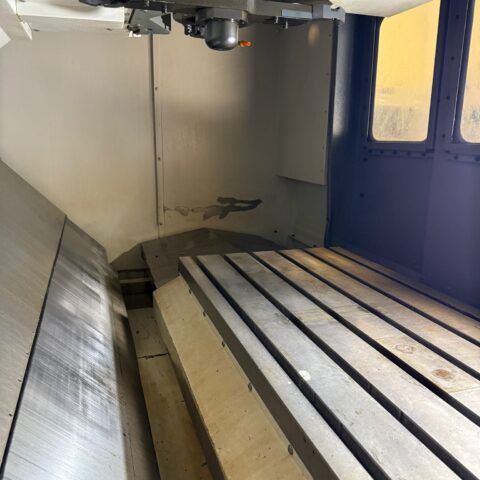

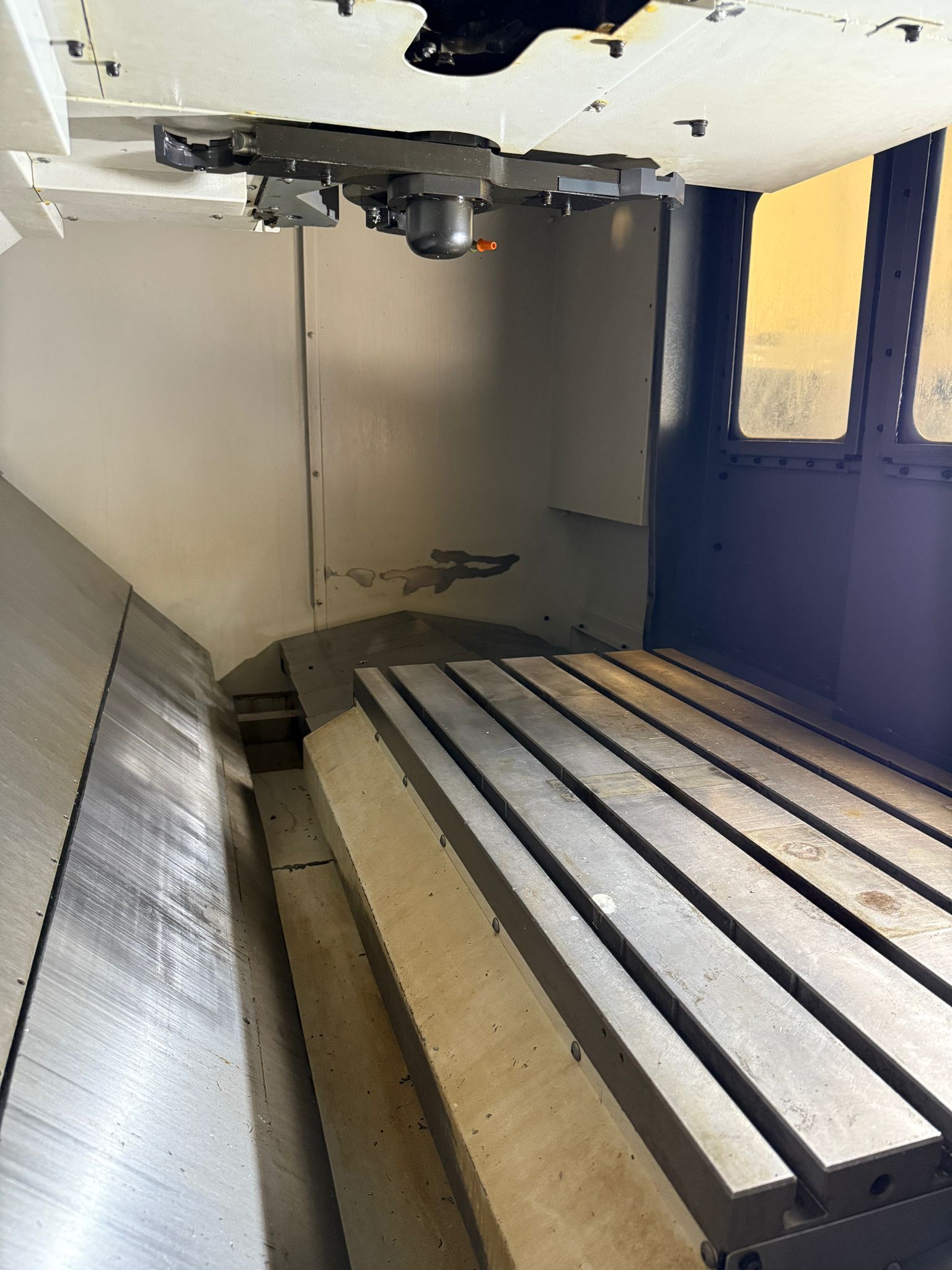

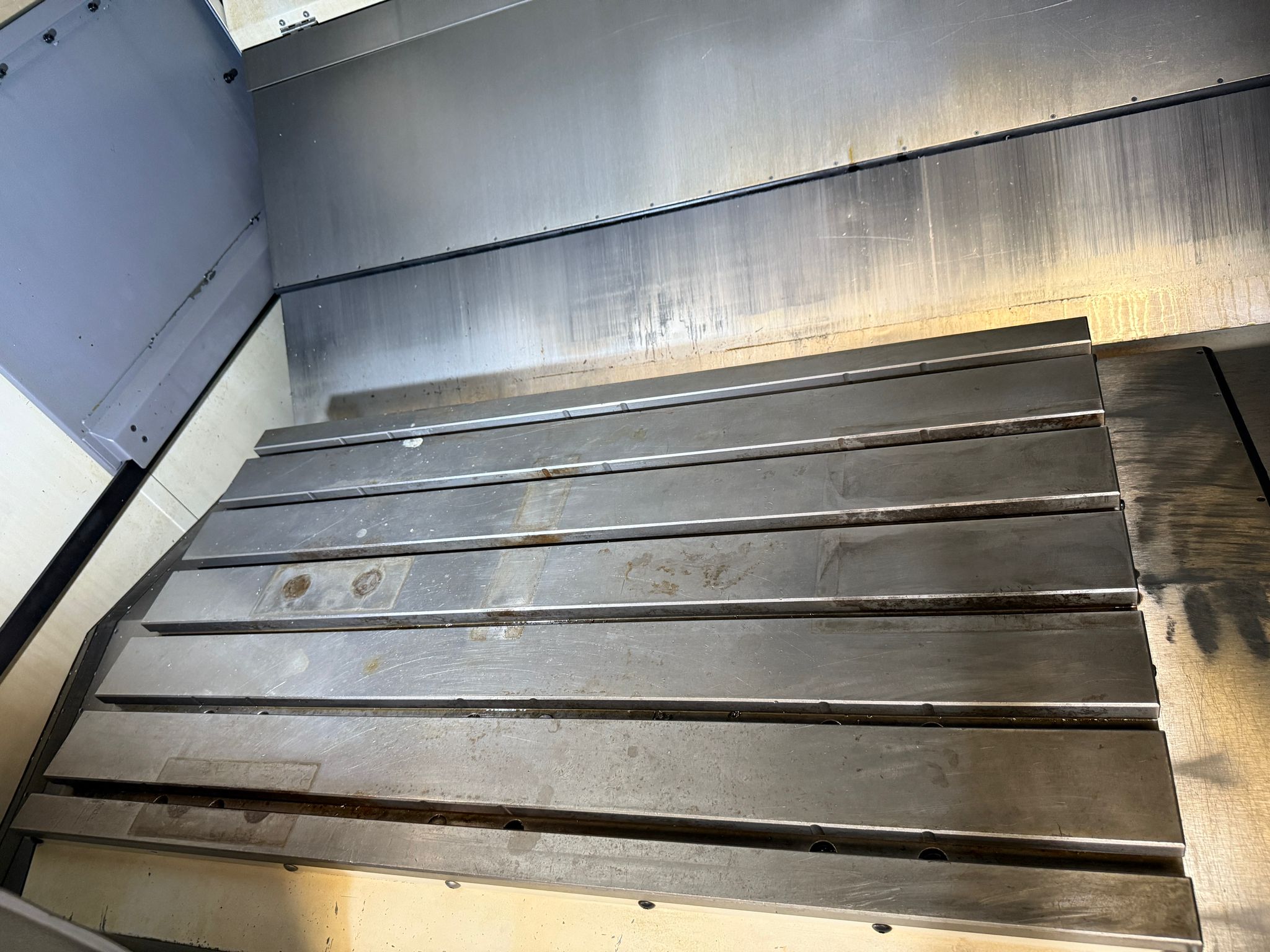

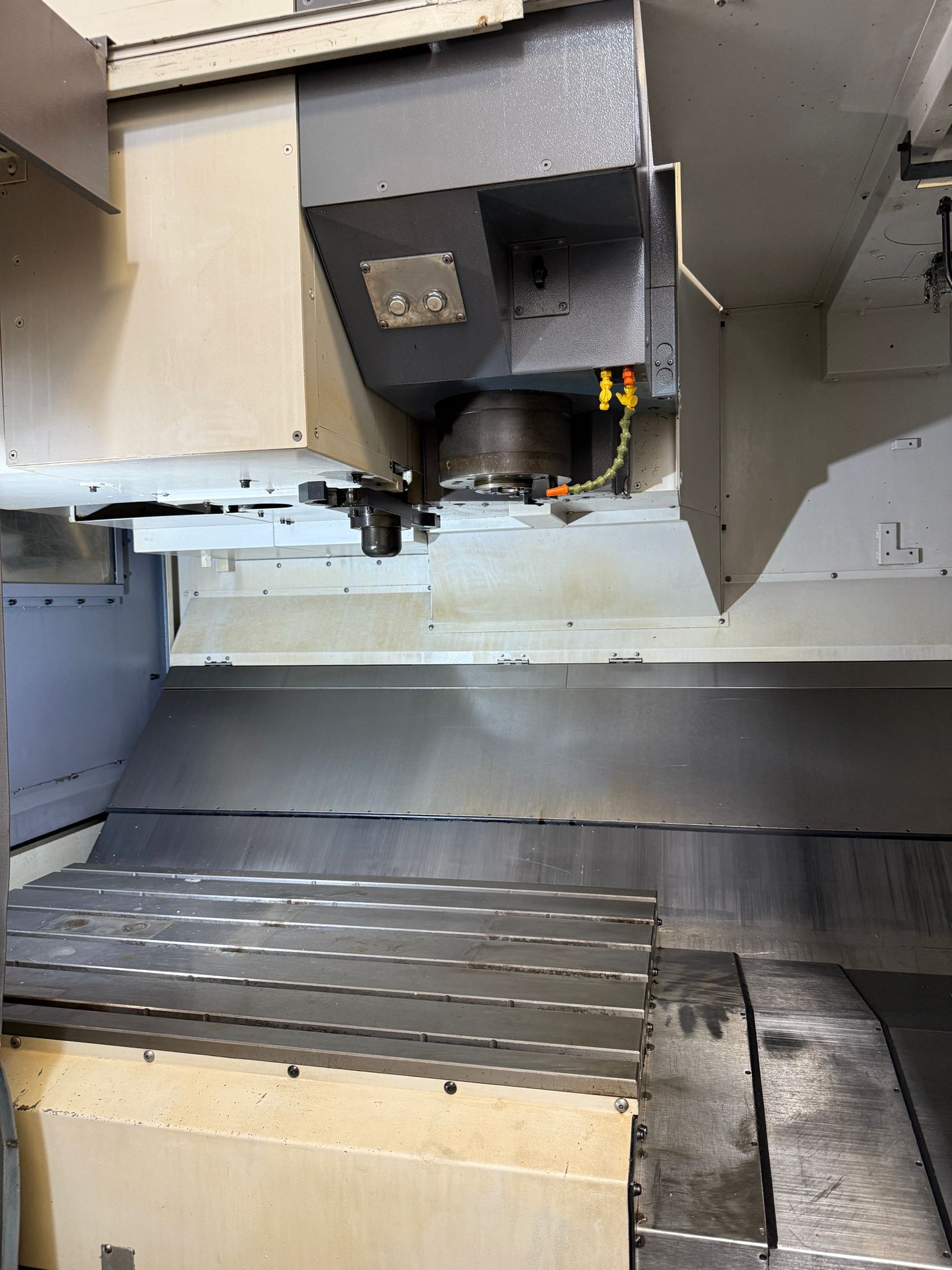

| Table: |
|---|
| Length: 43.31″ |
| Width: 23.62″ |
| Max Weight on Table: 2200 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Feed Rate: |
|---|
| Rapid X Y & Z: 1260 inch/PM |
| Cutting Feed rate: 630 inch/PM |

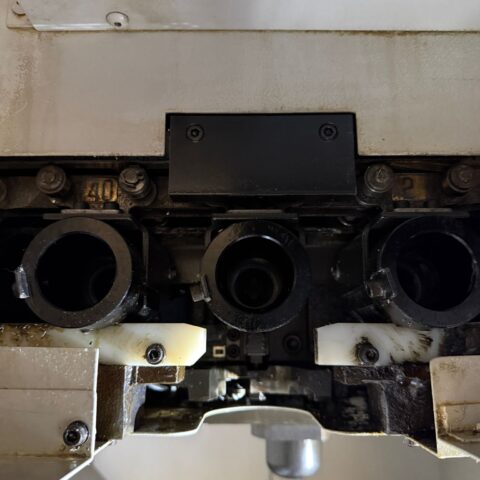

| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.9″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

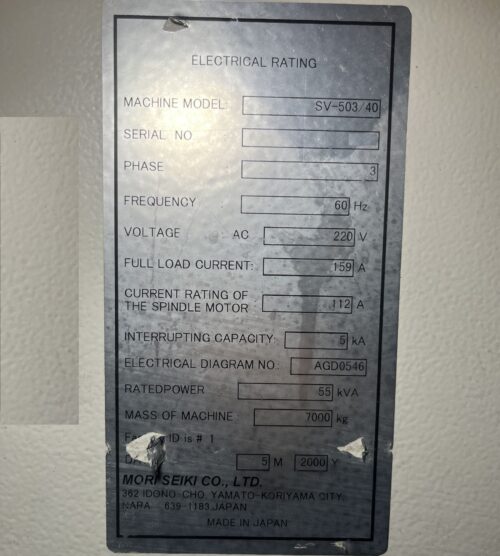

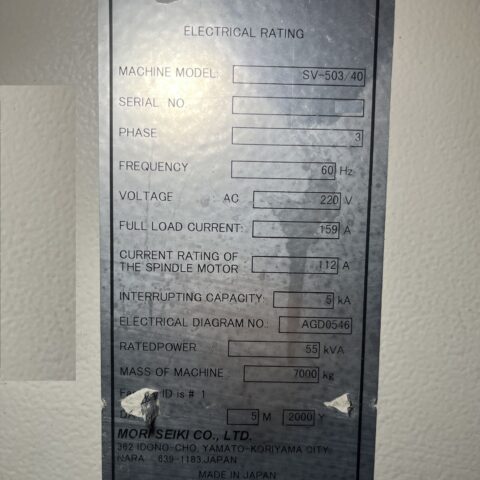

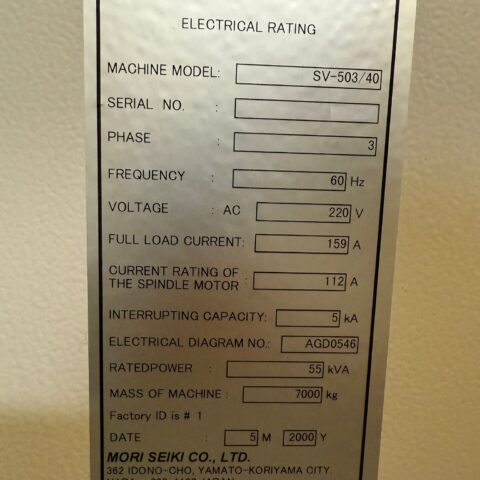

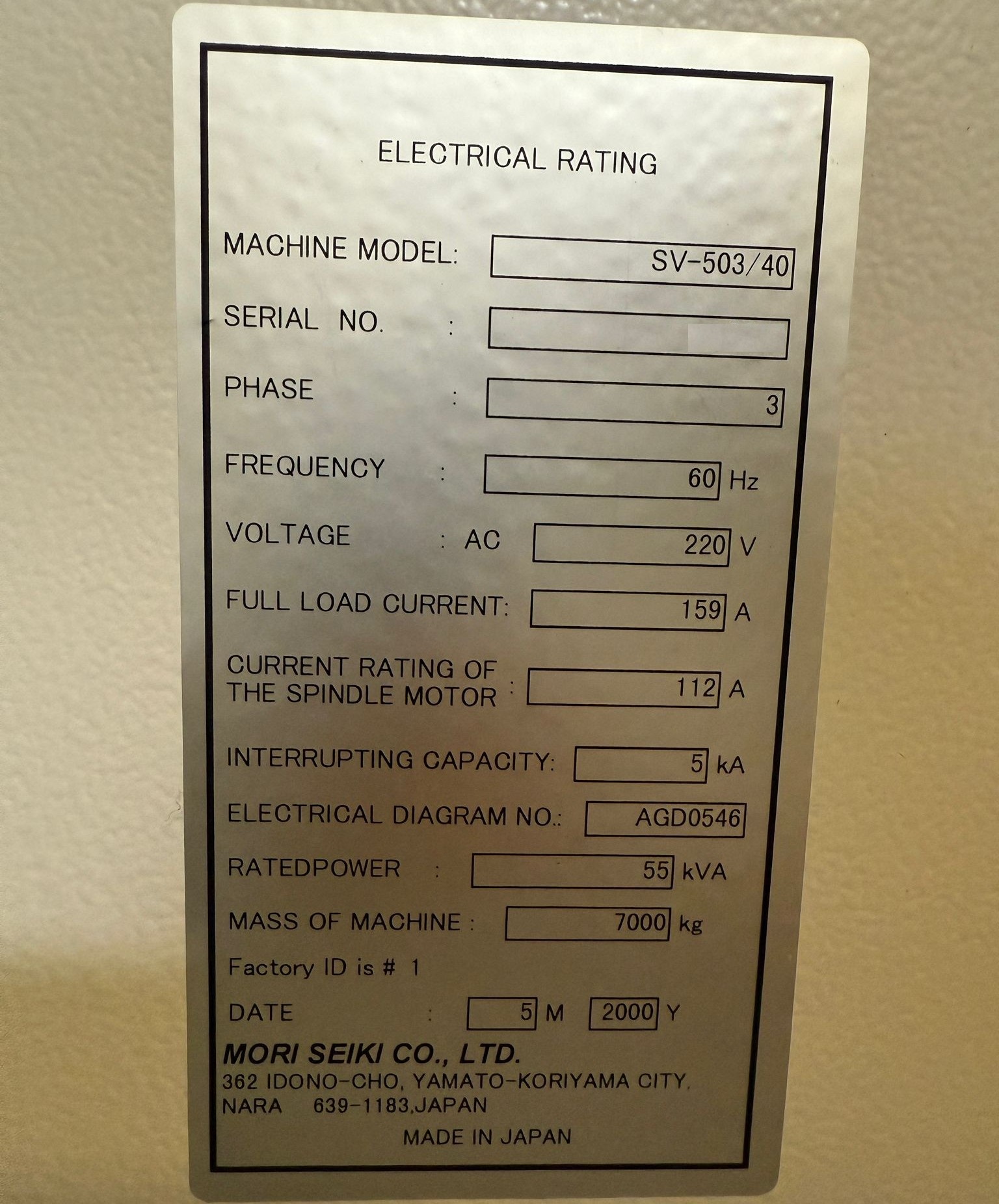

| Power: 205-220v / 66FLA / 3-Phase / 55 kva |
| Overall Dimensions: 180″ L X 102″ W X 120″ High |
| Weight: 15,430 lbs |
