*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

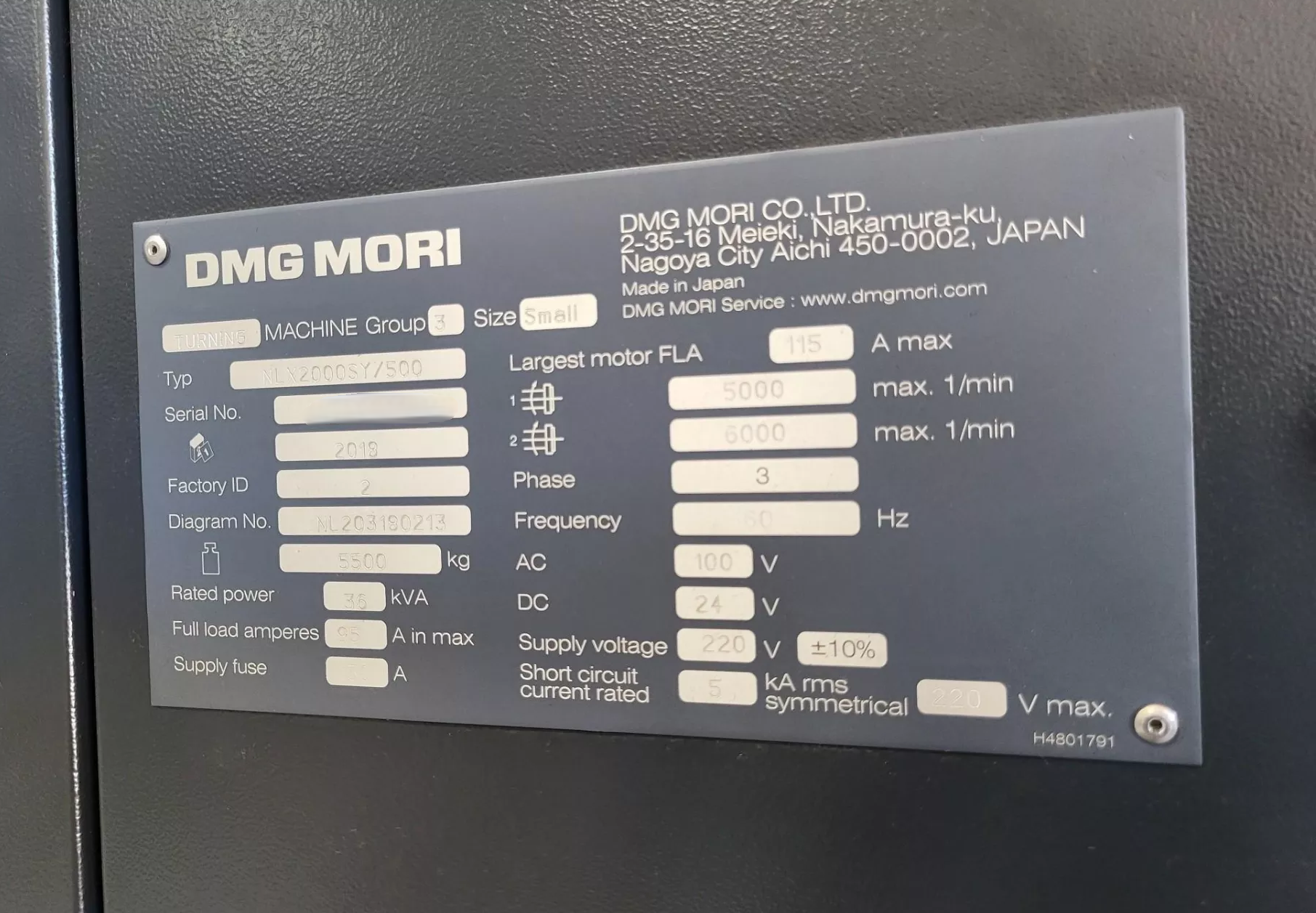

| Make: | DMG MORI |
| Model: | NLX 2000 SY/500 |
| Year: | 2018 |
| Condition: | Used – Good |
| Machine Type: | Multi-Axis CNC Turning Center |

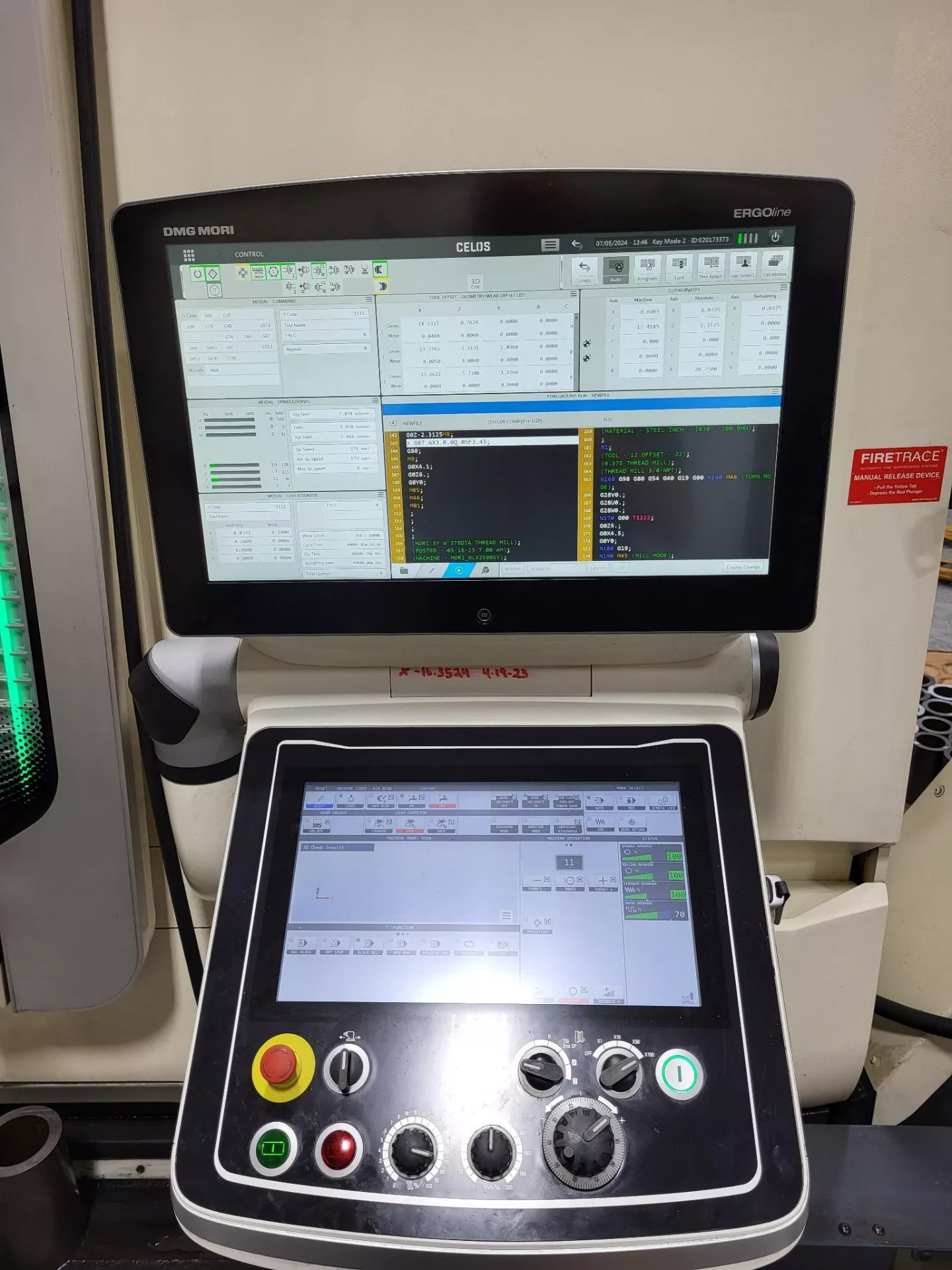

| Control: | DMG MORI ERGOline CELOS Control |
| Equipped With: |
|---|
| DMG MORI ERGOline CELOS Control |
| Y-Axis |
| Sub Spindle |
| C-Axis |

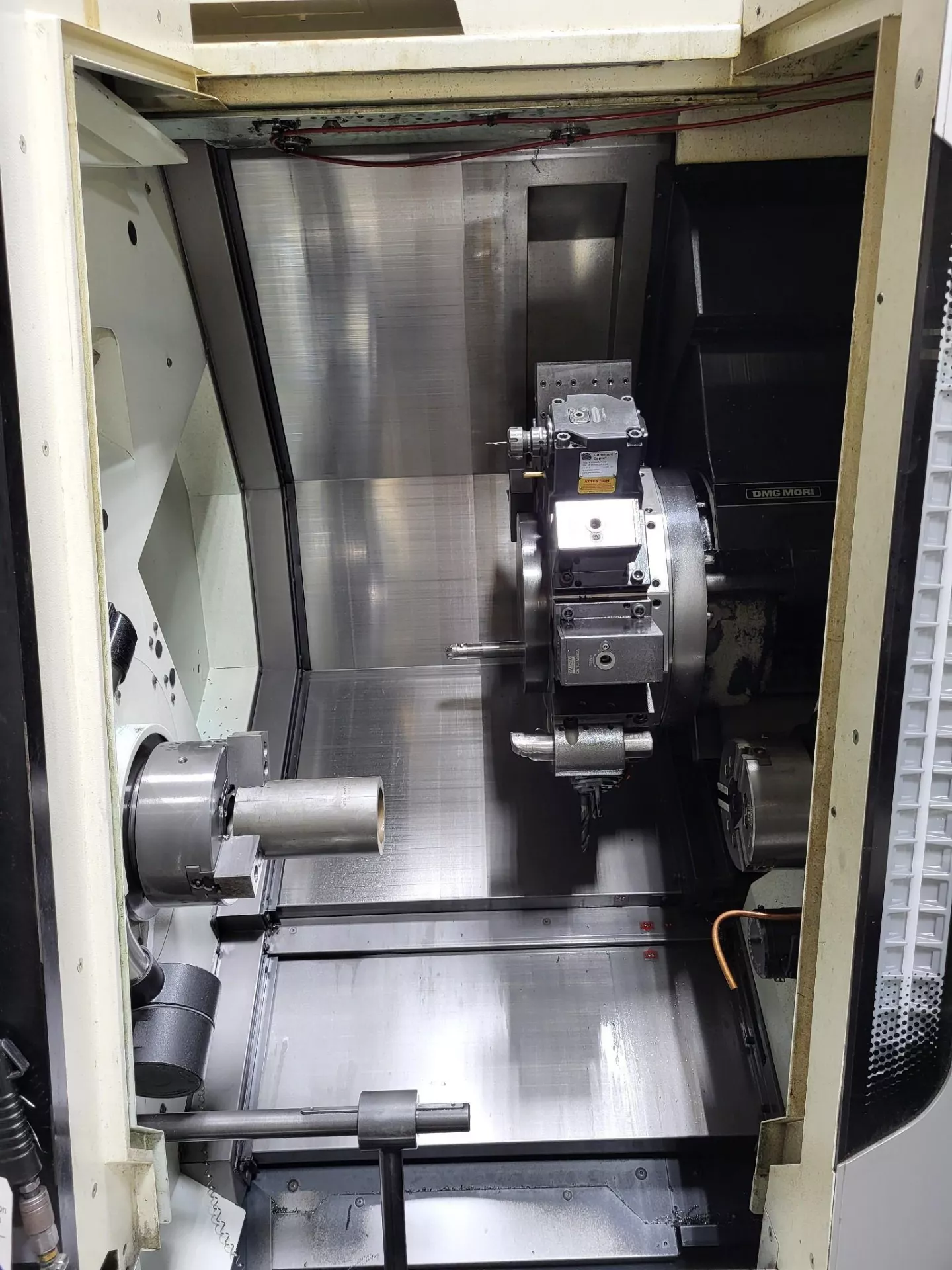

| 12-Station Live Tool Turret |
| Live Tooling |
| 8″ 3-Jaw Main Chuck |
| 6″ 3-Jaw Sub Spindle Chuck |
| Tool Presetter |
| Programmable Tailstock |
| Parts Picker |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Firetrace Fire Suppression System |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Turning Diameter : 14.40″ |
| Maximum Turning Length : 20.08″ |
| Maximum Swing Over Bed : 36.37″ |
| Swing Over Cross Slide : 29.72″ |
| Standard Turning Diameter : 10.82″ |
| Distance Between Spindles : 19.68″ |
| Maximum Bar Capacity : 2.55″ |
| Travels: |
|---|
| X Axis Travel : 10.23″ |
| Z Axis Travel : 23.22″ |
| Y Axis Travel : 3.94″ (+/- 1.97″) |
| Feedrate: |
|---|
| Rapid Traverse X Axis : 1181 IPM |
| Rapid Traverse Y Axis : 394 IPM |
| Rapid Traverse Z Axis : 1181 IPM |
| C-Axis Rapid Traverse : 400 min-1 |
| Main Spindle: |
|---|
| Spindle Nose : JIS A2-6 |
| Spindle Bore : 2.87″ |
| Spindle Speed : 5,000 RPM |
| Main Spindle Motor : 15 / 11 kW |
| Spindle Bearing Diameter : 4.72″ |
| Sub Spindle: |
|---|
| Sub Spindle Speed : 6,000 RPM |
| Sub Spindle Chuck : 6″ 3-Jaw Chuck |
| Turret: |
|---|
| Turret Capacity : 12 Stations Live Tool |
| Tool Change Time : 0.25 Sec. |
| Square Tool Size : 20 mm |
| Drill Shank Diameter : 32 mm |
| Live Tool Speed : 10,000 RPM |
| Live Tool Motor : 5.5 / 3.7 kW |
| Tailstock: |
|---|
| Tailstock : Programmable |
| General: |
|---|
| Power Source : AC 220V / 3-Phase / 50 Hz |
| Total Power Requirement : 30 kVA |
| Machine Weight : 12,125 lbs Approx. |
| Country of Origin : Japan |
