*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

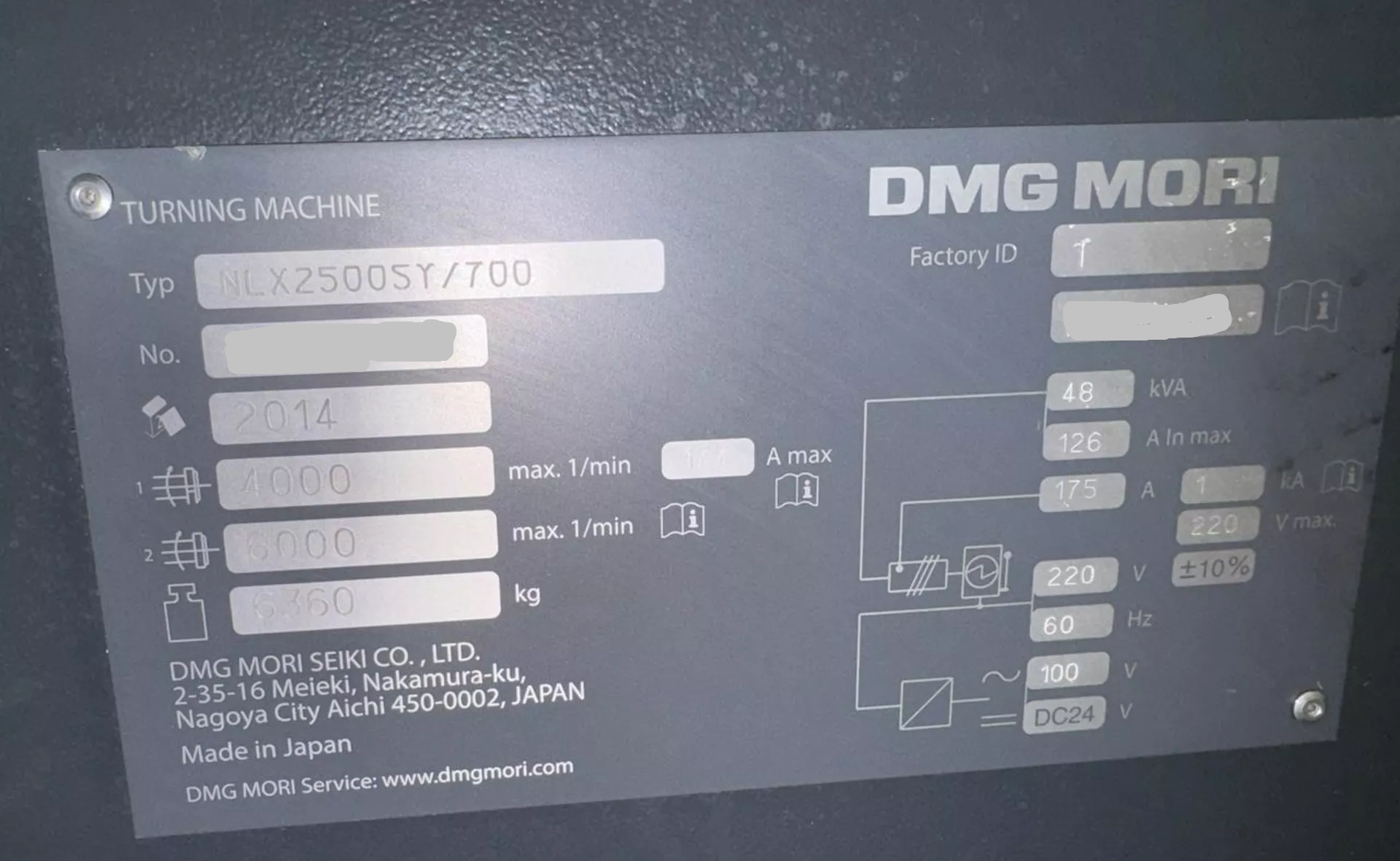

| Make: | DMG Mori |
| Model No.: | NLX2500SY/700 |
| Year of Manufacture: | 2014 |
| Condition: | Used – Good |
| Machine Type: | Multi-Axis CNC Turning Center |
| Equipped With: |
|---|

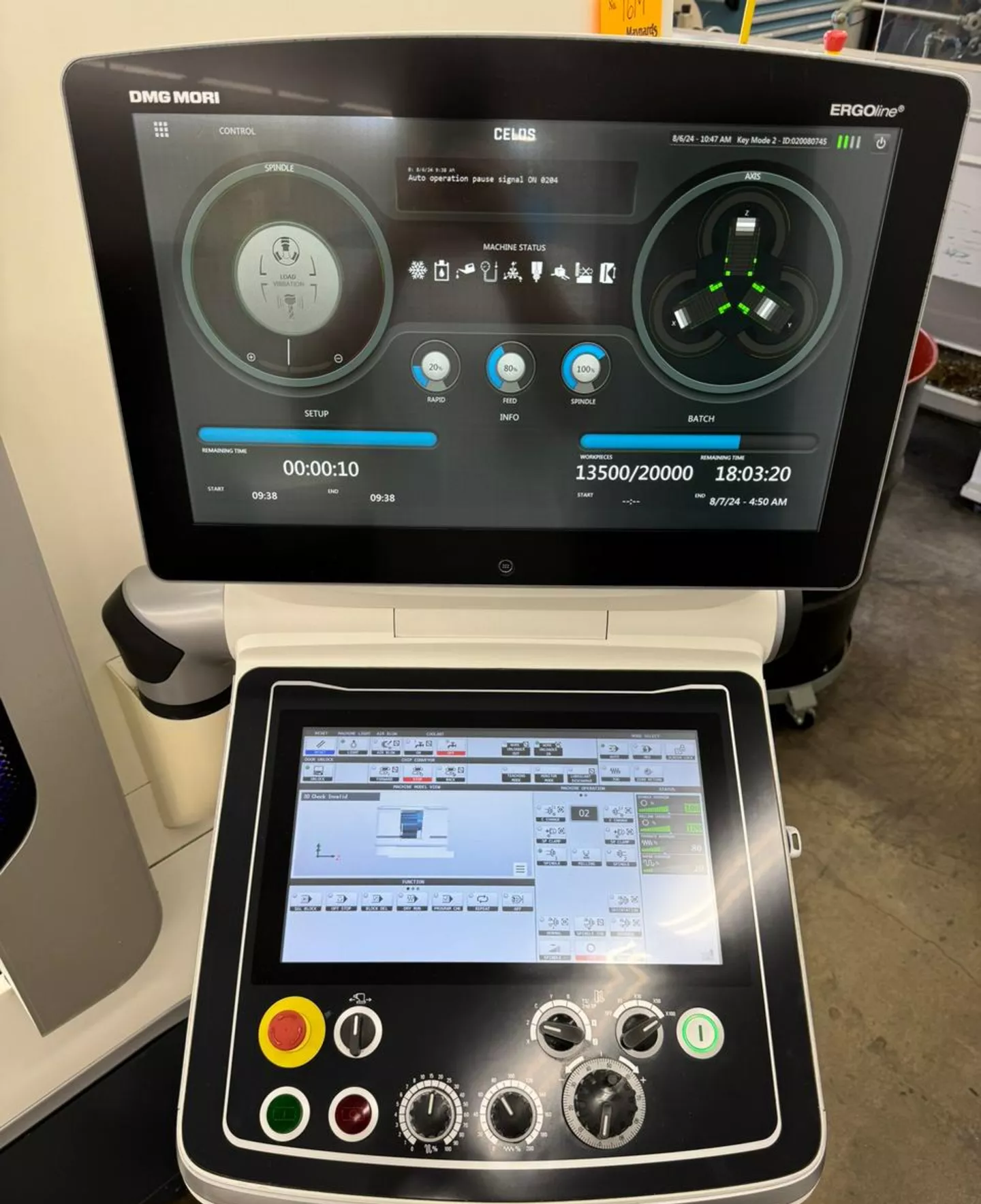

| DMG MORI CELOS CNC Control |
| Y-Axis Milling Capability |
| Sub-Spindle (Parts Transfer) |
| C-Axis Main & Sub Spindle |

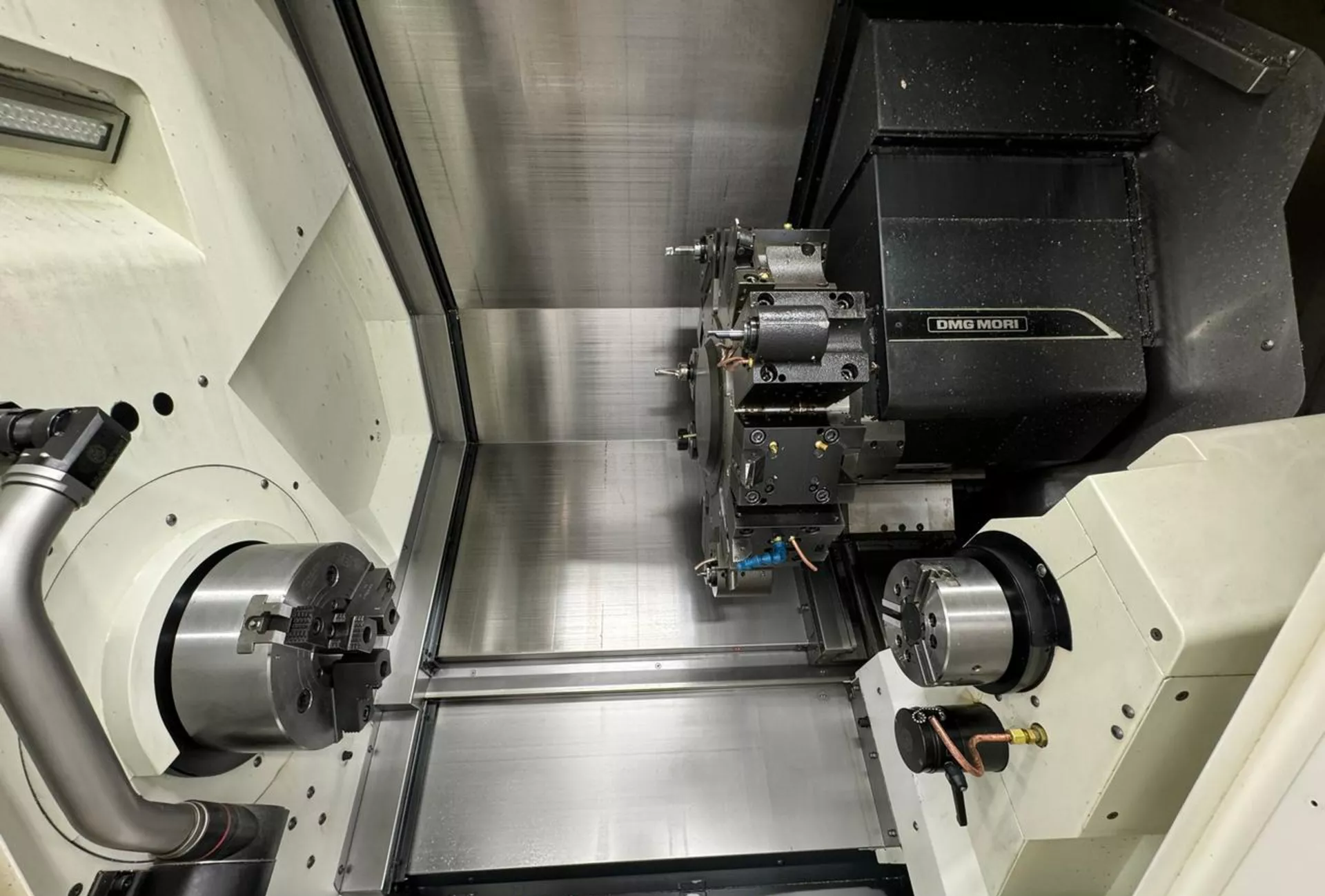

| Live Tooling Turret |
| 12-Station BMT Turret |
| 10″ Main Hydraulic Chuck |
| 6″ Sub-Spindle Chuck |
| Parts Catcher |
| Tool Presetter |
| High-Pressure Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Work Light |
| Manual Pulse Generator (MPG) |
| Capacity: |
|---|
| Maximum Turning Diameter: 14.4″ (366 mm) |
| Maximum Turning Length: 27.7″ (705 mm) |
| Swing Over Bed: Approx. 36.2″ (920 mm) |
| Swing Over Cross Slide: Approx. 29″ (740 mm) |
| Bar Capacity: 3.1″ (80 mm) |
| Travel: |
|---|
| X-Axis Travel: 10.2″ (260 mm) |
| Y-Axis Travel: ±50 mm (3.9″ total) |
| Z-Axis Travel: 31.3″ (795 mm) |
| Sub-Spindle (B-Axis) Travel: Approx. 28.9″ (734 mm) |
| Main Spindle: |
|---|
| Spindle Speed: Up to 4,000 RPM |
| Spindle Motor Power: Approx. 18.5 kW (25 HP) |
| Spindle Nose: A2-8 |
| Spindle Bore: Approx. 3.15″ (80 mm) |
| Sub Spindle: |
|---|
| Spindle Speed: Up to 6,000 RPM |
| Spindle Motor Power: Approx. 11 kW (15 HP) |
| Spindle Nose: A2-5 |
| Sub-Spindle Bore: Approx. 1.7″ (43 mm) |
| Turret: |
|---|
| Turret Type: BMT Built-In Motor Turret |
| Tool Stations: 12 |
| Rotary Tool Speed: Up to 10,000 RPM |
| Live Tool Motor Power: Approx. 5.5 kW |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): 30 m/min |
| Rapid Traverse (Y-Axis): 10 m/min |
| Rapid Traverse (Z-Axis): 30 m/min |
| Electrical: |
|---|
| Total Power Requirement: Approx. 49 kVA |
| Main Supply: 3-Phase Industrial Power |
| General: |
|---|
| Machine Length: Approx. 124″ (3,150 mm) |
| Machine Width: Approx. 74.7″ (1,898 mm) |
| Machine Height: Approx. 72″ (1,826 mm) |
| Machine Weight: Approx. 14,020 lbs (6,360 kg) |
| Features: |
|---|
| Simultaneous Turning and Milling Capability |
| Sub-Spindle for Complete Front / Back Machining |
| Y-Axis Milling for Complex Off-Center Operations |
| BMT Motor Turret for High Torque Live Tooling |
| High-Precision Slant-Bed Design for Rigidity and Thermal Stability |
| High-Speed Live Tooling up to 10,000 RPM |
| Parts Transfer Capability for Full Part Completion in One Setup |
| Designed for Aerospace, Automotive, and Precision Production Machining |
