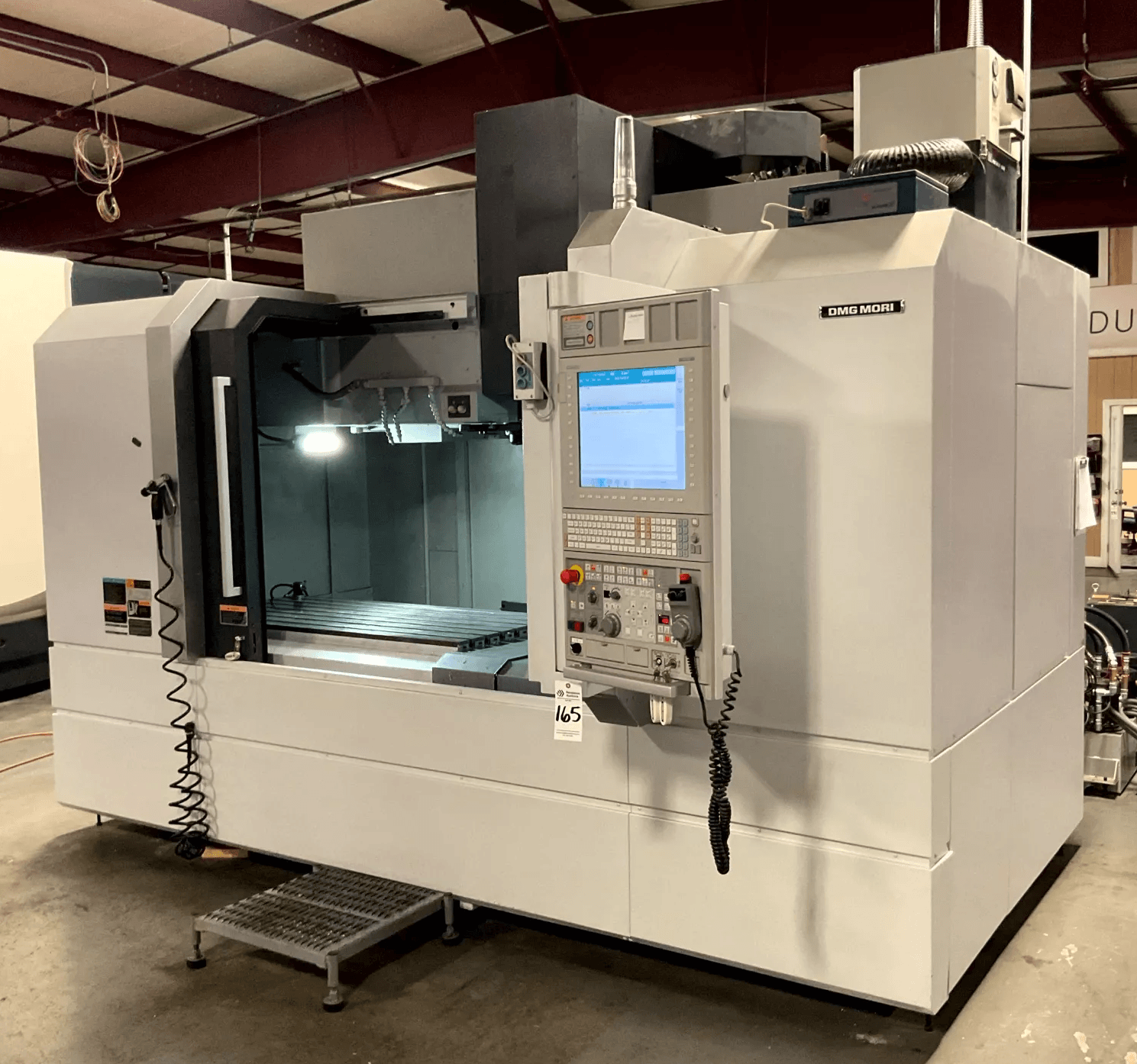

Used DMG MORI NVX7000 CNC Vertical Machining Center - 2019

DMG MORI NVX7000 CNC Vertical Machining Center – 2019

SKU 11297

Make/Model DMG MORI NVX7000

Year 2019

Video On Request

Out of stock

SKU:	11297
Make/Model:	DMG MORI NVX7000
Year:	2019
Video:	On Request

SKU: 11297

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	DMG MORI
Model No.:	NVX7000
Year of Manufacture:	2019
Machine Type:	CNC Vertical Machining Center
CNC Control:	Fanuc 31i-B5 CNC Control
Country of Origin:	Japan

Equipped With:
Fanuc 31i-B5 CNC Control

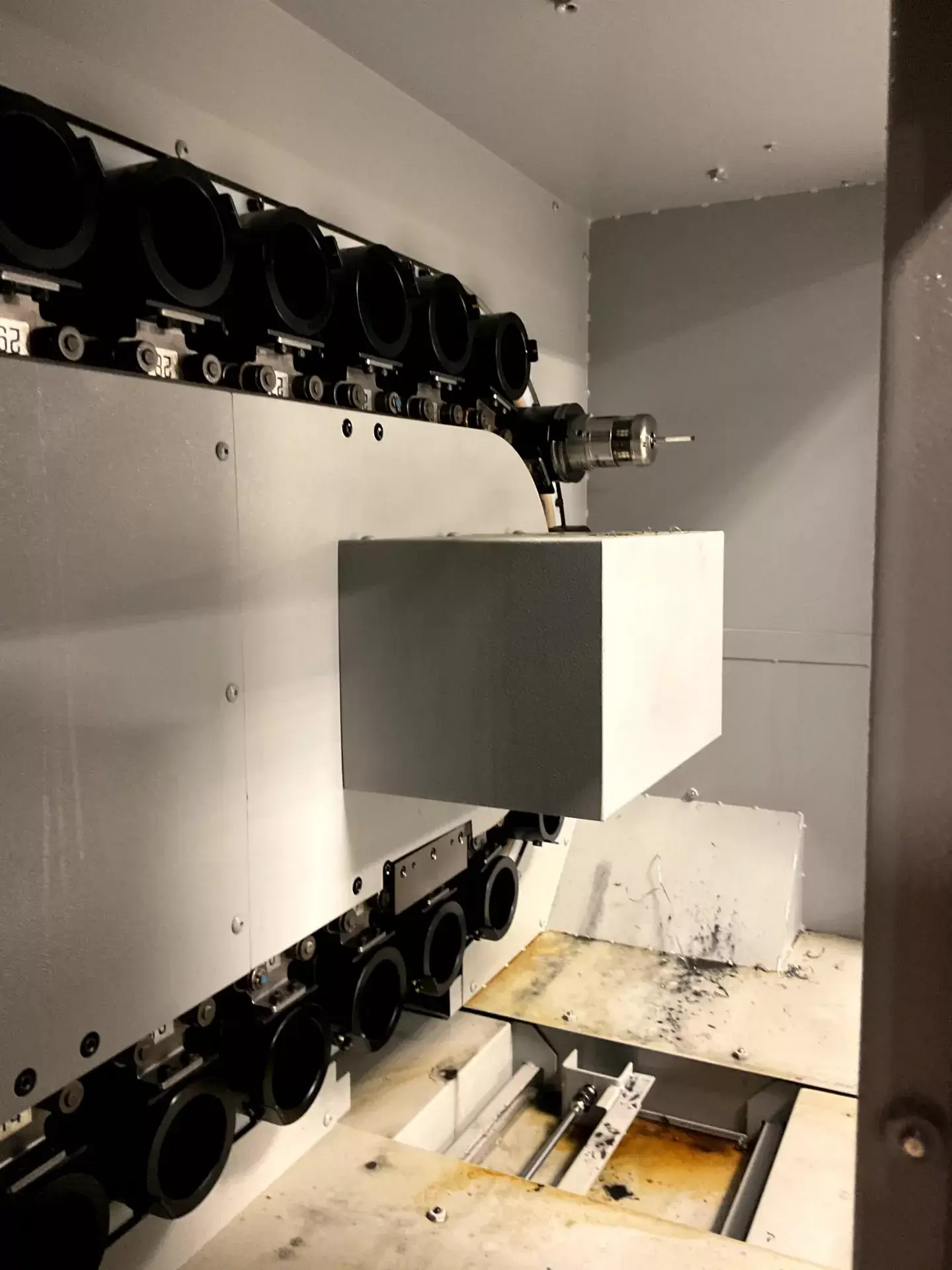

30-Position Automatic Tool Changer
CAT 50 Spindle
LNS ChipBLASTER Through-Spindle Coolant
Renishaw Probe System
Schunk Magnetic Chuck
Chip Conveyor
Full Enclosure

Capacity:

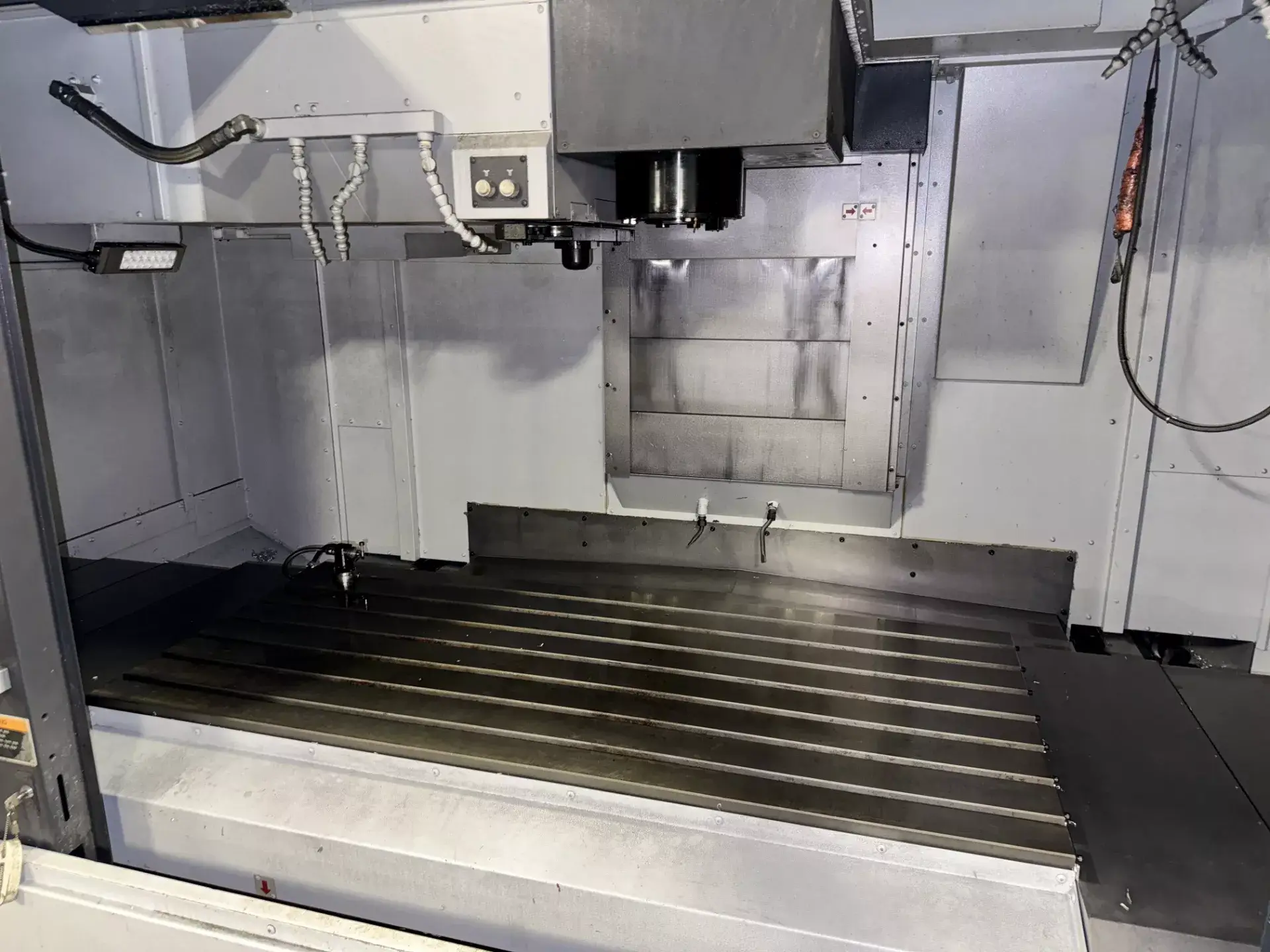

Table Size: 67″ x 30″
Max Workpiece Dimensions: 66.9″ x 29.9″ x 23.6″
Max Table Load: 4,409 lbs
Table Type: Fixed Table

Travels:
X-Axis Travel: 60.6″
Y-Axis Travel: 29.9″
Z-Axis Travel: 26″

Spindle:
Spindle Speed: Up to 10,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 25–30 kW (High Torque)

Feed Rates:
Rapid Traverse (X/Y/Z): 1,200 IPM
Feed Rate: Programmable (CNC Controlled)

Tool Changer:
Tool Capacity: 30 Tools
Type: Automatic Tool Changer (ATC)
Tool Holder Type: CAT 50

Electrical:
Voltage: 220V
Phase: 3 Phase
Frequency: 60 Hz
Rated Power: 56 kVA
Full Load Current: 147 A
Spindle Motor Current: 114 A

Dimensions:
Floor Space (L x W x H): 170″ x 135″ x 120″ H (approx.)
Machine Weight: 26,600 lbs (12,060 kg)

Additional Requirements:
Operator Access: 36″ recommended
Maintenance Clearance: 36″ – 48″
Chip Conveyor/Coolant Access: 48″

General:
Air Required: 80 PSI (approx.)
Power Requirement: 220V / 56 kVA / 3-Phase

Equipped With:
Fanuc 31i-B5 CNC Control
30-Position Automatic Tool Changer
CAT 50 Spindle
LNS ChipBLASTER Through-Spindle Coolant
Renishaw Probe System
Schunk Magnetic Chuck
Chip Conveyor
Full Enclosure

Capacity:
Table Size: 1,702 mm x 762 mm
Max Workpiece Dimensions: 1,699 mm x 759 mm x 599 mm
Max Table Load: 4,409 lbs
Table Type: Fixed Table

Travels:
X-Axis Travel: 1,539 mm
Y-Axis Travel: 759 mm
Z-Axis Travel: 660 mm

Spindle:
Spindle Speed: Up to 10,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 25–30 kW (High Torque)

Feed Rates:
Rapid Traverse (X/Y/Z): 1,200 IPM
Feed Rate: Programmable (CNC Controlled)

Tool Changer:
Tool Capacity: 30 Tools
Type: Automatic Tool Changer (ATC)
Tool Holder Type: CAT 50

Electrical:
Voltage: 220V
Phase: 3 Phase
Frequency: 60 Hz
Rated Power: 56 kVA
Full Load Current: 147 A
Spindle Motor Current: 114 A

Dimensions:
Floor Space (L x W x H): 4,318 mm x 3,429 mm x 3,048 mm H (approx.)
Machine Weight: 26,600 lbs (12,060 kg)

Additional Requirements:
Operator Access: 914 mm recommended
Maintenance Clearance: 914 mm – 1,219 mm
Chip Conveyor/Coolant Access: 1,219 mm

General:
Air Required: 80 PSI (approx.)
Power Requirement: 220V / 56 kVA / 3-Phase

Categories	CNC Vertical Machining Center
Make	DMG Mori
Model	NVX7000

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
