*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

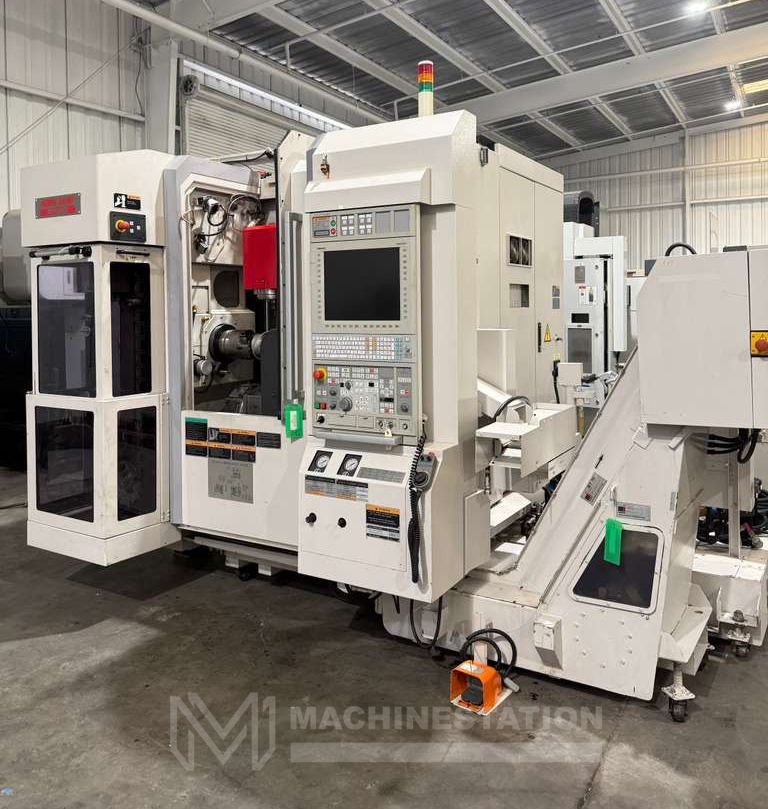

| Make: | DMG Mori Seiki |
| Model: | NT1000/WZM |
| Condition: | Used – Good |
| Features: |
|---|

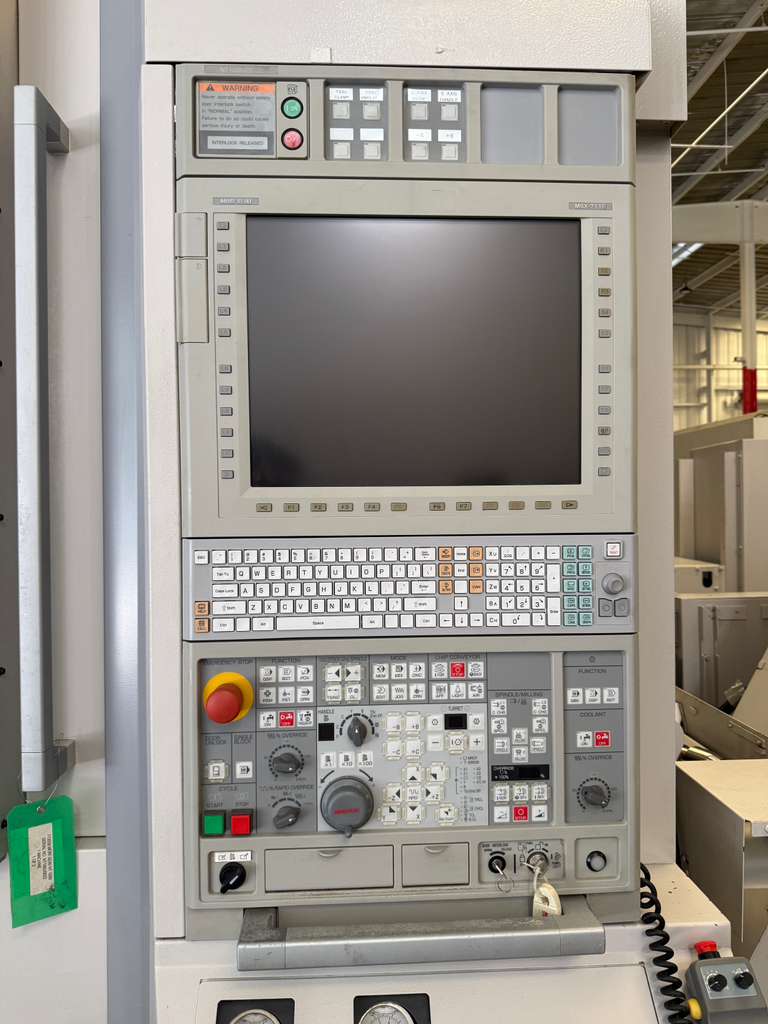

| Mori Seiki MSX-711IV Series CNC Control |

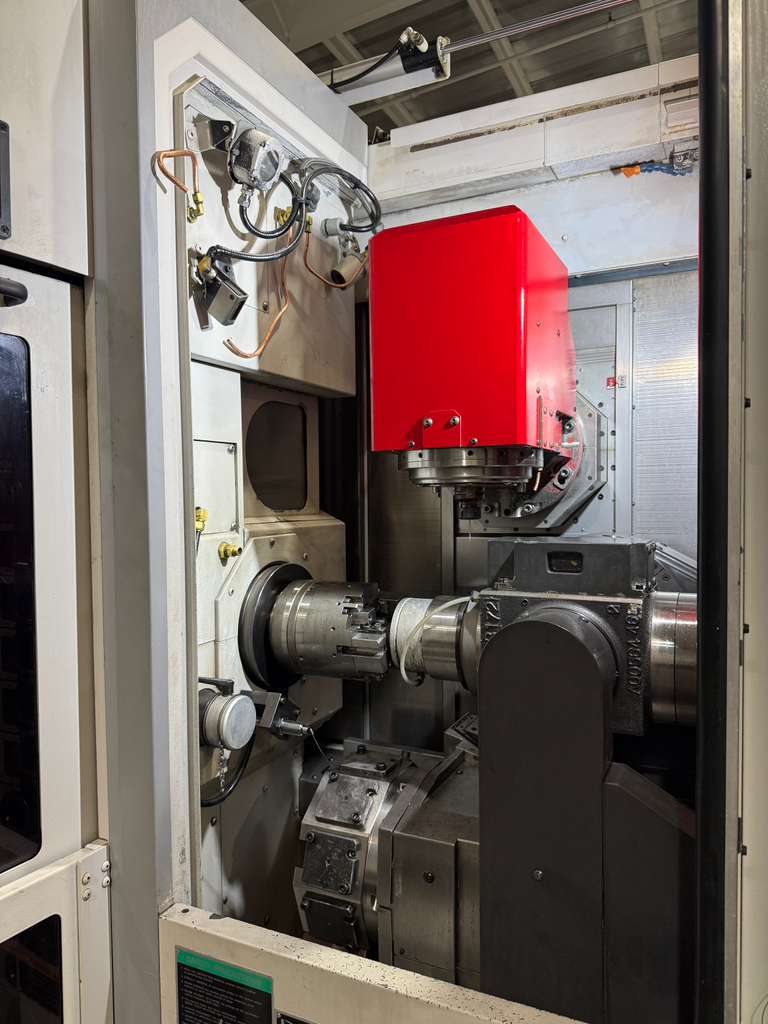

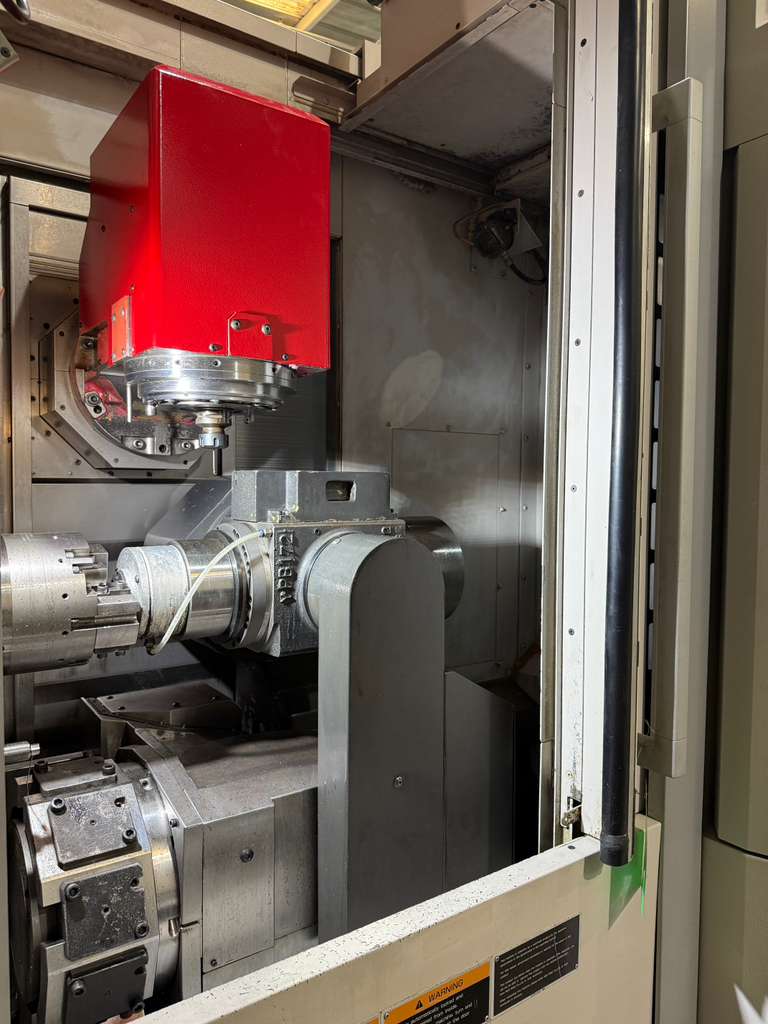

| 12,000 RPM Pendulum Milling Head |

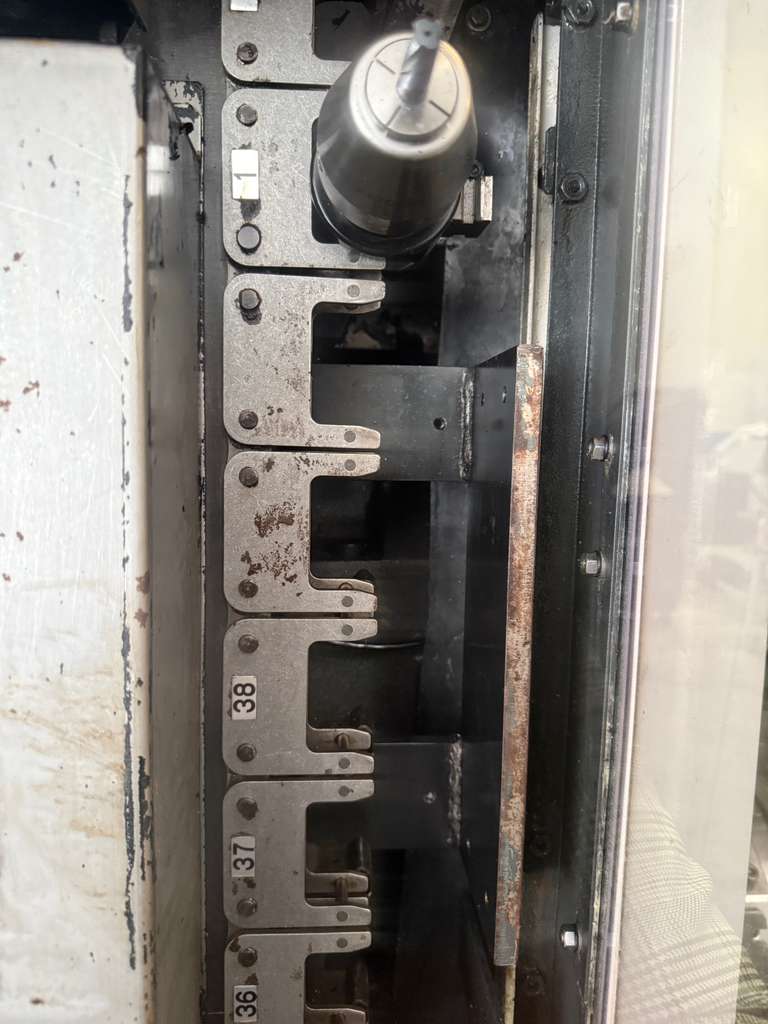

| 38-Station Tool Magazine |
| 10 Station Live Tool Turret |
| Full C-Axis on Spindle |
| Y Axis Capability |

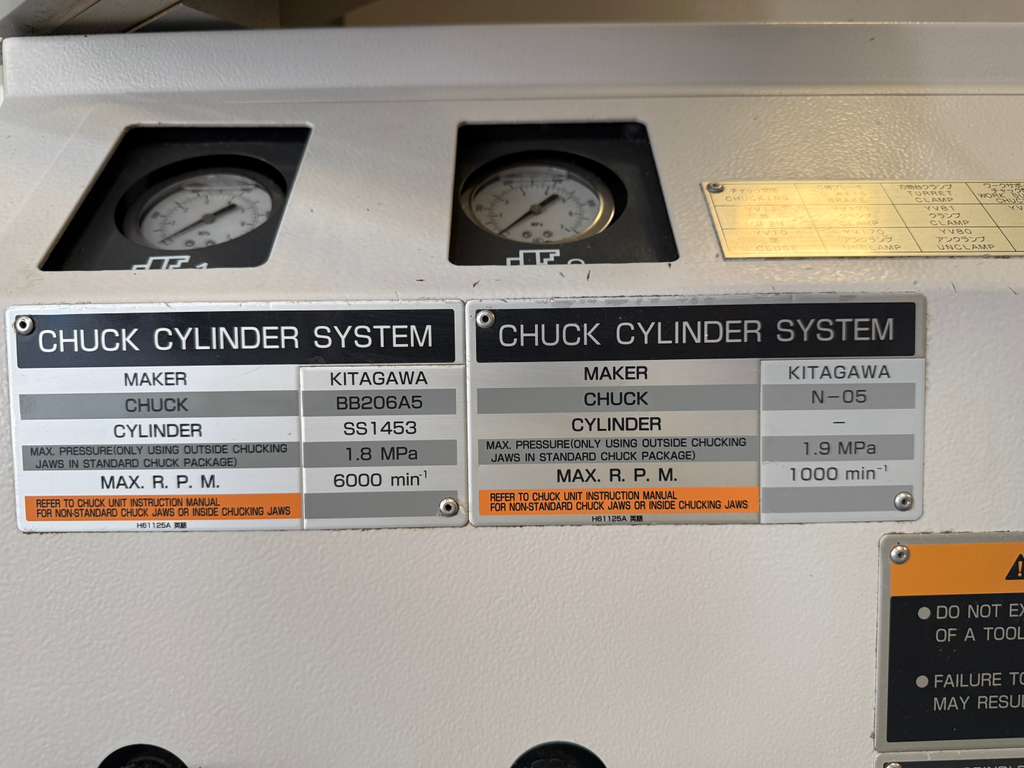

| 6″ 3-Jaw BB206 Chuck On Spindle |
| Renishaw Reciever Installed |
| Tool Presetter |
| Workpiece Discharge Unit |

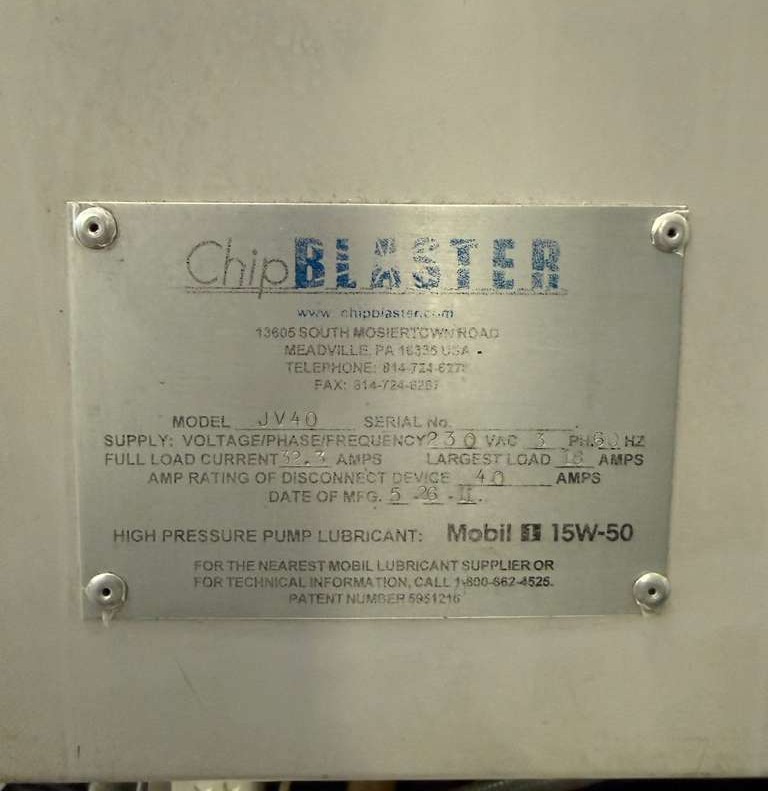

| Chip Blaster |
| Rigid Tapping |

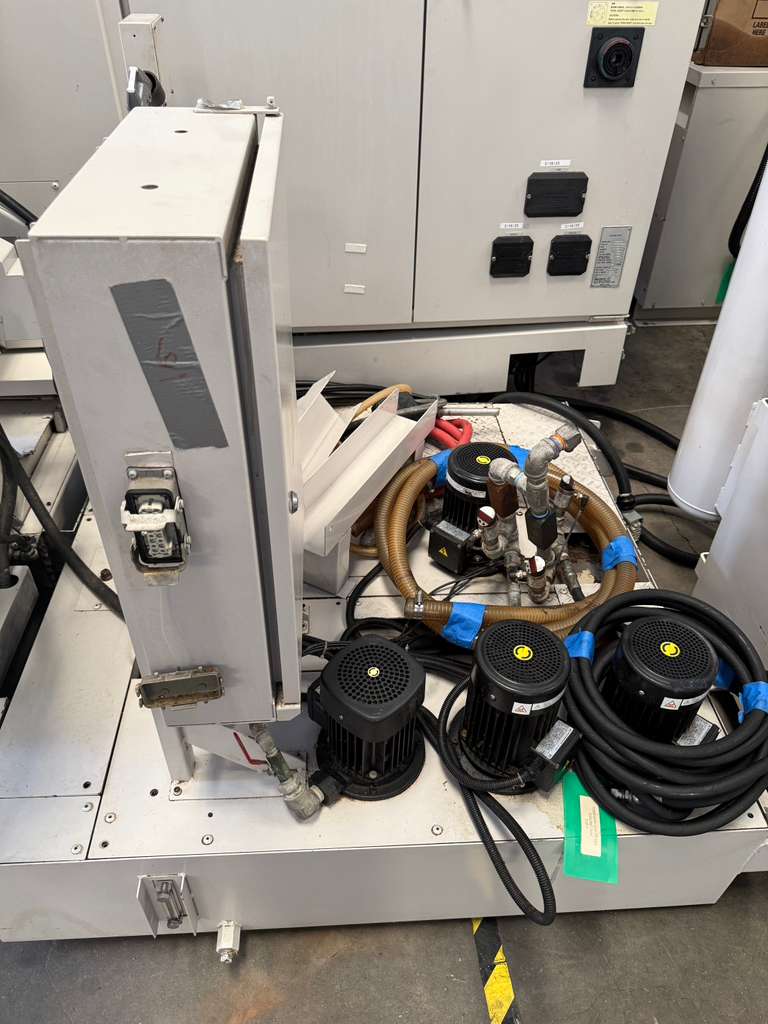

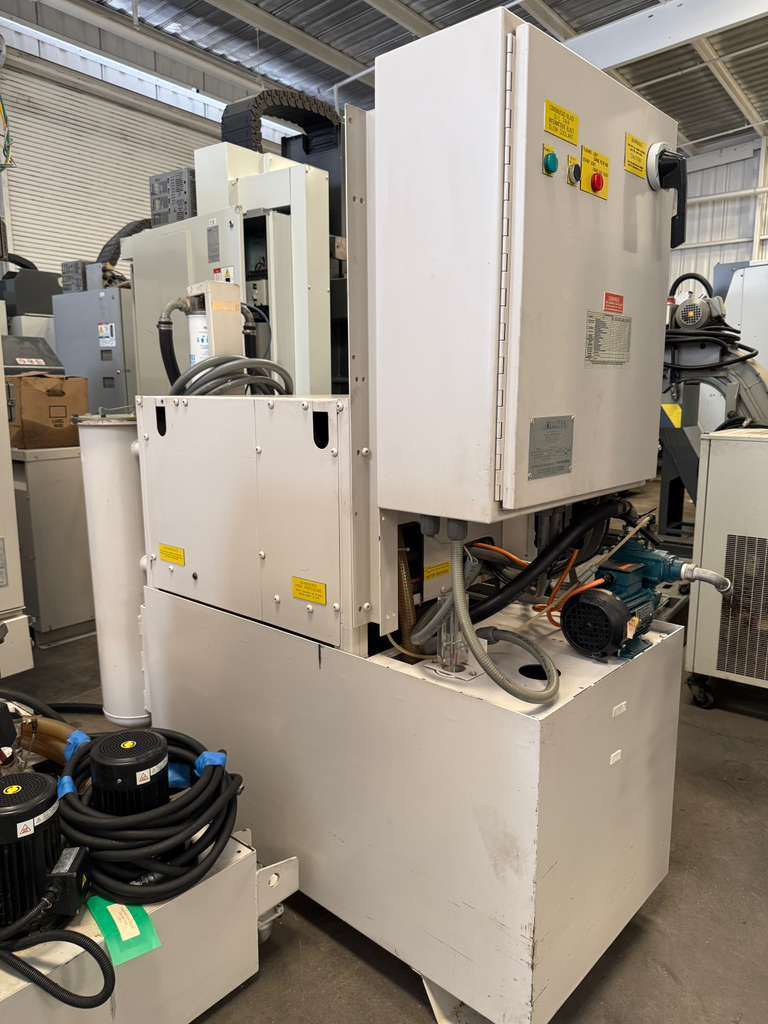

| High Pressure Coolant System |

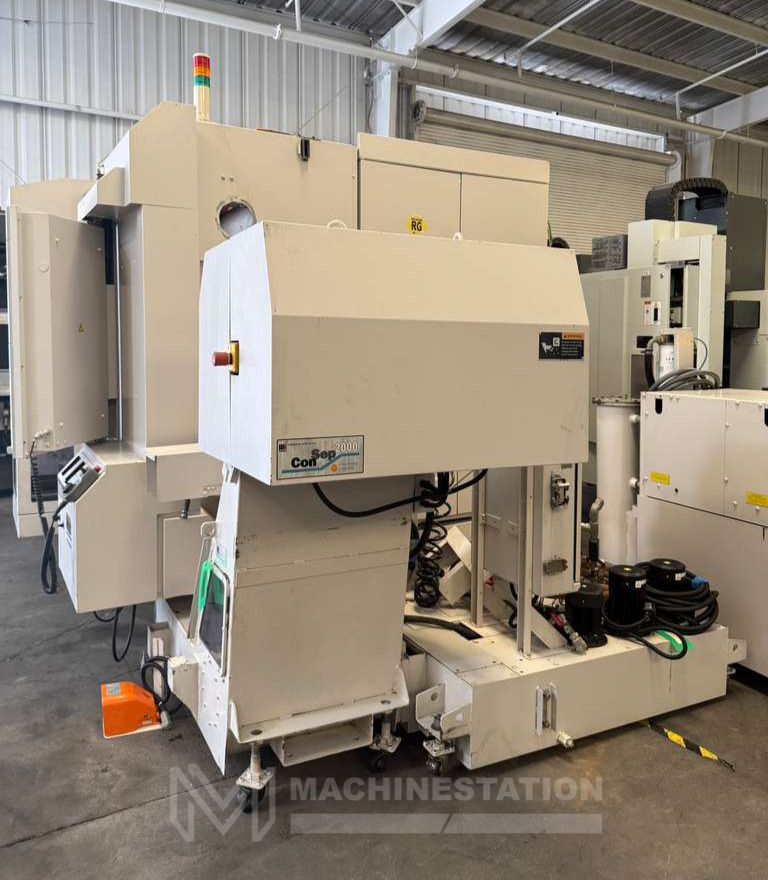

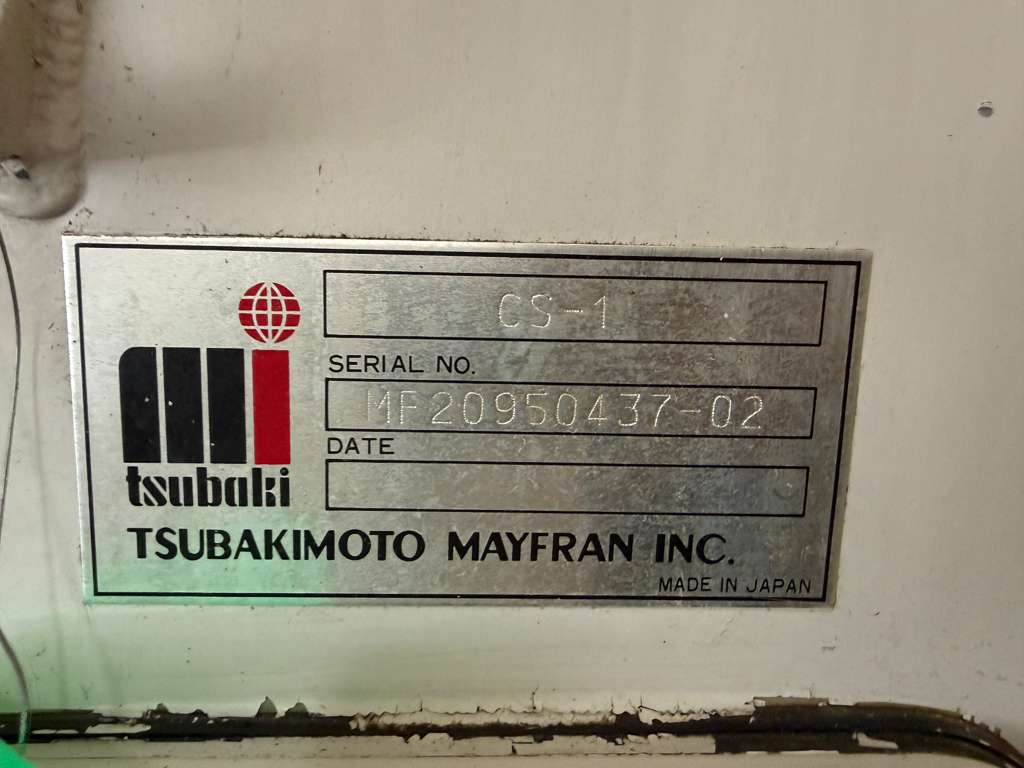

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter (Tool Spindle): 14.5″ |
| Max Turning Diameter (Turret): 10.6″ |
| Max Turning Length: 16.6″ |
| Max Bar Capacity: 2.0″ |
| Max Swing Over Bed: 14.5″ |
| Swing Over Cross Slide (Tool Spindle): 14.5″ |
| Swing Over Cross Slide (Turret): 11.8″ |
| Travel: |
|---|
| X Axis Travel (Tool spindle): 15.0″ |
| Y Axis Travel (Tool spindle): +/- 4.1″ |
| Z Axis Travel(Tool spindle): 18.1″ + 6.1″ |
| B Axis Travel: 240° (0.0001°) (±120°) |
| X2 Axis Travel (Turret): 6.1″ |
| Z2 Axis Travel: 24.0″ |
| BW Axis Travel: 0°, -25°, -90°, -180° (4 Positioning Angles) |
| C Axis: 360° (0.0001°) |
| X Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Y Rapid Traverse Rate: 1574.8 Inch Per Minute |
| Z Rapid Traverse Rate: 1968.5 Inch Per Minute |
| X2 Rapid Traverse Rate: 787.4 Inch Per Minute |
| Z2 Rapid Traverse Rate: 1417.3 Inch Per Minute |
| Main Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 15 HP |
| Workpiece Discharge Unit (Allowable Rotational Speed): 1000 RPM |
| Tool Spindle: |
|---|

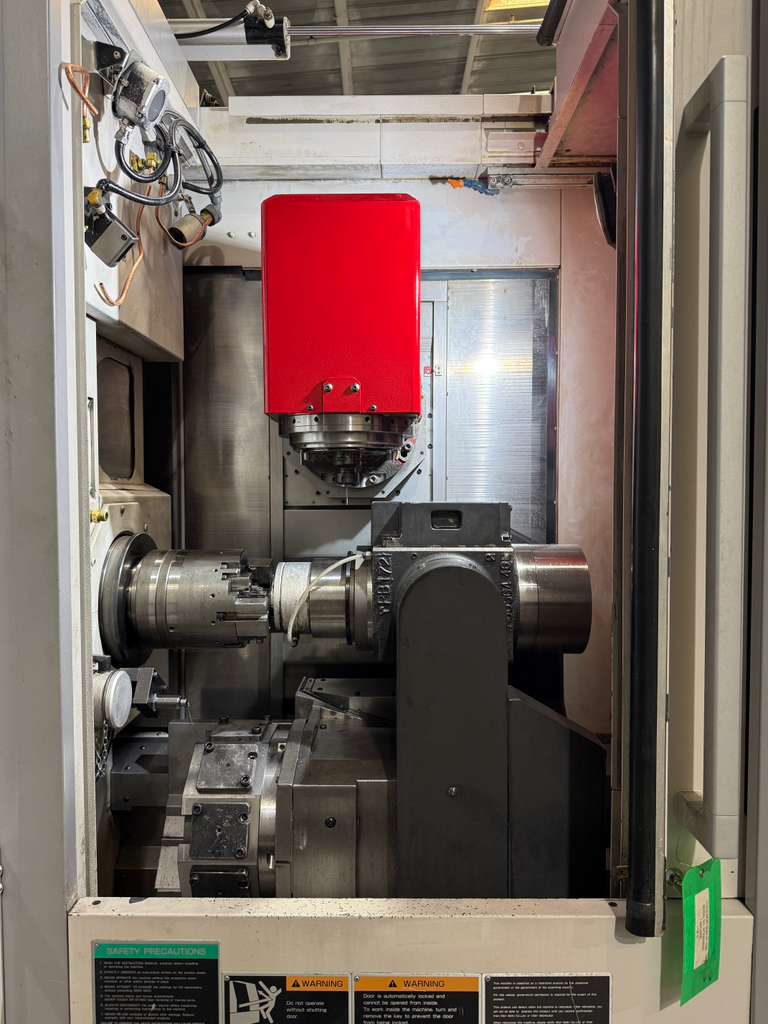

| Single Station Pendulum Head |
| Tool Type: Capto C-5 Taper |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 12 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 38 Tools |
| Max Tool Diameter (without Adjacent Tools): 5.1″ |
| Max Tool Diameter (with Adjacent Tools): 2.7″ |
| Max Tool Length: 9.8″ |
| Max Tool Weight: 11 lbs. |
| Tool Changing Time: 1.2 Seconds |
| Turret: |
|---|
| Capacity: 10 Stations |
| Square Tool Size: 0.8″ |
| Boring Tool Diameter: 1.2″ |
| Turret Index Time: 0.19 Sec. |
| Rotary Tool Speed: 6,000 |
| Rotary Tool Power: 2 HP |
| General: |
|---|

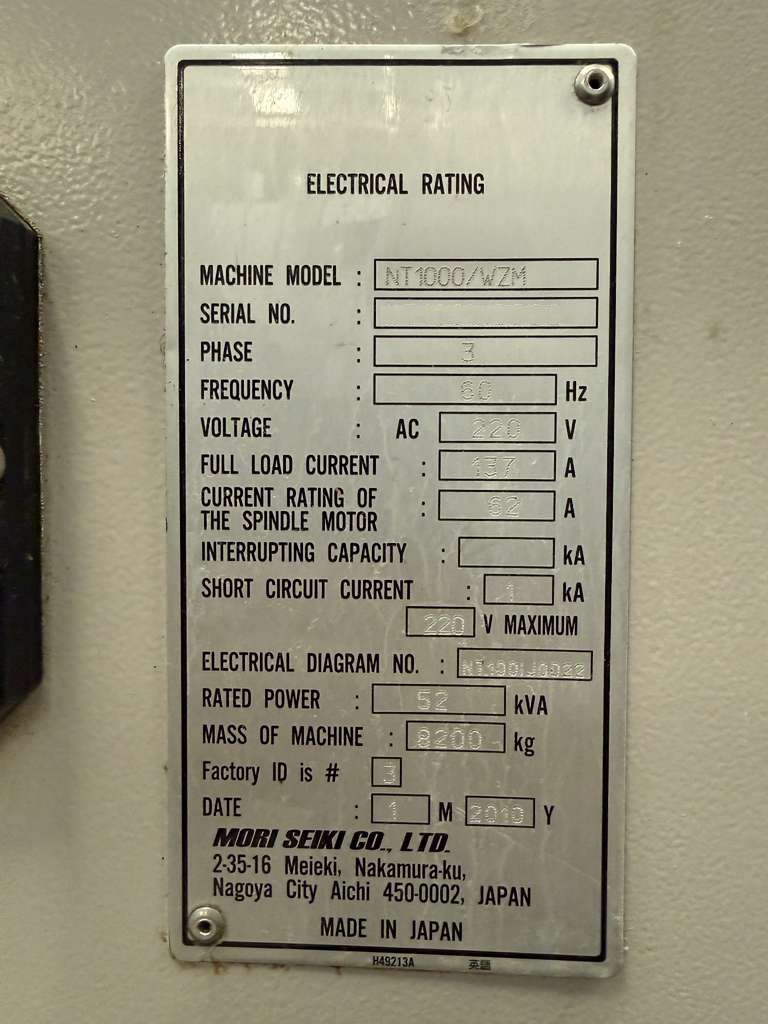

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 52 kva |
| Overall Dimensions: 100″ x 106″ x 119″ High Approx. |
| Weight : 18,040 lbs Approx. |
