*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113585 |

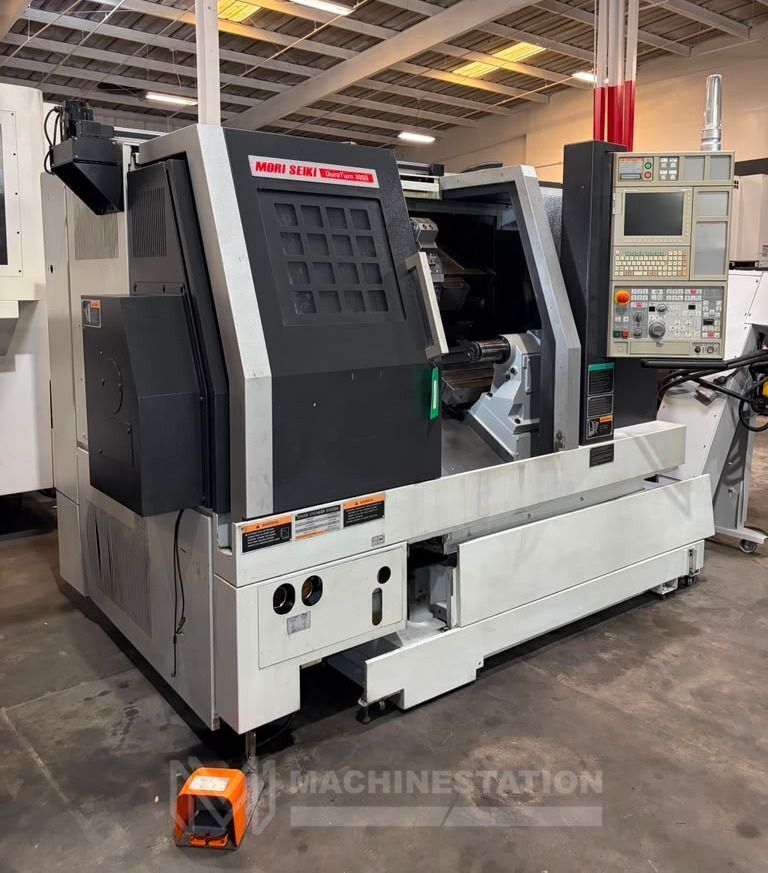

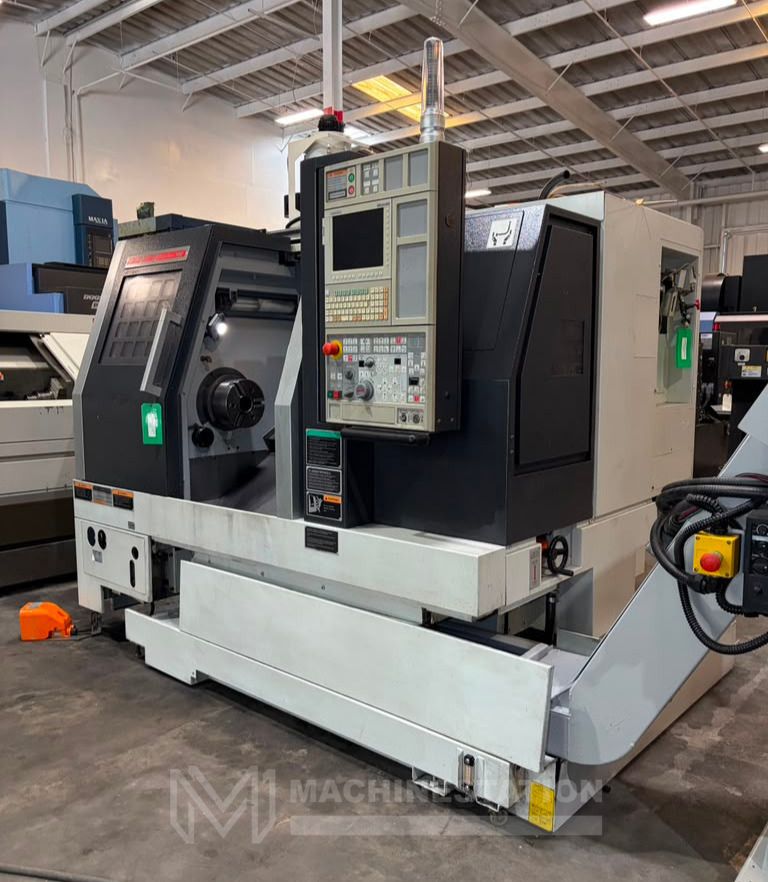

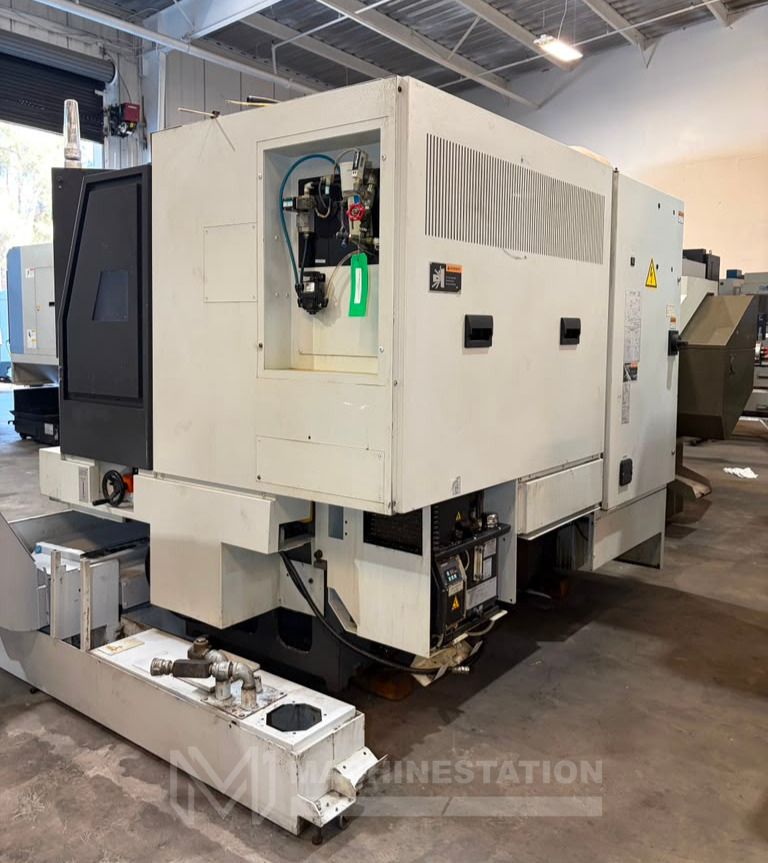

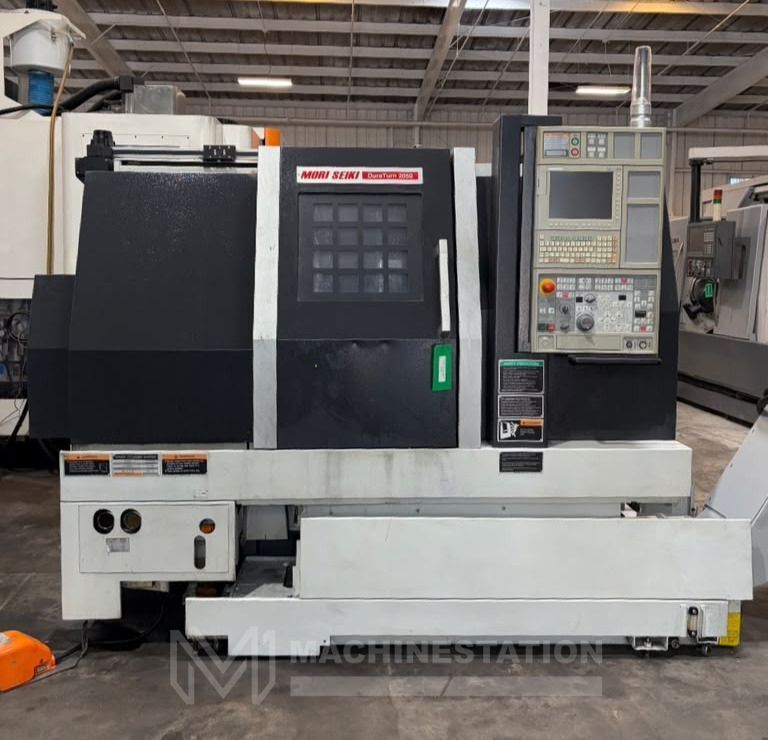

| Make/Model: | Mori Seiki DuraTurn 2050 |
| Year: | 2012 |
| Equipped With: |
|---|

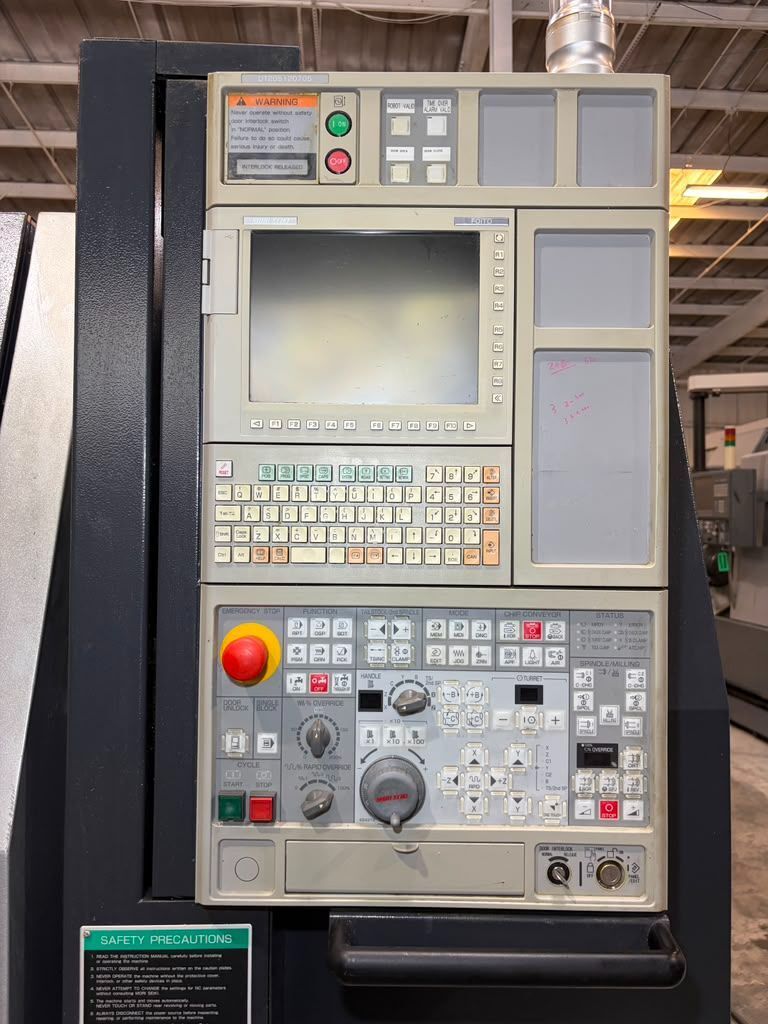

| Fanuc Oi-TD Series CNC Control |

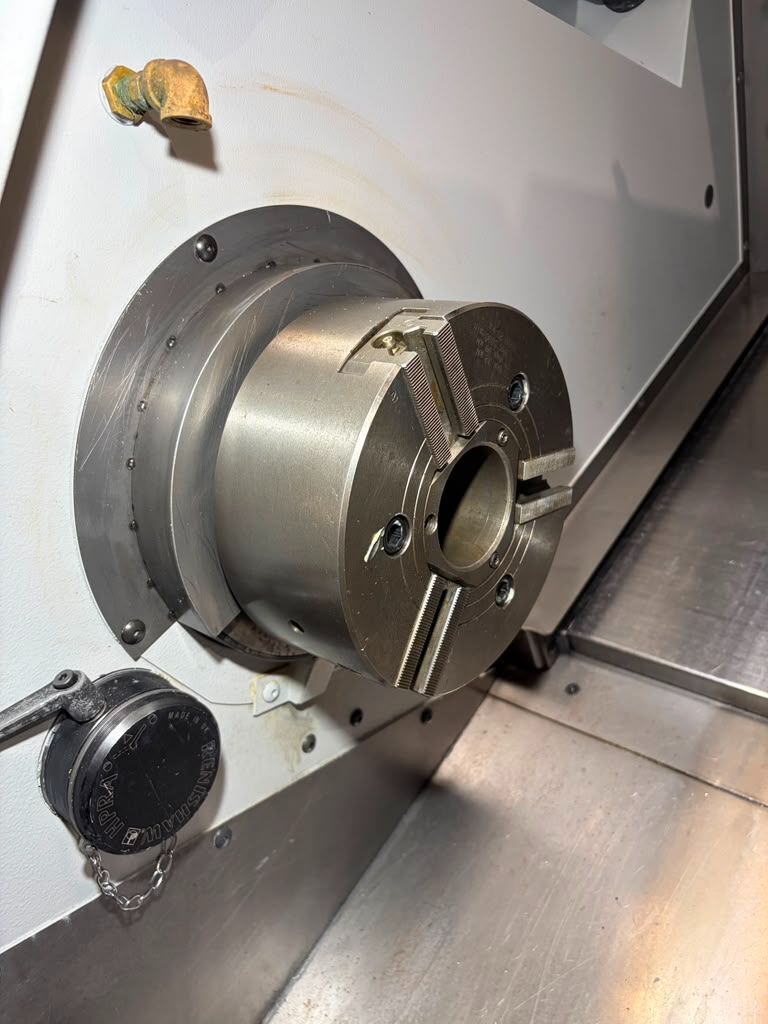

| 8″ 3-Jaw Hydrualic Chuck |

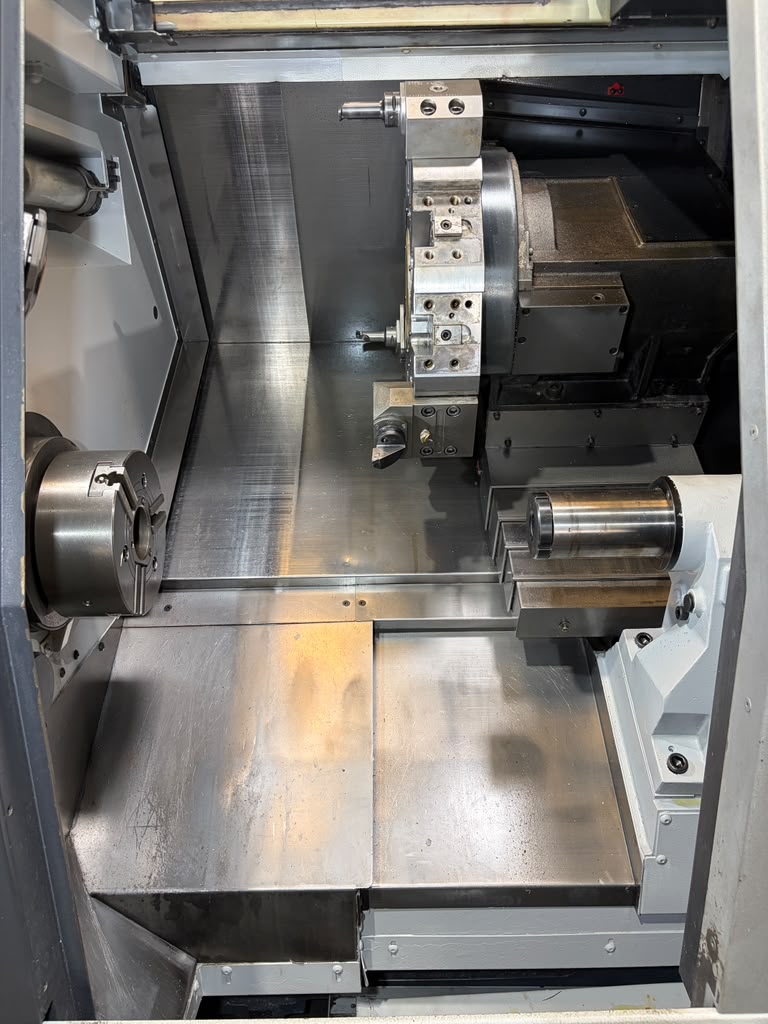

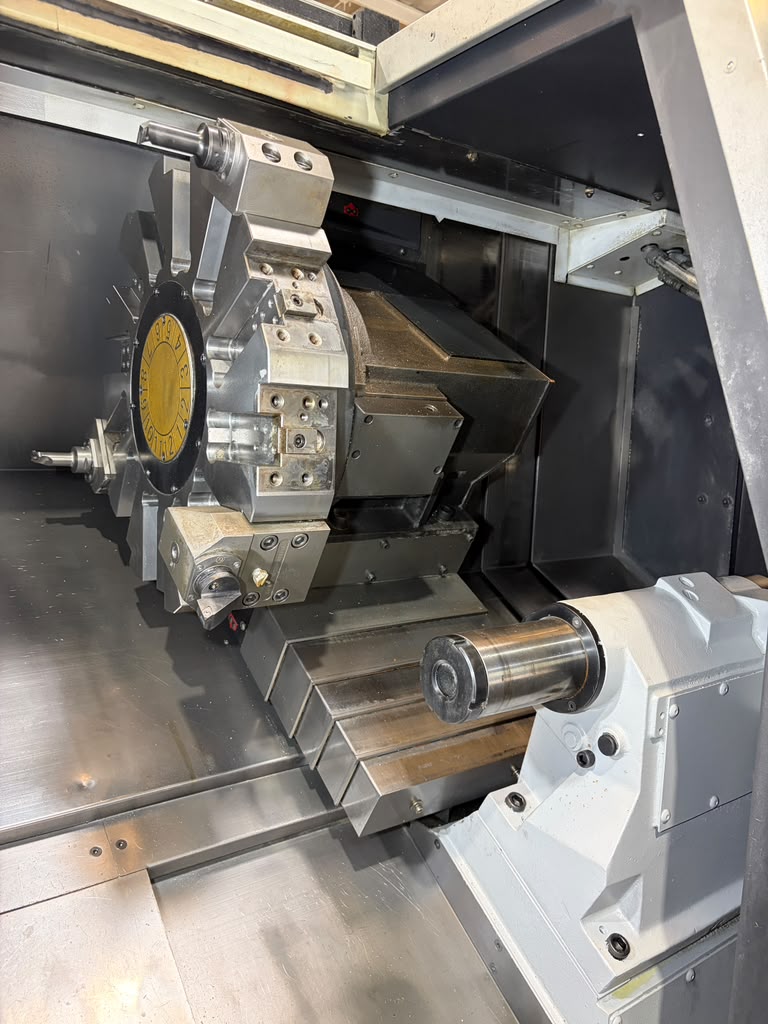

| 12 Station Automatic Turret |
| Programmable Tailstock |

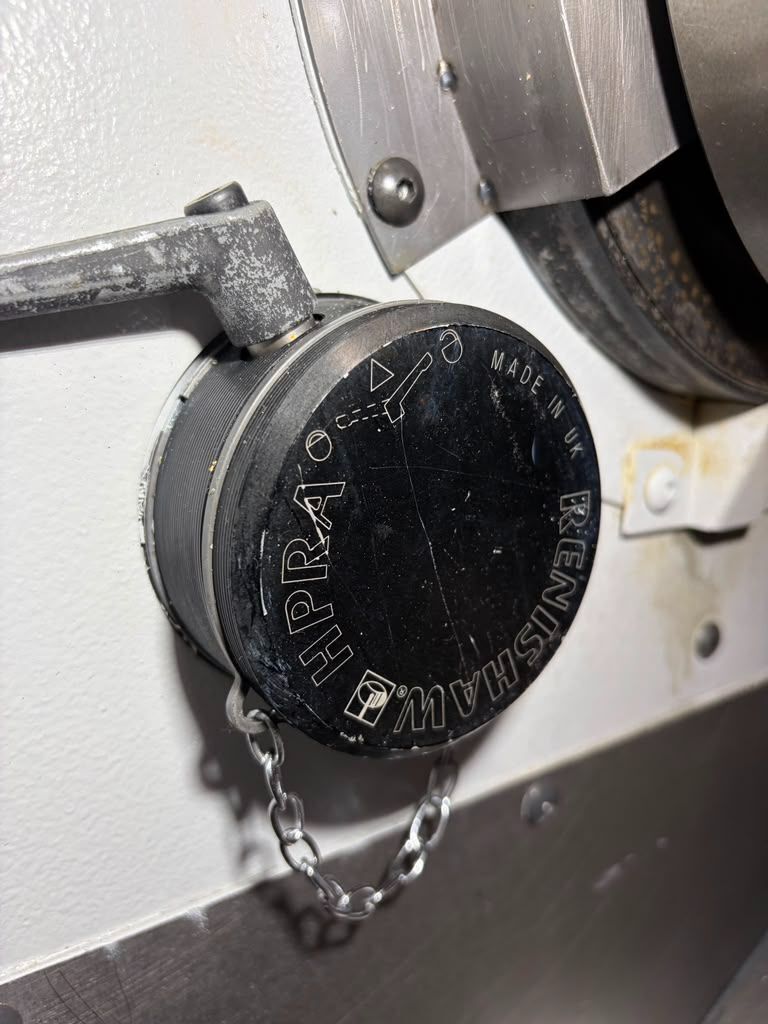

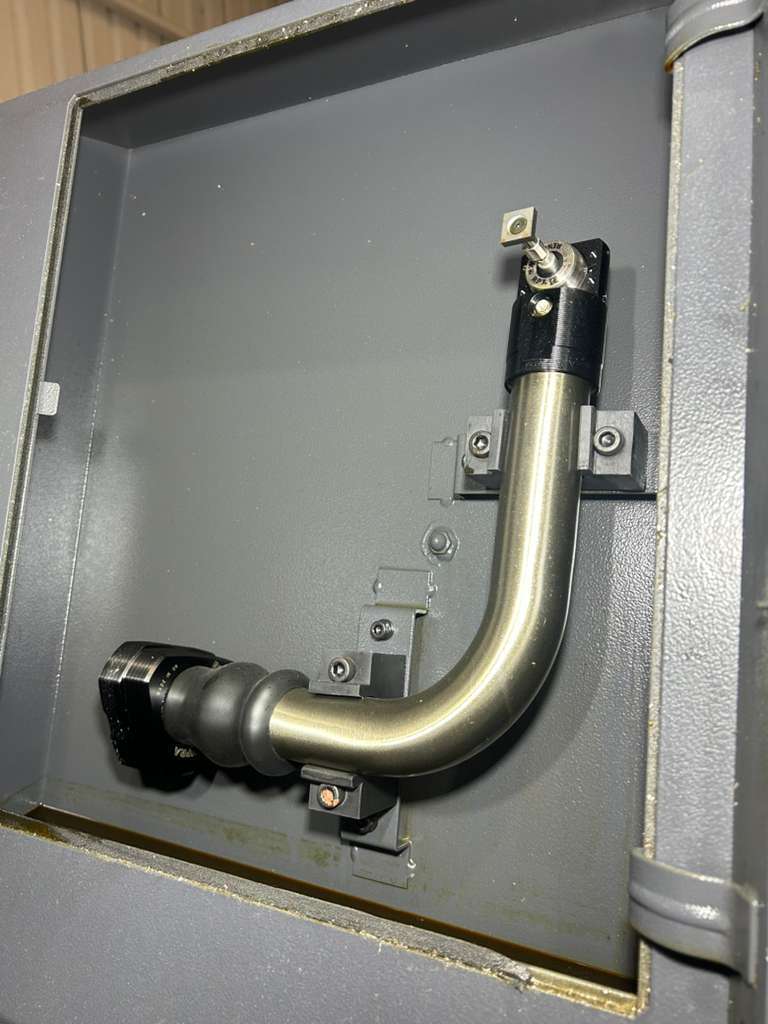

| Automatic Tool Presetter |
| PCMCIA Card Slot |
| Rigid Tapping |
| Coolant Tank Without Pump |

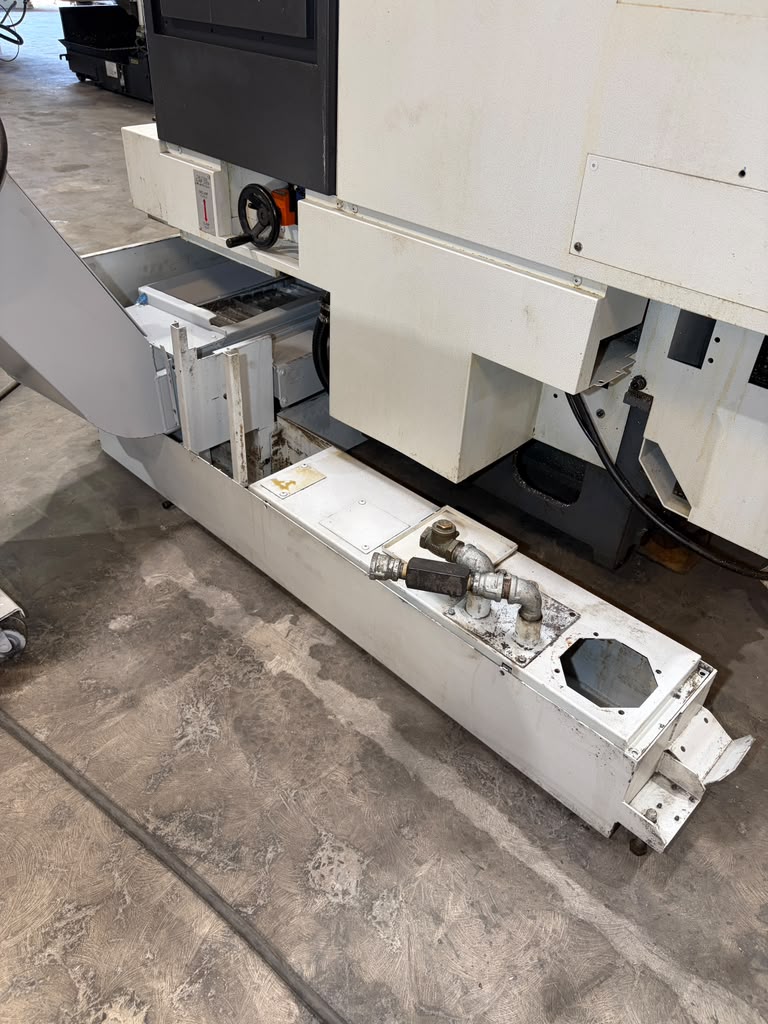

| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 14.50″ |
| Max Turning Length: 20.80″ |
| Max Bar Capacity: 2.00″ |
| Swing Over Bed: 24″ |
| Swing Over Cross Slide: 18.90″ |
| Travels: |
|---|
| X Axis Travel: 8.3″ |
| Z Axis Travel: 22.4″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 18 HP |

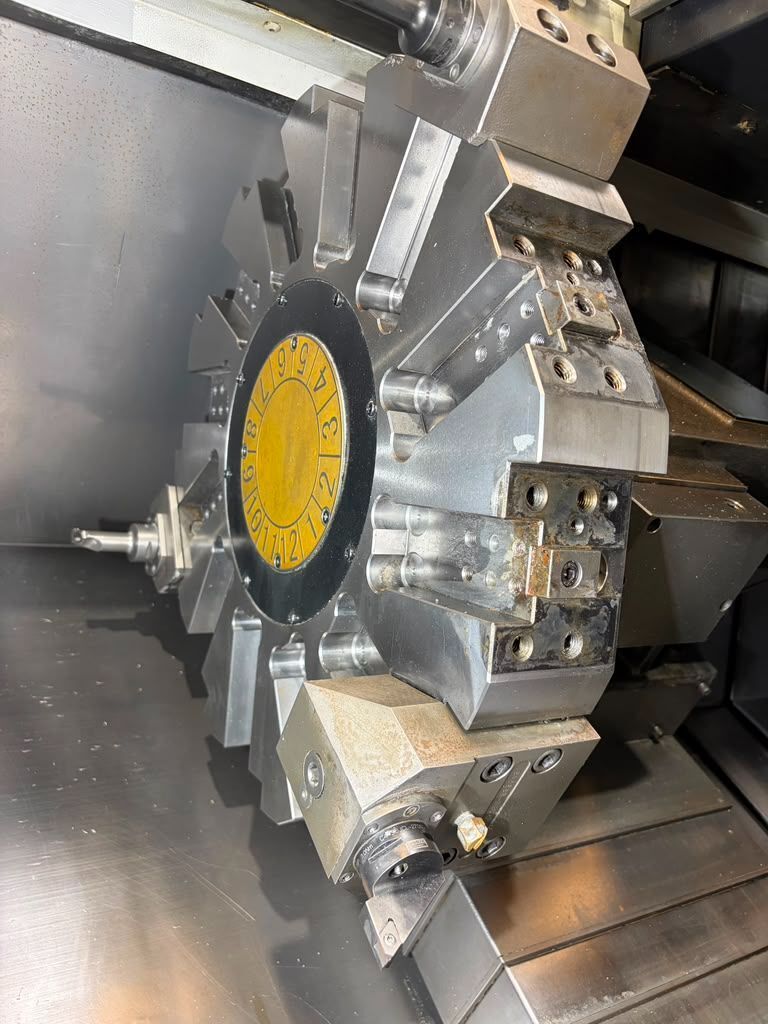

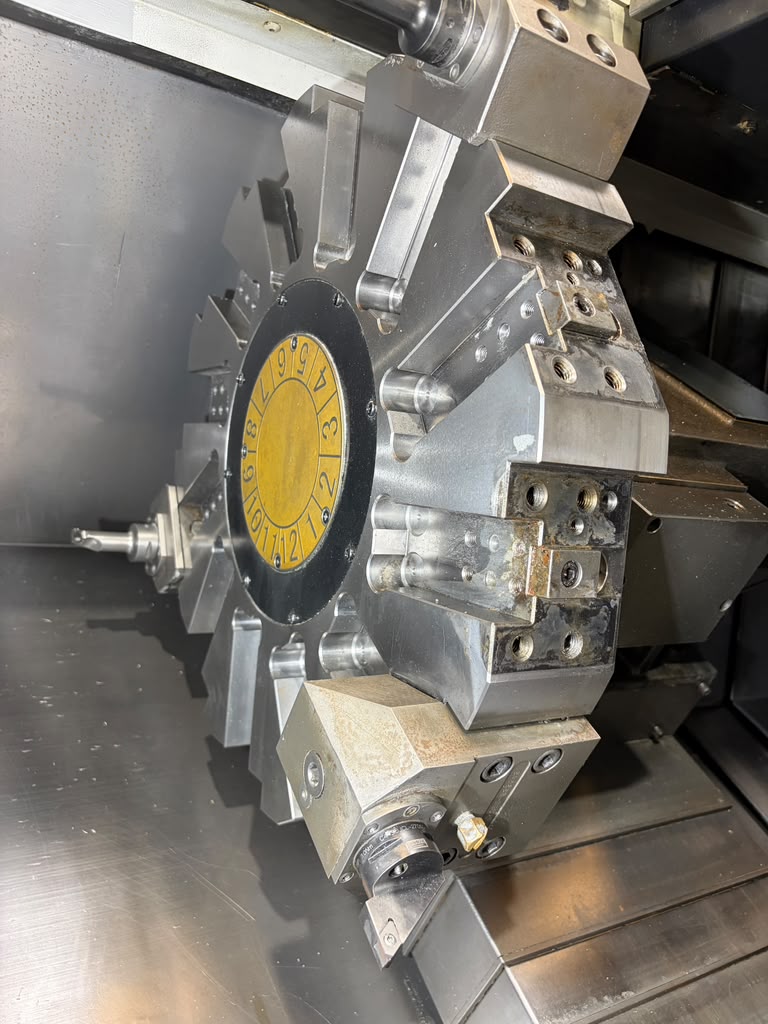

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |

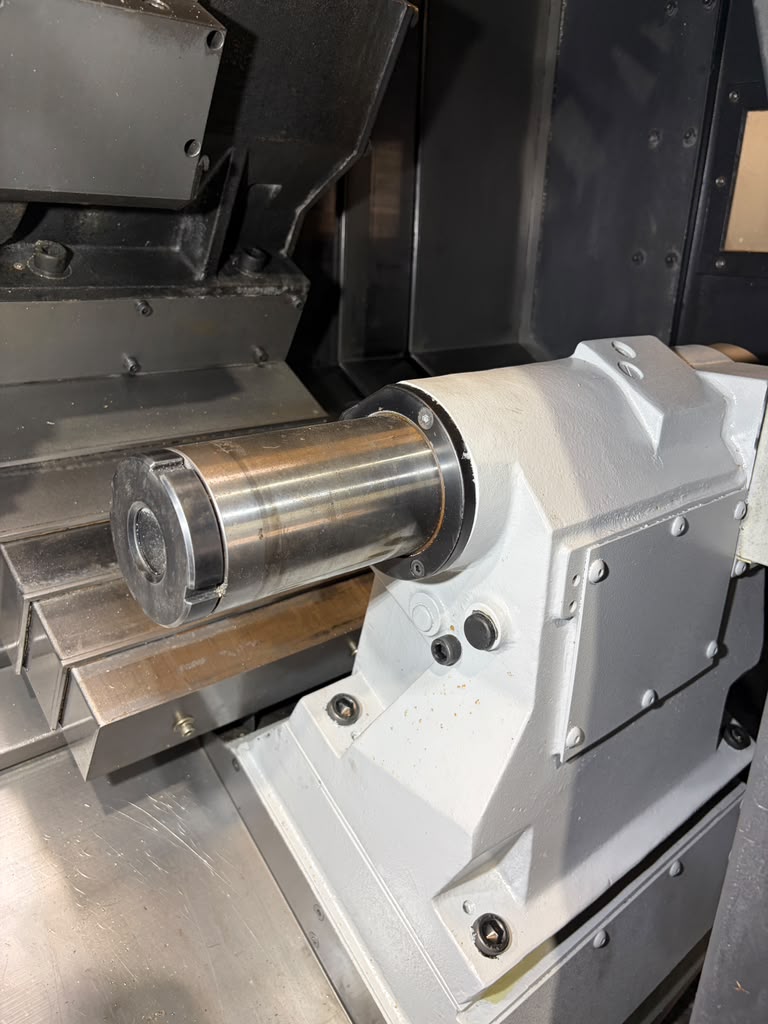

| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 3.14″ |

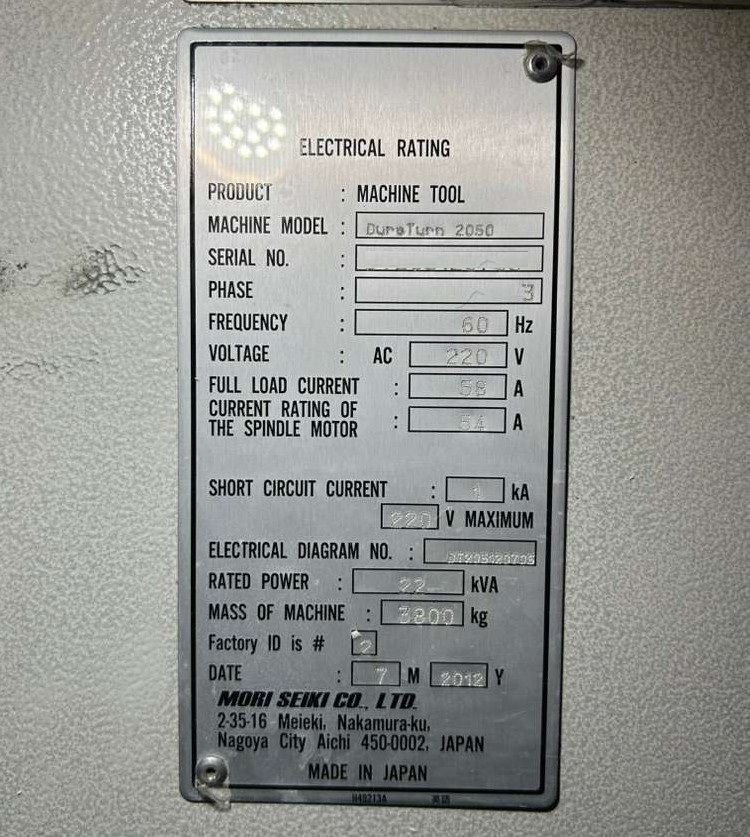

| General: |
|---|
| Power Source: AC 220V / 3-Phase / 60 Hz |
| Power Requirement: 22 kVA |
| Machine Dimensions: 86″ x 72″ x 69″ High |
| Machine Weight: 8,378 lbs Approx. |
