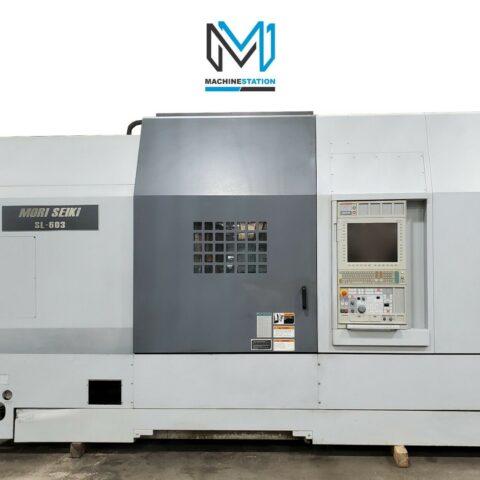

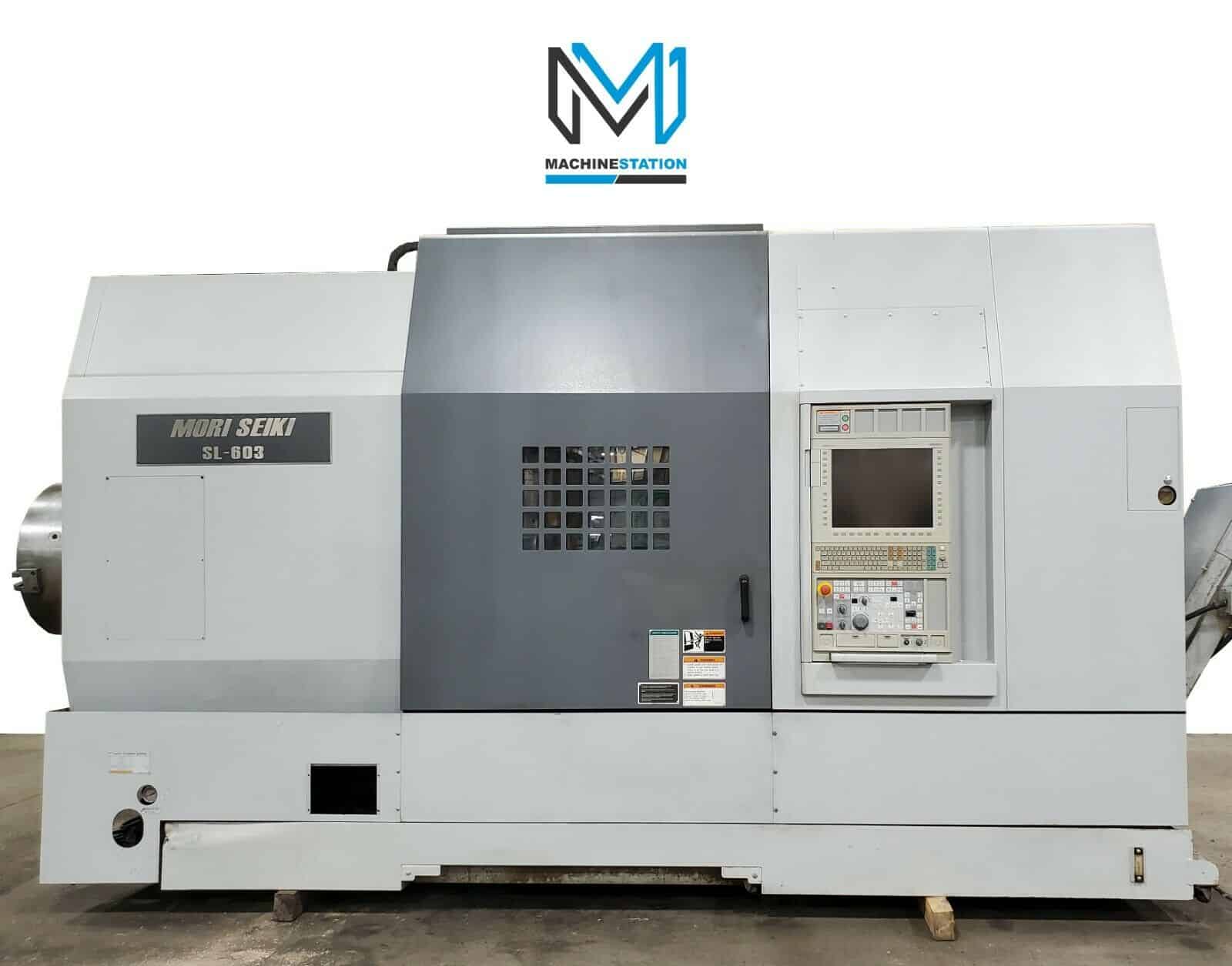

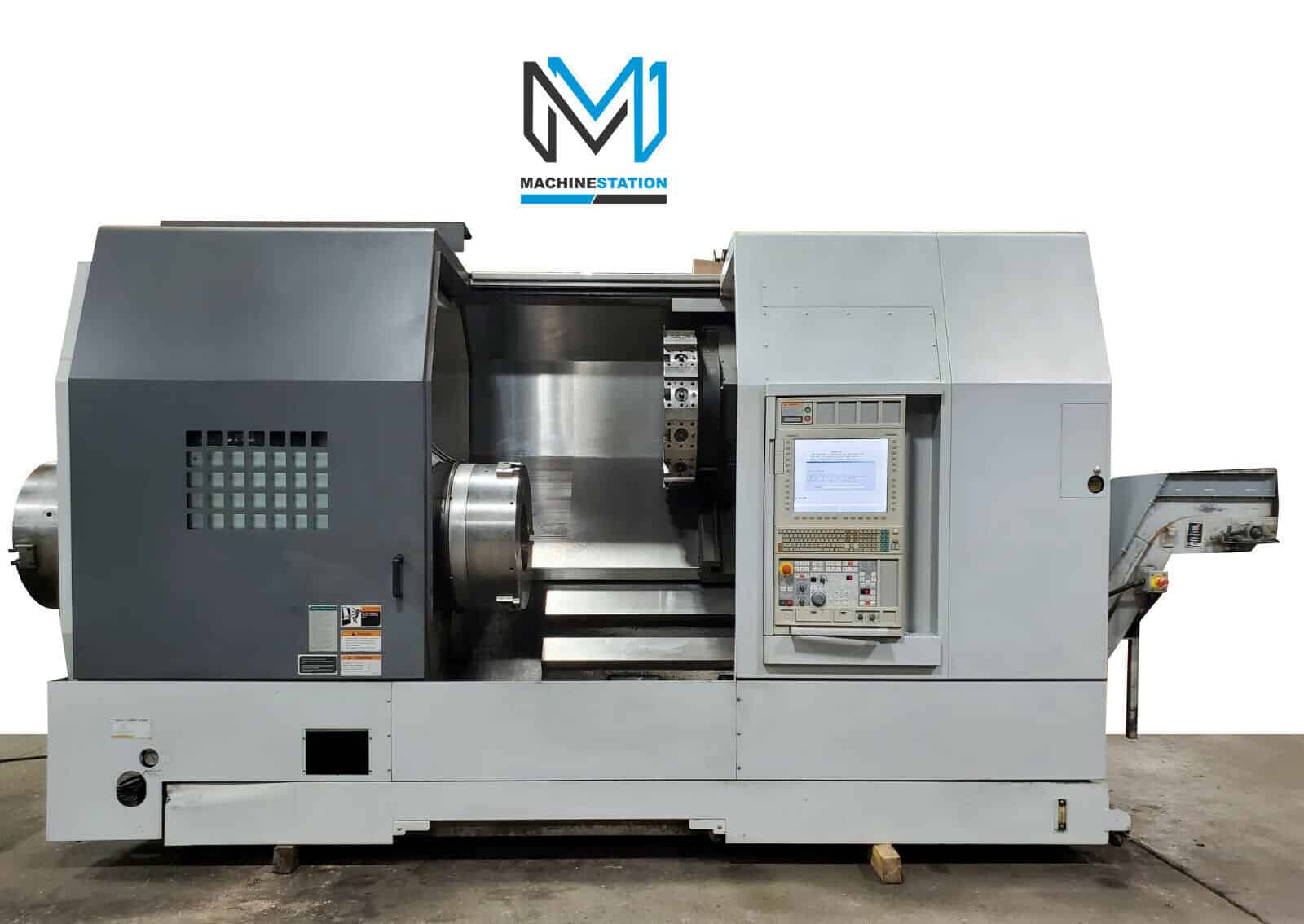

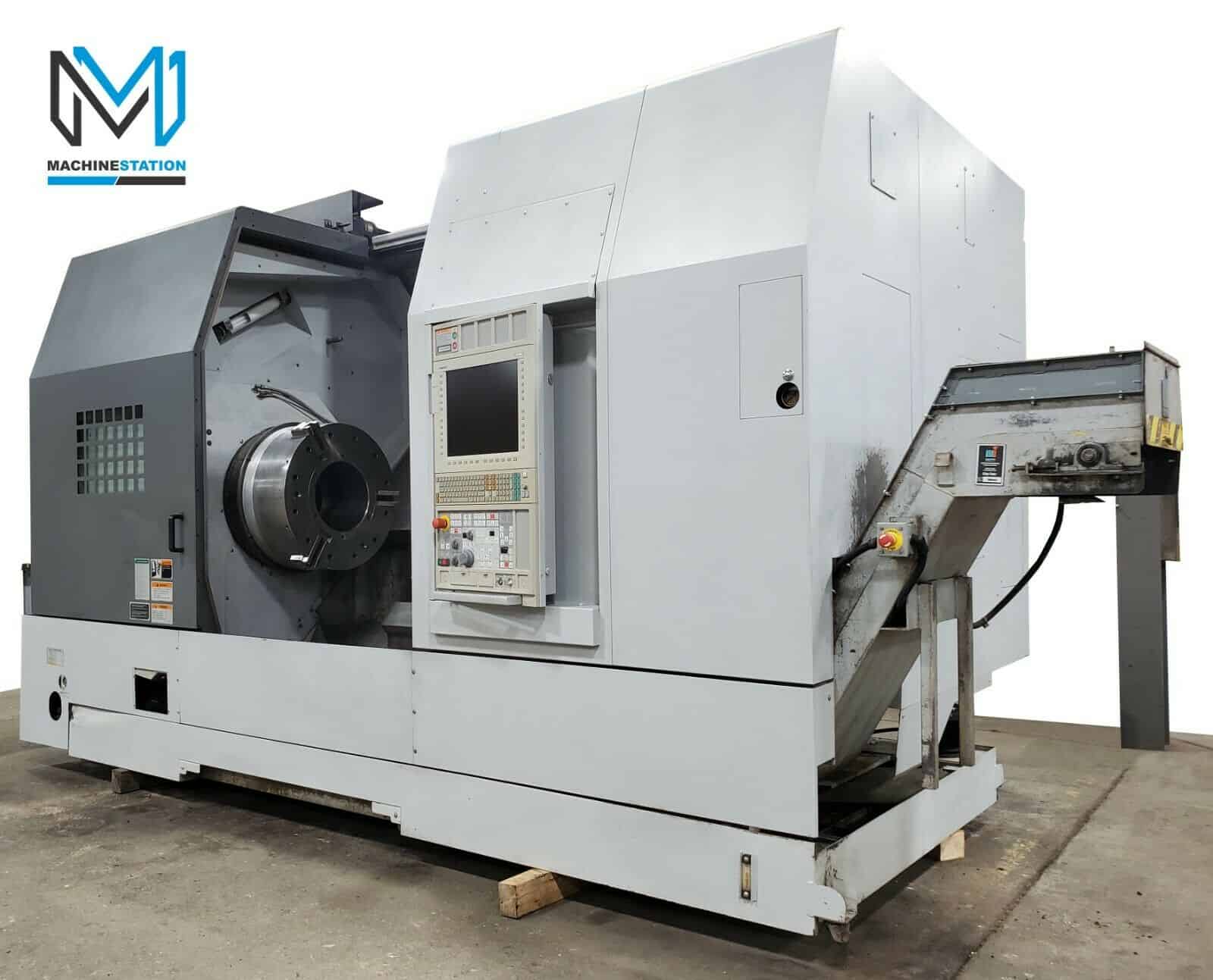

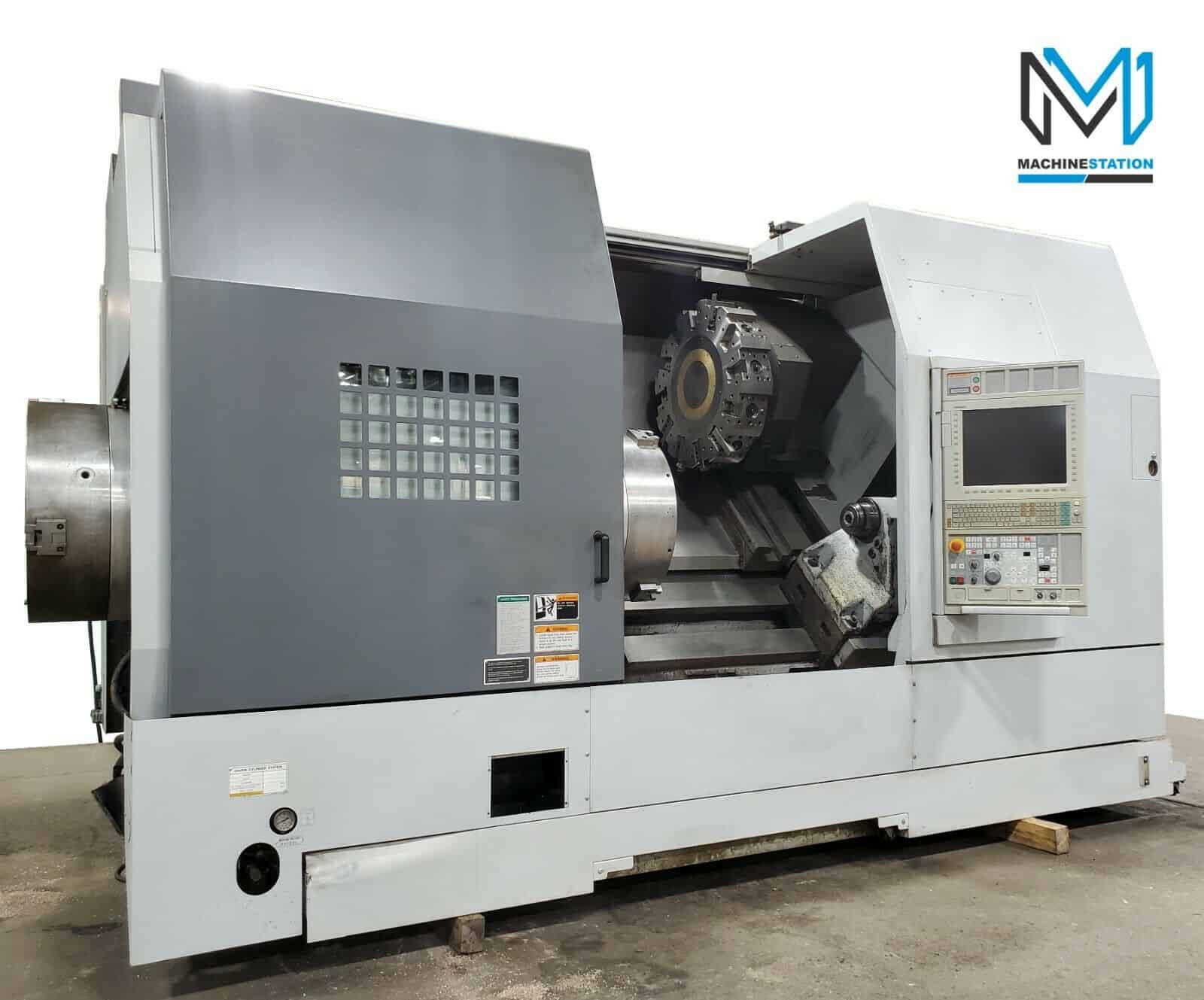

Used DMG Mori Seiki SL-603C/1000 CNC Turning Center

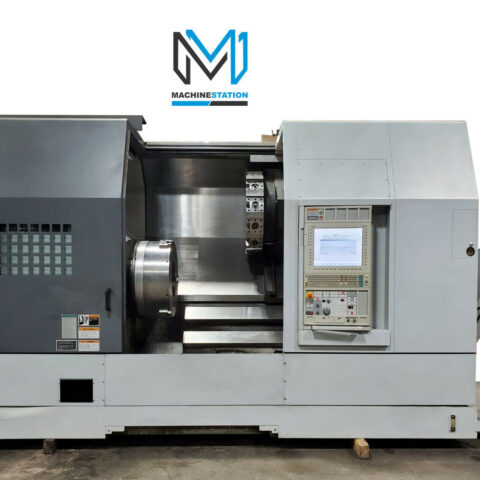

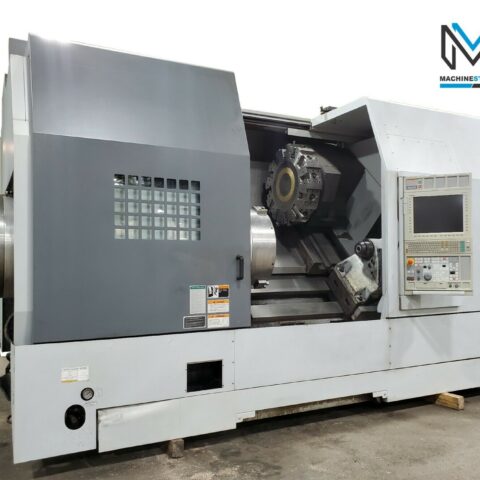

DMG Mori Seiki SL-603C/1000 CNC Turning Center

Location Lake Elsinore, CA

SKU 105161

Make Mori Seiki

Model No. SL-603C/1000

Year 2012

Condition Used-Good

Out of stock

Location	Lake Elsinore, CA
SKU	105161
Make	Mori Seiki
Model No.	SL-603C/1000
Year	2012
Condition	Used-Good

SKU: 105161

All specifications are approximations and are subject to verification.

Equipped With:

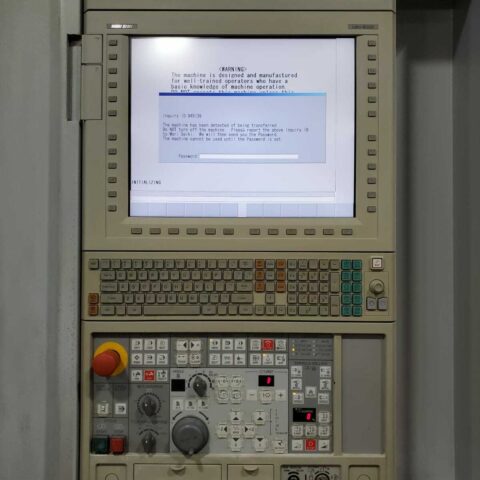

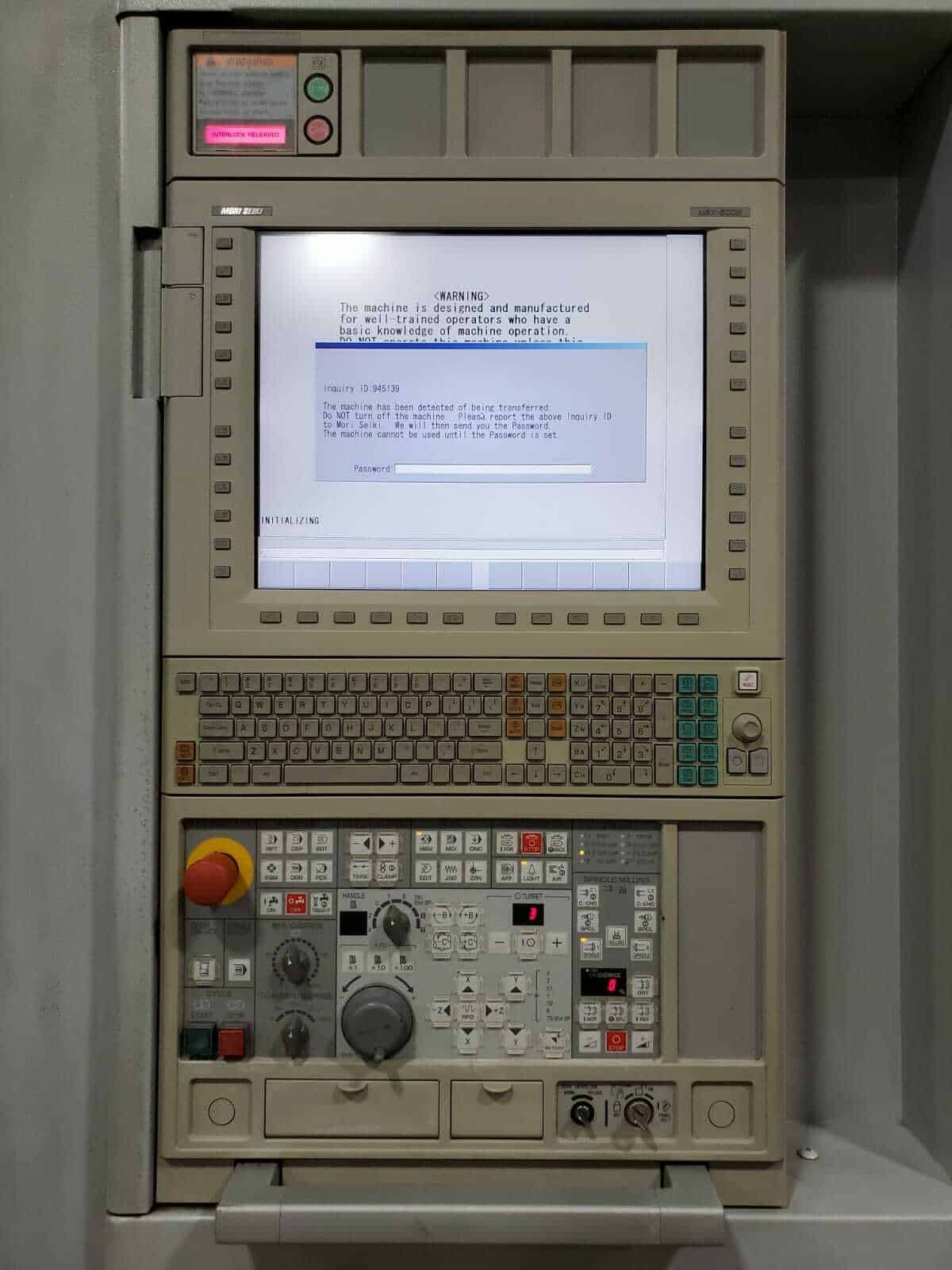

Mori Seiki MSX-500IV CNC Control
Coversational Auto Programming
A1-20 Spindle with 10.8″ Bore

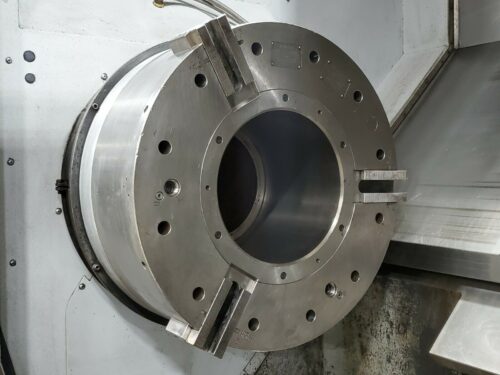

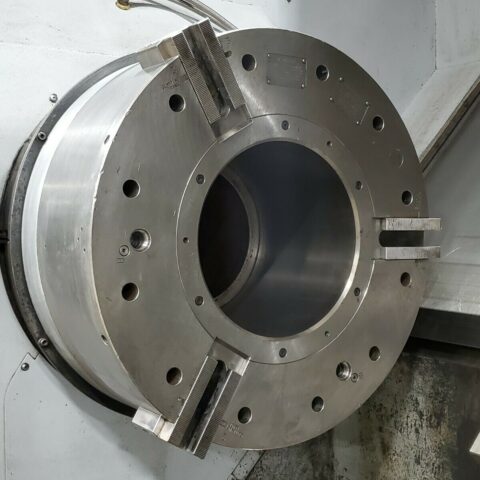

Front 28″ 3 Jaw Chuck
Rear 28″ 3 Jaw Chuck

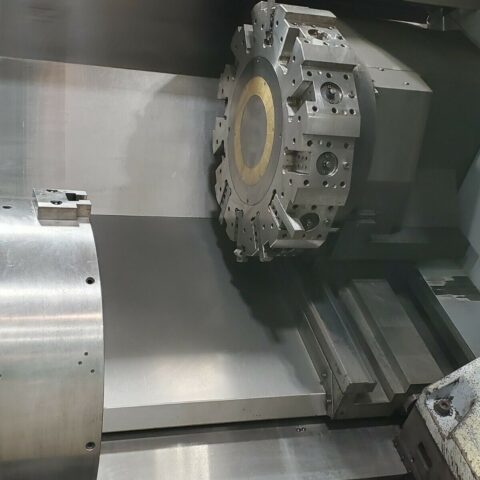

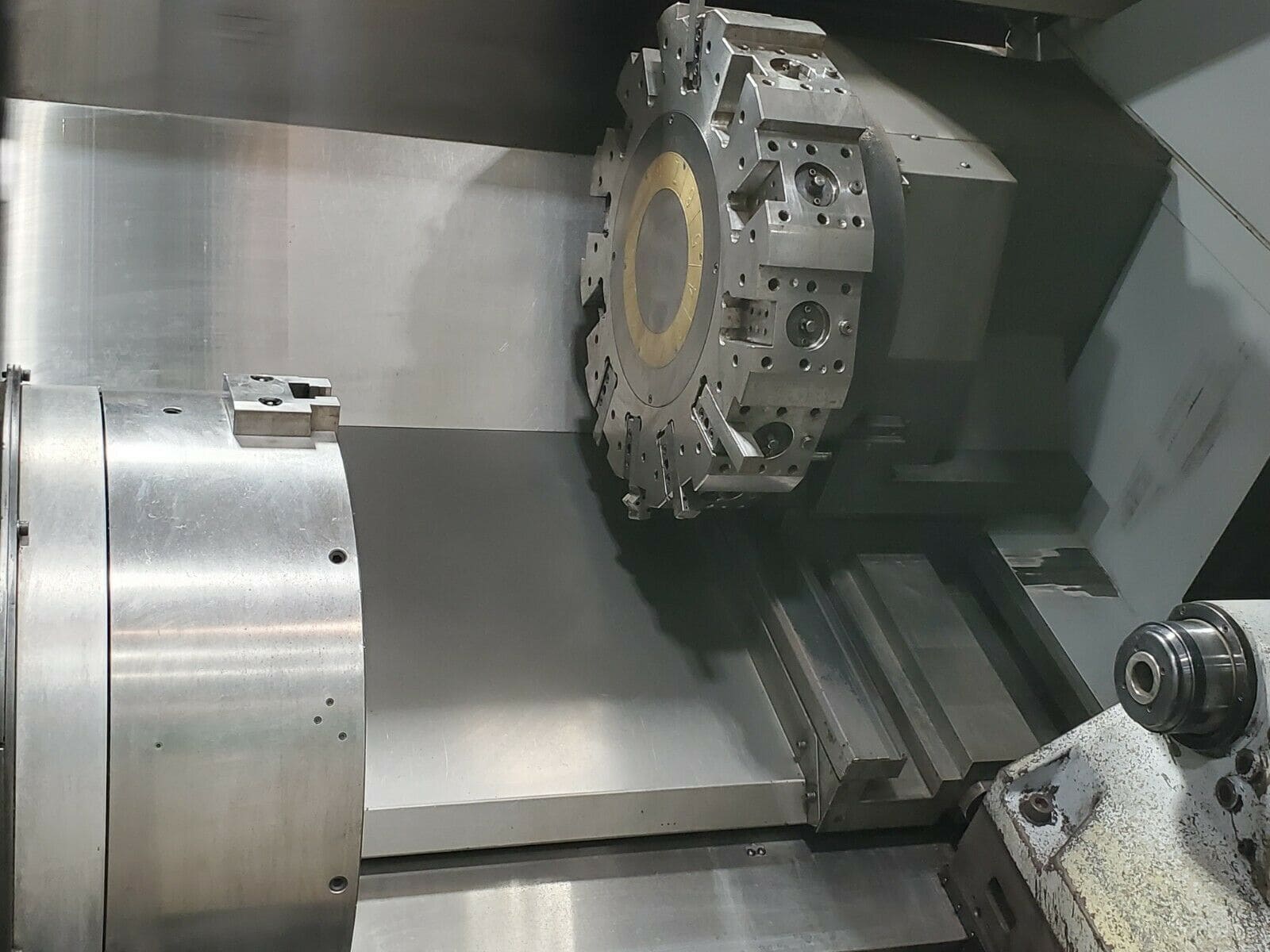

12 Station high speed Turret
60/50 HP Gearbox Spindle
PCMCIA Card Slot
USB Drive
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch

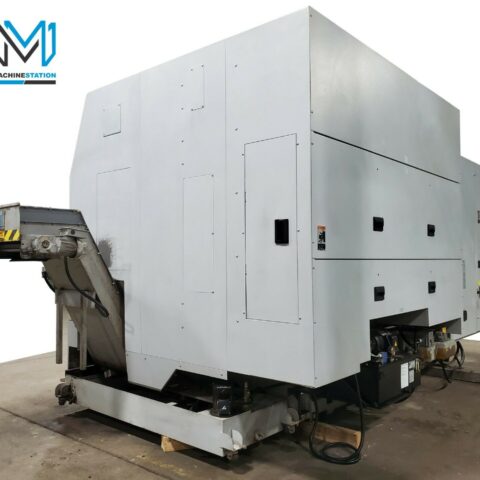

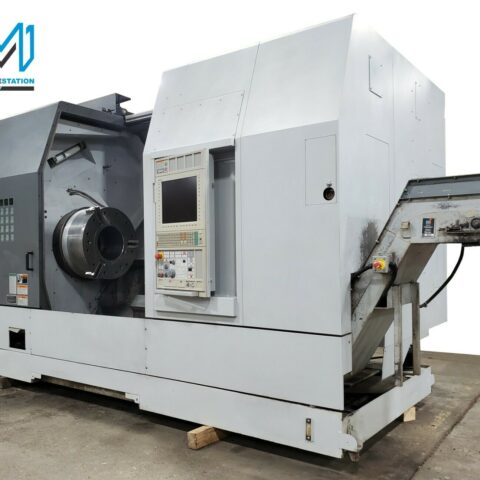

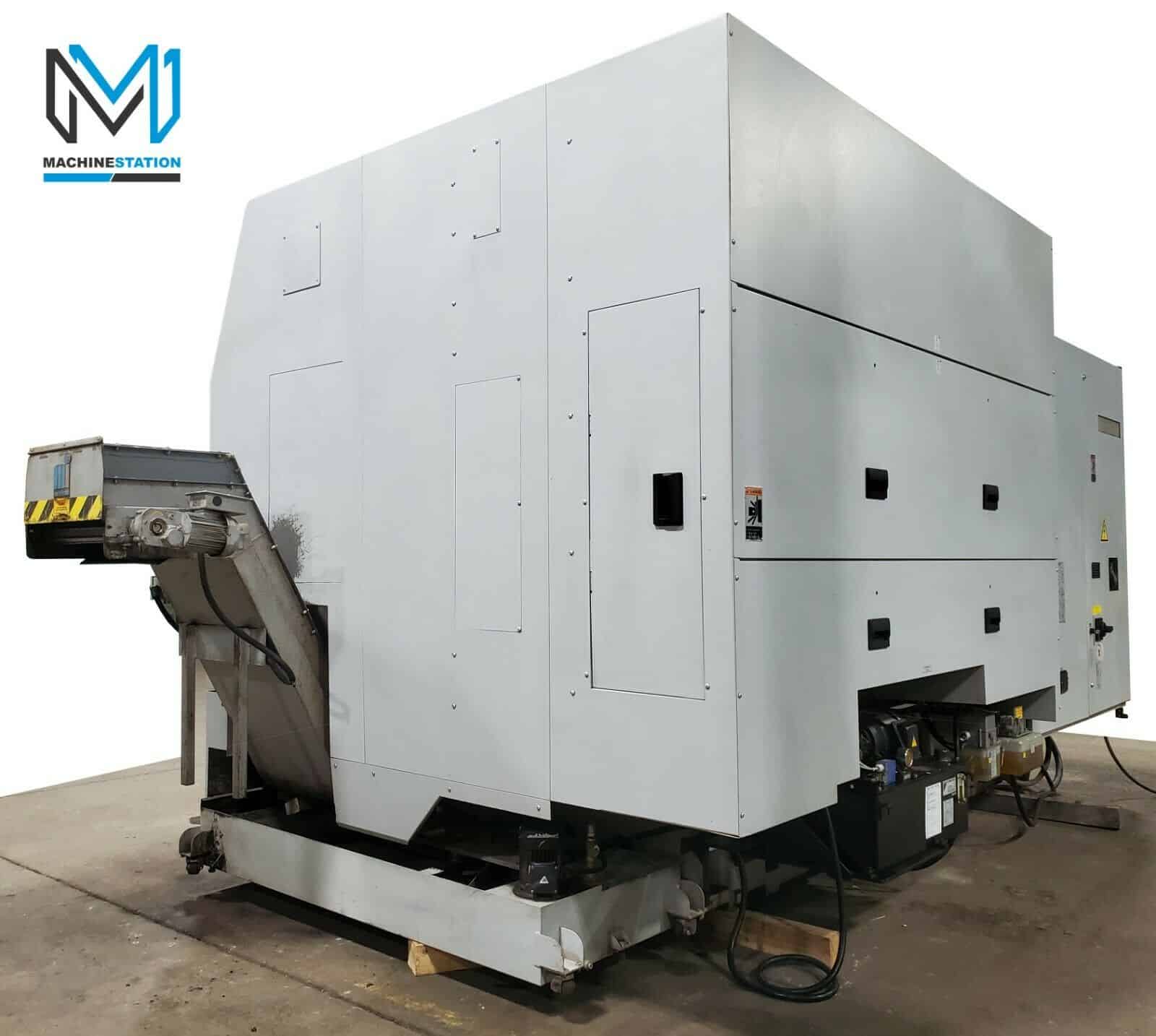

Chip Conveyor
Manuals

Specifications:
Capacity:
Max Turning Diameter: 36.6″
Max Turning Length: 39.3″
Max Bar Capacity: 10.8″
Swing Over Bed: 40.6″
Swing Over Cross slide: 28.9″
Distance Between Centers: 51.2″

Travel:
X Axis Travel: 19.1″
Z Axis Travel: 45.3 ”
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.8″
Spindle Speed: 10-1000 RPM
Spindle Motor: 60/50 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 43.3″
Tailstock Quill Dia.: 5.9″
Tailstock Quill Stroke: 5.93″
Tailstock Taper: MT-5

General:

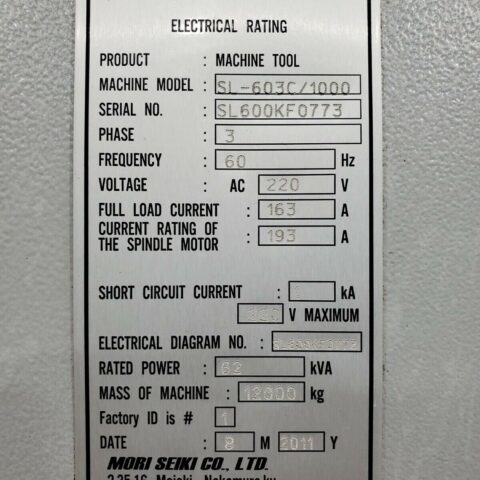

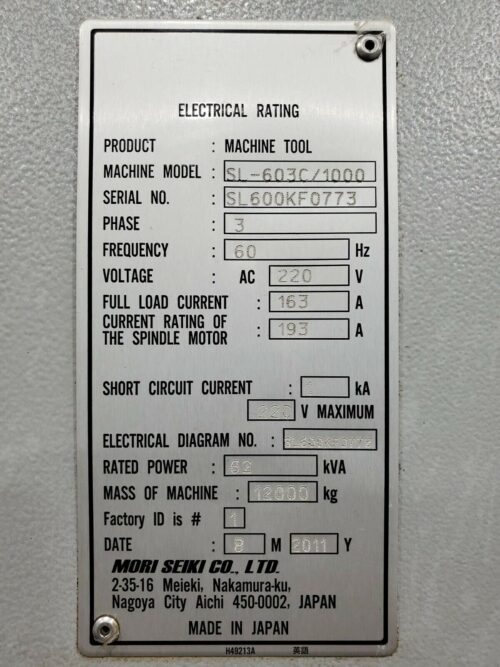

Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 200″ x 120″ x 114″ High
Weight : 33,000 lbs Approx.

“No Charges for loading at list Price”
