*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG MORI |
| Model: |
Sprint 32/5 |
| Year of Manufacture: |
2016 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Swiss-Type Automatic Lathe |
| CNC Control: |
Fanuc 32i-B CNC Control |
| Equipped With: |
| Fanuc 32i-B CNC Control (Dual Channel) |
| Sliding Headstock (Swiss-Type) |
| Sub-Spindle for Back Working |
| Automatic Tool Changer / Tool System |
| Live Tooling Capability |
| High-Pressure Coolant (Optional) |
| Parts Catcher |

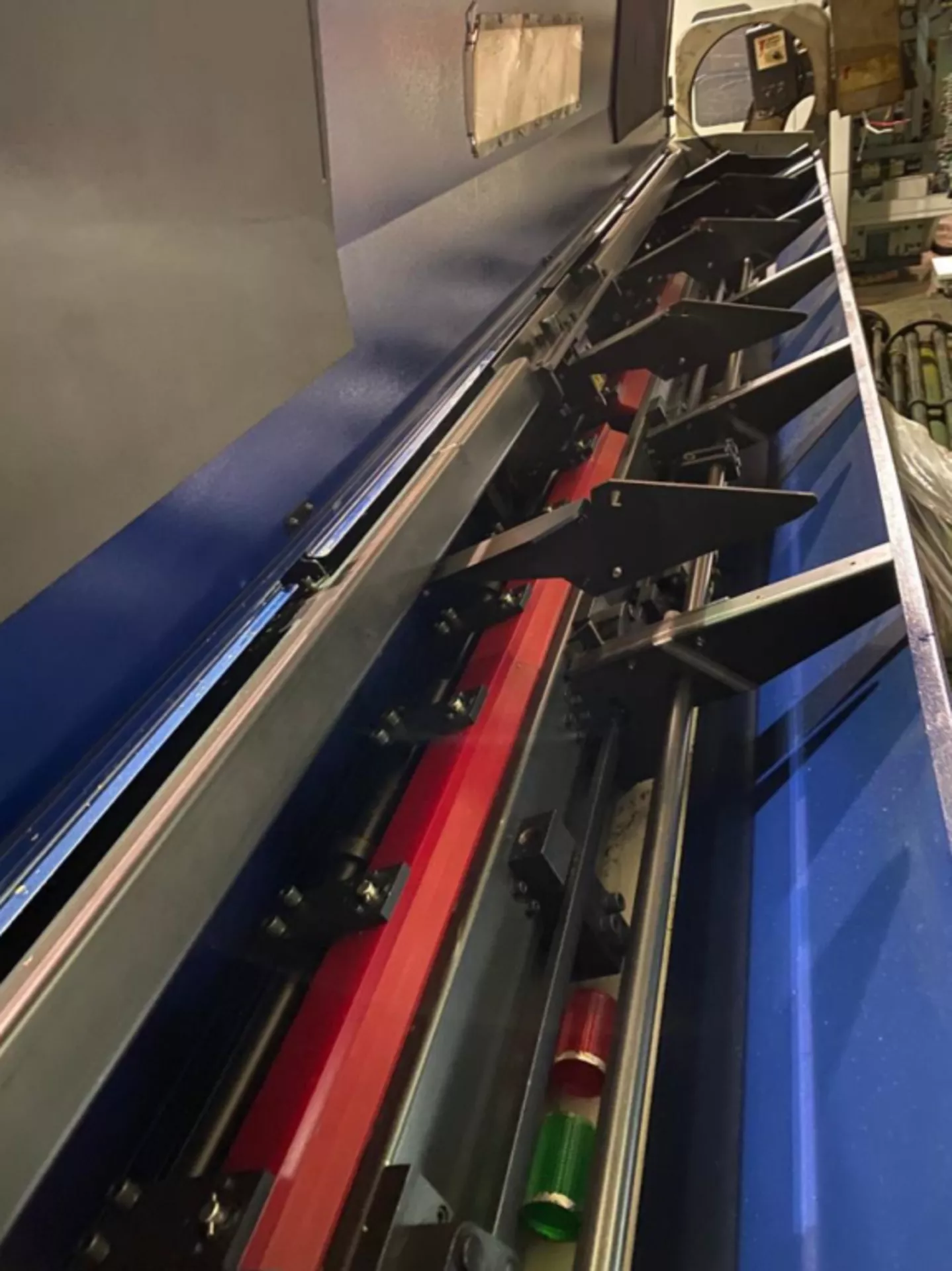

| Bar Feeder Ready |
| Chip Conveyor |
| Capacity: |
| Maximum Bar Capacity: 32 mm (1.26″) |
| Maximum Turning Length: ≈600 mm (with guide bushing/option) |
| Axis Configuration: |
| 5 Linear Axes + C-Axis |
| Dual Channel Machining Capability |
| Simultaneous Front & Back Working |
| Spindle: |
| Main Spindle Speed: Up to 8,500 RPM |
| Counter Spindle Speed: Up to 8,500 RPM |
| Main Spindle Motor: 5.5 kW (≈7.4 HP) |
| Counter Spindle Motor: 2.2 kW (≈3 HP) |
| Tooling: |
| Total Tool Stations: Up to 22 Tools |
| Driven (Live) Tools: 4 Positions Standard |
| Driven Tool Speed: Up to 6,000 RPM |
| Feed Rates: |
| Rapid Traverse: High-speed linear axes (approx. 30–40 m/min range) |
| General: |
| Floor Space: ≈2.8 m² footprint (compact design) |
| Machine Weight: ≈7,500 – 8,000 lbs (approx.) |
| Features: |
| Swiss-type sliding headstock for ultra-precision small parts |
| Dual spindle + dual channel reduces cycle time significantly |
| 22-tool capacity for flexible part production |
| High-speed spindles (8,500 RPM) are ideal for small-diameter machining |
| Compact footprint for high-density shop floors |
| Suitable for the medical, automotive, aerospace, and electronics industries |
