*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | DMV 3016LD |
| Year: | 2006 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | FANUC Series 0i-MC CNC Control |
| Features: |
|---|
| FANUC Series 0i-MC CNC Control |
| 20-Position Automatic Tool Changer |
| CAT 40 Spindle Taper |
| 8,000 RPM Spindle |
| 15 HP Spindle Motor |
| Full Enclosure |
| Flood Coolant System |
| Coolant Tank & Pump System |
| Chip Conveyor |
| Portable Manual Pulse Generator |
| Rigid Tapping |
| Enclosed Machining Area |
| Table: |
|---|
| Table Size: 39.4″ × 17.7″ |
| Maximum Table Load: 1,320 lbs. |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Spindle Nose to Table: 5.9″–26″ |
| Spindle: |
|---|
| Spindle Type: Vertical |
| Spindle Taper: CAT 40 |
| Spindle Speed: 8,000 RPM |
| Spindle Motor: 15 HP |
| Column to Spindle Center: 17.7″ |
| Automatic Tool Changer: |
|---|
| Type: Side-Mount |
| Capacity: 20 Positions |
| Tool Taper: CAT 40 |
| Feedrates: |
|---|
| X/Y Rapid Traverse: 1,181 IPM |
| Z Rapid Traverse: 945 IPM |
| Cutting Feed Rate: 0.04–315 IPM |
| General: |
|---|

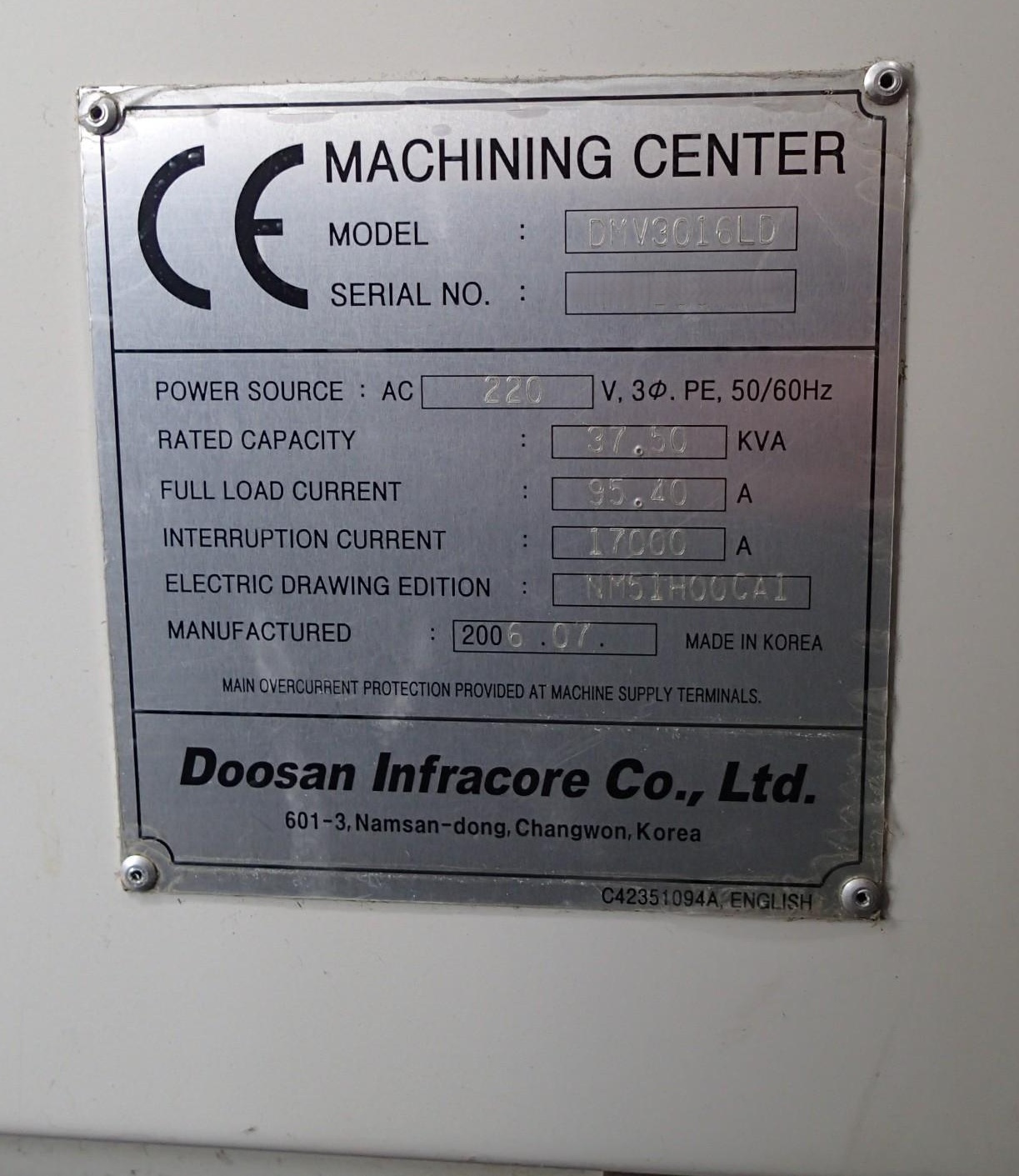

| Power Source: 220V / 3-Phase / 50–60 Hz |
| Machine Dimensions (Approx.): 117″ L × 96″ W × 108″ H |
| Machine Weight (Approx.): 12,000 lbs. |
